PRE-TUNED & PRE-SETUP:

• Don’t worry about tuning, we did that for you already! A basic PID- and Filter tuning was applied for a great flight experience!

• To restore lost tunes or updates, please check our linked article on“Firmware/Factory Dumps”

• Angle-Mode (self balancing level mode) is enabled by default to make sure your first flight doesn’t end in a mess!

• Please check our linked article on “How to disable Angle-Mode, activate Acro-Mode”


ProTek R20 BNF Specs:

• VTX: SucceX Mini Force 5.8GHz 600mW VTX Adjustable

• Weight: 89.2g (without battery)

• Bottom plate thickness: 2.5mm

• Motor: XING NANO 1202 6000KV


• Top plate thickness: 1.5mm

• Body Size: 132mm*122mm

• FC pattern: 25.5*25.5mm

• FPV cam spacing: 14mm

• Whoop F4 AIO 1.1

• Arm Thickness: 2.5mm

• Propeller size: 2 inch


• Wheelbase: 94mm


Specifications:

AIO//Whoop AIO F4 V1.1 AIO

• Mounting pattern: 25.5*25.5mm/φ3mm

• Firmware Target: IFLIGHT_F411_PRO

• Constant current: 20A，25A (Burst)

• Config：IFLIGHT_F411_PRO.config

• Connector: Micro-USB

• ESC Firmware: Q-H-15

• Current sensor: yes

• BEC output: 5V 2A

• ESC Telemetry: NO

• Size: 30.5*30.5mm

• MCU: STM32F411

• BLHeli: BLHeli-S

• Barometer: NO


• Blackbox: 8MB

• Gyro: BMI270

• INA pad: nR2

• Weight: 7.4g

• Input: 2-4S

VTX//SucceX Mini Force 5.8GHz 600mW VTX Adjustable

• Power: PIT/25/200/400mW/600mW

• Antenna interface: MMCX

• VTX protocol : IRC Tramp

• Output 40 channels.


• Size: 29*29mm

• Mounting pattern: 20*20Φ3/25*25 mmΦ2

• Weight: 4g

ProTek R20 Analog Quad BNF Included Components and Parts

• pre-built and tested Quadcopter

• 1 x iFlight Lipo Strap 10*150mm (Color May Vary)


• 2 x HQ 2*2*3 (Set of 4 – Color May Vary)

• 1 x ProTek R20 Analog BNF

———

Related Article:

(If there is any information error in the article, the product description shall be the standard.)

iFlight Protek R20 Review : A Compact Whoop Style FPV Drone

Introduction:
The iFlight Protek R20 is the smallest member of the Protek series, boasting a compact wheelbase of just 94mm. In this article, we will delve into the specifications and features of this brushless Whoop style FPV drone. While the R20 exclusively offers an analog FPV system without an HD digital option, its small size and powerful components make it a promising choice for FPV enthusiasts.

Specifications:
1. Whoop AIO F4 Flight Controller:
– Battery Compatibility: 2-4s
– Firmware Target: IFLIGHT_F411_PRO
– Connector: Micro-USB
– Current Sensor: Yes
– BEC Output: 5V 2A
– MCU: STM32F411
– Blackbox: 8MB
– Gyro: BMI270
– Size: 30.5*30.5mm
– Mounting Pattern: 25.5*25.5mm/φ3mm
– Weight: 7.4 grams

2. SucceX Mini Force 5.8GHz 600mW VTX:
– Broadcast Power: PIT/25/200/400mW/600mW
– Antenna Interface: MMCX
– VTX Protocol: IRC Tramp
– Output Channels: 40
– Size: 29*29mm
– Mounting Pattern: 20*20Φ3/25*25mmΦ2
– Weight: 4 grams

3. C01 FPV Camera:
– Image Sensor: 1/4″ CMOS sensor
– Resolution: 733H*493V, with global WDR
– Signal System: NTSC
– Lens: 2.1mm (M7), field of view 160°
– Signal-to-Noise Ratio: >45db
– Electronic Shutter Speed: Auto
– Automatic Gain Control (AGC): Automatic
– Minimum Illumination: 0.01Lux@1.2F
– D-WDR: Automatic
– Day/Night: Color
– Power Supply: DC 3-5.5V
– Current: 135mA @ 5V / 135mA @ 3.3V
– Shell Material: ABS
– Size: 11*14.5mm
– Net Weight: 1.4 grams

Features:
The iFlight Protek R20 incorporates a compact Whoop AIO F4 flight controller with an integrated 20A ESC and ELRS radio receiver. Its powerful XING-E 1105 6500KV brushless motors are paired with HQProp 2020 3-leaf propellers, ensuring impressive performance in a small form factor.

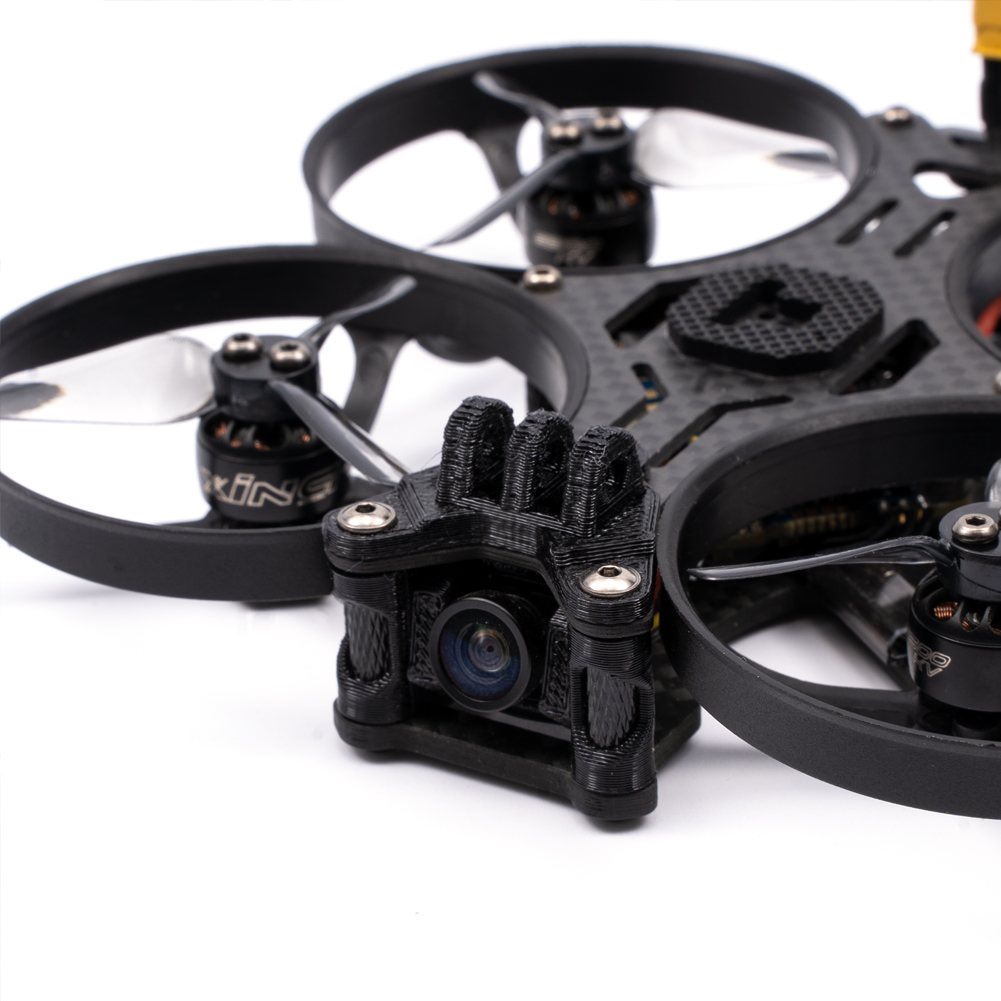

This drone is equipped with the C01 FPV camera featuring a 1/4″ CMOS sensor and global WDR, delivering clear and vibrant video footage. Users have the option to attach lightweight action cameras such as the RunCam Thumb, Insta360 GO 2, or Caddx Peanut for an enhanced FPV experience.

Conclusion:
The iFlight Protek R20 is a compact and powerful Whoop style FPV drone designed to provide an exhilarating flying experience. Despite its small size, it incorporates high-quality components and a reliable FPV system. While it lacks an HD digital option, the R20 caters to analog FPV enthusiasts who prioritize agility and maneuverability. With its impressive specifications and features, the iFlight Protek R20 is a

worthy choice for those seeking an immersive FPV experience.
