Description

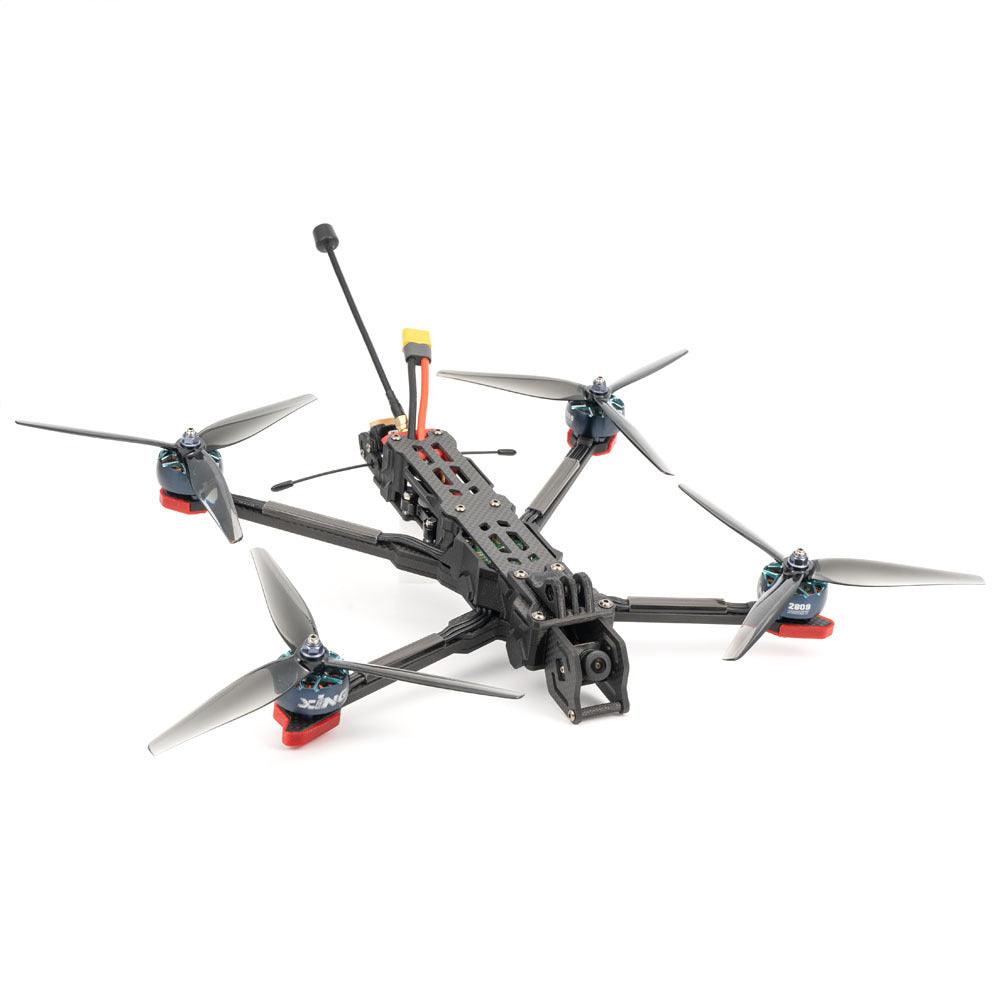

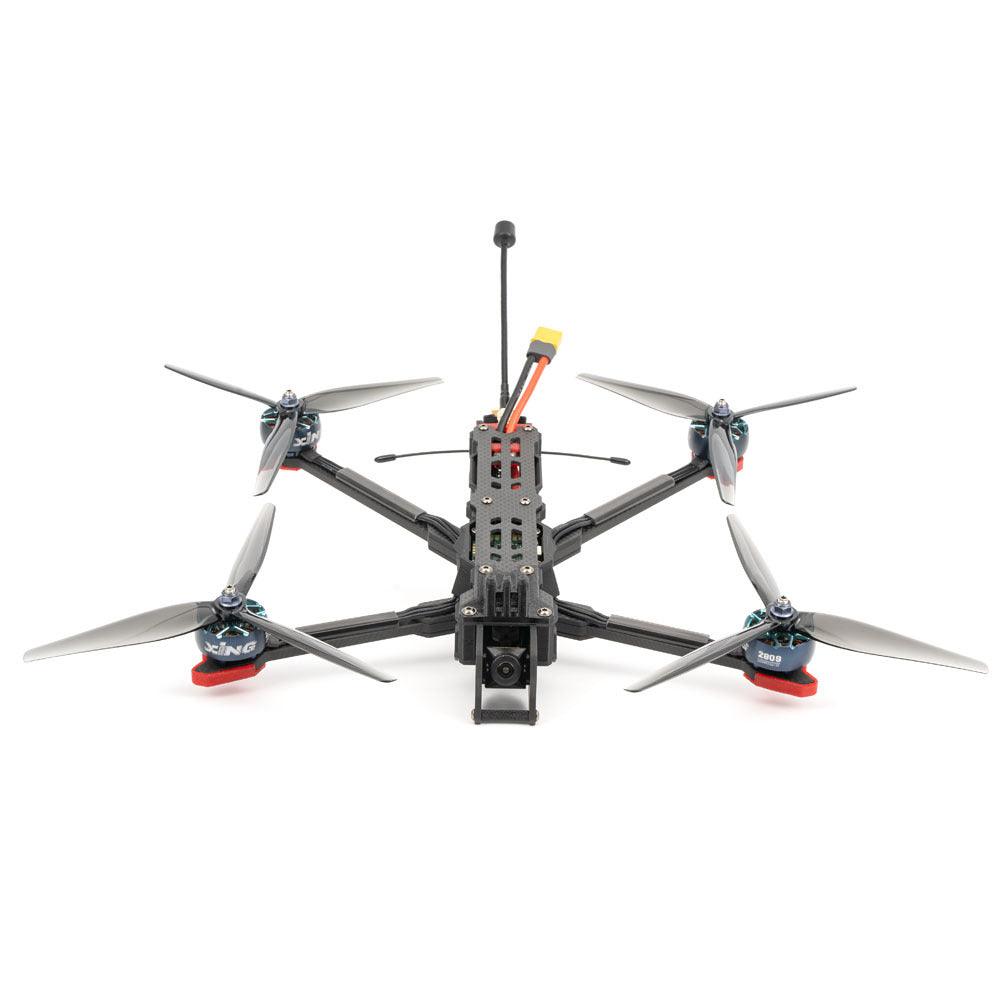

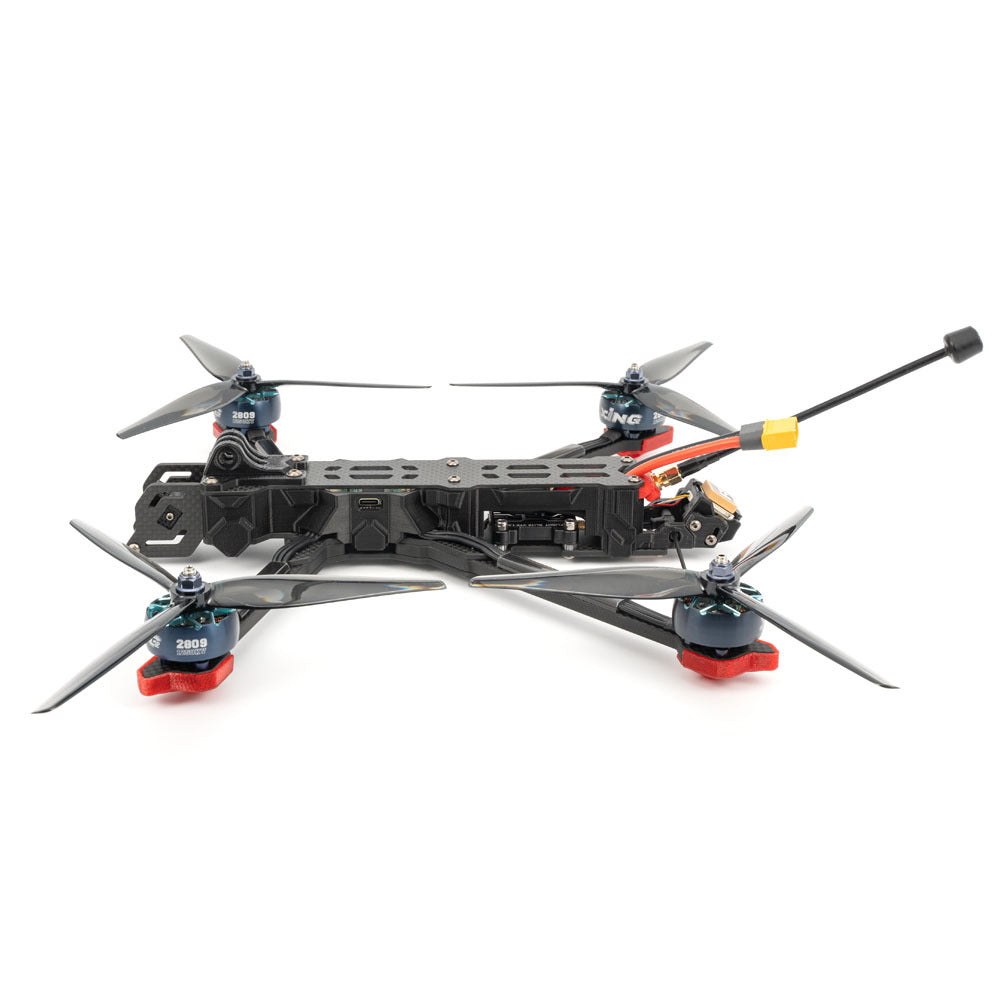

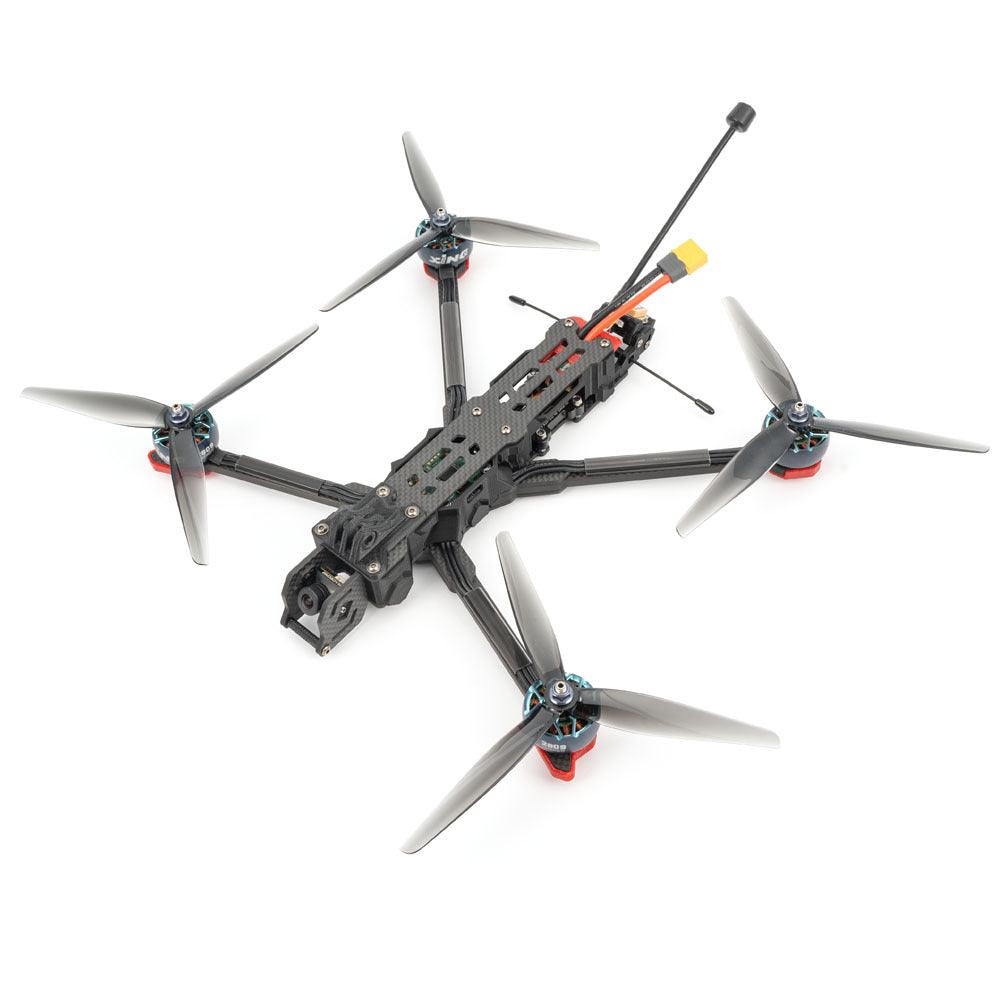

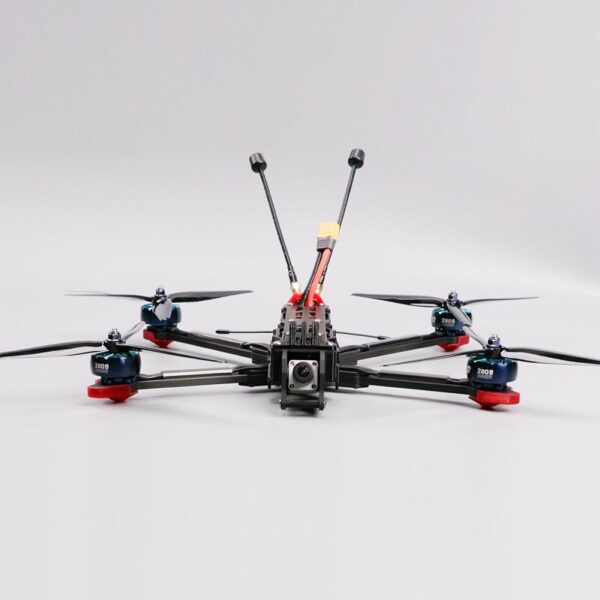

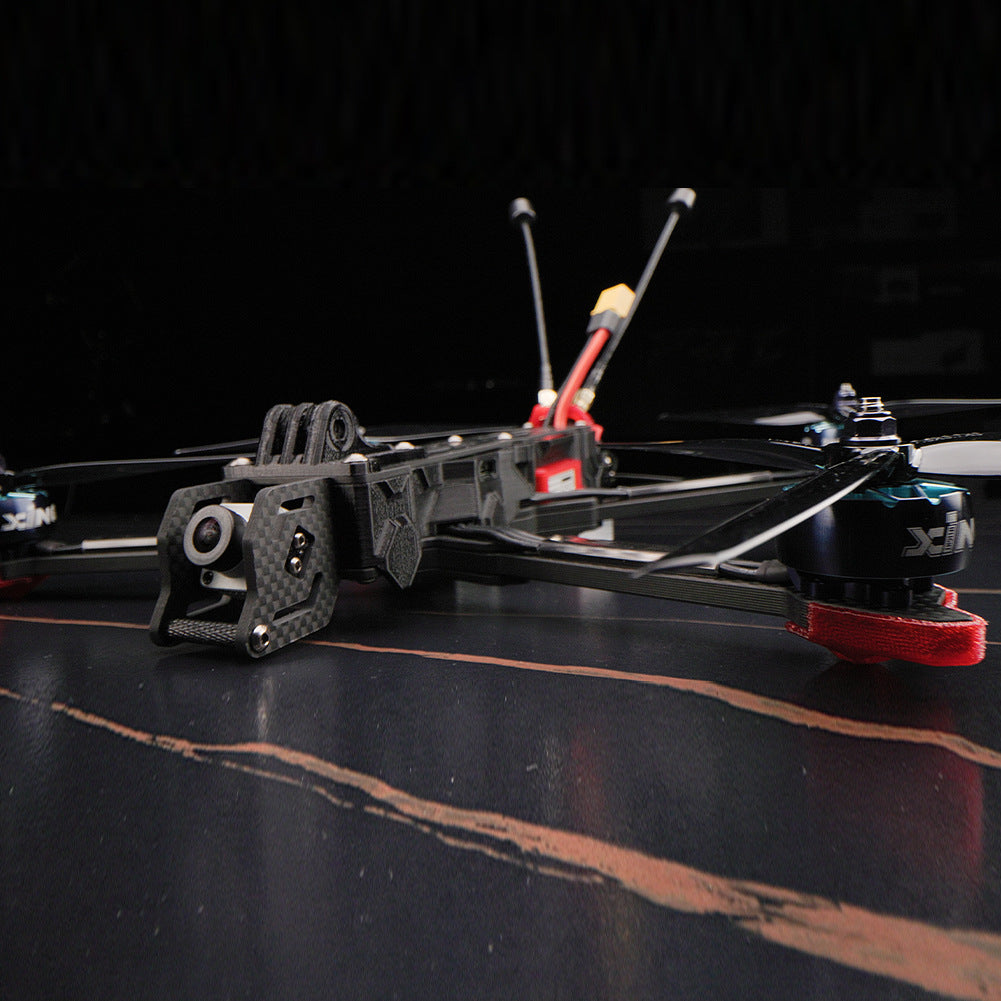

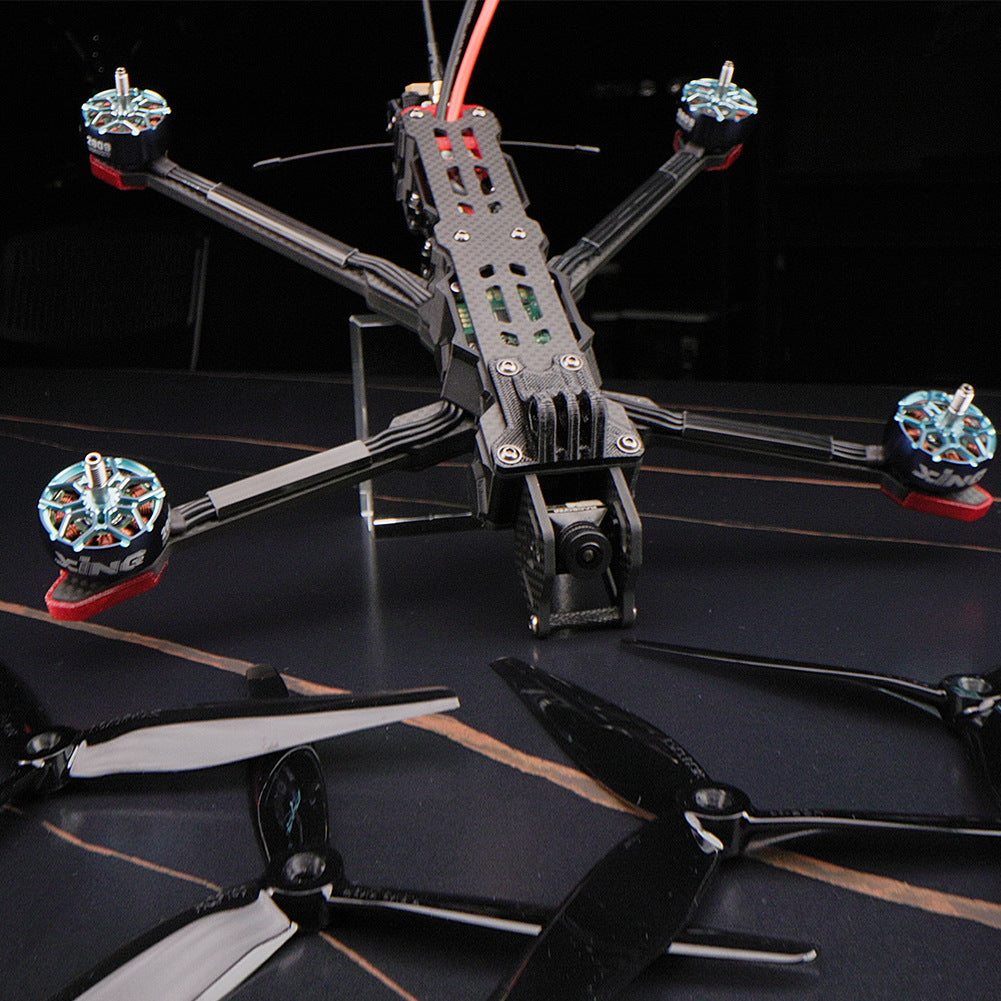

iFlight Chimera7 Pro Specifications | |
---|---|
Brand | iFlight |
Model | Chimera7 Pro |
Weight | 695g (without battery and GoPro mount) |
Total Dimensions | 258*200mm (body dimension) |
Upper(middle) Plate Thickness | 3mm |
Bottom to Top Distance | 20-29mm |
ESC | BLITZ E55 4-IN-1 2-6S ESC |
Camera Plate Thickness | 3mm |
Bottom Plate Thickness | 3mm |
Top Plate Thickness | 3mm |
Geometry | DC (DeadCat) |
Propellers | HQ 7.5X3.7X3 |
Arm Thickness | 6mm |
FC | BLITZ F722 |
Motor | XING2 2809 1250KV |
BLITZ F722 Flight Controller | Mount pattern: 30.5*30.5mm / 4mm PCB hole diameter Smartaudio / IRC Tramp VTX protocol supported Firmware target: IFLIGHT_BLITZ_F722 Motor outputs: 4x (SH1.0 connector) Flash: 32MB (Blackbox flash) I2C serial: SDA / SLA pads Dimensions: 36.5*35 mm Barometer: DPS310 OSD Chip: AT7456E LED controller: Yes MCU: STM32 F722 Beeper pad: Yes Gyro: BMI270 Weight: 7.8g UARTS: 6 |
BLITZ E55 4-IN-1 2-6S 55A ESC | Supports: DShot DShot150/300/600/MultiShot/ OneShot etc. Mounting Holes: 30.5*30.5mm/Φ4mm Target: IFLIGHT_BLITZ_G2 Supports 2-6S Lipo input Current sensor: Yes Constant: 55 Amps Current rate: 200 Burst: 65 Amps Weight: 15.3g MCU: G071 BEC: No |

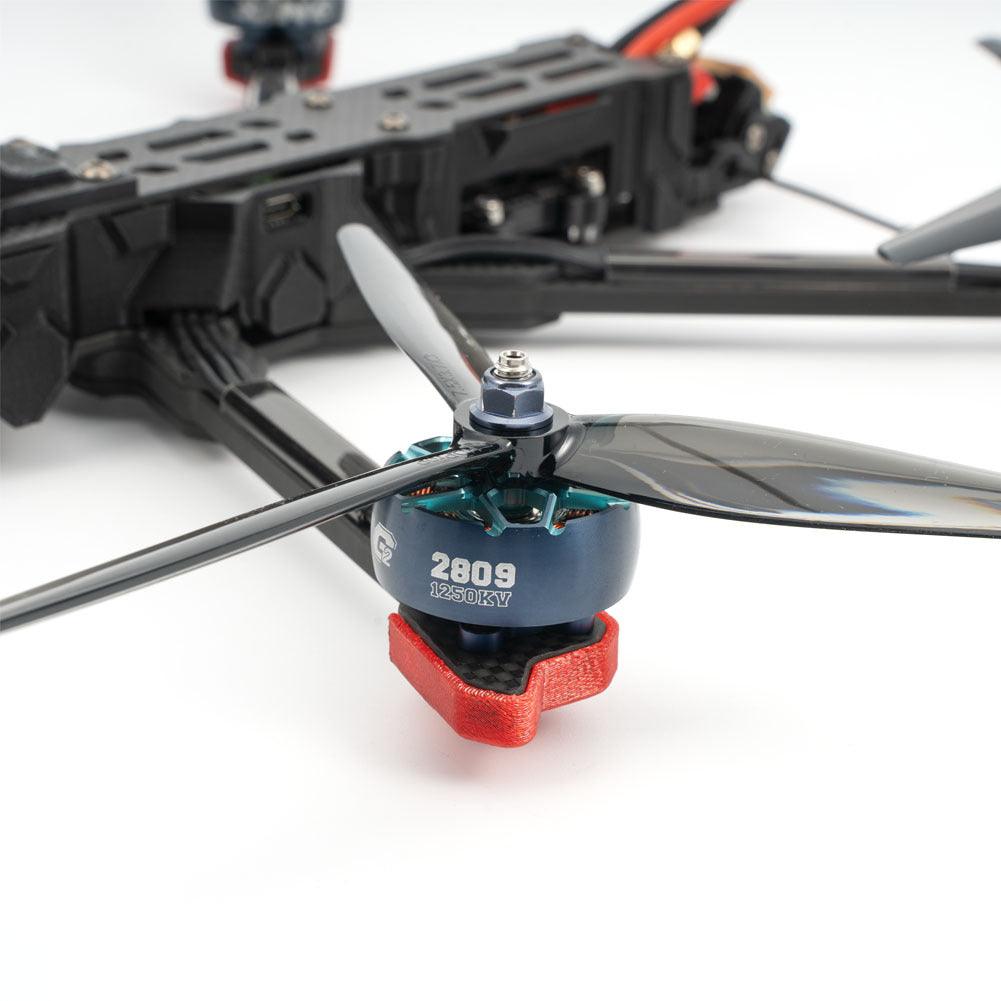

XING2 2809 1250KV Motor | Model: XING2 2809 KV: 1250 Quantity: 1 PC Prop shaft: CW thread Recommended input voltage Voltage: 4S-6S (16V-26V) Configuration: 12N14P Stator Diameter: 35.33mm Weight: 60.7g with short wire Wire length: 18AWG 260mm Mounting pattern: 19*19mm |
Main Changelog from Chimera7 to Chimera7 Pro:
- New Lightweight Side Panels Design – Keep Your Rig Clean
- SucceX-D F7 V2.2 Stack (F7+50A ESC) upgraded to BLITZ F722 Stack (F7 V1.1 + 55A 4in1 ESC)
- XING 2806.5 upgraded to XING2 2809 1250KV
- 7-inch frame upgraded to 7.5inch
Highlights:

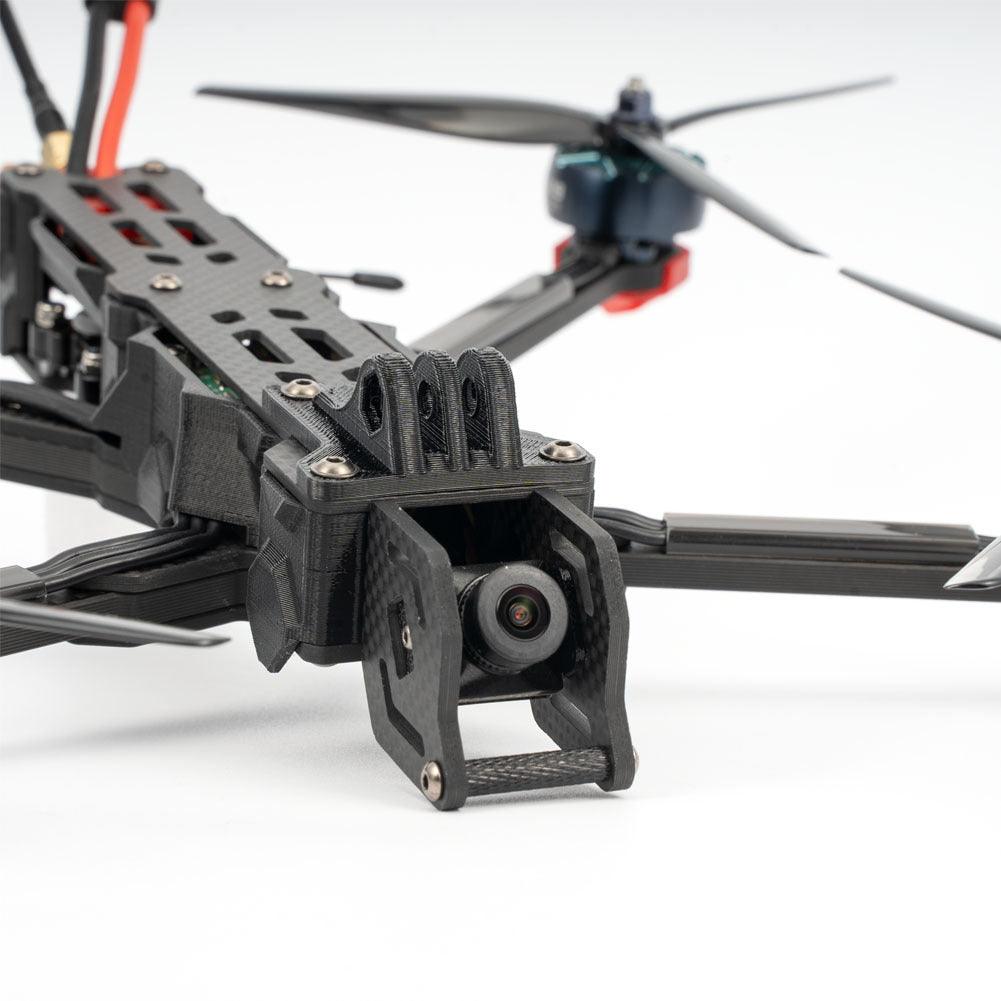

- 360° TPU protection, DJI cam protection and antenna mounts
- Battery voltage LED status light (illuminated IF logo on the bottom)
- GoPro TPU bottom stand (GoPro protector not included)
- No props in view (DJI Air unit record in 1080p/60fps)
- Lightweight Side Panels Design – Keep Your Rig Clean
- GPS pre-installed for more safety at a distance
- XING2 2809 1250KV efficient wide stator motors
- 6mm rigid arm design for more stiffness
- Top- and bottom battery mount option
PRE-TUNED & PRE-SETUP:
- Is this your first BNF or are you just starting through with FPV? This article might probably help: General Guide // iFlight BNF
- Don’t worry about tuning, we did that for you already! A basic PID- and Filter tuning was applied for a great flight experience!
To restore lost tunes or updates, please check our linked article on “Firmware/Factory Dumps” - Angle-Mode (self-balancing level mode) is enabled by default to make sure your first flight doesn’t end in a mess!
Please check our linked article on “How to disable Angle-Mode, activate Acro-Mode” - GPS Rescue is OFF by default to prevent unwanted or unexpected drone behavior.
Please check our linked article on”GPS Rescue Mode // Setup”
Related Article:
iFlight Chimera7 Pro Review
(If there is any information error in the article, the product description shall be the standard.)
iFlight Chimera 7 Pro V2: Unleashing Long-Range FPV Potential
Introduction:
The iFlight Chimera 7 Pro V2 is an advanced and highly capable long-range First Person View (FPV) drone that pushes the boundaries of FPV flying. Built with top-of-the-line components and packed with innovative features, this drone offers FPV enthusiasts an extraordinary experience of long-distance exploration and cinematic captures. In this article, we will delve into the impressive capabilities of the iFlight Chimera 7 Pro V2, highlighting its long-range FPV prowess, advanced components, exceptional flight performance, and key features that set it apart from other FPV drones.
Long-Range FPV Capabilities:
The iFlight Chimera 7 Pro V2 is specifically engineered for long-range FPV flights, allowing pilots to explore vast distances with exceptional video transmission and control. With its integrated long-range radio system, high-gain antennas, and reliable communication protocol, this drone offers an extended range of up to several kilometers, delivering a seamless FPV experience over long distances.
Advanced Components for Optimal Performance:
The iFlight Chimera 7 Pro V2 boasts a range of advanced components, ensuring superior performance and reliability:
1. Frame: The drone features a lightweight yet durable frame, constructed with high-quality materials such as carbon fiber, providing optimal strength and impact resistance.
2. Flight Controller: Equipped with an advanced flight controller, the drone offers precise control, stability, and advanced flight features, empowering pilots to navigate through challenging environments.
3. Motors and Propellers: The high-performance brushless motors and well-balanced propellers deliver impressive thrust, enabling smooth and efficient flight even in demanding conditions.
4. Camera and Video Transmitter: The integrated FPV camera and video transmitter provide a high-quality video feed, ensuring a clear and immersive FPV experience for pilots.
Exceptional Flight Performance:
The iFlight Chimera 7 Pro V2 excels in flight performance, offering pilots precise control, agility, and stability. Whether flying at high speeds or executing intricate maneuvers, this drone handles with ease, providing a thrilling and immersive flight experience. With advanced flight modes and customizable settings, pilots can tailor the drone’s behavior to their preferences, achieving optimal flight performance for both freestyle and long-range exploration.
Key Features that Set it Apart:
The iFlight Chimera 7 Pro V2 stands out from other FPV drones due to its distinctive features:
1. Integrated GPS System: The drone incorporates a GPS module, enabling accurate positioning, return-to-home functionality, and precise waypoint navigation.
2. HD Video Transmission: With its high-definition video transmission system, the Chimera 7 Pro V2 delivers crystal-clear video feed, ensuring an immersive FPV experience even at long distances.
3. Extended Flight Time: Equipped with high-capacity batteries and efficient power management, the drone offers extended flight times, allowing pilots to explore vast areas without interruptions.
4. Modular Design: The modular design of the drone facilitates easy maintenance, repair, and component upgrades, ensuring longevity and adaptability for future advancements.
Conclusion:
The iFlight Chimera 7 Pro V2 is a remarkable long-range FPV drone that excels in performance, range, and features. With its advanced components, exceptional flight performance, and innovative capabilities, it offers FPV enthusiasts an unparalleled experience in long-distance exploration and cinematic captures. Whether you are a seasoned FPV pilot or an aspiring adventurer, the iFlight Chimera 7 Pro V2 is designed to push the boundaries of FPV flying and unlock the potential for thrilling and awe-inspiring aerial adventures.
Disclaimer: The information provided in this article is fictional and created for illustrative purposes. For accurate and detailed information about the iFlight Chimera 7 Pro V
2, please refer to the official documentation and product specifications provided by the manufacturer.
