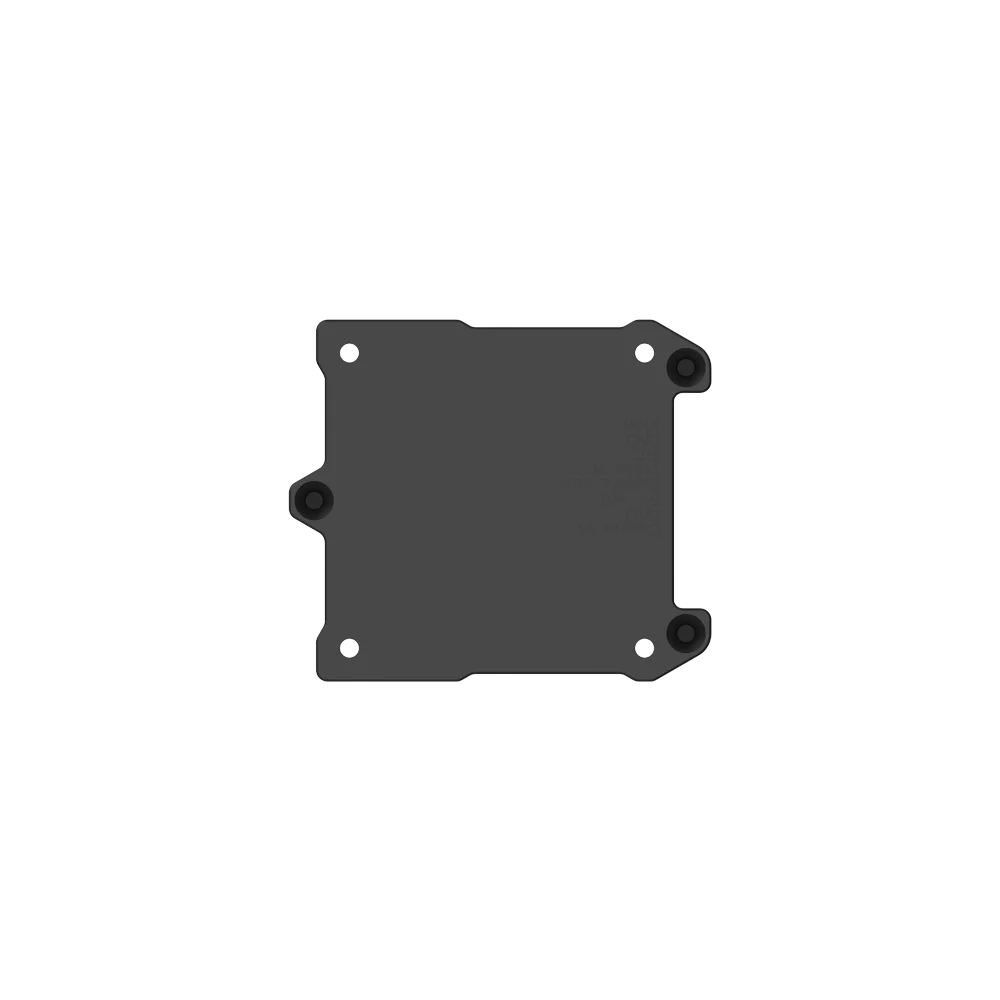

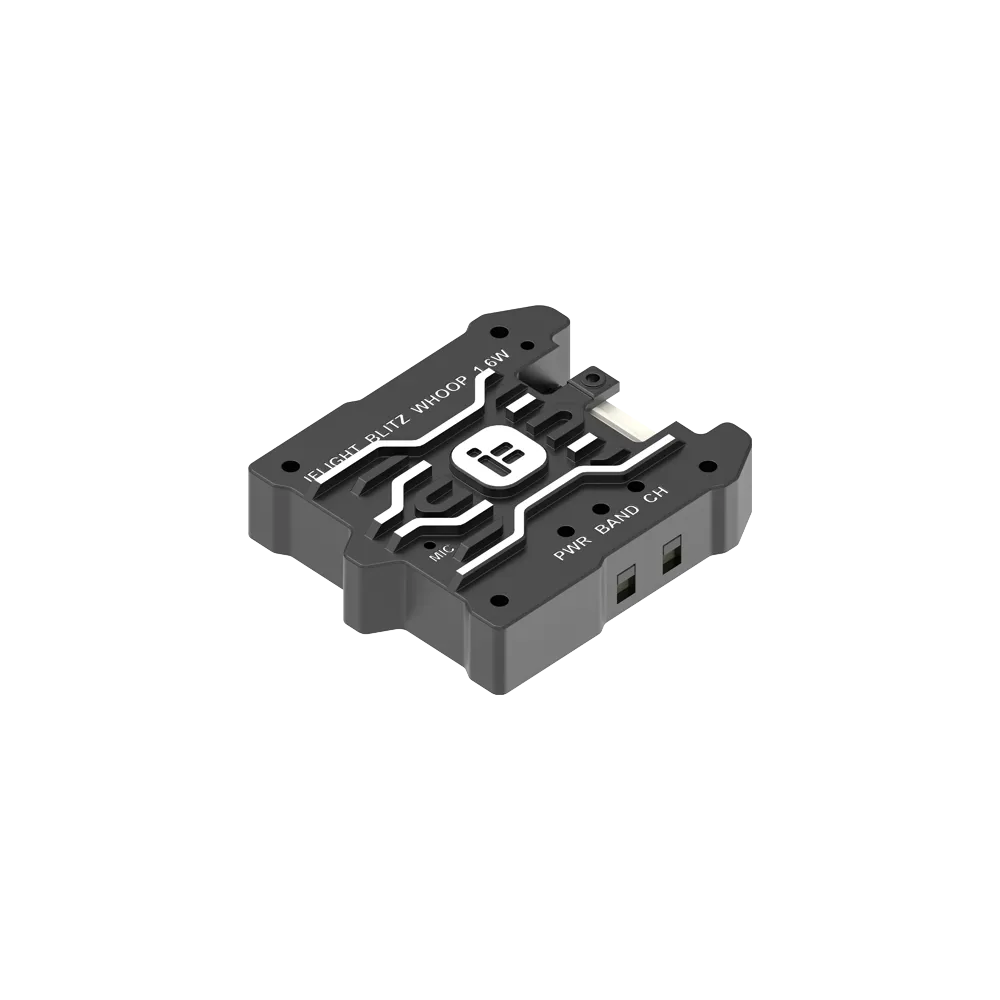

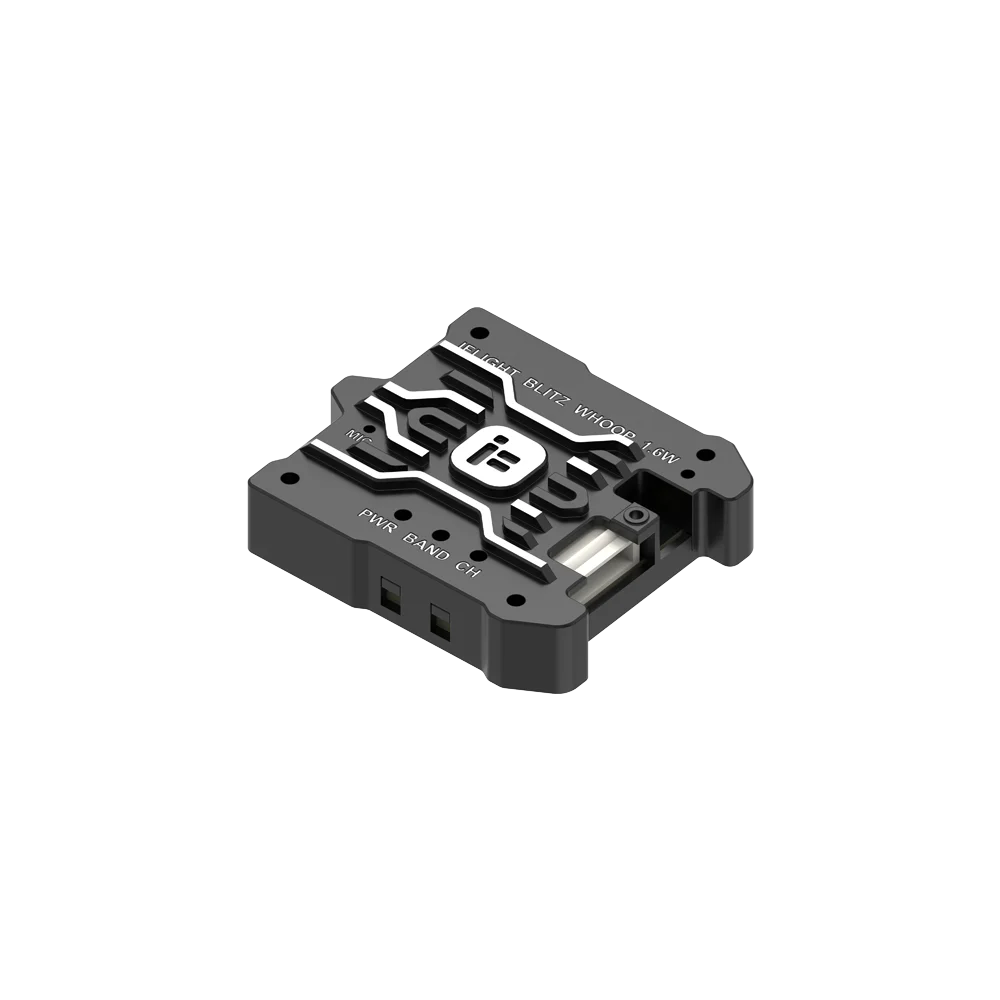

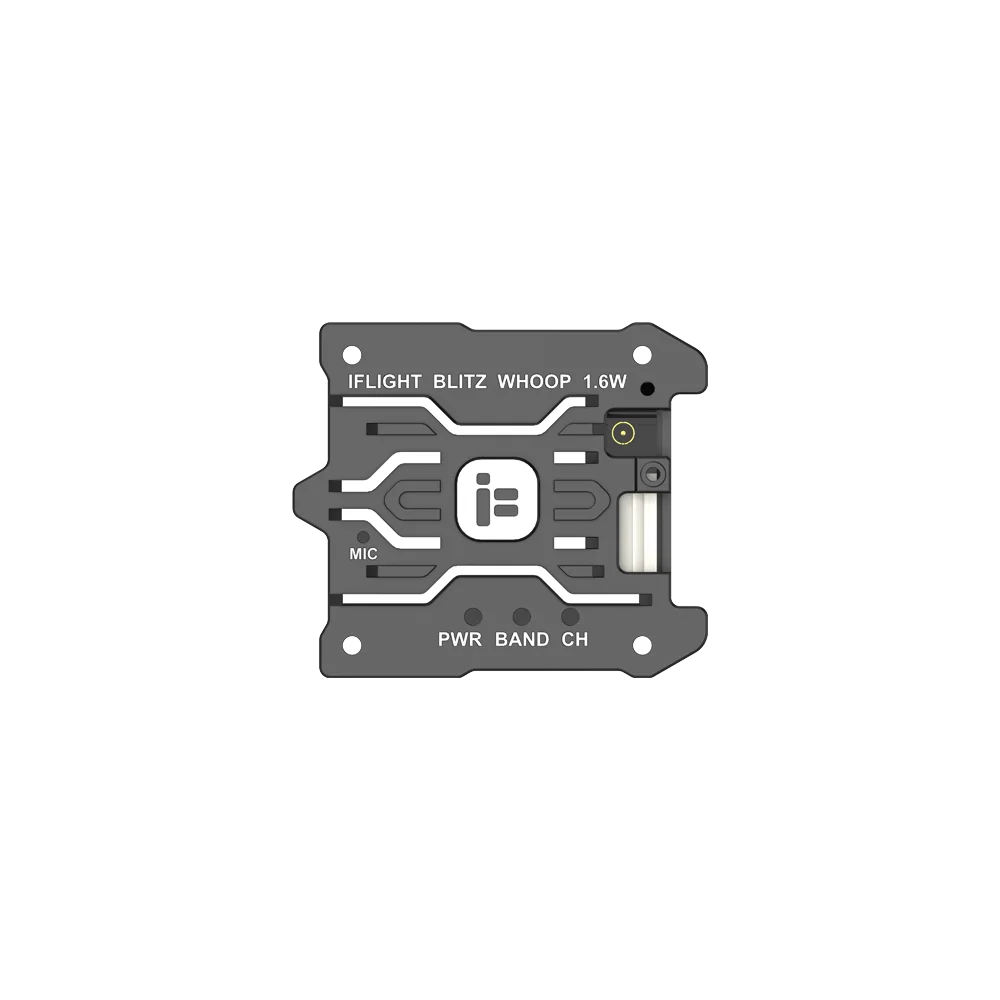

iFlight BLITZ Whoop 1.6W VTX SPECIFICATIONS
Brand Name: IFLIGHT
Origin: Mainland China
Material: Metal
Recommend Age: 14+y
RC Parts & Accs: Antennas
Size: 25.5*25.5mm
For Vehicle Type: Airplanes
Use: Vehicles & Remote Control Toys
Certification: CE
Upgrade Parts/Accessories: Frame
Remote Control Peripherals/Devices: Remote Controller
Tool Supplies: Battery
Quantity: 1 pcs
Technical parameters: Value 2
Model Number: BLITZ 1.6W VTX
Four-wheel Drive Attributes: Assemblage
Wheelbase: Bottom Plate
Description：
Features:
Stable output power
4 Power levels up to 1600mW;
40 Channels (including Raceband)
Fast frequency lock, no startup interference with other pilots
Built-in output power self-check functionality
VTX telemetry with IRC Tramp protocol
Tips:
VTX is set to 25mW by default! Power levels above 25mW require a HAM license or have to be approved by local authorities! Please ensure you’re flying legal frequencies and use our prepared Betaflight VTX tables according to your region.
Specs:
Input voltage: 7V～34V
Interface: IPEX 1
Power levels: PIT/25mW/400mW/800mW/1600mW
Channels: 40 (including Raceband)
Mounting pattern: 25.5×25.5mm/Φ1.6
Lightweight: 16.5g (excluding antenna)
VTX telemetry: IRC Tramp
Betaflight IRC Tramp Configuration: Please download the attached VTX table for Betaflight!
All our VTX tables can also be found here: LINK
IRC Tramp VTX table values: 25mW/400mW/800mW/1600mW
Package includes:
BLITZ 1.6W VTX x 1pc
