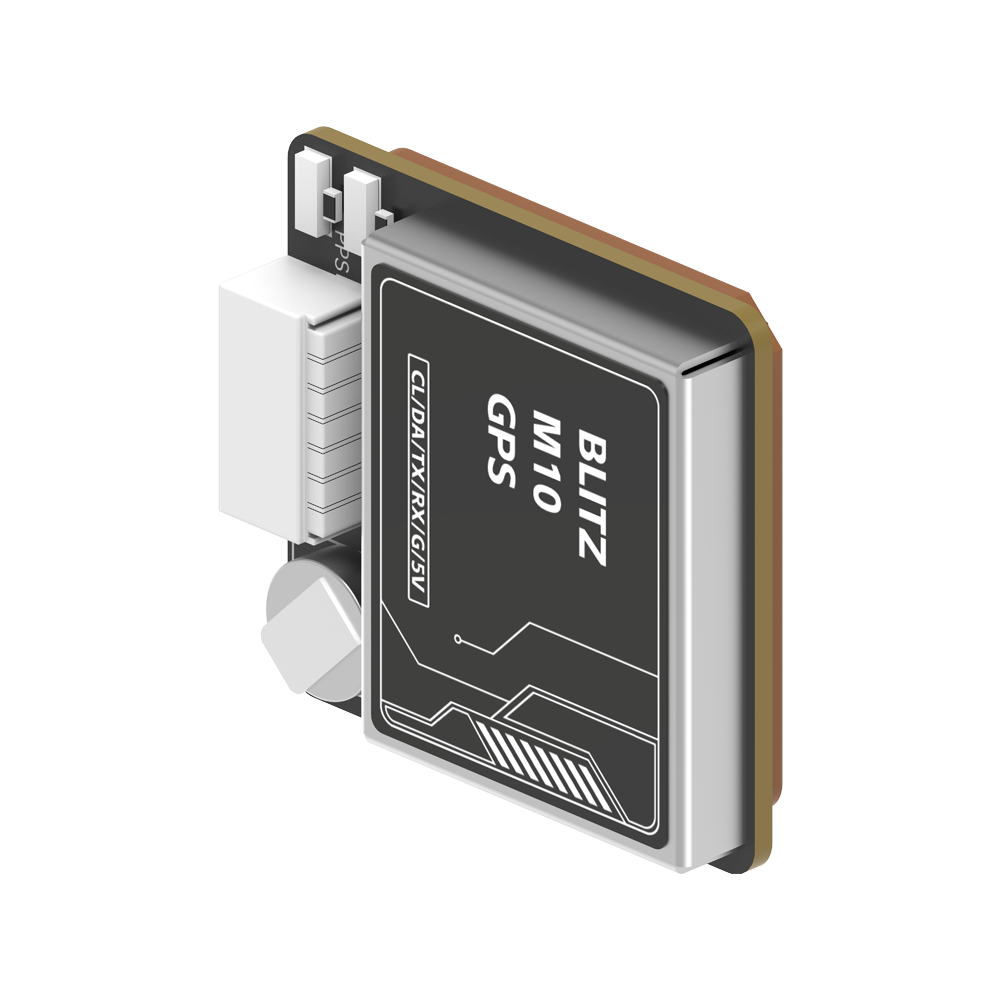

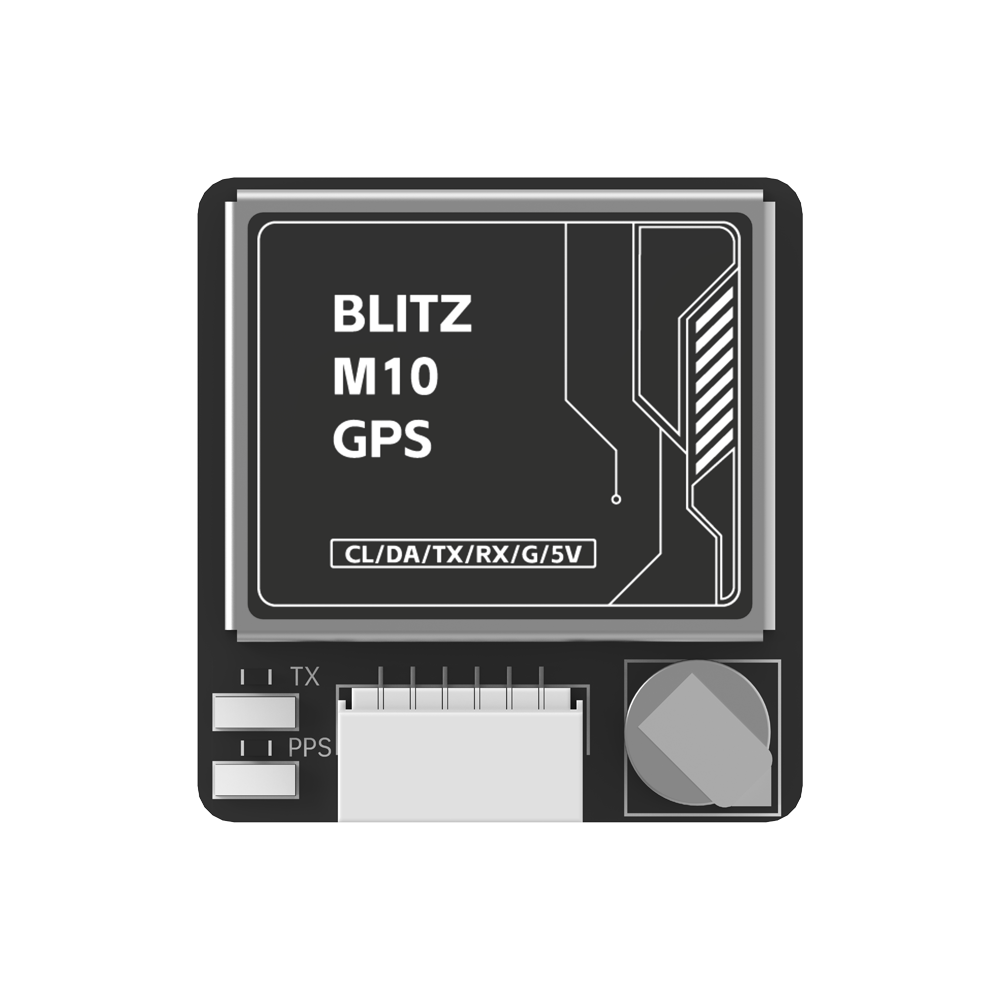

iFlight BLITZ M10 GPS for FPV parts




Wheelbase: Bottom Plate

Use: Vehicles & Remote Control Toys

Upgrade Parts/Accessories: Frame

Tool Supplies: Battery

Technical parameters: Value 2

Size: 20*21*6.5mm

Remote Control Peripherals/Devices: Remote Controller

Recommend Age: 12+y

RC Parts & Accs: Antennas

Quantity: 1 pcs

Origin: Mainland China

Model Number: BLITZ M10 GPS

Material: Metal

Four-wheel Drive Attributes: Assemblage

For Vehicle Type: Airplanes

Certification: CE

Brand Name: IFLIGHT

Description: Features:

  • UBLOX M10 chip
  • Compass module QMC5883L integrated
  • Built-in farad capacitor for faster hot start
  • Onboard LNA (Low Noise Amplifier)
  • 10 Hz Refresh rate
  • Built-in Flash
  • High sensitivity 18x18mm GPS patch antenna, low power consumption, strong signal, lightweight.


  • Compass module: QMC5883L
  • Baud Rate: 4800bps-115200bps (Default – 115200bps)
  • Sensitivity: Tracking: -167dBm
  • Cold start: 26s
  • Hot start: 1s
  • Maximum height: 50000m
  • Maximum speed: 500 m/s
  • Speed accuracy: 0.05 m/s
  • Maximum acceleration: ≦ 4G
  • Refresh Rate: 10 Hz
  • GPS patch antenna size: 18 x 18 mm
  • Total dimensions: 20 x 21 x 6.5 mm
  • Weight: 5.2 g(±0.5g)
  • Input Voltage: 3.3-5.5 V, current 40mA
  • GPS pin definition: RX/TX UART
  • Compass pin definition: SDA/SLA

Package included:

  • 1 x BLITZ M10 GPS
  • 1 x Cable set
