iFlight Battery Balance Charger SPECIFICATIONS
Wheelbase: Bottom Plate
Use: Vehicles & Remote Control Toys
Upgrade Parts/Accessories: Lithium Battery
Tool Supplies: Battery
Technical parameters: Value 2

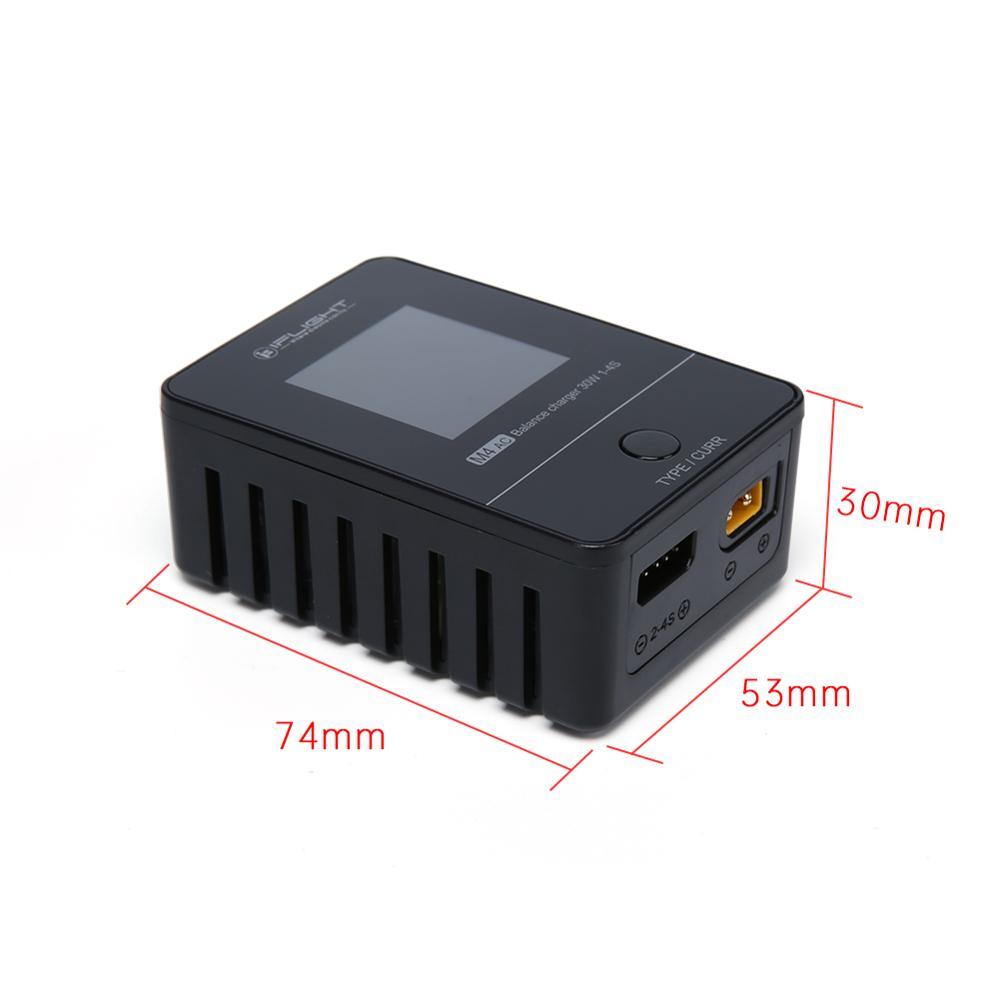

Size: 74mm*53mm*30mm
Remote Control Peripherals/Devices: Remote Controller
Recommend Age: 12+y
RC Parts & Accs: Batteries – LiPo
Quantity: 1 pcs
Origin: Mainland China
Model Number: Balance Charger
Material: Composite Material
Four-wheel Drive Attributes: Assemblage
For Vehicle Type: Airplanes
Certification: CE
Brand Name: IFLIGHT
Specification:
- Input: AC100-240V@MAX30W
- Battery Type: LiPo LiHV LiFe @1-4S
- Charging Power: 0.5-2.5A@25W
- Bal Cur. : 200mA @2-4S
- Charging accuracy: <0.005V
- Display: LCD IPS 1.54 inch 240*240 resolution
- Size: 75mm*54mm*30mm

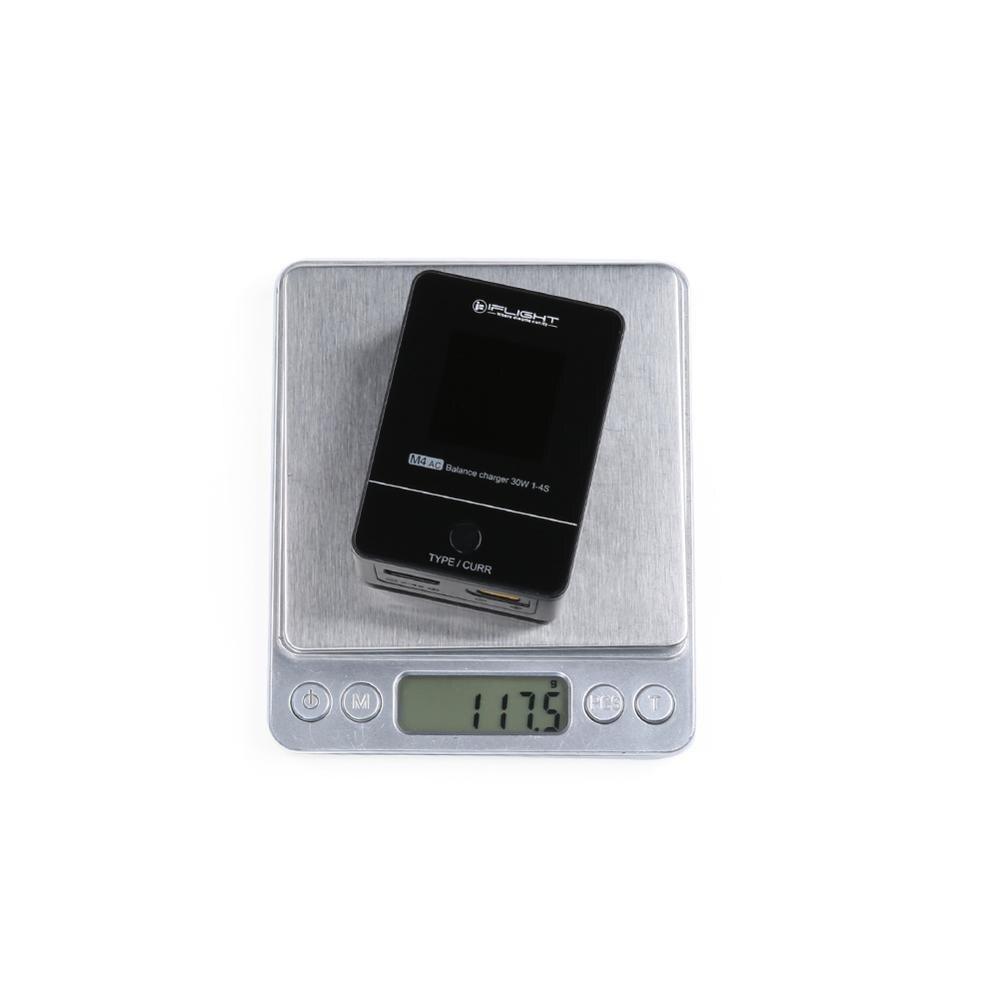

- Weight: 120g
- Connector: XT30
- Suitable for 4S 350mAh~850mAh LiPo Battery. For the bigger battery, please choose the ISDT Q6 NANO
Using Instructions
- Connect the power cord，and after booting， enter the main interface
- Press and hold the button for 2 seconds to select the battery cut-off voltage.
- Press the button once to select the charging current.

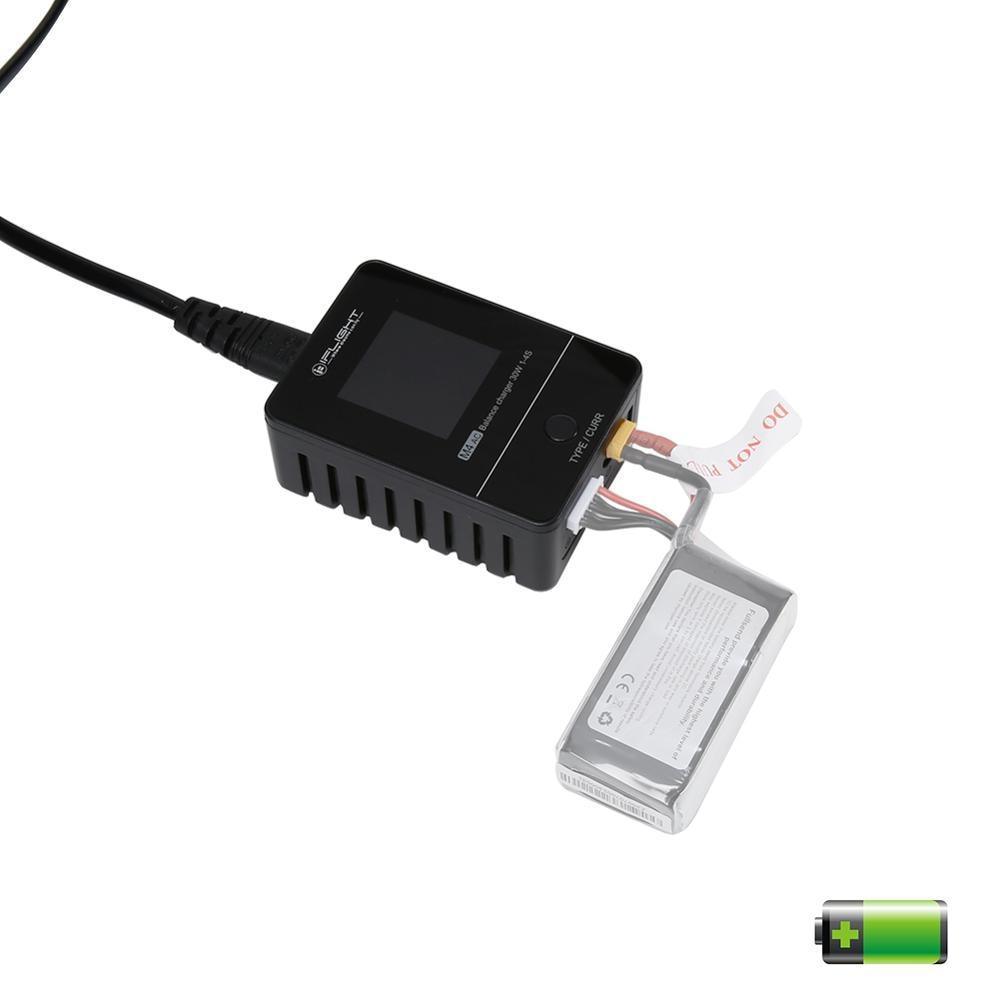

- Connected to the battery main port and balance port，the charger will automatically start charging after detecting that the battery voltage is normal.
- After each power on, you need to press the key once to unlock it before it starts charging automatically.
Safety
- M4AC allows input AC 100-240V， please use normal voltage.
- Do does not use this product in heat，moisture, flammable or explosive atmospheres.
- Make sure that the product is running under the attendance of the user.
- Please unplug the input power when not using this product.

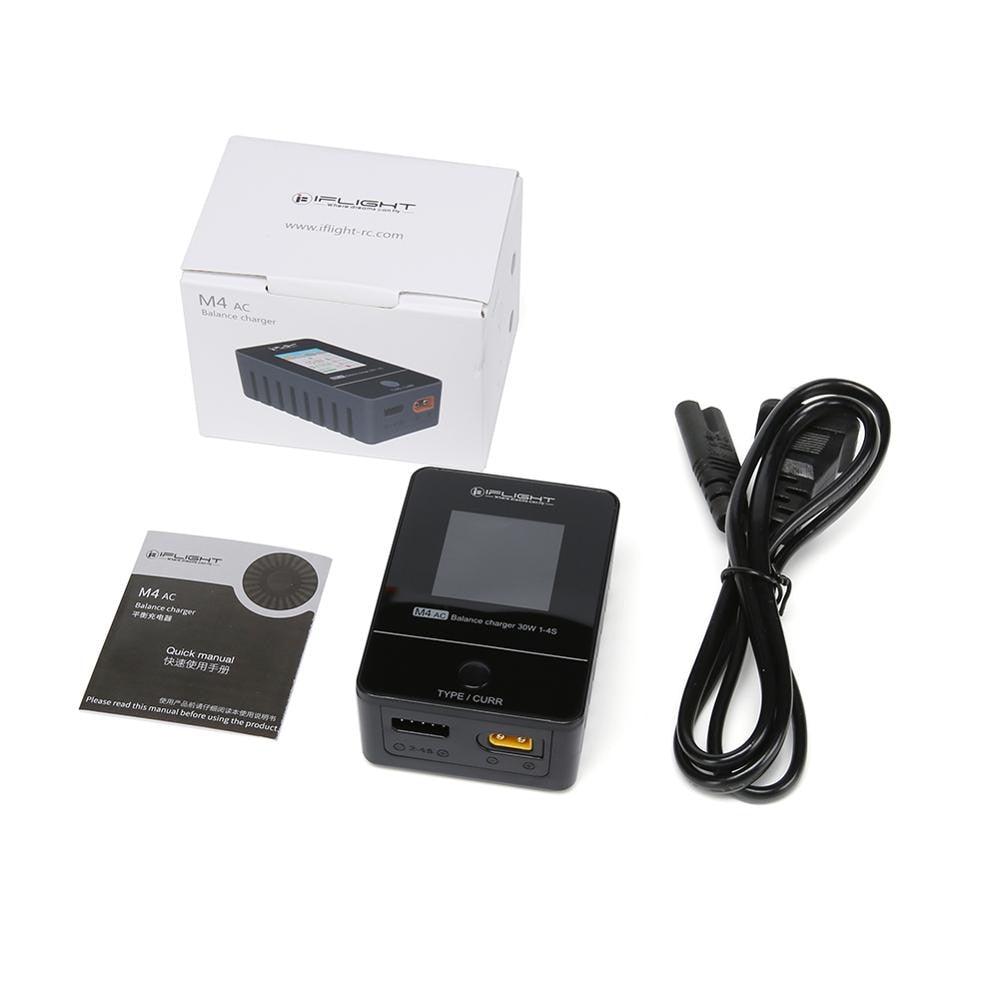

Packaging included:
- 1X iFlight M4AC Charger
- 1x AC cable
- 1x manual

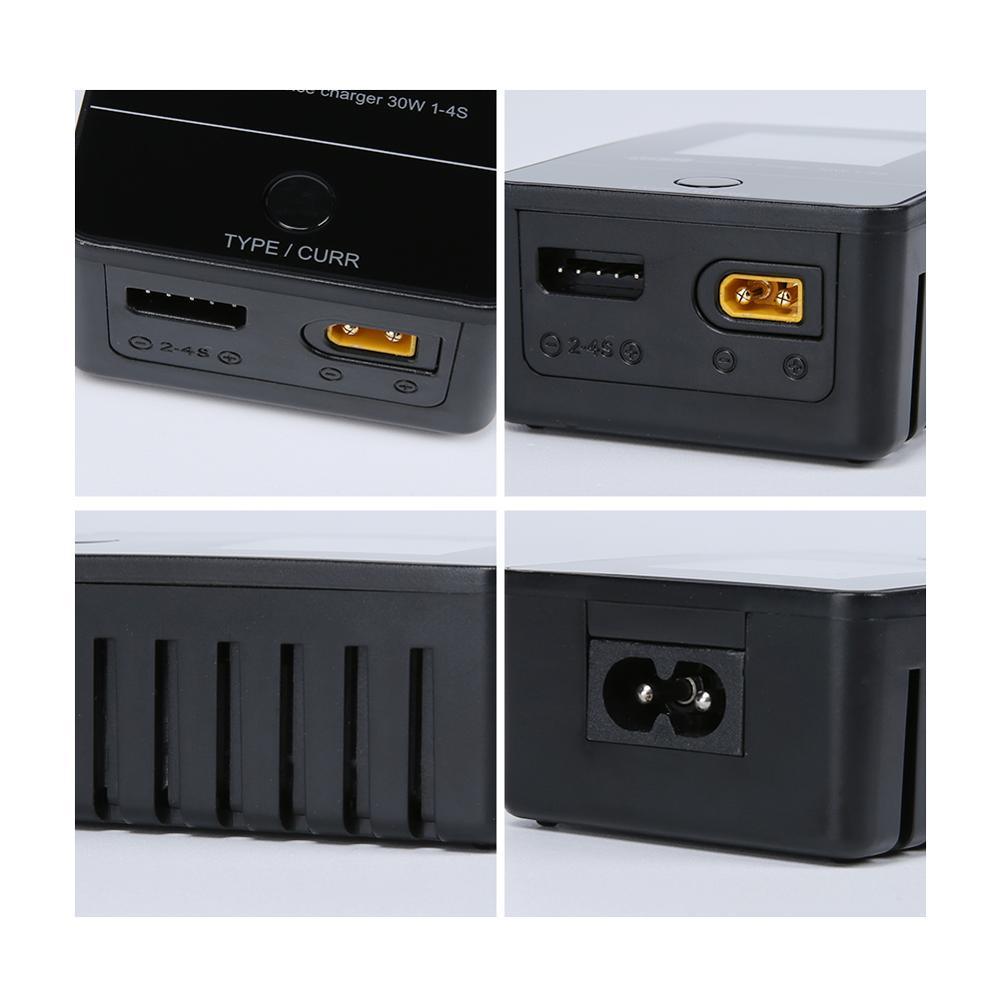

MAAC Layout Type/Current (Long press: Type Short press: Current) display screen 8 XT3O output main port balance port heat dissipation vents Front Tm1 O”
