Features:
- All new High-quality MOSFETs with low internal resistance & heat generation, and individual metal heatsink
- New and faster F4 MCU @ 150Mhz (compared to F3 @108Mhz & F0 @48Mhz)
- Separate drive & control circuit, reducing the electrical interference to the control circuit
Specification:
- Continuous Current: 50A x4
- Burst Current: 60A x4
- Battery Supports: 4-6S
- PWM Frequency: 16k to 96k
- Supports DShot 150/300/600/1200/2400
- Supports MultiShot/OneShot/Proshot/PWM etc.
- ESC telemetry Supported
- Onboard analog current sensor
- BLHeli_32 firmware
- 1000uf 35v capacitor included (highly recommended for 6s setup)
- Mounting holes: 3.6mm @ 20x20mm, compatible with either M2& M3 Rubber Gourmet (Included)
- Dimension: 32 x 40 mm

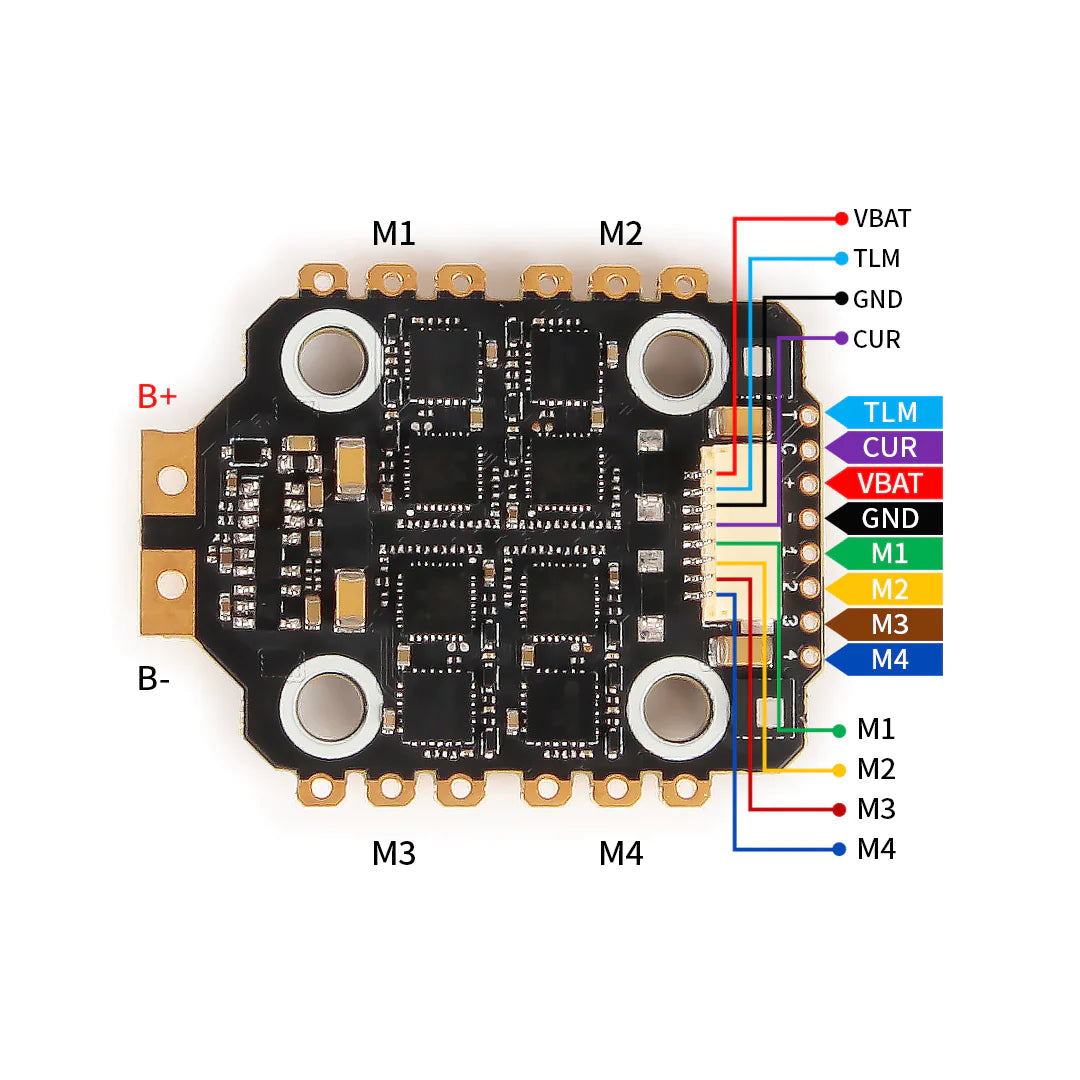

PIN MAP:

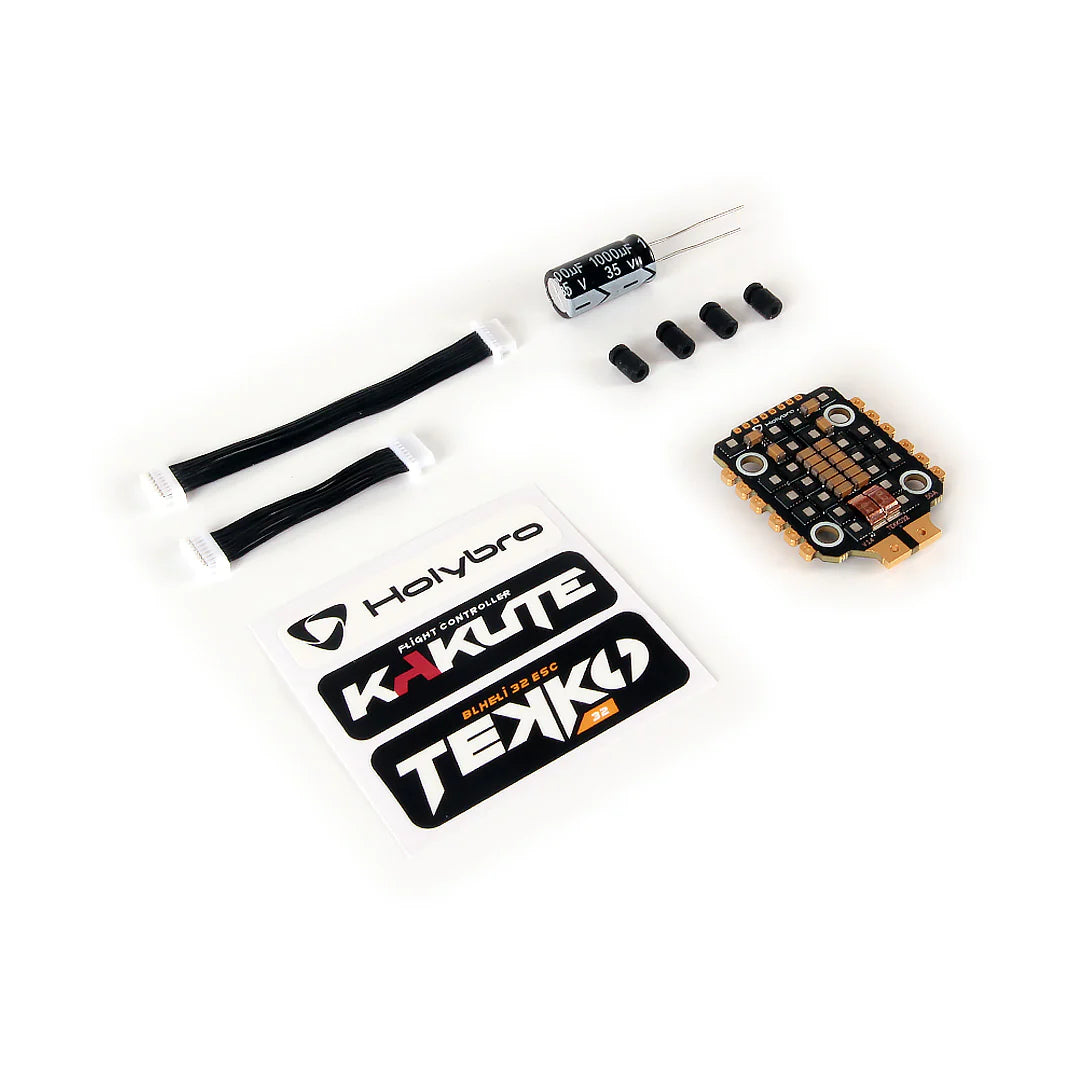

Package included:
- Tekko32 F4 4in1 mini 50A ESC *1
- M2 Anti-Vibration Silicone Grommet Insert *4
- M3 Anti-Vibration Silicone Grommet Insert *4
- Electrolytic capacito: 1000uF 35v *1
- 8pin to 8pin 1mm pitch 65mm cable *1
- 8pin to 8pin 1mm pitch 25mm cable *1
