Holybro SiK Telemetry Radio V3 – 100mW 433MH 915MHz Open-source SiK firmware Plug-n-play for Pixhawk Standard Flight Controllers

$76.70

SKU: N/A Category:

Description

Holybro SiK Telemetry Radio V3 SPECIFICATIONS

Use: Vehicles & Remote Control Toys

Recommend Age: 12+y,18+

Origin: Mainland China

Material: Composite Material

Brand Name: RCMOY

Overview

This Holybro SiK Telemetry Radio is a small, light and inexpensive open source radio platform that typically allows ranges of better than 300m “out of the box” (the range can be extended to several kilometres with the use of a patch antenna on the ground).

This radio is plug-n-play all Pixhawk Standard and other Flight Controller, providing the easiest ways to setup a telemetry connection between your Autopilot and a ground station. It uses open source firmware which has been specially designed to work well with MAVLink packets and to be integrated with the Mission Planner, Ardupilot, QGroundControl, PX4 Autopilot.

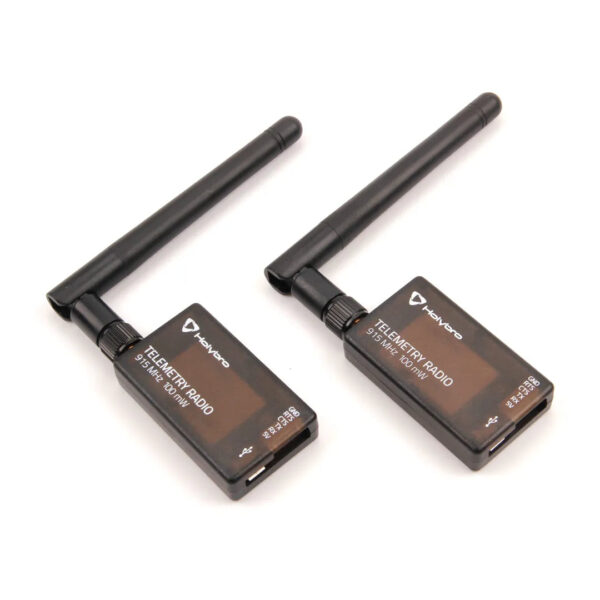

The radios can be either 915Mhz or 433Mhz and you should purchase the model which is appropriate for your country/region.

Note:

This radio does not support firmware upload via Mission Planner 1.3.75 or order. Please use Mission Planner 1.3.75.1 or newer if firmware upload is needed.





Features

Open-source SIK firmware

Plug-n-play for Pixhawk Standard Flight Controllers

Easiest way to connect your Autopilot and Ground Station

Interchangeable air and ground radio

Micro-USB port (Type-C Adapter Cable Included)

6-position JST-GH connector

Specification

100 mW maximum output power (adjustable) -117 dBm receive sensitivity

RP-SMA connector

2-way full-duplex communication through adaptive TDM UART interface

Transparent serial link

MAVLink protocol framing

Frequency Hopping Spread Spectrum (FHSS) Configurable duty cycle

Error correction corrects up to 25% of bit errors Open-source SIK firmware

Configurable through Mission Planner & APM Planner

FT230X is a USB to BASIC UART IC

Dimensions

28 x 53 x 10.7mm (without antenna)

Electrical Data

Supply voltage: 5V DC (from USB or JST-GH)

Transmit current: 100 mA at 20dBm

Receive current: 25 mA

Serial interface: 3.3 V UART

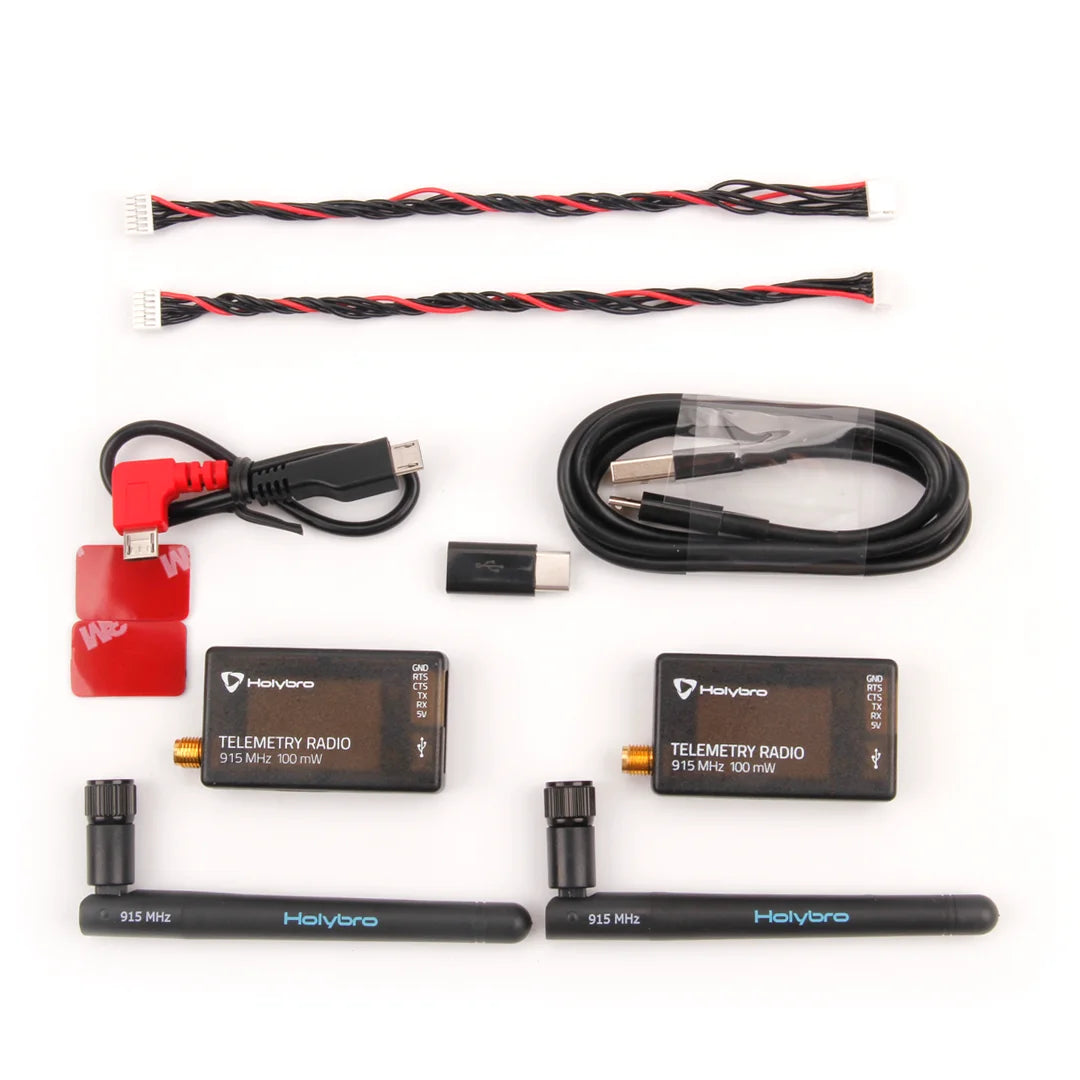

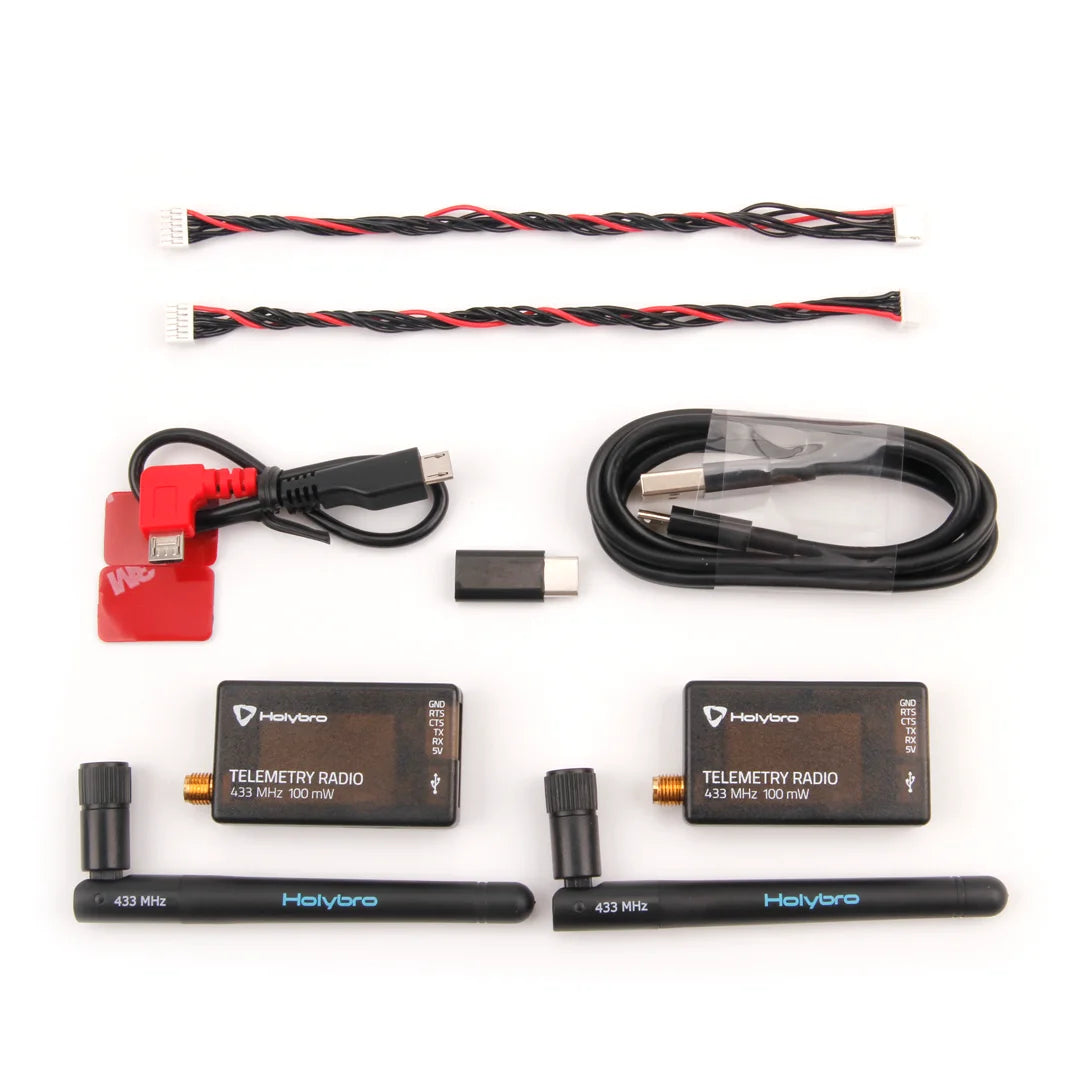

Package Included

Radio modules with antennas *2

Micro-USB to USB-A cable *1

Micro-USB to Micro-USB OTG adapter cable *1

Micro USB to Type C Adapter

JST-GH-6P to JST-GH-6P cable *1 (for Pixhawk Standard FC)

JST-GH-6P to Molex DF13 6P (for Pix32, Pixhawk 2.4.6, etc.)

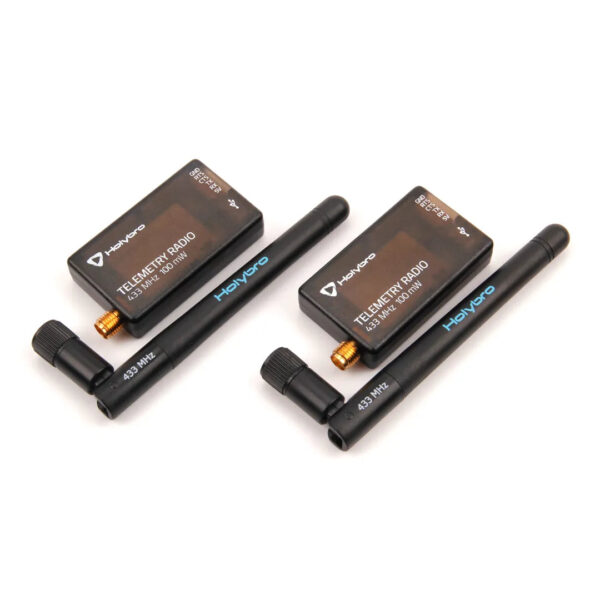

Holybro SiK Telemetry Radio is small, light and inexpensive open source radio platform .

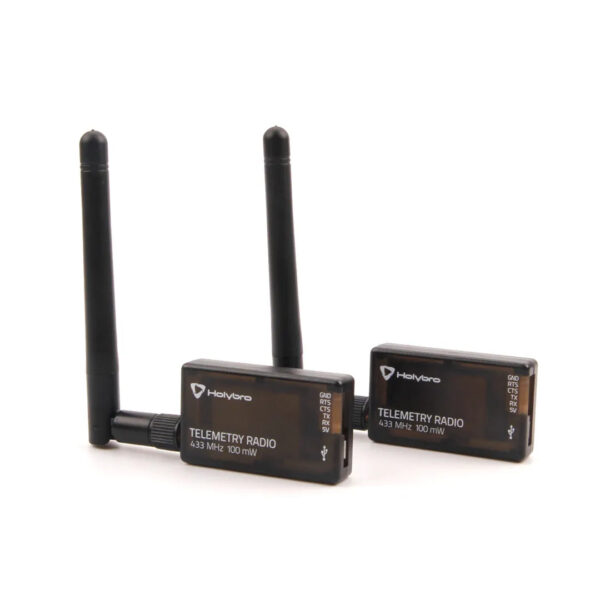

Holybro SiK Telemetry Radio is small, light and inexpensive open source radio platform . it typically allows ranges of better than 30Om “out of the box” this radio is plug-n-play all Pixhawk Standard and other Flight Controller .

Holybro SiK Telemetry, Qpen-source SIK firmware Plug-n-play for Pixhawk Standard Flight Controller

This open-source SiK firmware provides a plug-and-play solution for Pixhawk standard flight controllers, allowing easy connection to your autopilot and ground station. Features include a maximum output power of 100mW (adjustable), receive sensitivity of -117 dBm, and a RP-SMA connector enabling two-way full-duplex communication through an adaptive TDM UART interface.

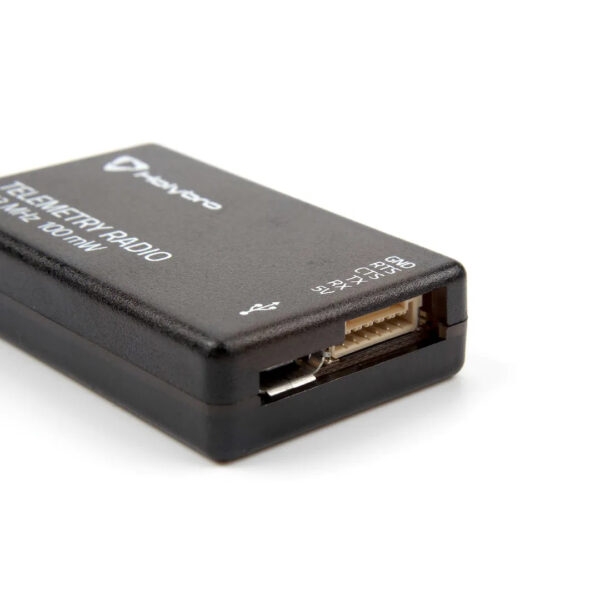

Holybro SiK Telemetry, 1 Antenna Freqency LED Indicators JST-GH 6Pin

1 Antenna Freqency LED Indicators JST-GH 6Pin Port Micro USB TEzEMEtRy Radio Adm HOIYOCO P a g & | 2 www_holybro_

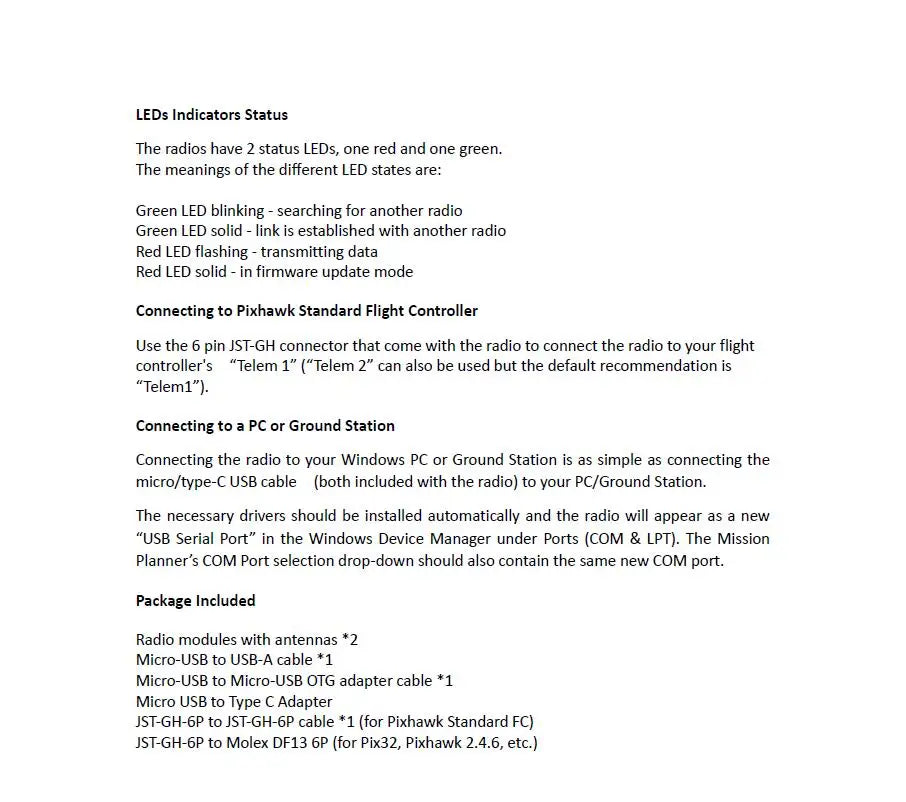

Holybro SiK Telemetry, the radios have two status LEDs, one red and one green . connecting to

The Holybro SiK Telemetry Radio V3 features two status LEDs, one red and one green, indicating its status. Connecting to a PC or ground station is straightforward, simply plug in a micro-USB or Type-C cable, and the necessary drivers will be installed automatically.

Holybro SiK Telemetry, HolvtrS Helvyo 3 TELEMETRY RADIO THolybro SiK Telemetry, HolySrO 433 MHz W Helvbrs HolvCrHolybro SiK Telemetry, radio does not support firmware upload via Mission Planner 1.3.75 or order .Holybro SiK Telemetry, the radios can be either 915Mhz or 433mhz .Holybro SiK Telemetry, mw 433 100 MW Holvo Holvere TELEMETRY RADHolybro SiK Telemetry, 8 8rCf46 828f26 HelverS RADIO 7100

Additional information

Color

915MHz, 433MHz
