HolyBro Radio Telemetry Set SPECIFICATIONS
Wheelbase: Screws
Upgrade Parts/Accessories: Other
Tool Supplies: Assembled class
Technical parameters: Value 3
Size: as description
Remote Control Peripherals/Devices: Other
Recommend Age: 14+y
Recommend Age: 12+y
RC Parts & Accs: Other
Quantity: 1 pcs
Origin: Mainland China
Model Number: HolyBro 433Mhz 915Mhz
Material: Composite Material
Four-wheel Drive Attributes: Assemblage
For Vehicle Type: Airplanes

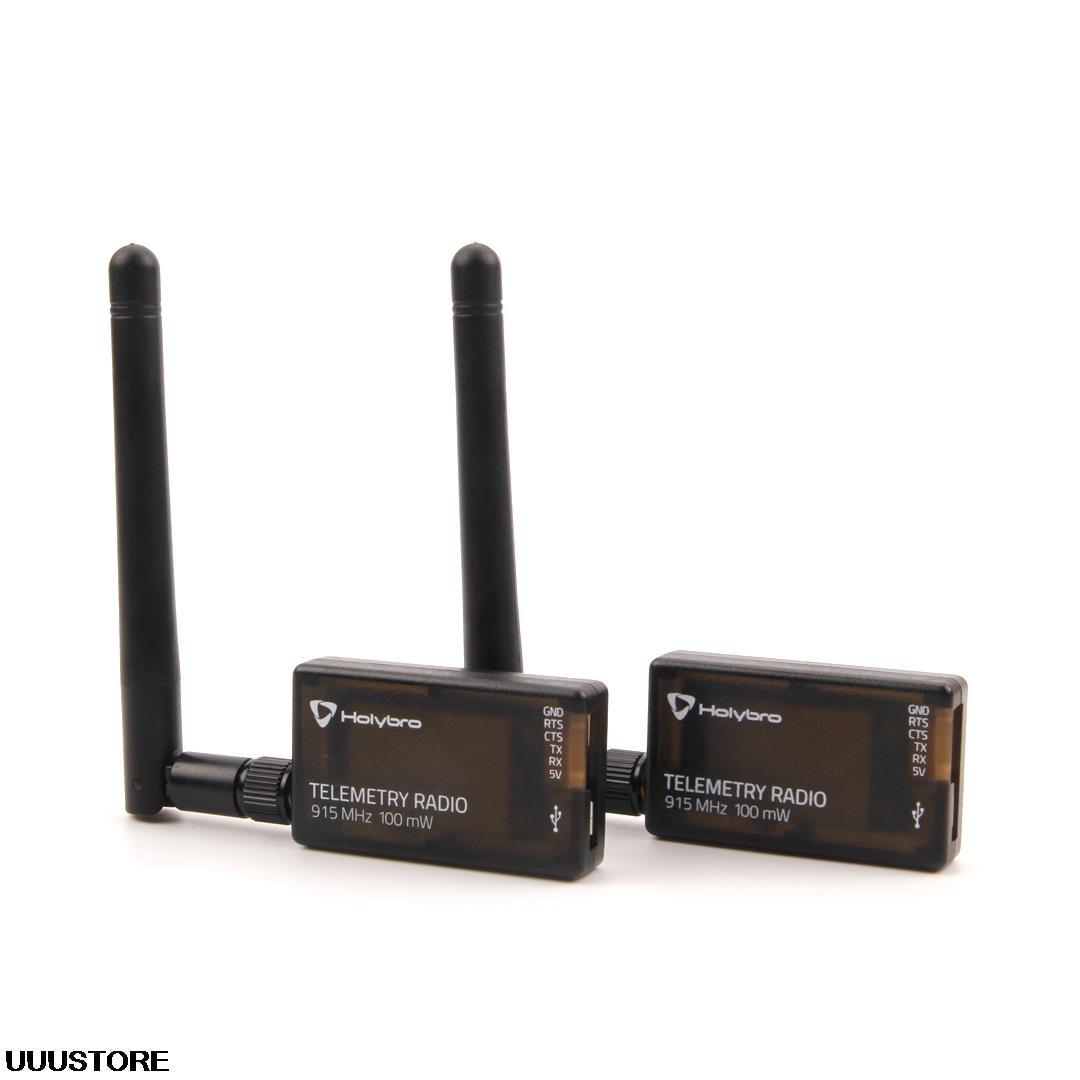

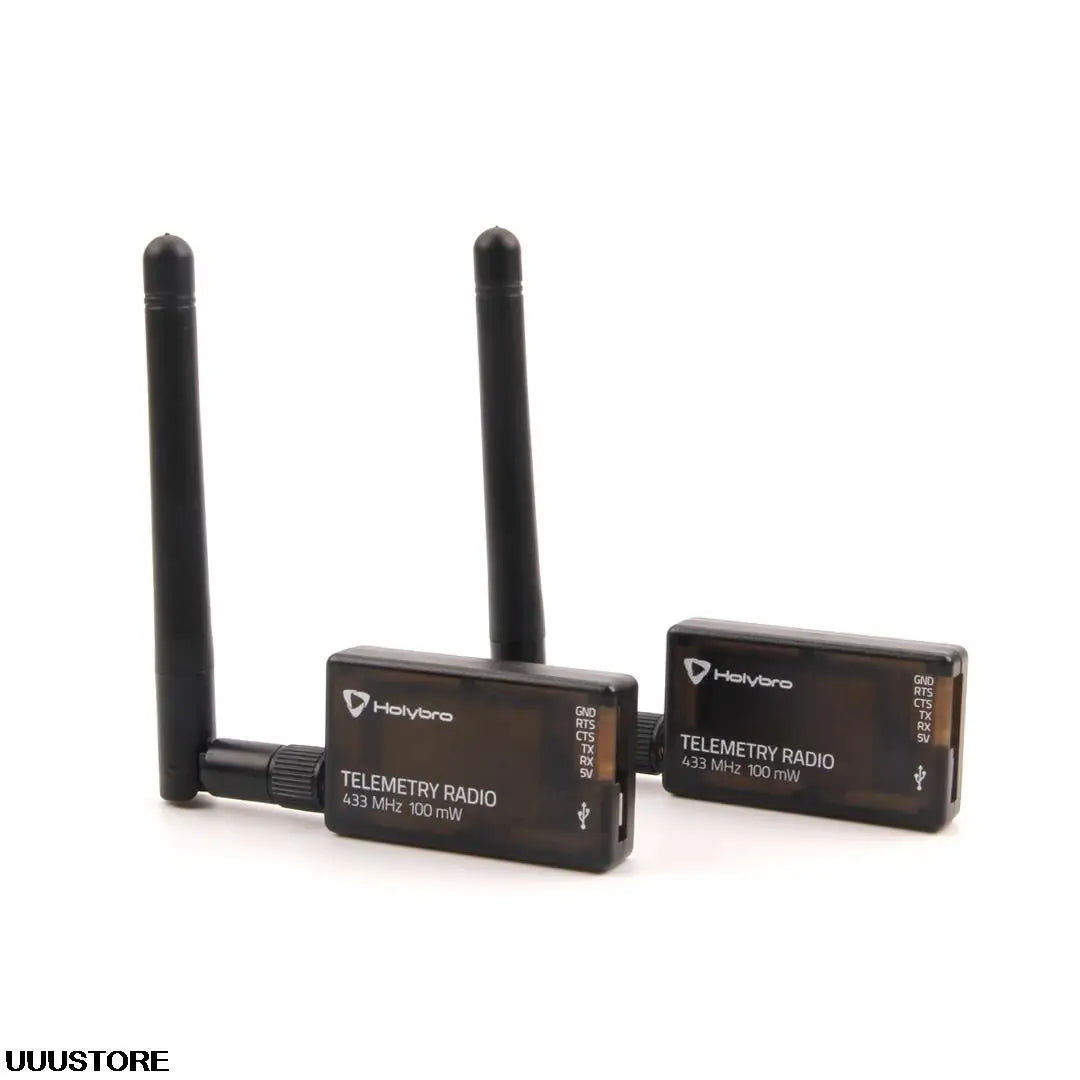

HolyBro 433Mhz 915Mhz 100mW 500mW Transceiver Radio Telemetry Set V3 for PIXHawk 4 Flight Controller APM2.6 For racing drone
Overview
This Holybro SiK Telemetry Radio is a small, light and inexpensive open source radio platform that typically allows ranges of better than 300m “out of the box” (the range can be extended to several kilometres with the use of a patch antenna on the ground).
This radio is plug-n-play all Pixhawk Standard and other Flight Controller, providing the easiest ways to setup a telemetry connection between your Autopilot and a ground station. It uses open source firmware which has been specially designed to work well with MAVLink packets and to be integrated with the Mission Planner, Ardupilot, QGroundControl, PX4 Autopilot.

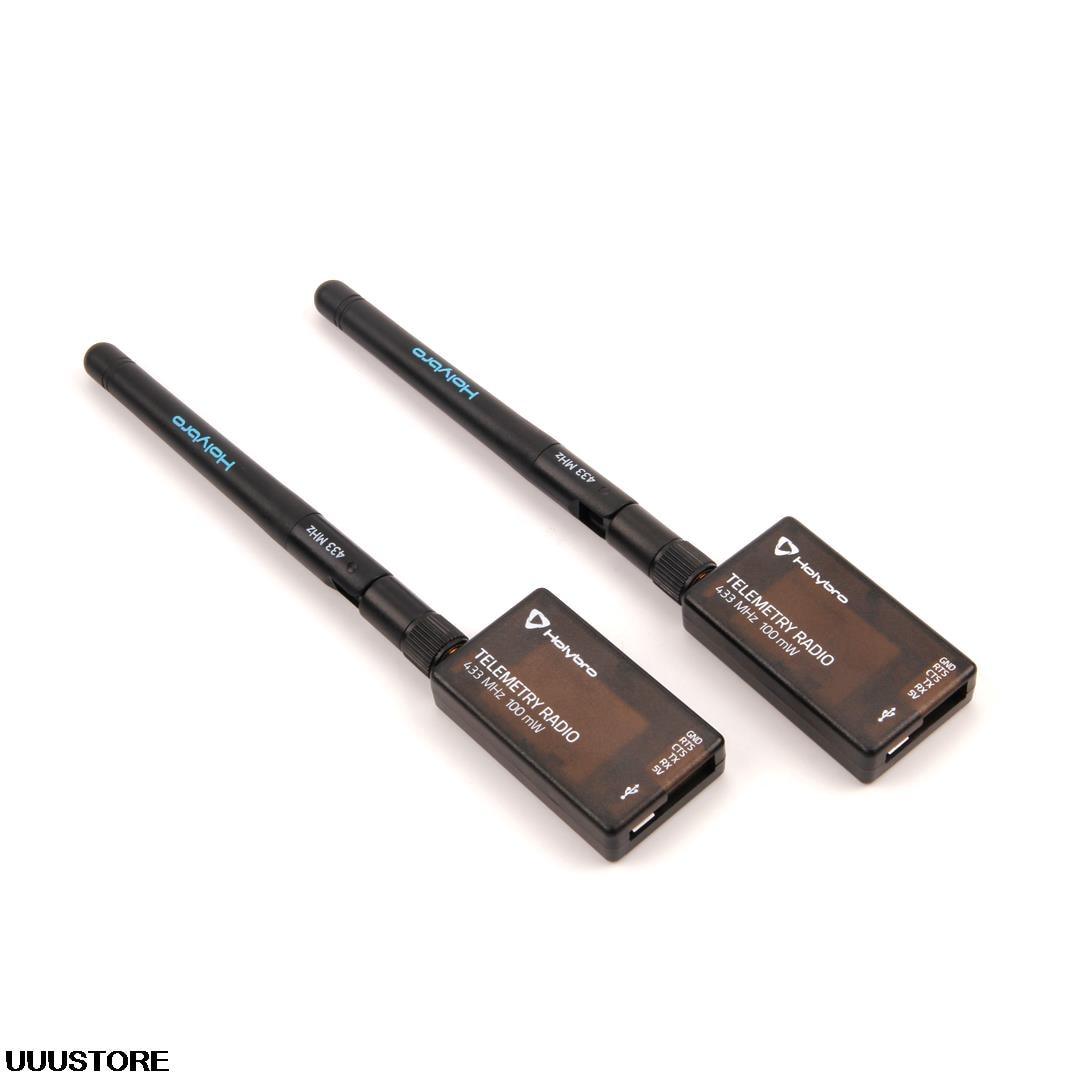

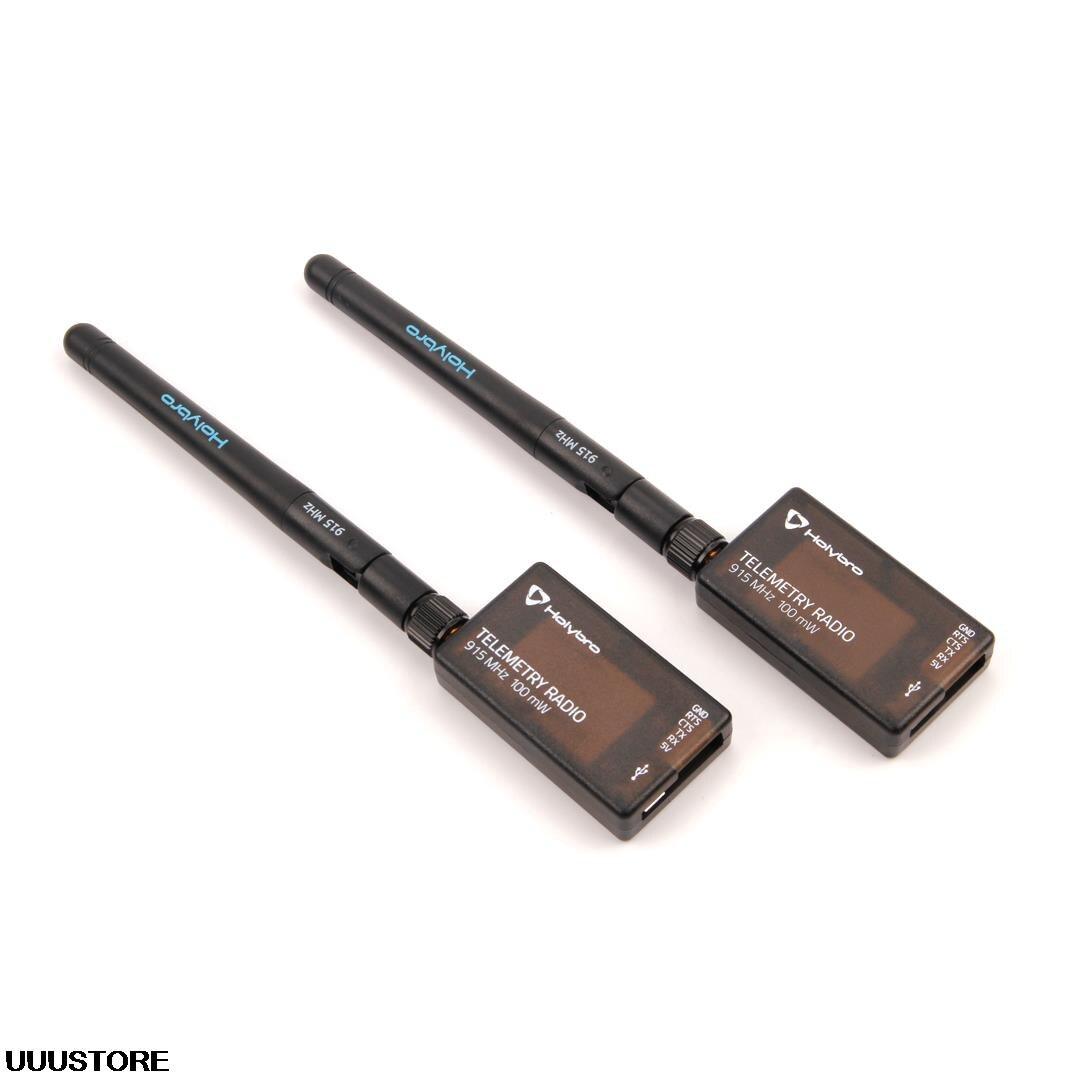

The radios can be either 915Mhz or 433Mhz and you should purchase the model which is appropriate for your country/region.
FCC IDENTIFIER: 2AP22-HT03-V3、
Note:
This new batch of SiK Telemetry Radio V3 does not support firmware upload via Mission Planner 1.3.75 or older. Please use Mission Planner 1.3.75.1 or newer if firmware upload is needed.
QGroundControl does not support firmware upgrade for this new batch of SiK Telemetry Radio V3 at this moment.
Features
- Open-source SIK firmware
- Plug-n-play for Pixhawk Standard Flight Controllers
- Easiest way to connect your Autopilot and Ground Station
- Interchangeable air and ground radio

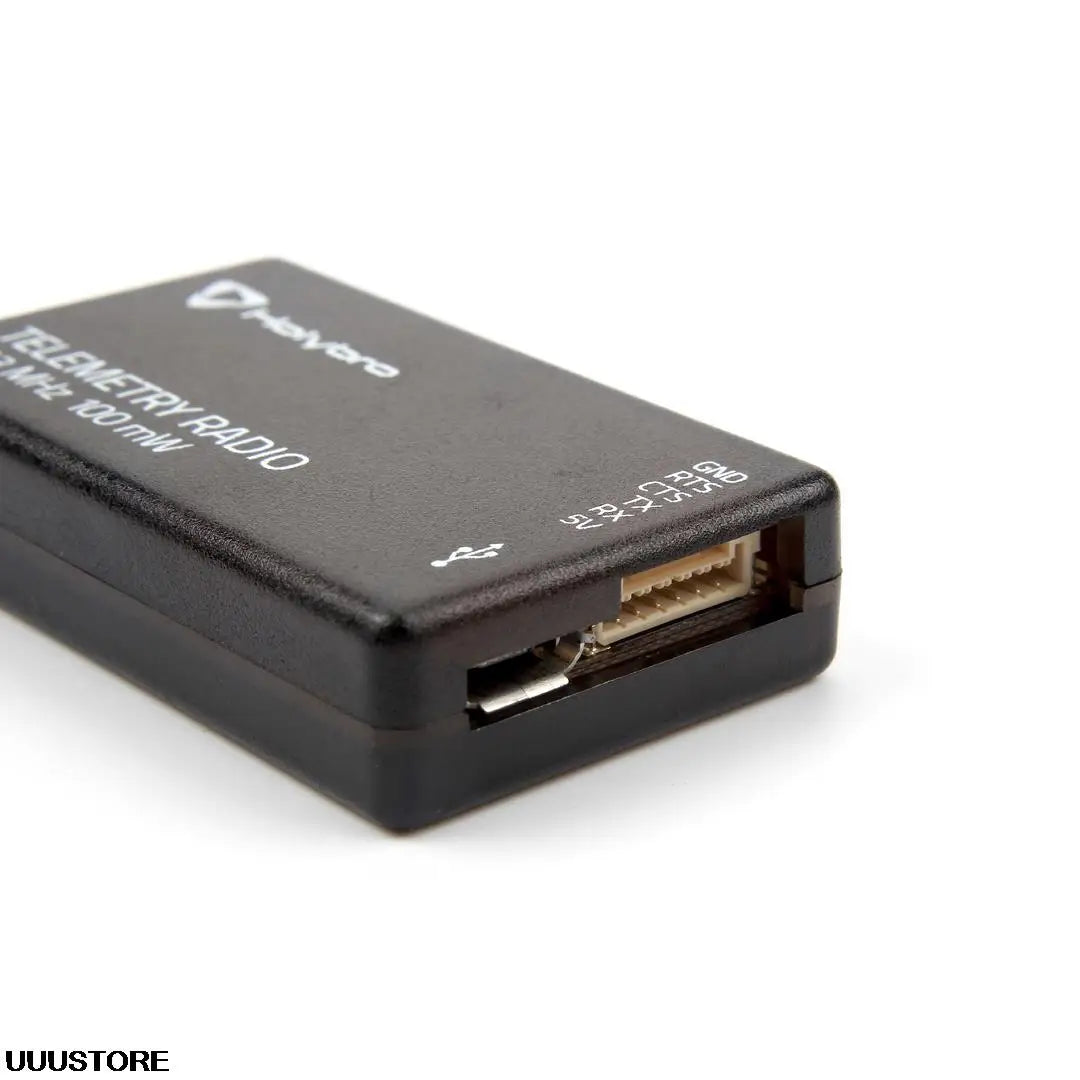

- Micro-USB port (Type-C Adapter Cable Included)
- 6-position JST-GH connector
Specification
- 100 mW maximum output power (adjustable) -117 dBm receive sensitivity
- RP-SMA connector
- 2-way full-duplex communication through adaptive TDM UART interface
- Transparent serial link
- MAVLink protocol framing
- Frequency Hopping Spread Spectrum (FHSS) Configurable duty cycle
- Error correction corrects up to 25% of bit errors Open-source SIK firmware
- Configurable through Mission Planner & APM Planner
- FT230X is a USB to BASIC UART IC
Dimensions
- 28 x 53 x 10.7mm (without antenna)
Electrical Data
- Supply voltage: 5V DC (from USB or JST-GH)
- Transmit current: 100 mA at 20dBm
- Receive current: 25 mA
- Serial interface: 3.3 V UART

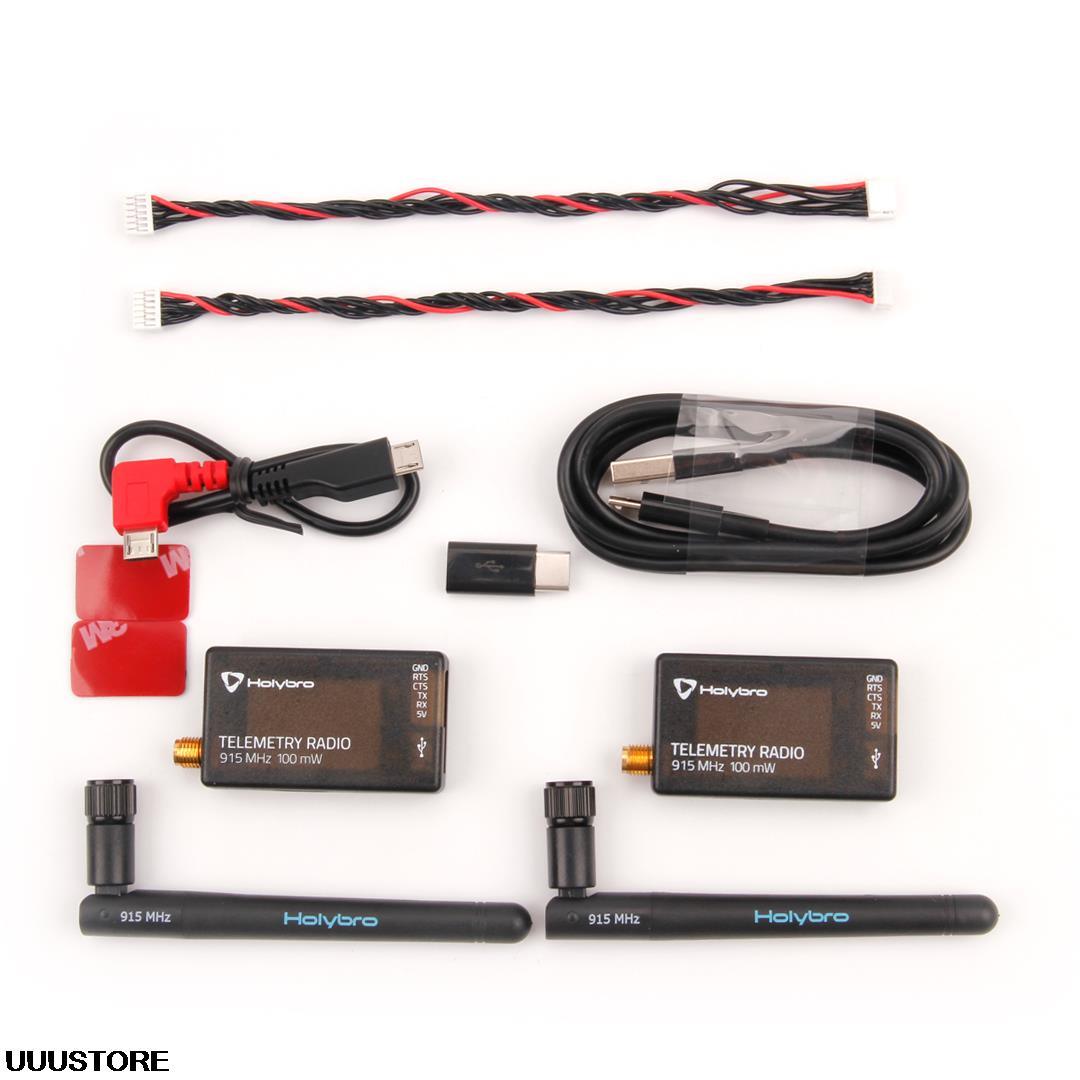

Package Included
Micro-USB to USB-A cable *1
Micro-USB to Micro-USB OTG adapter cable *1
Micro USB to Type C Adapter
JST-GH-6P to JST-GH-6P cable *1 (for Pixhawk Standard FC)
JST-GH-6P to Molex DF13 6P (for Pix32, Pixhawk 2.4.6, etc.)
Manual:
‘Stg ZHw = DhSivss TELEMETRY P “915 MHZ 10O mW ‘Holvso ‘RADIO 287888 _ TELEMERY F 915 MHz 10O mmW .
GNo Gld Helvsrs RTS RTS CTS O5 Rx 915MHz RADIO 915MHE TOQYTRADIO 100 mW UUUSTORE Holvsre TELEMETRY
