HolyBro PM07 Power Management SPECIFICATIONS
Wheelbase: Bottom Plate
Use: Vehicles & Remote Control Toys
Upgrade Parts/Accessories: PM07 Power Management
Tool Supplies: Assembly Category
Technical parameters: KV1100
Size: NA
Remote Control Peripherals/Devices: ESC
Recommend Age: 12+y
RC Parts & Accs: Motor Components
Quantity: 1 pcs
Origin: Mainland China
Model Number: HolyBro PM07 Power Management PM Module
Material: Composite Material
Four-wheel Drive Attributes: Assemblage
For Vehicle Type: Airplanes
Certification: CE

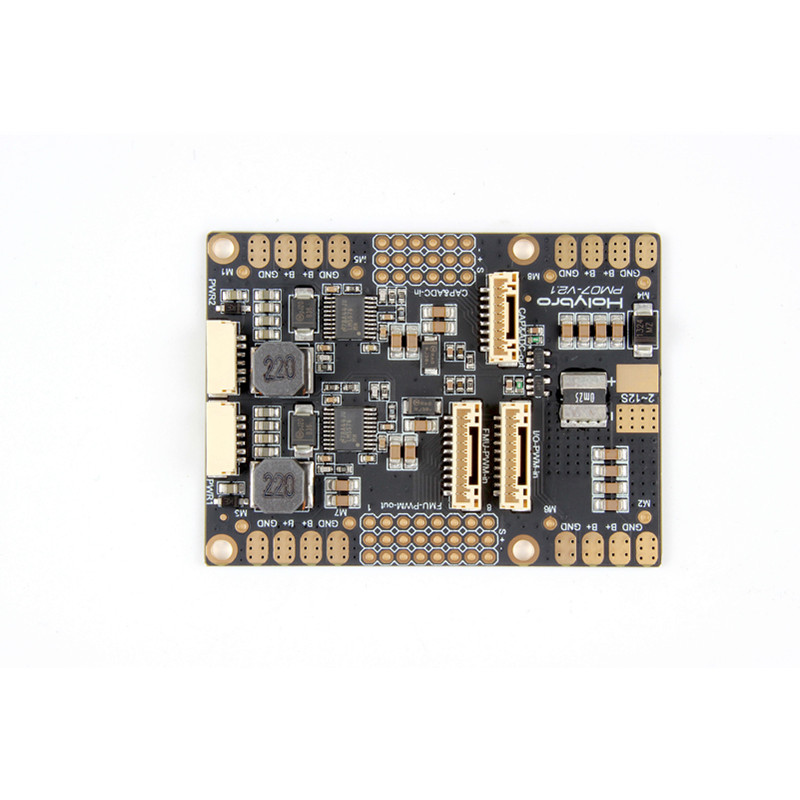

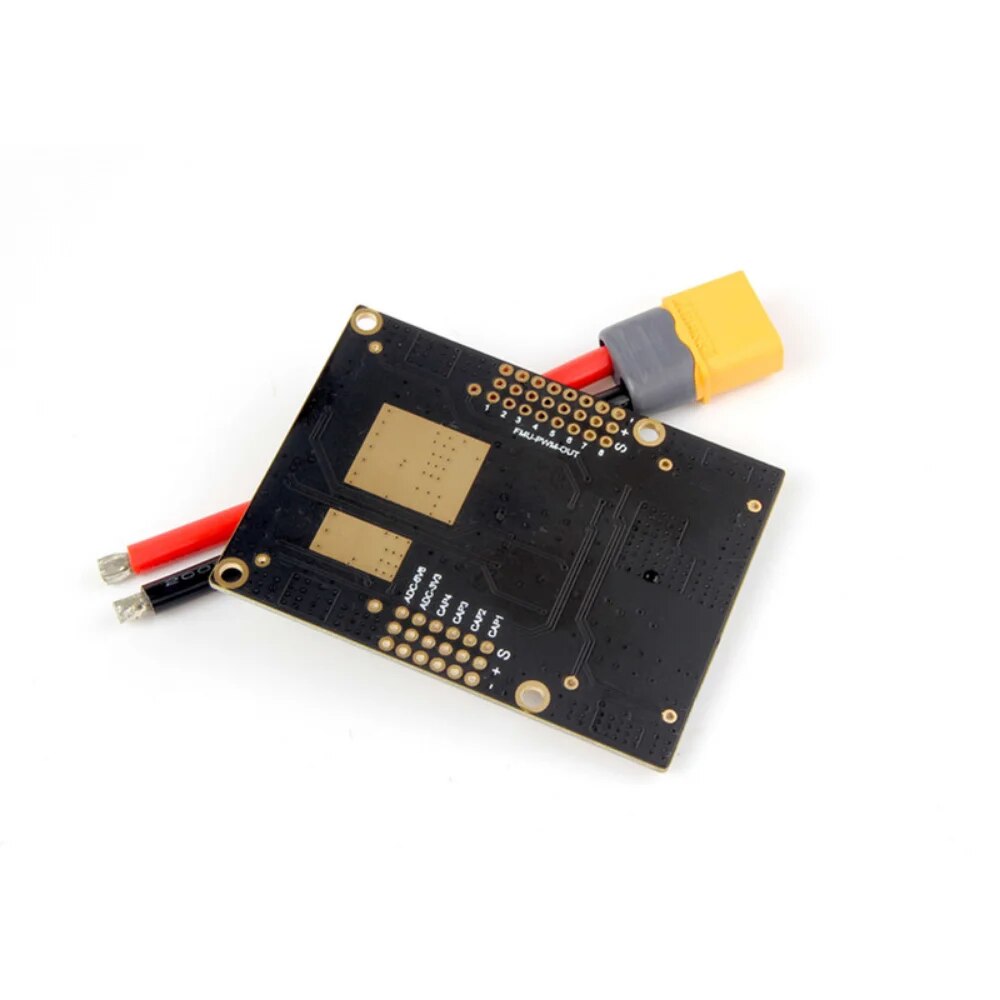

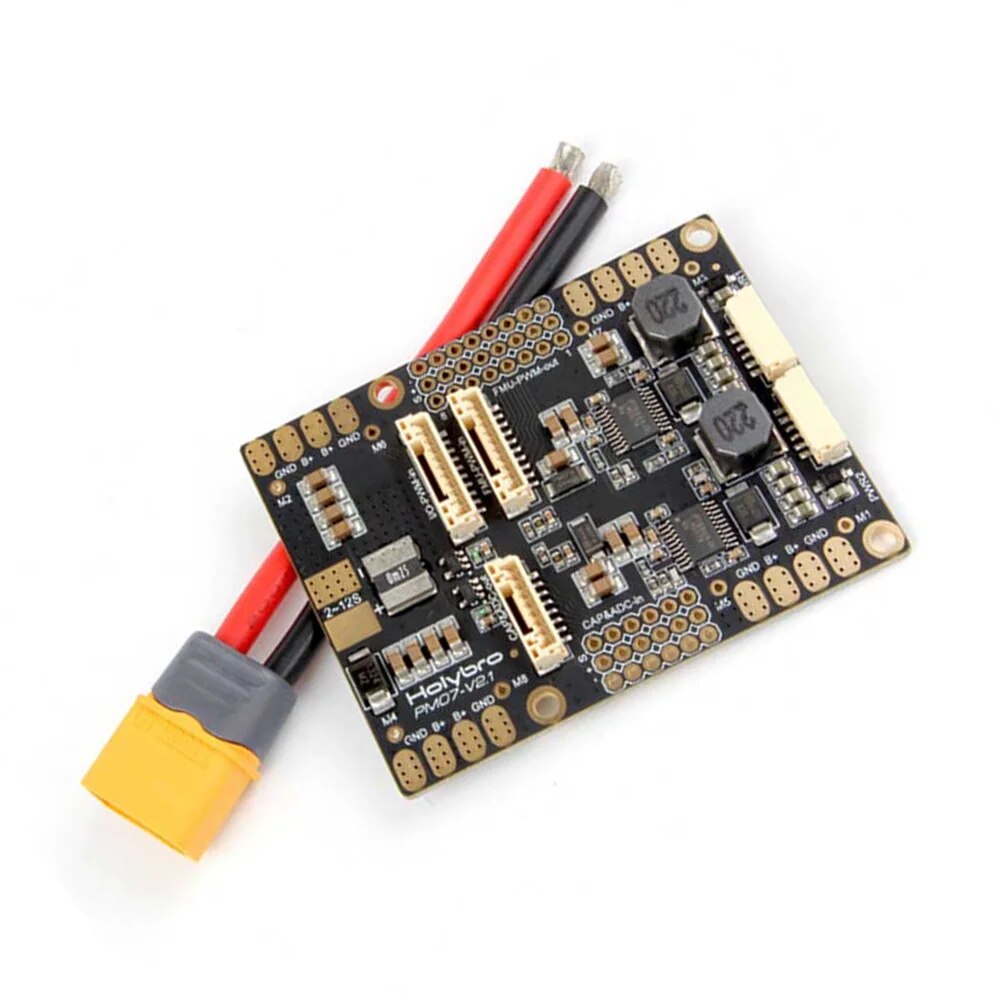

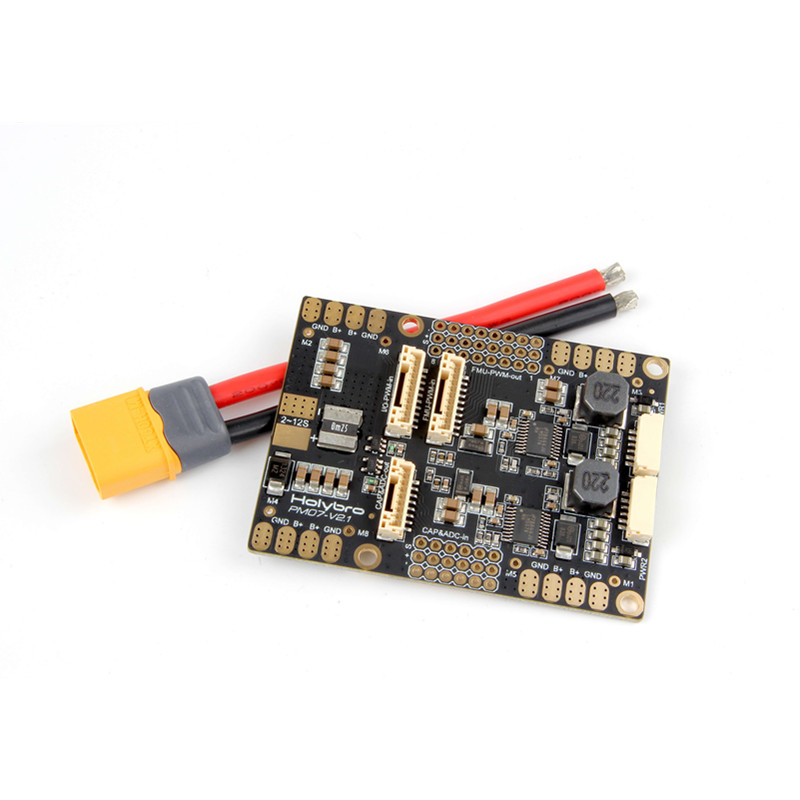

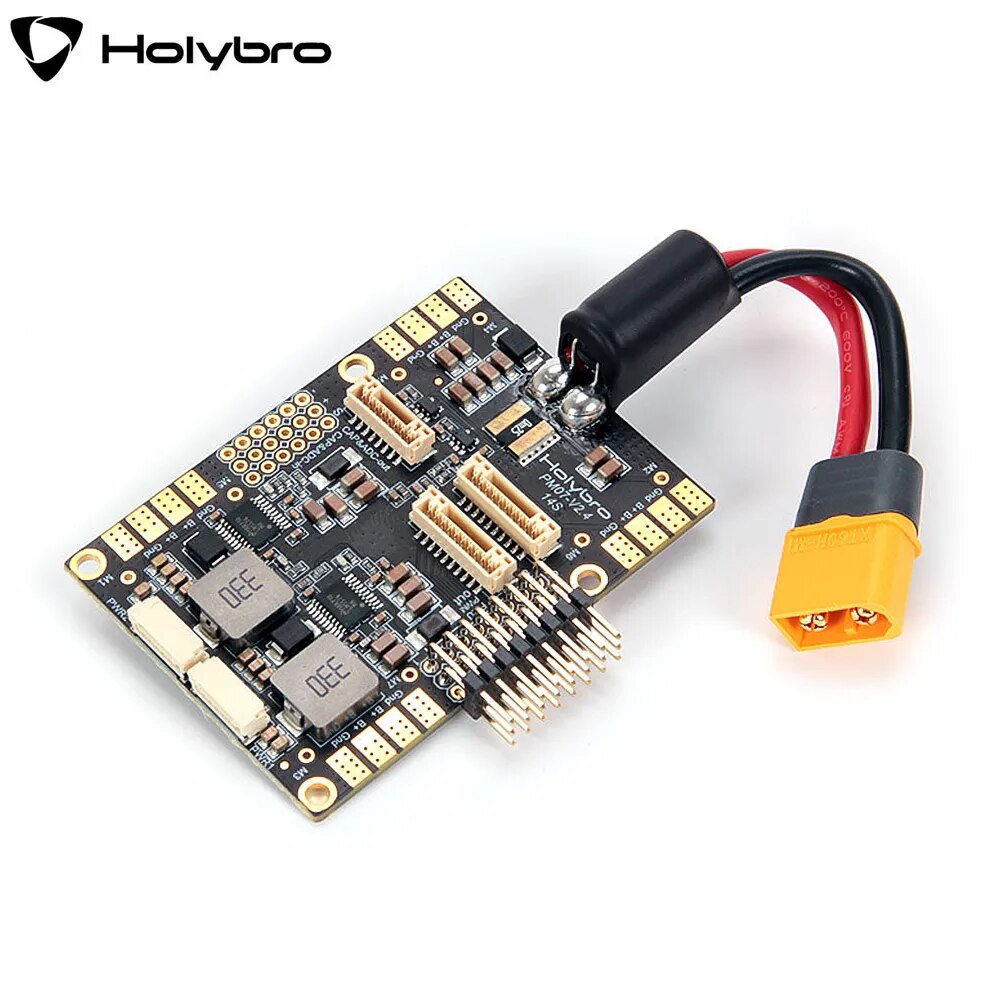

HolyBro PM07 Power Management PM Module W/ 5V UBEC 2 ~ 12s LiPo Output for Pixhawk 4 PX4 Flight Controller RC FPV Racing Drone
- The power management board (PM board) serves the purpose of a power module as well as a power distribution board. In addition to providing control to Pixhawk 4 and Wsr, it sends information to the autopilot about battery voltage and current supplied to the flight controllers and motors.
Specifications:
- PCB current: total 120A outputs (MAX)
- UBEC 5 v output current: 3A
- UBEC input voltage: 7 ~ 51v (2 ~ 12s LiPo)
- Dimensions: 68 * 50 * 8mm
- Mounting holes: 45 * 45mm
- Weight: 36g

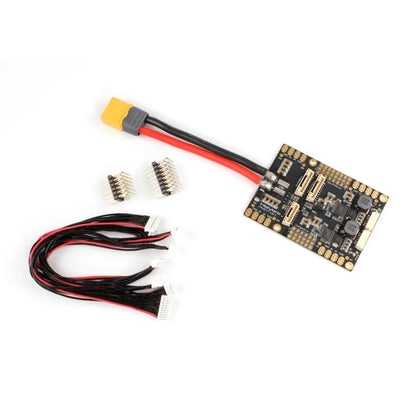

Package Included:
- PM07 board * 1
- 80mm XT60 plug wire * 1
