Description

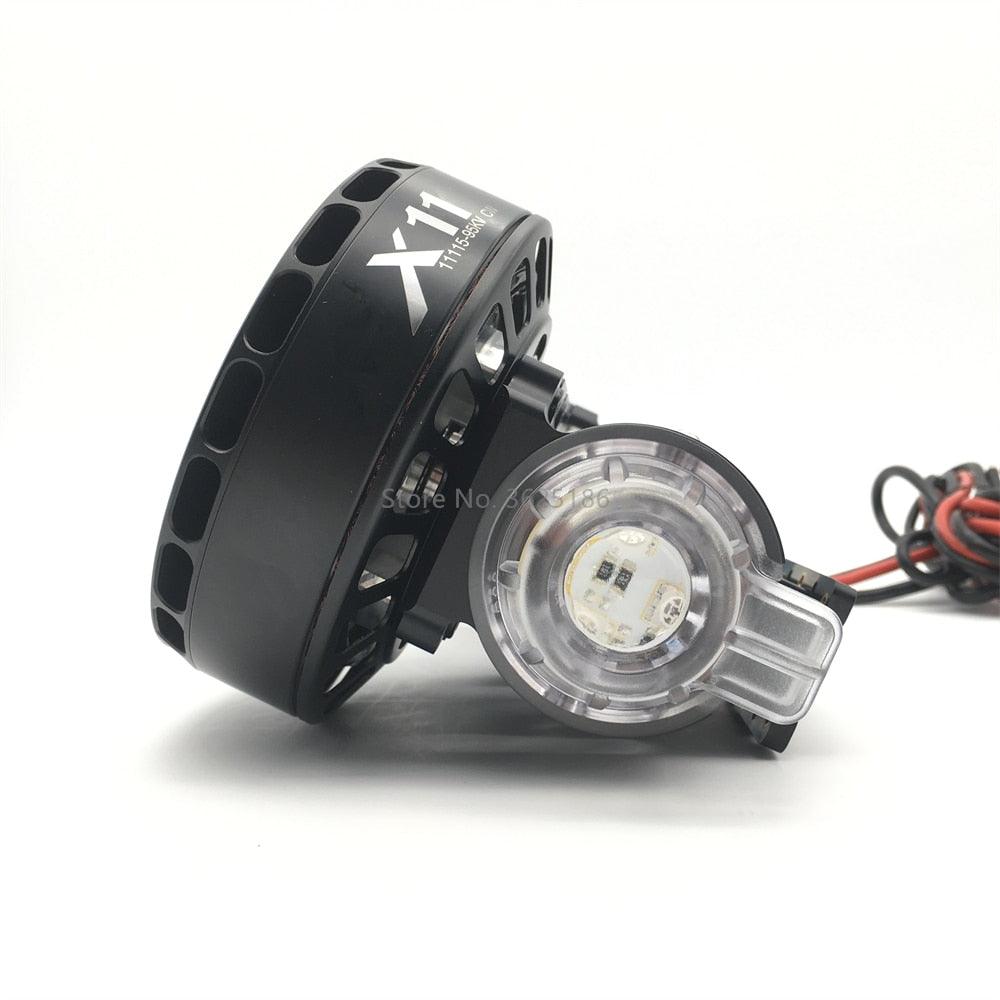

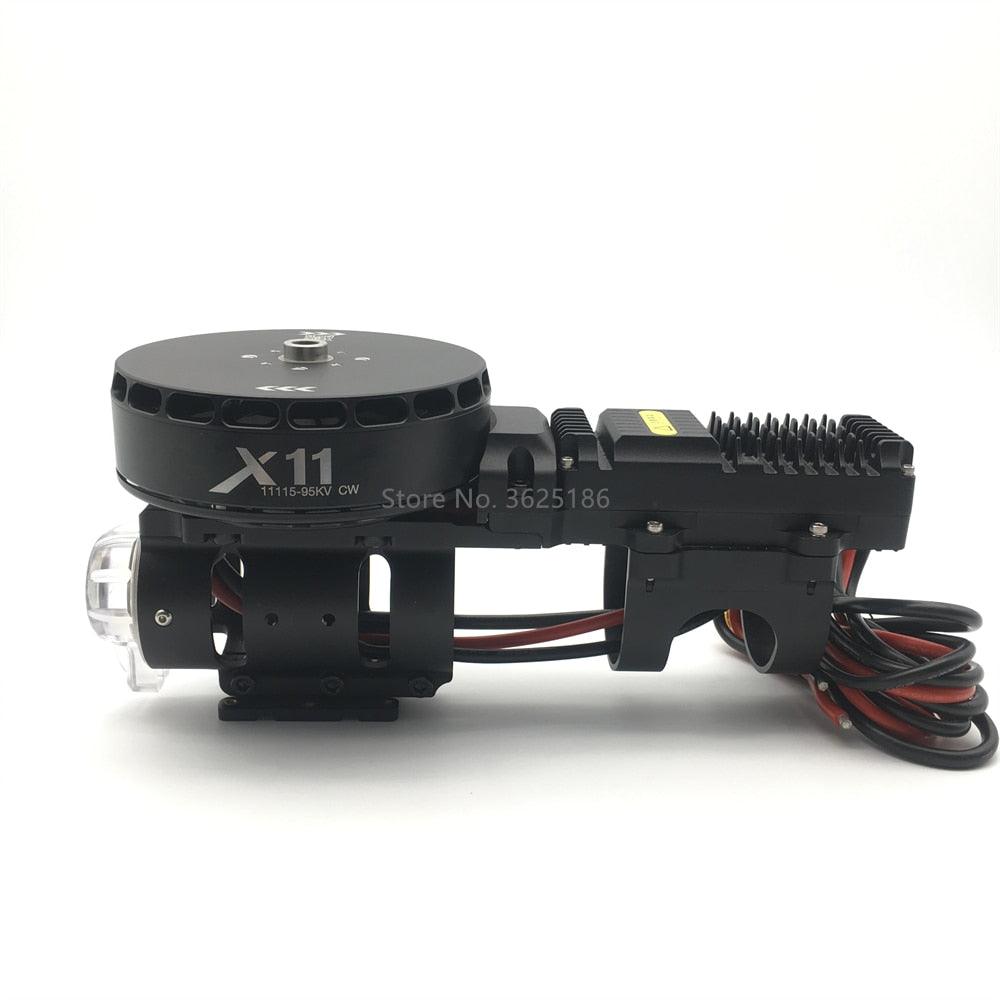

Hobbywing X11 power system SPECIFICATIONS
Wheelbase: Bottom Plate
Use: Vehicles & Remote Control Toys
Upgrade Parts/Accessories: Frame
Tool Supplies: Assembled class
Technical parameters: Value 3
Size: X11
Size: X11
Remote Control Peripherals/Devices: ESC
Recommend Age: 12+y
Recommend Age: 14+y
RC Parts & Accs: Speed Controllers
Origin: Mainland China
Model Number: X11
Material: Composite Material
Four-wheel Drive Attributes: Assemblage
For Vehicle Type: Airplanes

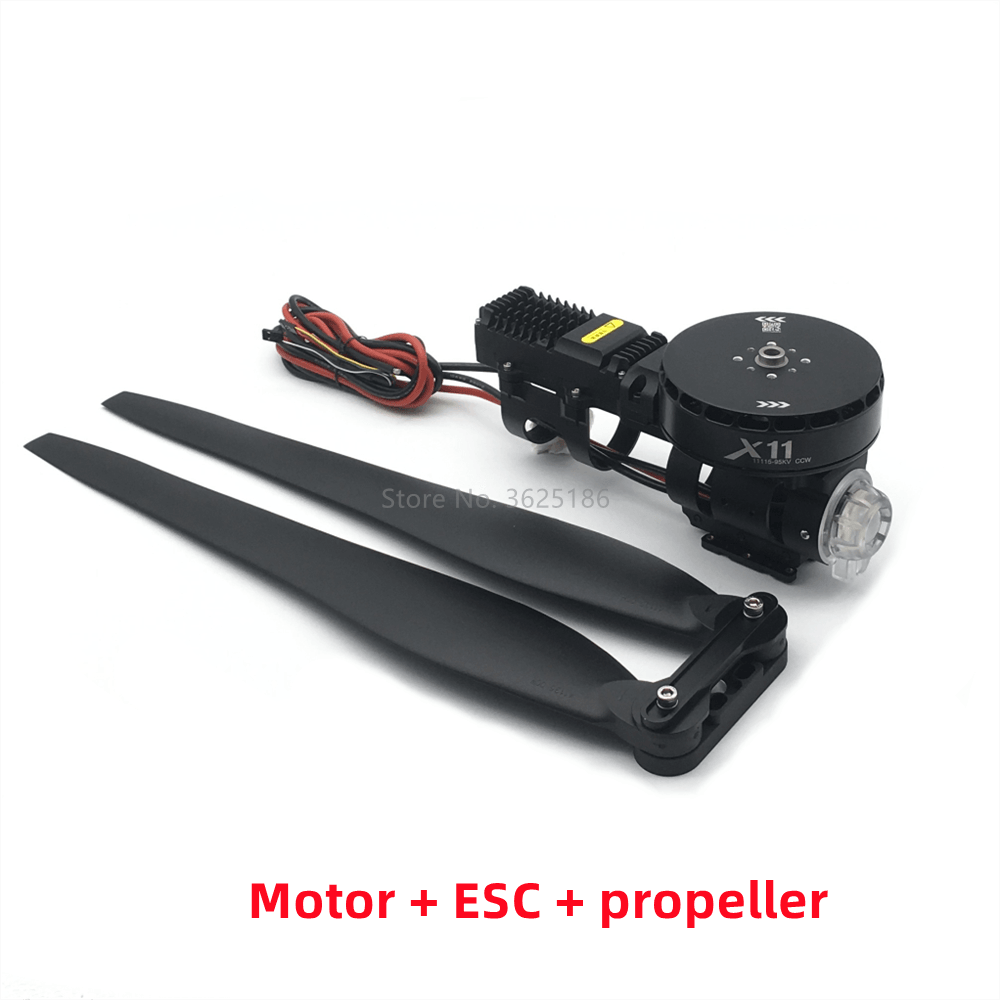

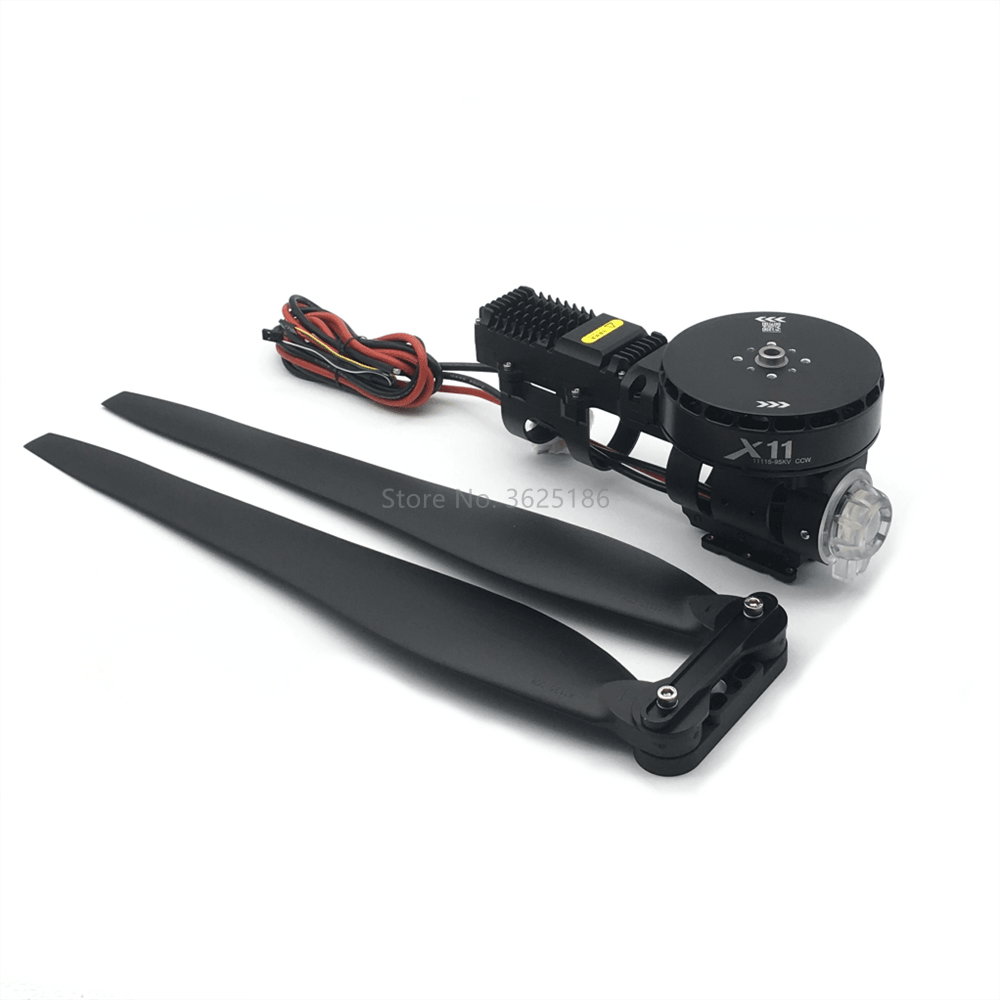

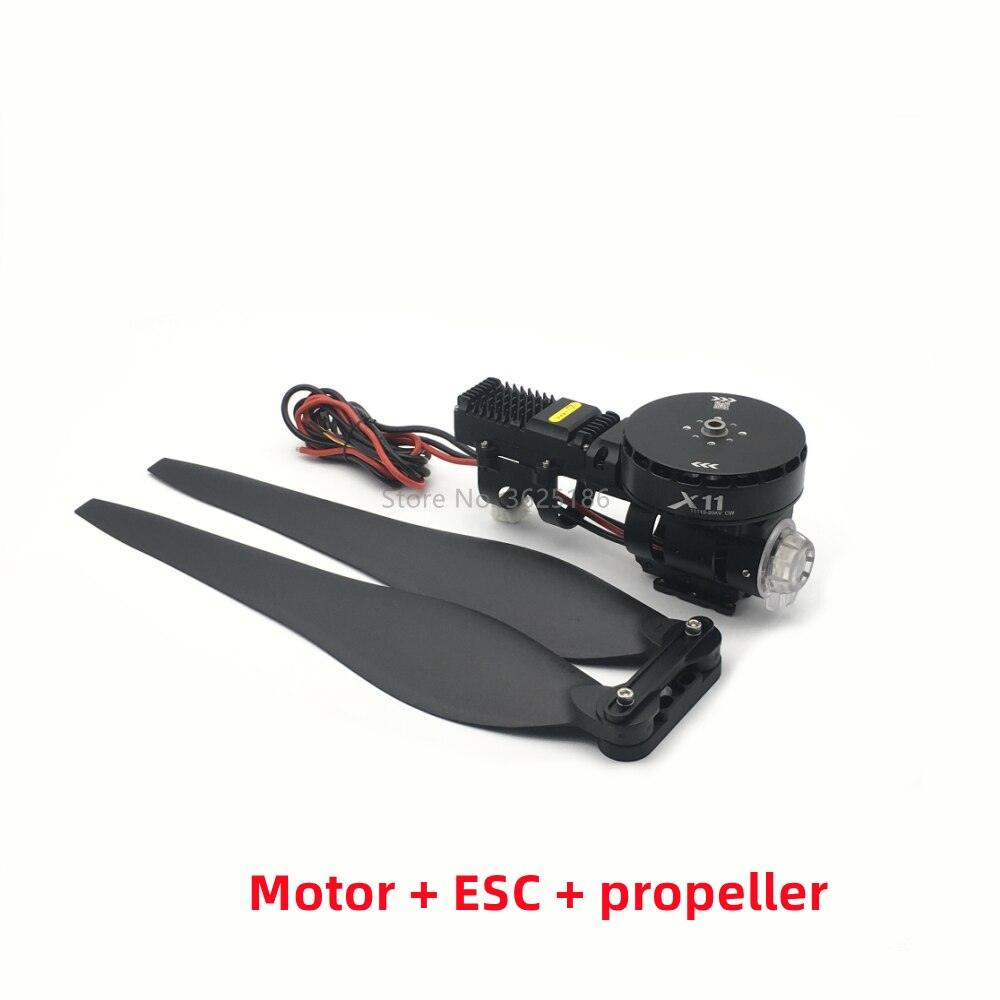

41135 Propeller link
product name
X11-14S/16S/18S
technical parameter
Maximum pulling force: 34kg/shaft (53.6V, sea level)
Recommended take-off weight: 15-17kg/axis (sea level)
Recommended battery: 14S (LiPo)
Ambient temperature: (-20~50℃)
Powertrain Weight: 2340g
Protection class: IPX7

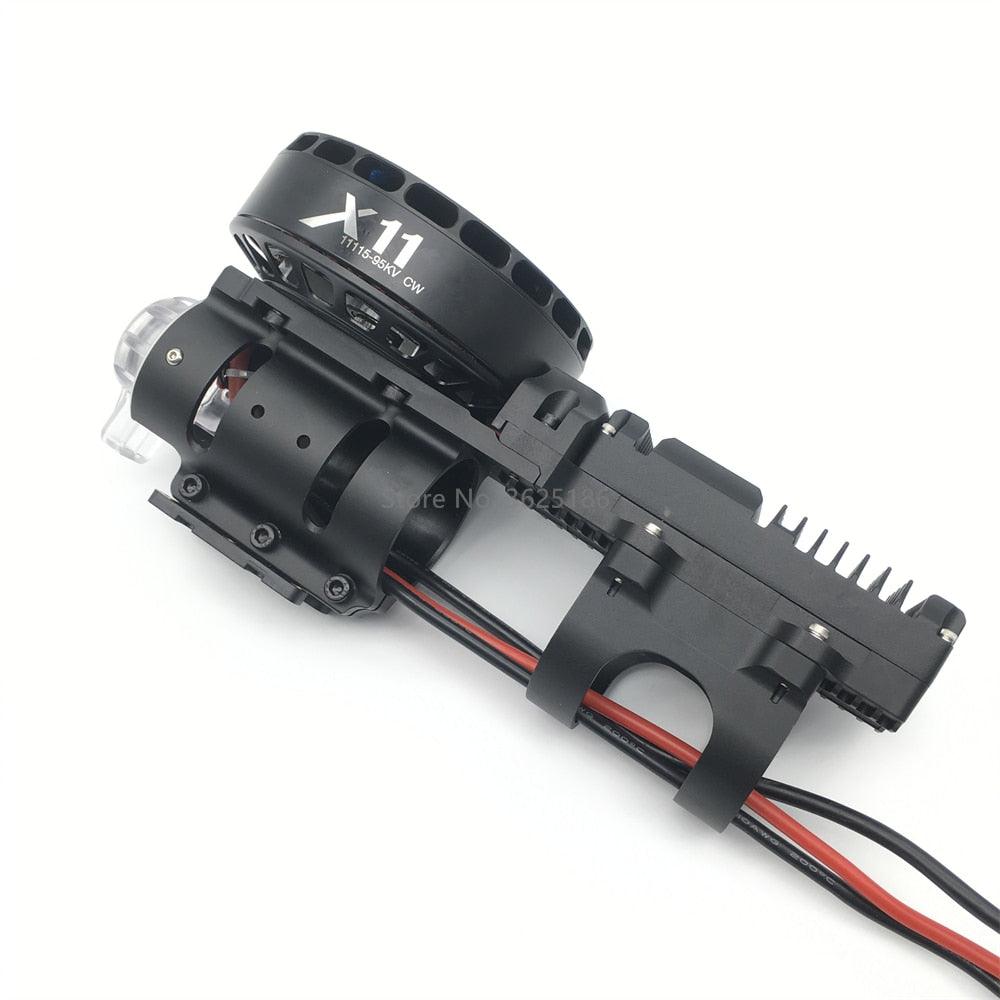

Motor
KV value: 95KV
Stator size
Applicable carbon tube outer diameter: 45/50mm (diameter)
bearing
Imported waterproof bearing

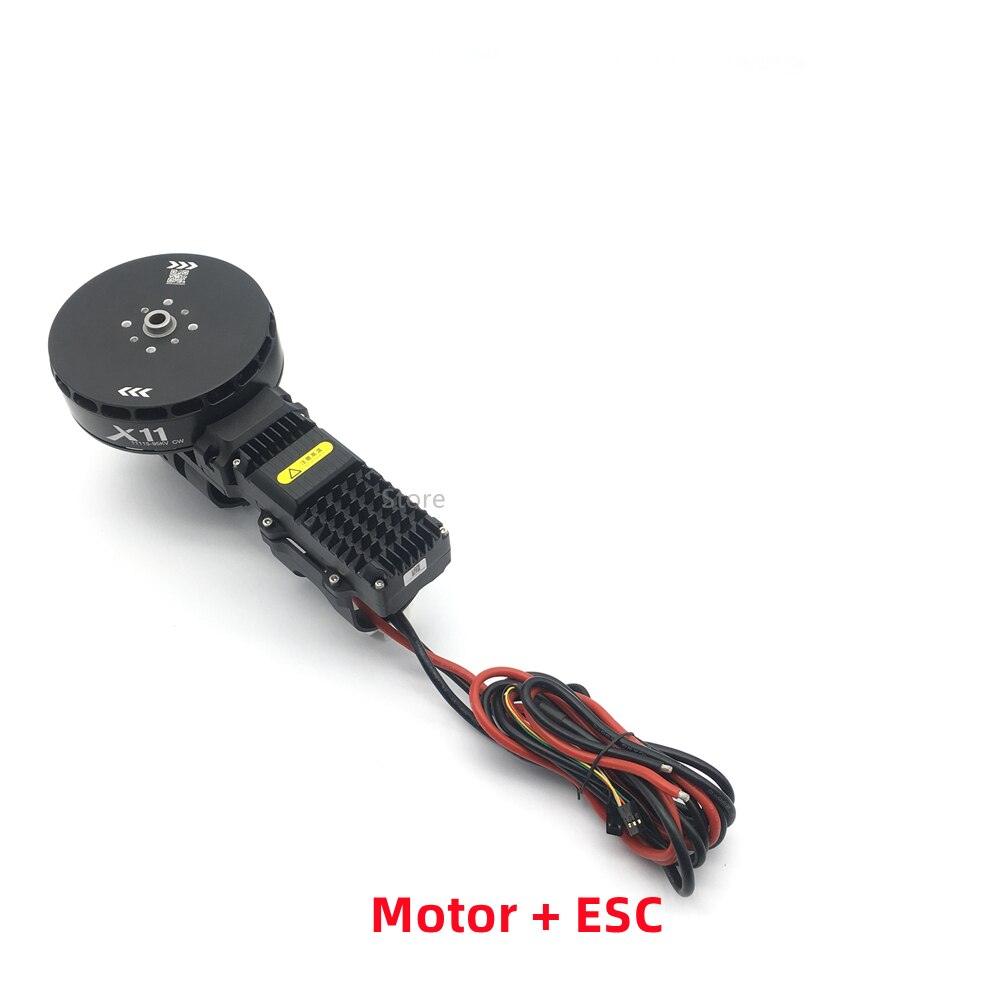

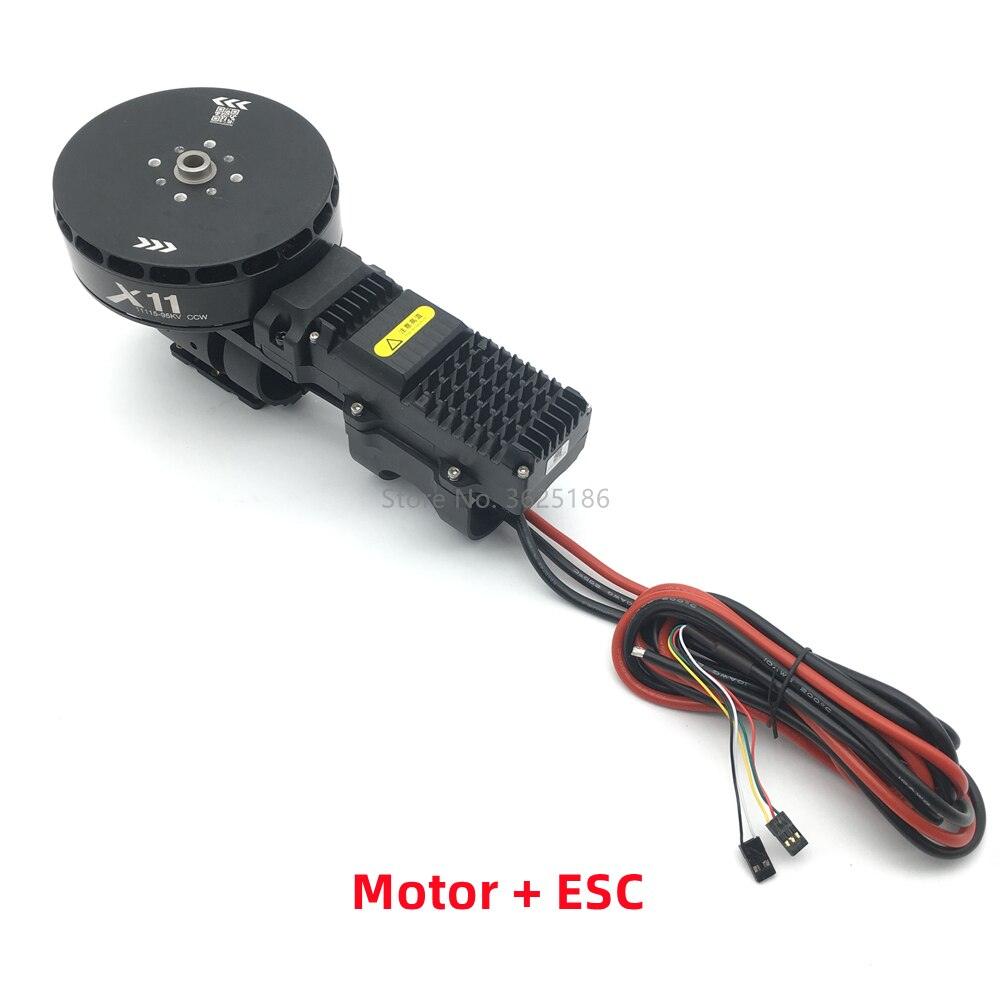

ESC
Support battery: 14S (LiPo)
PWM input signal level: 3.3V/5V
Compatible signal frequency: 100-500Hz
Working pulse width: 1050-1950us (curing)
Maximum allowable voltage: 60.9V
Maximum allowable peak current (10 seconds)
150A (requires good cooling conditions)
BEC: none
Nozzle installation thread hole: φ28.4mm-2*M3

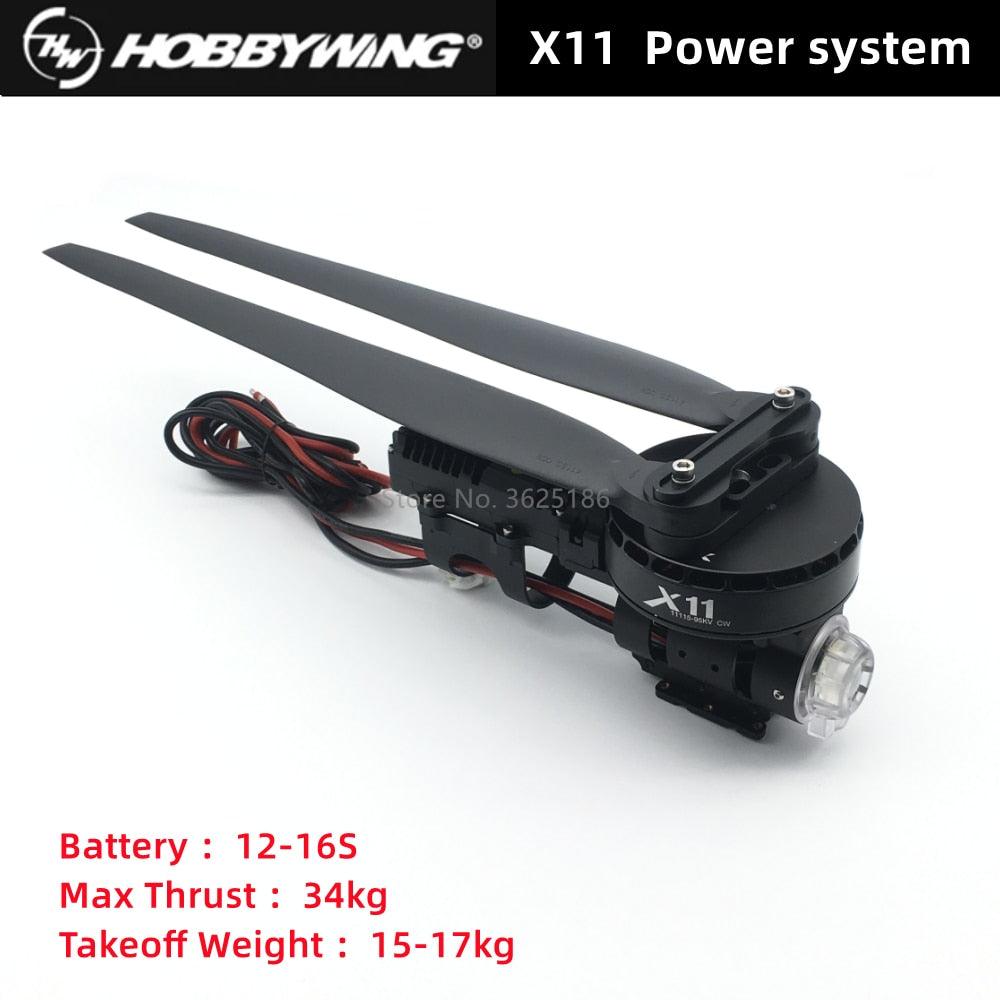

kobbywng x11 power system re no: 3625186 battery 12-165 max thrust 34kg takeoff weight : 15-17kg x

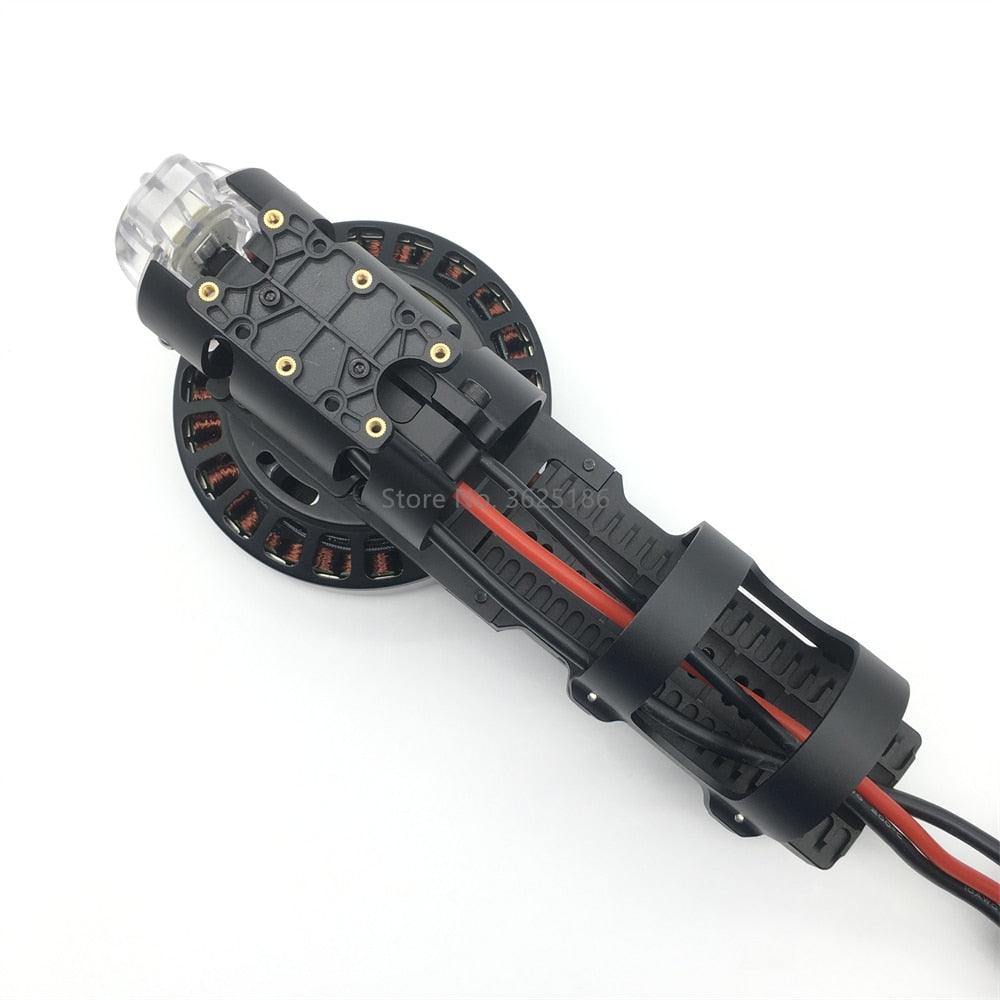

Hobbywing X-Rotor X11 Motor: 41135 propeller, suitable for agriculture spraying drones, with maximum load capacity of 34 kg. Key specifications include 14S or 16S motor, LiPo battery compatibility, 18S FOC electronics, maximum output current of 120A, and a KV rating of 75 rpm/V.
3625186 7 5 % g 6 7 40 1 2 3 6″#”
shenzhen Hongcai Testing Technology Co, Ltd. certifies that hnts neen completed and reports have been generated . manufacturer: Hobbywing Technology Co. LT Address; Bldg Yasen Hi-tech Industrial Park, Chengxin Rd.,, Raolong Town .
