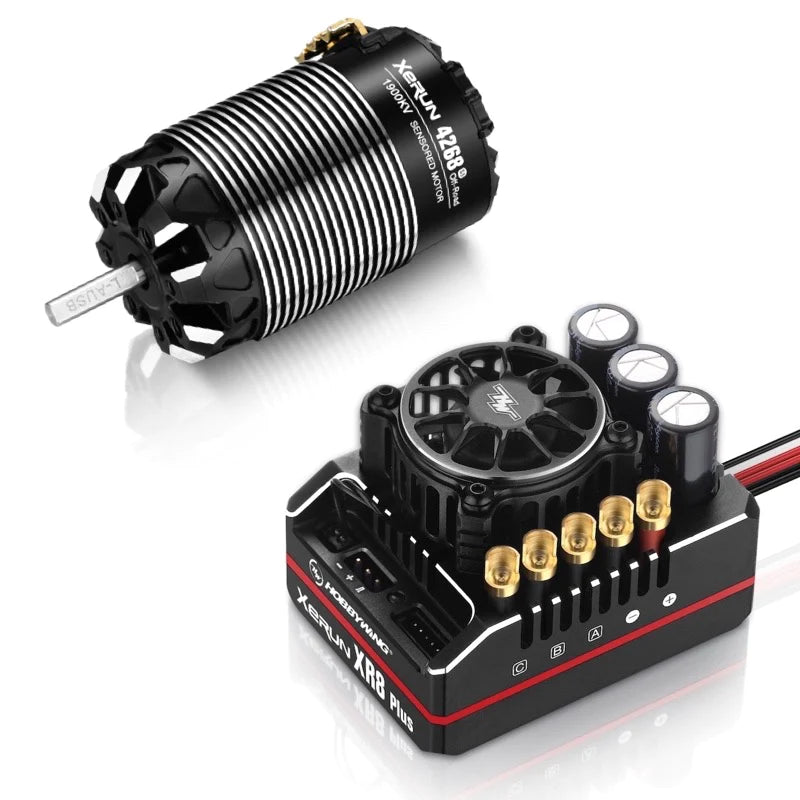

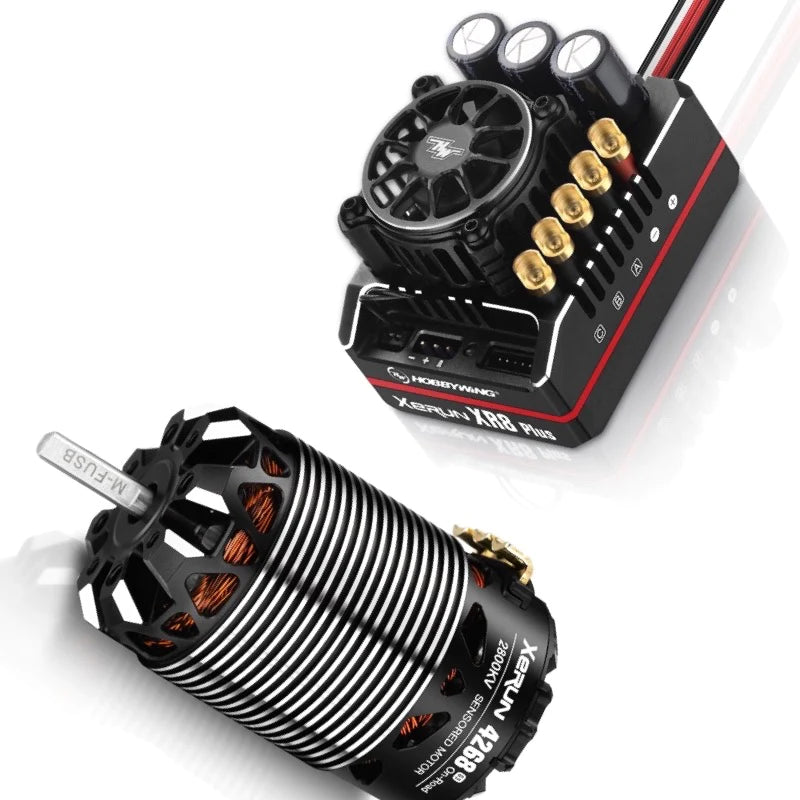

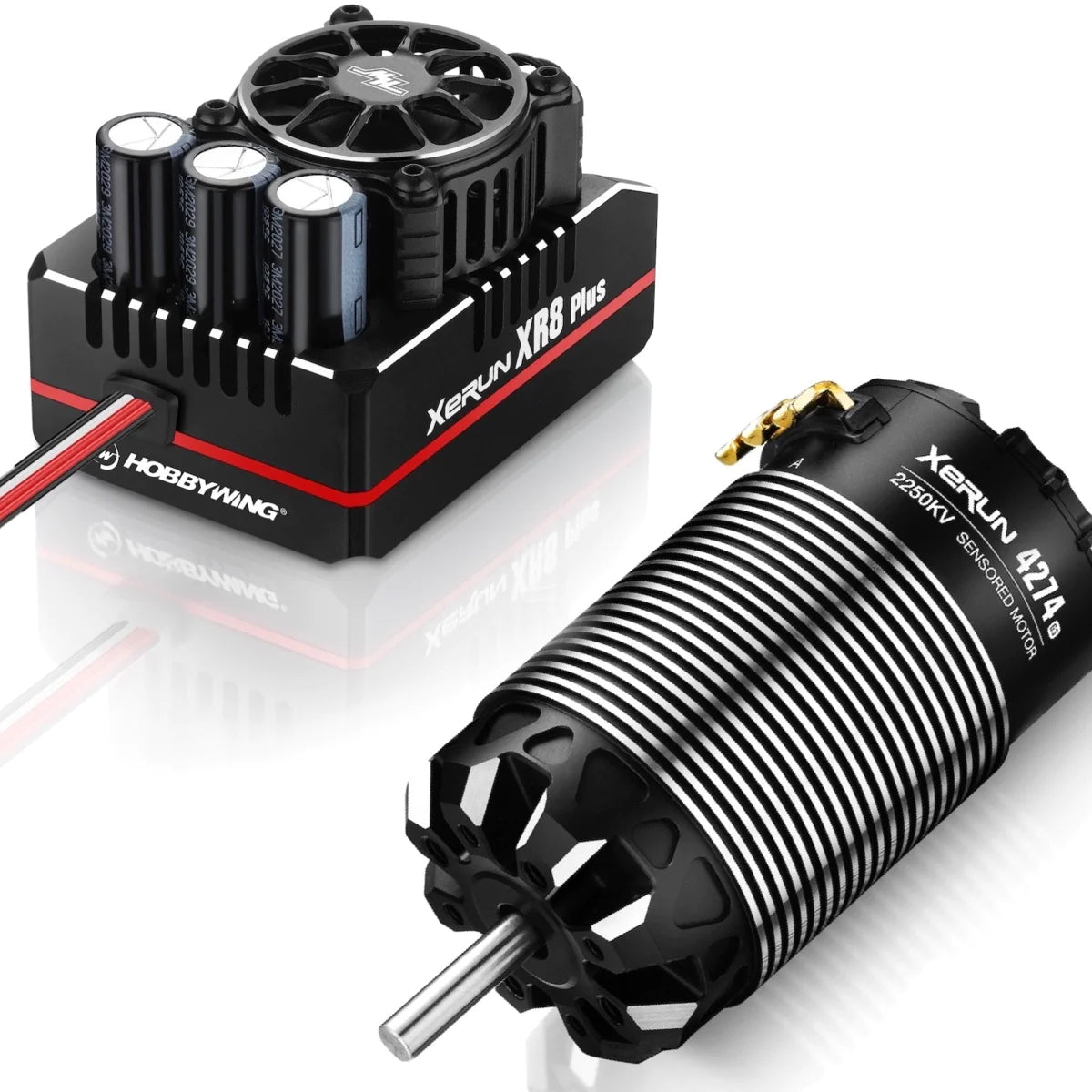

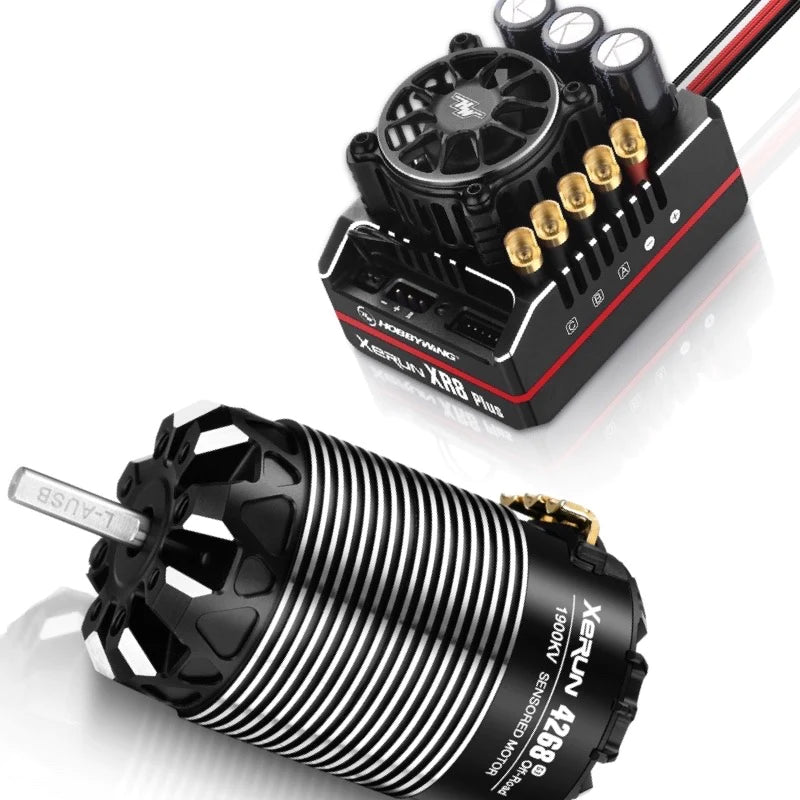

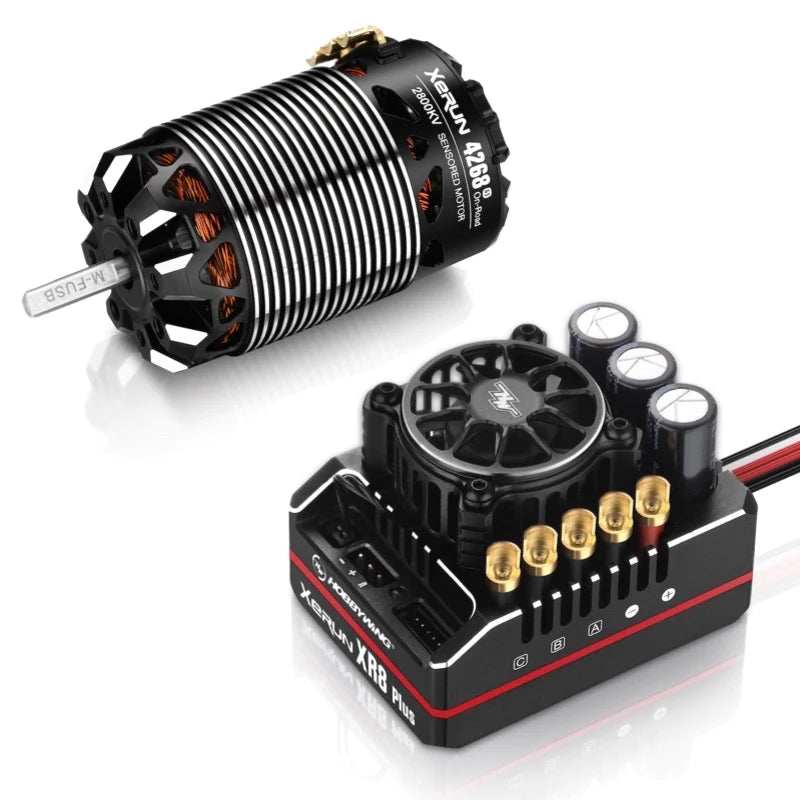

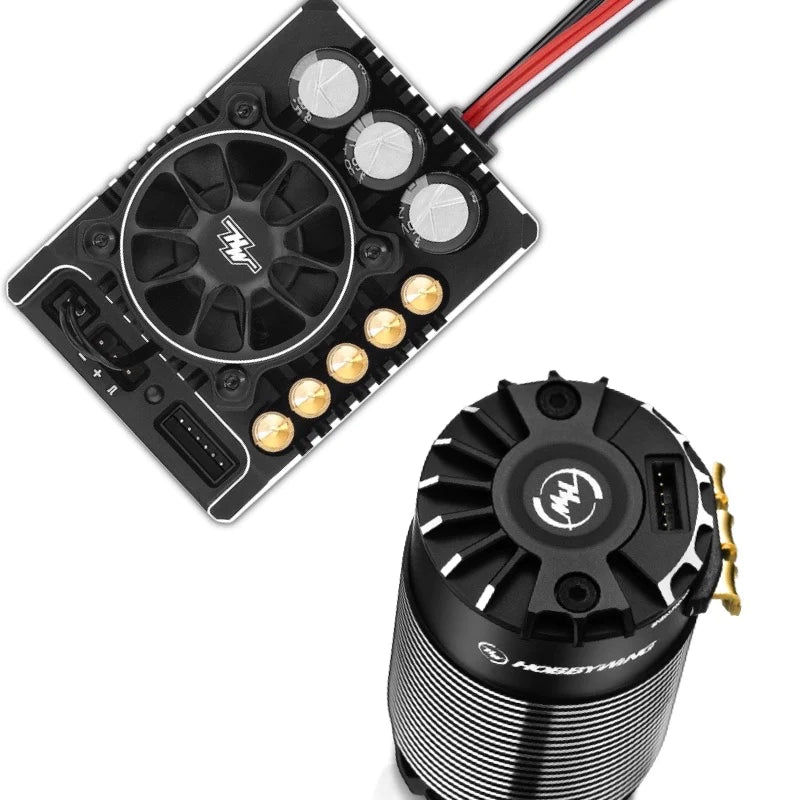

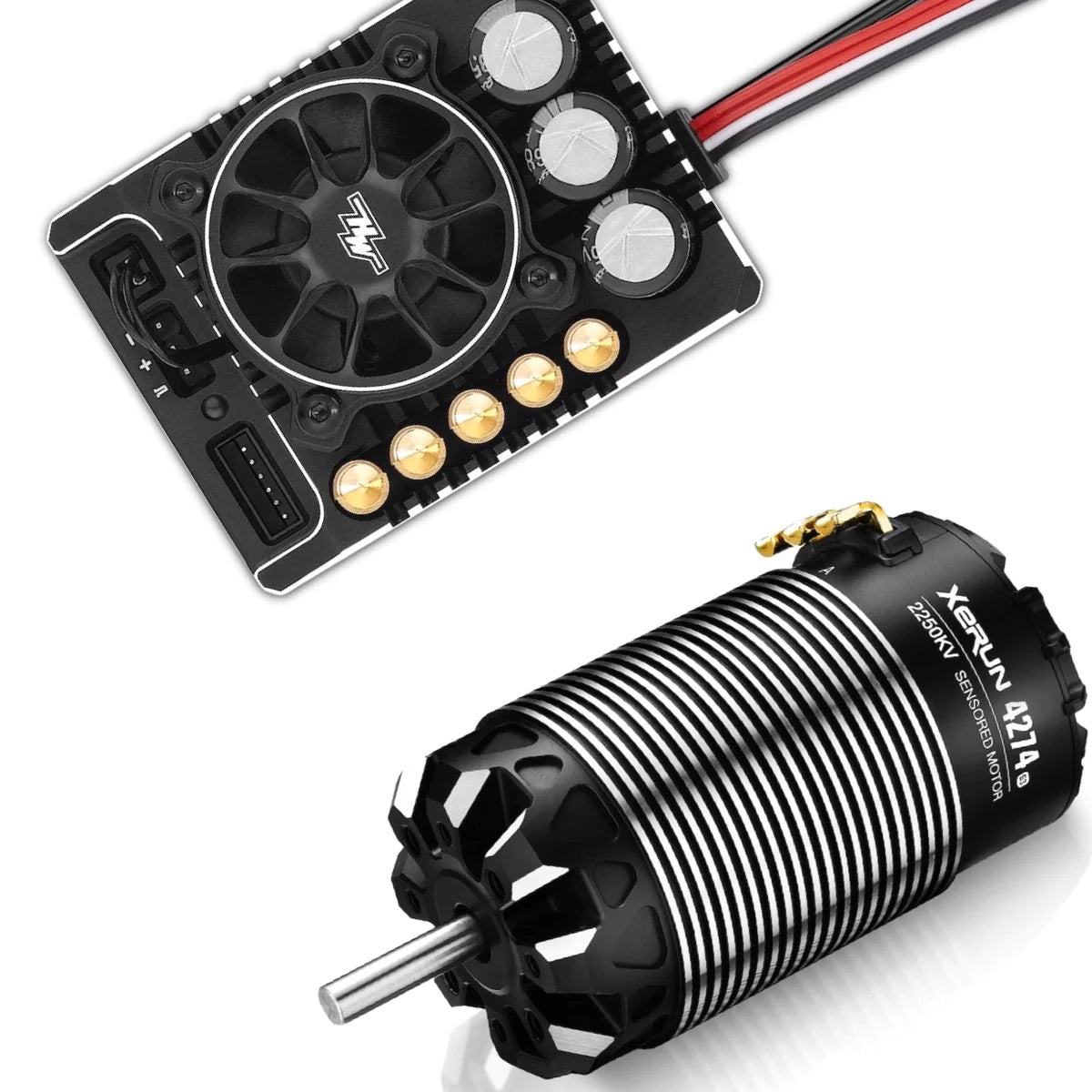

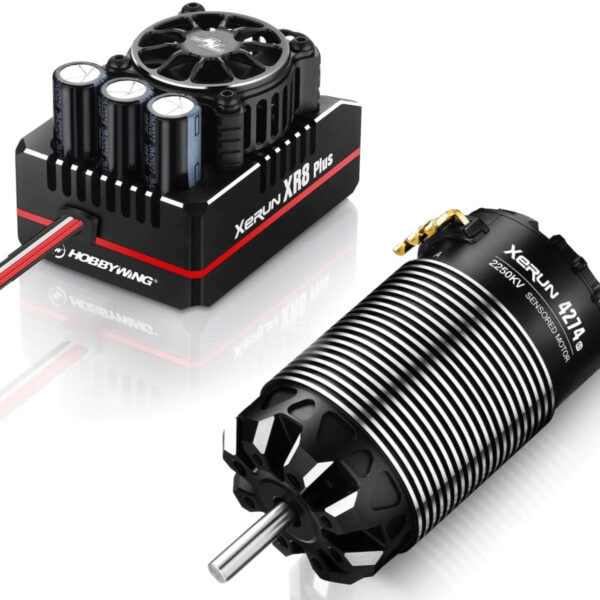

Hobbywing Xerun XR8 Plus G2S Combo (2-6s) – Xerun 4268 SD G3 Brushless Motor with Xerun XR8 Plus G2s ESC for RC Car Trucks

$420.00 – $450.00

+ Free Shipping
ONROAD B (XERUN 4268 SD G3 2800KV)
ONROAD A (XERUN 4268 SD G3 2000KV)
OFFROAD C (XERUN 4274 SD G3 2250KV)
OFFROAD B (XERUN 4268 SD G3 2200KV)
OFFROAD A (XERUN 4268 SD G3 1900KV)
ONROAD B (XERUN 4268 SD G3 2800KV)ONROAD A (XERUN 4268 SD G3 2000KV)OFFROAD C (XERUN 4274 SD G3 2250KV)OFFROAD B (XERUN 4268 SD G3 2200KV)OFFROAD A (XERUN 4268 SD G3 1900KV)
Clear
SKU: N/A Category:

Xerun XR8 Plus G2s Combo (2S-6S) Make your 1/8th scale run like a 1/10th scale vehicle

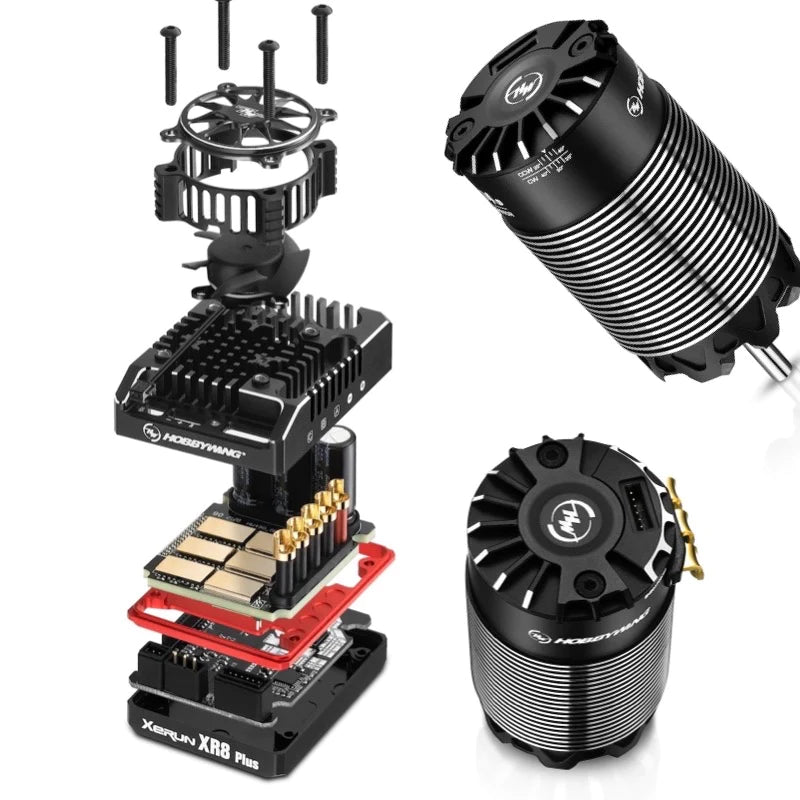

What’s in the box?
  • 1x XeRun XR8 Plus G2s ESC
  • 1x Xerun 1/8th G3 Brushless Motor

Combo Types

p/nXR8 PRO Combo1/8thLipoMotor
38020500Combo 4268 AOffRoad2-6SXerun 4268 SD G3 1900kv
38020501Combo 4268 BOffRoad2-6SXerun 4268 SD G3 2200kv
38020502Combo 4268 AOnRoad2-6SXerun 4268 SD G3 2000kv
38020503Combo 4268 BOnRoad2-4SXerun 4268 SD G3 2800kv
38020504Combo 4274 COffRoad2-6sXerun 4274 SD G3 2250kv

Specification:

 Edition PackageXR8 Plus G2S
P/N30113304
Lipo 2-6S
Wire Gauge 11AWG
Cont./Peak Current200A/1080A
Motor LimitWith 4S Lipo: KV≤3000 4268 / 4274 Size motor
With 6S Lipo: KV≤2400 4274 Size motor
BEC Output6-8.4V Adjustable, Continuous/Peak Current: 6A/15A(Switch-mode)
FFD Technology*YES
Cooling fan Included
Fan FilterIncluded
DecalsIncluded

*FFD=Frameless Fan Design (Patented)

 Manual download >

Motor Specification

p/n30401906304019073040190830401910 30401909
kv1900kv2200kv2000kv2400kv2800kv
pole44444
Lipo2S-6S2S-6S2S-6S2S-4S2S-4S
R. (Ω)0.00750.00690.00690.00590.0035
no load current (A)4A4.1A4.2A4.3A6.1A
Size. O.Dia / Length (mm)42/6842/6842/6842/68mm42/68
Weight (g)315285285276g300
Vehicles

1/8 OffRoad

1/8 OffRoad1/8 OnRoad1/8 OnRoad1/8 OnRoad





XeRun Sensored brushless motors for PRO

1/5 – 1/81/5- 1/8 1/8 – 1/101/10 SCT1/101/101/10 1/10-1/12
Motor size4268
G3

4272
G3

3660
G2		3652
G2		3650
V10 G4
3650

V10 G3

3650
BANDIT G2		3650 Justock G2.1
Adjust. timingYESYESYESYESYESYESYESFixed
POLE44

4

4

2222
Kv / T2600kv
2200kv
1900kv
1600kv		2250kv

4300kv
3600kv
3200kv

6100kv
5100kv
4300kv
3800kv
3100kv

13.5T-
21.5T		3.5T – 25.5T10.5T-21.5T10.5T- 25.5T
Sensored ModeYESYES
YES
YES
YesYESYESYES



Style

ONROAD B (XERUN 4268 SD G3 2800KV), ONROAD A (XERUN 4268 SD G3 2000KV), OFFROAD C (XERUN 4274 SD G3 2250KV), OFFROAD B (XERUN 4268 SD G3 2200KV), OFFROAD A (XERUN 4268 SD G3 1900KV)
