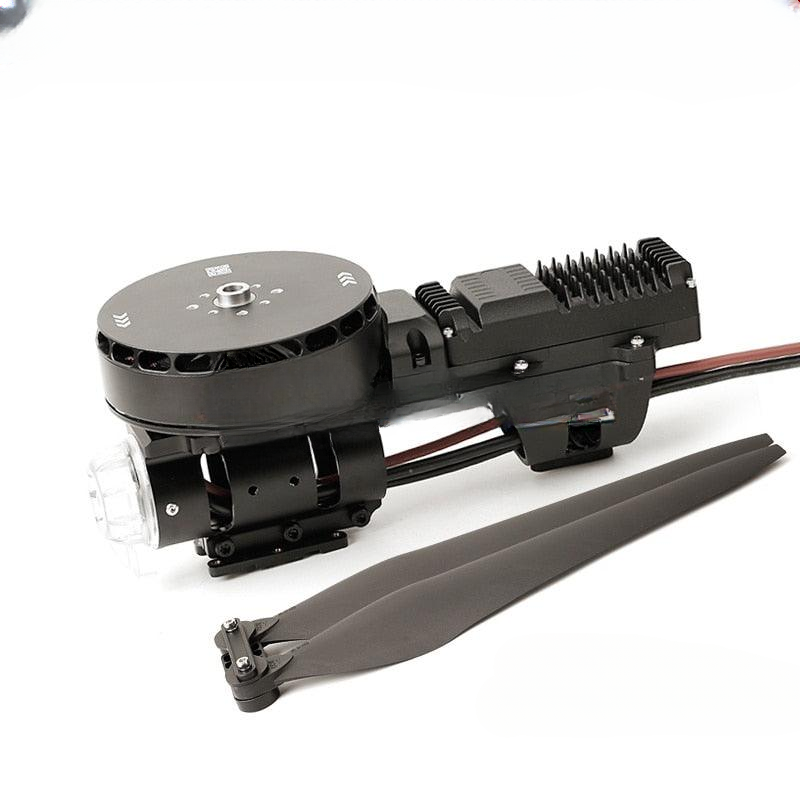

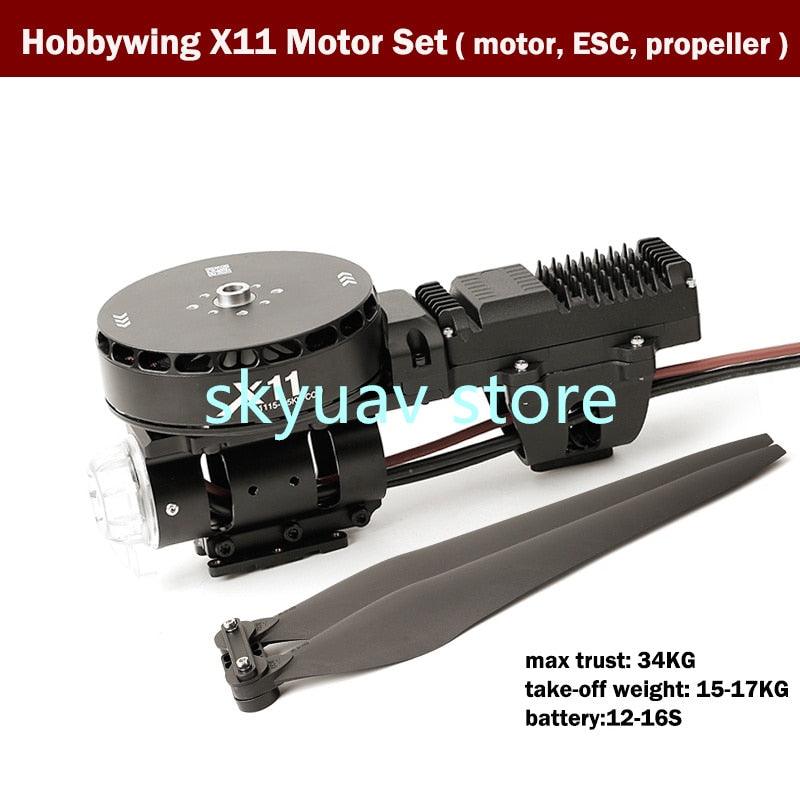

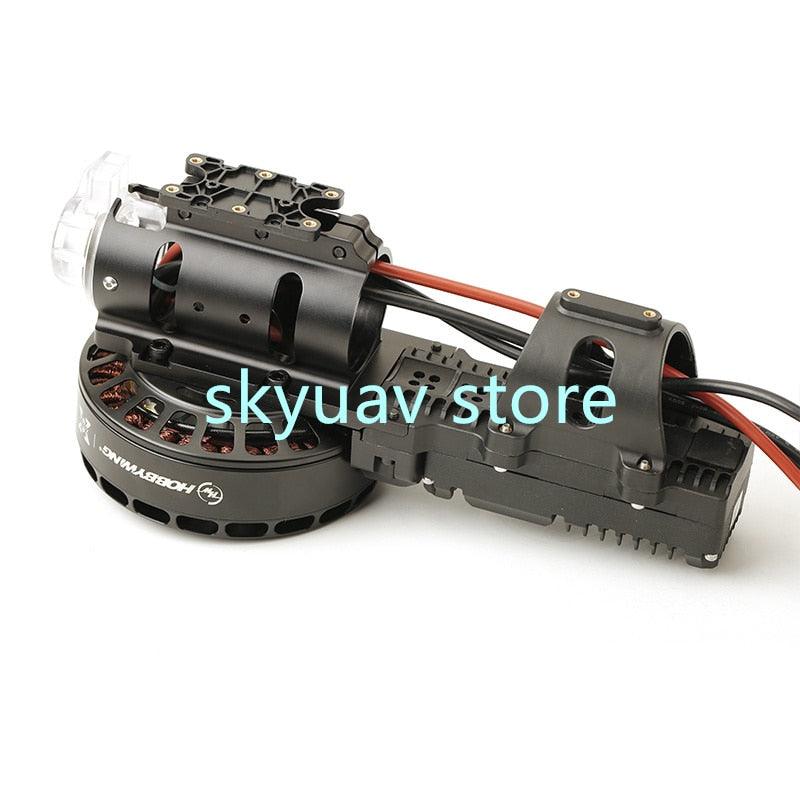

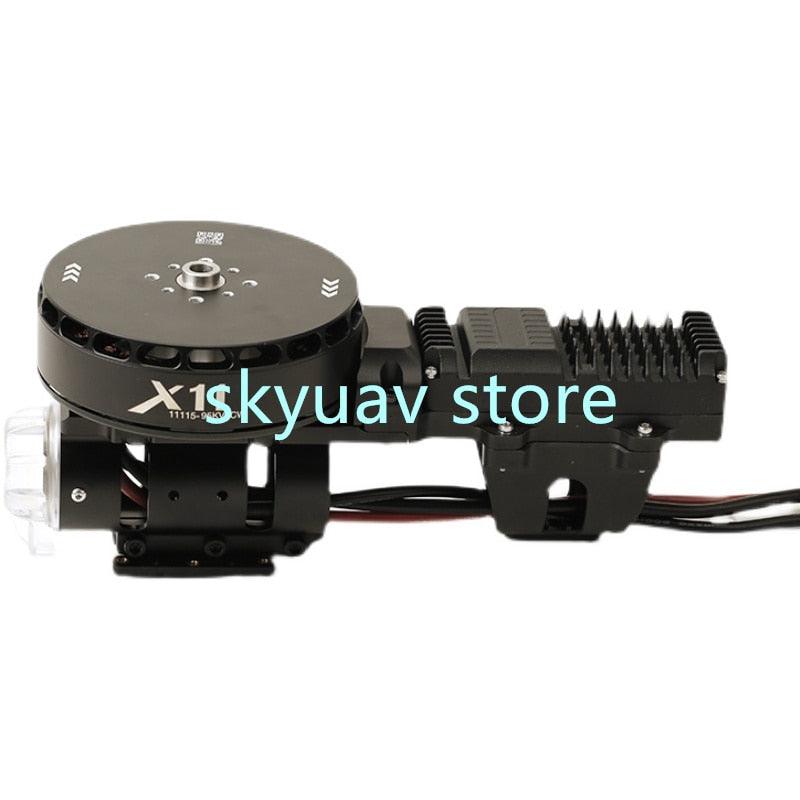

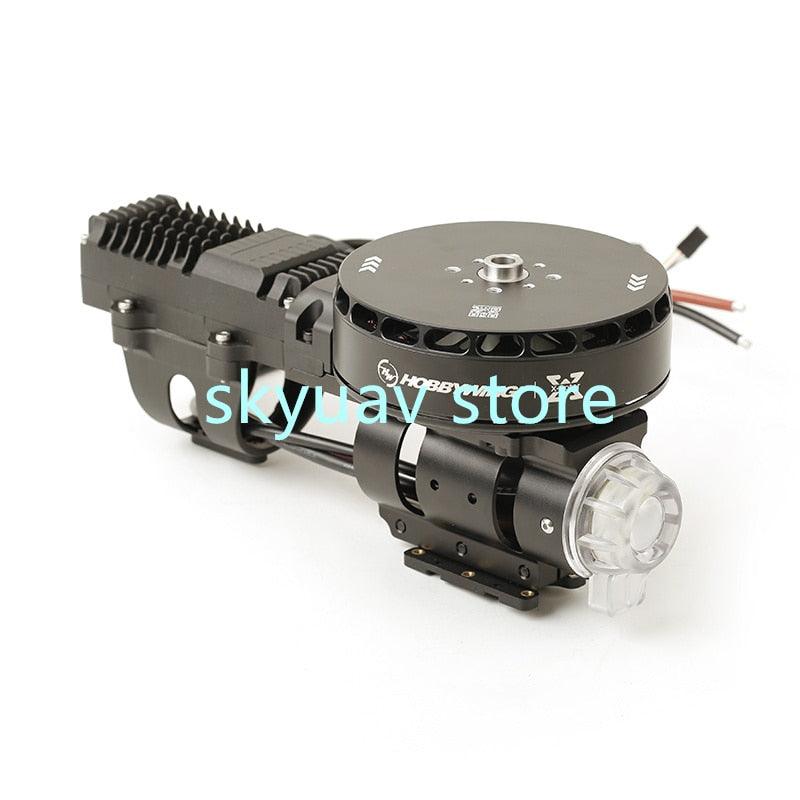

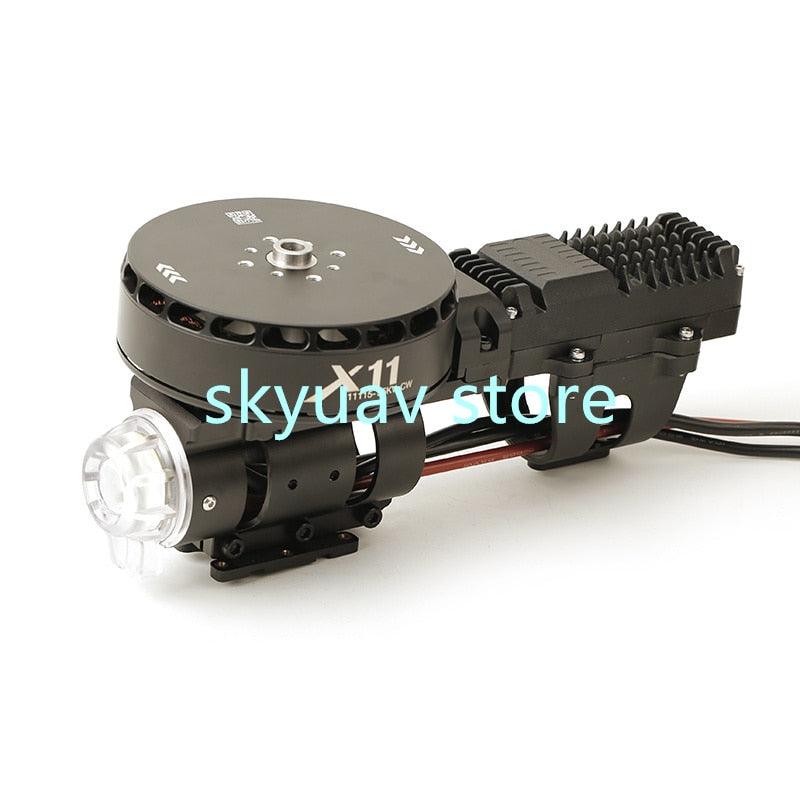

Hobbywing X11 Power system – Maximum Load 34kg for Multirotor Agriculture Spraying Drone Motor

$469.85

Description

Hobbywing X11 Power system SPECIFICATIONS

Wheelbase: Bottom Plate

Use: Vehicles & Remote Control Toys

Upgrade Parts/Accessories: Frame

Tool Supplies: Assembled class

Technical parameters: Value 2

Remote Control Peripherals/Devices: Motor

Recommend Age: 14+y

RC Parts & Accs: Motor Components

Quantity: 1 pcs

Origin: Mainland China

Model Number: X11

Material: Metal

Four-wheel Drive Attributes: Assemblage

For Vehicle Type: Airplanes

Propeller

Diameter×Pitch

41135

ESC

Recommended LiPo Battery

14S LiPo

PWM Input Signal Level

3.3V/5V

Throttle Signal Frequency

50-500Hz

Operating Pulse Width

1050-1950us

Max. Input Voltage

60.9V

Max. Peak Current (10s)

150A (excellent heat dissipation are required)

BEC

No

Mounting Holes for Nozzle

φ28.4mm-2*M3

Motor

KV Rating

95 KV

Stator Size

111*15

Tube Diameter

φ45/50mm

Bearing

Waterproof Bearing

Specifications

Max. Thrust

34kg/ axis(53.6V, sea level)

Recommended Takeoff Weight

15-17kg/axis(sea level)

Recommended LiPo Battery

14S(LiPo)

Operating Temperature

-20-55℃

Combo Weight

2340g

Waterproof Rating

IPX7

Product Name

X11-14S/18S

Hobbywing X11 Power system, X11-145/18S power system has a maximum thrust force of 34kg at

x11-145/18s power system has a maximum thrust force of 34kg at 54v . by reducing the operating current and the weight of the electronical connection, the x1 is able to achieve a

Hobbywing X11 Power system, protection class IPXZ The X11 is anti-corrosive and is fully sealed

The Hobbywing X11 power system features an anti-corrosive design, fully sealed construction, and IPX7 protection classification, making it suitable for operation in harsh environments and extreme climates around the world.

the x11 is equipped with an overall waterproofing protection of ipxz rating it guarantees excellent waterproofing and dustproofing protection it is anti-corrosive and is fully sealed to cope with harsh environment and climates around

Hobbywing X11 Power system, the iron core structure from the motor has been redesigned to reduce the internal resistance .

The motor’s iron core structure has been redesigned to minimize internal resistance, resulting in reduced weight and improved overall performance. By incorporating FOC (Field-Oriented Control) vector control drive technology with fixed-point optimization, we have further enhanced the drive efficiency and extended battery life.

the iron core structure from the motor has been redesigned to reduce the internal resistance and increase the overall efficiency rate . additionally, the weight of the motor is reduced to improve the overall performance by adopting the foc vector control drive technology

Hobbywing X11 Power system, flashing display of flight lights will indicate the issue and users are able to troubleshoo

The flashing display of flight lights indicates any issues that may arise, allowing users to quickly troubleshoot problems using the QuickTime feature.

enrich the language of navigation lights more power failures are added into the system in order to find the fault . the flashing display of the flight lights will indicate the issue and users are able to troubleshoot them in quicktime

Hobbywing X11 Power system, tiled integrated structure for enhanced heat dissipation & lower center of gravity

The Hobbywing X11 Power system features an integrated structure designed for enhanced heat dissipation, resulting in a lower center of gravity. This reduces the overall CG by 10mm, enhancing overall stability during flight. In comparison to other similar systems, the X11 operates at a significantly lower temperature (20% reduction), reaching as low as 250°C.

tiled integrated structure for enhanced heat dissipation . overall cg is reduced and is lowered by i omm overall flight will be more stable . compared to new x11 will operate at

Hobbywing X11 Power system, new layout of the PCB is optimized in order to cope with high-power interference .

The printed circuit board (PCB) layout has been optimized to effectively mitigate high-power electromagnetic interference (EMI). Moreover, the system utilizes CAN/serial port data transmission, which enhances its resistance to external noise and high-current disturbances.

new layout of the pcb is optimized in order to cope with high power interference . data communication signal line adopts a fully shielded bundle line . working data uses can/serial port data transmission .

Hobbywing X11 Power system, X1 power system is equipped with multiple protection functions . it can output an operating status

X1 power system is equipped with multiple protection functions . it is able to output an operating status data to the flignt controller in real time .

x1 power system is equipped with multiple protection functions . it is able to output an operating status data to the flignt controller in real time . this improves the overall system reliability and efficiency .

Hobbywing X11 Power system, Hobbywing allows you to update your ESC to the latest firmware and synchronize it using

Update your ESC seamlessly by installing the latest firmware through Hobbywing’s intuitive Data Link software, which enables you to sync your ESC with your computer at any time.

support system upgrades hobbywing allows you to update your esc to the latest firmware and synchronize it using a computer via the hobbywing data link software at all times: i) support system

Feedback:



Normally,the item you ordered will be delivered within three working days.If you cannot receive the package in time and other problems, please contact us first. We will check and solve them as soon as possible.We usually reply within 24 hours, sometimes there may be a delay in the reply during weekends or holiday, please wait, we will reply as soon as we see the message.

We can also choose the appropriate mode of transportation according to the goods and the country of export, and the

transportation time will vary according to different modes of transportation

Hobbywing X11 Power system, GOOd PRODUCT QUALITY I5 GREAT LoGISTICS I5 F

when you are satisfied with the product 5 starevaluation good product quality i5 great logistics i6 fast item as described: communication: light up little stars shipping speed

 ===========

Hobbywing X11 Power System – Maximum Load 34kg for Multirotor Agriculture Spraying Drone

Technical Parameters

Propeller

  • Diameter×Pitch: 41135

ESC

  • Recommended LiPo Battery: 14S LiPo
  • PWM Input Signal Level: 3.3V/5V
  • Throttle Signal Frequency: 50-500Hz
  • Operating Pulse Width: 1050-1950us
  • Max. Input Voltage: 60.9V
  • Max. Peak Current (10s): 150A (Excellent heat dissipation required)
  • BEC: No
  • Mounting Holes for Nozzle: φ28.4mm-2*M3

Motor

  • KV Rating: 95 KV
  • Stator Size: 111*15
  • Tube Diameter: φ45/50mm
  • Bearing: Waterproof Bearing

Specifications

  • Max. Thrust: 34kg/axis (53.6V, sea level)
  • Recommended Takeoff Weight: 15-17kg/axis (sea level)
  • Recommended LiPo Battery: 14S (LiPo)
  • Operating Temperature: -20-55℃
  • Combo Weight: 2340g
  • Waterproof Rating: IPX7

Functional Selling Points

High Thrust Force

The X11 Power System is designed to deliver a maximum thrust force of 34kg per axis, ensuring stability and reliability for multirotor agriculture spraying drones.

High Voltage Compatibility

Supports high-voltage batteries up to 60.9V, providing flexibility in battery choices for optimal performance.

IPX7 Waterproof Rating

Equipped with an IPX7 waterproof rating, the X11 ensures excellent waterproofing and dustproofing protection, making it suitable for operation in harsh environments.

Structural Performance Optimization

The motor’s iron core structure has been optimized to reduce internal resistance and increase overall efficiency. The FOC vector control drive technology further enhances drive efficiency and battery life.

Enhanced Heat Dissipation

The tiled integrated structure enhances heat dissipation and lowers the center of gravity by 10mm, contributing to stable flights and improved compatibility with rack equipment.

Anti-Interference Upgrade

The power system features an upgraded system layout and shielded data communication signal lines to mitigate high-power interference and improve anti-external and high-current interference performance.

Multiple Protection Functions

Equipped with various protection functions, including power-on self-test, voltage abnormal protection, current protection, and stall protection. Real-time operating status data is output to the flight controller, enhancing overall system reliability.

Setup and Maintenance

  • Setup: Follow the provided instructions for a seamless setup process, ensuring proper calibration and compatibility.
  • Maintenance: Regularly inspect the motor, ESC, and propeller for wear or damage. Keep the system clean and free from debris.

FAQ

Q: What is the maximum thrust force of the X11 Power System?
A: The maximum thrust force is 34kg per axis.

Q: What is the recommended operating temperature range?
A: The X11 Power System operates within the temperature range of -20-55℃.

Q: Does the system support high-voltage batteries?
A: Yes, the system supports high-voltage batteries up to 60.9V.

Q: Is the X11 system compatible with multirotor agriculture spraying drones?
A: Yes, the X11 Power System is specifically designed for multirotor agriculture spraying drones.





Additional information

Color

18S 50mm 1CCW, 18S 50mm 1CW, 14S 50mm 1CCW, 14S 50mm 1CW, 14S 45mm 1CCW, 14S 45mm 1CW
