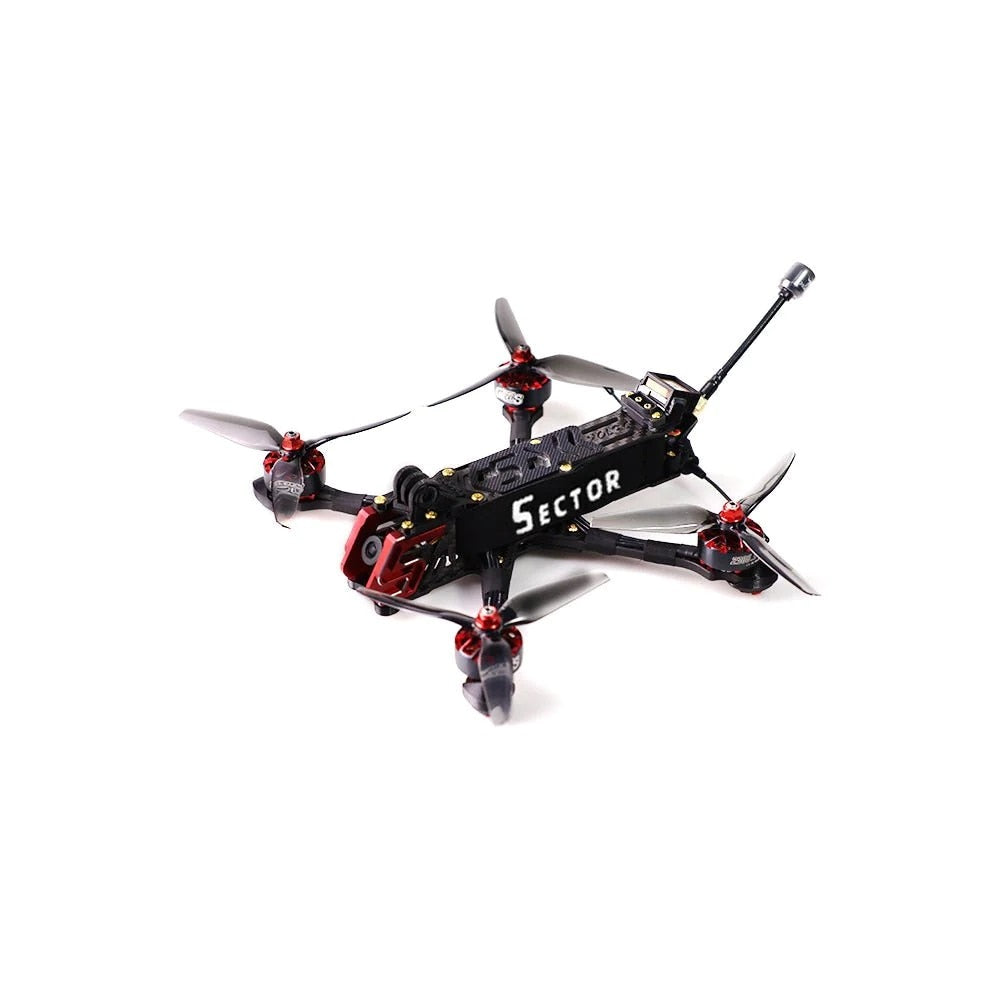

HGLRC Sector D5 FPV Racing Drone HD O3 Version SPECIFICATIONS
Warranty: Not include
Warning: Minors please use under the supervision of an adult
Video Capture Resolution: 1080p FHD
Type: Airplane
State of Assembly: Ready-to-Go
Remote Distance: 1500 meters
Remote Control: Yes
Recommend Age: 12+y,14+y
Power Source: Electric
Plugs Type: XT60
Package Includes: Original Box,Camera
Origin: Mainland China
Operator Skill Level: Intermediate,Expert
Model Number: HGLRC Sector D5 FPV Racing Drone Analog Version
Material: Metal,Plastic,Carbon Fiber
Indoor/Outdoor Use: Indoor-Outdoor
Flight Time: 20 minutes
Features: App-Controlled,FPV Capable,Integrated Camera,Other
Dimensions: 5inch
Controller Mode: MODE2,MODE1
Controller Battery: Not include
Control Channels: 8 Channels
Charging Voltage: 14.8V
Charging Time: 30 minutes
Certification: CE
Camera Mount Type: Fixed Camera Mount
CE: Certificate
Brand Name: HGLRC
Features:
*Replaceable arms for quick disassembly without taking apart the whole frame
*A fixed power outlet for convenience and protecting your power cable from cutting by propellers
*GPS pre-installed for more safety in the distance with GPS Rescue Mode
*CNC aluminum side plates combined with 3D printed parts to make your drone look dope
Specification:
Product Name:HGLRC Sector D5 FPV Racing Dron HD Version

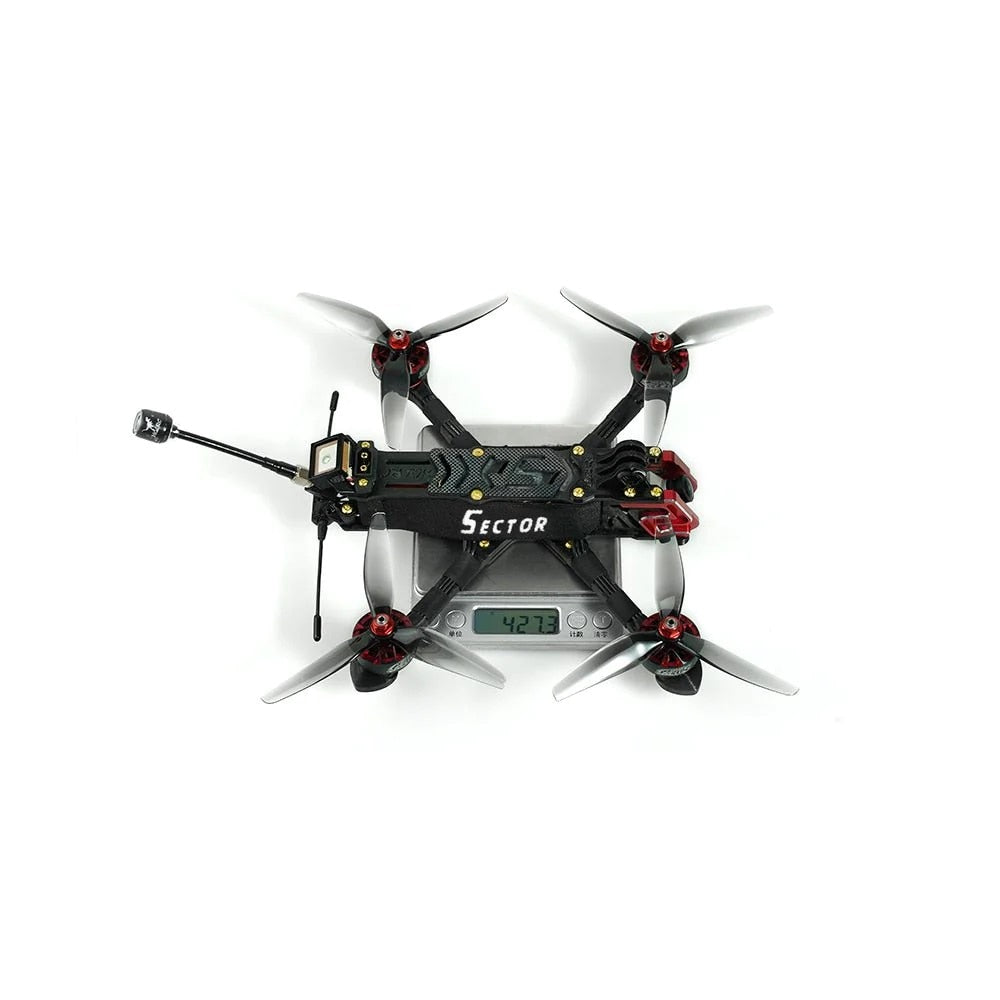

Weight:439.4g
HGLRC Sector D5 FR Freestyle Frame
Model:5 inches Frame
Wheelbase:225mm
Size:230*184mm
Zeus F722 mini flight controller
Gyro:BMI270
Input voltage:3-6S Lipo
BEC output:9V1.5A/5V/2A
Firmware:HGLRCF722
Zeus 45A V2 4in1 ESC
Input Voltage:3-6S Lipo
Steady Current:45A
Peak Current:55A（10 Sec）
ESC firmware:BL_S (F-H-40)
AIR UNIT
Operating Frequency:5.725-5.850 GHz
Input Power:7.4-17.4V
Channels:8
AEOLUS 2306.5 Motor
Motor:KV2550 4S / KV1900 6S
Input voltage:3-6S
Recommended blade:5 inches
HQProp&Ethix S5 5 inch 3-blades Propeller
Quantity:4 CW & 4 CCW

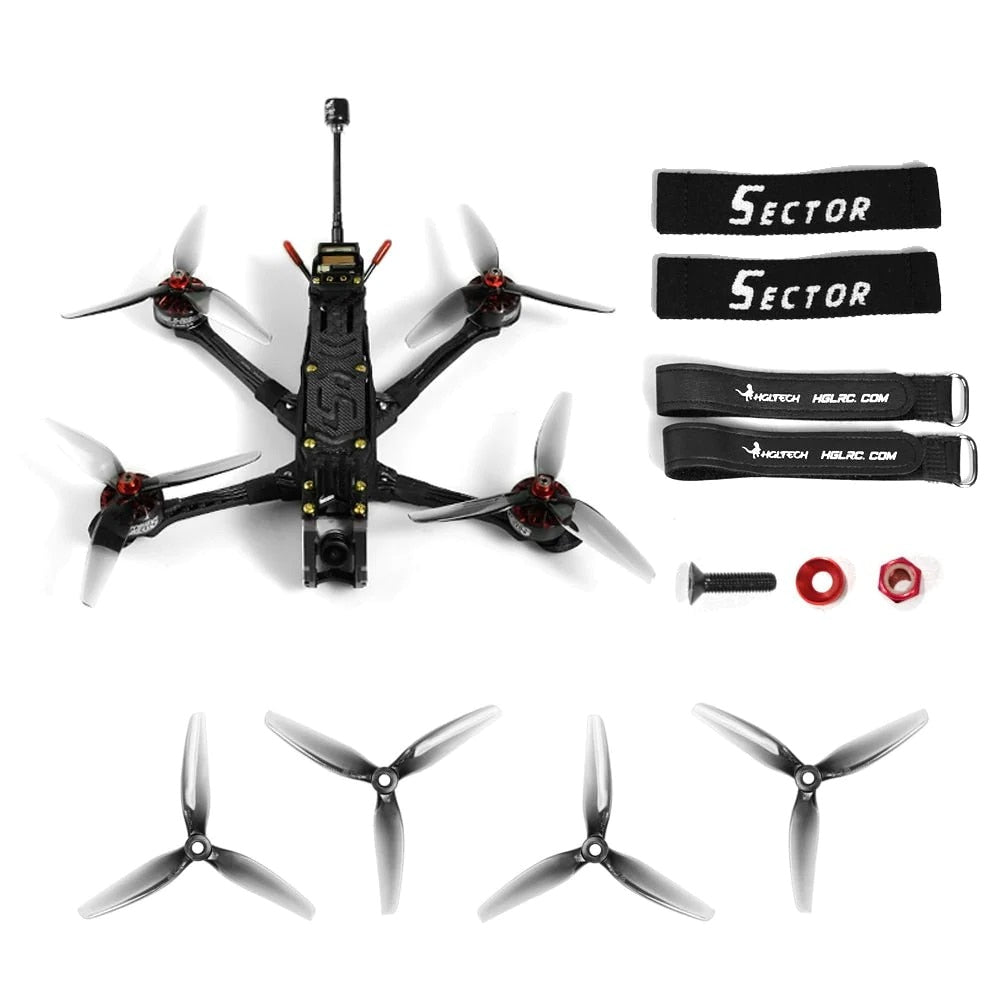

Include:
1x HGLRC Sector D5 FR Frame
1x Zeus F722 mini FC（270）
1x Zeus 45A V2 4in1 ESC
1x AIR UNIT
4x AEOLUS 2306.5 Motor
8x HQProp&Ethix S5 Propellers
1x M80 GPS
1x Receiver (optional)
Recommended Battery:
4S:1300mah-1500mAh
6S:1260mah-1300mAh
The YGLRC Sector D5 frame kit is designed for professional photography and includes an assembly tutorial diagram. It features: top plate, mid-plate, 2.5-inch propellers, GPS unit, and a standard protection cage.
