HGLRC Rekon 5 SPECIFICATIONS
Warranty: Not include
Warning: Minors please use under the supervision of an adult
Video Capture Resolution: 1080p FHD
Type: Airplane
State of Assembly: Ready-to-Go
Remote Distance: 2000 meters
Remote Control: Yes
Recommend Age: 12+y,14+y
Power Source: Electric
Plugs Type: XT60
Package Includes: Original Box,Camera
Origin: Mainland China
Operator Skill Level: Intermediate,Expert
Model Number: HGLRC Rekon 5 Mini Long Range Quad Digital Version
Material: Metal,Plastic,Carbon Fiber
Indoor/Outdoor Use: Indoor-Outdoor
Flight Time: 5 minutes
Features: App-Controlled,FPV Capable,Integrated Camera,Other
Dimensions: 5inch
Controller Mode: MODE2,MODE1
Controller Battery: Not include
Control Channels: 8 Channels
Charging Voltage: 14.8V
Charging Time: 30 minutes
Certification: CE
Camera Mount Type: Fixed Camera Mount
CE: Certificate
Brand Name: HGLRC
Concept
The Rekon 5 is based on the original Dave_C FPV MiniLongRange design. This five-inch platform is an evolution of the MicroLongRange concept adapted to carry more payload. Like its smaller 4″ cousin, this 5″ platform can reach flight times of over 25 minutes while being very quiet, efficient, and relatively low cost compared to 7″ quads that are usually used for long-range flights. The main advantage of 5″ compared to the 4″ is the ability to carry loads like GoPros and Lithium-Ion batteries without affecting flight performance and noise level too much. On top of that, the cruising speed is increased and the ability to do acrobatic freestyle maneuvers is noticeably improved. This platform can also be used with a wider variety of batteries depending on the intended use: 850-1800mAh on the 4S version and 550-1300mAh on the 6S version will work without issues. Both versions are also compatible with 3000mAh 4S Li-Ion packs if you are looking for maximum flight time.
Frame Design
The Rekon 5 features an innovative frame design using single-piece front and rear arms locked by an aluminum bolt. The bolt is used to create a strong and stiff center section of the frame, locking the arms and de-coupling forces from the rest of the frame. This allows the use of use very light M2 hardware and thin carbon plates on the other parts of the frame, reducing the overall weight for maximum efficiency. On top of that, the bolt makes it possible to apply much more torque and it’s not prone to break or strip like M2 or M3 hardware often does. A lot of attention was also put toward the design of the front and camera mount. Dead cat frames are inherently prone to take heavy impacts in this area since the arms are swept backward and the front is exposed. This is why the Rekon 5 uses a flexible, 3D printed canopy supported by a carbon brace to absorb impact energy and protect the camera in case of a crash.
Key Features
– Lightweight frame with 10mm aluminum bolt construction, compact 25/20mm standoff split deck main body for double 20×20 stacks
– Shock absorbing TPU front with integrated GoPro mount
– Foldable crossfire immortal T-mount inspired by Alexandre Arvinte (@ledrone.club)
– Mild dead cat design reducing the props in view while not affecting flight performance
– Optional braces for improved vibration dampening and crash resistance
– Optimized for 2004 – 2204 motors with 12×12 M2 mounts
– GPS mount for M80 GPS
– External buzzer mount for Soter Buzzer
Specifications

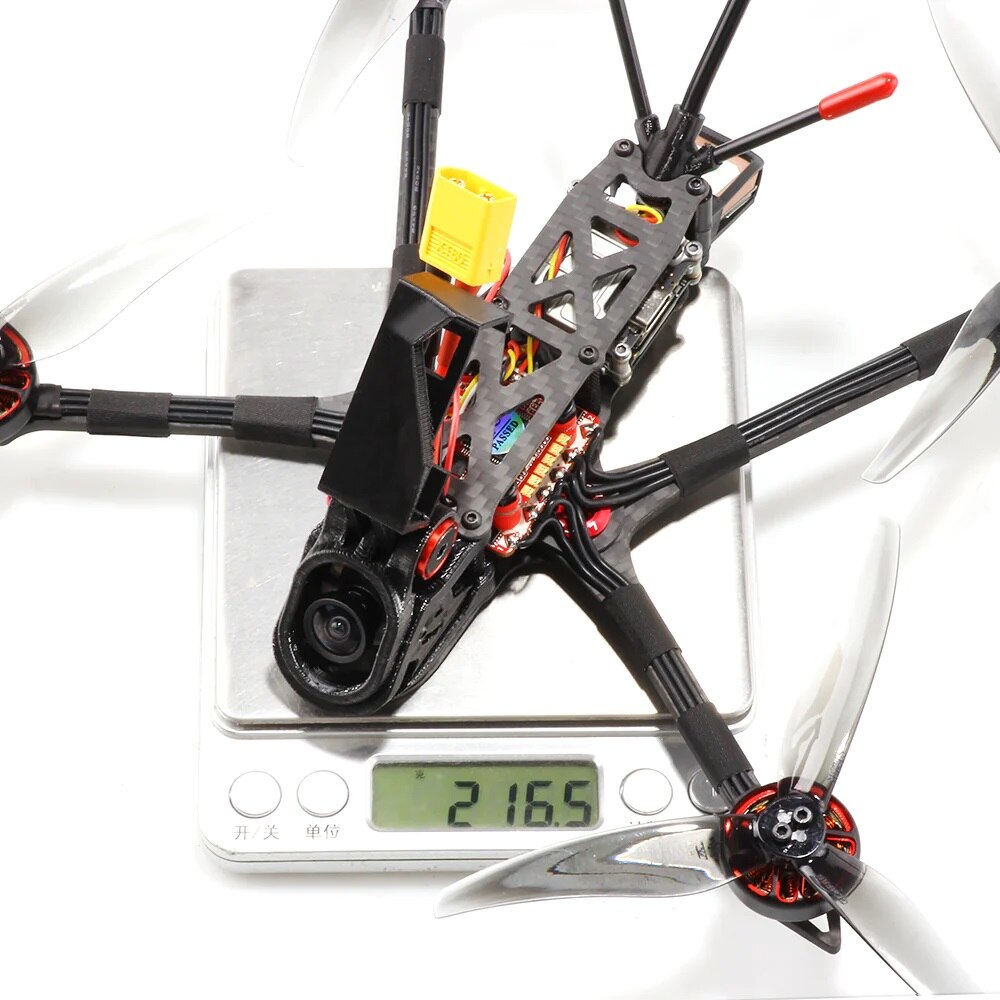

Net Weight:223.5g(Weight without receiver)
Rekon 5 Freestyle Frame 5 inch
Type:5″ frame
Wheelbase:210mm
Support for propellers:Up to 5 inches
Overall size:210 * 155mm
Weight:53g (Including TPU)
Power plug:XT60
Zeus F722 mini Flight Controller
MPU:BMI270
CPU:STM32F722 RET6
Input Voltage:3-6S Lipo
BEC Output:5V/3A,9V/1A
Weight:8.1g
Zeus 28A BL_S 3-6S 4in1 ESC
CPU:EFM8BB21F
Input Voltage:3-6S Lipo
Steady Current:28A
Peak Current:35A(10 Sec)
DJI O3 AIR UNIT
Operating Frequency:5.725-5.850 GHz
Input Power:7.4-26.2V
Channels:8
Rekon 2004 1800KV(6S) / 2600KV (4S) Brushless Motor
Recommended Prop(inch):5Inch
Weight:15.5g
M80 GPS
Power Supply:5V
Size:18.5mm x 18.5mm x 7.1mm
Weight:9.4g
Soter FPV drone buzzer
Input voltage: 5V
Size:22mm x 12mm x12mm
Weight:4g
GEMFAN 5125 5 Inch 3-Blades propeller
Quantity:4 CW & 4 CCW
Package Included:
1x Rekon Freestyle Frame 5 inch
1x F722 mini Flight Controller
1x 28A BLHeli_S 3-6S 4in1 ESC
1x Caddx Polar Vista Kit
4x 2004 1800KV Motors (6s)or 2004 2600KV Motors (4s)
1x M80 GPS
1x Soter FPV drone buzzer
8x GEMFAN 5125
1x IPEX Inner needle Small hammer antenna (LHCP)
2x Battery Straps
1x Naked Gopro mount TPU
1x Receiver(Optional)
* Action cameras shown in the pictures are not included.
Recommended Battery:
4S/6S:850mAh-1300mAh

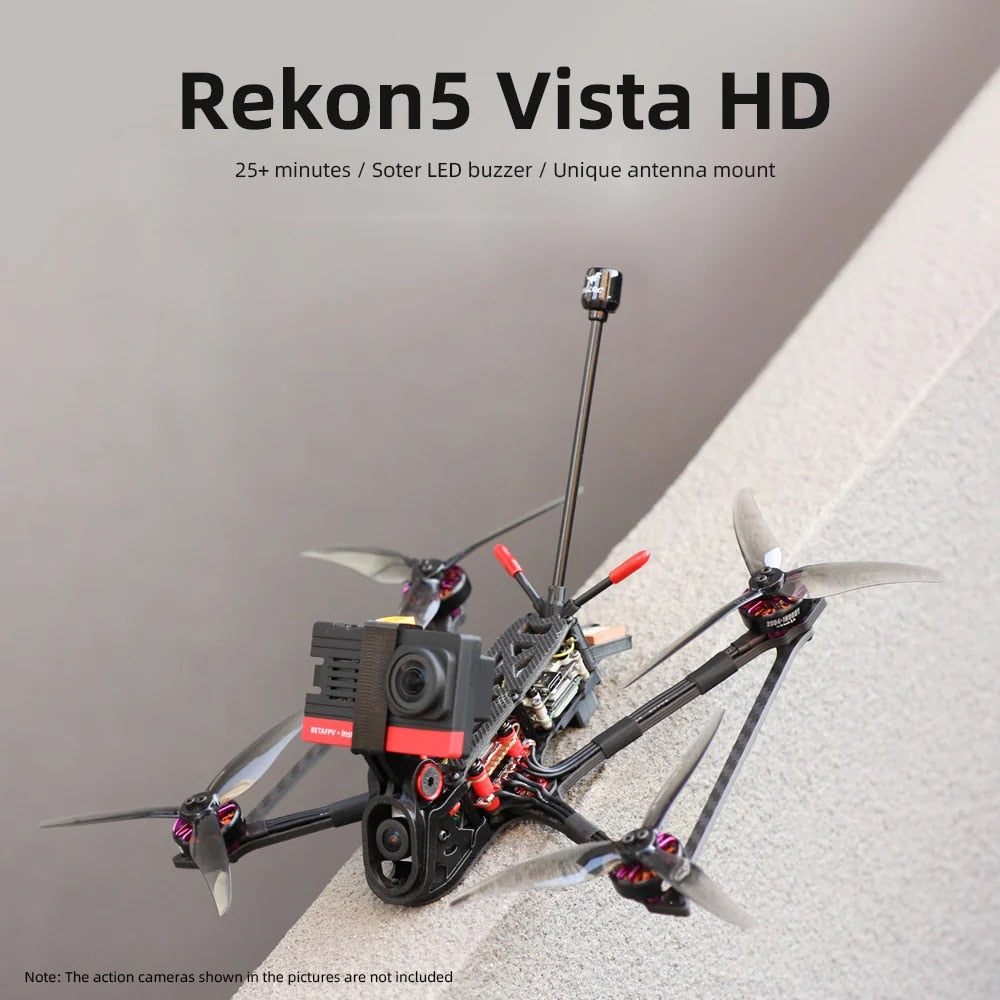

Rekon 5 Vista HD: Enjoy up to 25 minutes of flight time, featuring a built-in LED buzzer and unique antenna mount. Note that the action cameras depicted in the images are not included. This mini quadcopter is easy to carry and can be paired with GoPro or naked GoPro cameras (note: SMO mounts need to be purchased separately for 4K capabilities).
Please note that action cameras are not included. The drone comes pre-installed with a GPS module, making it easy to fly and navigate. Additionally, it features high-powered and efficient dedicated 2004 motors designed for long-range flights.
Note that the action cameras depicted in the images are not included.
