HEX Pixhawk 2.1 Cube Orange Standard Set SPECIFICATIONS
Wireless Communication: RF,WIFI,bluetooth
Use: Camera / Video Camera
Use: Vehicles & Remote Control Toys
Place of Origin: Guangdong, China
Origin: Mainland China
Model Number: XP660
Brand Name: HEX
If you want to know more about the product, please contact me, whatsapp: +86 16673975250 E-mail: [email protected]
Features
Built-in IMU Heating system, allowing flights at extreme temperature (below freezing)
Robust DF17 Interface connectors give enhanced drop and shock resistance
Airframes: VTOL, Plane, Multicopter, Traditional Heli, Rover, Boat, Sub, General Robotics

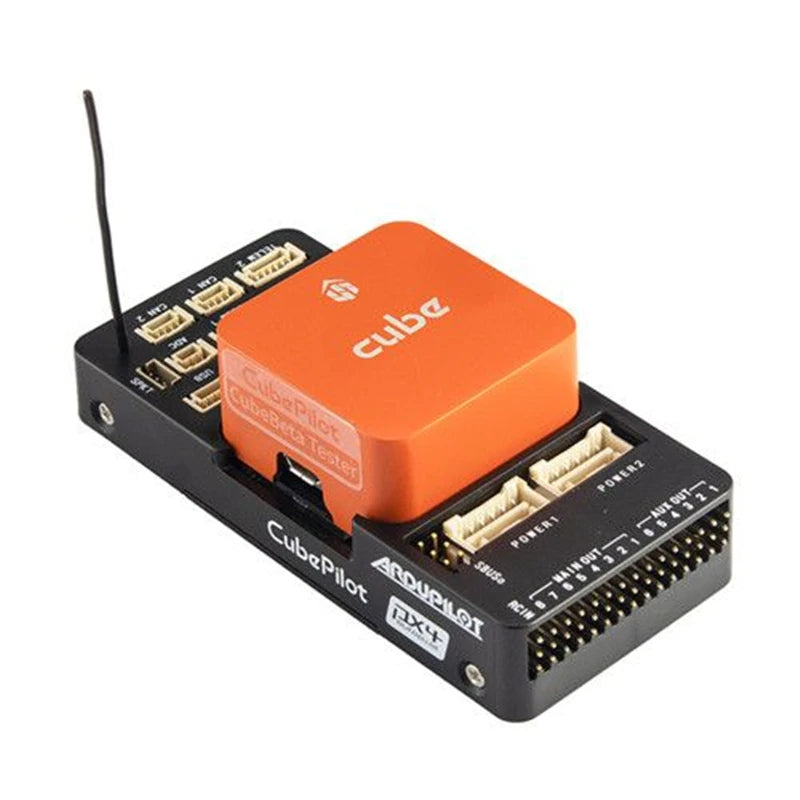

The Cube Orange
Cube Orange targets education, amateur drones lovers, and professionals with cost-effective flight control hardware.
Includes new generation of more powerful H7 processor, with stronger performance, faster processing, increased security with
built-in
triple-redundant sensors, temperature control shock absorption IMU.
With the help of flight software, Cube Orange can completely fly any remotely controlled aircraft, helicopter
or multi-rotor vehicle and turn it into a more professional UAV platform.
ADS-B Carrier Board
A standard carrier board with an integrated 1090MHz ADS-B receiver allowing the software to receive information about the location
of manned aircraft in the area.
Receives information such as position, altitude, speed, etc, which can all be viewed in Mission Planner.
Through settings, you can optionally set up your cube to allow the vehicle to automatically avoid aircraft that are within an
exclusion zone set by you
Product Details

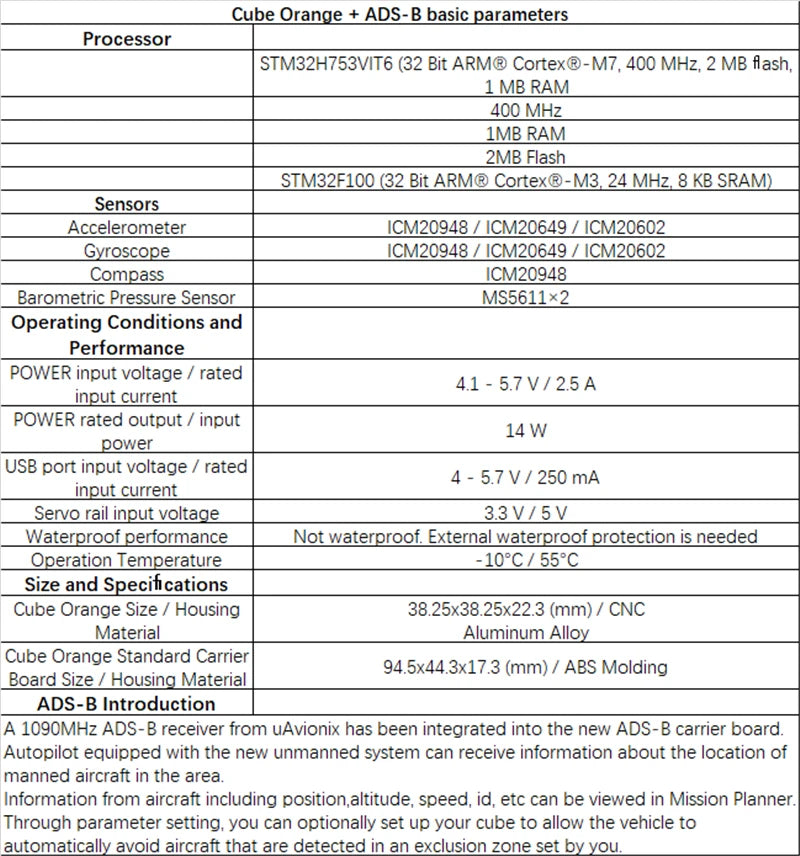

Specifications
Sensors: Accelerometer, Gyroscope, Compass, Barometric Pressure Sensor
Power input voltage/rated input current: 4.1-5.7 V / 2.5 A
Power rated output/input power: 14 W
USB port input voltage/rated input current: 4-5.7 V / 250 mA
Servo rail input voltage: 3.3 V / 5 V
Not waterproof. External waterproof protection is needed
Operation Temperature: -10 °C / 55 °C
Cube Orange Housing Material: CNC Aluminum Alloy
Standard Carrier Board Housing Material: ABS Molding
Item Packing

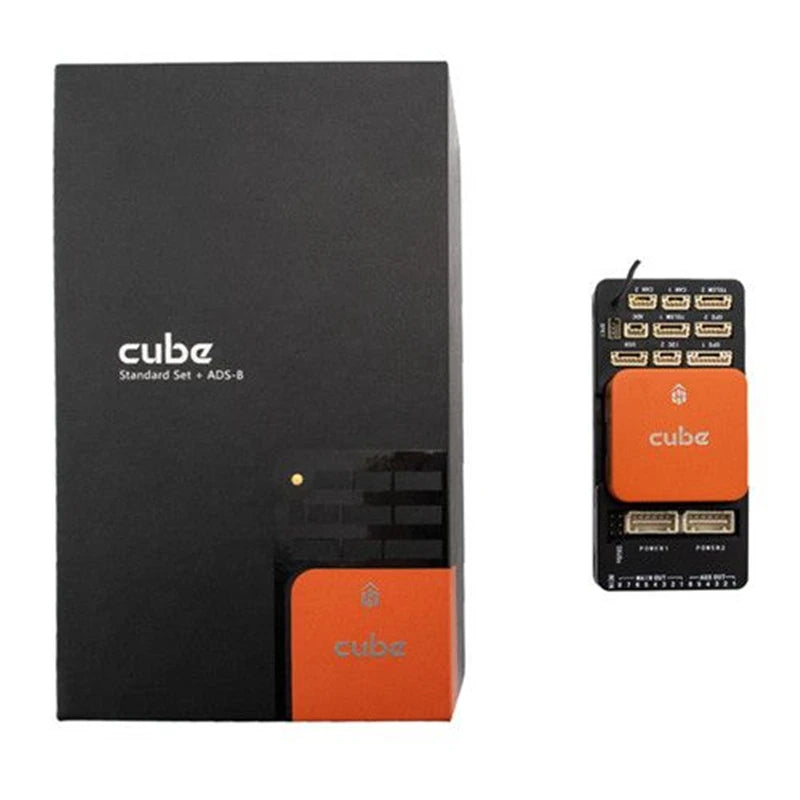

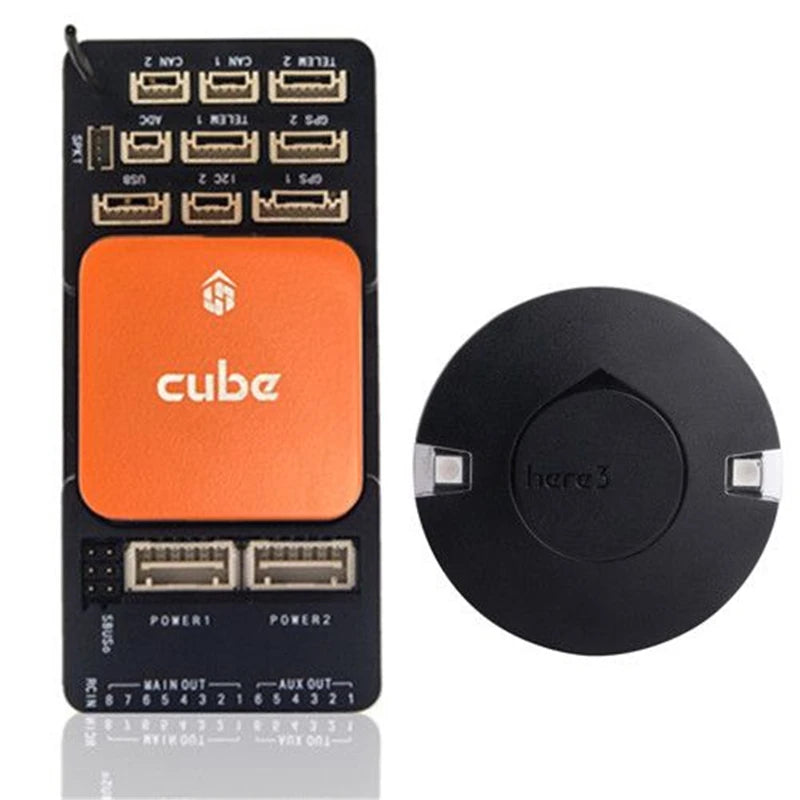

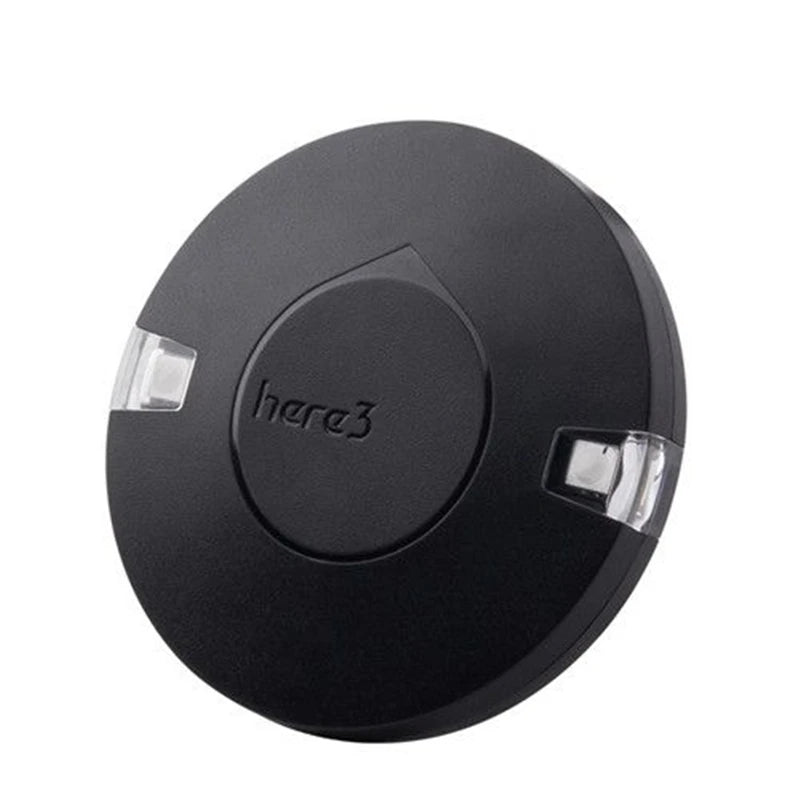

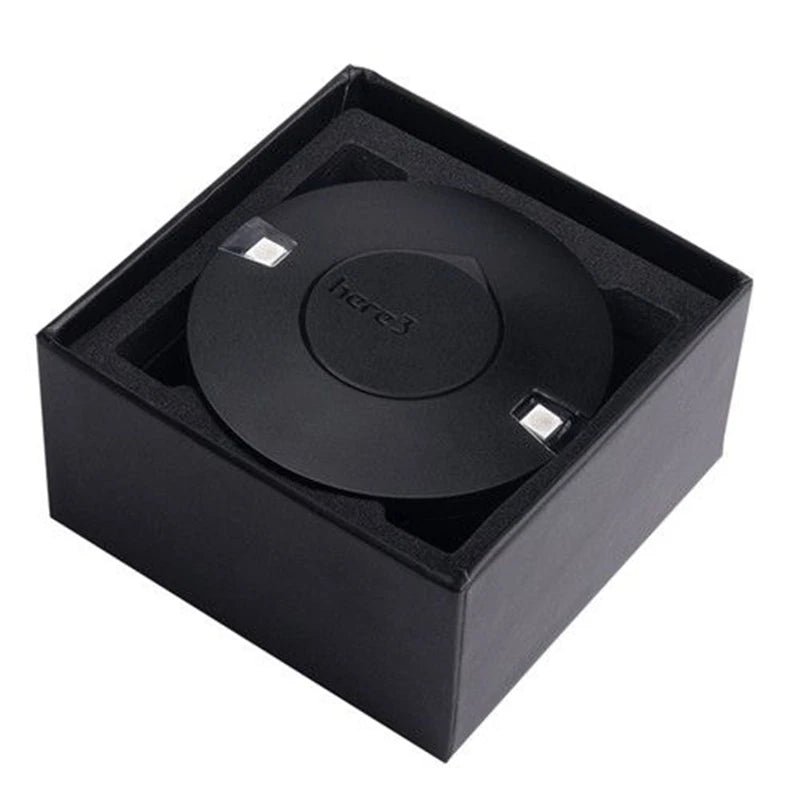

HEX Pixhawk 2.1 Cube Orange Standard Set W/ here 3 GPS & ADS-B x1
Detailed Images
Features
Built-in IMU Heating system, allowing flights at extreme temperature (below freezing)
Robust DF17 Interface connectors give enhanced drop and shock resistance
Airframes: VTOL, Plane, Multicopter, Traditional Heli, Rover, Boat, Sub, General Robotics
The Cube Orange
Cube Orange targets education, amateur drones lovers, and professionals with cost-effective flight control hardware.
Includes new generation of more powerful H7 processor, with stronger performance, faster processing, increased security with
built-in
triple-redundant sensors, temperature control shock absorption IMU.
With the help of flight software, Cube Orange can completely fly any remotely controlled aircraft, helicopter
or multi-rotor vehicle and turn it into a more professional UAV platform.
ADS-B Carrier Board
A standard carrier board with an integrated 1090MHz ADS-B receiver allowing the software to receive information about the location
of manned aircraft in the area.
Receives information such as position, altitude, speed, etc, which can all be viewed in Mission Planner.
Through settings, you can optionally set up your cube to allow the vehicle to automatically avoid aircraft that are within an
exclusion zone set by you
Product Details
Specifications
Sensors: Accelerometer, Gyroscope, Compass, Barometric Pressure Sensor
Power input voltage/rated input current: 4.1-5.7 V / 2.5 A
Power rated output/input power: 14 W
USB port input voltage/rated input current: 4-5.7 V / 250 mA
Servo rail input voltage: 3.3 V / 5 V
Not waterproof. External waterproof protection is needed
Operation Temperature: -10 °C / 55 °C
Cube Orange Housing Material: CNC Aluminum Alloy
Standard Carrier Board Housing Material: ABS Molding
UVaionix has integrated a 1090 MHz ADS-B receiver into the new ADS-B carrier board. You can optionally configure your Cube to automatically detect and avoid aircraft within a designated exclusion zone, as set by you.
Item Packing
HEX Pixhawk 2.1 Cube Orange Standard Set W/ here 3 GPS & ADS-B x1
Detailed Images
