Description

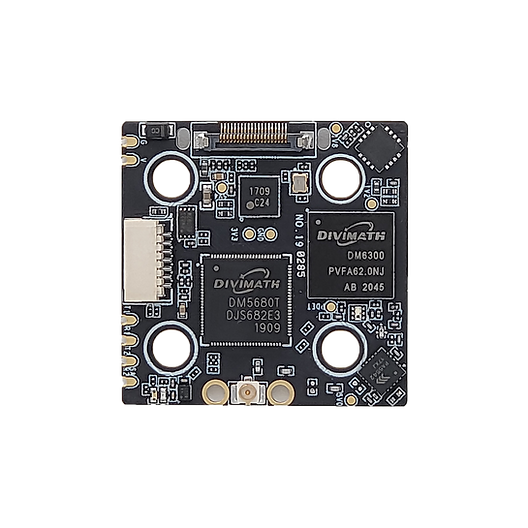

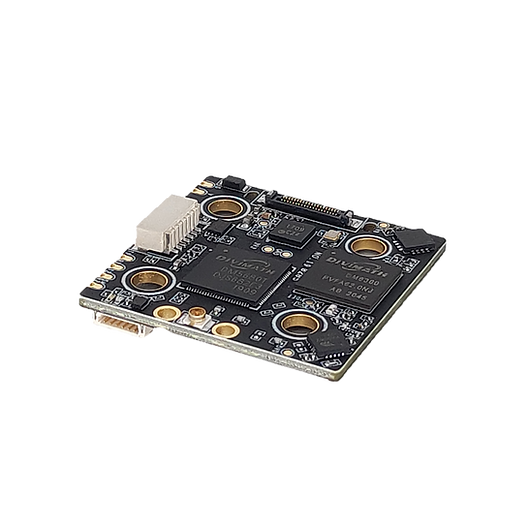

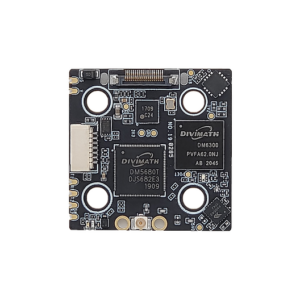

The HDZero Race VTX is a digital HD 720p 60fps video transmitter capable of delivering up to 200mw on 5.8GHz. It works with the Shark Byte RX5.1 goggle module to transmit video, and with a remote controller to wirelessly control the parameters for the transmitter and camera.
Specifications
Model: | HDZero Race V2 |
SKU： | HDZ3140 |
Frequency: | 5.8G |
Resolution Default: | 1280*720@60fps |
RF power： | 25mw/200mw |
RF Connector: | Secured U.FL |
Interface: | 4 lane MIPI CSI YUV422 |
Video Connector: | 20 Position 0.30mm Pitch |
Size: | 34mm x 34mm x 6mm |
Weight: | 5.9g |
Power: | 410mA@12V |
power input： | 7V-17V(2S-4S) |
Mounting： | 20mm x 20mm M4 with rubber grommets |
Includes
HDZero Race V2 VTX * 1;
Power/ Uart Cables * 5；
Zip ties * 4；
Rubber Grommet (M4 to M3) * 6；
Rubber Pad * 6；
u.FL Antenna Retention Screws * 4/Nut * 4/Plate * 1
