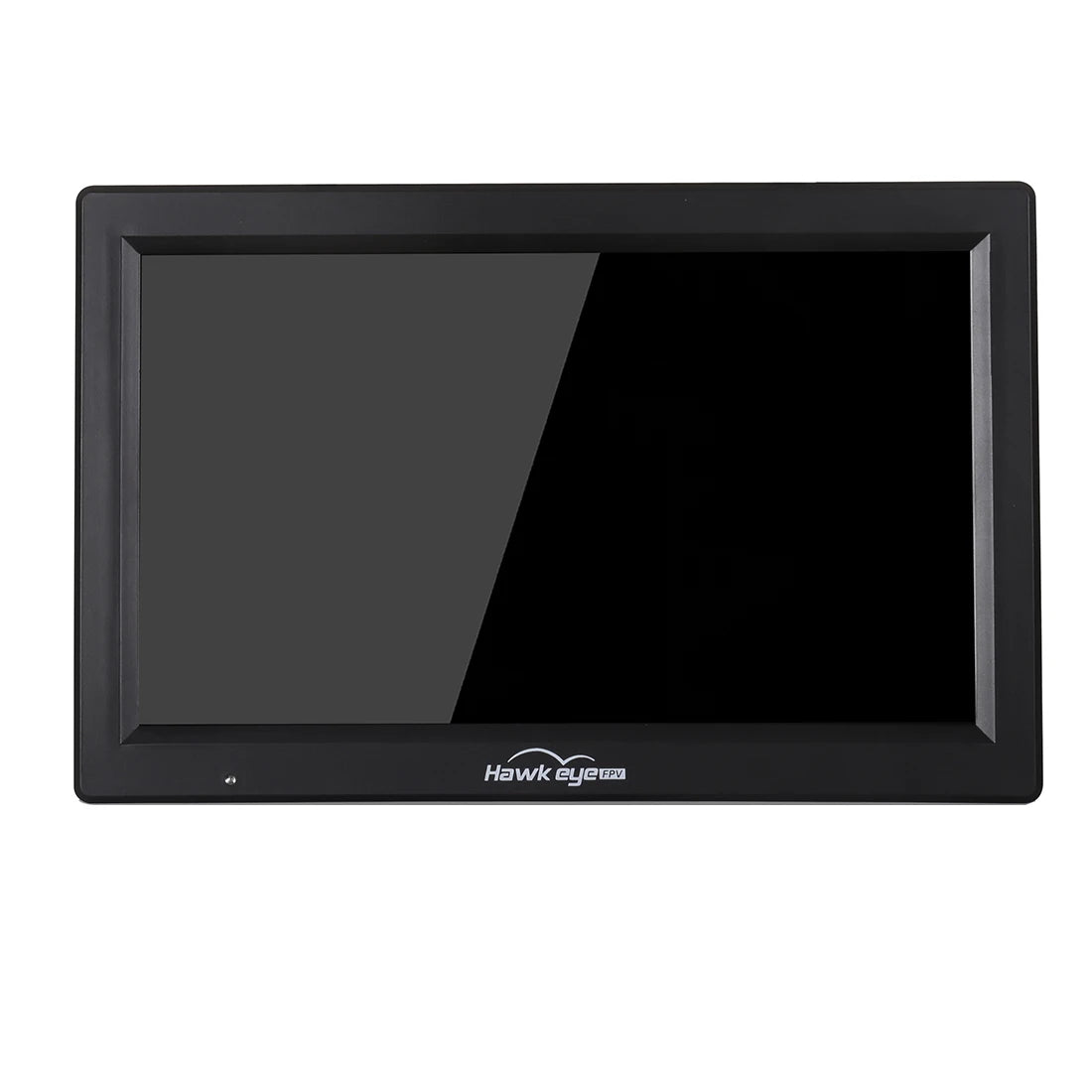

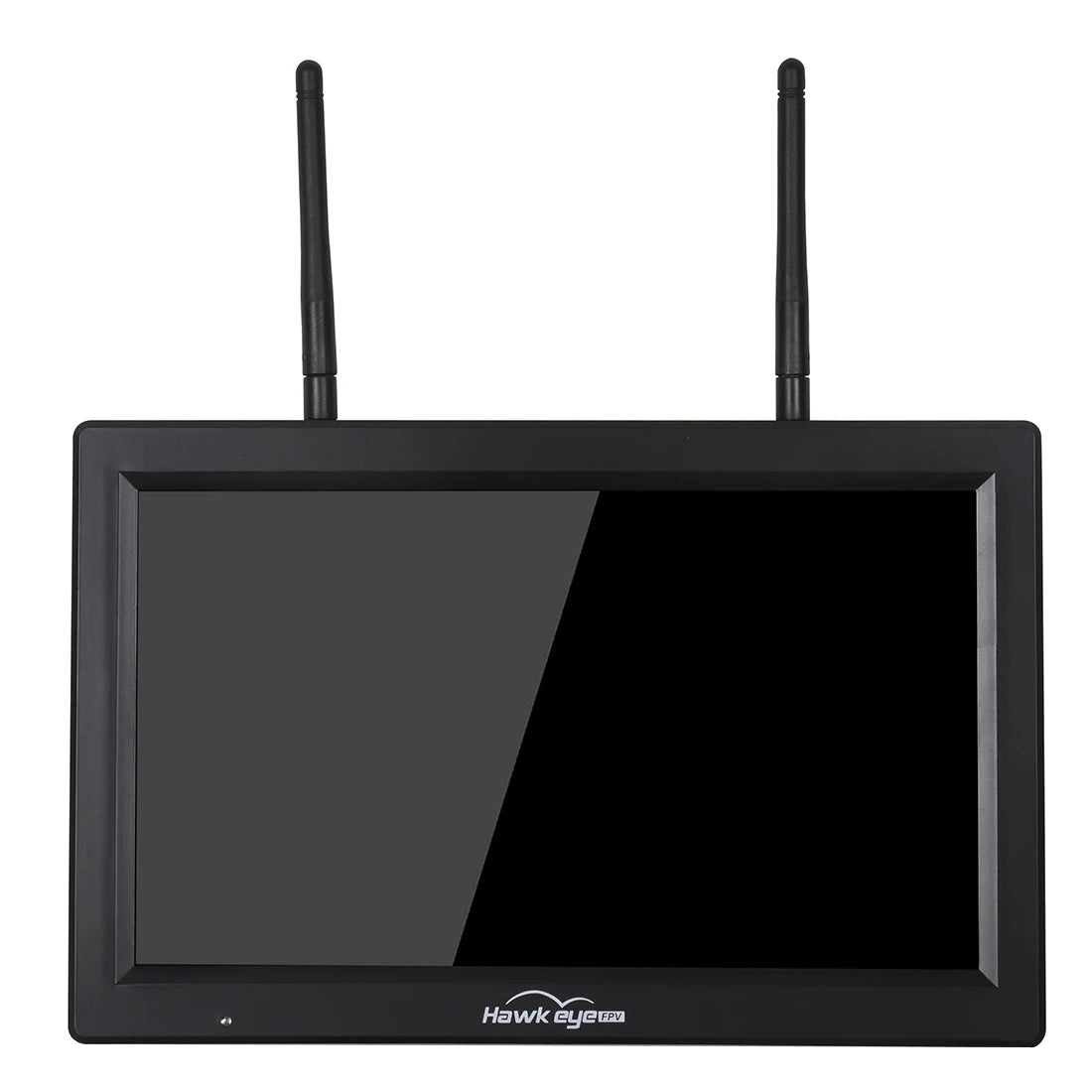

Hawkeye Little Pilot High Bright Screen FPV Monitor – Dual Receiver DVR 1280×720 10.2 inch1000lux 5.8GHz Display 3S-6S For FPV RC Racing Drone

Hawkeye Little Pilot High Bright Screen Dual Receiver DVR 1280×720 10.2inch 1000lux 5.8GHz Display 3S-6S For FPV RC Racing Drone

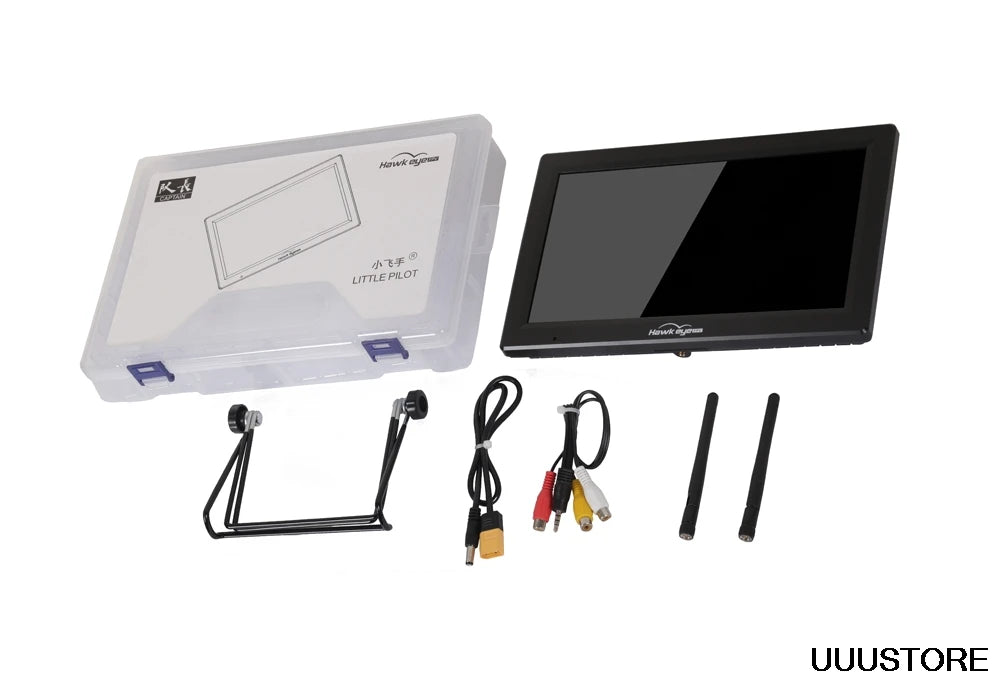

Package included:

1 x Hawkeye Little Pilot High Bright Screen Dual Receiver DVR 1280×720 10.2 inch monitor

LED Screen:

Display resolution:1280×720

Backlight:LED

Brightness:1000 Lux

Aspect ratio:16：9

Response time:10ms

Color system:PAL/NTSC

Power Supply:

Working voltage DC：3S-6S battery

Current 1.74A @3S；850MA @6S;

Input:Signal Video（PAL/NTSC）HDMI

Output Signal Video/5V(input power >12V) 1A

DVR Resolution D1/VGA/QVGA/TF card supported Max 64G

Specification:

Packing size:300mm×200mm×60mm

Monitor size:265mm×170mm×31mm

Gross weight:1.13kg

5.8G Sensitivity:-93dB

Matching antenna:interface interface SMA

Features:

Specially designed for aerial photography system, CAPTAIN all-in-one monitor

High brightness: 1000 Lux.

Dual receiver: built-in dual receivers.

DVR : integrated DVR black box can run in the background for recording.

No delay/anti blue screen/anti black screen: the built-in DVR system won’t

cause any delay in receiving signal; blue screen or black screen will definitely not

occur.Auto/manual channel scan: no need for DIP switch.HDMI input.

Hawkeye Little Pilot Monitor Features: IPS Display, Outdoor Capable, 1280×720 Resolution, HDMI Output, High Contrast Ratio (2000:1), Dual Receiver with 5.86GHz Frequency and 48 Channel Capacity.

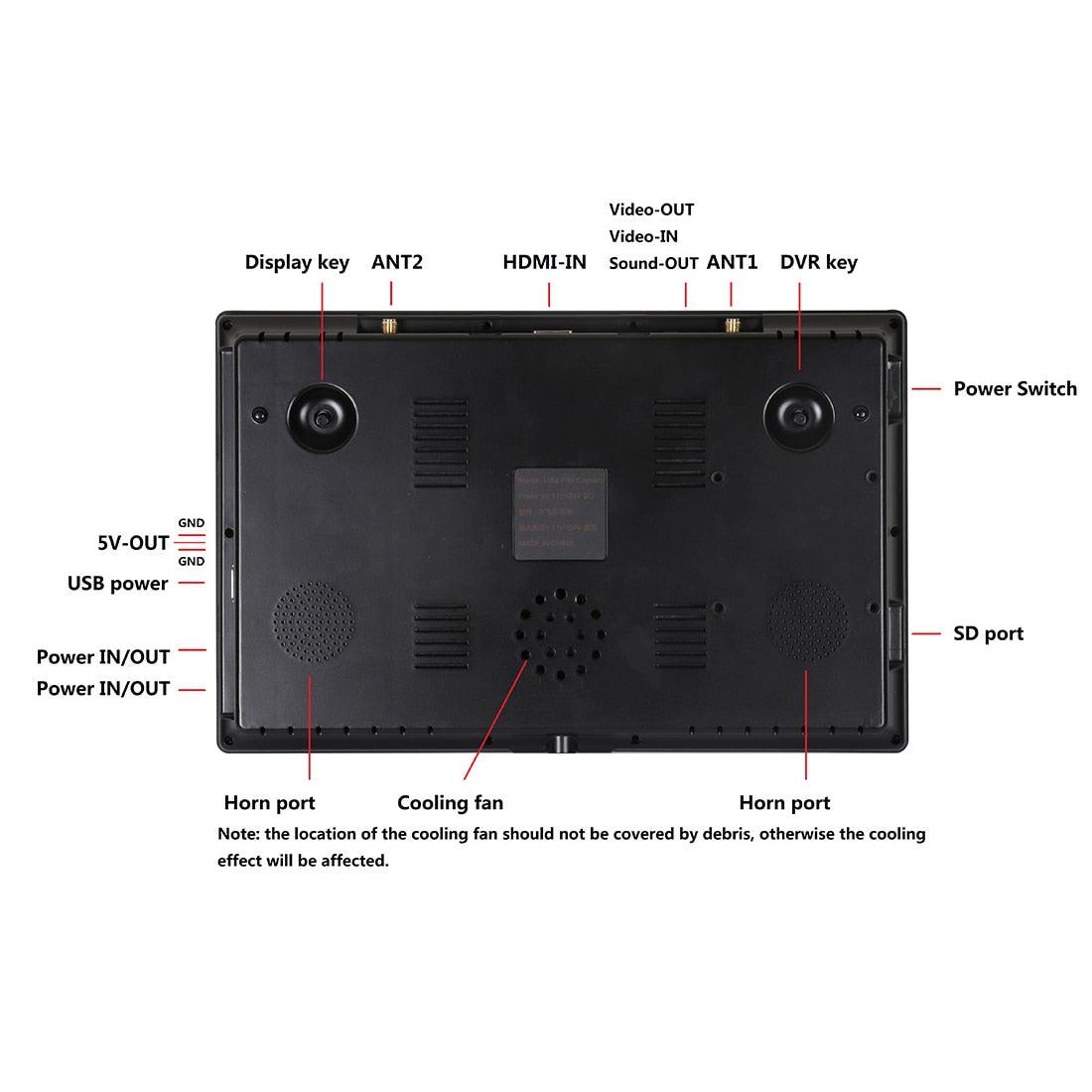

the location of the cooling fan should not be covered by debris, otherwise the cooling effect will be affected.
