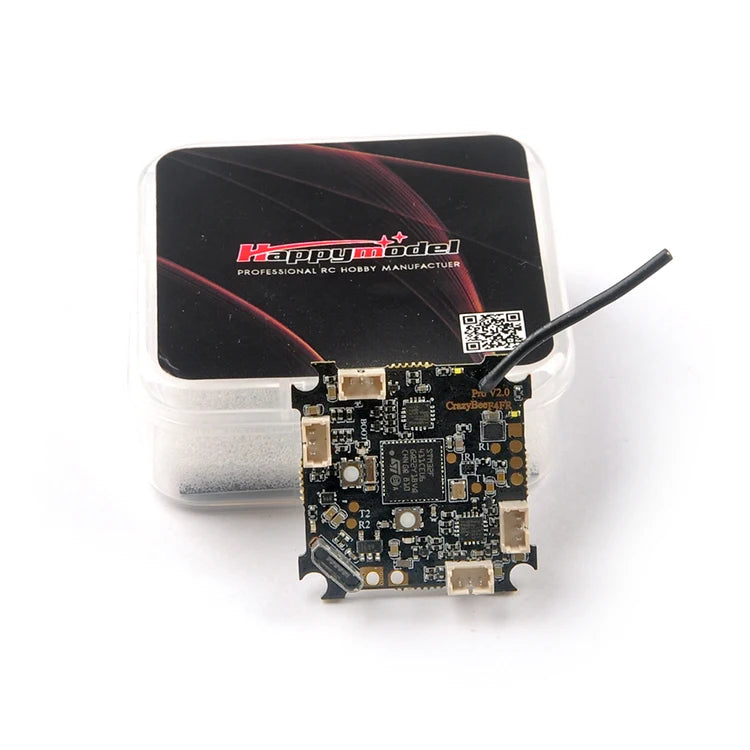

Happymodel Crazybee F4 PRO V3.0 Flight Controller SPECIFICATIONS
Wheelbase: Screws
Upgrade Parts/Accessories: flight controller
Tool Supplies: flight controller
Technical parameters: Value 3
Size: 28.5 * 28.5MM
Remote Control Peripherals/Devices: flight controller
Recommend Age: 12+y,14+y
RC Parts & Accs: Speed Controllers
Quantity: 1 pcs
Plastic Type: PC
Origin: Mainland China
Model Number: Crazybee F4 PRO
Material: Plastic
Four-wheel Drive Attributes: flight controller
For Vehicle Type: Helicopters
Package Included:

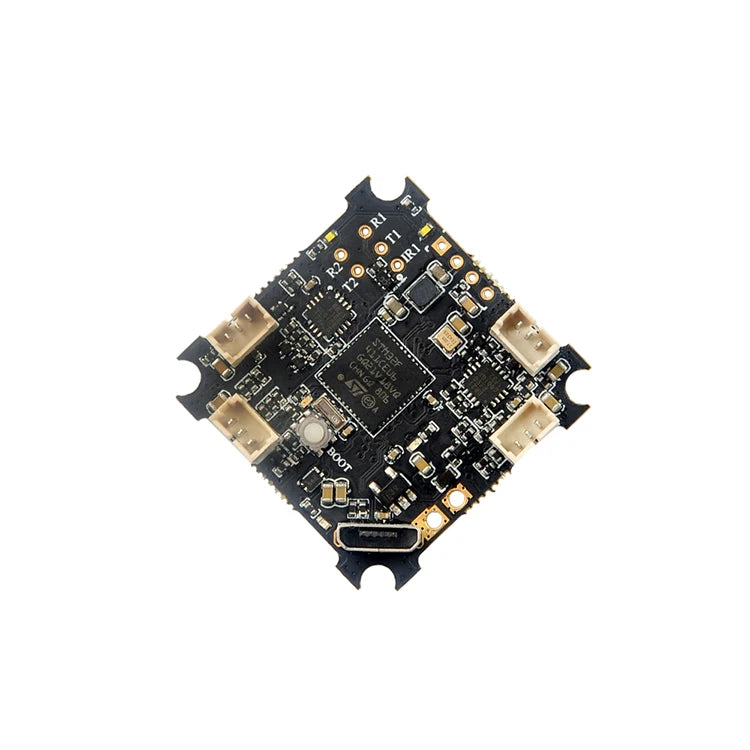

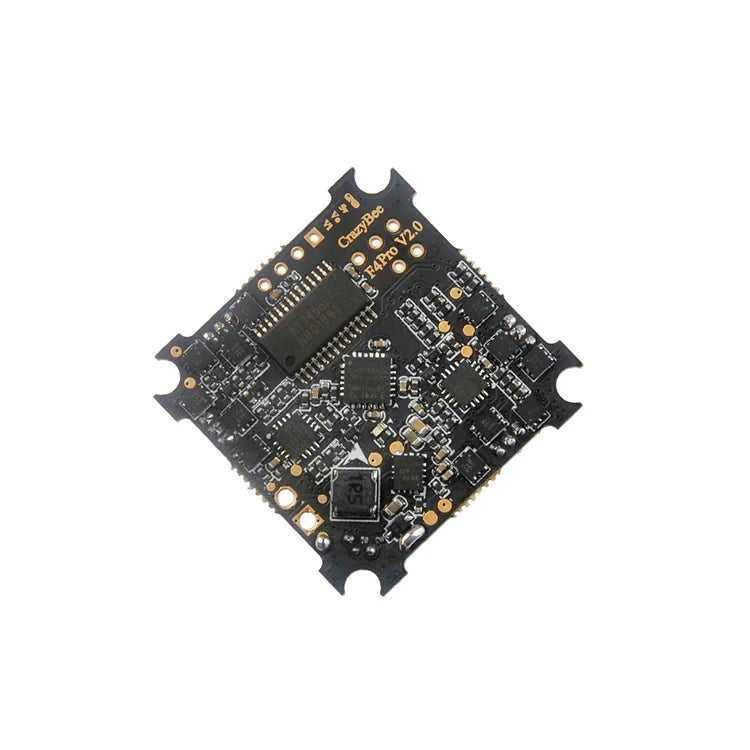

1 x CRAZYBEE F4FR PRO V3.0 Flight Controller

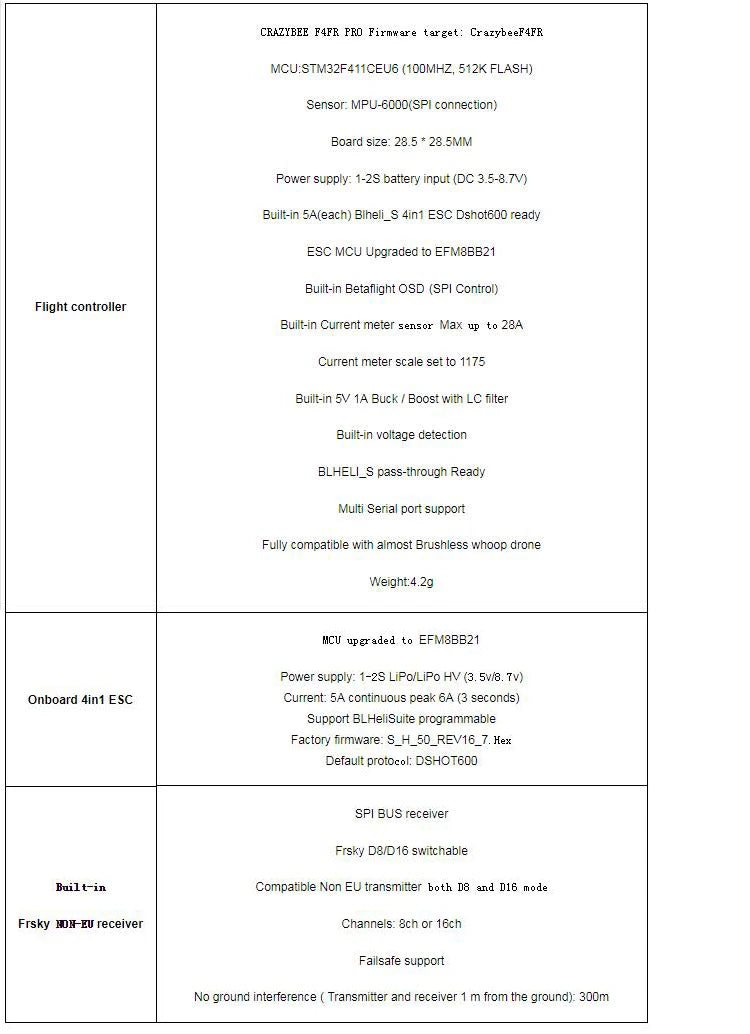

(Frsky version) CRAZYBEE F4FR PRO V3.0 Firmware target: CrazybeeF4FR
(Flysky version) CRAZYBEE F4FS PRO V3.0 Firmware target: CrazybeeF4FS
(No RX version) CRAZYBEE F4 PRO V3.0 Firmware target: CrazybeeF4DX
MCU:STM32F411CEU6 (100MHZ, 512K FLASH)
Sensor: MPU-6000(SPI connection)
Board size: 28.5 * 28.5MM
Po&wer supply: 2-4S battery input (DC 7-17V)
Built-in 10A(each) Blheli_S 4in1 ESC Dshot600 ready
Frsky version Built-in SPI Frsky receiver with telemetry(D8/D16 switchable)
Flysky version Built-in SPI Flysky receiver with telemetry(AFHDS/AFHDS2A switchable)
No RX version need to add external Receiver
Built-in Betaflight OSD(SPI Control)
Built-in Current meter Max 70A
Current meter scale set to 470
Built-in 5V 1A BEC
Built-in voltage detection
MCU upgraded to EFM8BB21
Po&wer supply: 2-4S LiPo/LiPo HV (7v/17v)
Current: 10A continuous pe&ak 12A (5 seconds)
Support BLHeliSuite programmable
Factory firmware: F_H_40_REV16_5.HEX
Default protocol: DSHOT600
SPI BUS receiver
Frsky D8/D16 switchable
Compatible Non EU transmitter both D8 and D16 mode
Channels: 8ch or 16ch
Failsafe support
No ground interference ( Transmitter and receiver 1 m from the ground): 300m
SPI BUS receiver
Protocol: AFHDS and AFHDS-2A Switchable
Channels: 8ch(AFHDS) or 14ch(AFHDS-2A)
No ground interference ( Transmitter and receiver 1 m from the ground): 300m
Failsafe support
No RX version support external serial-bus receiver like XM+, crossfire, S-FHSS etc.
Happymodel Crazybee F4 Pro V3.0 Flight Controller features an MCU with STM32F4 processor, 1MB flash memory, and Sensor MPU-6050 (with SPI connection). The board measures 28.5mm x 23mm x 5mm in size and has a power supply input of DC 35-3.7V from a single 1-28 battery. It also comes with built-in FETs for each motor.
