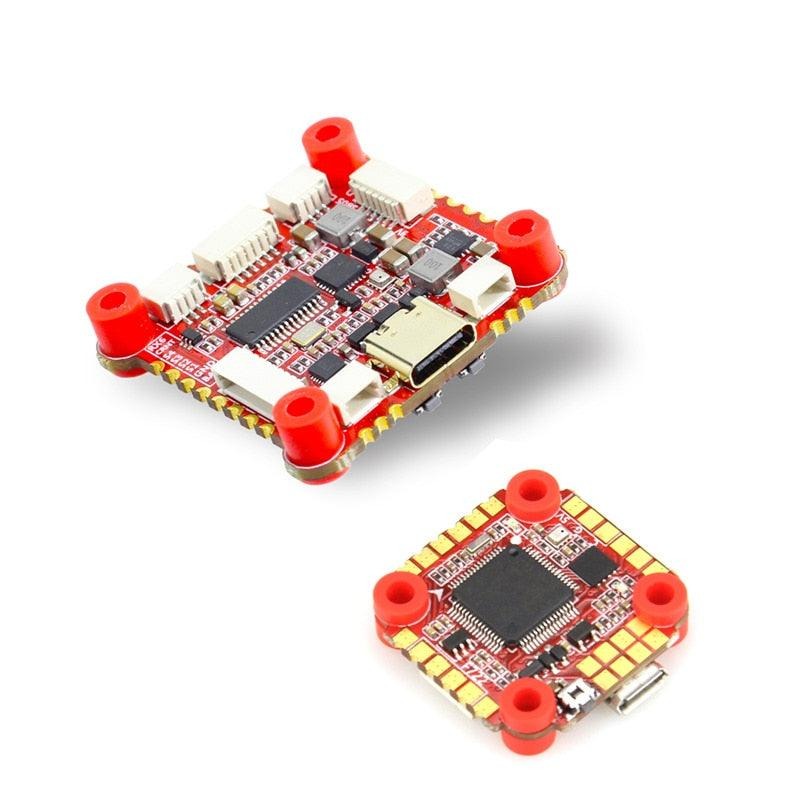

HGLRC Zeus F722 Flight Controller – 30mm 20mm Zeus F722 Mini MPU6000 OSD BEC Blackbox F7 Flight Controller for FPV Air Unit FPV Racing Freestyle

$76.62

+ Free Shipping
Zeus F722
Zeus F722
Clear
SKU: N/A Category:

HGLRC Zeus F722 Flight Controller

Wheelbase: Screws

Upgrade Parts/Accessories: Adapter

Tool Supplies: Battery

Technical parameters: Value 2

Size: As description

Remote Control Peripherals/Devices: Remote Controller

Recommend Age: 12+y,14+y

RC Parts & Accs: AXLE

Quantity: 1 pcs

Origin: Mainland China

Model Number: Zeus F722

Material: Metal

Four-wheel Drive Attributes: Assemblage

For Vehicle Type: Helicopters

HGLRC 30mm Zeus F722 20mm Zeus F722 Mini MPU6000 OSD BEC Blackbox F7 Flight Controller for FPV Air Unit FPV Racing Freestyle

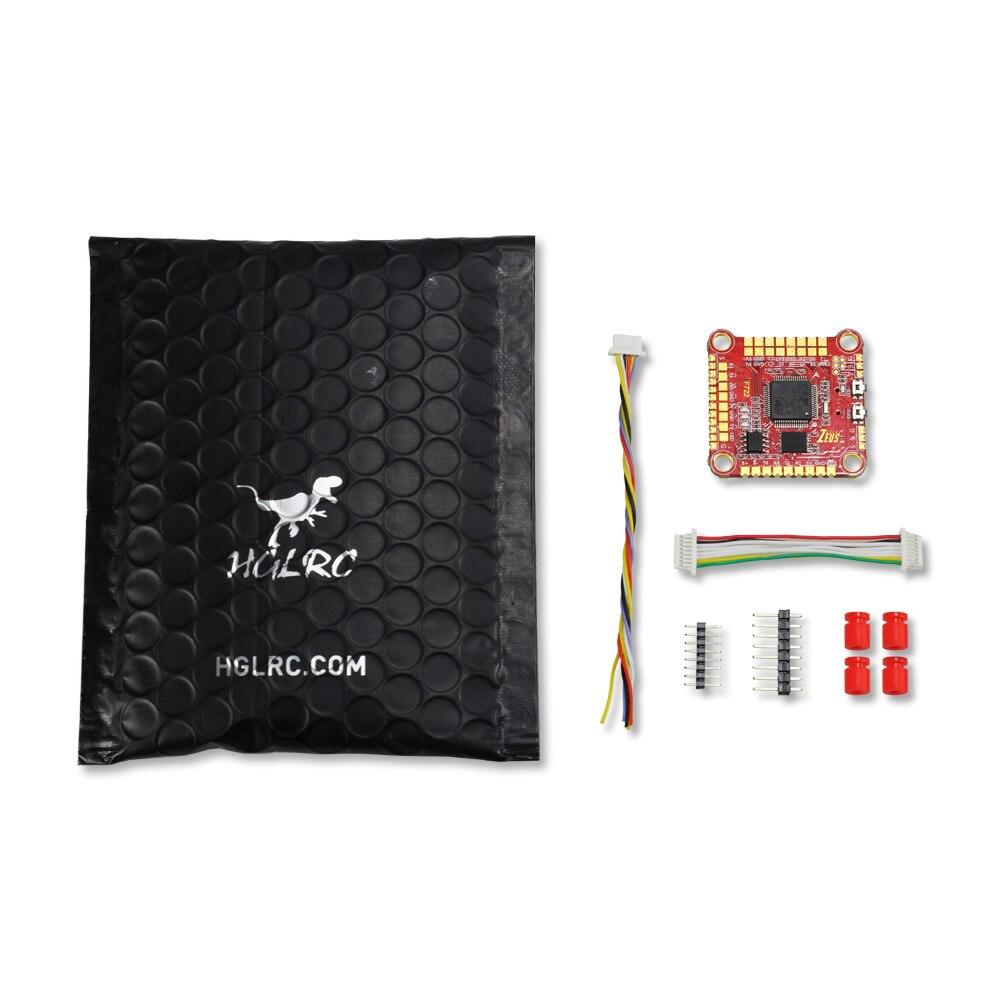

Package Included:
1x Zeus F722 Flight Control
4x M3 Shock absorption(red)
1x SH1.0 8PIN Cable 60mm
1x DJI AIR UNIT PORT CABLE 90mm

Description
What’s so good about the Zeus F722?
The Zeus F722 FC supports Betaflight, Emuflight, and iNav. It is one of our most reliable FCs. After the price drop, it is currently only $26.99! about the same price as an F4 FC. Plus Plug & Play ports for DJI Air Unit, GPS and LEDs!

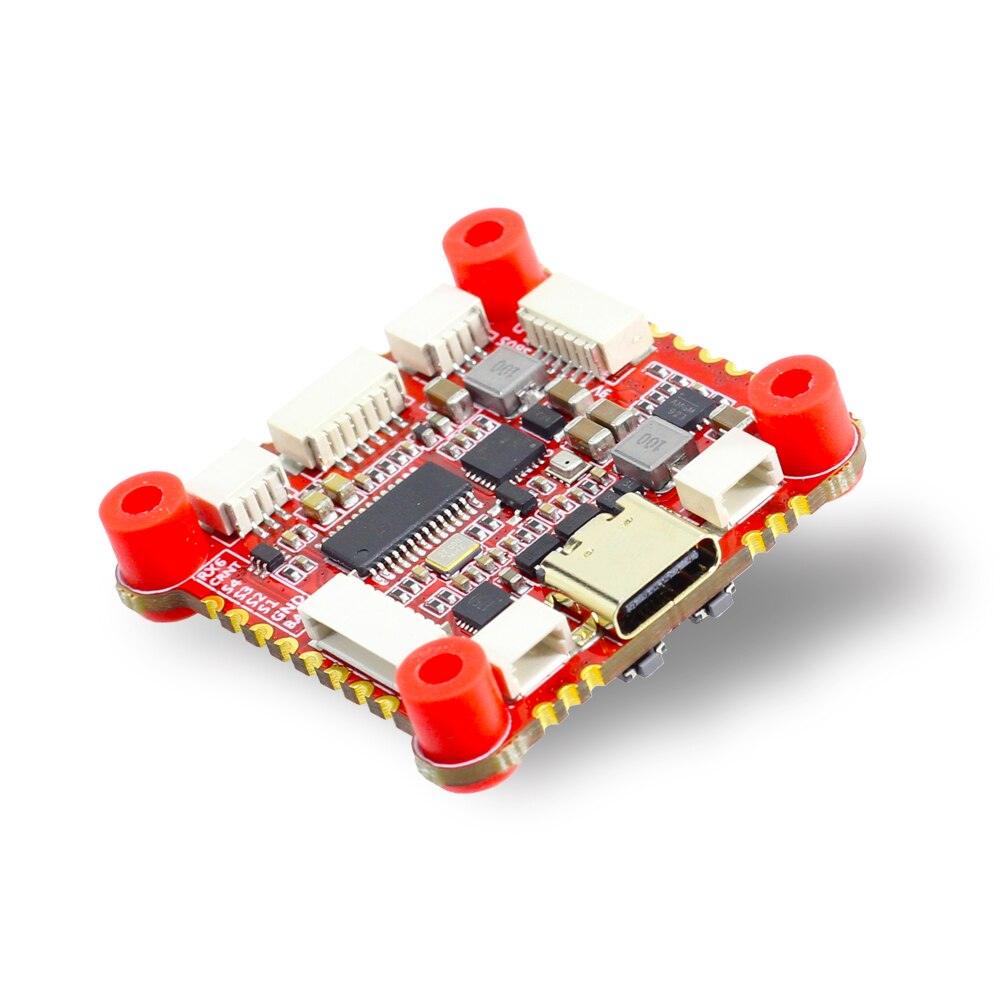

HGLRC Zeus F722 3-6S F722 Flight Controller
Update on June 15th:
Added DJI Air Unit Port, now supports plug & play with DJI Air Unit.

Usage:for 100mm-450mm Frame Kit
FC Firmware:BF HGLRCF722(HGLR)
Installing Hole:30.5X30.5mm.M3

Item Name:Zeus F722 Flight Controller
Built-in LED controller
MPU:MPU6000
UARTS:5
CPU:STM32F722 RET6
Input Voltage:3-6S Lipo
Built-in Betaflight OSD to adjust PID
BEC Output:9V2A
5V/3A
LED Control:BF/Button
BlackBox:16M
Size:37.3×37.3mm
Installing Hole:30.5X30.5mm. M3 / M2 (Looking for 20x20mm version? get it here)

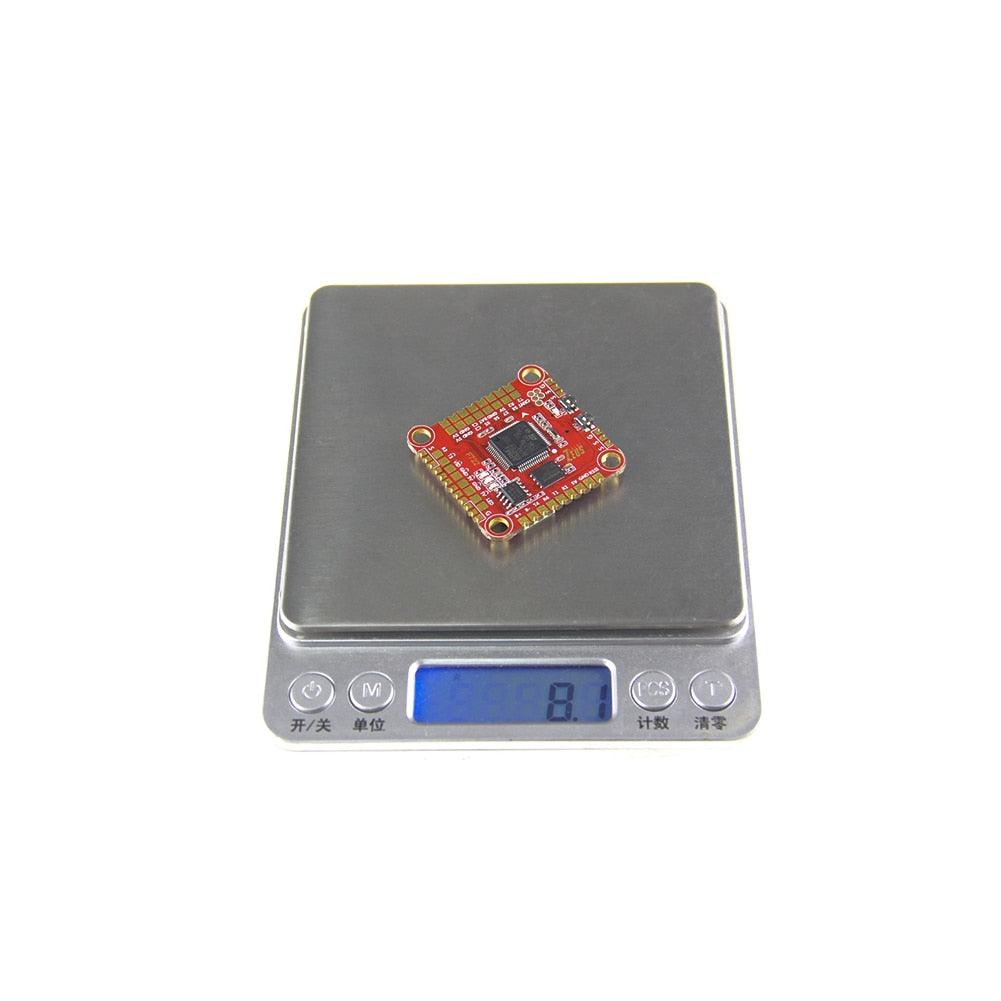

Weight:8.1g

Product Features:
1.Integrated LED controller allows quick programming of LEDs with the push of a button.
2.Integrated barometer and 16M black box.
3.Maximum BEC 9V/2A and BEC 5V/3A output
4.Easy direct soldering for XM+,NANO receiver and TBS NANO VTX

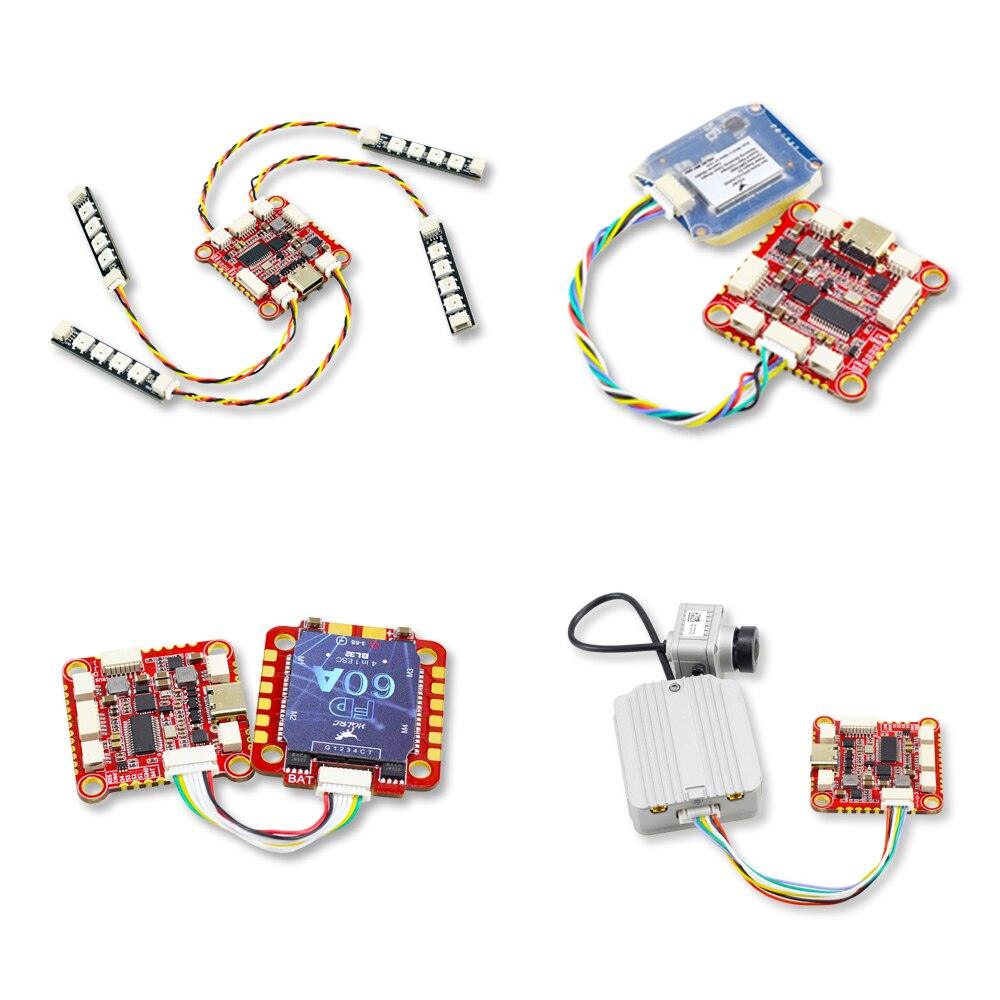

5.Quickly connect DJI Air Unit, LED and GPS via socket
6.Conformal coated for better protection.

HGLRC Zeus F722 Flight Controller, CAMERA Zeus F722 38738 Clis the default output for camera To

The default camera output for the Zeus F722 flight controller is set to ‘C1’. To use ‘C2’ instead, you need to enable this option in the Betaflight settings.

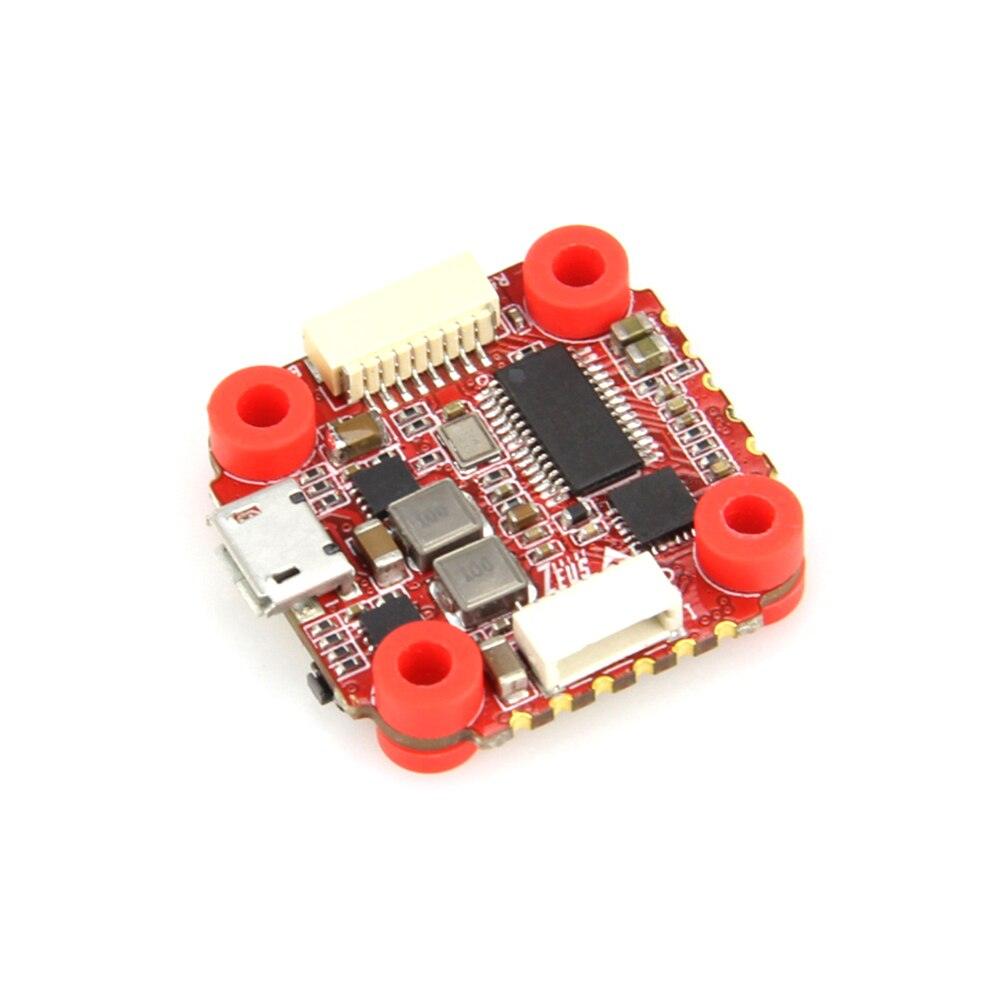

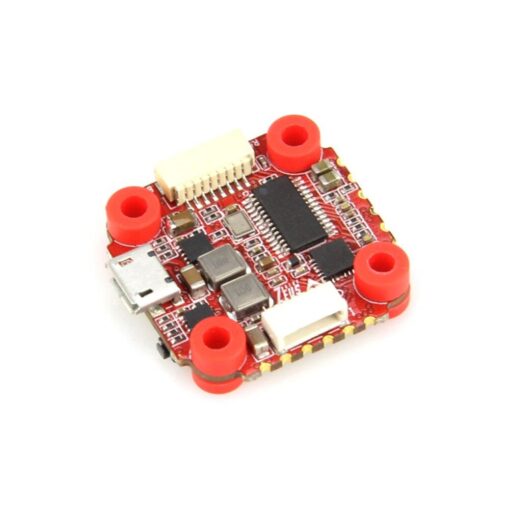

HGLRC Zeus F722 mini 3-6S F722 Flight Controller
Updated on June 18th, now supports M2/M3, added DJI air unit port

Usage:for 100mm-450mm Frame Kit
FC Firmware:BF HGLRCF722(HGLR)
Installing Hole:20X20mm.M2/M3

Item Name:Zeus F722 mini Flight Controller
MPU:MPU6000
UARTS:5
CPU:STM32F722 RET6
Input Voltage:3-6S Lipo
Built-in Betaflight OSD to adjust PID
BEC Output:9V/2A
5V/3A
BlackBox:8M
Barometer:BMP280(I2C)
Size:28.2×28.1mm
Installing Hole:20X20mm.M2/M3(Looking for 30.5×30.5mm version? Get it here)
Weight:4.6g

Product Features:
1.Integrated barometer and 8M black box.
2.Maximum BEC 9V/2A and BEC 5V/3A output
3.Easy direct soldering for XM+, Crossfire NANO receiver
4.Quickly connect DJI Air Unit.
5.Conformal coated for better protection.

Package Included:
1x Zeus F722 mini Flight Controller
5x M3 Shock absorption(red)
5x M3 to M2 Stack Mount Adapter
1x SH1.0 8PIN 60mm Cable
1x DJI AIR UNIT PORT CABLE 90mm
HGLRC Zeus F722 Flight Controller, Zeus F722 mini Frame Kit FC Firmware:BF HGLRCF722

Zeus F722 mini FaRJSRE Foky Rohy Dc Usage:for 10Omm-450mm Frame Kit FC Firmware:BF HGLRCF722(HGLR) FlySky FSA: 5 Tas Croaalre Nata RX Item Name:Zeus F 722 mini Flight Controller MPU:MPU6OOO CPU:STM32F722 RET6 Input Voltage:3-6S Lipo a3054 BEC Output:9VIZA

HGLRC Zeus F722 Flight Controller, Zeus F722 Mini MPU6000 OSD BEC Blackbox F7 Flight Controller
