GEPRC SPEEDX2 0803 11000KV Brushless Motor SPECIFICATIONS
Wheelbase: Screws
Use: Vehicles & Remote Control Toys
Upgrade Parts/Accessories: Adapter
Tool Supplies: Assembly Category
Size: 1.6 inch
Remote Control Peripherals/Devices: Motor
Recommend Age: 12+y
RC Parts & Accs: Motors
Quantity: 1 pcs
Origin: Mainland China
Model Number: GEPRC SPEEDX2 0803 Brushless Motor 11000KV
Material: Metal
Four-wheel Drive Attributes: Motors
For Vehicle Type: Helicopters
Brand Name: GEPRC
Summary：

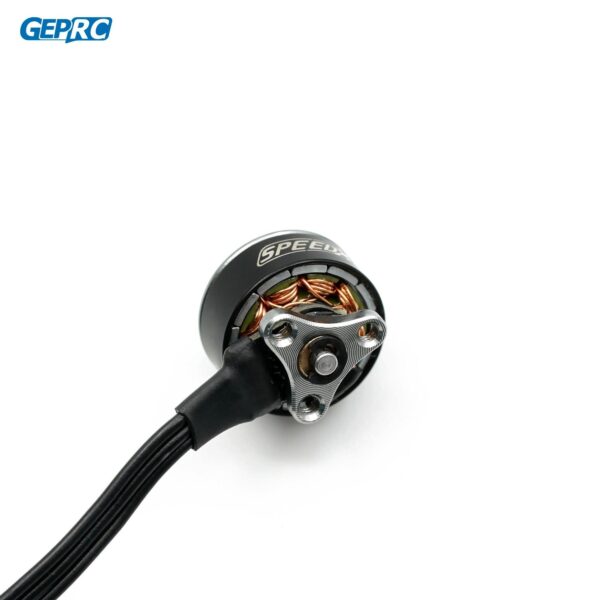

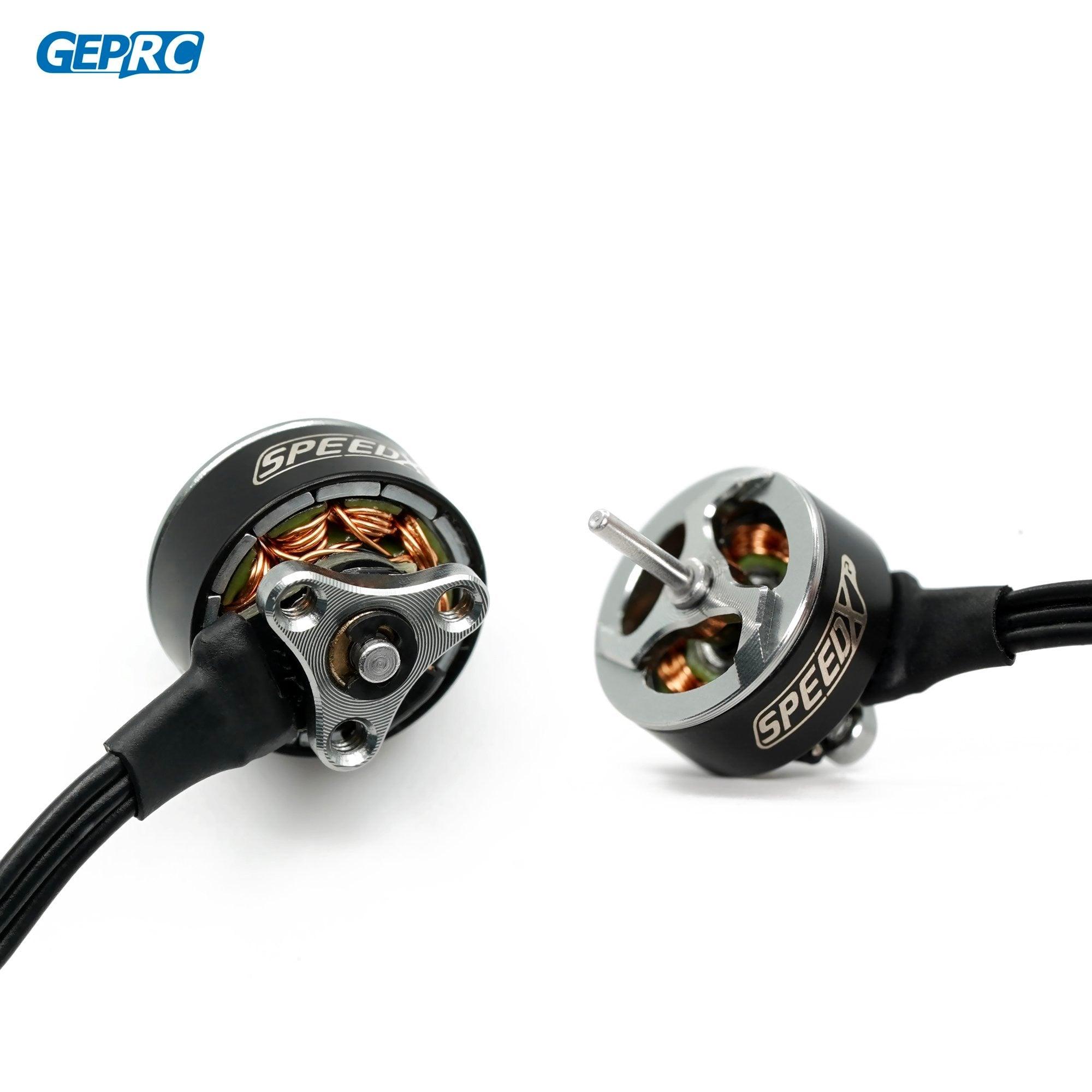

GEPRC SPEEDX2 0803 brushless motor, specially developed for Tiny and Whoop FPV, SPEEDX2 motors are enough to meet your needs.
GEPRC SPEEDX2 0803 motors have good heat dissipation, lightweight design, advanced material technology, perfect for Tiny and Whoop FPV.
Specifications:

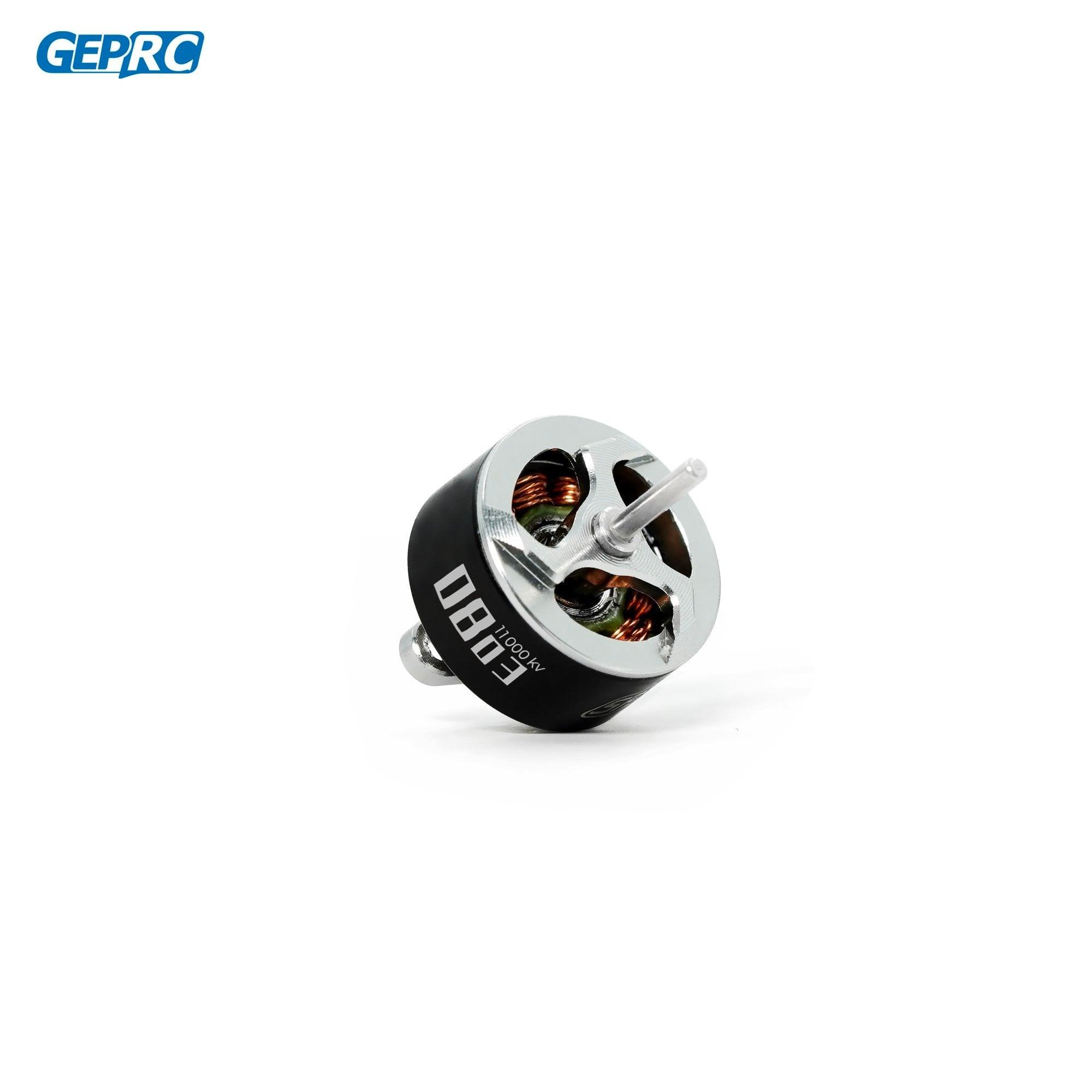

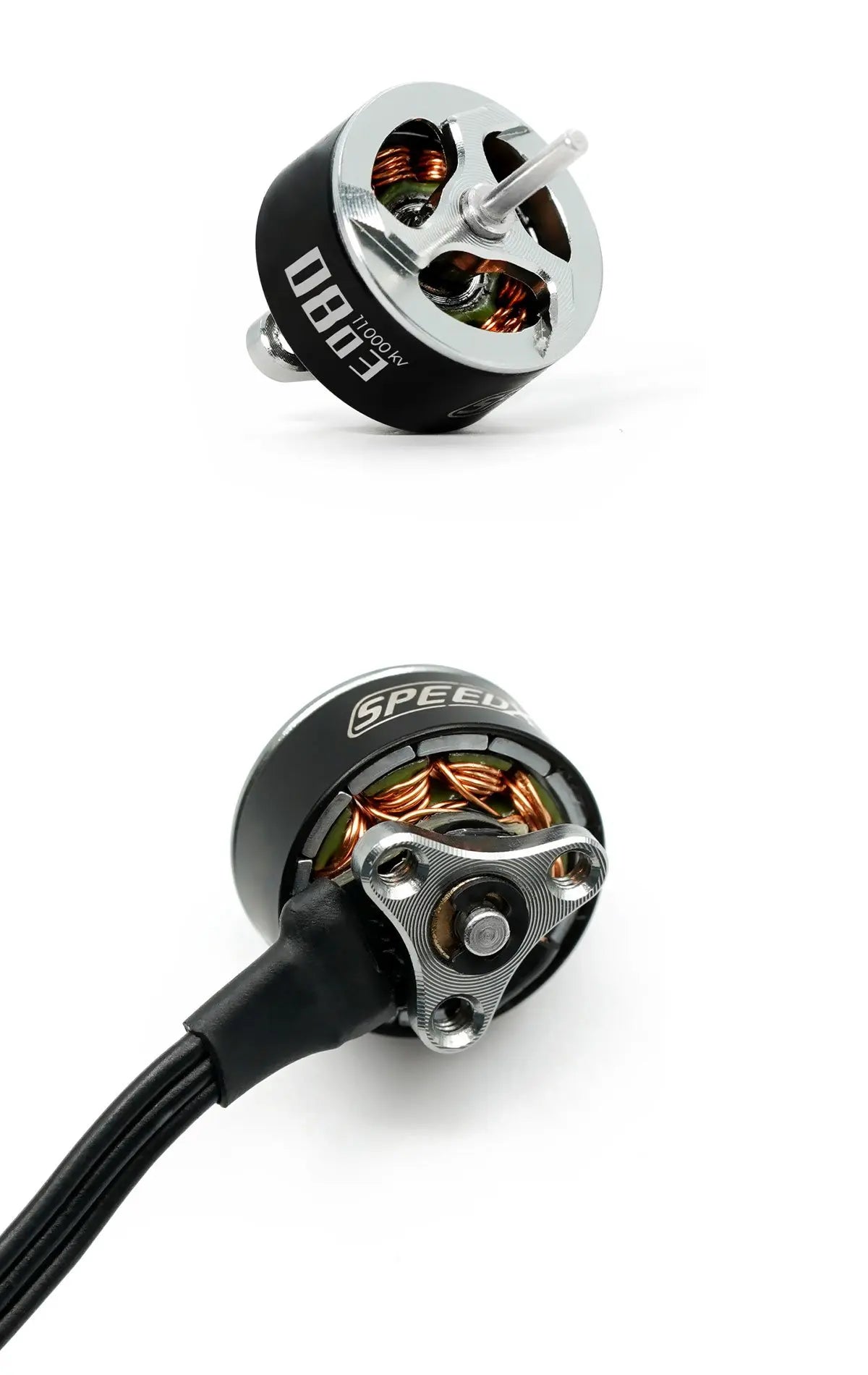

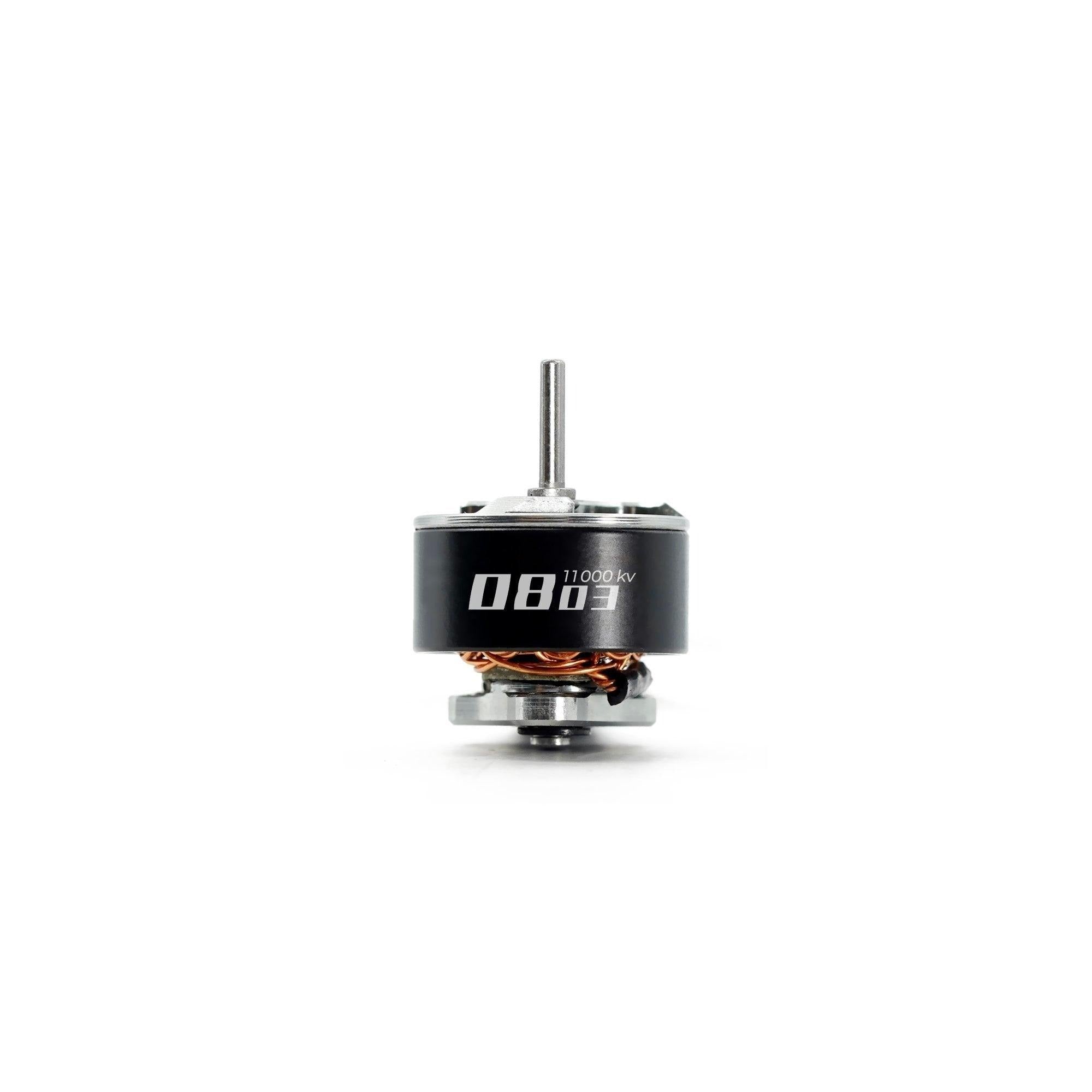

Model: SPEEDX2 0803
KV: 11000KV
Configuration: 9N12P
Stator Diameter: 8.4mm
Stator Height: 2.8mm

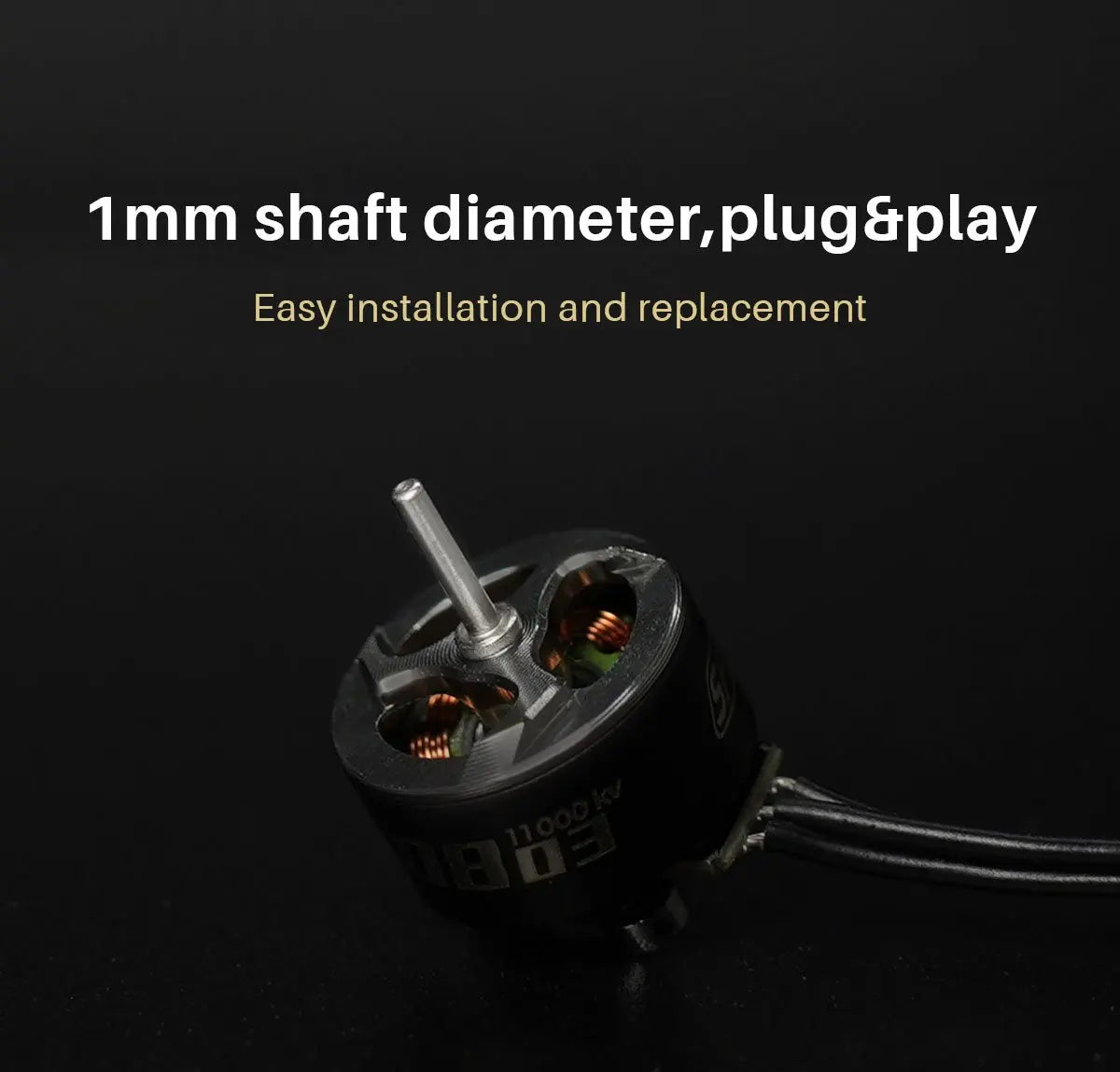

Shaft Diameter: Φ1.0mm

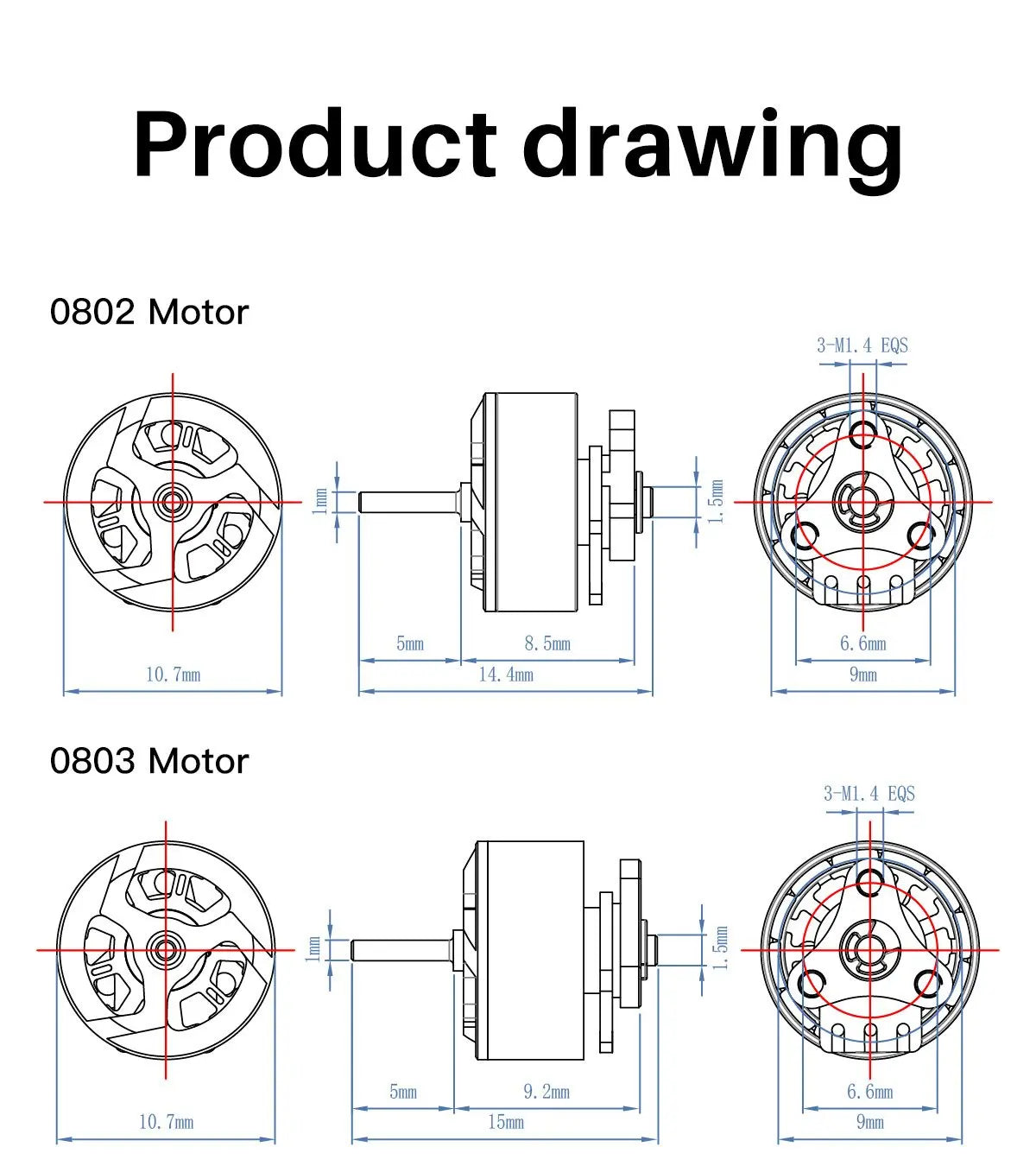

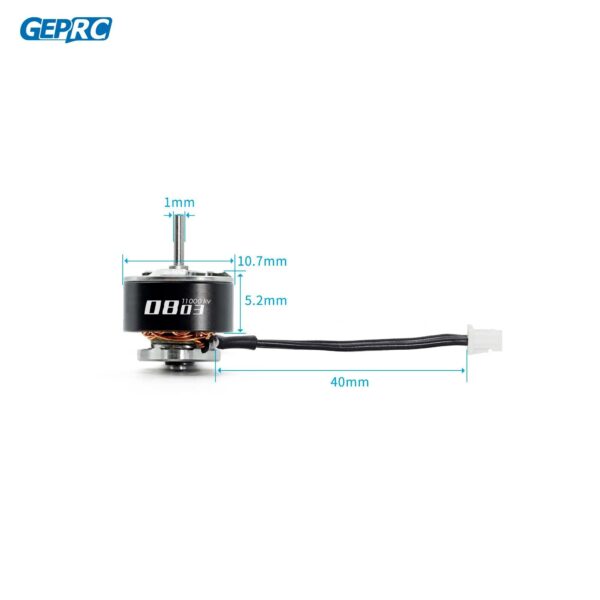

Size: Φ10.7mm*15mm

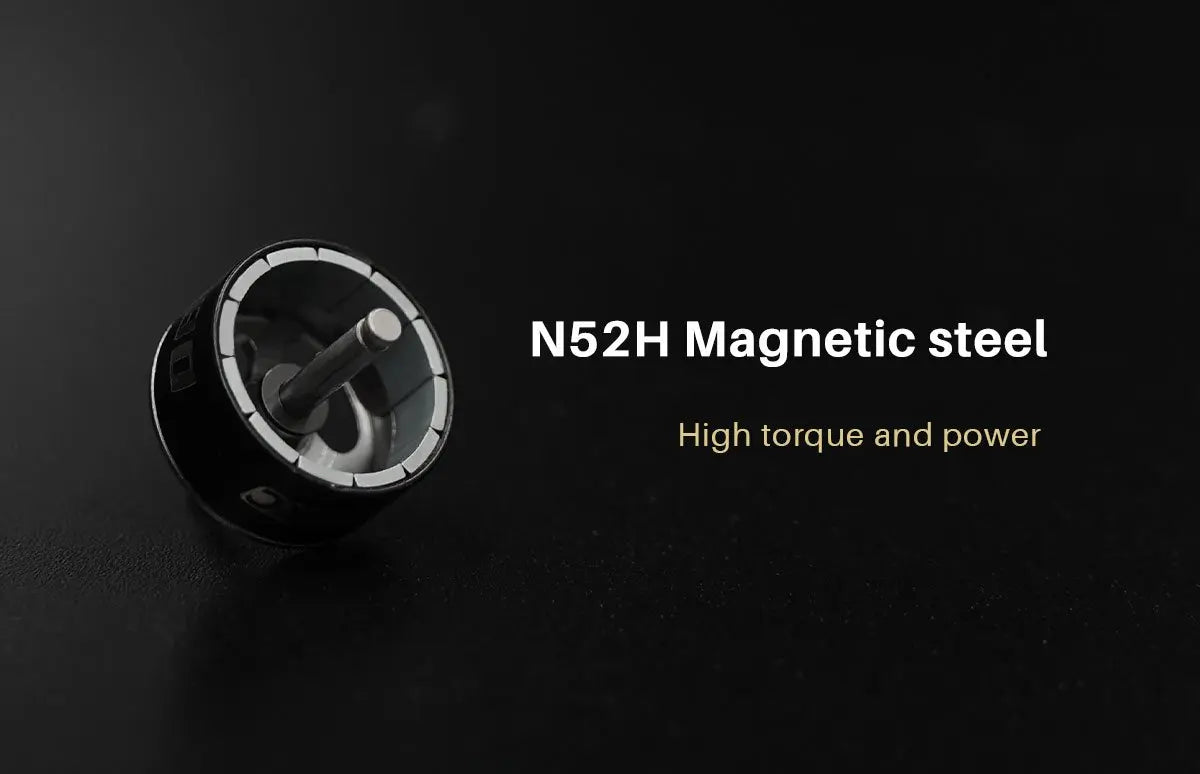

Rotor: N52H

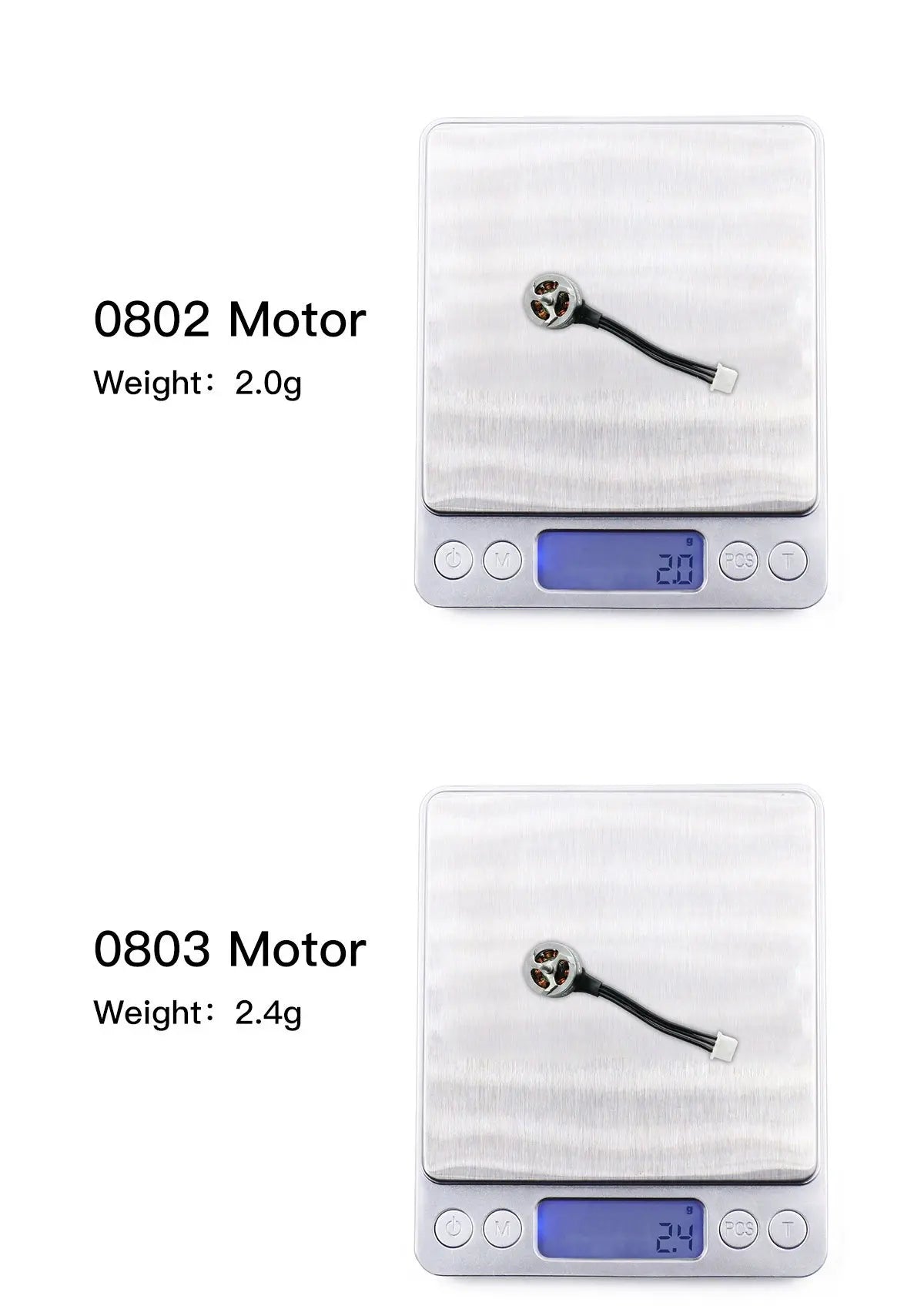

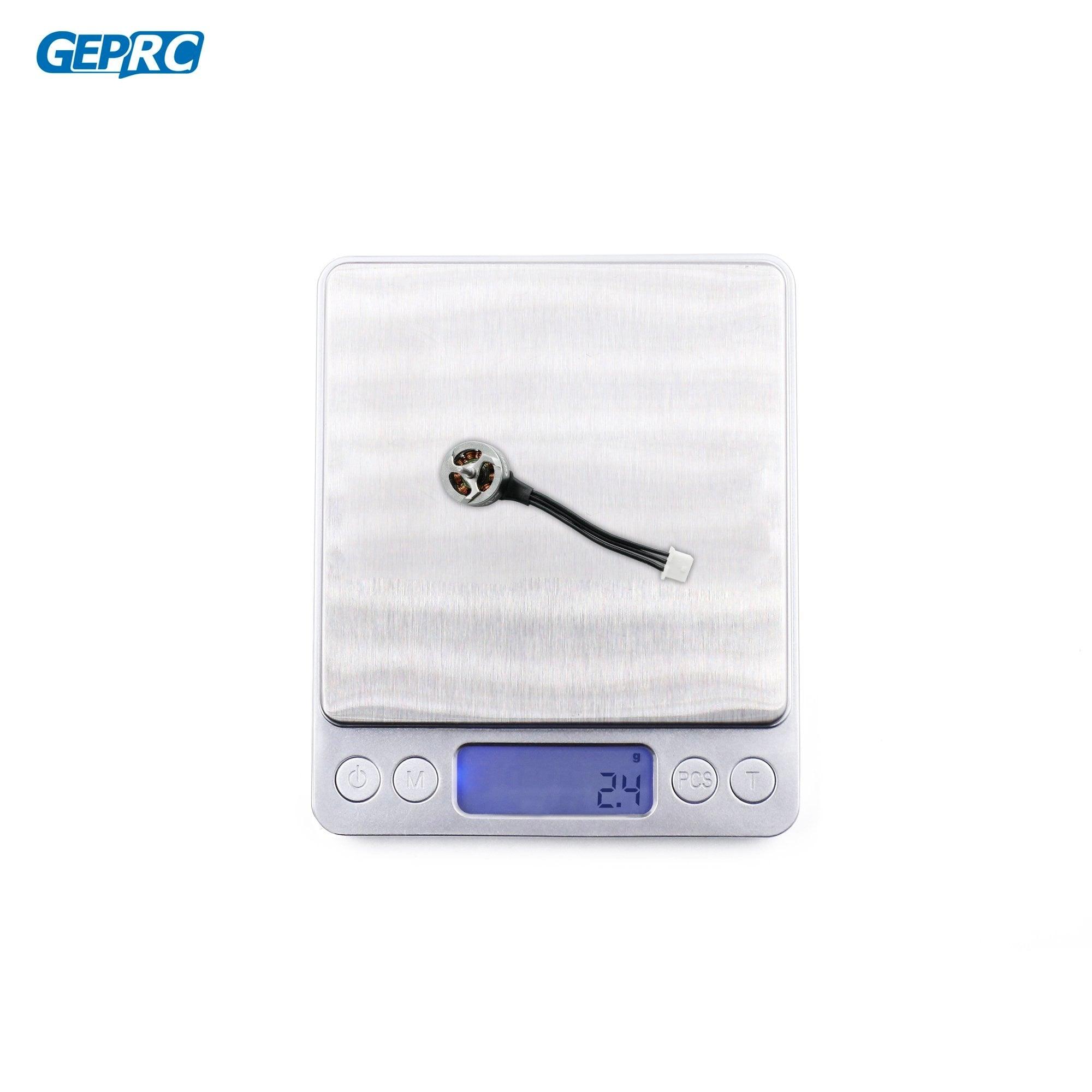

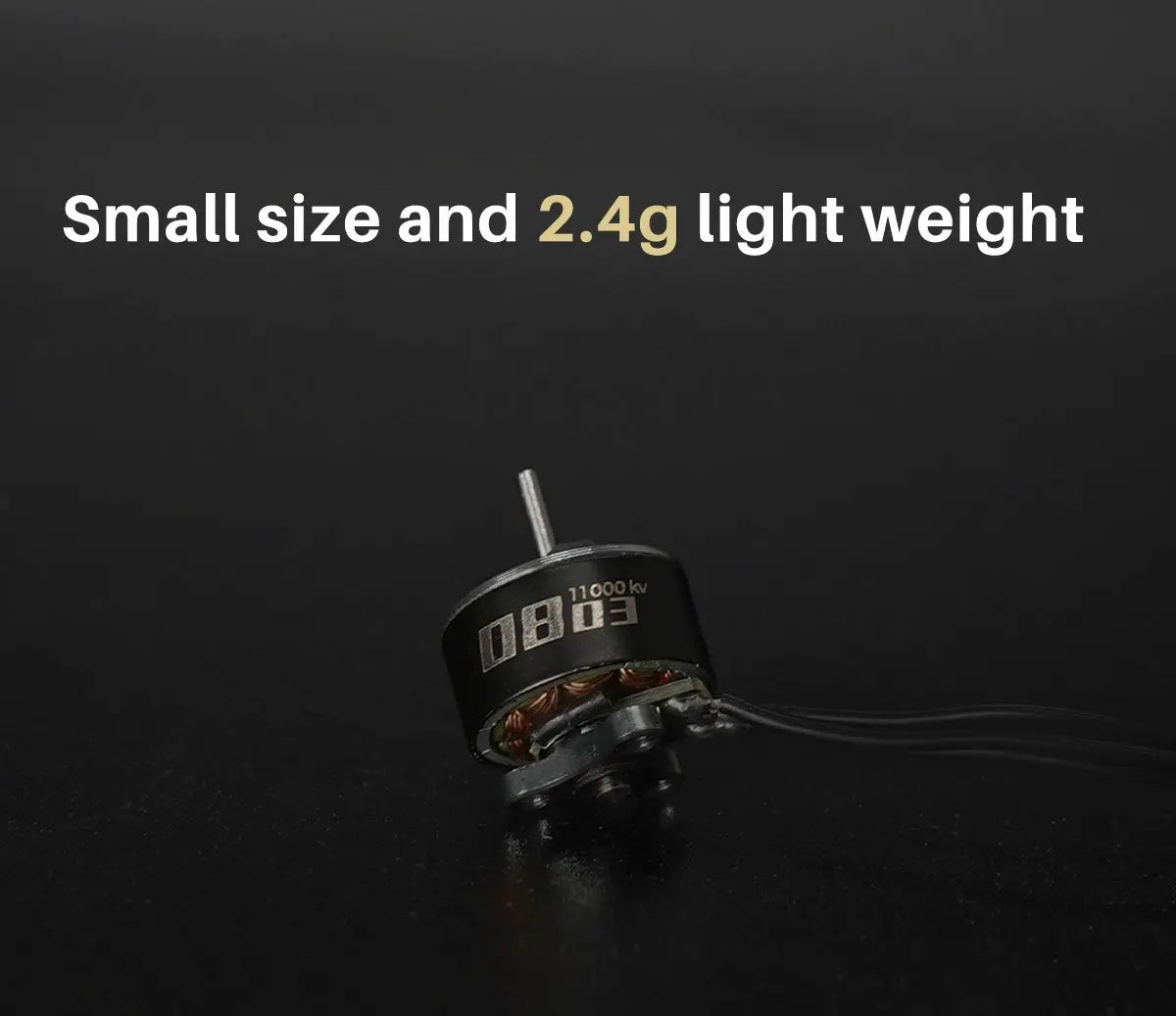

Weight: 2.4g
Target: Tiny & Whoop FPV
Recommended battery: 2S 380mAh-530mAh LiPo
Feature：
High efficiency and smooth
Perfect fit for Tiny and Whoop FPV
Motor dynamic balance, stable operation
Suitable for 1.4inch&1.6inch Propellers
Package Included：
1 x SPEEDX2 0803 motor
1 x Spare screw set

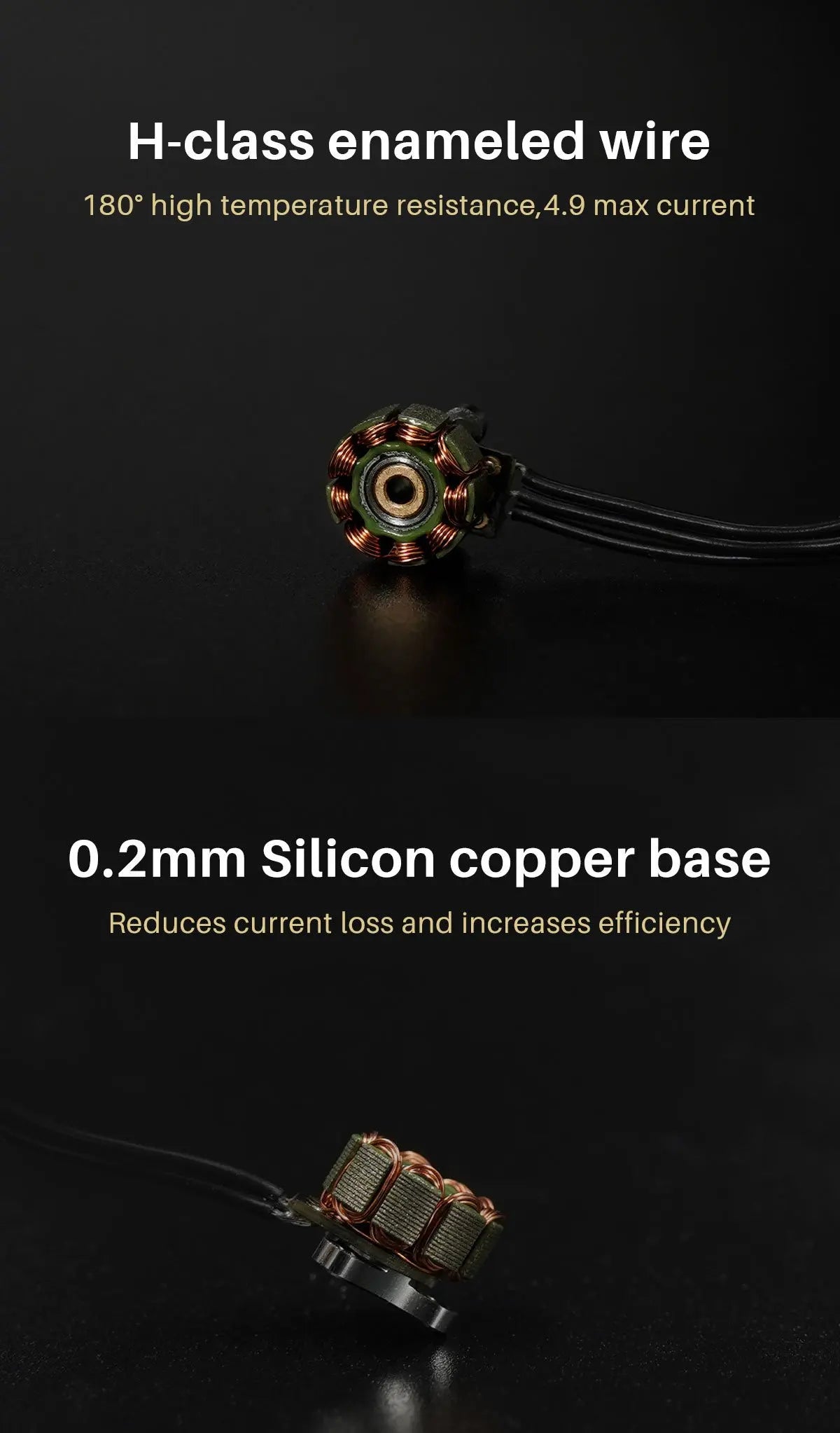

Featuring an H-class enameled wire with high-temperature resistance up to 180°C, this motor also boasts a maximum current of 4.9A and a 0.2mm silicon-copper base, which reduces current loss and increases efficiency.

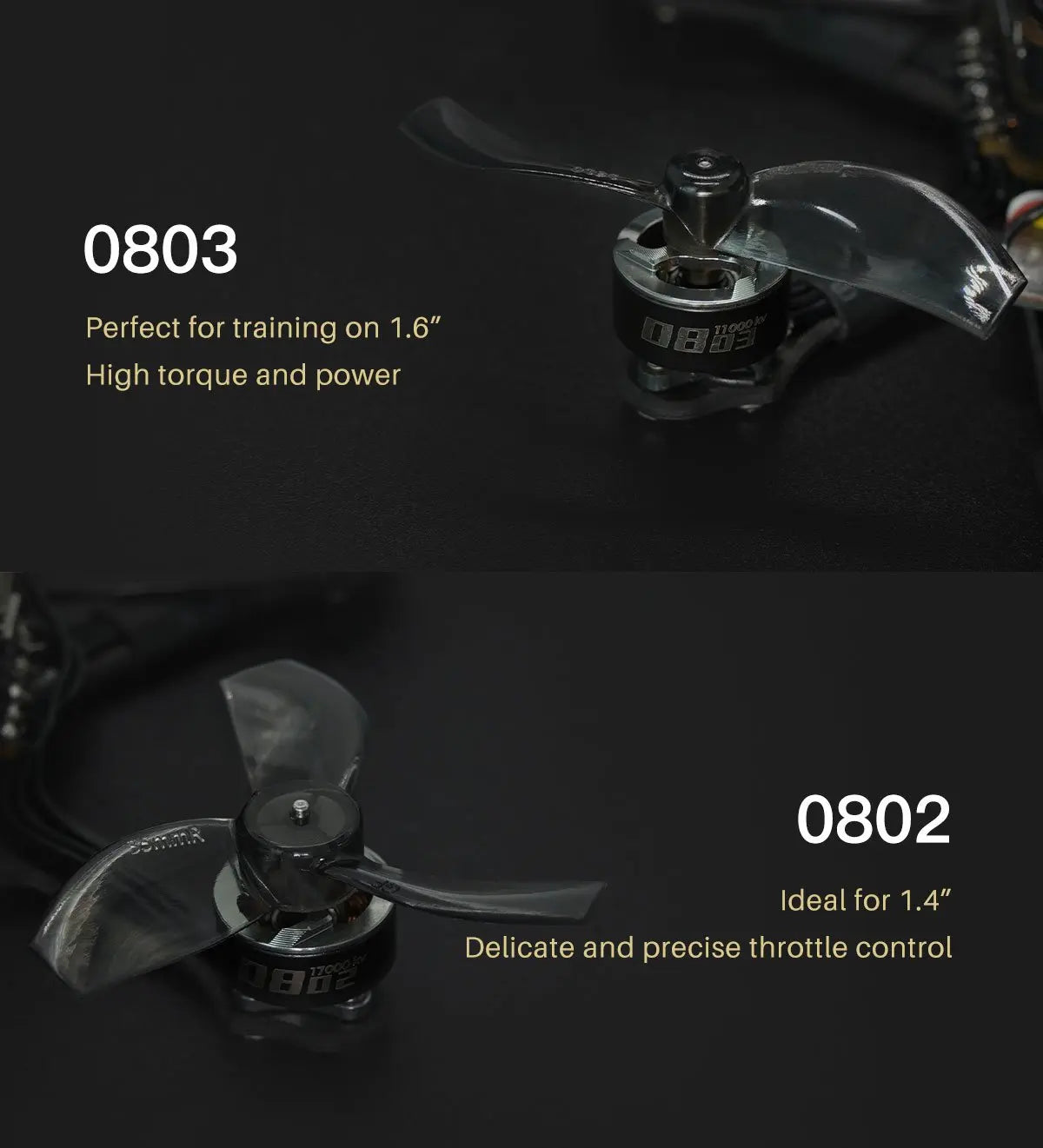

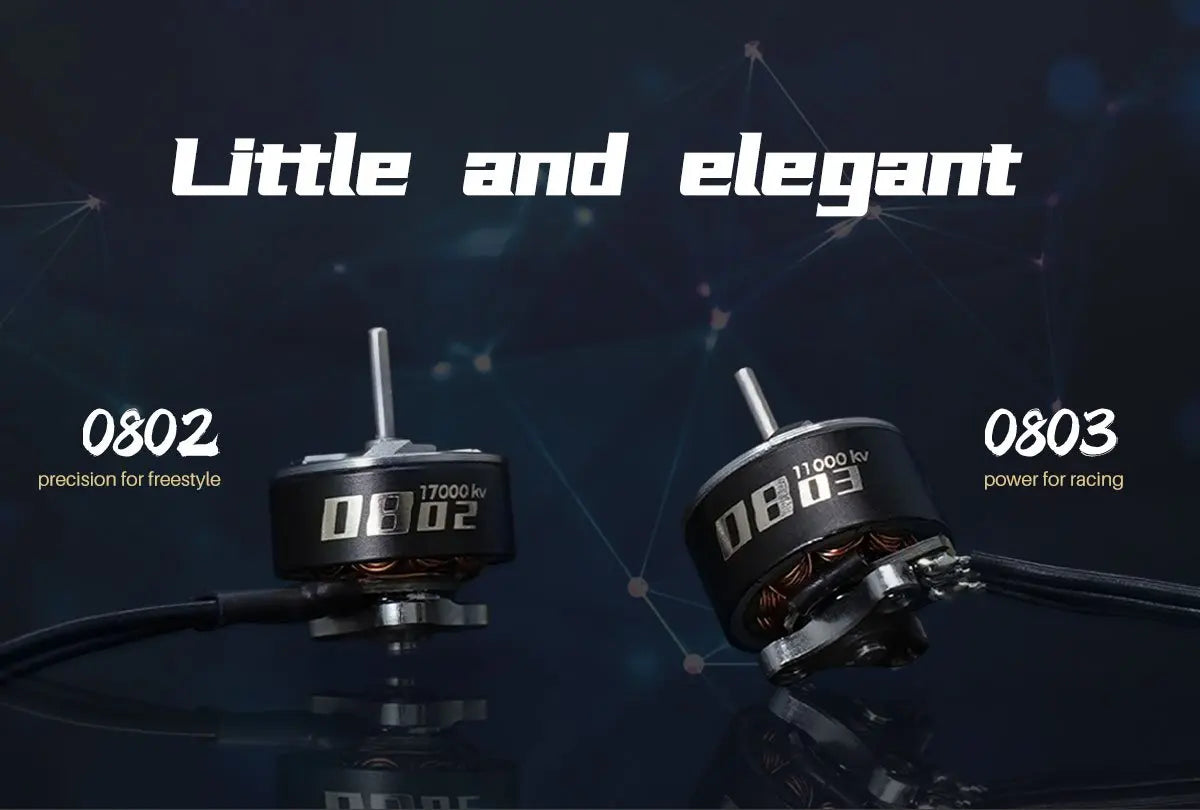

The SPEEDX2 0803 motor is ideal for training purposes, particularly suitable for smaller quadcopters with a 1.6-inch propeller diameter (D3), offering high torque and power. In contrast, the 0802 variant excels at handling delicate and precise throttle control, making it perfect for use on quadcopters with 1.4-inch propellers.

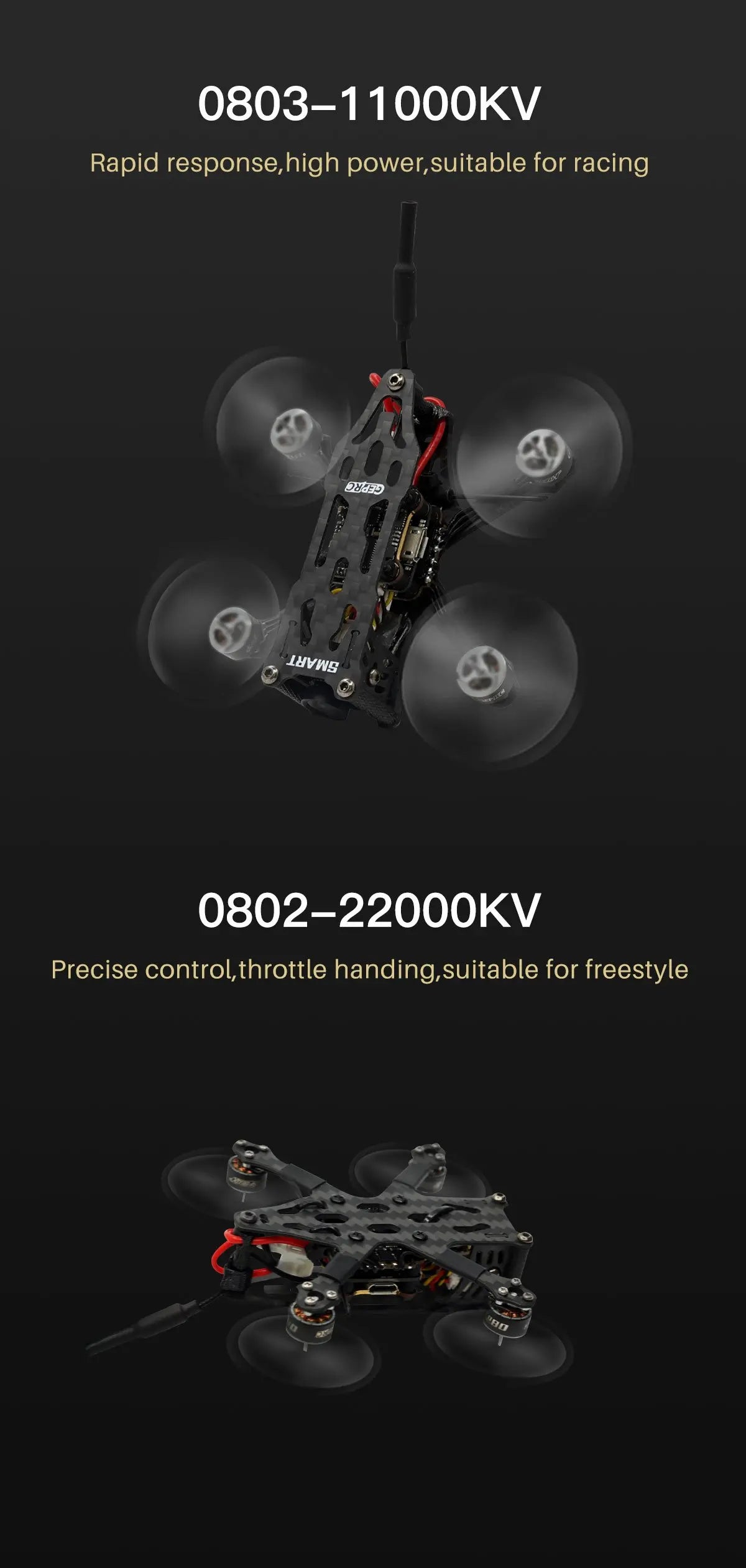

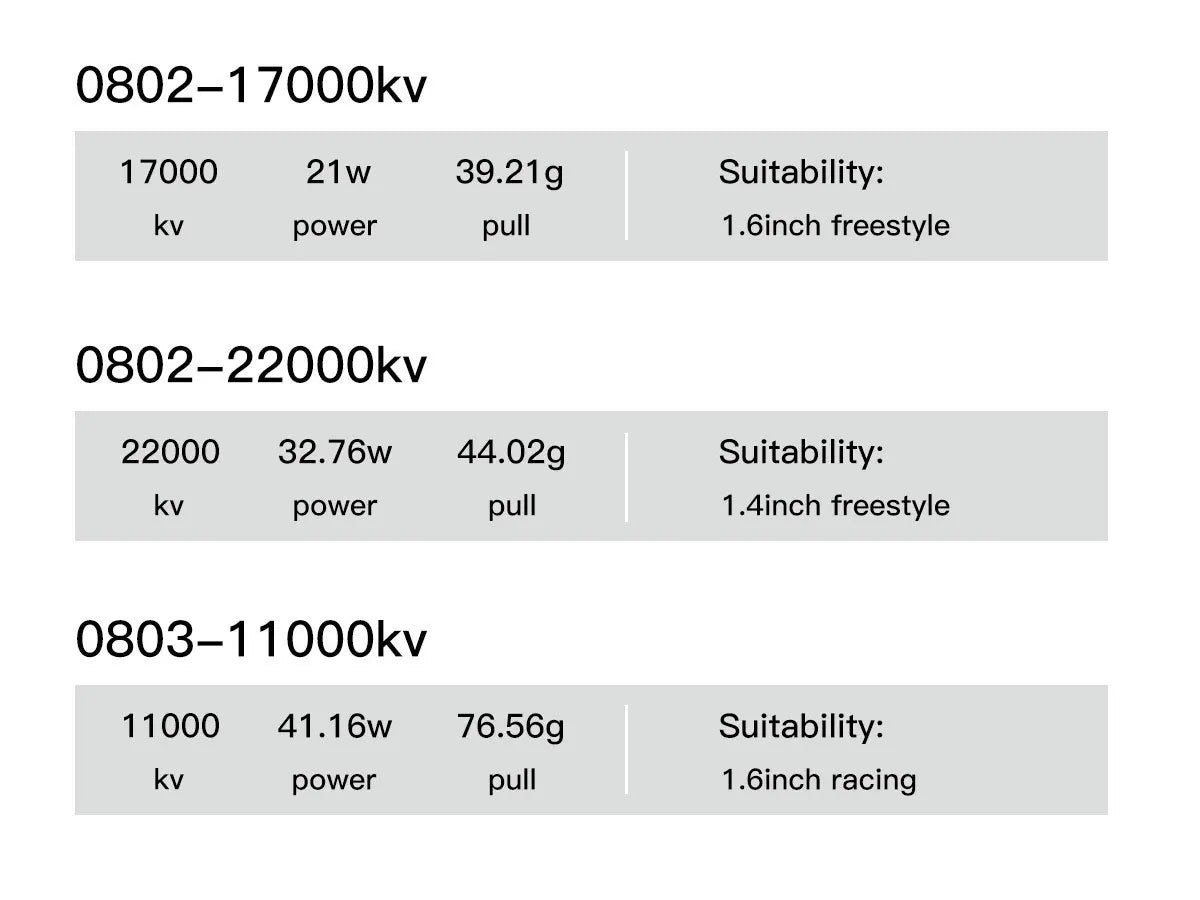

The SPEEDX2 0803 motor (11000KV) excels at rapid response and high power, making it an ideal choice for racing enthusiasts. In contrast, the 0802 variant (22000KV) offers precise control and throttle handling, making it perfect for freestyle flying.

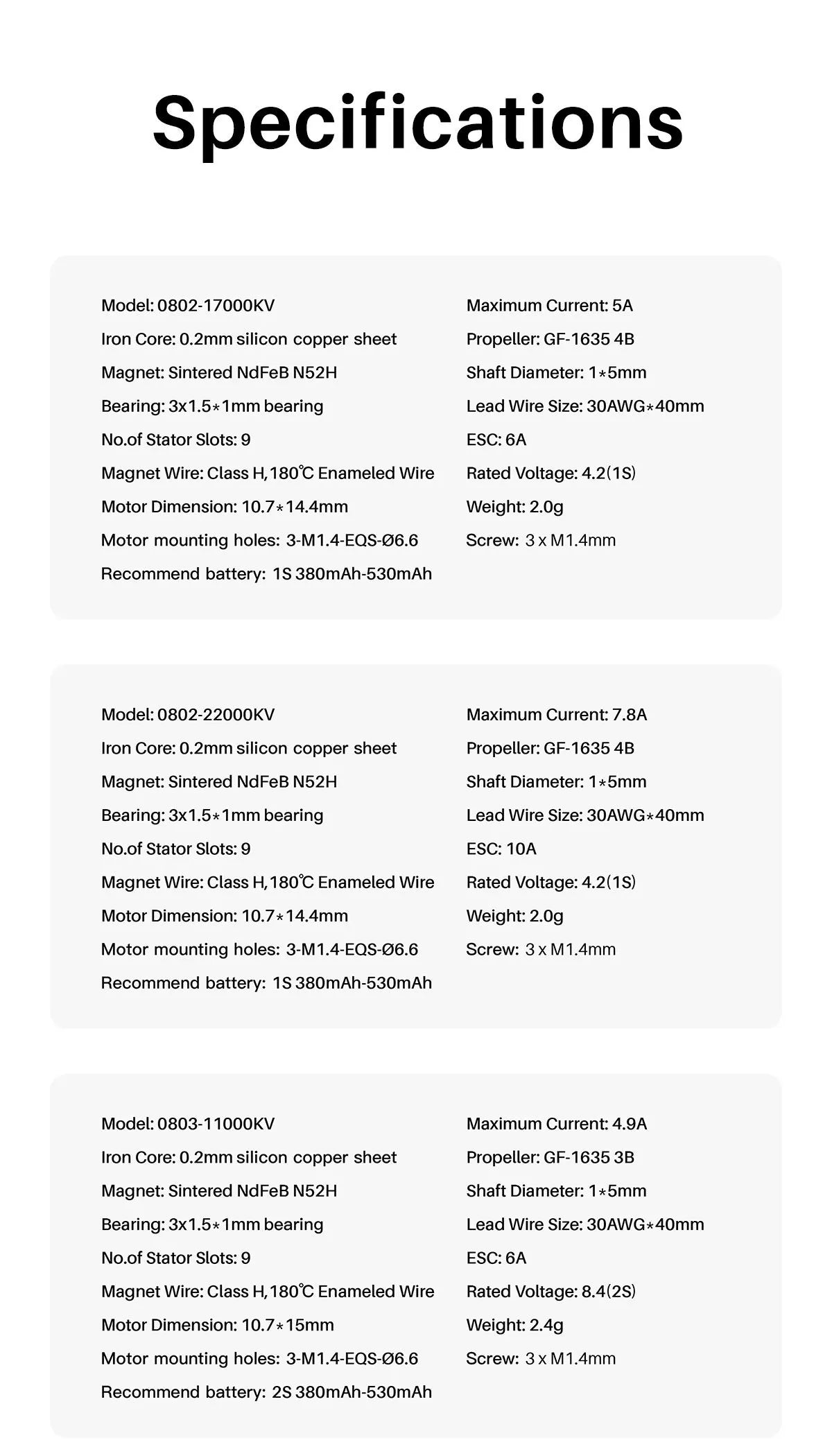

Specifications:

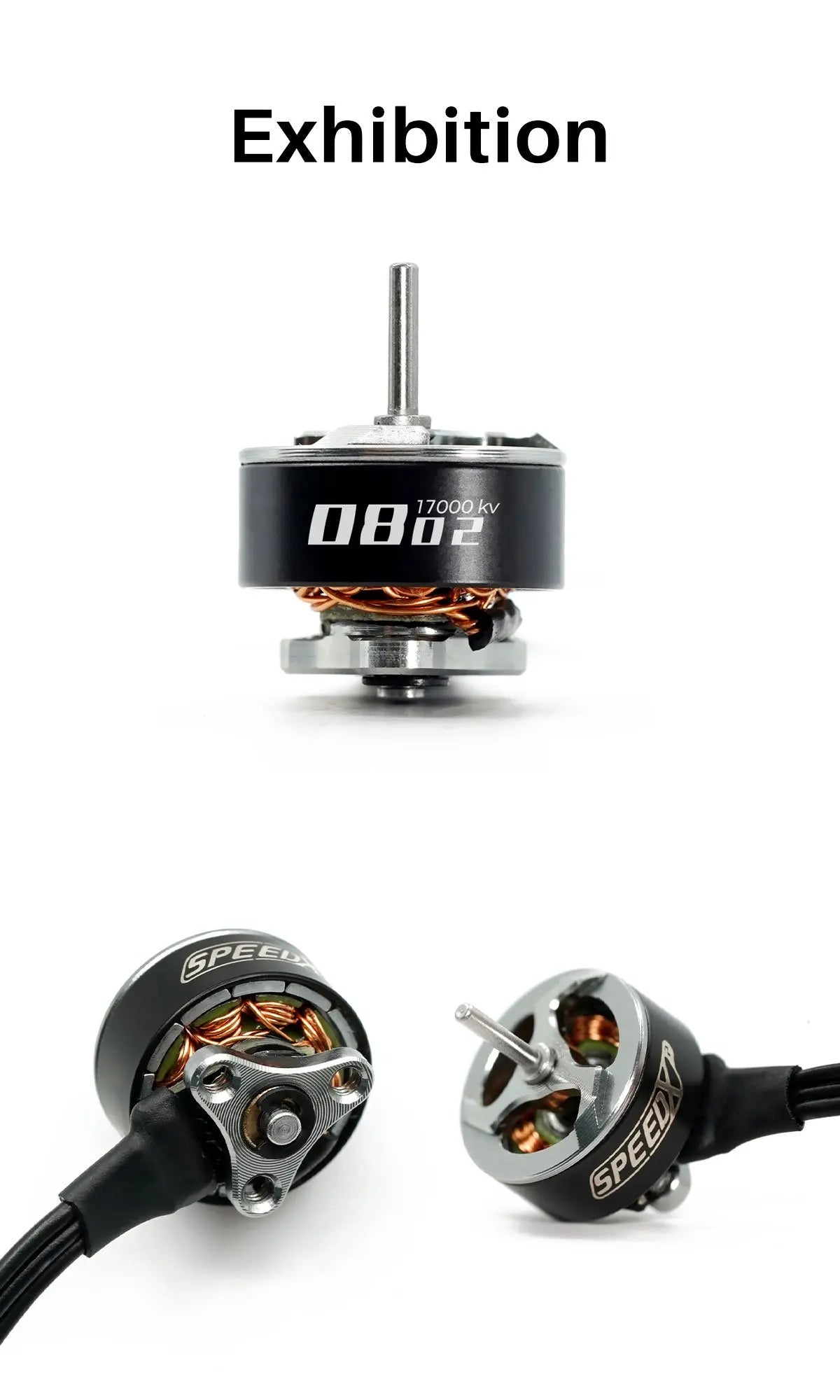

Model: SPEEDX2 0802-17000KV
Maximum Current: 5 amps
Iron Core: 0.2mm silicon copper sheet
Propeller: GF-1635 (4-blade)
Magnet: Sintered NdFeB N52H
Shaft Diameter: 5mm
Bearing: 3×1.5*1mm bearing
Lead Wire Size: 30AWG x 40mm
Number of Stator Slots: 9
ESC: 6A
Magnet Wire: Class H, 180°C enameled wire
Rated Voltage: 8.4V (2S)
