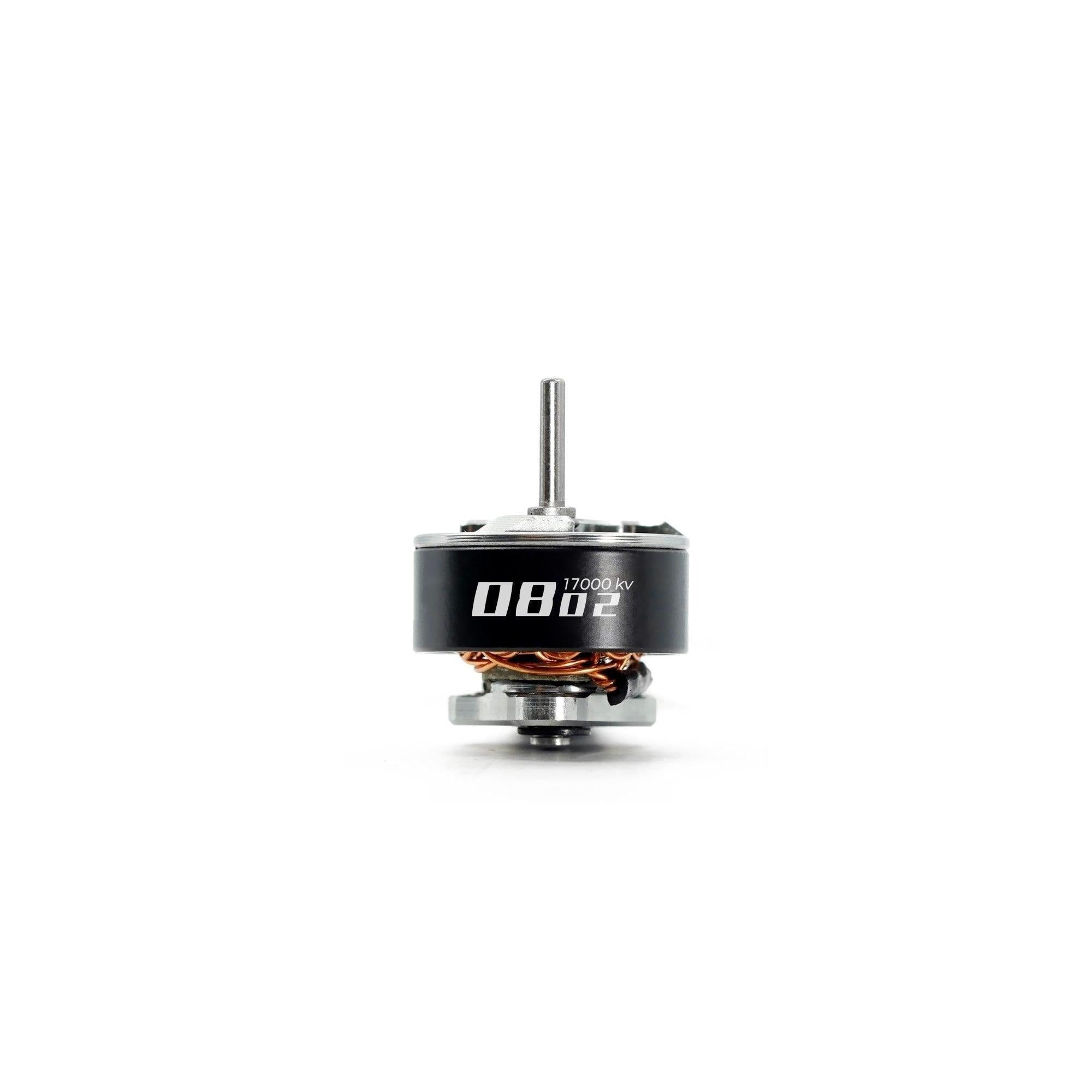

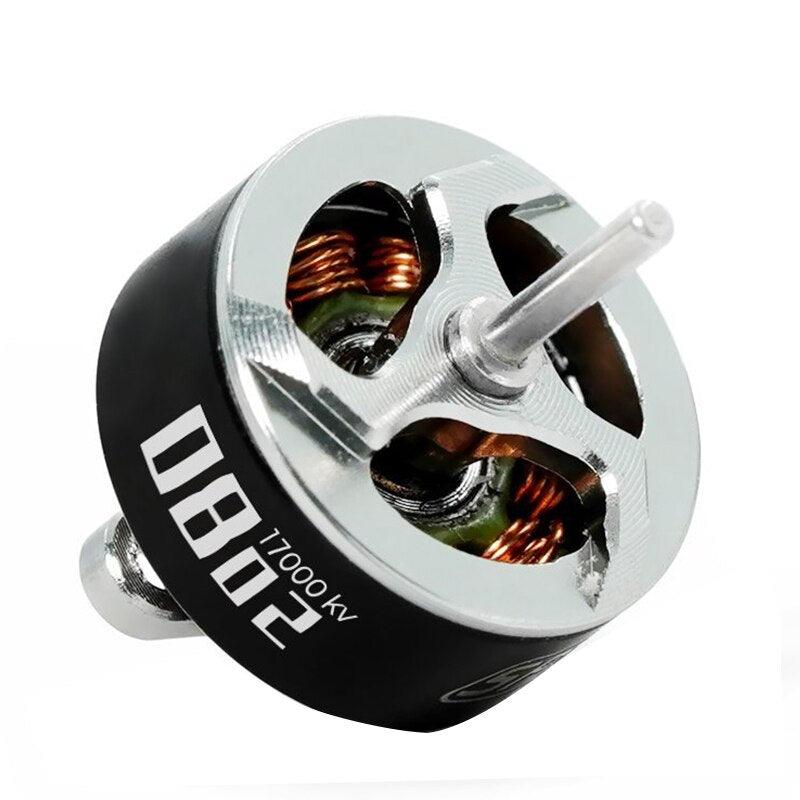

GEPRC SPEEDX2 0802 17000KV/22000KV Brushless Motor SPECIFICATIONS
Wheelbase: Screws
Use: Vehicles & Remote Control Toys
Upgrade Parts/Accessories: Adapter
Tool Supplies: Assembly Category
Size: 1.6 inch
Remote Control Peripherals/Devices: Motor
Recommend Age: 12+y
Recommend Age: 14+y
RC Parts & Accs: Motors
Quantity: 1 pcs
Origin: Mainland China
Model Number: GEPRC SPEEDX2 0802 Brushless Motor
Material: Metal
Four-wheel Drive Attributes: Motors
For Vehicle Type: Helicopters
Brand Name: GEPRC
Summary:
GEPRC SPEEDX2 0802 brushless motor, specially developed for Tiny and Whoop FPV, SPEEDX2 motors are enough to meet your needs.
GEPRC SPEEDX2 0802 motors have good heat dissipation, lightweight design, advanced material technology, perfect for Tiny and Whoop FPV.
Specifications:
Model: SPEEDX2 0802
KV: 17000KV/22000KV
Configuration: 9N12P
Stator Diameter: 8.4mm
Stator Height: 2.0mm

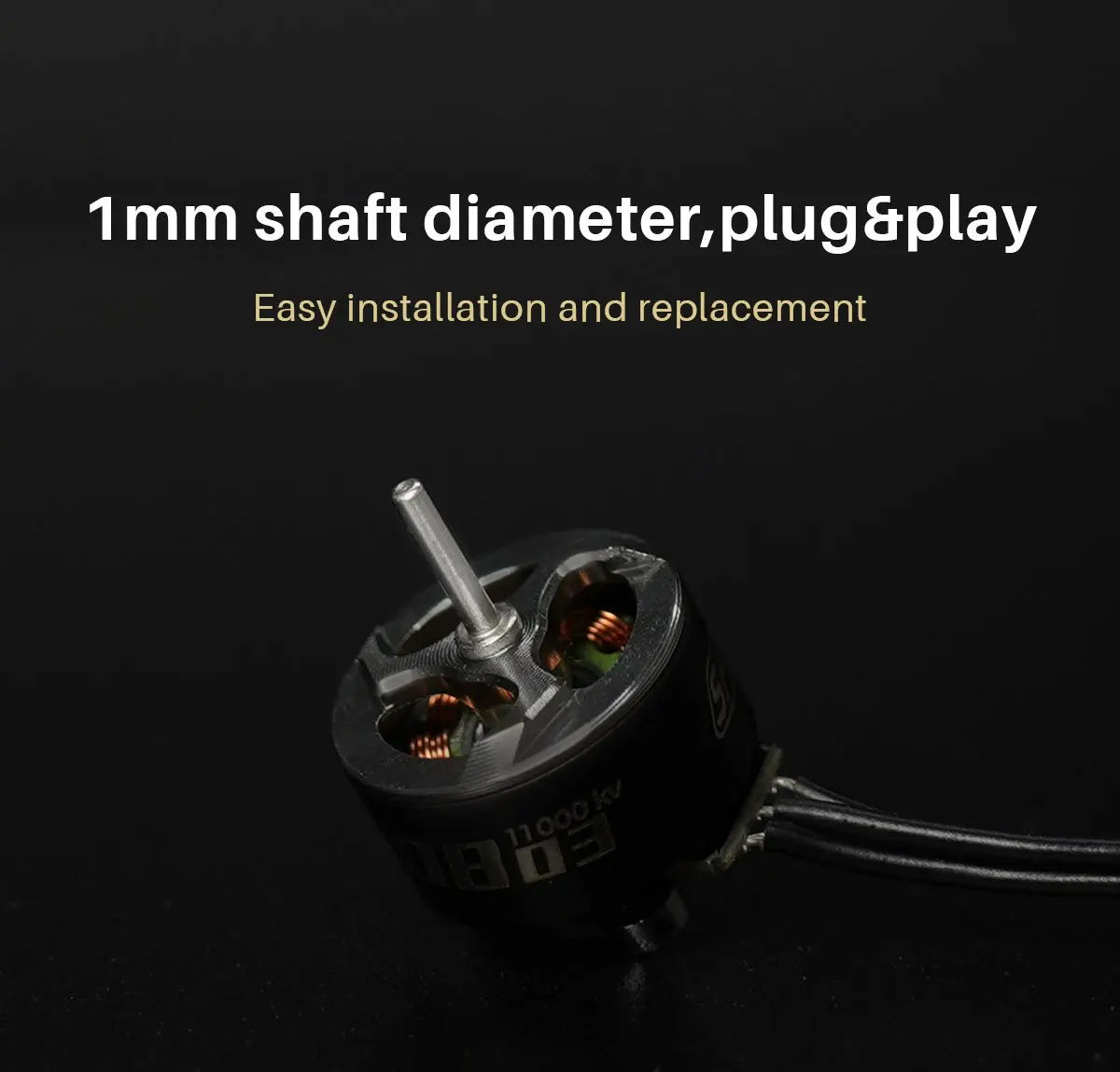

Shaft Diameter: Φ1.0mm

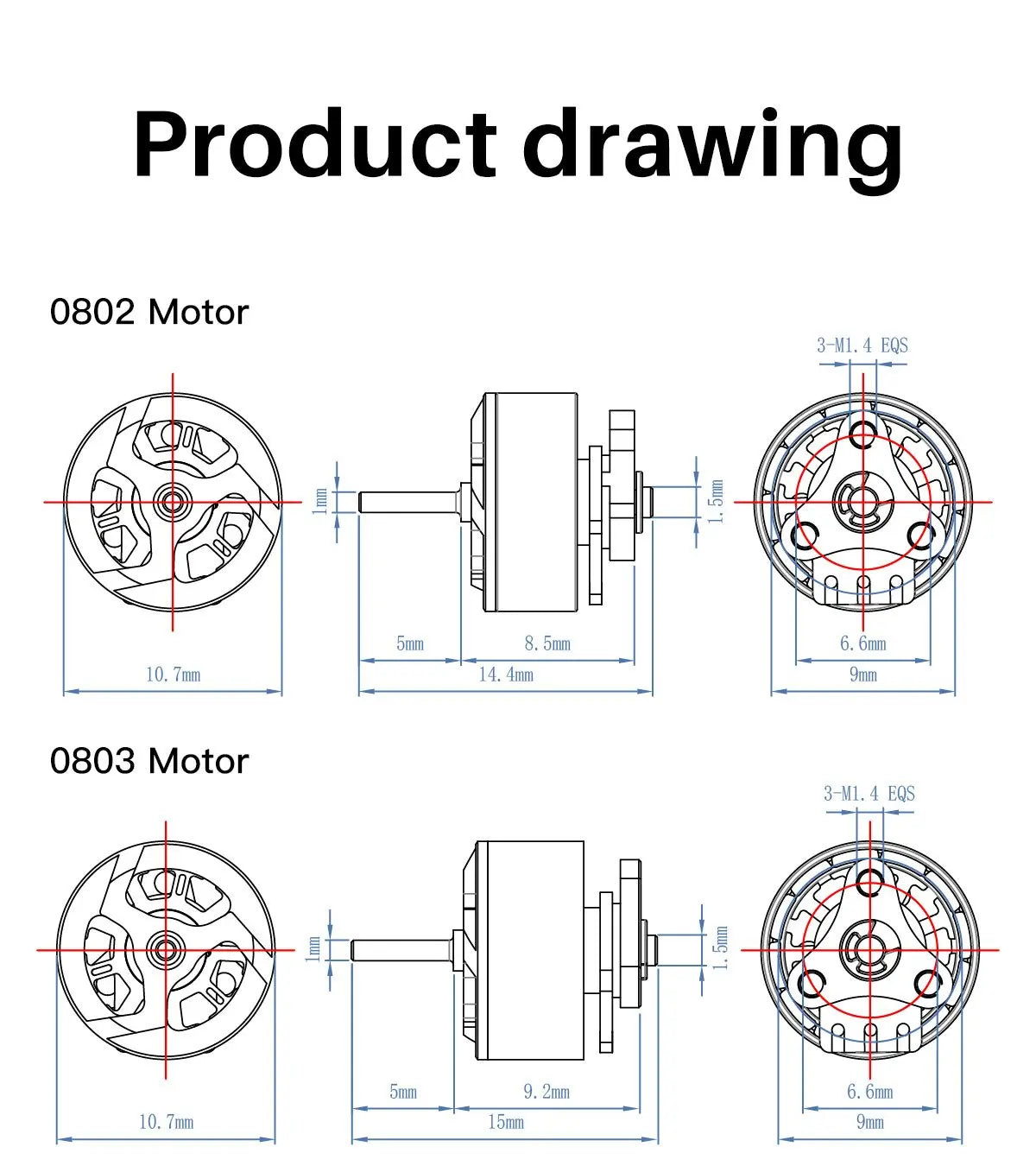

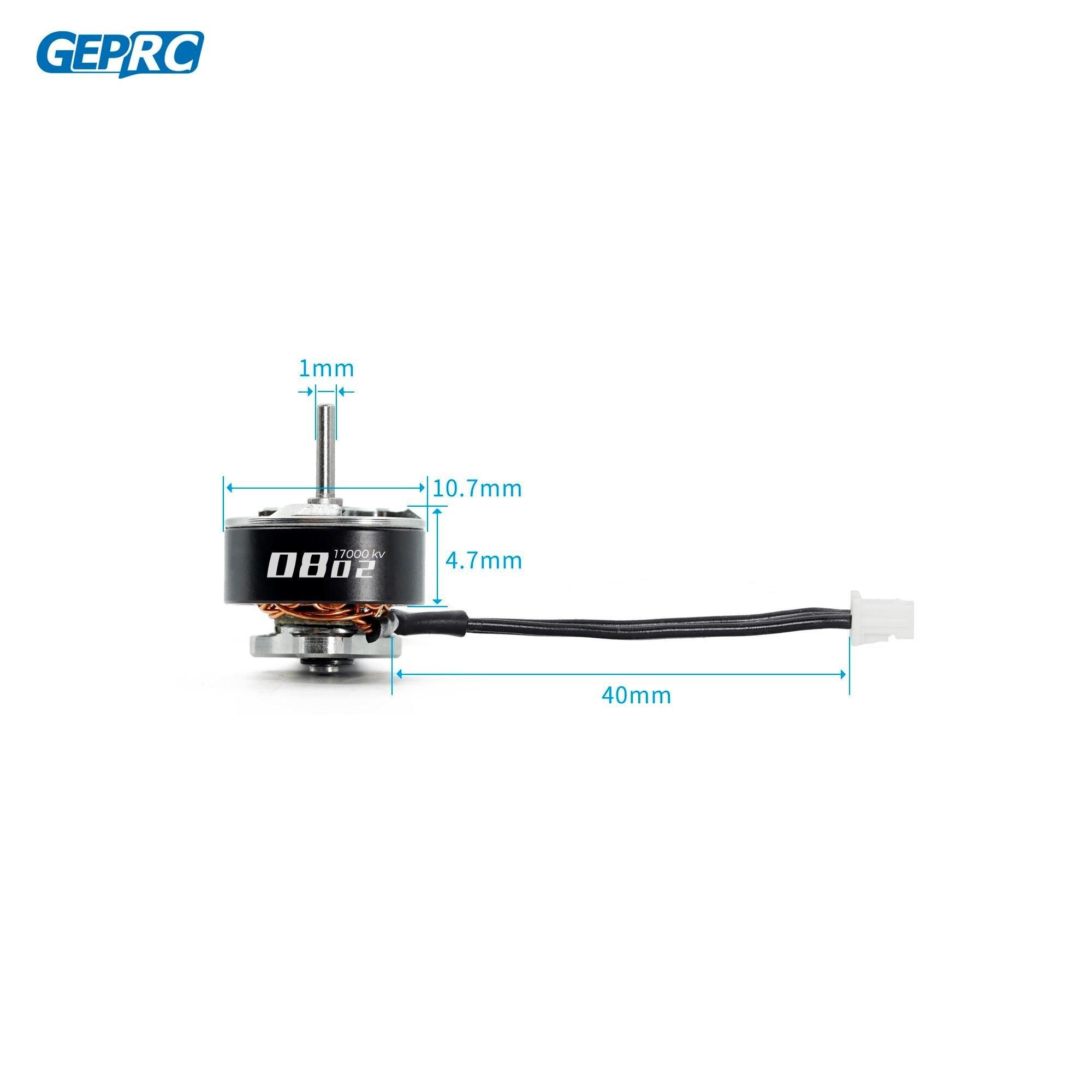

Size: Φ10.7mm*14.4mm
Rotor: N52H
Weight: 2.0g
Target: Tiny & Whoop FPV
Recommended battery: 1S 380mAh-530mAh LiPo
Features:
High efficiency and smooth
Perfect fit for Tiny and Whoop FPV
Motor dynamic balance, stable operation
Suitable for 1.4inch&1.6inch Propellers
Package Included:
1 x SPEEDX2 0802 motor
1 x Spare screw set

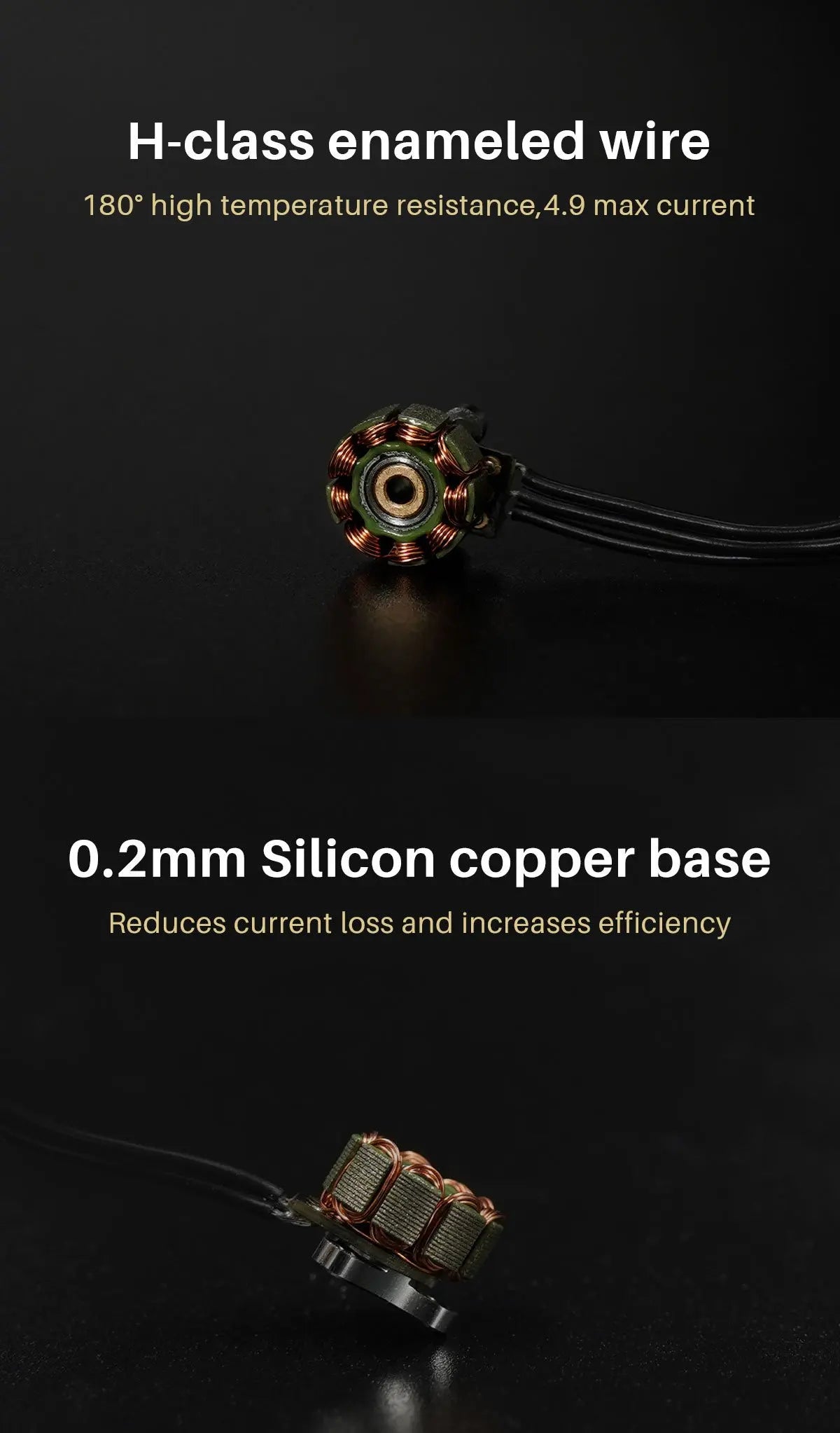

The H-class enameled wire features high-temperature resistance up to 180°C, with a maximum current rating of 4.9A and a 0.2mm silicon-copper base design that minimizes current loss and enhances overall performance.

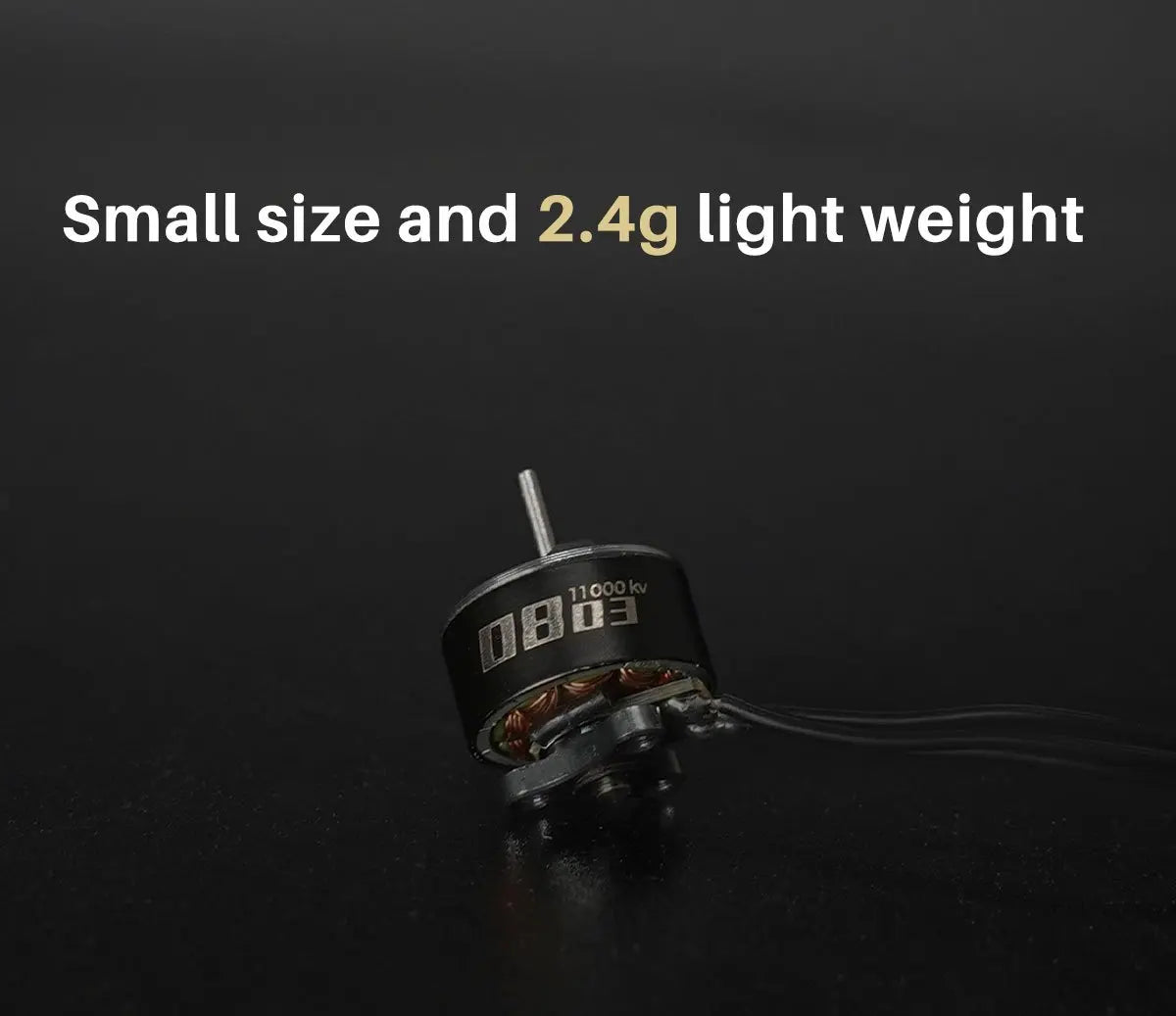

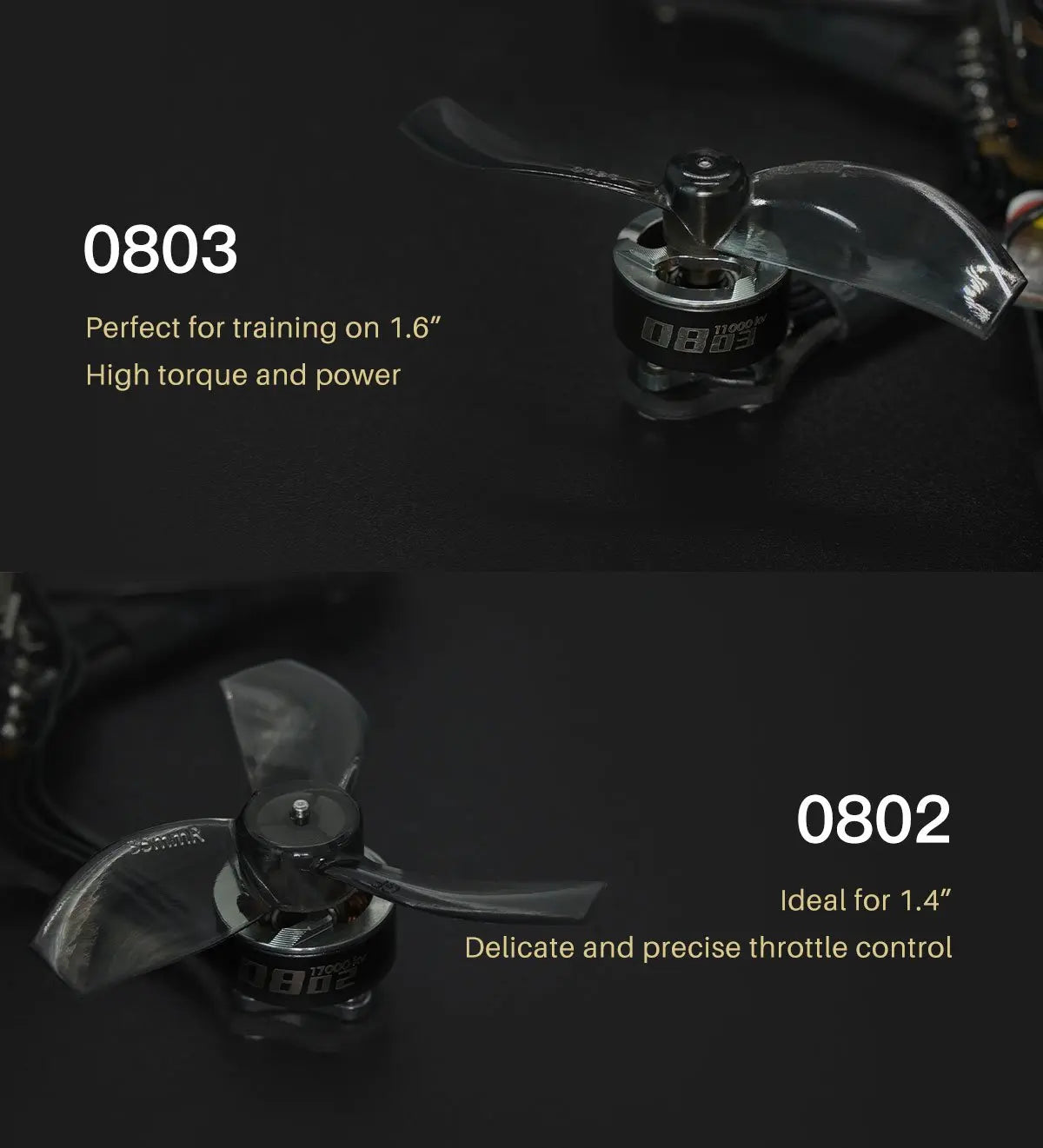

The GEPRC SPEEDX2 0803 motor is ideal for training on 1.6

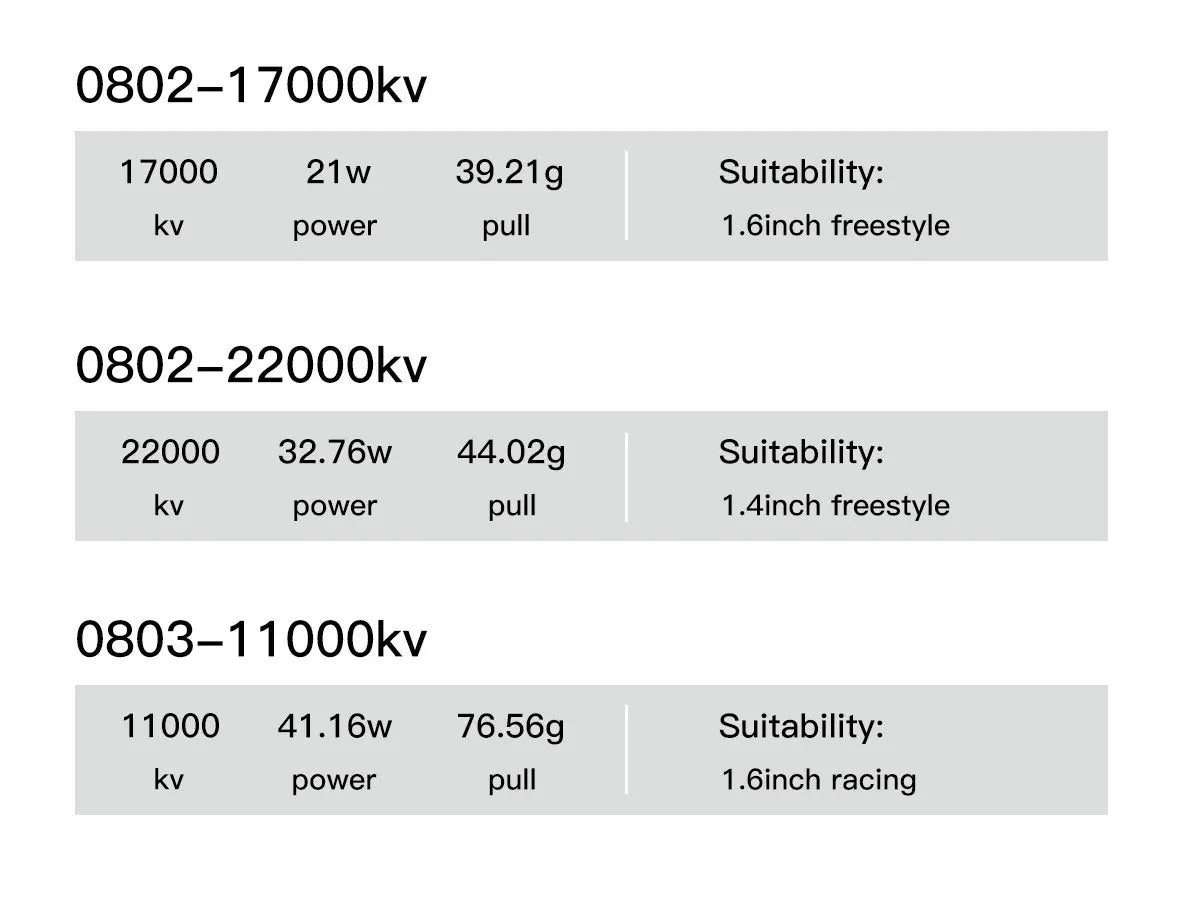

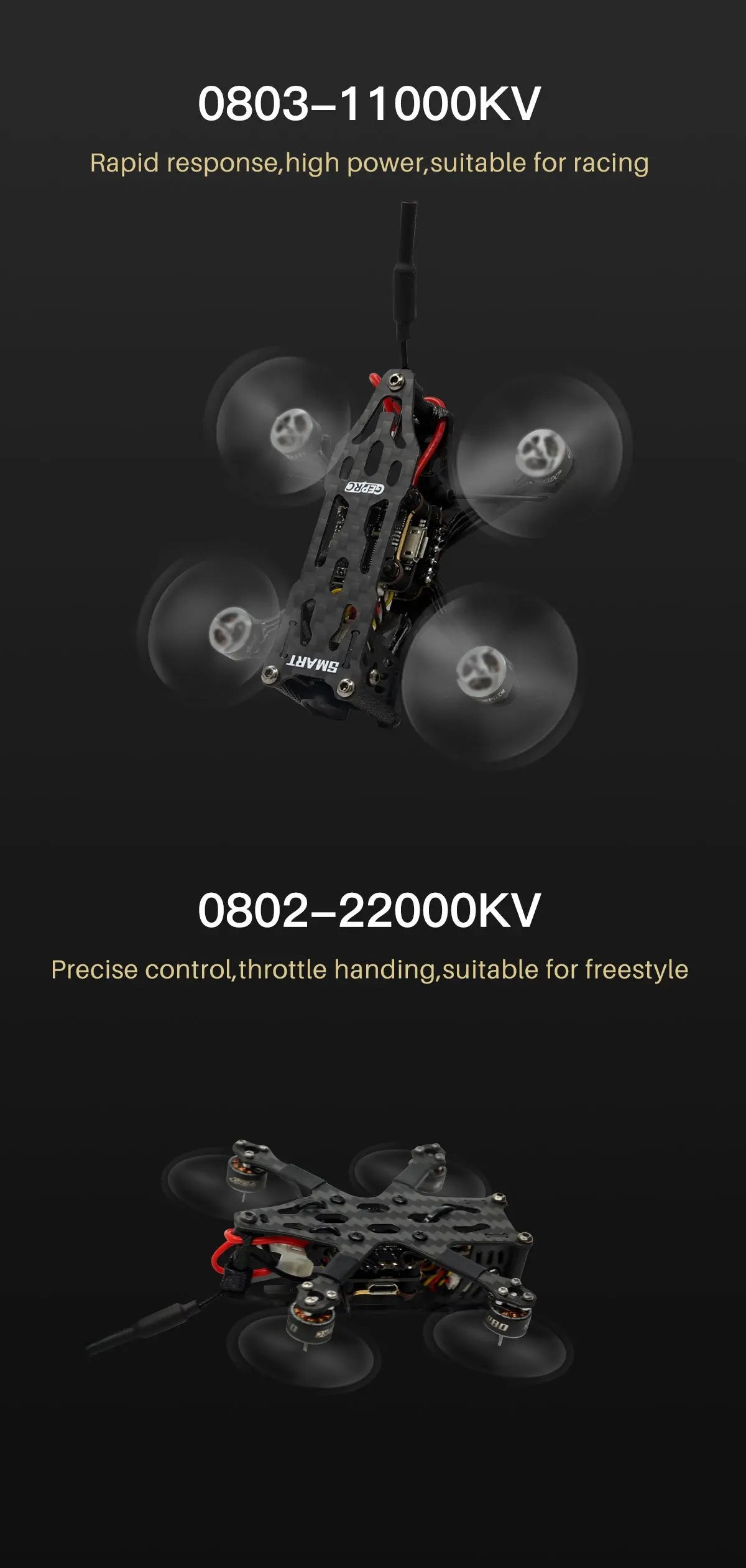

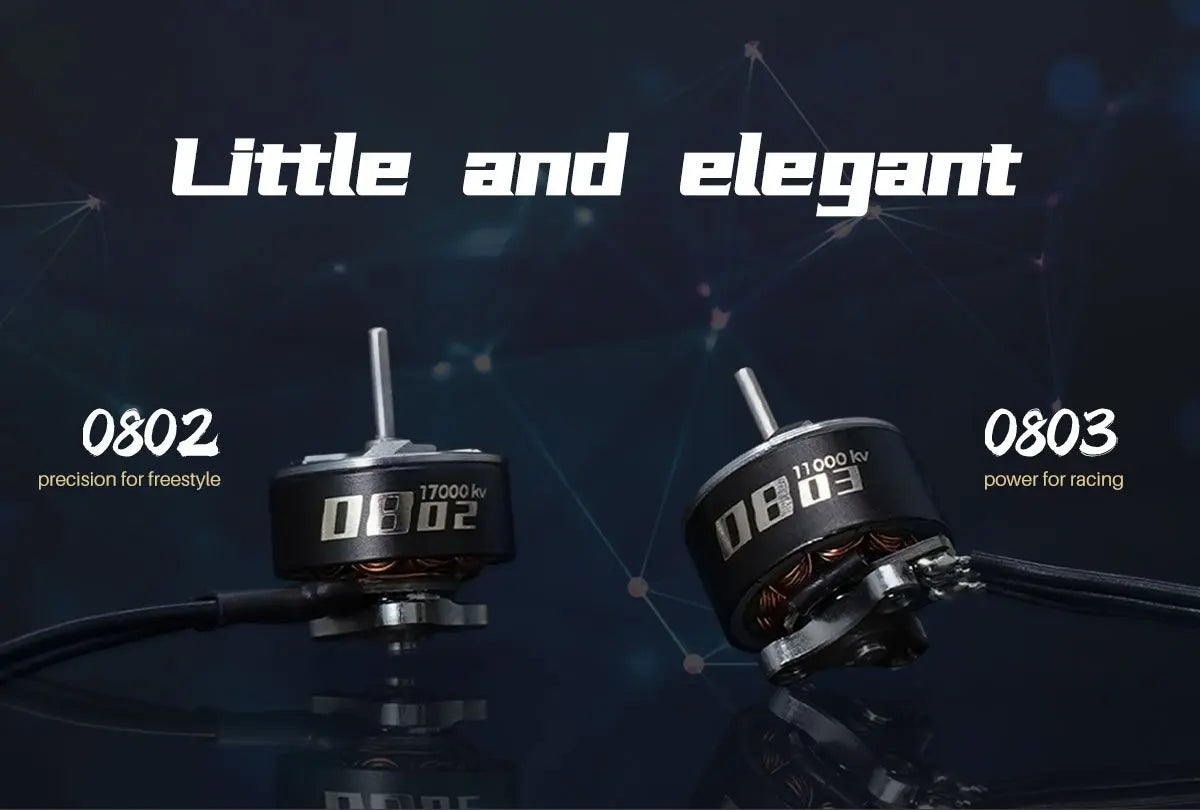

The GEPRC SPEEDX2 0803-10,000KV motor excels in rapid response and high power applications, making it well-suited for racing. In contrast, the 0802-22,000KV motor offers precise control and throttle handling capabilities, making it ideal for freestyle flights.

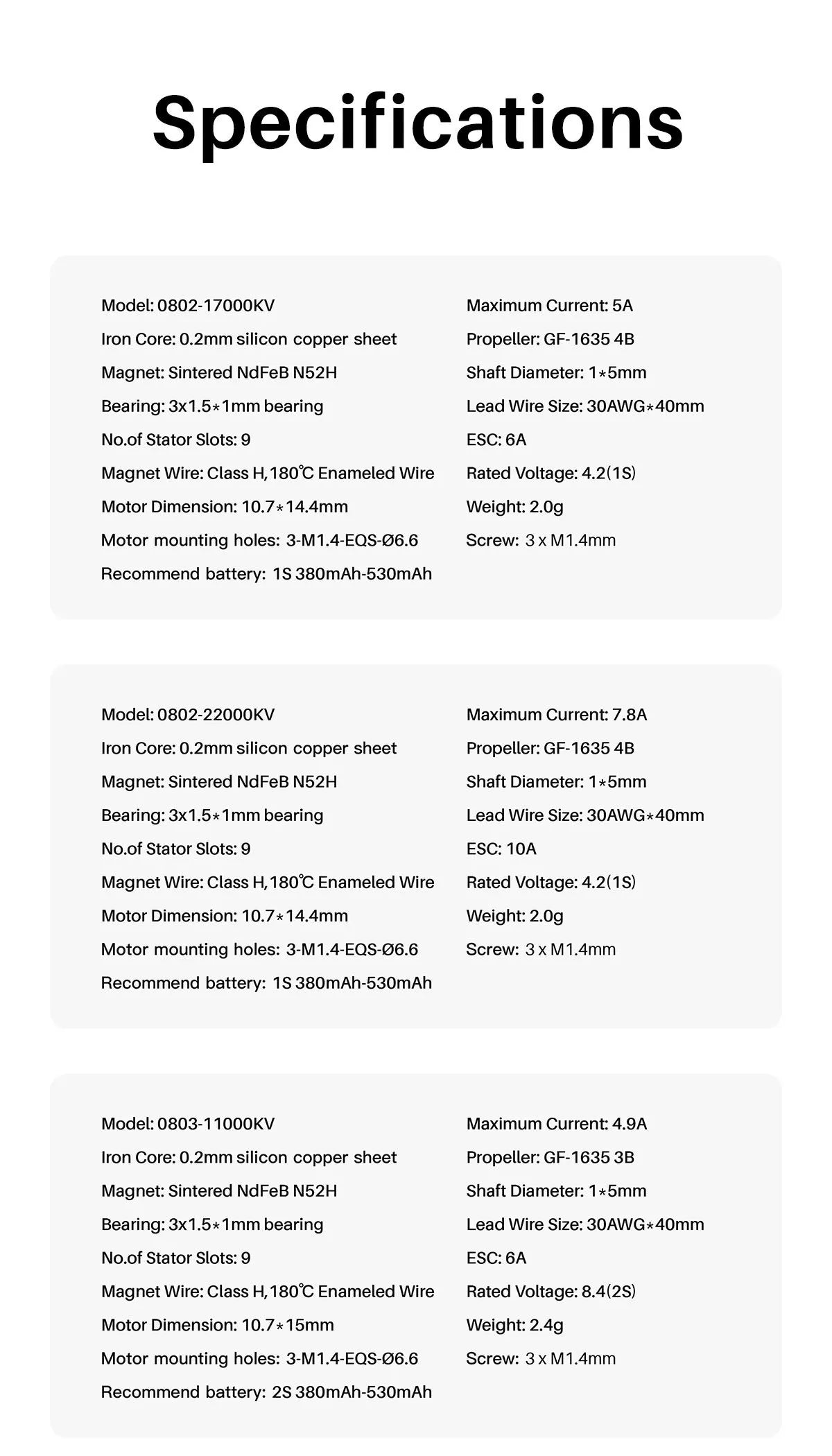

Specifications:
Model: GEPRC SPEEDX2 0802-17,000KV
Maximum Current: 5 amps
Iron Core: 0.2mm silicon copper sheet construction
Propeller: GF-1635 (4-blade) compatible
Magnet: Sintered NdFeB N52H grade
Shaft Diameter: 5mm
Bearing: 3×1.5*1mm bearing design
Lead Wire Size: 30 AWG, 40mm in length
Number of Stator Slots: 9
ESC: compatible with 6A ESCs
Magnet Wire: Class H, with high-temperature resistance up to 180°C (enameled wire)
Rated Voltage: 8.4V (2S) compatible
