SPECIFICATIONS
Warning: Minors please use under the supervision of an adult
Video Capture Resolution: 720P HD
Type: HELICOPTER
State of Assembly: Almost Ready
Remote Distance: 300 meters
Remote Control: Yes
Recommend Age: 14+y
Recommend Age: 12+y
Power Source: Electric
Plugs Type: TX30
Package Includes: Original Box
Package Includes: Camera
Package Includes: Operating Instructions
Origin: Mainland China
Operator Skill Level: Expert
Operator Skill Level: Beginner
Operator Skill Level: Intermediate
NOTE: No remote control batteries
Motor: Brushless Motor
Model Number: ROCKET Plus
Material: Metal
Material: Carbon Fiber
Material: Plastic
Indoor/Outdoor Use: Indoor-Outdoor
Flight Time: 5 minutes
Features: App-Controlled
Dimensions: 1.6-2 inch
Controller Mode: MODE1
Controller Mode: MODE2
Control Channels: 8 Channels
Brand Name: GEPRC
Aerial Photography: Yes
Summary:

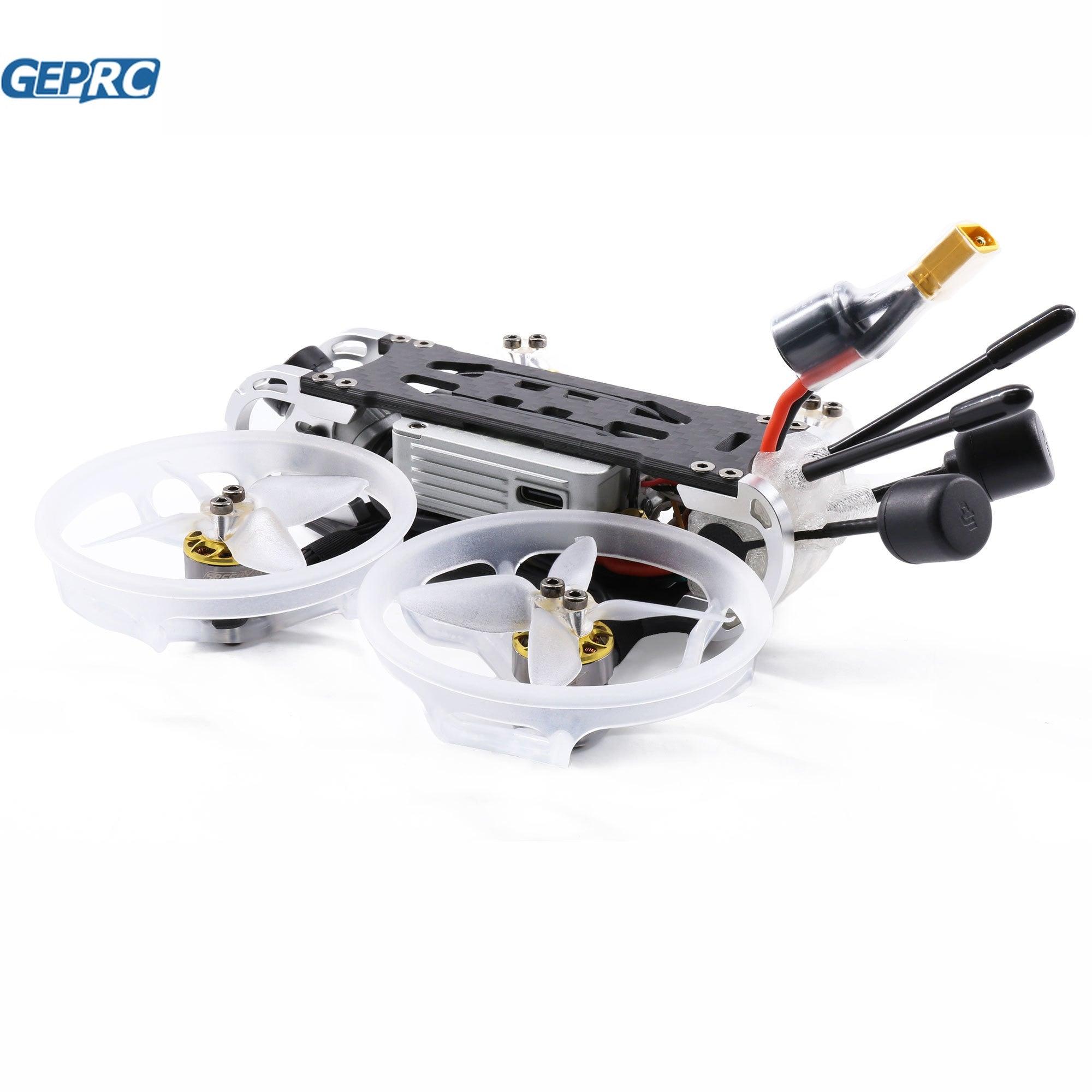

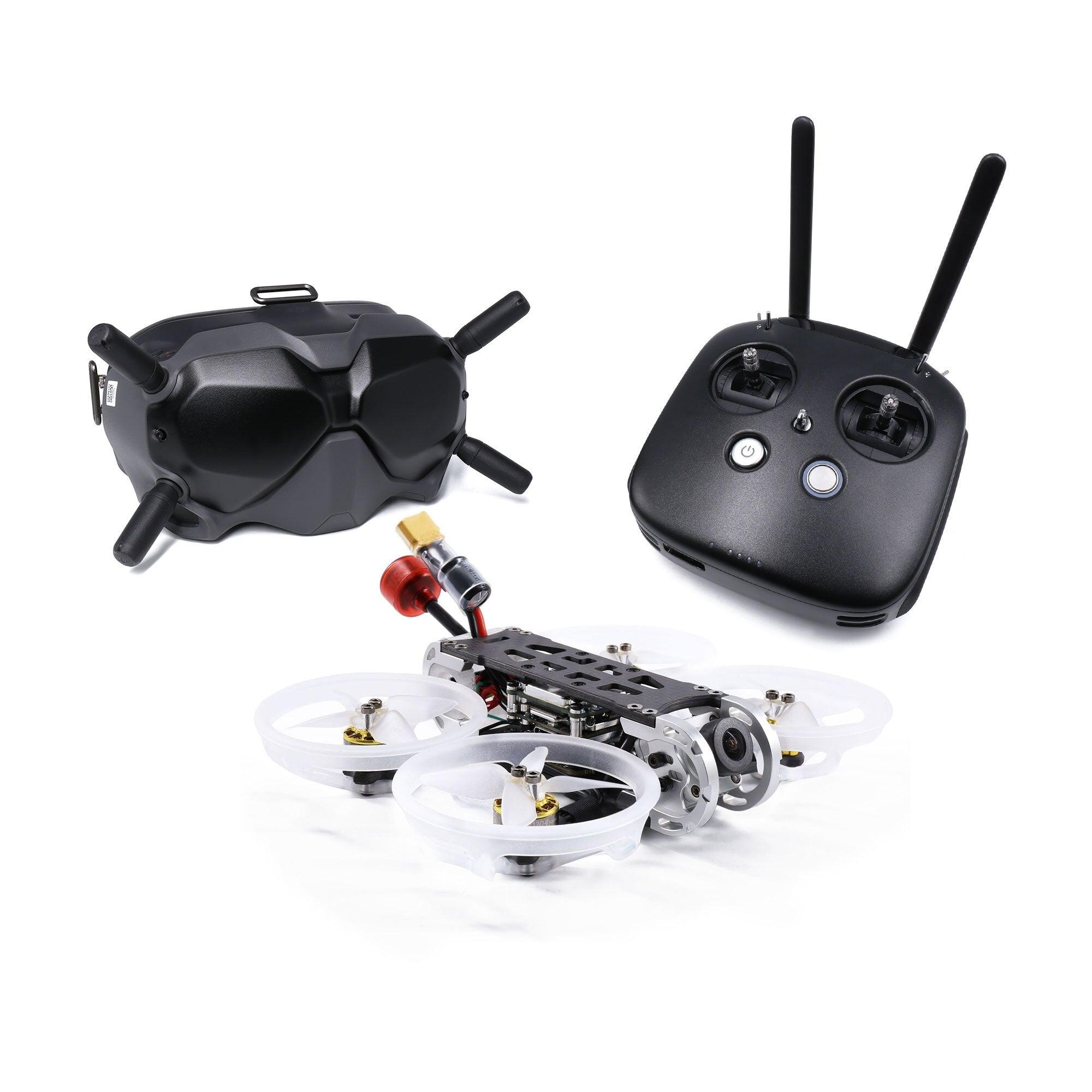

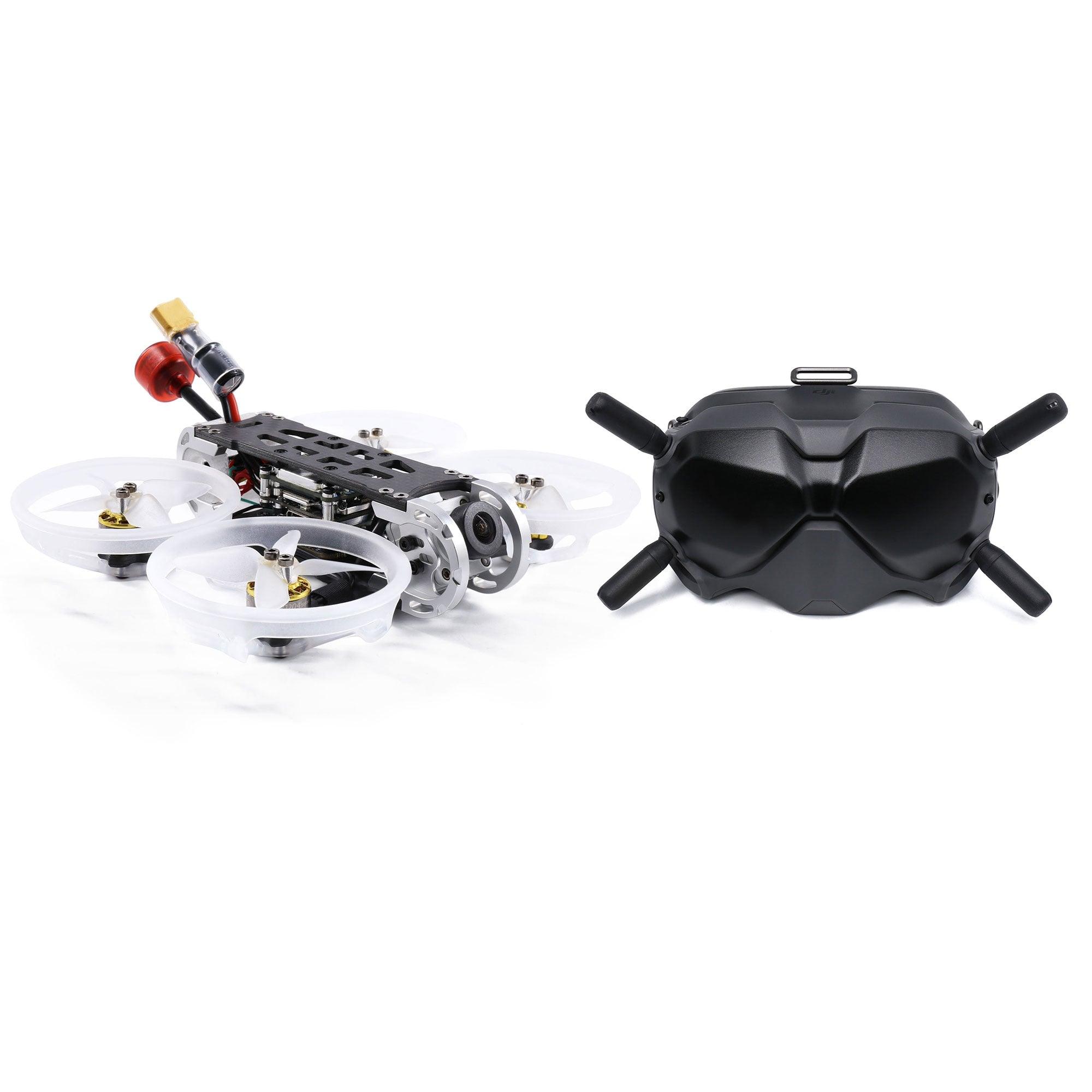

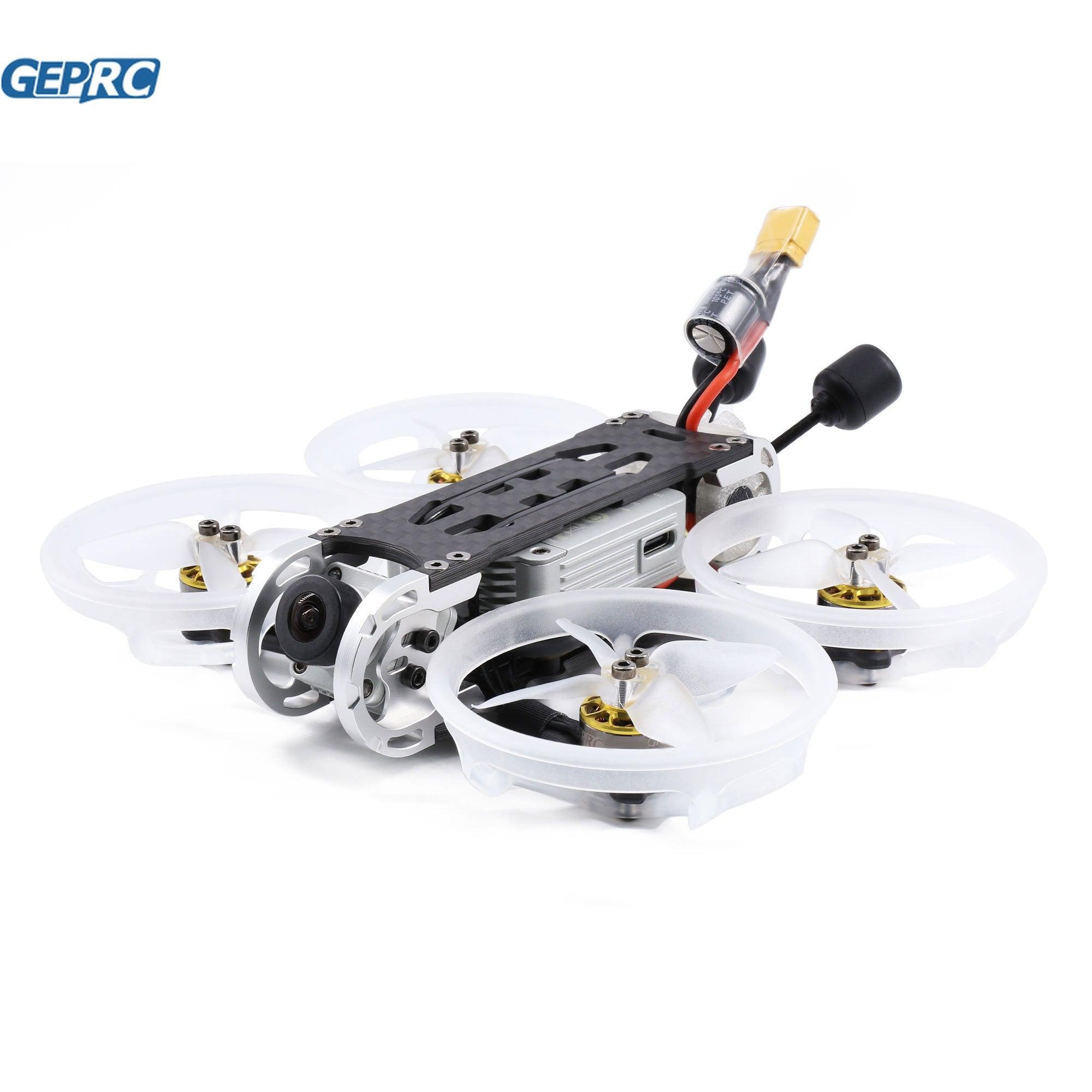

ROCKET is the latest Mini HD ( HIGH-DEFINITION) Digital image Transmission FPV SYSTEM MICRO QUAD developed by GEPRC. There are two versions of ROCKET to choose from, namely ROCKET PLUS and ROCKET LITE. They have their own advantages. ROCKET PLUS can record 1080P video at 60fps on the SD card of the DJI Air-Unit. It weighs 148g and has high playability. ROCKET LITE can’t record on the drone itself, it can only record 720P video on the FPV Goggle side, but the advantage is that it is lightweight which is only 128g.
ROCKET’s LITE and PLUS using the FPV system which is DJI FPV Air Unit and Caddx Vista HD FPV, each of which has its own advantages. The electronic system and power system use the latest AIO integrated board GEP-20A-F4 developed by GEPRC. It has high integration, lightweight and stability. The motor uses GR1204 5000KV, and it is equipped with a 2-inch 4-blade propeller, which has sufficient power and high efficiency, which is the perfect match and in addition the DJI FPV System has eight frequency channels, allowing eight pilots to fly simultaneously.
“BOTH VERSIONS ROCKET ” completely assembled and tuned by professional GEPRC team.
Features:
The re-Designed Frame is very compact and sturdy, and the propeller cannot be seen in the video.
With DJI Air Unit Digital HD video transmission system, the aircraft can record 1080P 60fps video and Goggle can record 720P video
Equipped with a 2-inch Props guards, very safe for flying indoor and outdoor, and the propeller will not be scratched
Full 3K carbon fiber plate with High-precision Carbon Fiber CNC engrave
Use new GEP-20A-F4 AIO to integrate flight control and ESC system
High efficiency power system, motor GR1204 5000KV and 2 inch 4-blades propeller
The flight controller with soft mounts, so that the gyroscope has a good operating environment
Completely eliminate jelly from footage and stable Image during the flight

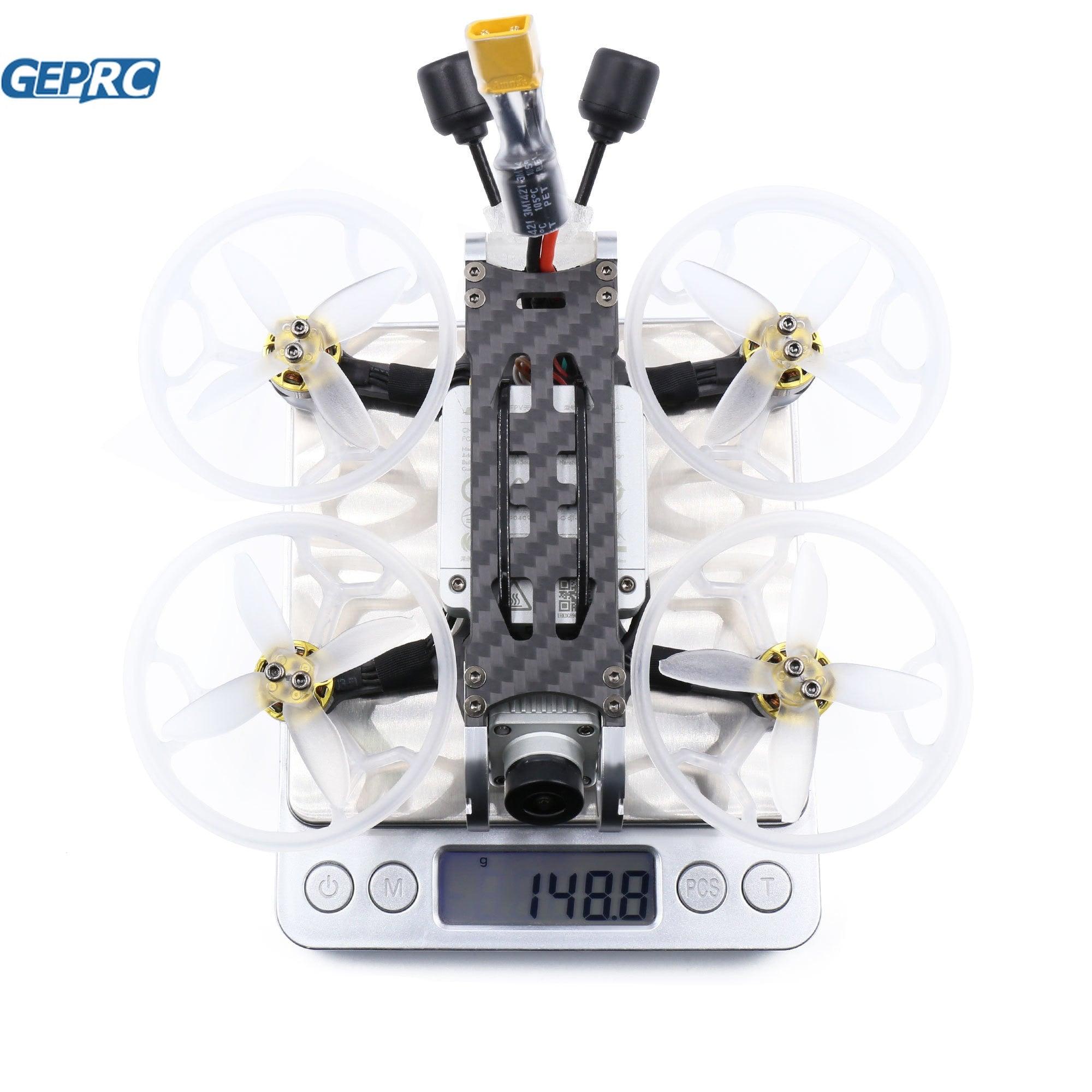

Light weight up to 148g (excluding battery)
Professional assembly process, eliminate some potential installation problems
Specifications:
Model:ROCKET Plus
Frame:GEP-RP2
Stack:GEP-20A-F4 AIO
MCU:F411
IMU: MPU6000 gyro/accelerometer (SPI)
ESC:BLhelis 20A
Wheelbase:112mm
FPV System:DJI FPV Air Unit (1080P 60fps Record)
Motors:GR1204 5000KV
Props:2inch
Top plate thickness:3mm
bottom plate thickness:3mm
Weight:148g(without battery)
Battery:Recommended use 4S 650-850mAh

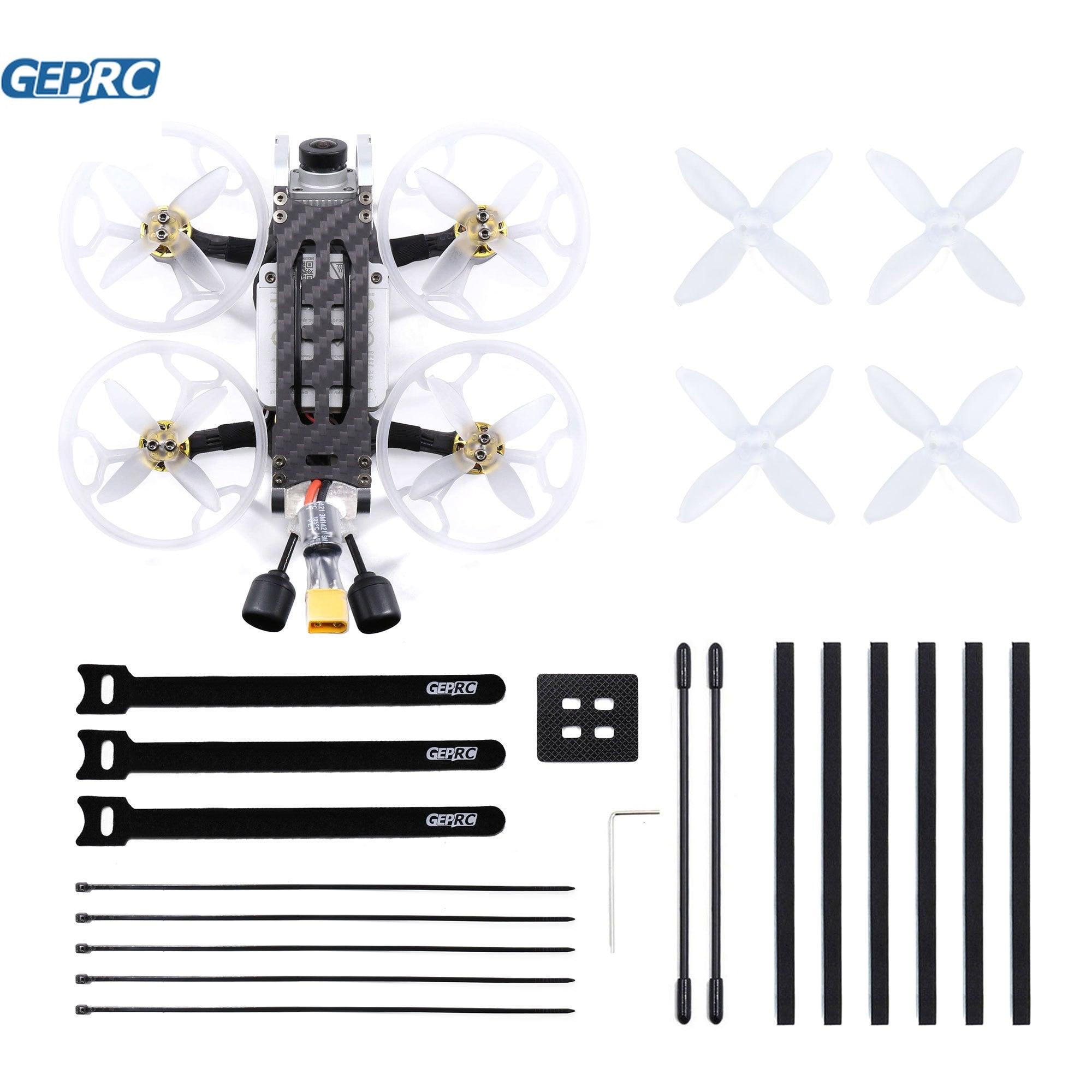

Include:
1x ROCKET Plus Quadcopter
4x 2inch Props(pairs)
