SPECIFICATIONS
Warranty: 3 month
Warning: Minors please use under the supervision of an adult
Video Capture Resolution: 2K QHD
Video Capture Resolution: Other
State of Assembly: Ready-to-Go
Remote Distance: 2000 meters
Remote Control: Yes
Recommend Age: 14+y
Recommend Age: 12+y
Power Source: Electric
Plugs Type: XT60
Package Includes: Operating Instructions
Package Includes: Camera
Package Includes: Original Box
Origin: Mainland China
Operator Skill Level: Expert
Operator Skill Level: Beginner
Operator Skill Level: Intermediate
Model Number: GEPRC MARK5 HD O3 Freestyle FPV Drone/Orange
Material: Plastic
Material: Metal
Material: Carbon Fiber
Indoor/Outdoor Use: Indoor-Outdoor
Flight Time: 5-12 minutes
Features: FPV Capable
Features: Other
Features: App-Controlled
Dimensions: 3.5 inch
Controller Mode: MODE1
Controller Mode: MODE2
Controller Battery: Not Include
Control Channels: 8 Channels
Charging Voltage: 14.8V
Charging Time: 30 minutes
Certification: CE
Camera Mount Type: Other
Camera Mount Type: Fixed Camera Mount
CE: Certificate
Brand Name: GEPRC
Summary
The HD VTX ushered in a new upgrade, and the brand new VTX of O3 air unit pushed the digital system to a new level. The GEPRC team is also upgrading and optimizing the overall performance based on MARK5. At the same time, it will be equipped with O3 air unit to design the new MARK5 O3 version.
The newly upgraded camera aluminum alloy side plate, 7075-T6 aluminum alloy is strong and durable. It can be fully adapted to new O3 air unit camera, with a field of view (FOV) of 155°, and the recording specification can support up to 4K 60FPS. We also specially designed TPU fixing parts for the O3 VTX module, and equipped with air inlet cooling port, which is conducive to adequate heat dissipation at the air unit. MARK5 O3 uses GEPRC’s latest SPAN F722-BT-HD V2 stack, with ICM 42688P gyroscope for smooth flight, redundant performance and ports, and supports Bluetooth wireless connection for tuning. The SPAN BLHeli_32 50A ESC with GEPRC 2107.5 motor, and uses new Gemfan 5136 propellers, which has strong power. MARK5 O3 is shipped with two different camera mounts, which can be mounted with a full range of GoPro action cameras, as well as Naked GoPro 8/10, Insta 360 GO2 and Caddx Peanut, etc. to record beautiful moments for your flight.
This time, MARK5 O3 will broaden your horizons, fly beyond what you have ever seen, and bring more possibilities for FPV creation.
Features
1. Upgraded lens aluminum alloy side plate, durable and more visual impact
2. Built-in Bluetooth, supports mobile phone wireless connection for parameter tuning

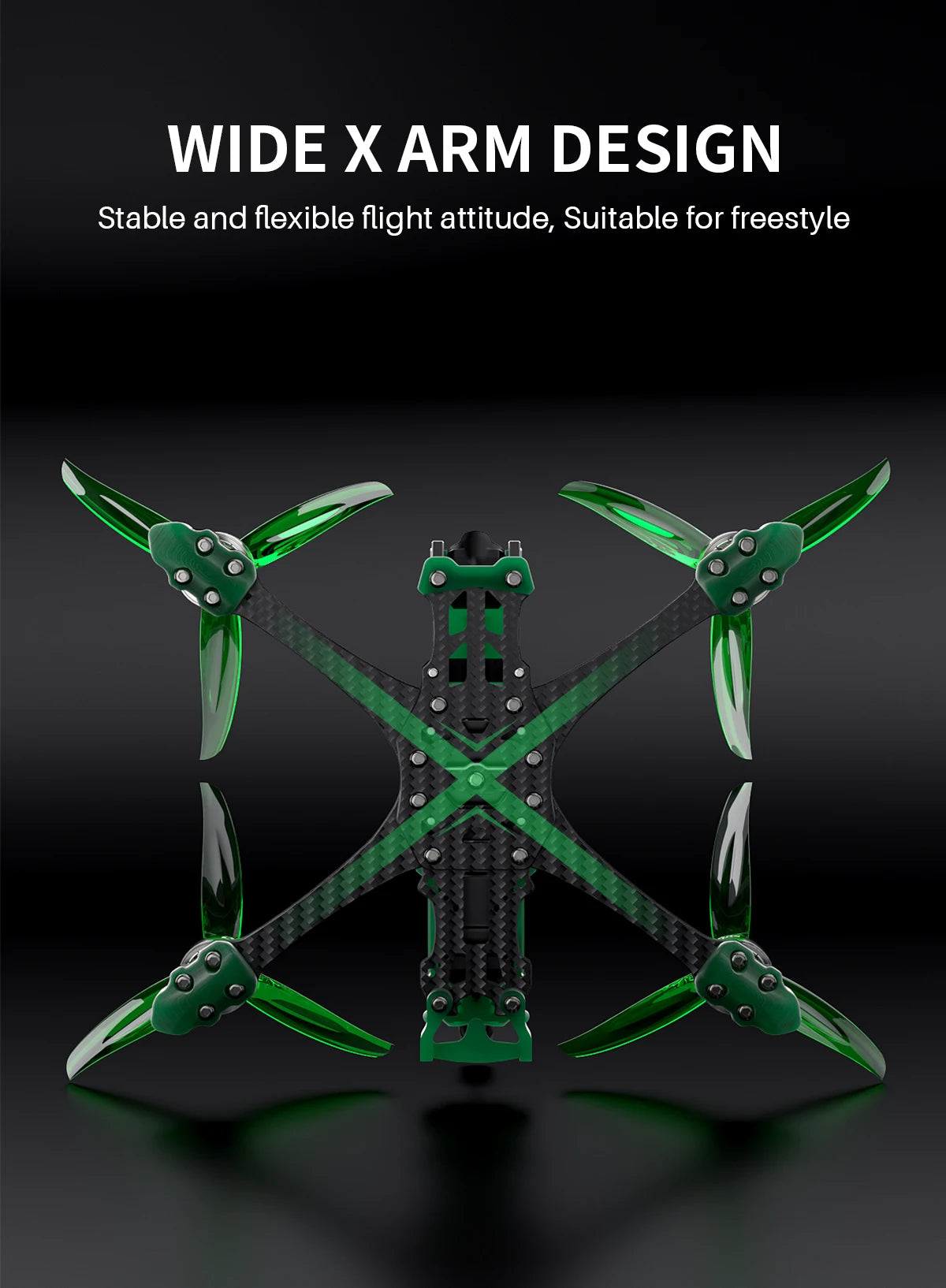

3. Developed specifically for freestyle with a squashed X arm design.
4. The HD version uses new O3 VTX, clear image, stable signal, low-latency, long-distance, and supports up to 4K/60fps recording
5. SPAN G50A BLHeli_32 4in1 50A ESC with the latest GEPRC 2107.5 motor, with strong power, fast response speed, precise throttle control, and smooth flight experience
6. Unique frame shock absorption design, less vibration, safe and stable electronic system operating environment
7. With independent capacitor and buzzer cabin, the operating environment of the whole drone is extremely stable, no shaking, no jitter

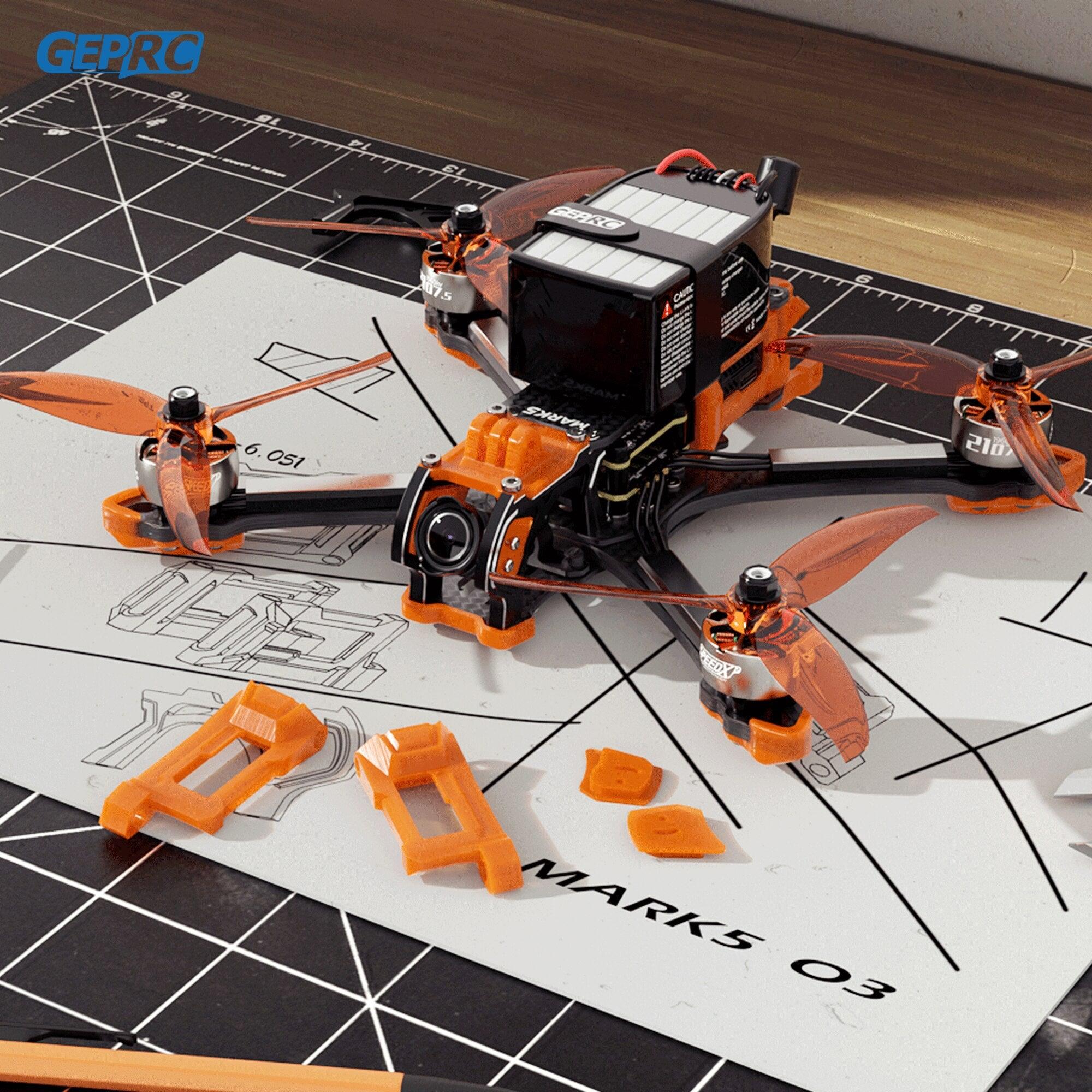

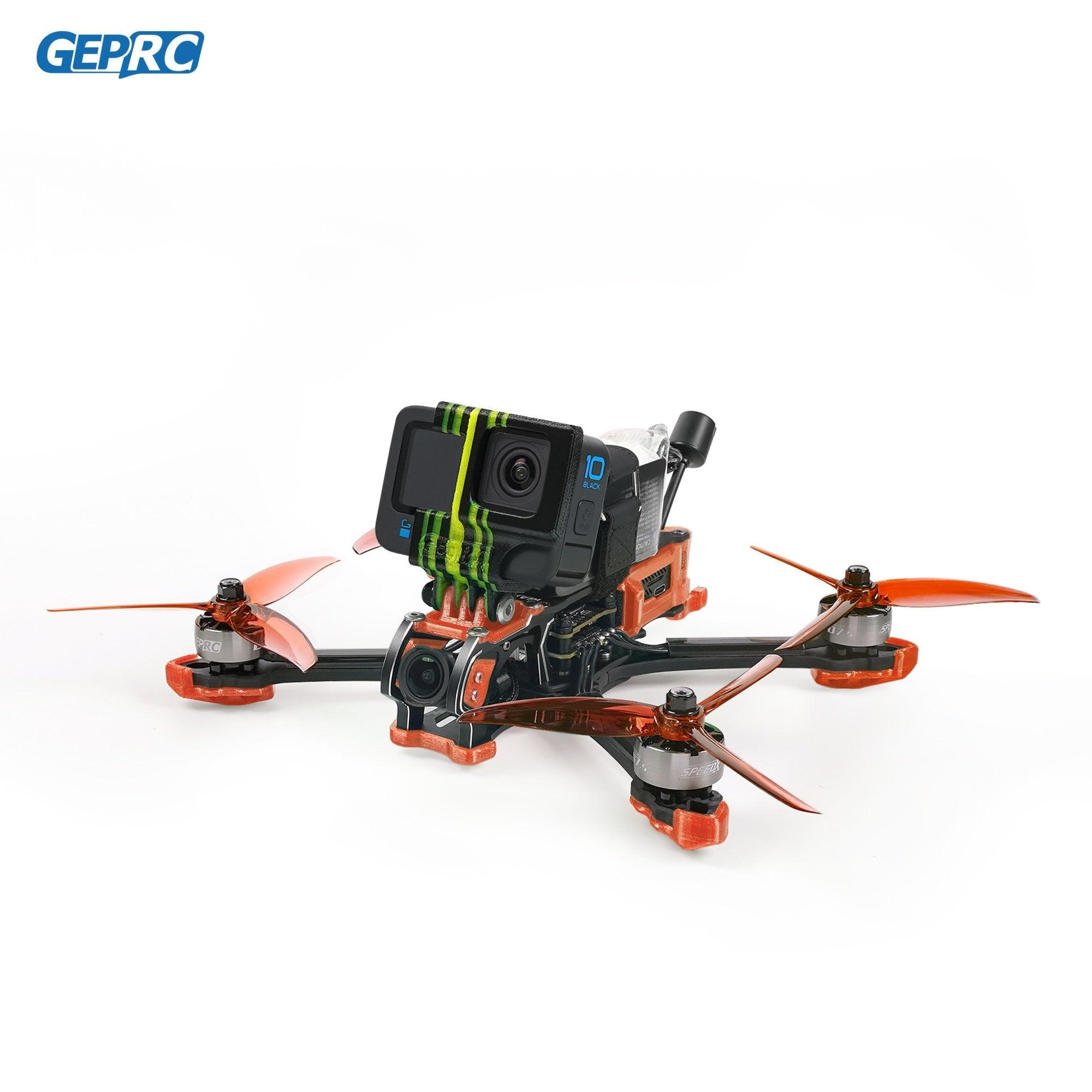

8. Two kinds of 3D printing camera mounts are designed, which can be mounted with a full range of GoPro cameras, as well as Naked GoPro 8, Insta 360 GO2 and Caddx Peanut cameras. The shooting effect is stable and clear
9. Add coral orange and emerald green colors to the O3 version to add more colors to your flight
10. MARK5 O3 is optimized for freestyle, with a smoother flight experience
Specifications

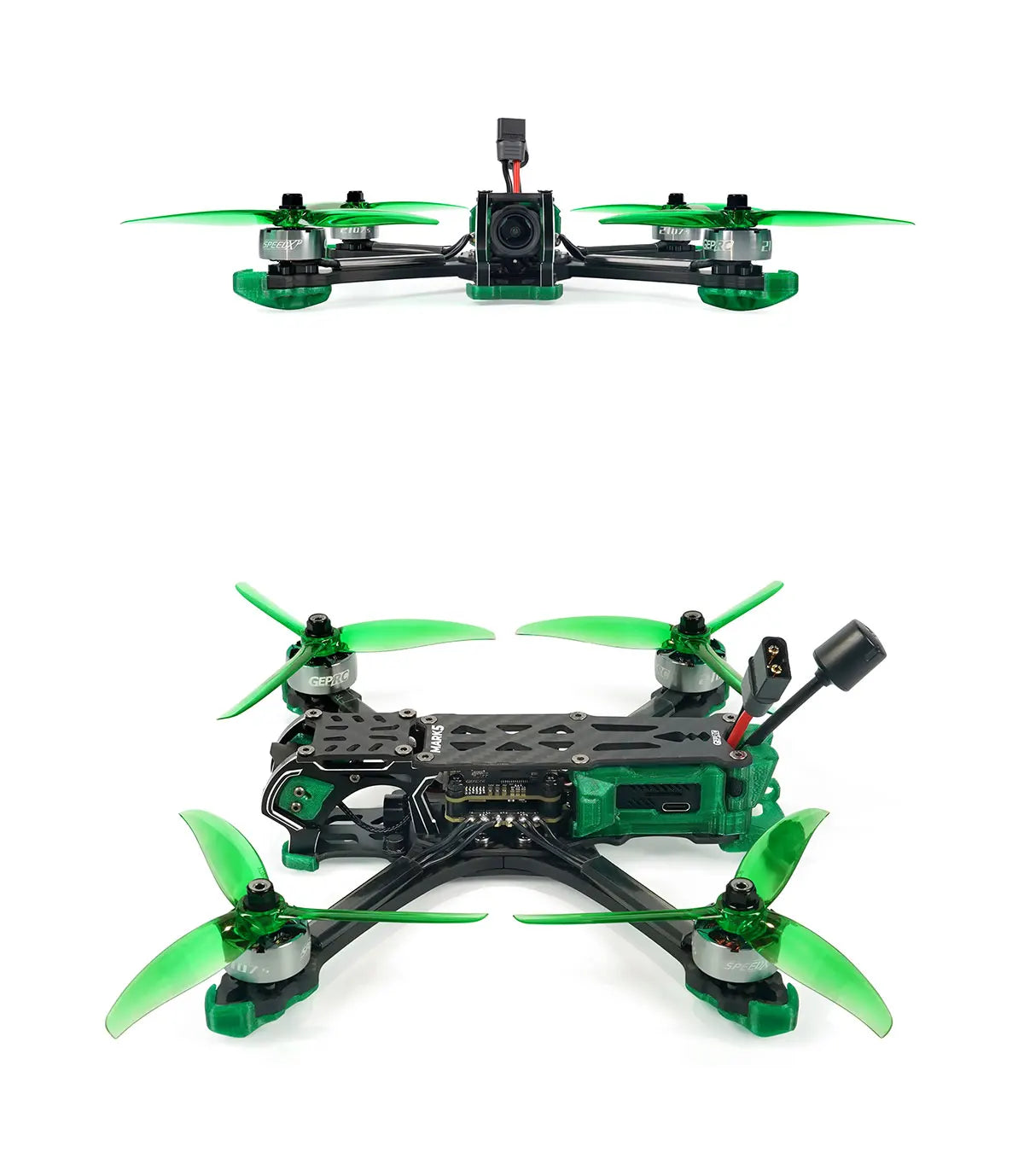

Model: MARK5 HD O3 Quadcopter
Brand: GEPRC
Frame: GEP-MK5
Wheelbase: 225mm
Top plate: 2.5mm
Bottom plate: 2.5mm
Arm plate: 5mm
FC system: SPAN F722-BT-HD V2
MCU: STM32F722
Gyro: 42688-P(SPI)
OSD: BetaFlight OSD w/AT7456E chip
ESC: SPAN G50A BLHeli_32 4IN1 50A 4-6S ESC
VTX: O3 Air Unit
Camera: O3
Propeller: Gemfan 5136
Antenna: O3 antenna
Motor: SPEEDX2 2107.5-1960KV (6S Version) / SPEEDX2 2107.5-2450KV(4S Version)

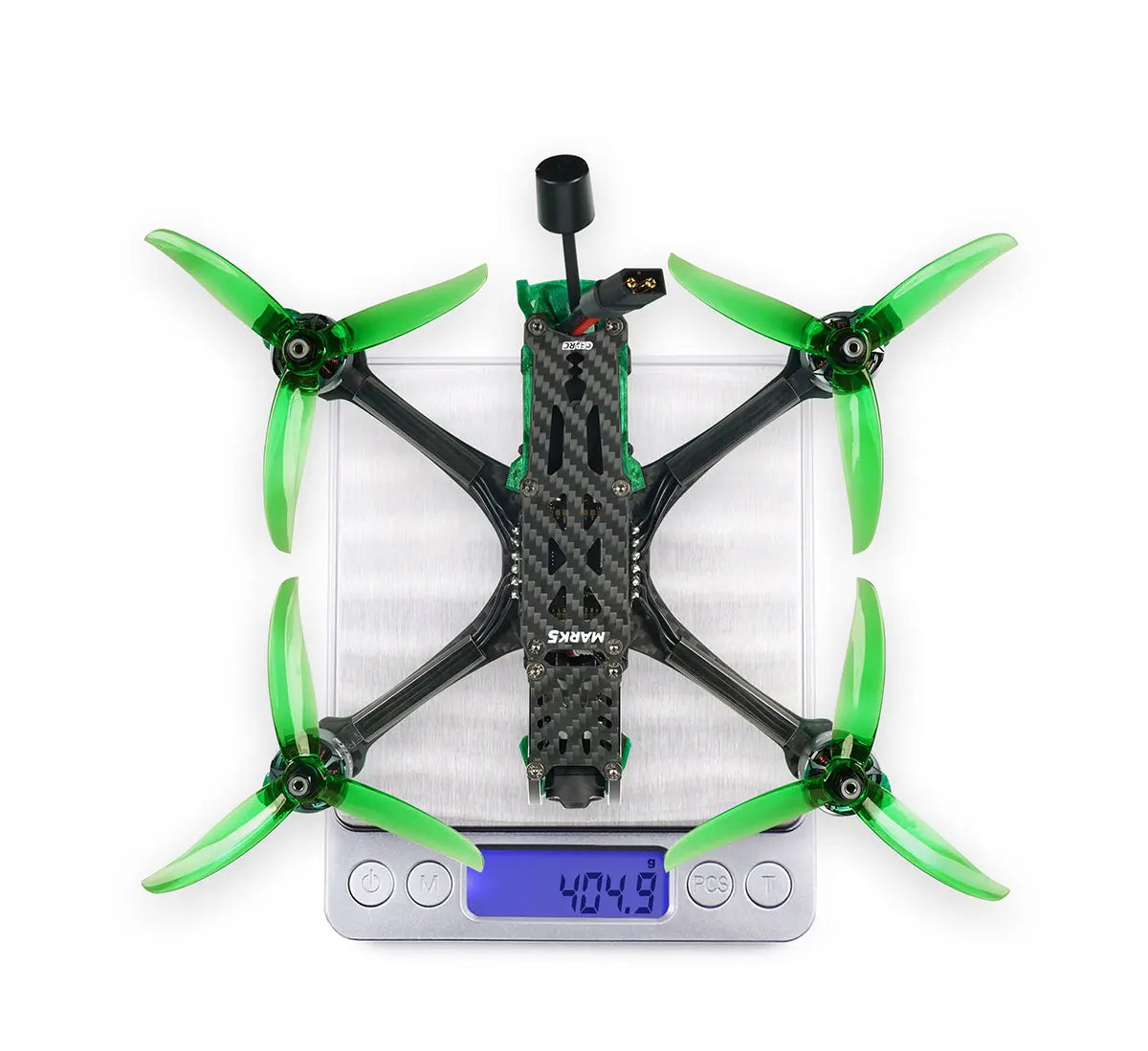

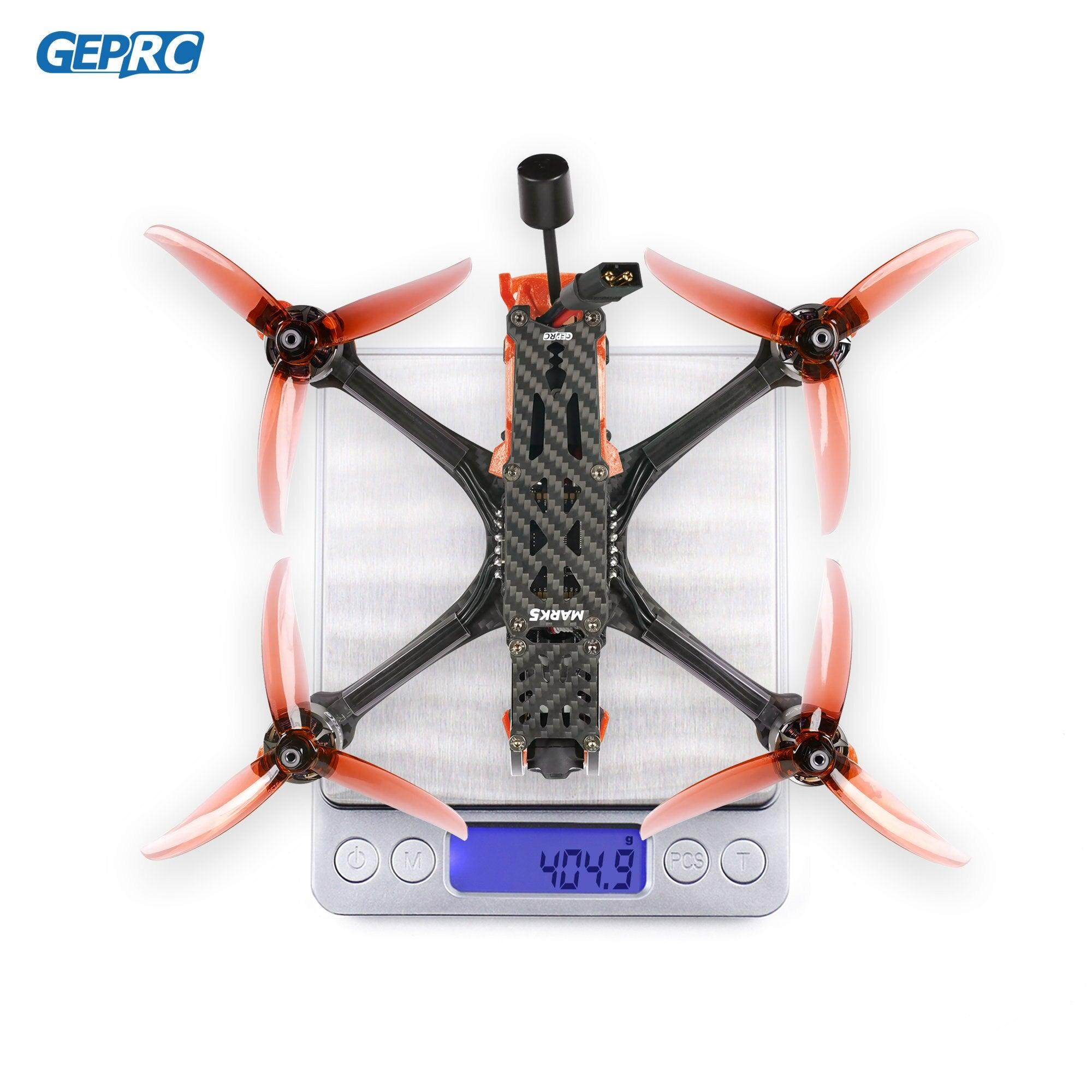

Weight: 404.9g (MARK5 HD O3 including 3D printed parts)
Receiver: PNP, Frsky R-XSR, TBS Nano RX, ELRS 2.4G
Recommended Battery: LiPo 4S 1300mAh-1800mAh (4S Version) / LiPo 6S 1050mAh-1550mAh(6S Version)

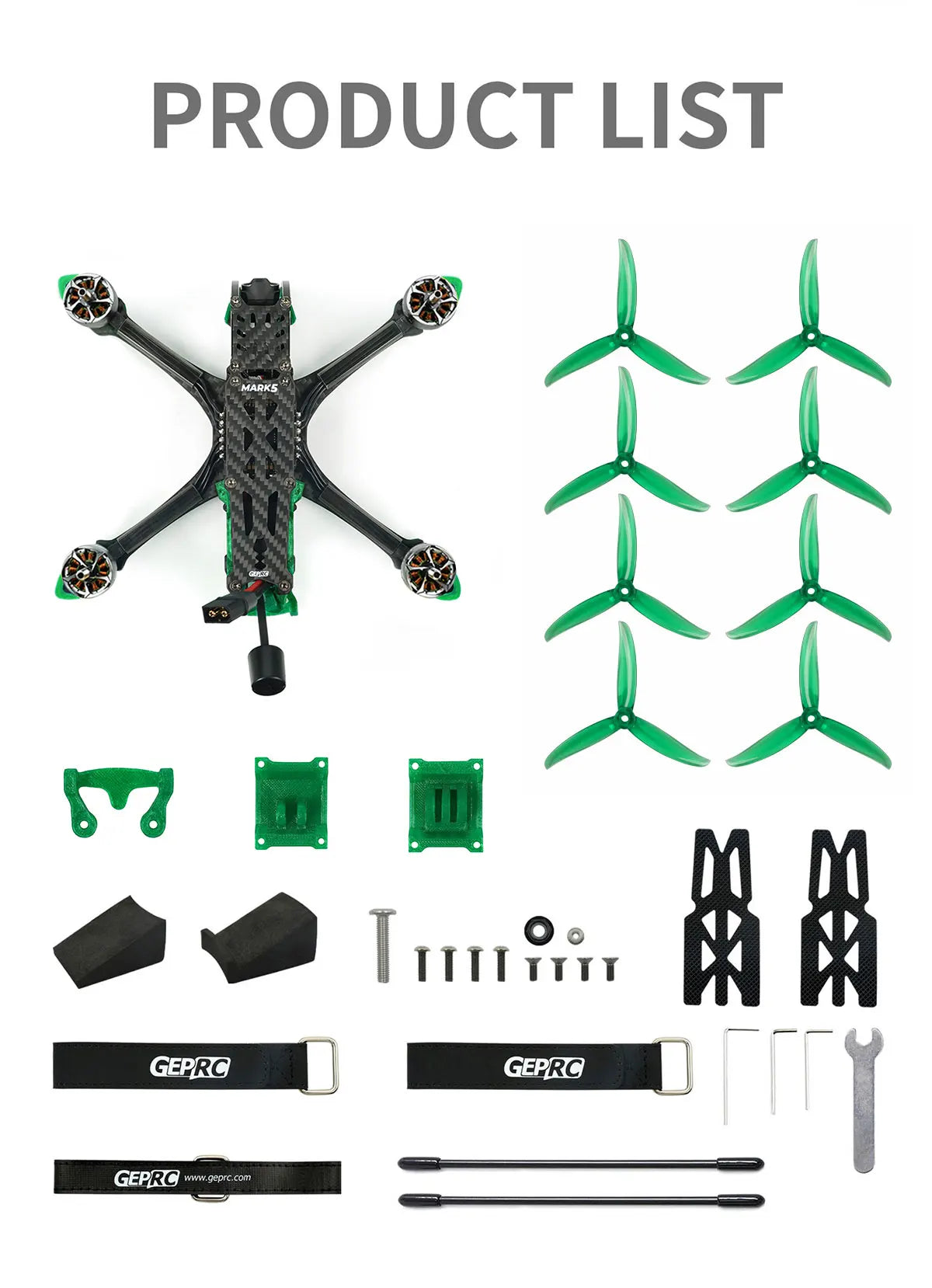

Includes
1 x MARK5 HD O3 Quadcopter
4 x Gemfan 5136 propellers (pair)
1 x Battery strap M15x250mm
2 x Battery strap M20x220mm
2 x Battery Silicone Pads
1 x 3D printed parts
1 x Action cam mount holder
1 x Set of screws
1 x Set of screwdrivers
1 x Antenna fixed tube

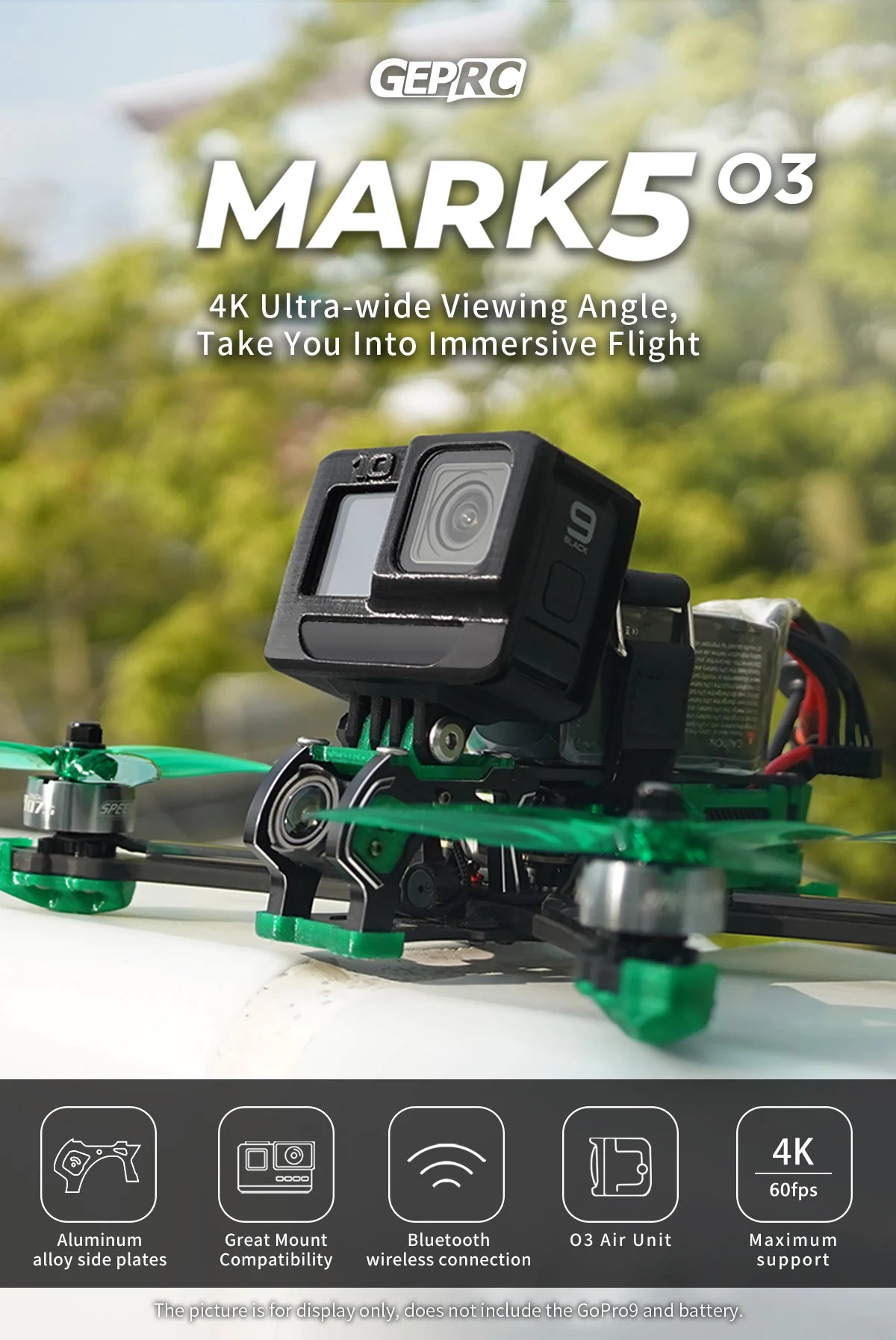

GEPRC MARK503 4K Ultra-wide Viewing Angle; Take You Into Immersive Flight SpE 4K OoOO 60fps Aluminum Great Mount Bluetooth 03 Air Unit Maximum alloy side plates

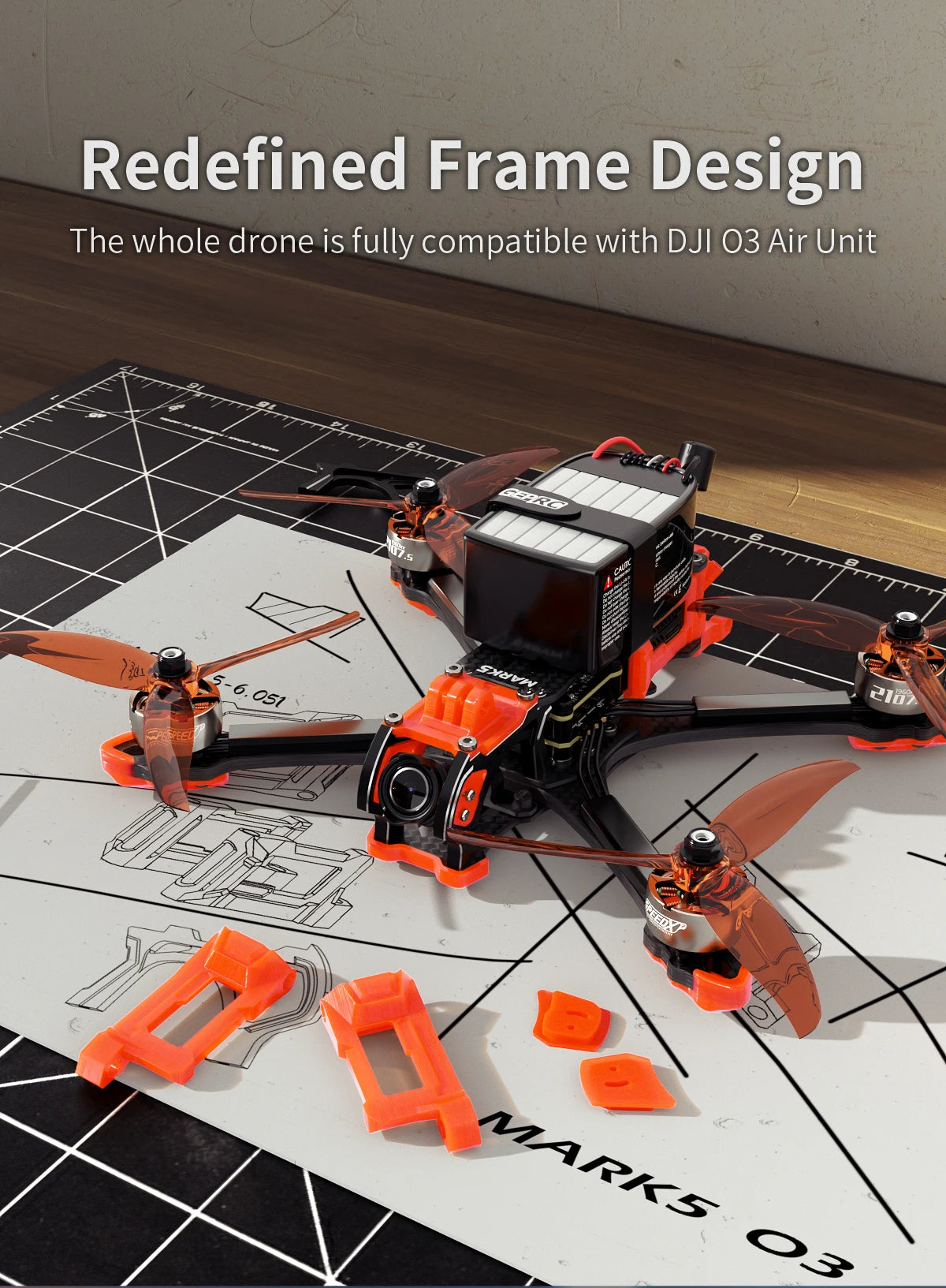

Redefined Frame Design: This drone is fully compatible with the DJI O3 Air Unit, featuring a 381mm x 62cm x 17.5cm size and weighing only 510 grams.

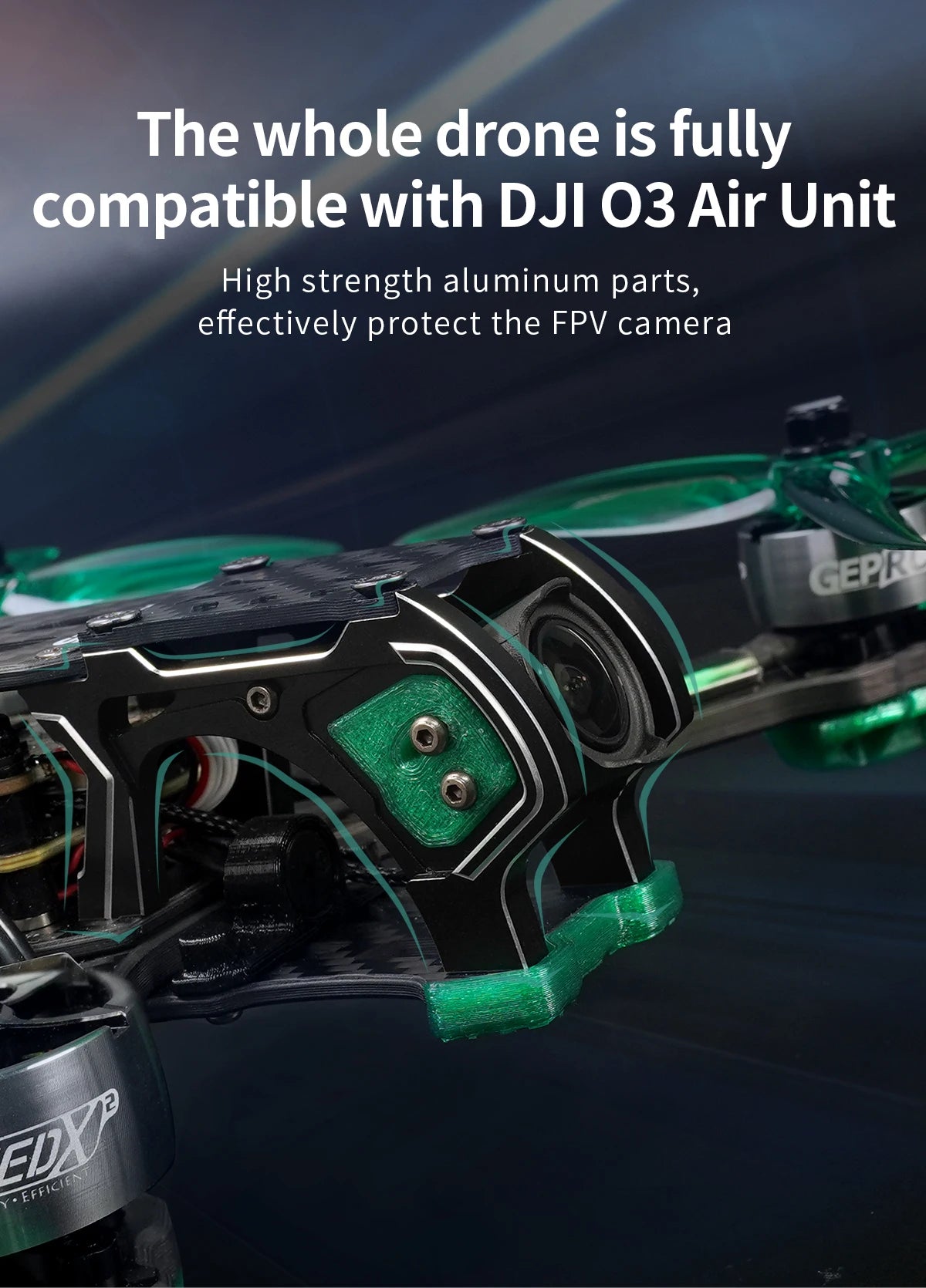

Fully compatible with the DJI O3 Air Unit, this drone features high-strength aluminum parts that provide effective protection for the FPV camera, ensuring optimal performance and durability.

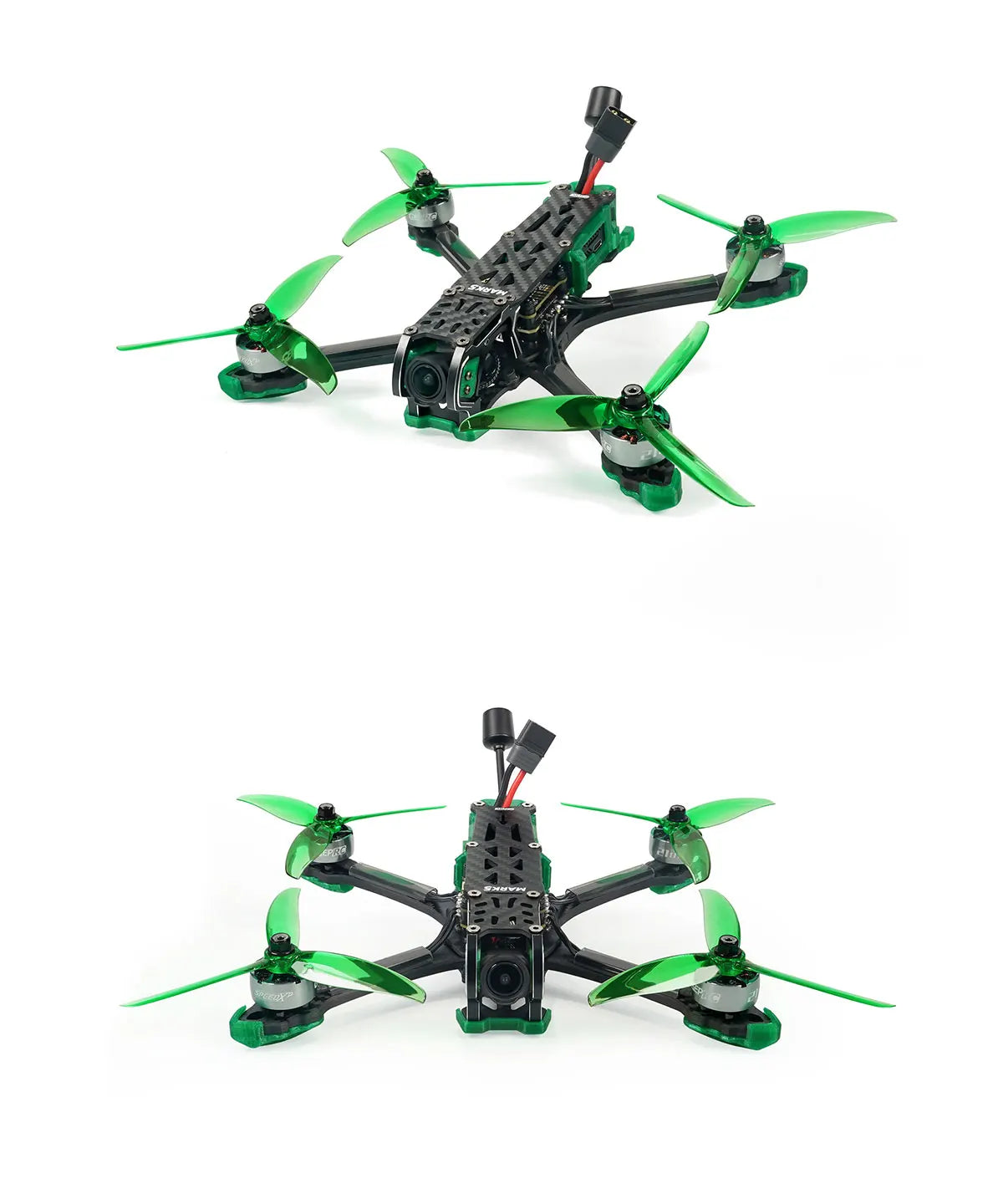

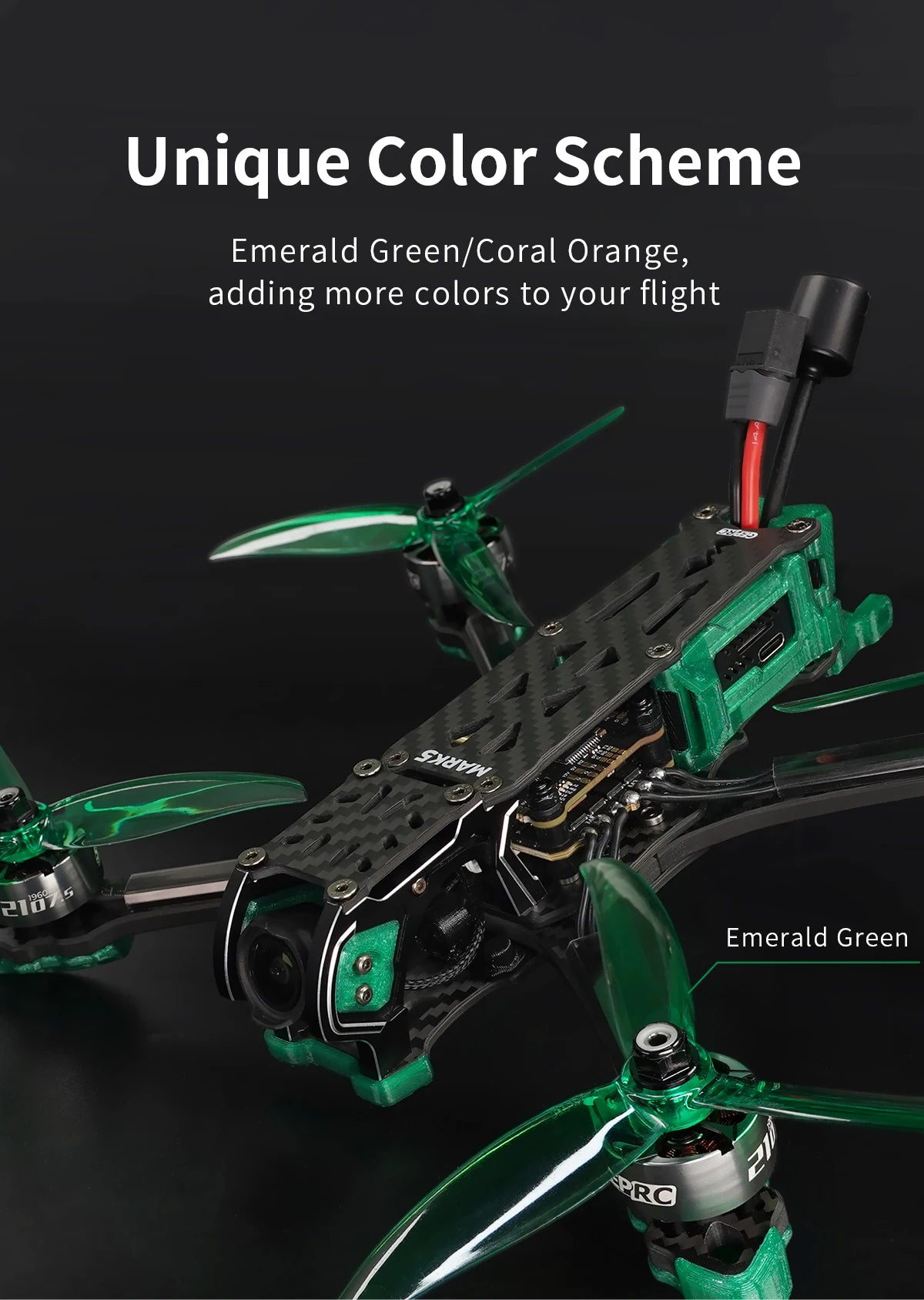

Available in two vibrant color options: Emerald Green and Coral Orange. This drone adds a pop of color to your flight experience with its striking green and orange hues.

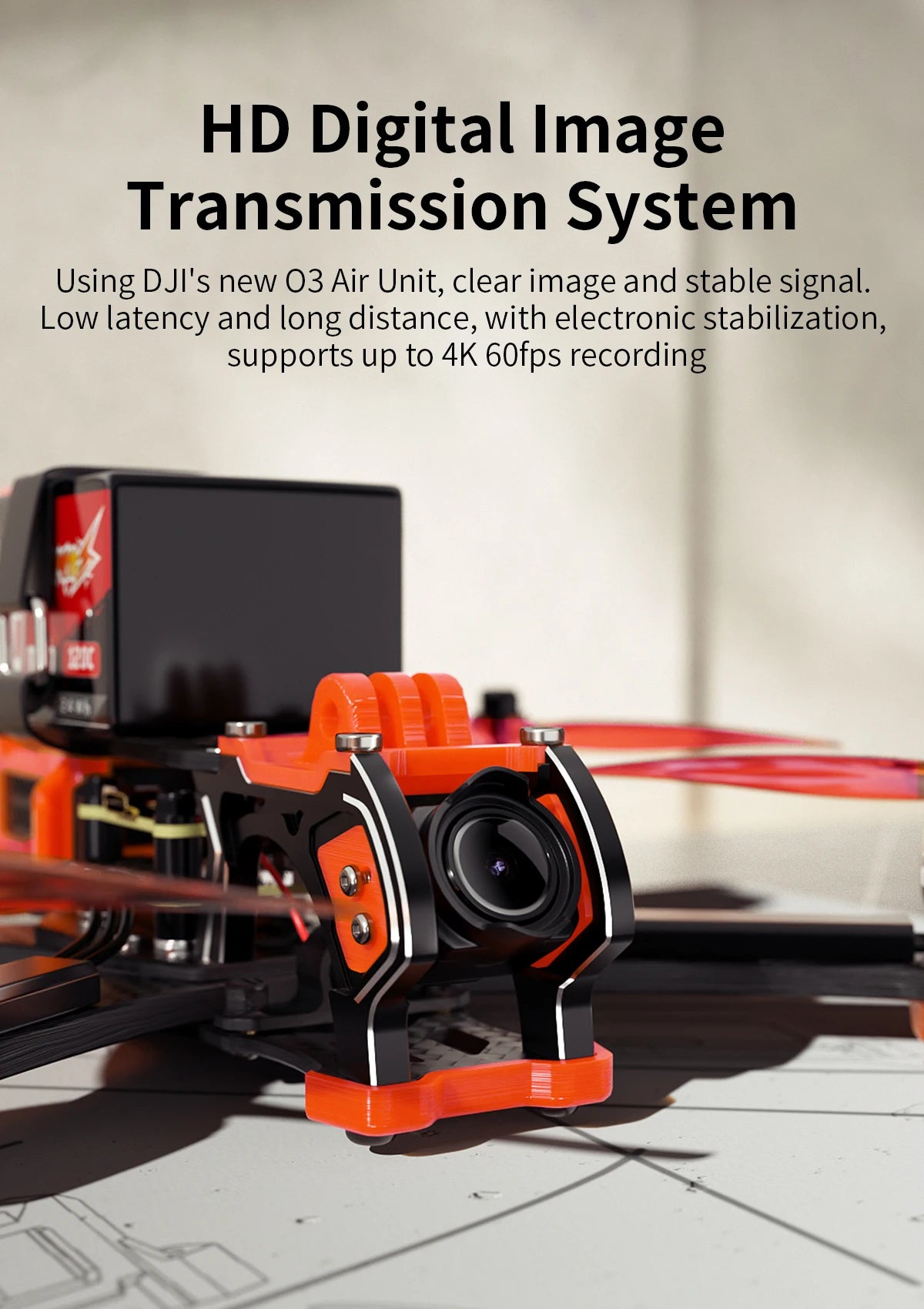

Enjoy seamless performance with low latency and extended range, plus enhanced stability through electronic stabilization. This drone supports stunning 4K video recording at 60 frames per second, thanks to DJI’s advanced O3 Air Unit – a high-end digital image transmission system designed for exceptional image quality.

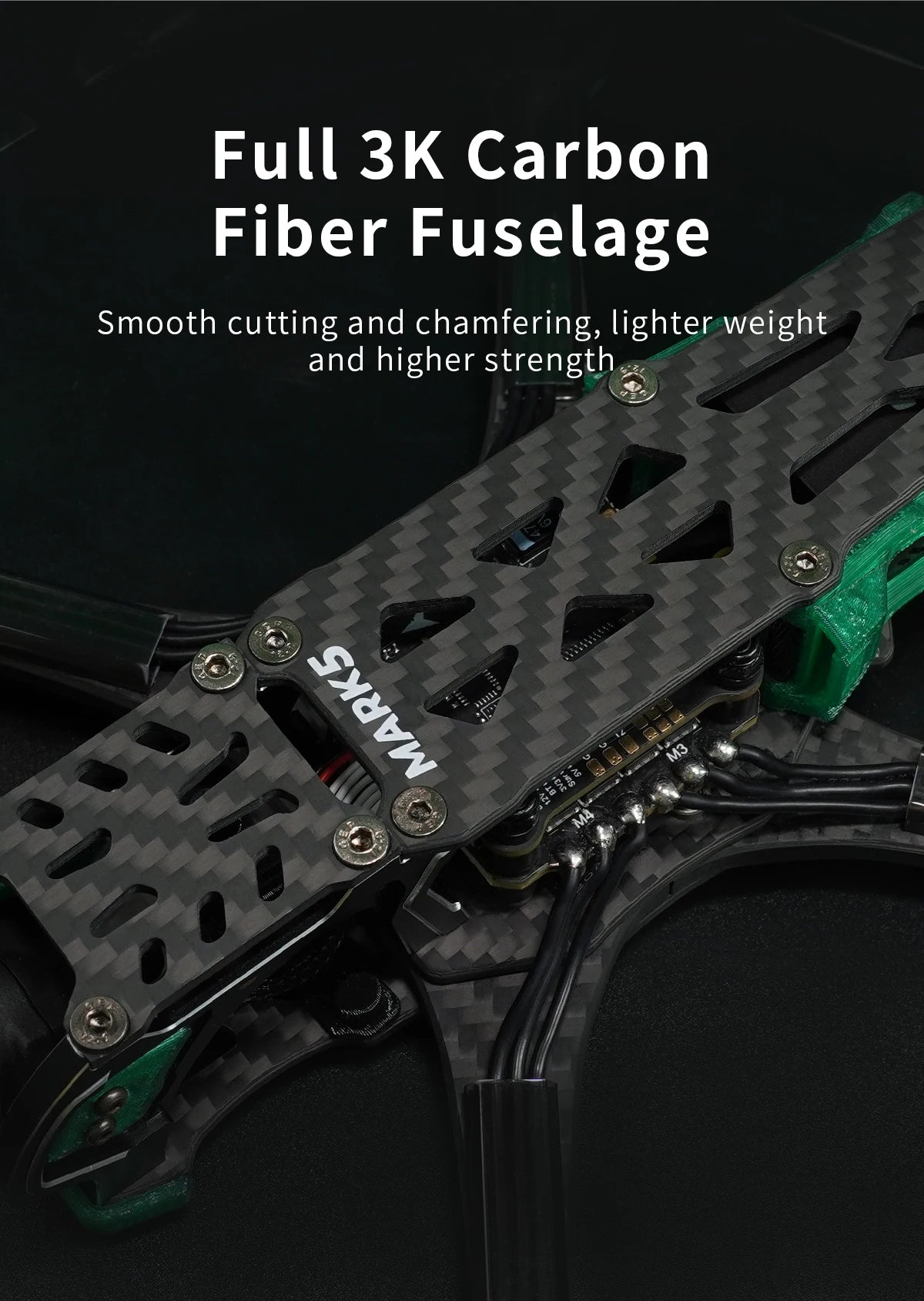

Featuring a robust full 3K carbon fiber fuselage, this drone boasts a smooth design with precise cutting and chamfering. The result is a lightweight yet incredibly strong structure that measures 173mm x 118mm in size.

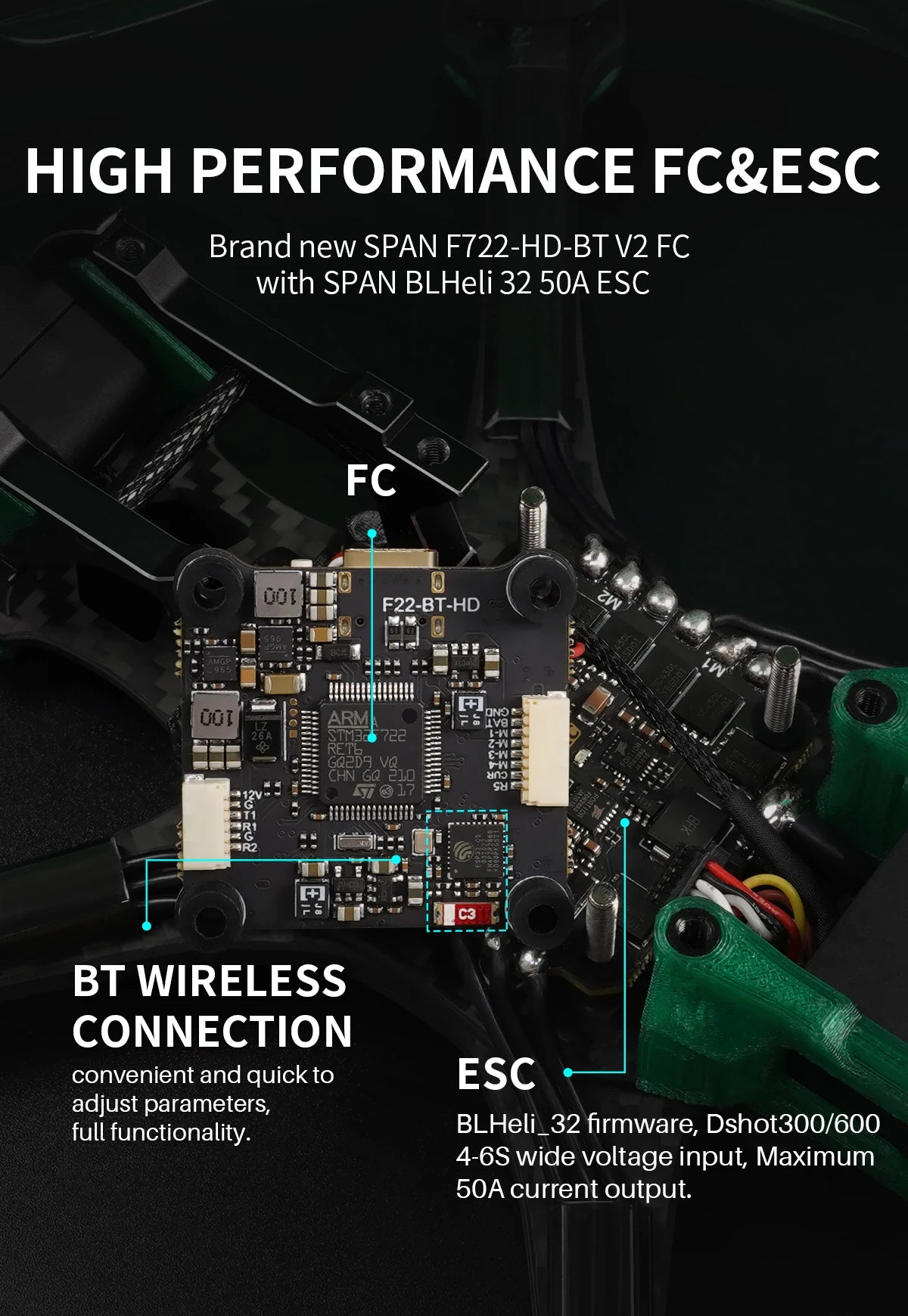

The drone features a powerful BLHeli 32 50A ESC, paired with an F722-BT- HD flight controller. The specifications are as follows: CPU frequency: 5961 MHz, mainboard size: 772mm x 26mm, and processor type: STM32 722. Additionally, the ESC offers convenient and quick wireless connection for adjusting parameters, ensuring full functionality.

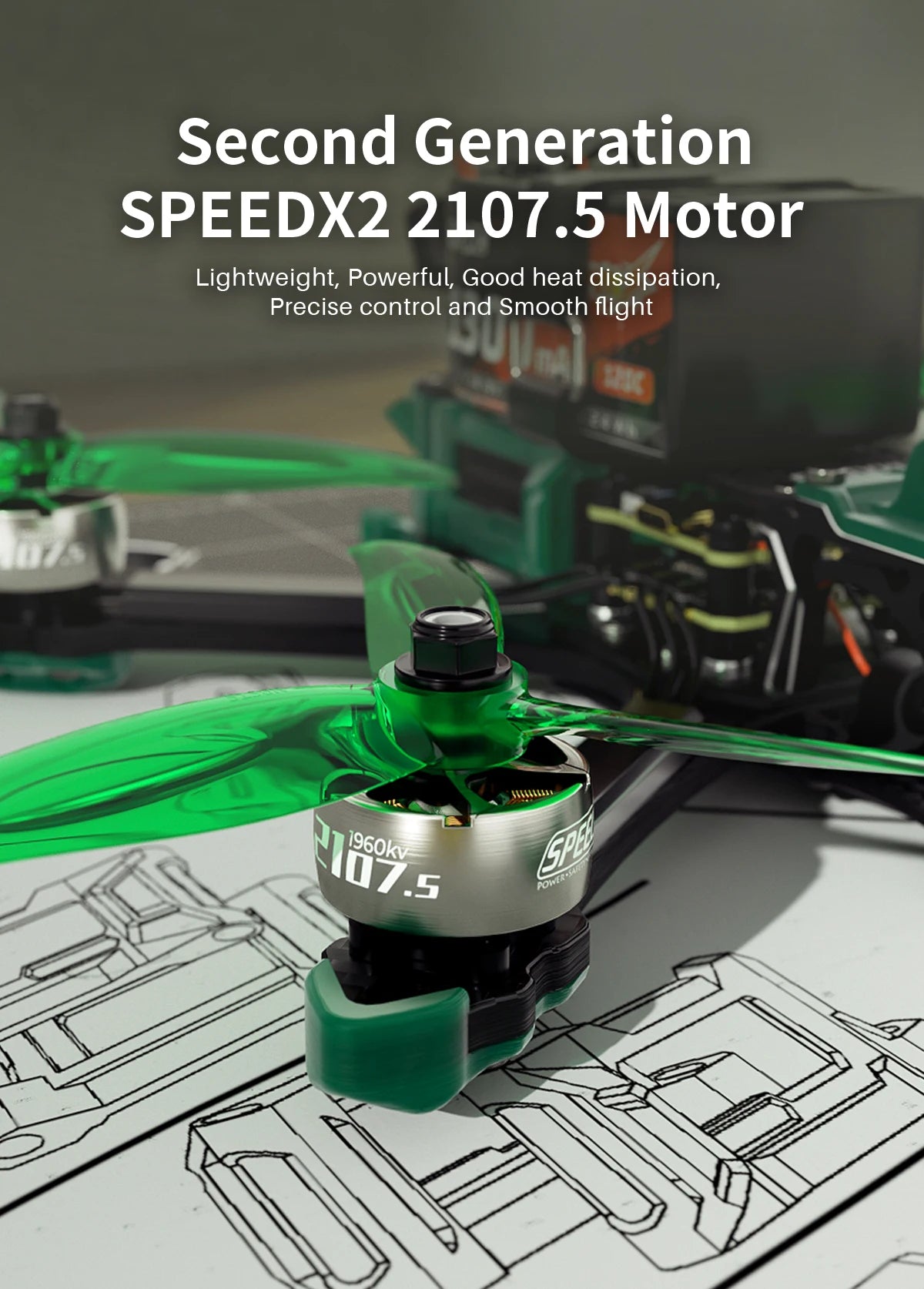

The drone is equipped with the SPEEDX2 2107.5 motor, which offers a unique combination of lightweight design, powerful performance, and excellent heat dissipation for smooth flight operation. Its precise control and high-speed capabilities enable smooth and stable flight at up to 1960kV (1070 RPM).

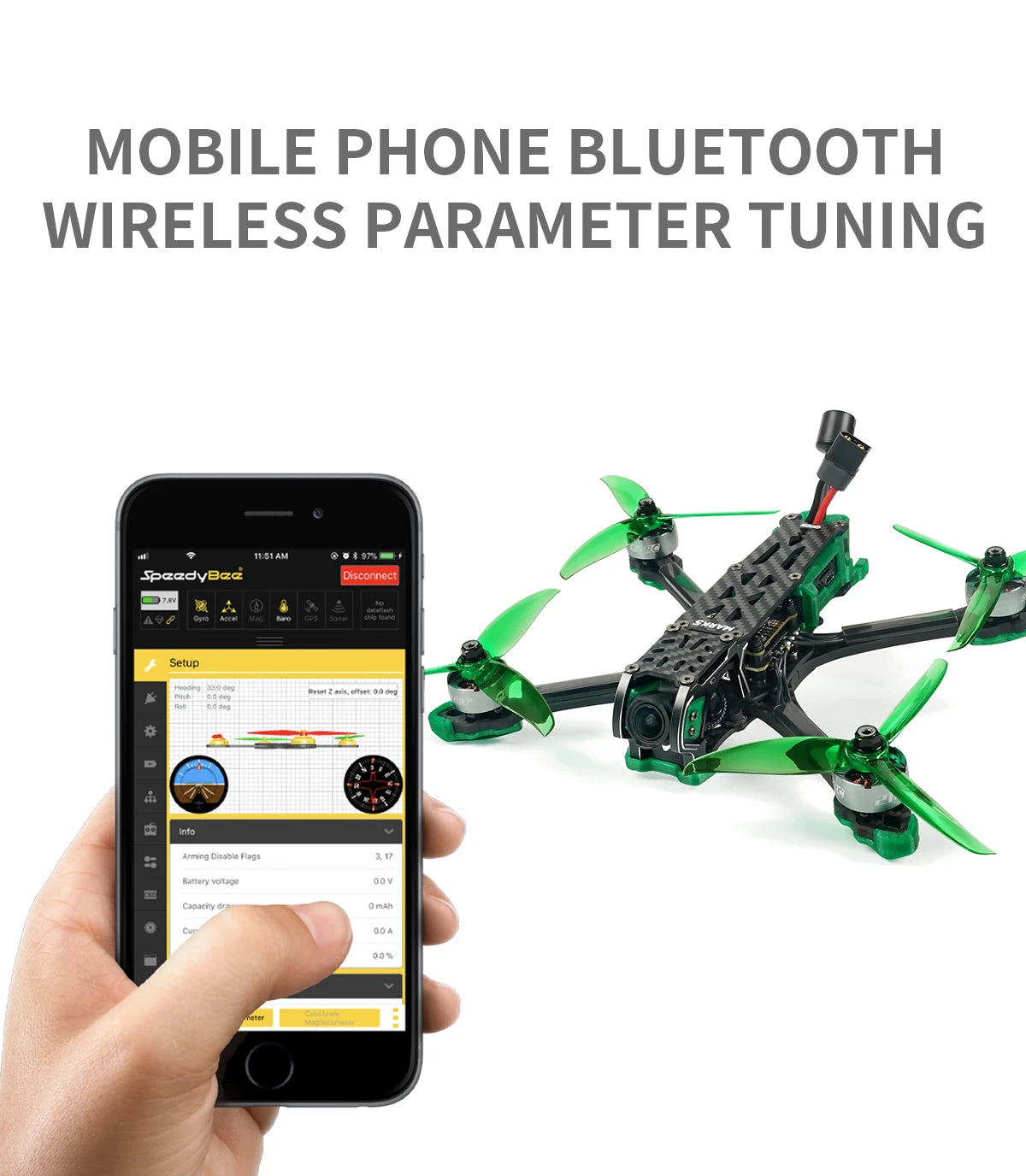

Enjoy seamless parameter tuning with Bluetooth connectivity to your mobile phone. The drone’s wireless setup allows for easy configuration and customization, featuring a range of options including frequency band selection (I1.51Am) and speed settings (9r sppcdv). Simply disconnect from the setup (03047 0 0,0) and the drone will automatically enter ‘airmind’ mode if necessary.

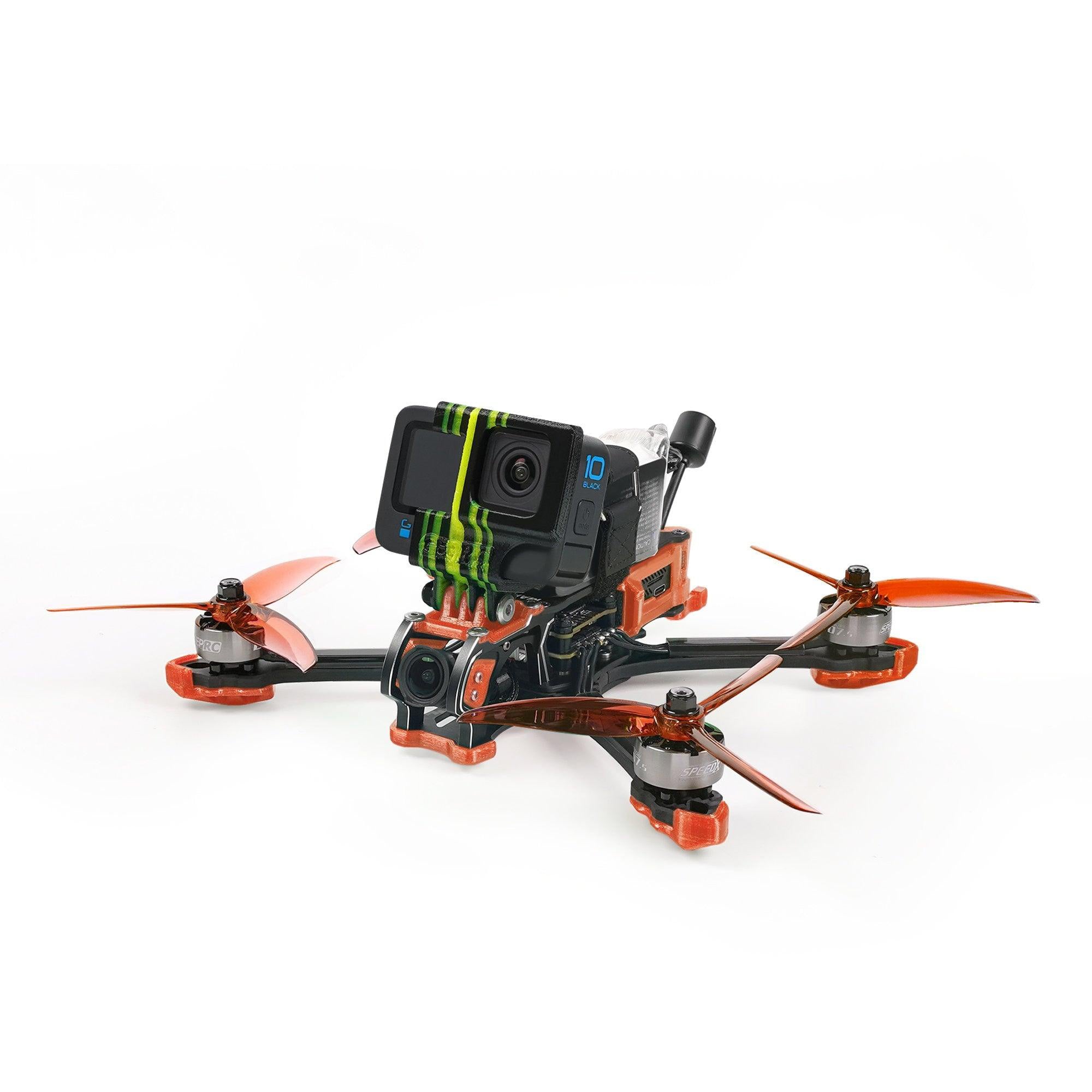

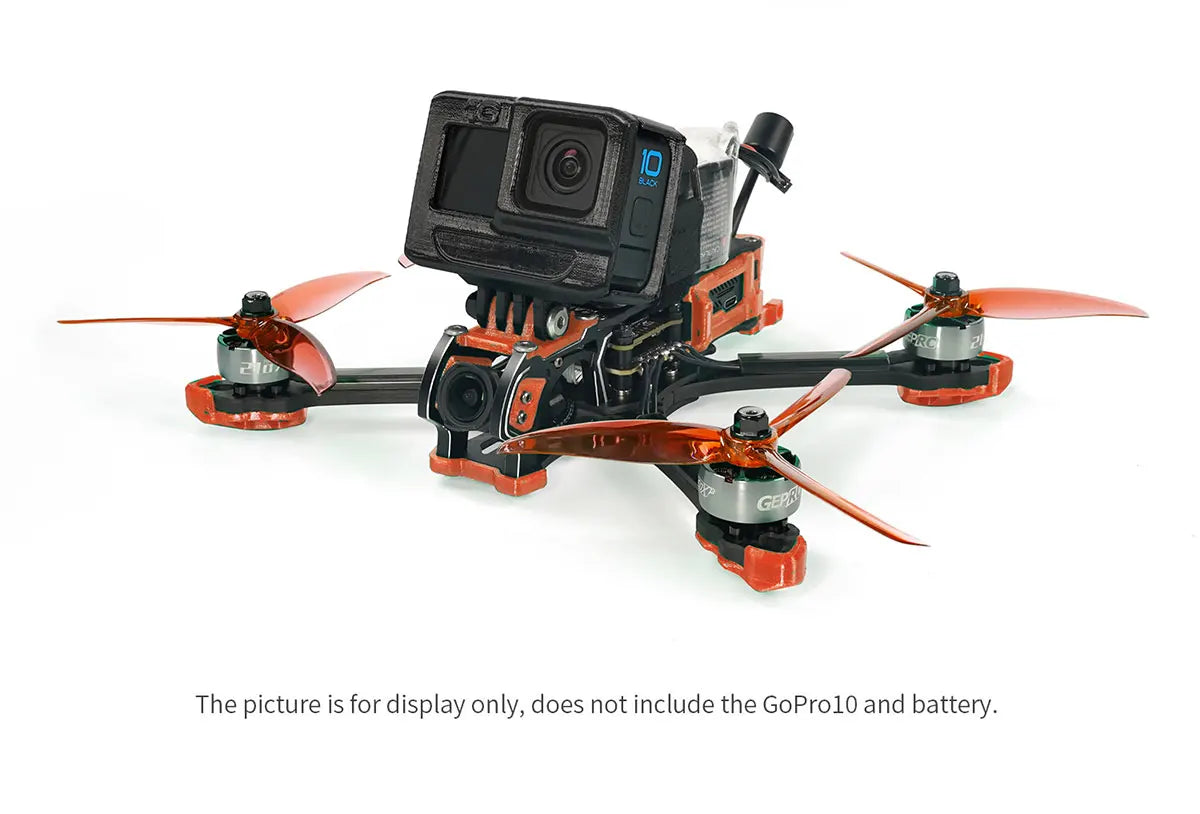

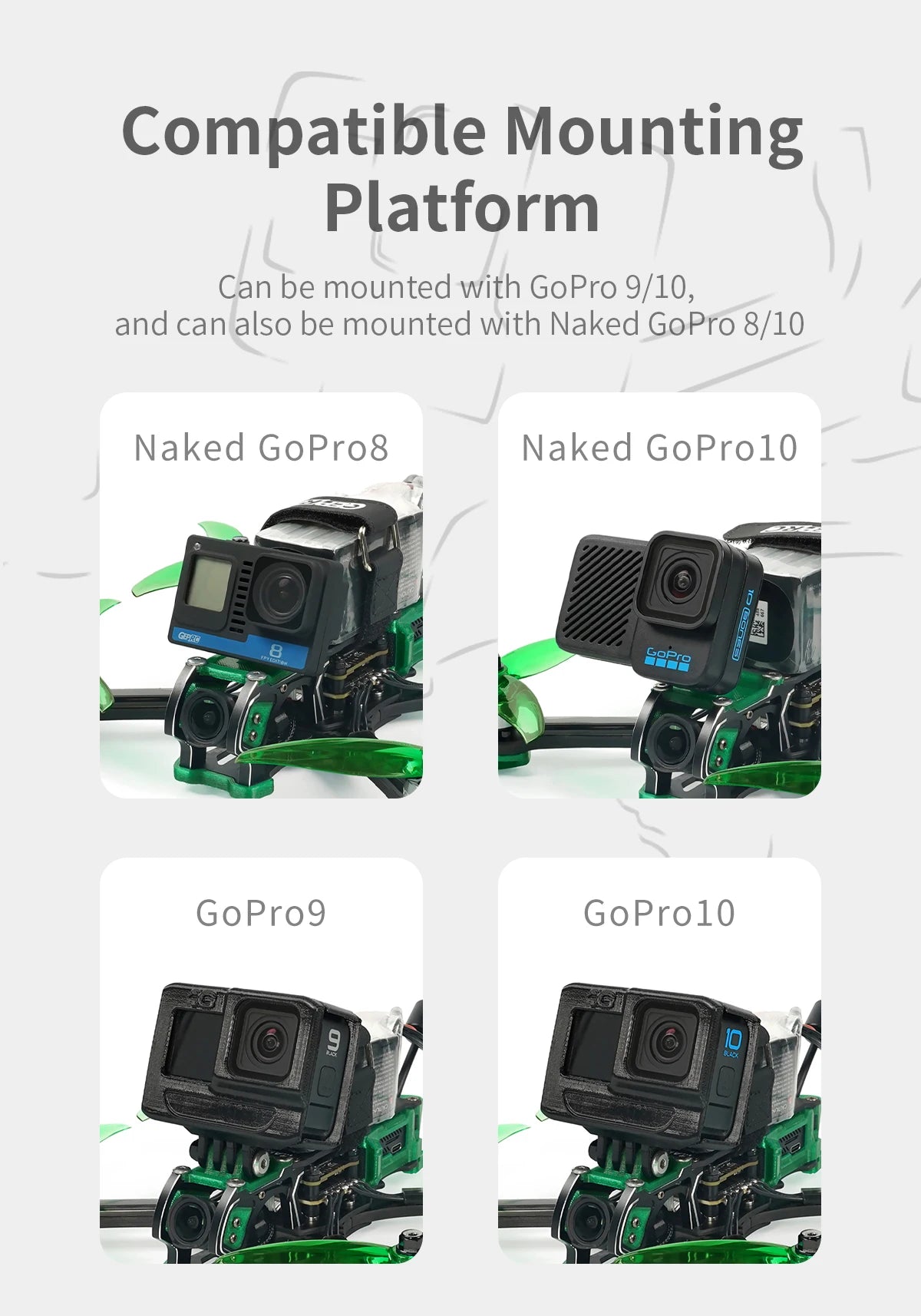

This drone is compatible with various mounting platforms, including those designed for GoPro cameras (models 9 and 10). Additionally, it can also be mounted with Naked GoPro cameras (models 8 and 0) or other similar camera systems.

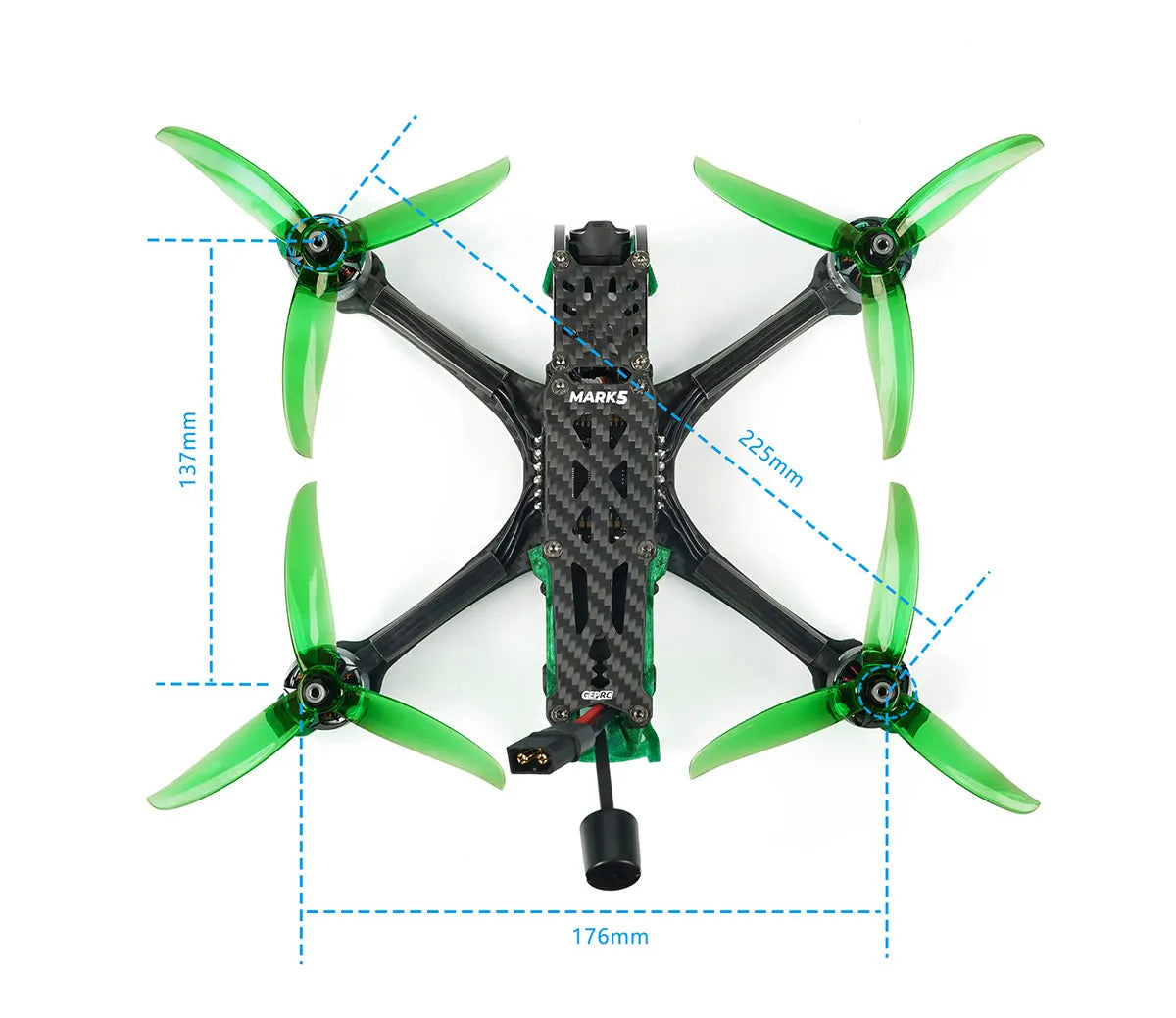

Key specifications for the DJI O3 air unit in the GEPRC MARK5 HD O3 Freestyle FPV Drone include a model designation of MARKS 03, an antenna length of 176mm, and a wheelbase of 225mm. The drone features SPEEDX2 2107.5-1960KV motors, which are specifically designed for the 6S version.
