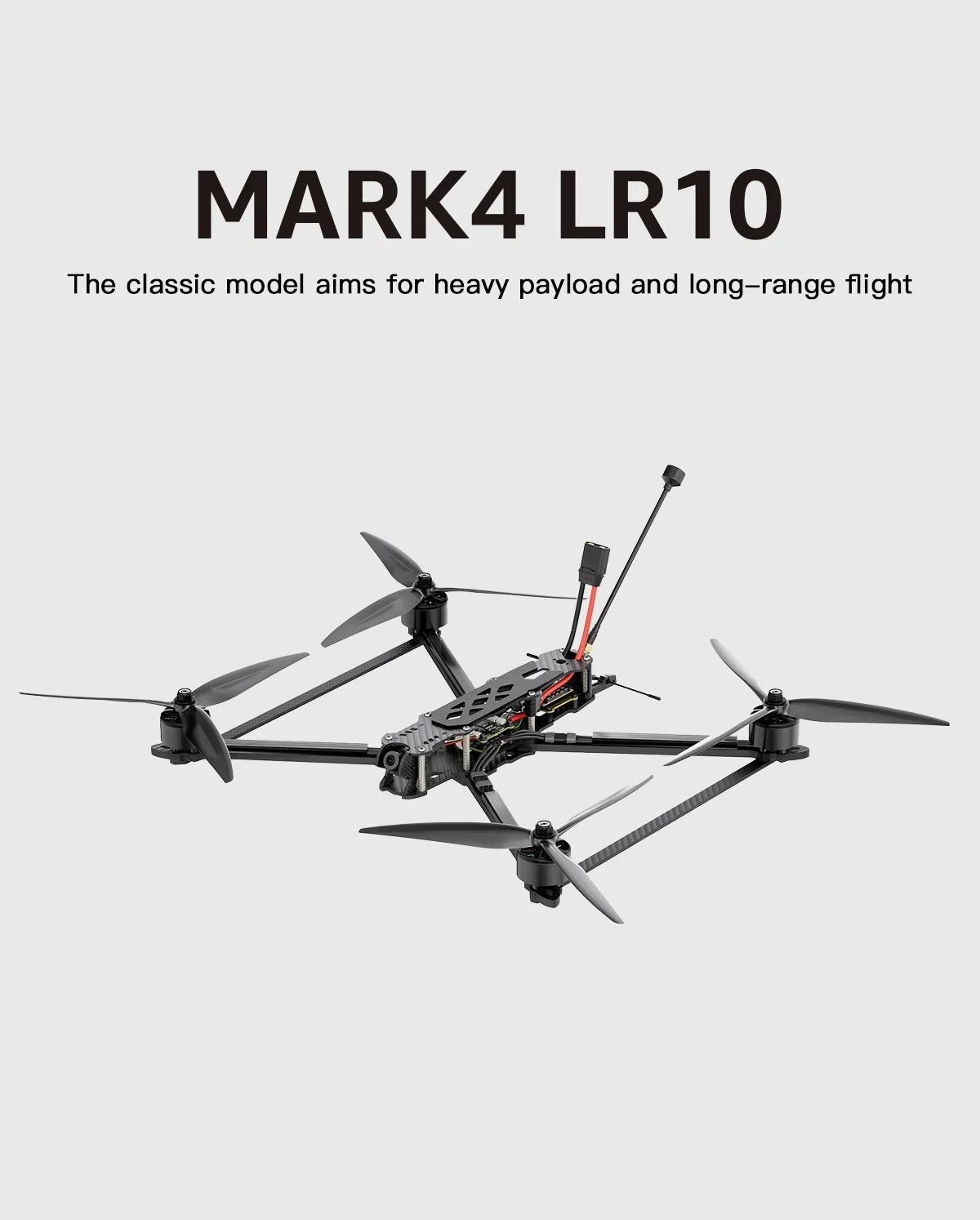

GEPRC MARK4 LR10 1.2G 2W Long Range 10inch Freestyle FPV Drone SPECIFICATIONS
Brand Name: GEPRC
Remote Distance: 2000 meters
Remote Control: Yes
Package Includes: Original Box
Package Includes: Operating Instructions
Package Includes: Camera
Anti-wind Ability: NO
Video Capture Resolution: 1080p FHD
Video Capture Resolution: 2K QHD
Video Capture Resolution: 4K UHD
Controller Battery: Not include
Takeoff Weight: 100g
Aerial Photography: Yes
Control Channels: 8 CHANNELS
Material: Metal
Material: plastic
Material: Carbon Fiber
Flight Time: <5
Origin: Mainland China
Controller Mode: MODE1
Controller Mode: MODE2
Recommend Age: 14+y
Transit Time (Days): 1KM
Is Electric: No battery
Drone Weight: 960g
Dimensions: 10 inch
Motor: Brushless Motor
Plugs Type: XT60
Type: HELICOPTER
State of Assembly: Ready-to-Go
Features: App-Controlled
Features: FPV Capable
Features: Integrated Camera
Features: Other
Indoor/Outdoor Use: Indoor-Outdoor
Charging Voltage: 14.8V
Charging Time: 30 minutes
Camera Mount Type: Fixed Camera Mount
Camera Mount Type: Other
Warning: Minors please use under the supervision of an adult
Certification: CE
CE: Certificate
Model Number: GEPRC MARK4 LR10 1.2G 2W FPV
Power Source: Electric
Operator Skill Level: Beginner
Operator Skill Level: Intermediate
Operator Skill Level: expert
Summary
The 10-inch model of the MARK4 series is officially released. The Model adopts stiffener bars on two sides to improve stability during flight, while inheriting the design conception of the traditional model shape. The engine is upgraded to GEPRC EM3115-900KV with GEP-BL60A-4IN1 ESC, which has stronger power and better load capacity.
Feature
A sufficient VTX accomplishes long-range flight.
Equipped with EM3115 motor which ensures payload capability and flexibility in one go.
Adopting BLS 60A ESC and F405 FC ensures stability and reliability.
The horizontal stiffener bar reduces the instability.
Supporting the maximum battery capacity of 8000mAh.
The maximum payload is up to 3kg.
Specfication
Model: MARK4 LR10 FPV
Frame: GEP-MARK4-10
Wheelbase: 429mm
Top plate thickness:2mm
Bottom plate thickness:3mm
Side plate thickness:2.5mm
Arm thickness:7mm
Mid plate thickness:3mm
Stiffener bar thickness:3mm
FC: GEPRC F405 V2
ESC: GEP-BL60A-4IN1
MCU: STM32F405RGT6
Gyroscope: ICM-42688-P
VTX:RAD VTX 5.8G 2.5W / RAD VTX 5.8G 1.6W/ RAD VTX 4.9G 1.6W / GEPRC VTX 1.2G 2W(optional)
Camera: Caddx H1
Antenna: 5.8G RHCP SMA Antenna / 4.9G RHCP SMA Antenna / 1.2G RHCP SMA Antenna
Motor: EM3115 900KV
Propellers: Gemfam 1050-3
Maximum payload:3KG
Weight:968±10g
Includes
1 x MARK4 LR10 FPV Drone
2 x GEMFAN 1050-3(1R/1L)
1 x Camera anti-slip pad
1 x Reserved screw pack
1 x L-shaped screwdriver(1.5mm)
1 x L-shaped screwdriver(2.0mm)
1 x M8 wrench
2 x Anti-slip rubber strips zinc alloy buckle-20*250mm
2 x Anti-slip rubber strips zinc alloy buckle-20*300mm
1 x GEPRC frame kits-shock absorber pad( 4 in one set) V2 version
1 x VTX Antenna

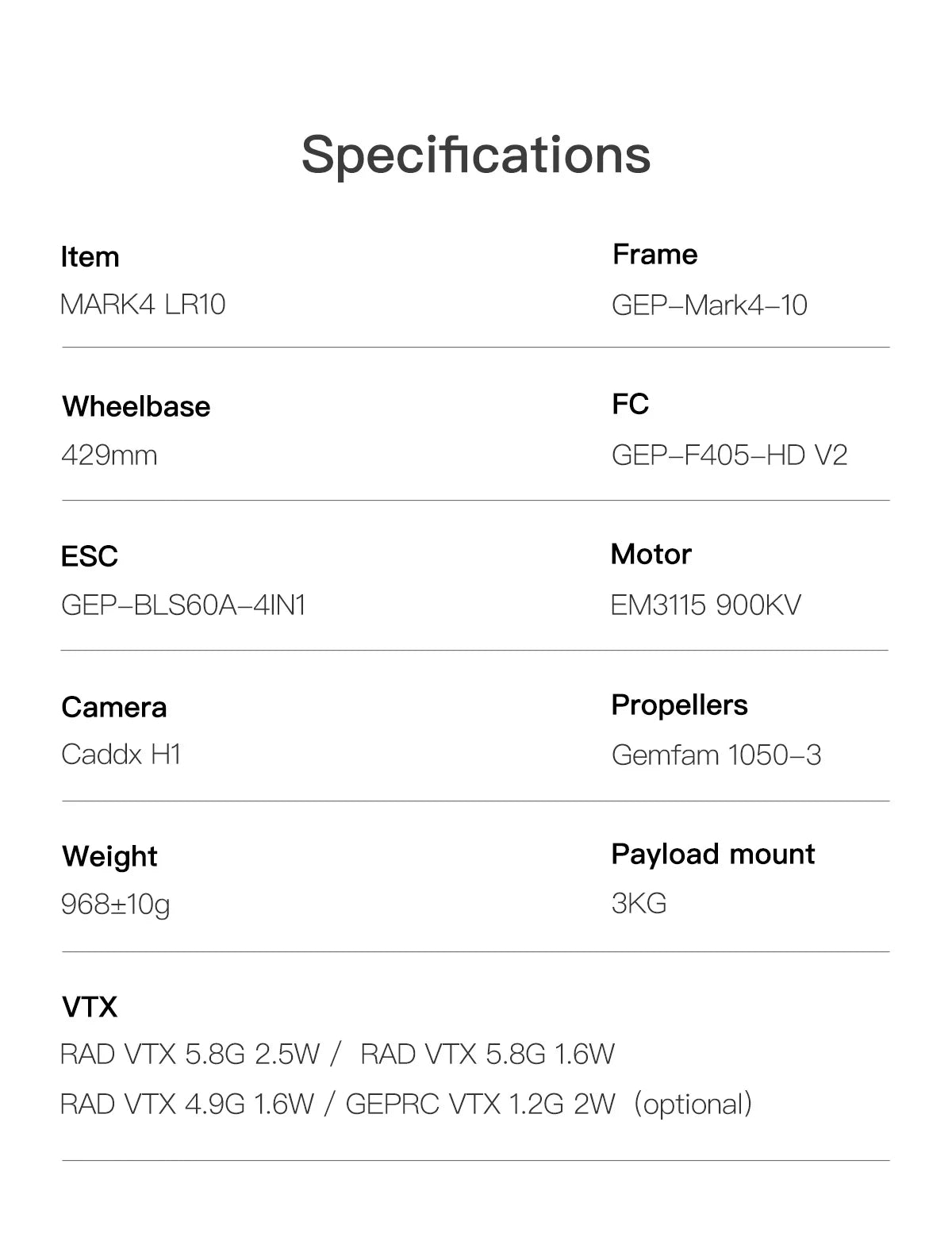

Specifications Item Frame MARK4 LR1O GEP_Mark4-10 Wheelbase FC 429mm GEP-F4O5-HD V2 ESC Motor EM3115 900KV Camera Propellers Caddx H1 Gemfam 1050-3 Weight Payload mount 968+10g 3KG VTX
The EM3115 900KV motor ensures both heavy payload capability and flexibility, while the drone’s maximum battery capacity of 8000mAh allows for a maximum payload of up to 3 kilograms.
The drone is equipped with a horizontal stiffener arm, which enhances overall stability and minimizes the effect of any instability on the gyroscope.
The motor and drone arms are designed to be easily disassembled, allowing for convenient shipping either as a complete unit or individual parts.
