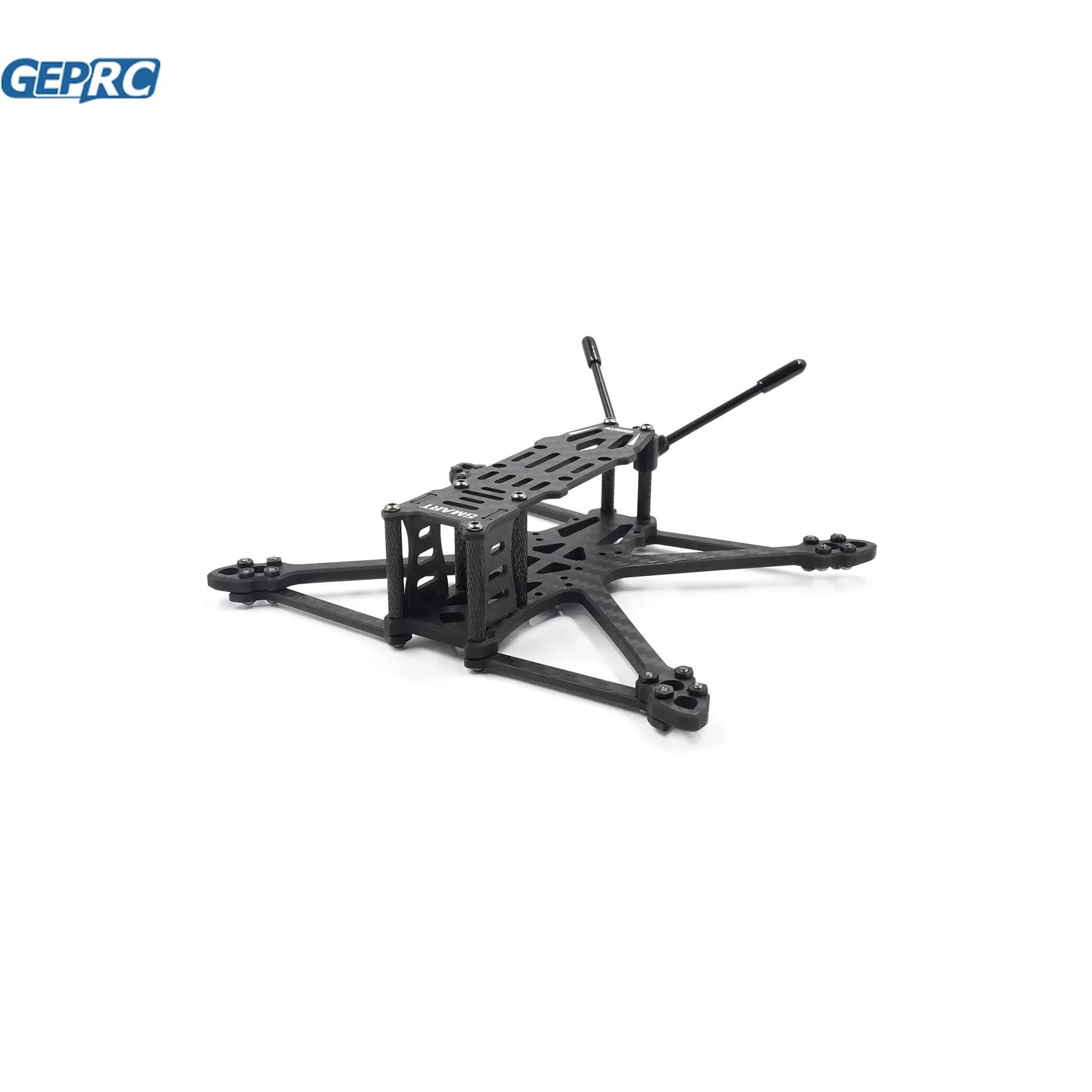

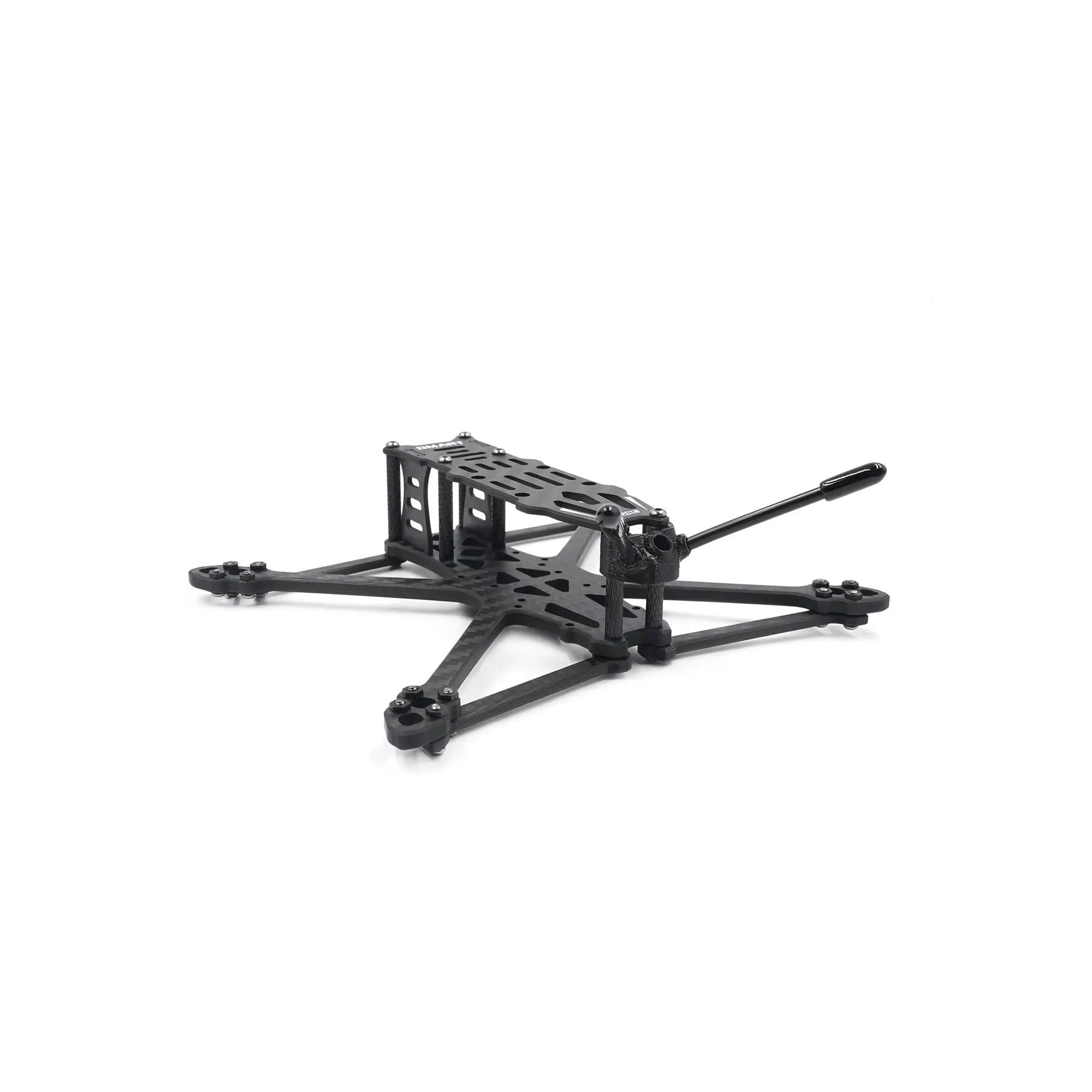

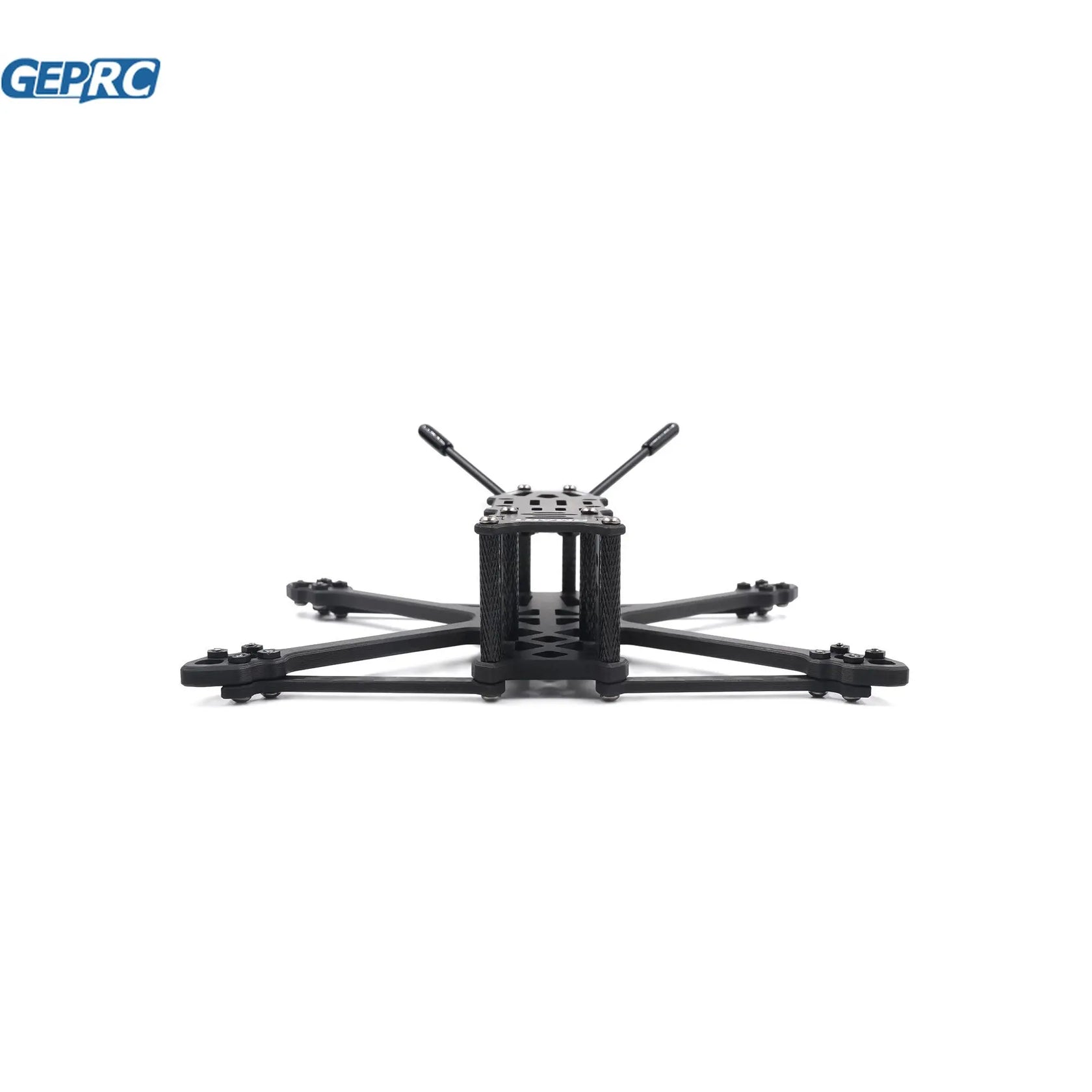

GEPRC GEP-ST35 Frame – Suitable For Smart 35 Series Drone Carbon Fiber Frame For RC FPV Quadcopter Replacement Accessories Parts

$61.89

SKU: N/A Category:

Description

GEPRC GEP-ST35 Frame SPECIFICATIONS

Brand Name: GEPRC

Origin: Mainland China

Material: Composite Material

RC Parts & Accs: FRAME

Size: 3.5 inch

For Vehicle Type: Helicopters

Use: Vehicles & Remote Control Toys

Upgrade Parts/Accessories: Frame

Remote Control Peripherals/Devices: FRAME

Tool Supplies: Assembly Category

Quantity: 1 pcs

Model Number: GEP-ST35 Frame

Four-wheel Drive Attributes: Shell/Chassis/Wing/Head

Wheelbase: Screws

Summary:

Hello every body there is a special new member of GEPRC FreeStyle frame series,and it is released now, GEP-ST35, a 3.5inch FreeStyle frame with light weight.

GEP-ST35 has designed multiple mounting holes, which can install different FC and VTX, It is also can install 8mm-13mm hole size motor, Naked Hero 8 naked camera and Insta 360 Go2 camera can be installed with Naked camera mount, 4mm Arm can also be equipped with 2mm reinforced arm, ultra-high strength fuselage.

GEP-ST35 is elaborately designed by geprc team, with small size, lightweight and excellent flight performance.




Speicification:

  • Brand name: GEPRC

  • Model: GEP-ST35

  • Wheelbase: 155mm

  • Top Plate: 2.0mm

  • Bottom Plate: 4.0mm

  •  Arm Plate: 4.0mm

  • Reinforced arm: 2.5mm

  • FC mounting holes: 26.5mmx26.5mm/20mmx20mm

  • VTX mounting holes: 20mmx20mm

  • Motor mounting holes: 9mmx9mm/12mmx12mm

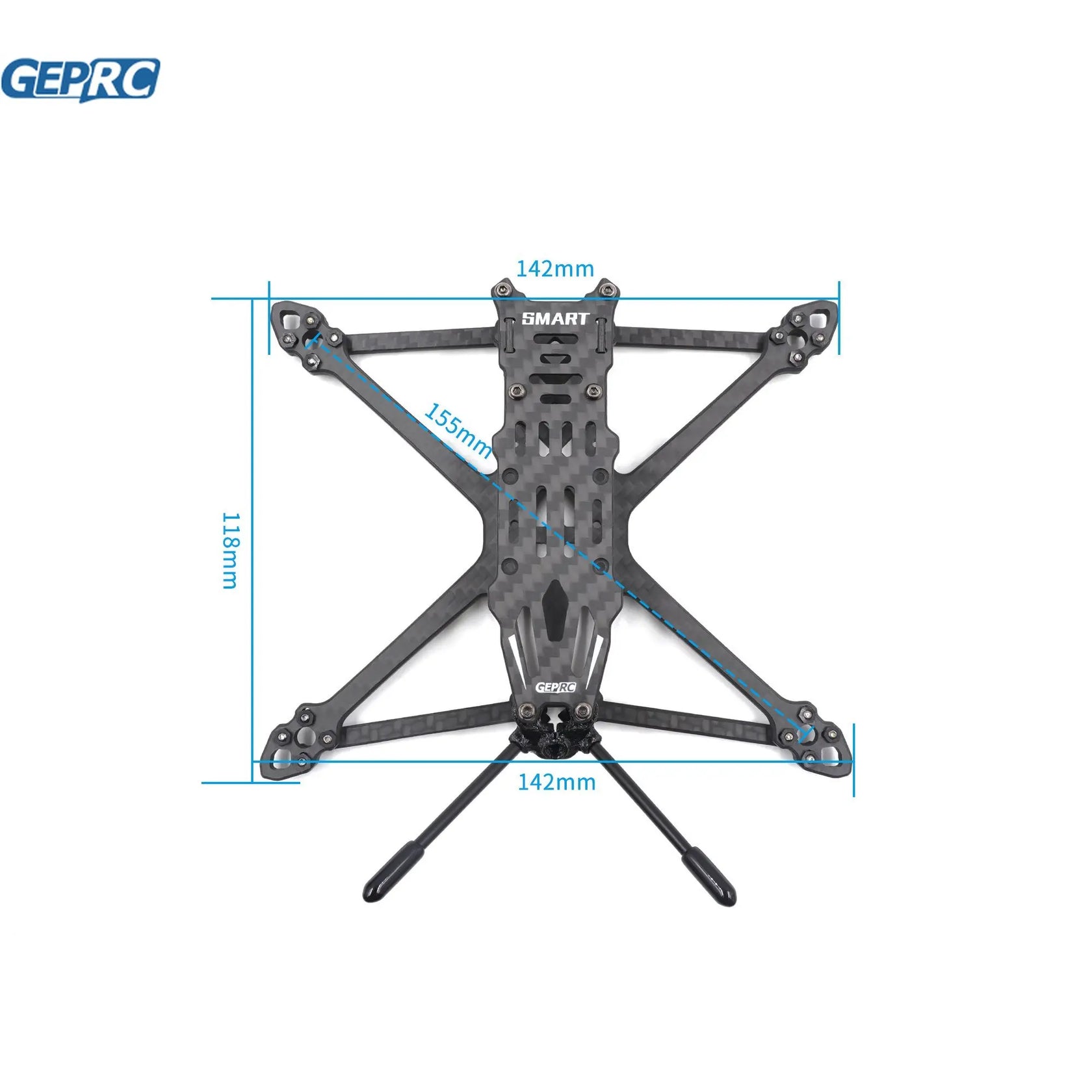

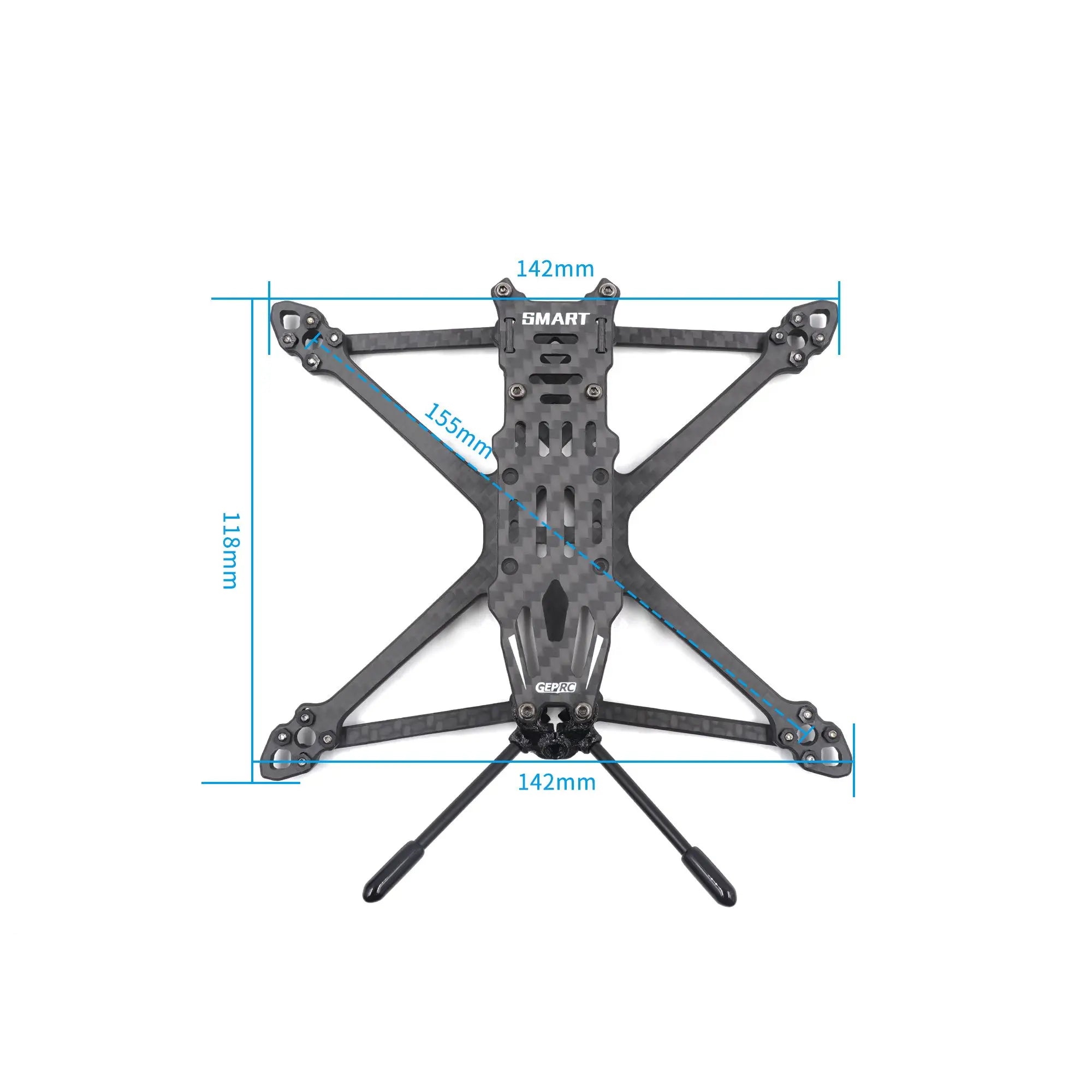

  • Size: 142mmx118mmx36mm

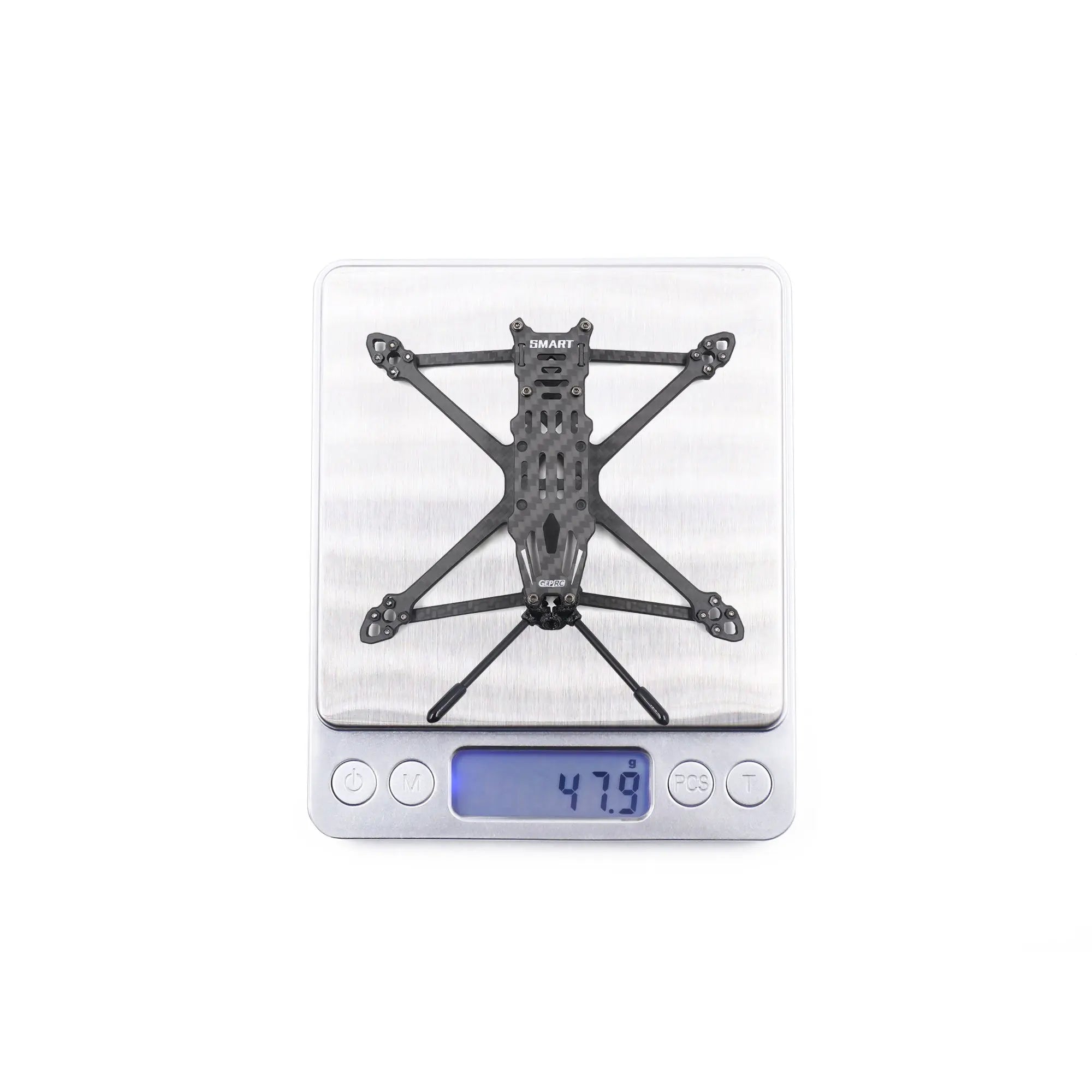

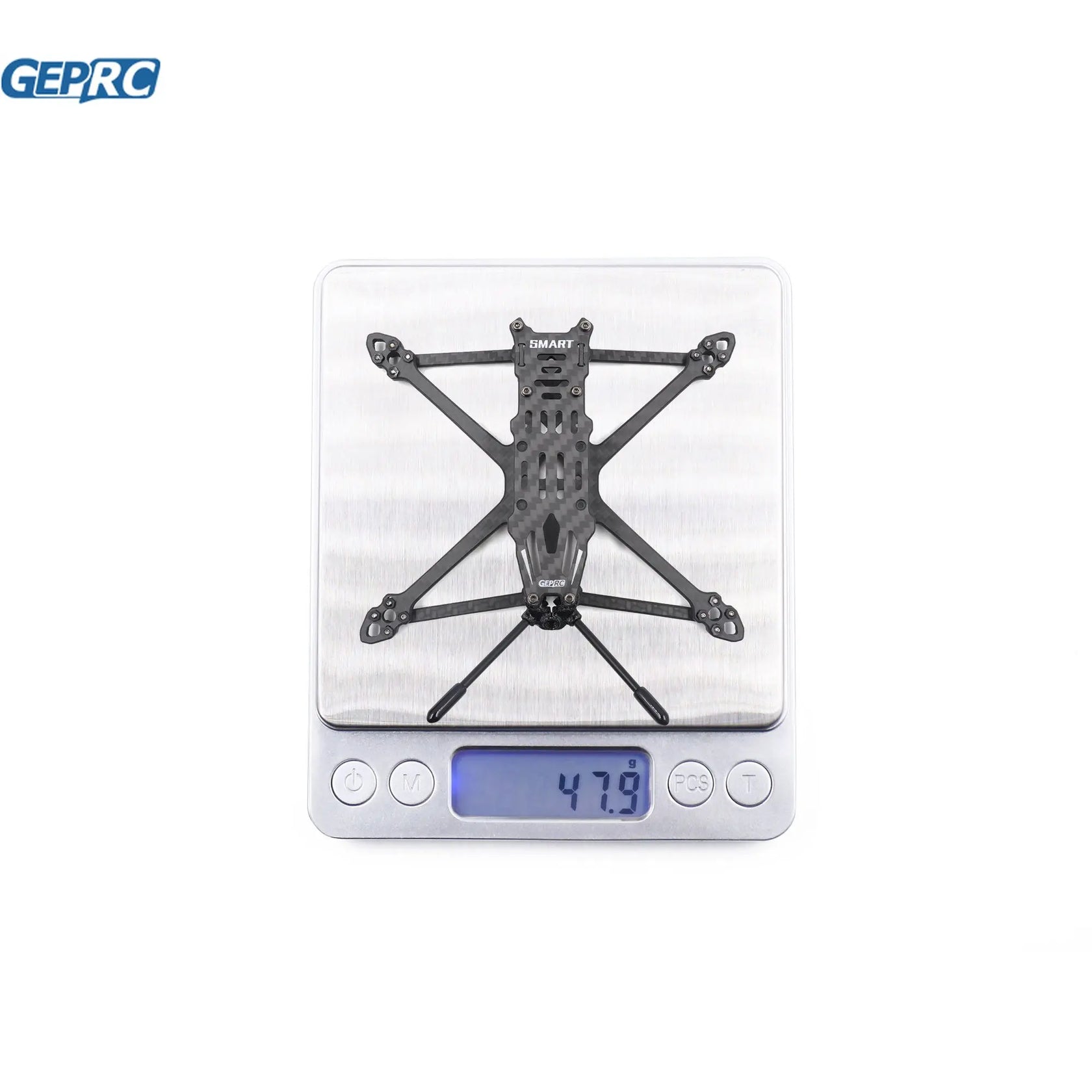

  • Weight: 47.9g (With 3D prints and reinforced Arm)




Features:

  1. Small size, light weight, and good flight experience.

  2. 4mm Arm can also be equipped with 2mm reinforced arm, ultra-high strength fuselage, the Strength rised to a higher level.

  3. There are a number of installation holes for FC and VTX.

  4. The motor with 8mm-13mm hole spacing can be installed.

  5. The mount of Naked camera is designed to install Naked  Hero 8 naked camera and Insta 360 Go2 camera.



Frame:
  • 1 x Top Plate

  • 1 x Bottom Plate

  • 2 x Camera mounting Plate

  • 2 x Front reinforced Plate

  • 2 x Ear reinforced Plate

Screw:
  • 6 x M2 * 4.0×25 aluminum columns

  • 2 x M2 * 4mm cup head screws

  • 20 x M2 * 6.5mm round head screws

  • 8 x M2 * 7mm round head screws

  • 18 x M2 * 9mm round head screws

  • 4 x M2 * 12mm cup head screws

  • 1 x M2 * 16mm cup head screws

  • 4 x M2 * 18mm cup head screws

  • 4 x M2 * 25mm cup head screws

  • 4 x M2 * 4mm damping rings

  • 8 x M2 * 6.5mm damping rings

  • 2 x M2 Nylon shims

  • 1 x M2 Rivet nuts

  • 4 x M2 Nylon Nuts

  • 4 x M2 Lock Nuts

3D Prints:

  • 1 x VTX antenna mount

  • 1 x TBS NanoRX antenna mount

  • 1 x Naked camera mount

Accessories:
  • 1 x Battery pad

  • 1 x EVA landing pad

  • 1 x Battery strap (M15 * 200mm)

  • 1 x Screwdriver (1.5mm)

  • 1 x Antenna fixing tubes

  • 4 x Motor wire protection tubes (35mm)

GEPRC GEP-ST35 Frame, there are a number of installation holes for FC and VTXGEPRC GEP-ST35 Frame, GEP-ST35 is a 3.5inch frame with light weight . it isGEPRC GEP-ST35 Frame, motor with 8mm-13mm hole spacing can be installed GEPRC GEP-ST35 Frame, geprc's GEP-ST35 is designed with small size, lightweight andGEPRC GEP-ST35 Frame, motor with 8mm-13mm hole spacing can be installed GEPRC GEP-ST35 Frame, GEPRC 142mm 155mm SMART [ GEPGEPRC GEP-ST35 Frame, there are a number of installation holes for FC and VTX
