Description
GEPRC GEP-MK5D O3 Frame SPECIFICATIONS
Wheelbase: Screws
Use: Vehicles & Remote Control Toys
Upgrade Parts/Accessories: Adapter
Tool Supplies: Assembly Category
Size: 1 inch
Remote Control Peripherals/Devices: Frame
Recommend Age: 12+y,14+y
RC Parts & Accs: Frame
Quantity: 1 pcs
Plastic Type: PC
Origin: Mainland China
Model Number: GEP-MK5D O3 Frame
Material: Plastic
Four-wheel Drive Attributes: Assemblage
For Vehicle Type: Helicopters
Brand Name: GEPRC
Summary
The HD VTX ushered in a new upgrade, and the brand new VTX of compatible with D JI O3 air unit pushed the digital system to a new level. The GEPRC team is also upgrading and optimizing the overall performance on the basis of MARK5. At the same time, it will be equipped with D JI O3 air unit to design the new MARK5 O3 version, the versions are MK5D and MK5X respectively.
The newly upgraded camera aluminum alloy side plate, 7075-T6 aluminum alloy is strong and durable. It can be fully adapted to compatible with D JI’s new O3 air unit camera, with a field of view (FOV) of 155°, and can support up to 4K 60FPS recording. The DC structure has a wide and unobstructed viewing angle during flight, which is suitable for O3 onboard video recording and direct output. We also specially designed TPU soft printing parts for the O3 VTX module, and equipped with air inlet cooling port, which is conducive to adequate heat dissipation at the air unit. GEP-MK5 O3 Pro version is shipped with two different camera mounts, which can be mounted with a full range of action cameras, as well as Naked 8/10, Insta 360 GO2 and Caddx Peanut, etc. to record beautiful moments for your flight.
This time, MARK5 O3 will broaden your horizons, fly beyond what you have ever seen, and bring more possibilities for FPV creation.
Specifications

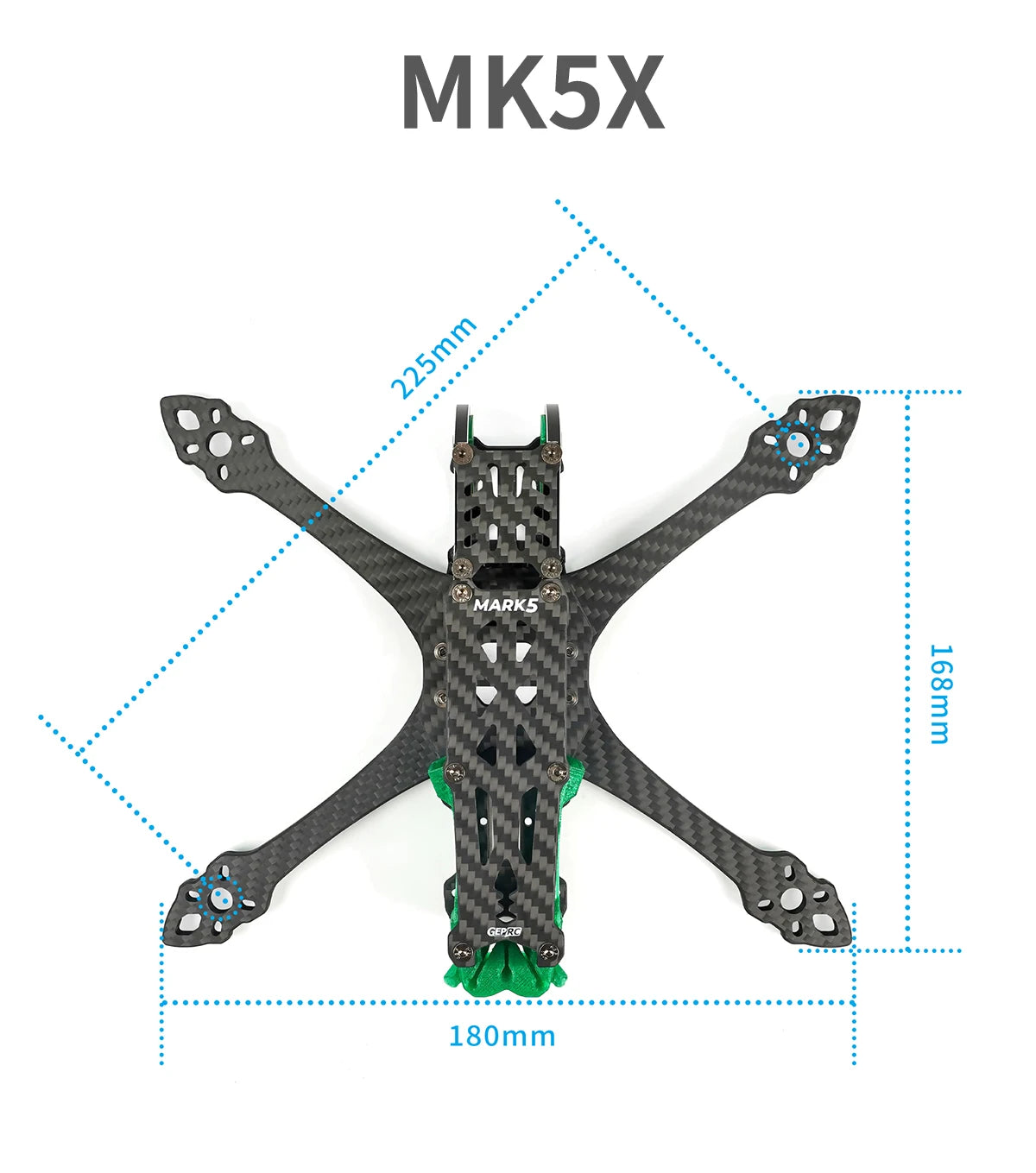

GEP-MK5X O3 Frame
-
Wheelbase: 225mm
-
Top plate: 2.5mm
-
Bottom plate: 2.5mm
-
Arm plate: 5mm
-
FC mounting holes: 30.5mm x 30.5mm
-
Camera installation space: 20mm
-
Suitable propeller size: 5″propeller
-
Dimension: 214mm x 168mm x 42mm
-

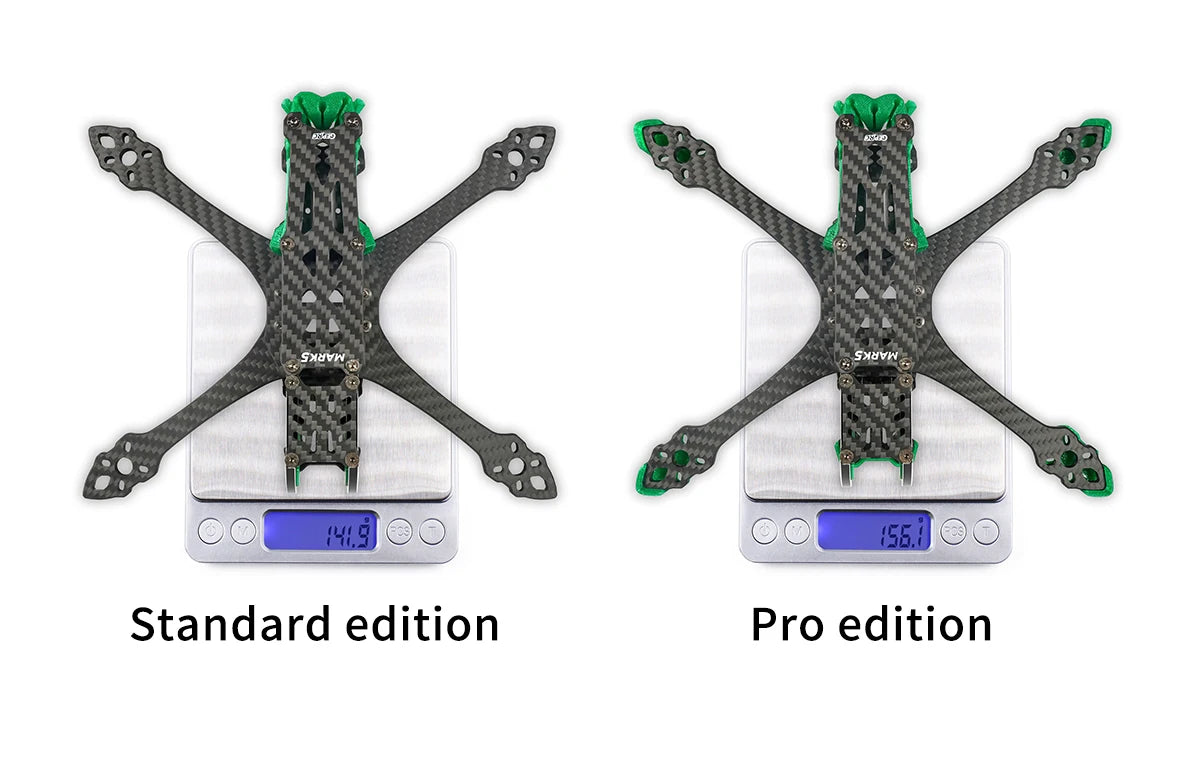

Standard Version Weight: 141.9g
-
Pro Version Weight: 156.1g

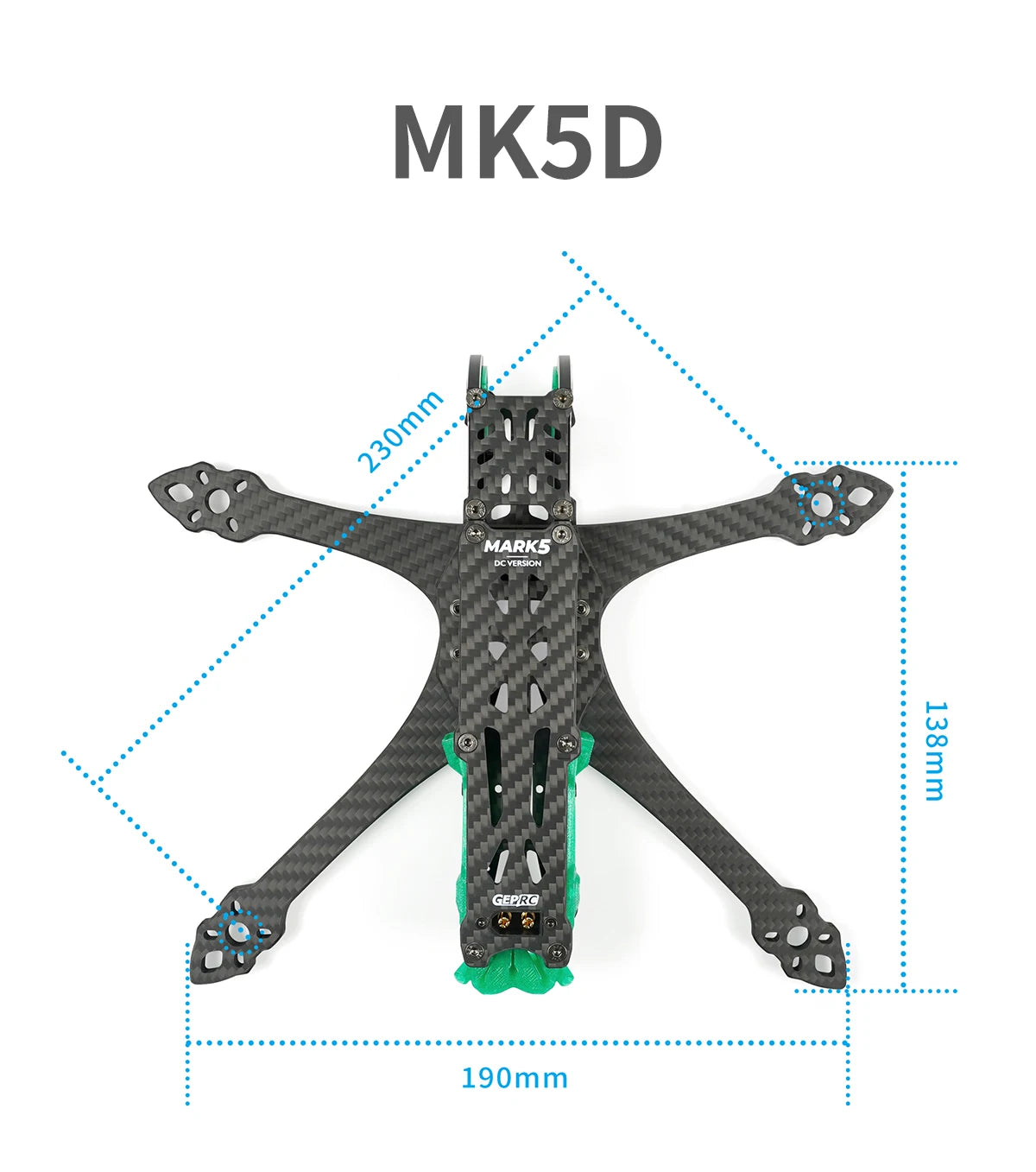

GEP-MK5D O3 Frame
-
Wheelbase: 230mm
-
Top plate: 2.5mm
-
Bottom plate: 2.5mm
-
Arm plate: 5mm
-
FC mounting holes: 30.5mm x 30.5mm
-
Camera installation space: 20mm
-
Suitable propeller size: 5″propeller
-
Dimension: 208mm x 193mm x 42mm
-
Standard Version Weight: 168.0g
-
Pro Version Weight: 197.0g
Features
1. Upgraded lens aluminum alloy side plate, durable and more visual impact.

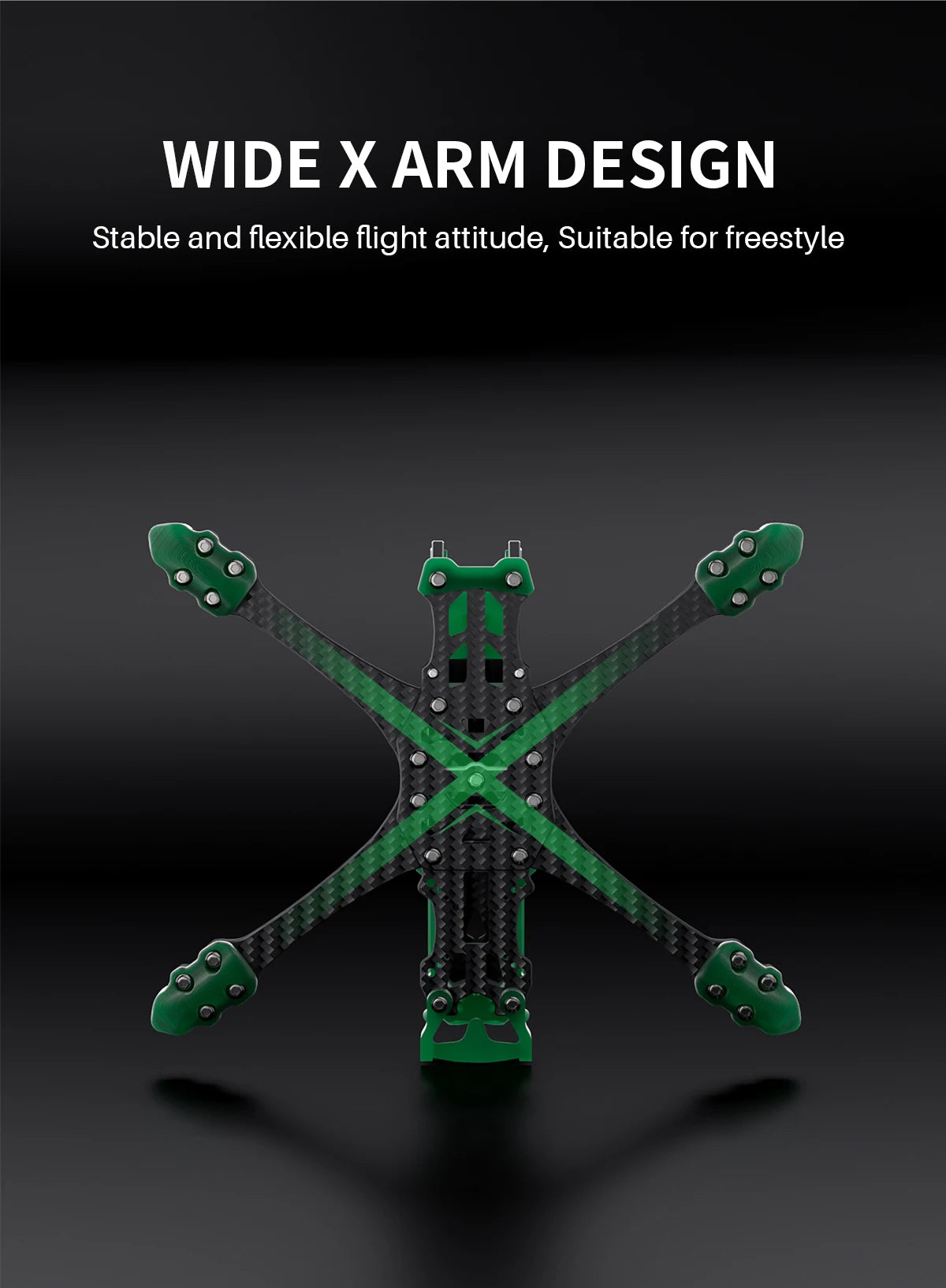

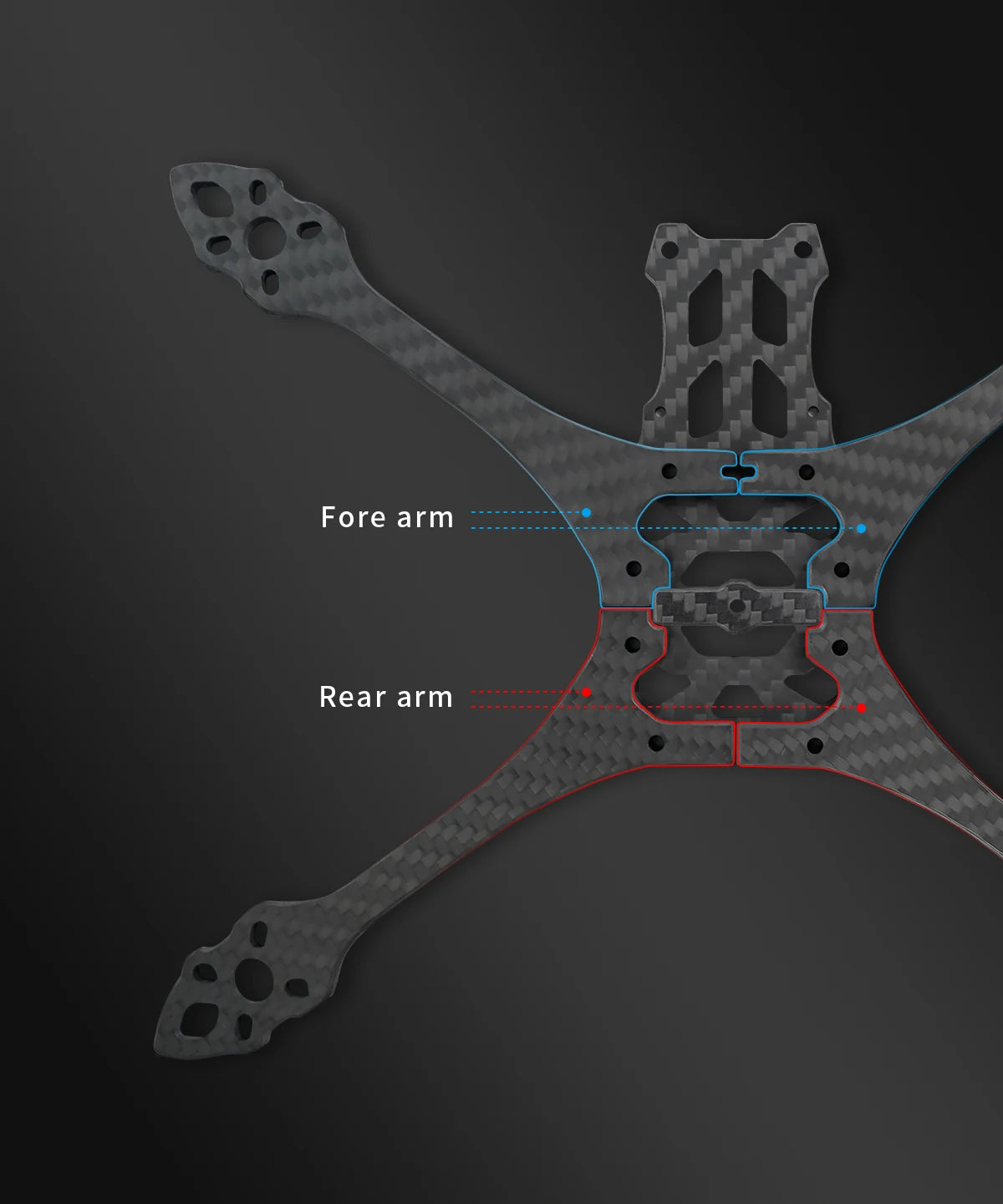

2. Developed specifically for freestyle with squashed X arm design.
3. Unique frame shock absorption design, less vibration, safe and stable electronic system operating environment.
4. With independent capacitor and buzzer cabin, the operating environment of the whole drone is extremely stable, no shaking, no jitter.
5. Two kinds of 3D printing camera mounts are designed, which can be mounted with a full range of cameras, as well as Naked 8, Insta 360 GO2 and Caddx Peanut cameras. The shooting effect is stable and clear.
6. Compatible motor mounting holes, support the installation of motors with 16x16mm and 19x19mm holes.

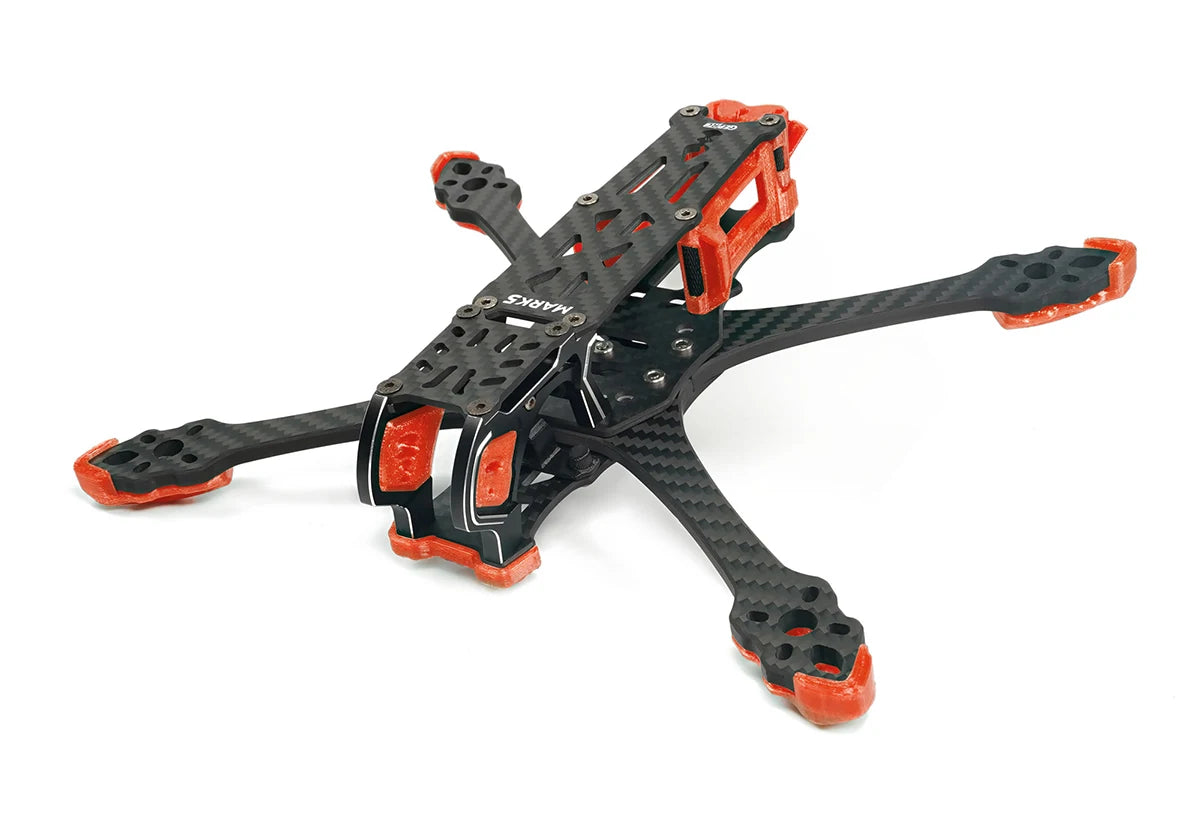

7. Add coral orange and emerald green colors to the O3 version to add more colors to your flight.

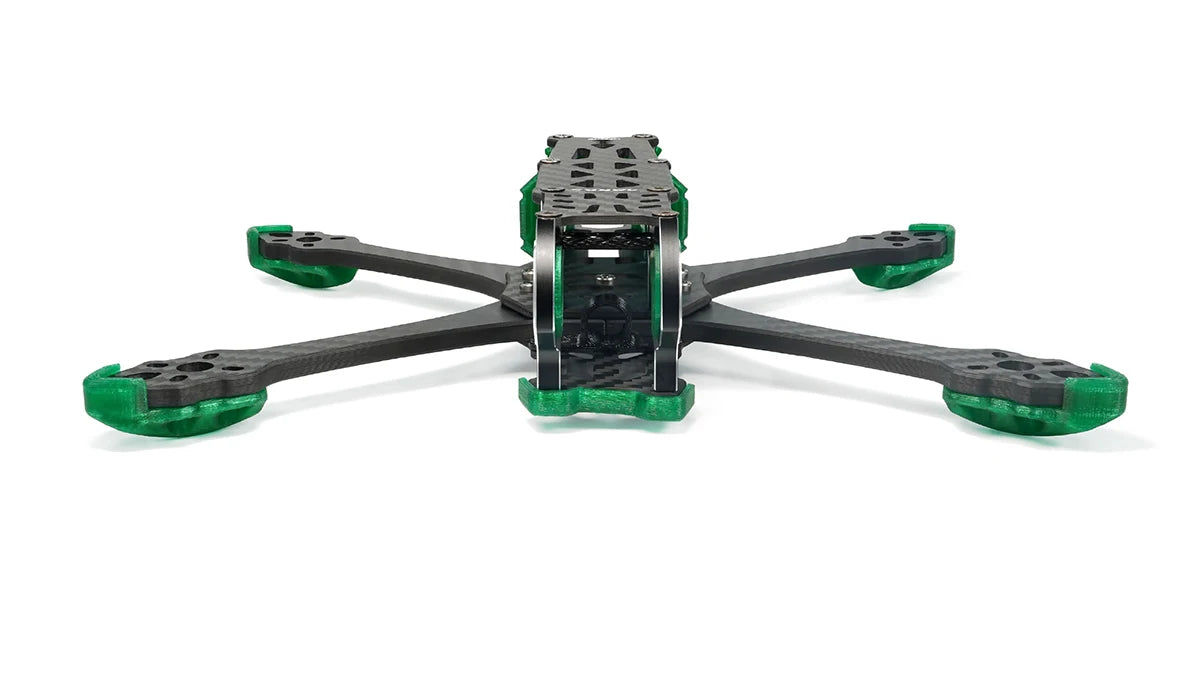

7. The DC structure is suitable for O3 onboard recording when no propeller in view during flight, while the X structure is more suitable for freestyle when the propeller is slightly visible during O3 onboard recording.

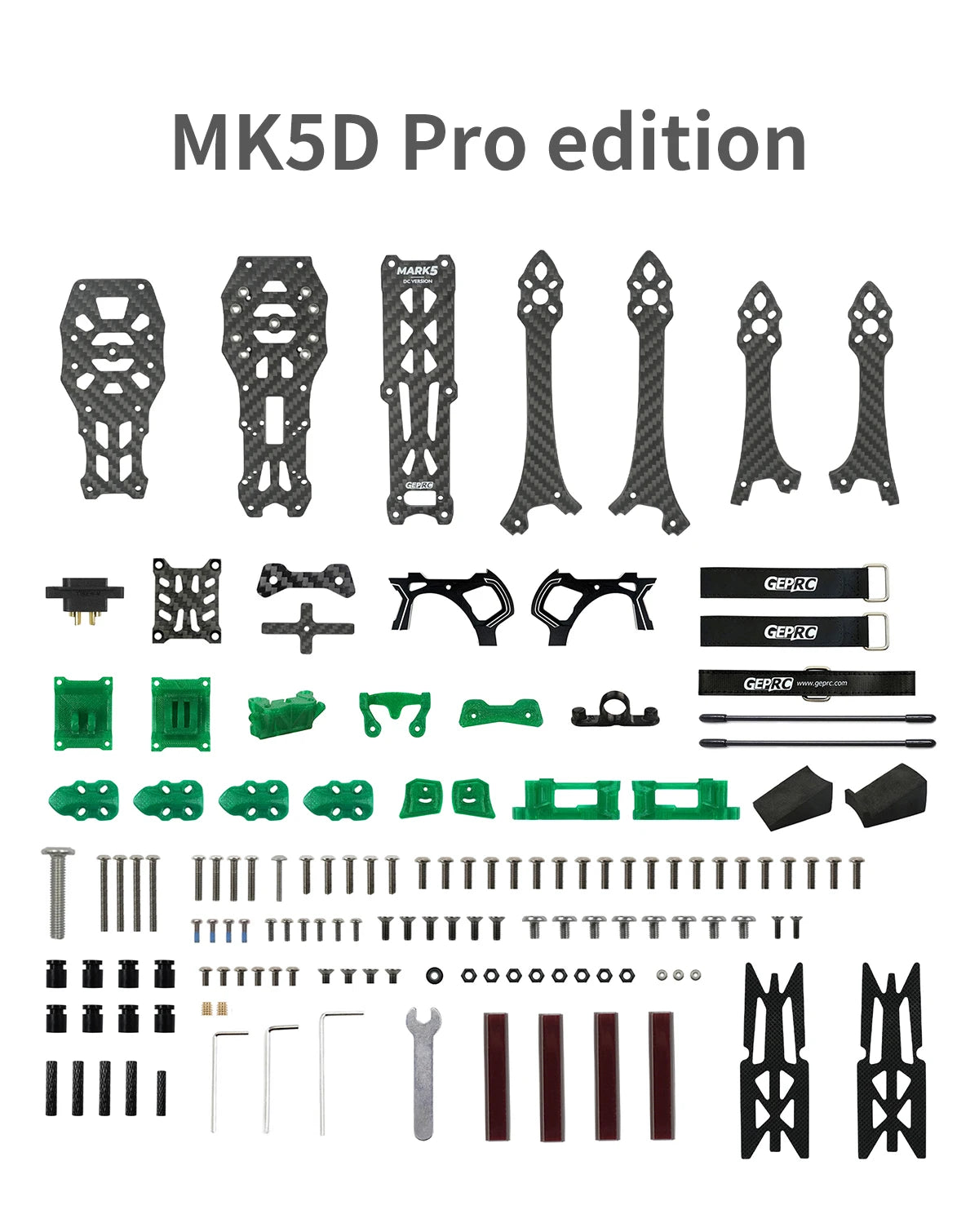

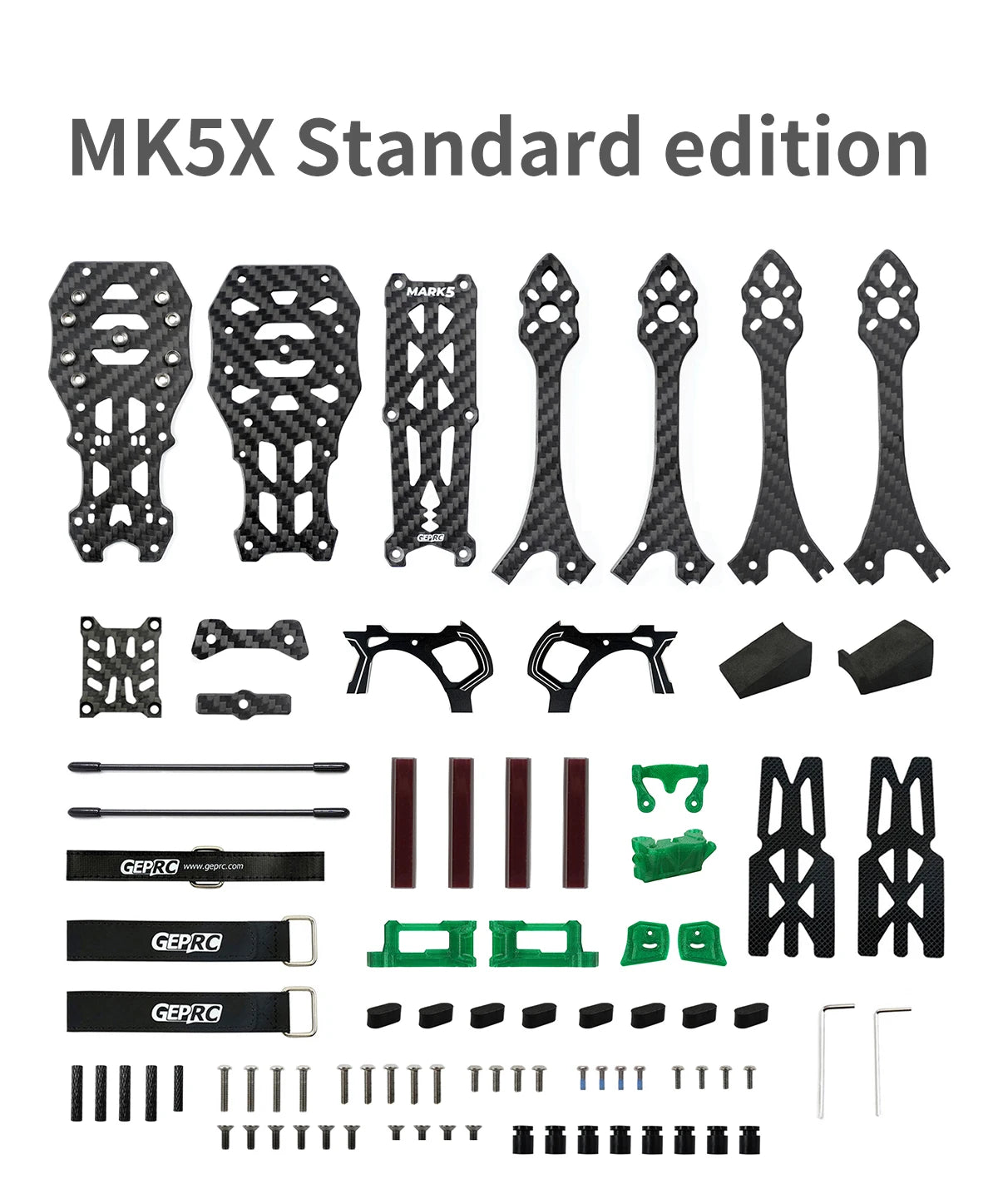

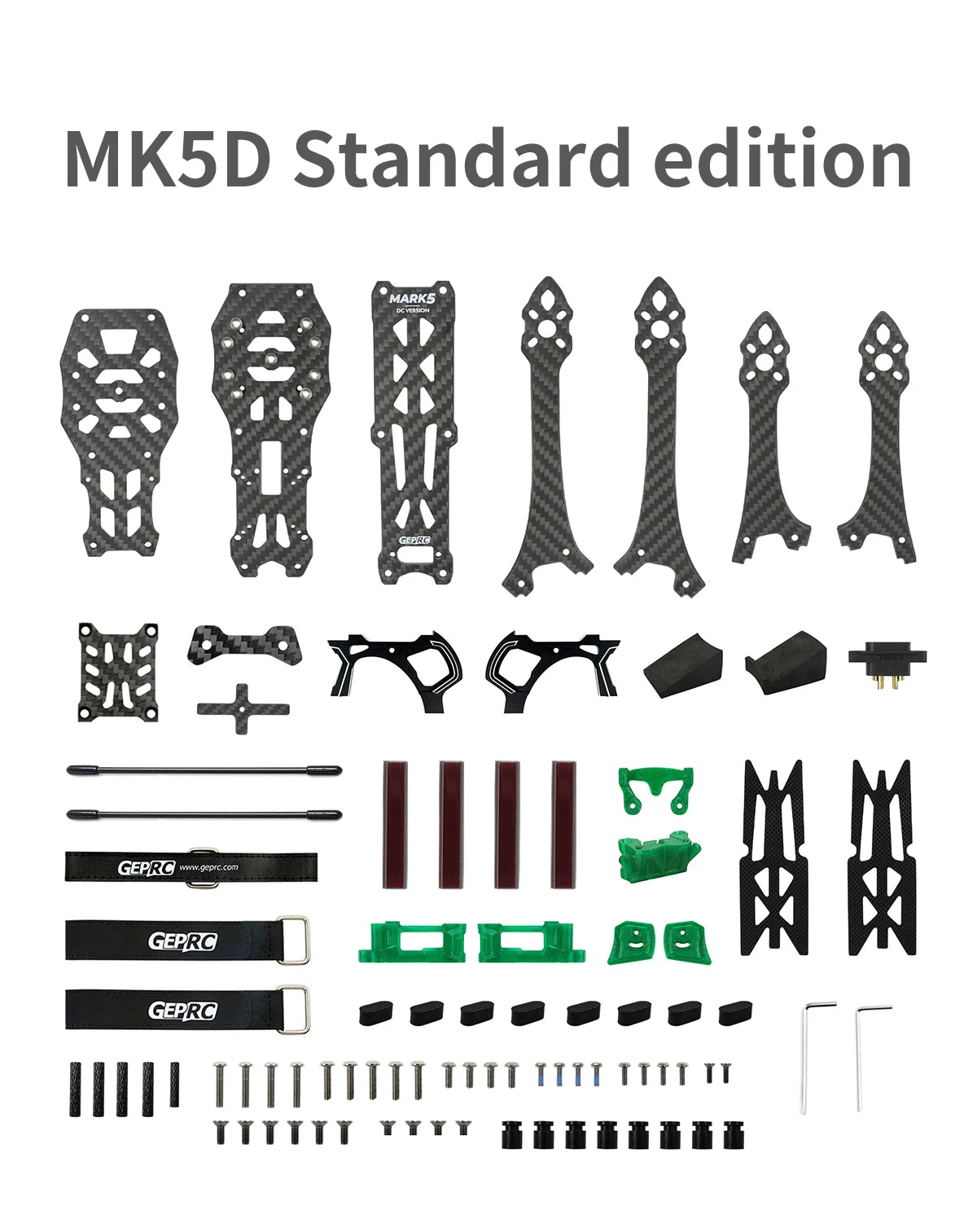

Includes
1 x MARK5 Frame Kits
1 x Battery strap M15x250mm
2 x Battery strap M20x250mm
2 x Battery Silicone Pads
1 x 3M Double-sided tape
1 x EVA Base
1 x EVA Base (with backrest)

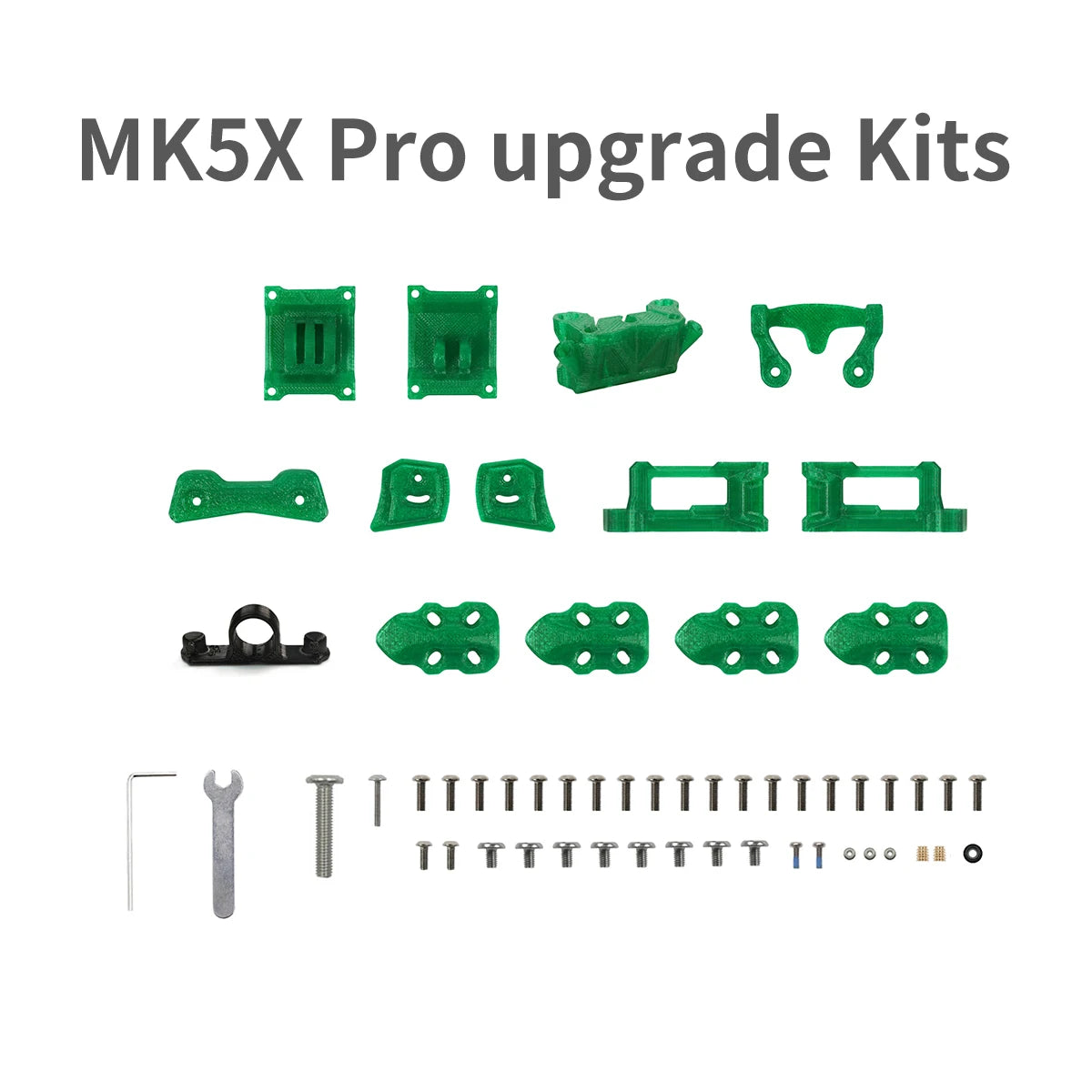

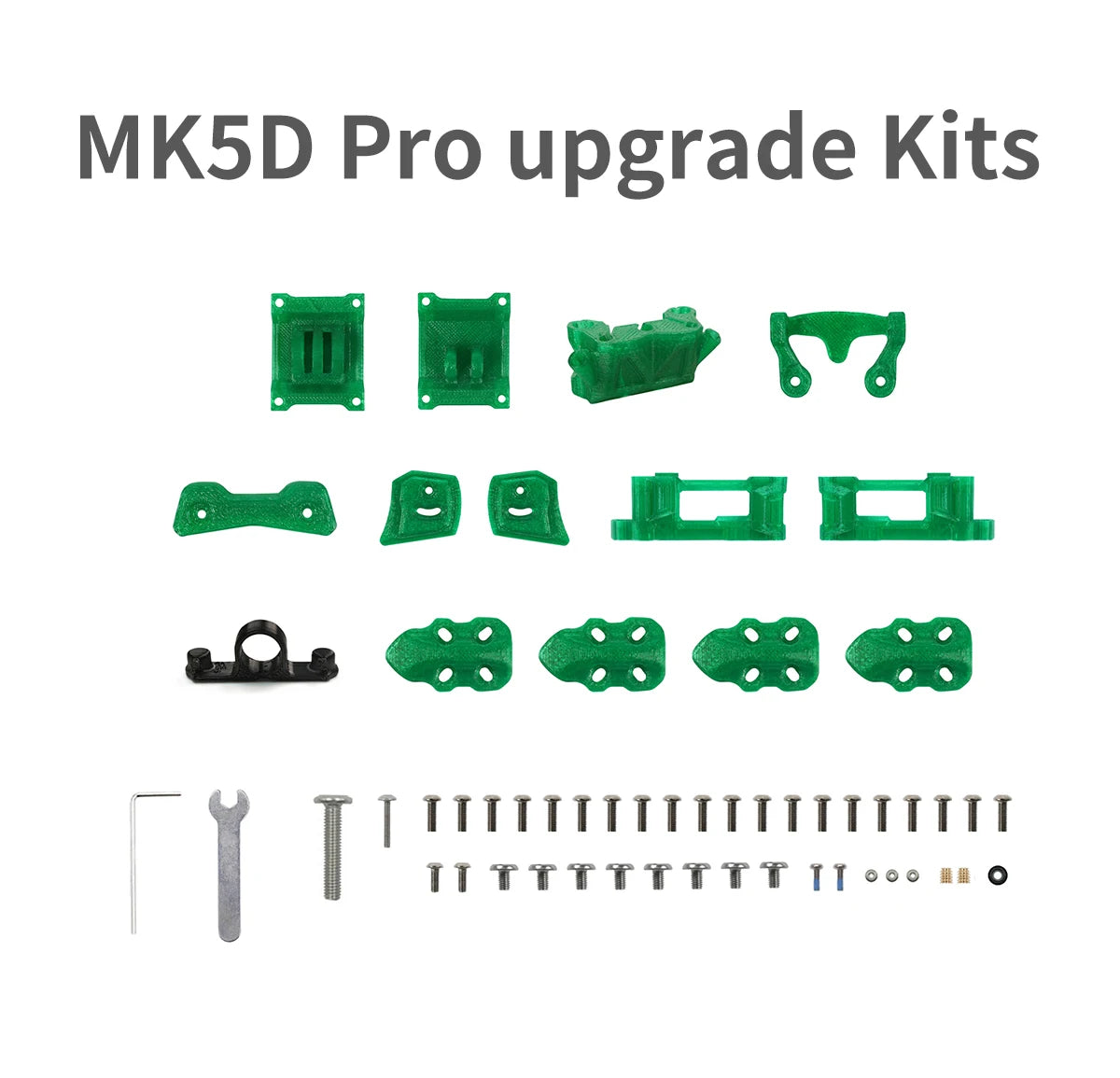

1 x Set of 3D printed parts
2 x Action camera mount holder
1 x Set of screws
1 x Set of screwdrivers
1 x Antenna fixed tube

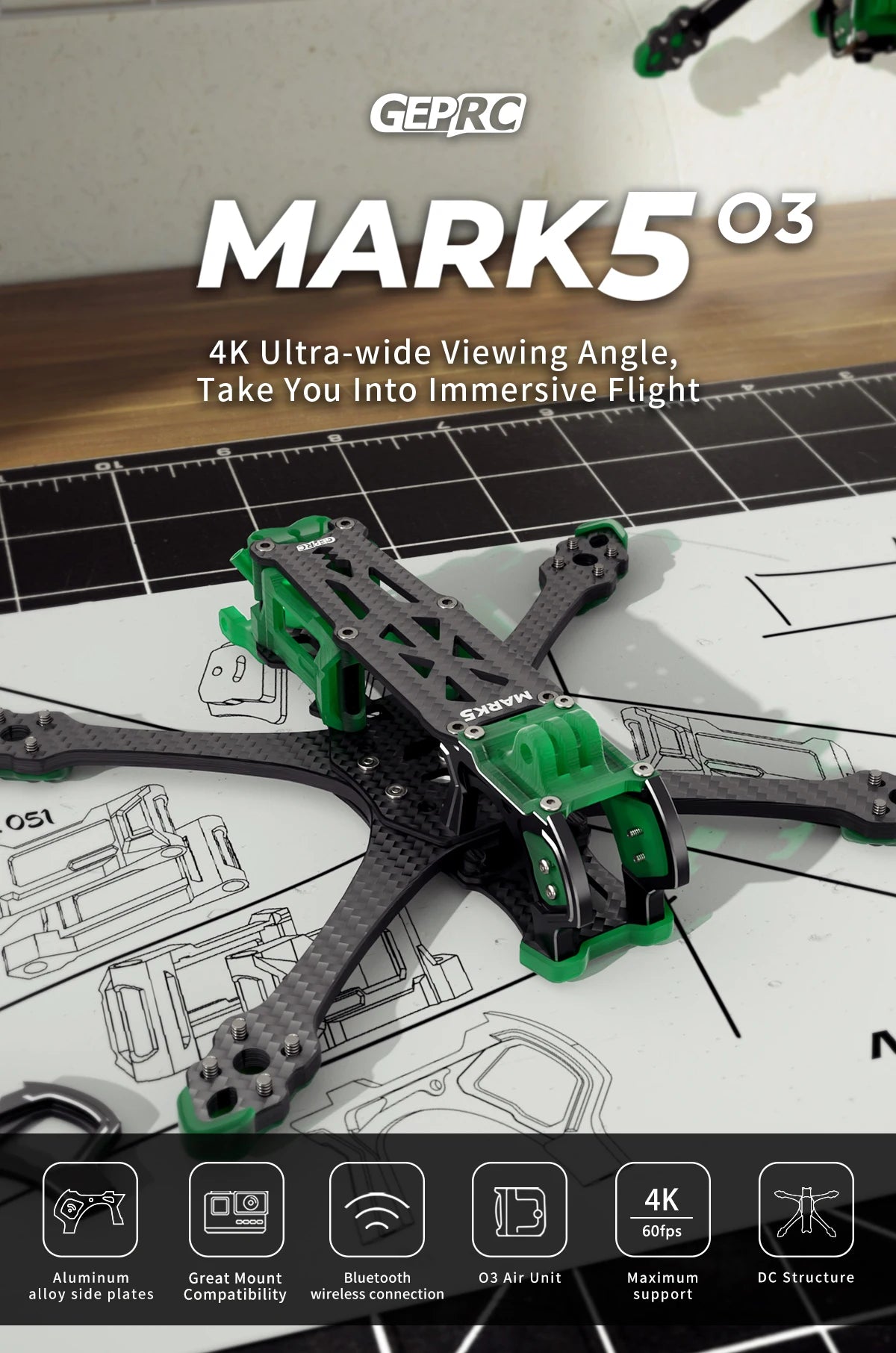

GEPRC MARK503 4K Ultra-wide Viewing Angle; Take You Into Immersive Flight 051 4K DO9S 60fps Aluminum Great Mount Maximum DC Structure side plates Compatibility wireless connection support SXavw alloy .

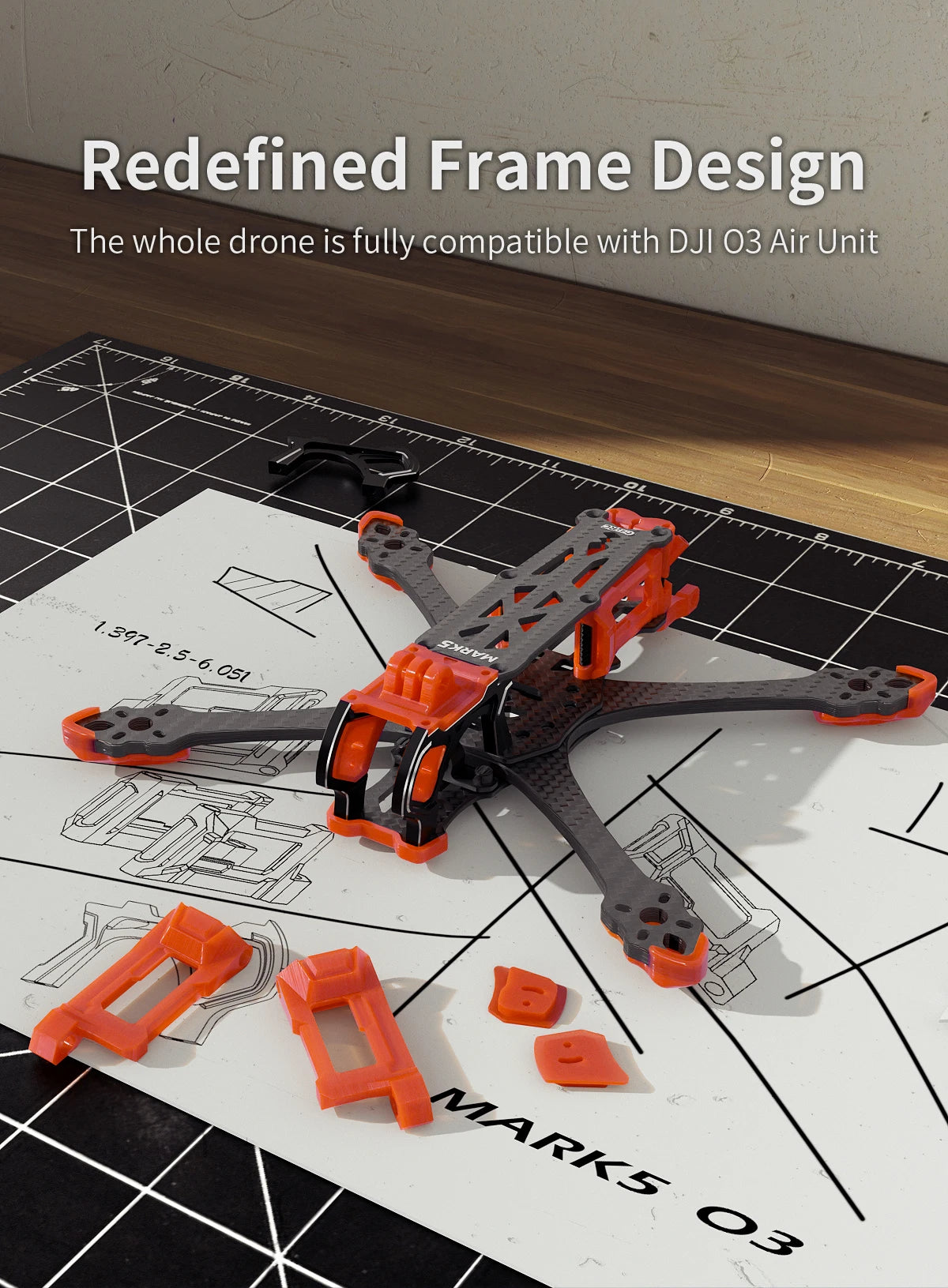

Redefined Frame Design The whole drone is fully compatible with DJI 03 Air Unit 7 F/ 4, 397-2.5-6 . SBv OS1 MAR

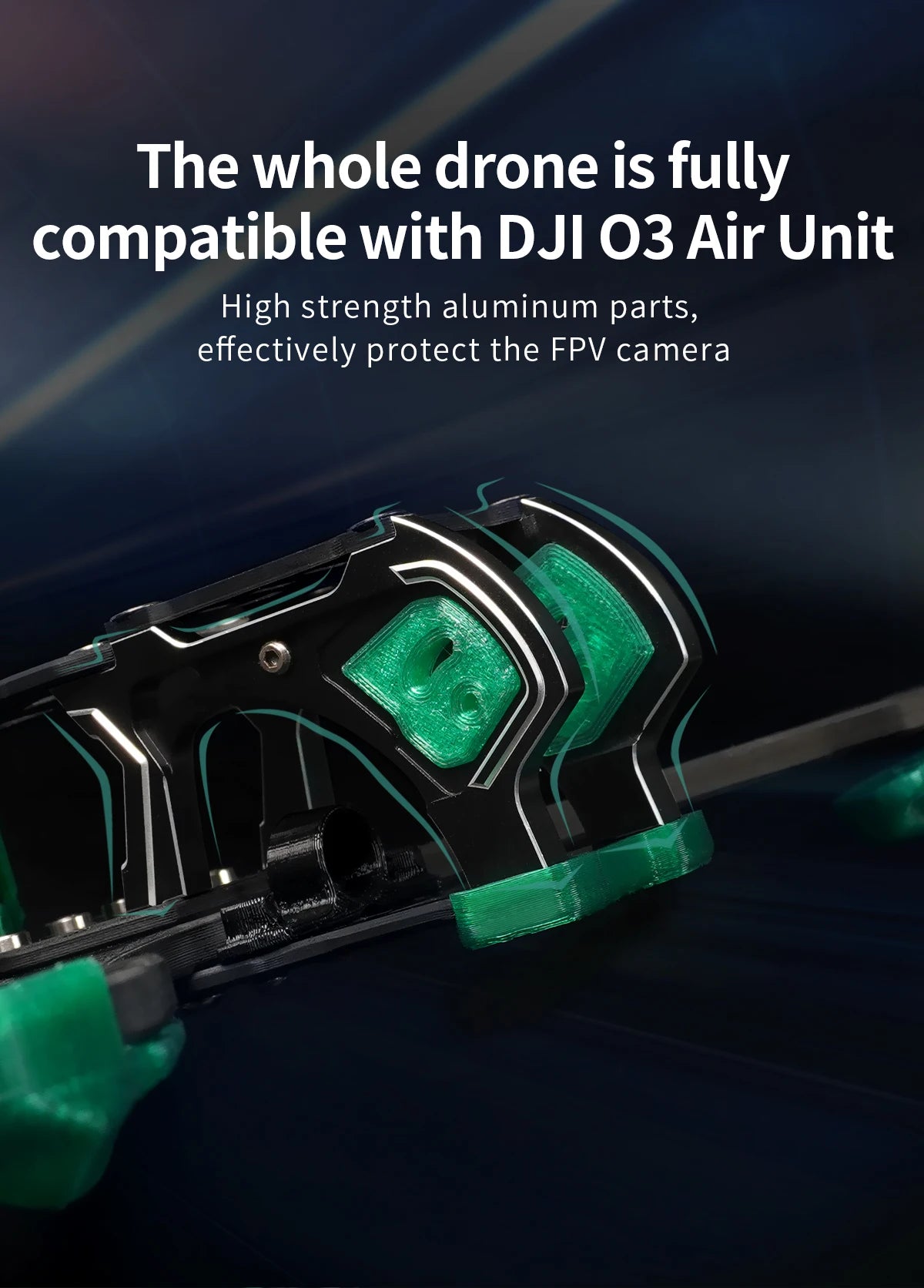

the whole drone is fully compatible with DJI 03 Air Unit High strength aluminum parts, effectively protect the FPV

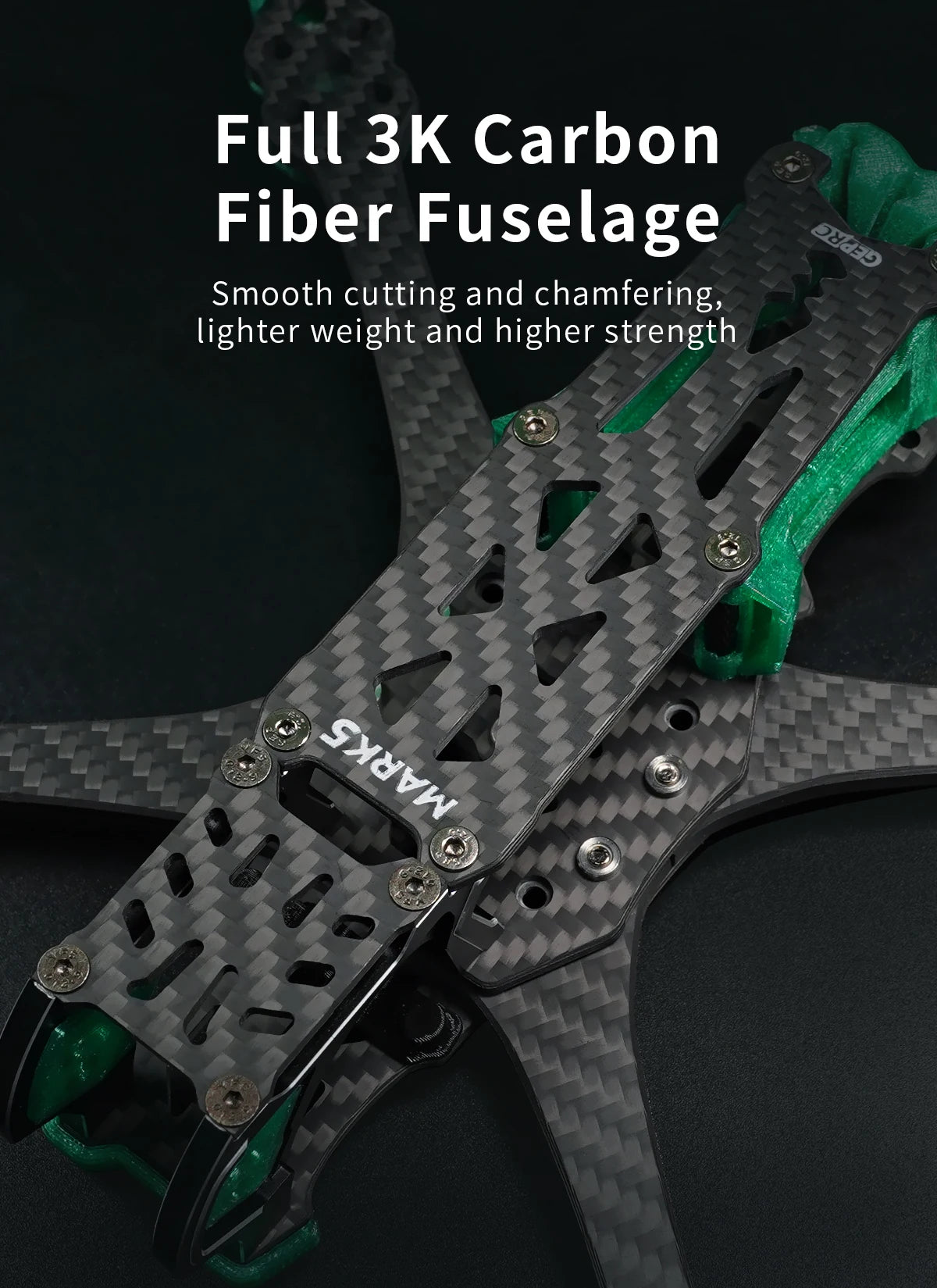

Full 3K Carbon Fiber Fuselage Smooth cutting and chamfering; lighter weight and higher strength 6 O8a35 SXdV

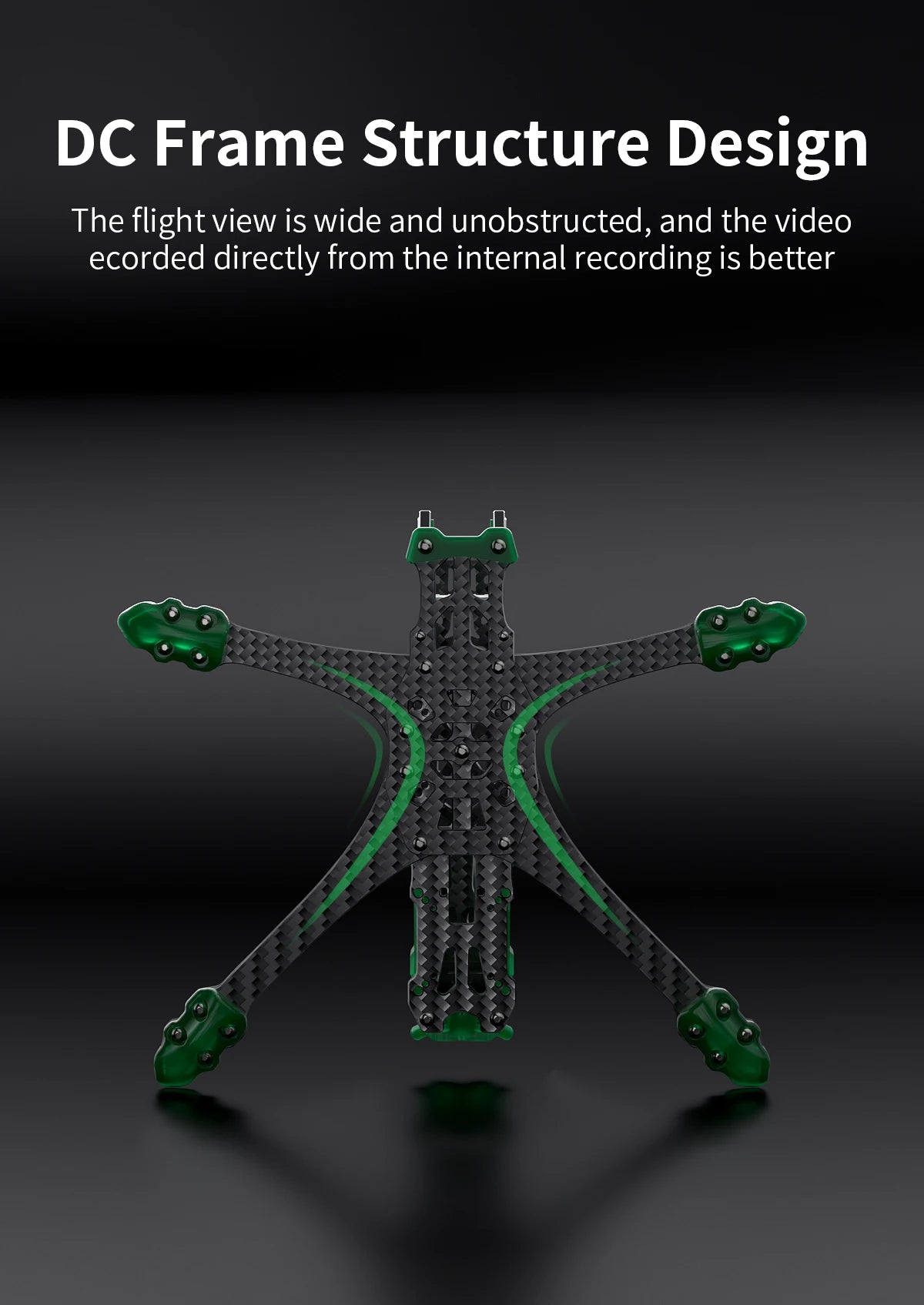

DC Frame Structure Design The flight view is wide and unobstructed, and the video ecorded directly from the internal recording is

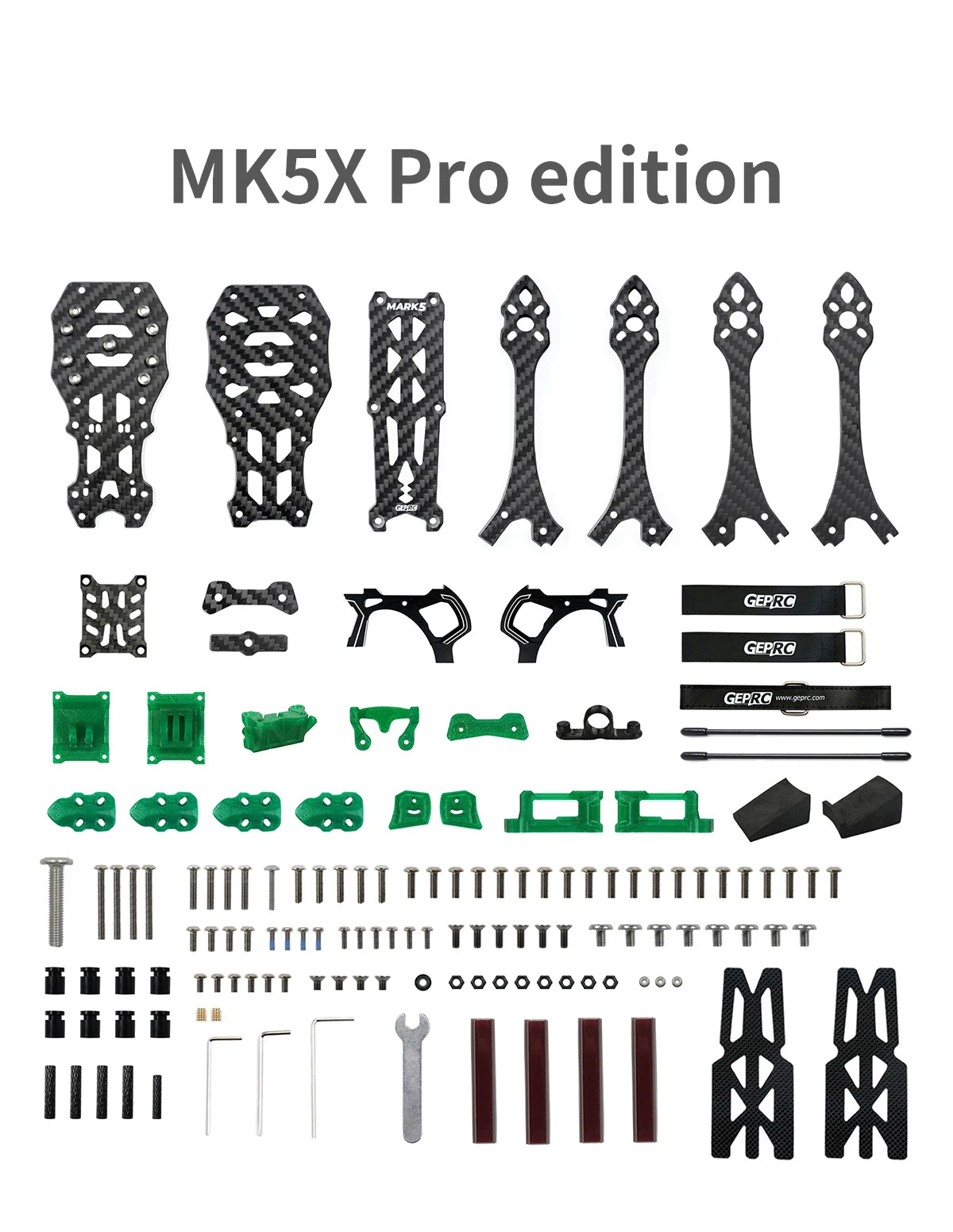

MKSX Pro edition MARKS IAR=GEPRC @ 2rG GEPRC Itorwcco M 63 p0 D I TTT TTTTTT iitt Ttitt TiiTiT TT 0 oooo0000 TIC T Ammo TtiTttt TTttTTTTTTTTT 0
MKSX Pro edition MARKS IAR=GEPRC @ 2rG GEPRC Itorwcco M 63 p0 D I TTT TTTTTT iitt Ttitt TiiTiT TT 0 oooo0000 TIC T Ammo TtiTttt TTttTTTTTTTTT 0
MKSD Pro edition MARKS GEPRO brrG GEEPRC GEPRC Iogncco M 0 + 3 b0 DD ITTTT TITTTTTTTTTTT TttTTT M TiiTiT TTTT0 00000000 T TMM 0
