GEPRC ELRS Nano Receiver – ExpressLRS NANO Open-Source 915MHz/868MHz/2.4G LongRange Suiable For DIY RC FPV Quadcopter Drone

$35.81

+ Free Shipping

Color	2.4G Shorter T 1PC915MHz Shorter T 1PC915MHz Longer T 1PC868MHz Short T 1PC868MHz Longer T 1PC 2.4G Shorter T 1PC 915MHz Shorter T 1PC 915MHz Longer T 1PC 868MHz Short T 1PC 868MHz Longer T 1PC
Ships From	China China Clear

SKU: N/A Categories: 915MHZ Series, geprc-vtx

Ask for more info

SPECIFICATIONS

Wheelbase: Screws

Use: Vehicles & Remote Control Toys

Upgrade Parts/Accessories: Adapter

Tool Supplies: Assembly Category

Size: 1 inch

Remote Control Peripherals/Devices: Receivers

Recommend Age: 12+y

RC Parts & Accs: Board

Quantity: 1 pcs

Origin: Mainland China

Model Number: GEPRC ELRS Nano Receiver

Material: Metal

Four-wheel Drive Attributes: Assemblage

For Vehicle Type: Helicopters

Brand Name: GEPRC

GEPRC ELRS Nano Receiver 915MHz/868MHz/2.46 Ge

Summary:

GEPRC ELRS Nano receiver is a new generation remote control system developed based on the ExpressLRS open source project. ExpressLRS sets new standartds for long-range connection, low latency and maximum refresh rate of 500hz.

GEPRC ELRS Nano receivers are available in 915/868MHz and 2.4GHz versions with maximum refresh rate of 500Hz and can be used with GEPRC ELRS-series products or other ELRS-compatible devices.

Specifications:

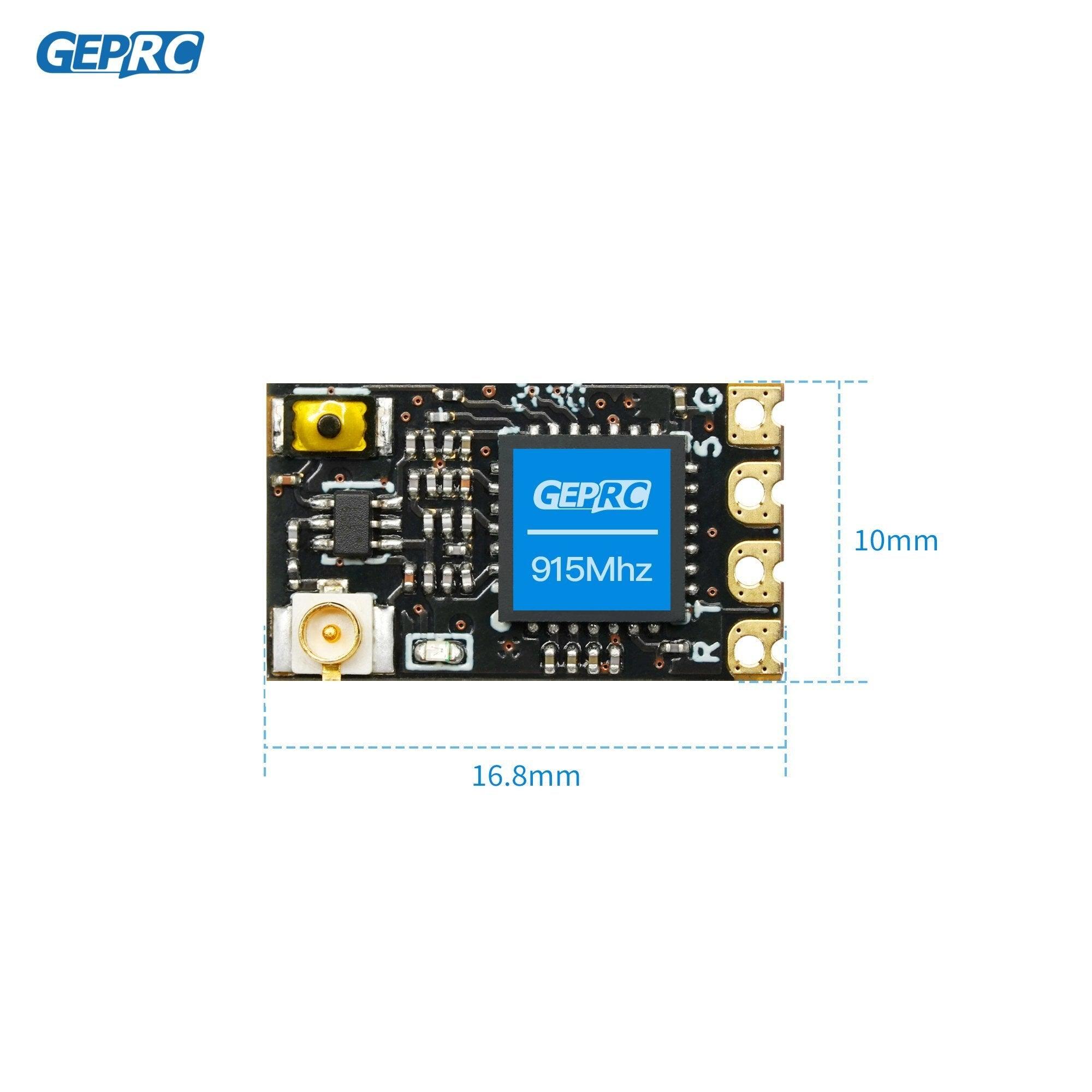

Size: 17mm*11mm

Weight: 0.6g(receiver only)

Frequency band: 915MHz FCC/868MHz EU/2.4GHz ISM

Input voltage:5V

Antenna connector: ipex1

Features:

1. Small size

2. 0.6g weight

3. WIFI Upgrade firmware

4. ELRS open source project, remote control

5.The operation is simple

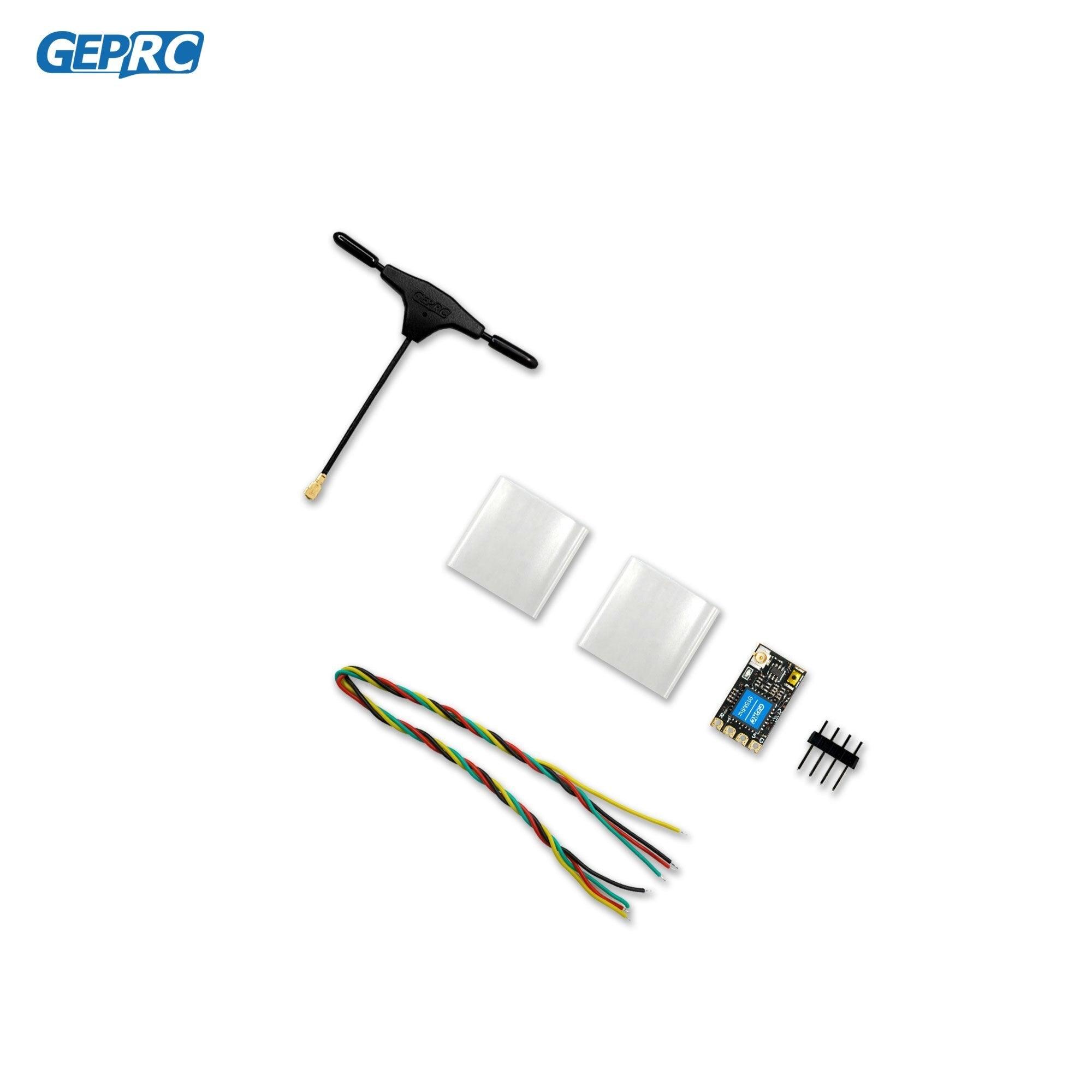

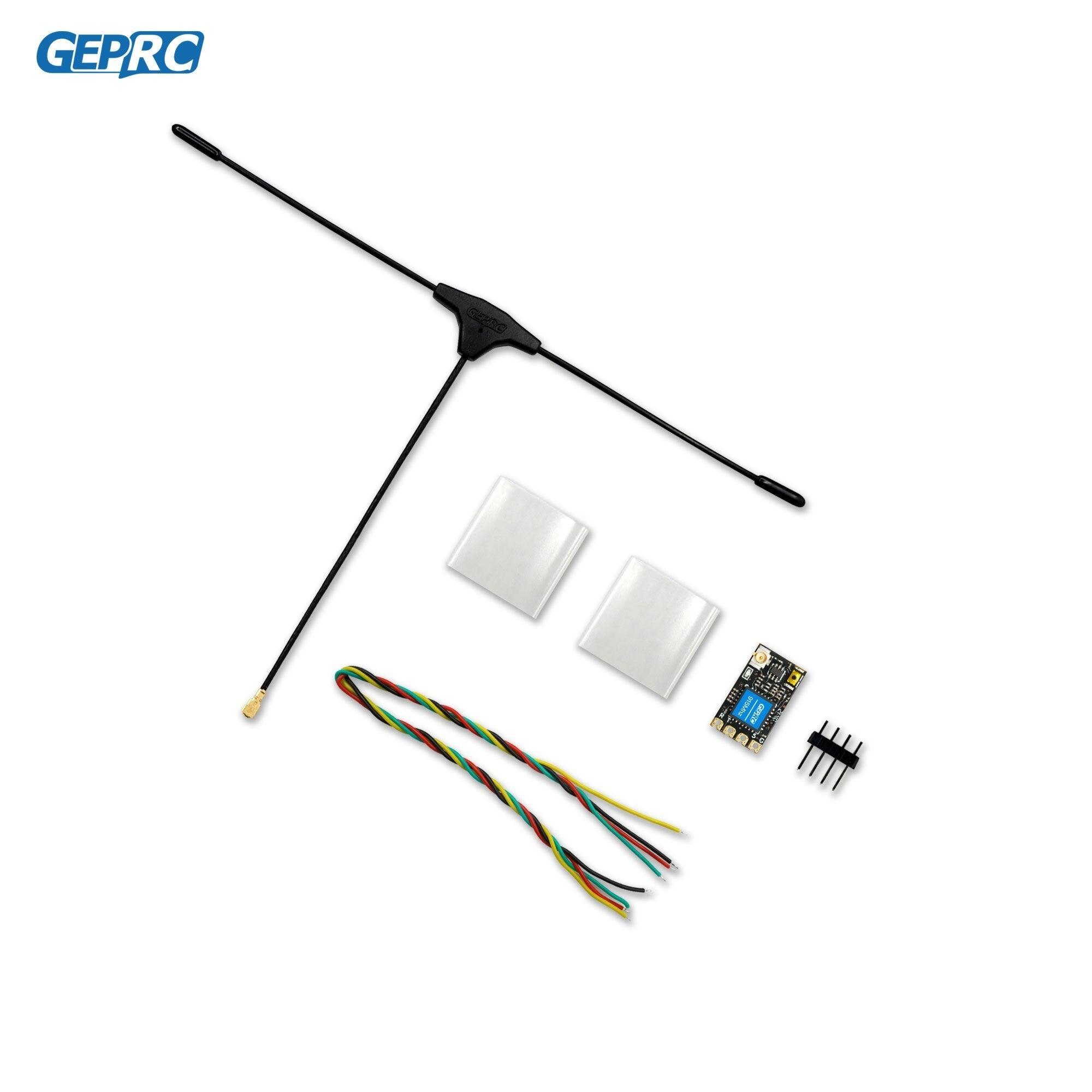

Package Included:

1 x Receiver

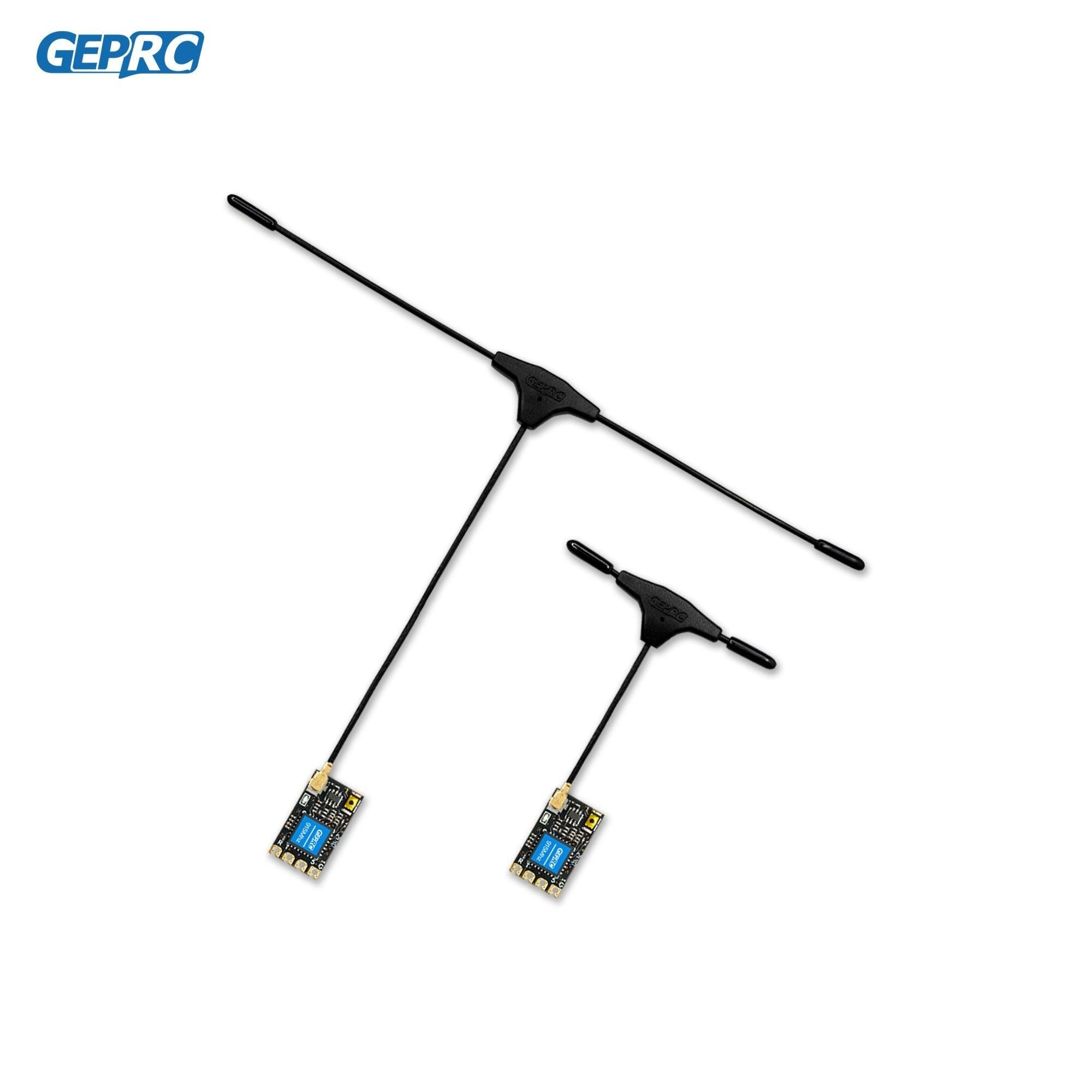

1 x T antenna

2 x Heat shrink tube

4 x Silicone cable(black, red, yellow, green)

1 x Pin (4pin)

1 x Instruction manual

LED Status indication

GEPRC ELRS Nano Receiver, LED Status Meaning Solide on Connection established Flash slowly No Tx signal Flash qucik

LED Status Indicators: Solid ON – Indicates a connection has been established. Flashing Slowly – No TX signal detected. Flashing Quickly – WIFI mode enabled. Double Flash Quickly – Binding in progress.

Connection diagram of ELRS NANO receiver and flight controller

GEPRC ELRS Nano Receiver, GEPRC ELRS Nano receiver is a new generation remote control system developed based

Open BETaflight, go to the port interface,. According to the welding situation, turn on the (serial digital receiver) switch of the corresponding port (take port 2 as an example), then save and restart

GEPRC ELRS Nano Receiver, Identifier Configuration/MSP Serial RX USB VCP 115200 UART

Set the receiver mode to (serial digital receiver) and change the serial digital receiver protocol to (CRSF) GEPRC ELRS Nano Receiver, configure a serial port (via Ports tab) and choose a Ser Receiver Provide

GEPRC ELRS Nano Receiver, configure a serial port (via Ports tab) and choose a Ser Receiver Provide

To use the RX_Serial feature, configure a serial port via the ‘Ports’ tab and select a Serial Receiver Provider.
