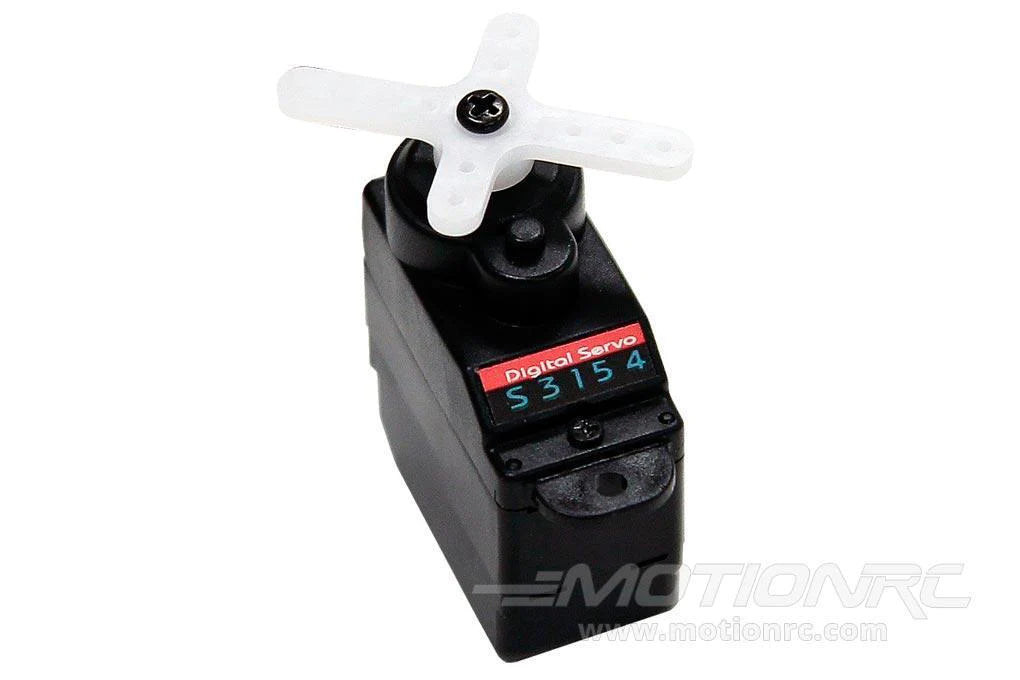

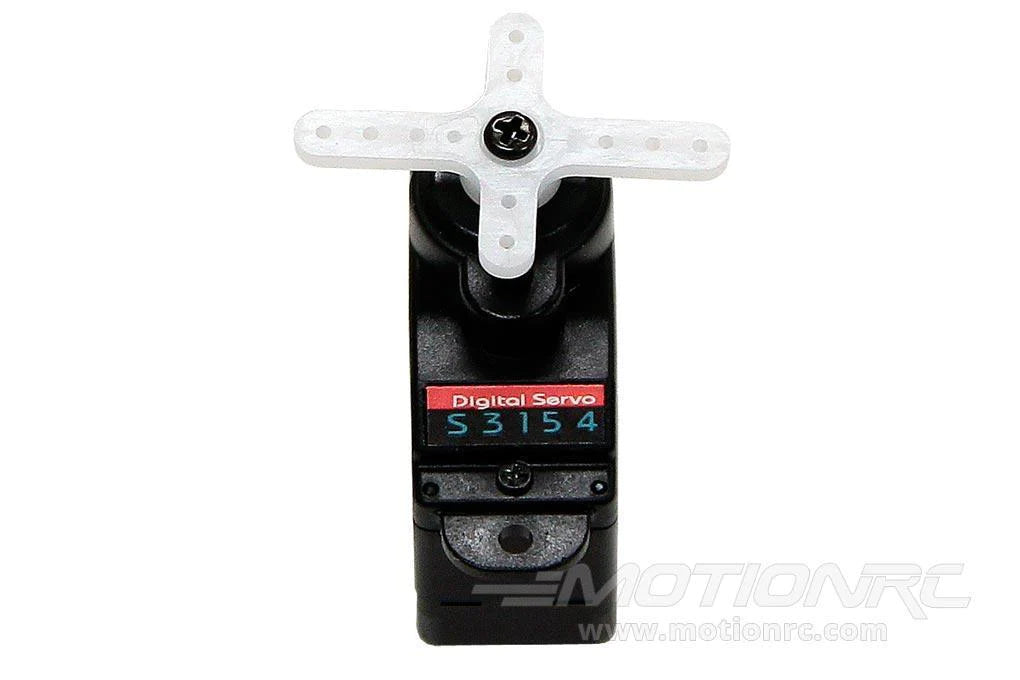

S3154 High Torque Digital Sub-Micro Servo from Futaba – FUTM0654
When you need a quality high torque sub-micro size servo that works well for 1400mm wingspan and smaller airplanes, small EDF jets, and 200 to 450 size helicopters the Futaba S3154 performs beautifully.
Features:
- Ideal for smaller-sized electric aircraft
- Increased precision (digital)
- Light weight, perfect for Micro helicopters and aircraft
- Nylon gears
- One year warranty
Includes:
- 1x S3154 high torque digital sub-micro servo
- 1x .91″ x .64″ (23mm x 16mm) 4 arm servo horn (comes pre-installed)

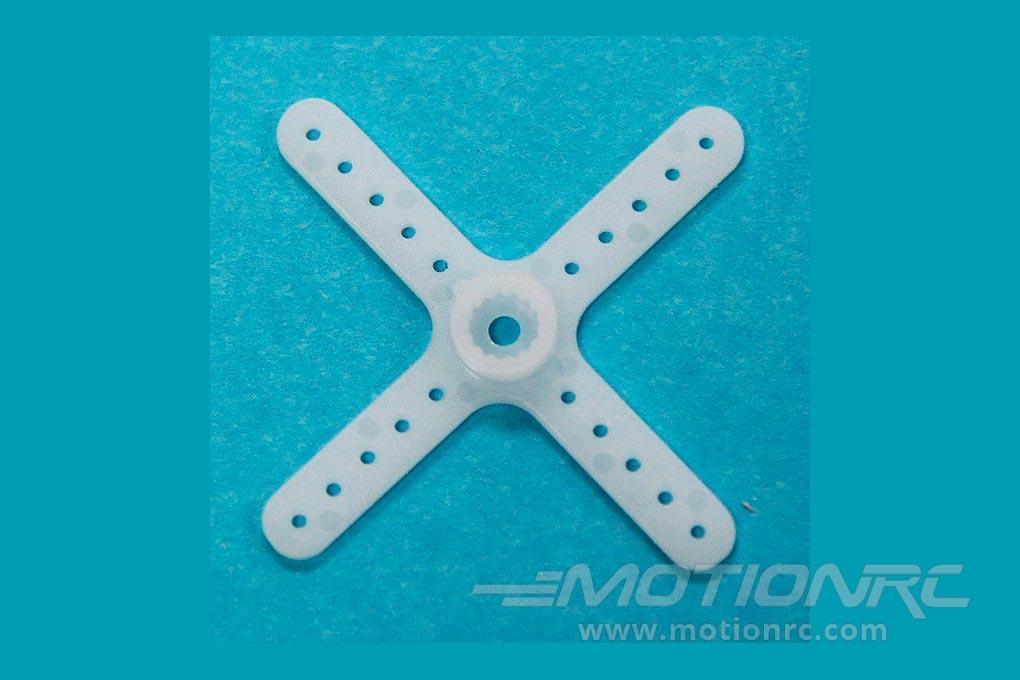

- 1x 1.33″ x 1.33″ (34mm x 34mm) 4 arm servo horn
- Instruction sheet
Product Specifications:
Servo Class | Sub-Micro |
Servo Type | Digital |
Gear Material | Nylon |
Direction | Standard / Normal |
Operating Voltage Range | 4.8V – 6V |
Speed (4.8V) | 0.10 sec @ 60 deg |
Speed (6V) | 0.09 sec @ 60 deg |
Torque (4.8V) | 1.5 kg/cm (21 oz/in) |
Torque (6V) | 1.7 kg/cm (24 oz/in) |
Current Draw at Idle | N/A |
Current Draw Operating (No Load) | N/A |
Dimensions (L x W x H) | 22 x 11 x 20mm |
Weight | 7.9g (0.28oz) |

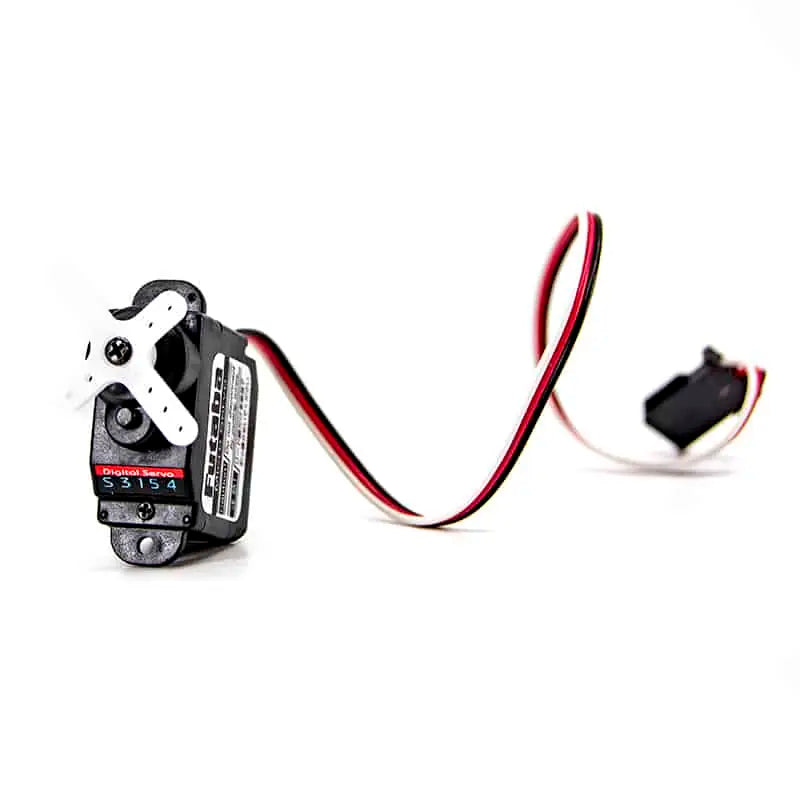

Lead Length | 170mm / 6.5in |
Description

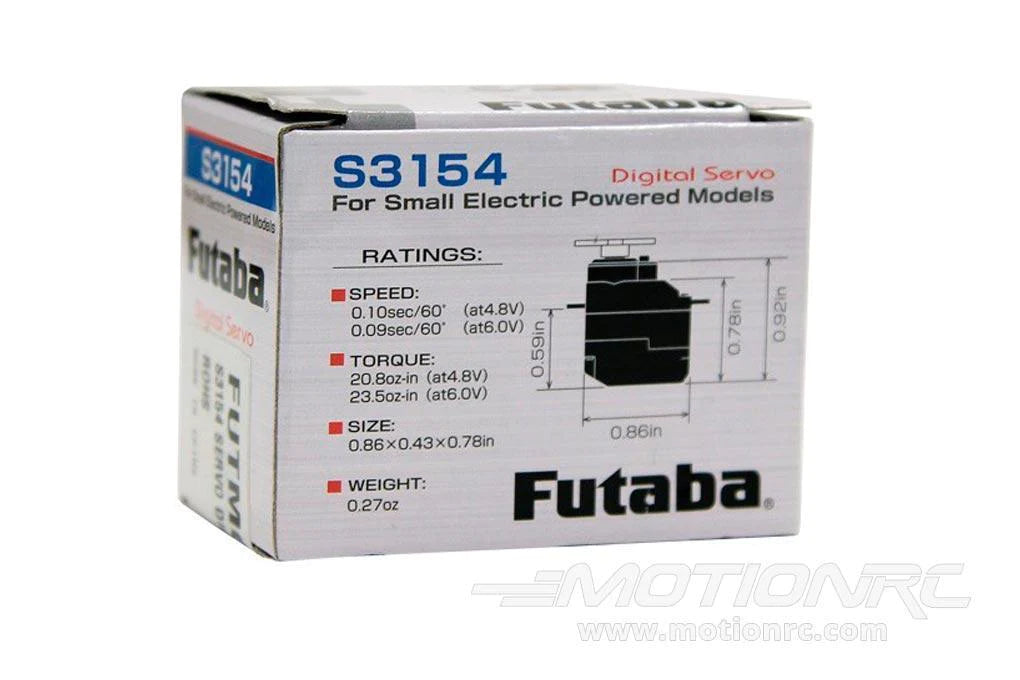

S3154– Micro Digital Air Servo
For Small Electric Powered Models (01102271-3)
SPEED:
0.10 sec/60°at 4.8V
0.09 sec/60° at 6.0V
TORQUE:
20.8 oz/in at 4.8V
23.5 oz/in at 6.0V
SIZE:
0.86 in x 0.43 in x 0.78 in
WEIGHT:
0.27 oz
The S3154 servo is a micro servo for small electronic powered models. Pay special attention to the following points:
- Do not use with gas powered engine models or other models that require high torque.
- Using supply voltage higher than 6.0V or applying high loads to the servo will shorten the life.
- Always use the servo horn specifically designed for this micro servo. Do not use conventional servo horns.
- Excessive force or shock to the servo horn may damage the ultra mini precision gears inside the servo.
