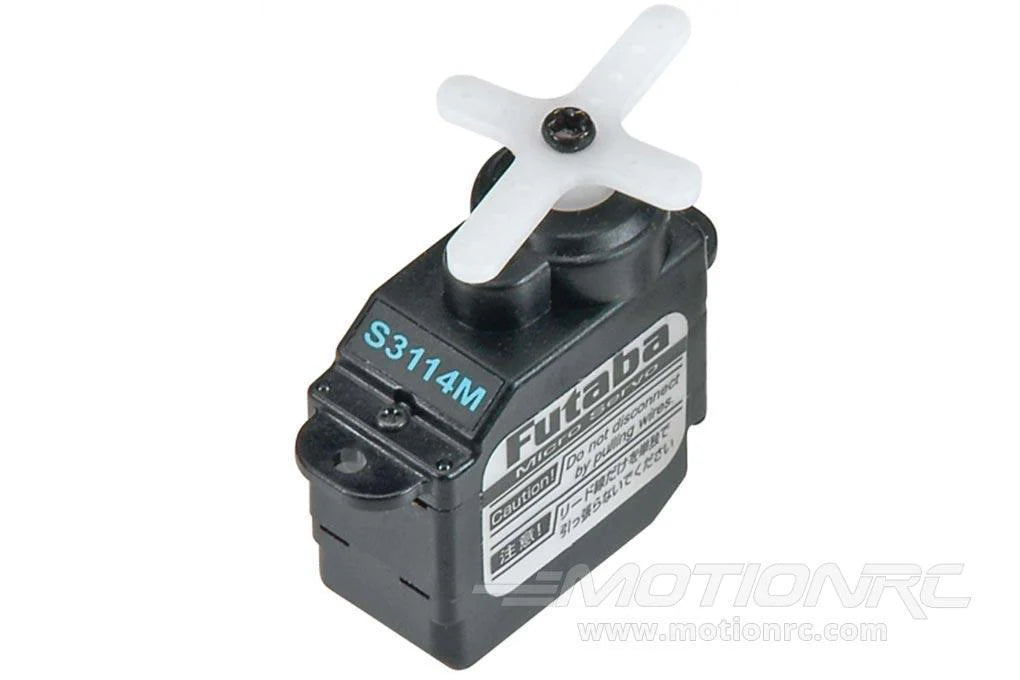

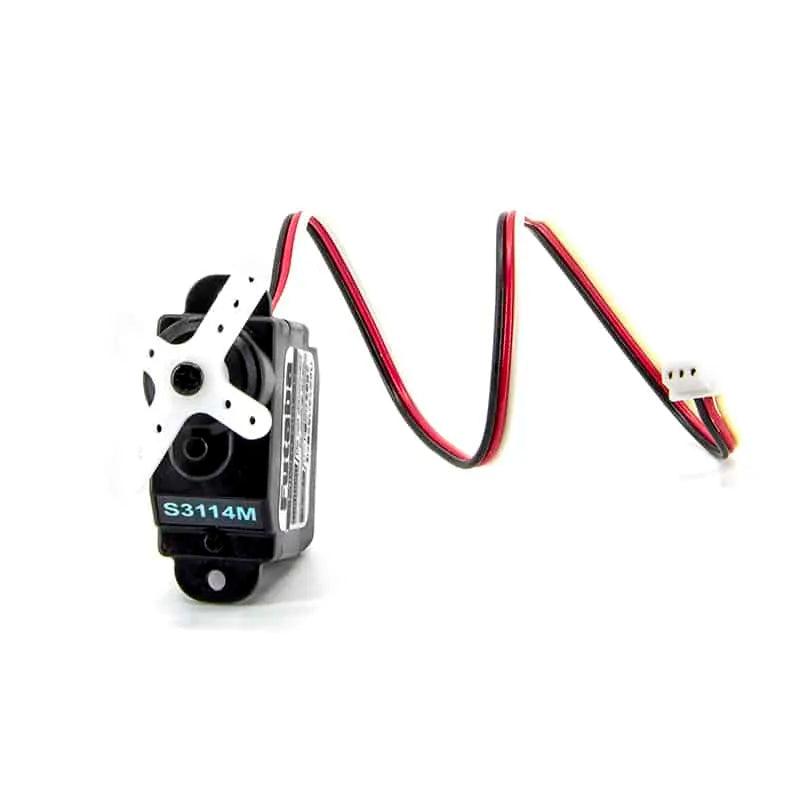

S3114M High Torque Nylon Gear Sub-Micro Servo with Micro Plug from Futaba – FUTM0704
The S3114M high torque sub-micro is a basic servo that works well for 1400mm wingspan and smaller airplanes, small EDF jets, and 200 to 450 size helicopters.
Features:
- Quality basic servo perfect for 1400mm and smaller airplanes and small EDF jets
- Includes micro connector
- High torque
Includes:
- 1x S3114M high torque sub-micro servo with micro plug

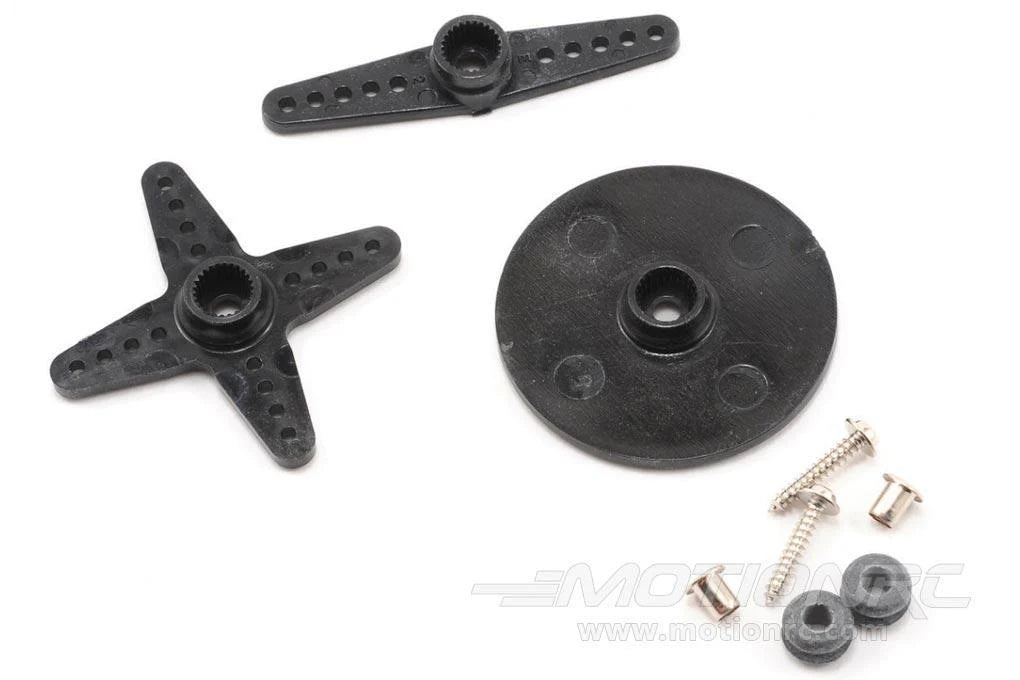

- 1x .91″ x .64″ (23mmx16mm) 4 arm servo horn (comes pre-installed)
- 1x 1.33″ x 1.33″ (34mmx34mm) 4 arm servo horn
Product Specifications:
Servo Class | Sub-Micro |
Servo Type | Analog |
Gear Material | Nylon |
Direction | Standard / Normal |
Operating Voltage Range | 4.8V to 6V |
Speed (4.8V) | 0.10 sec @ 60 deg |
Speed (6V) | 0.09 sec @ 60 deg |
Torque (4.8V) | 1.5 kg/cm (21 oz/in) |
Torque (6V) | 1.7 kg/cm (24 oz/in) |
Current Draw at Idle | 8 mA |
Current Draw Operating (No Load) | N/A |

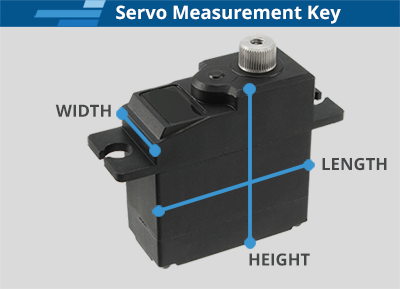

Dimensions (L x W x H) | 22 x 11 x 20mm |
Weight | 7.5g (0.26oz) |
Lead Length | 165mm / 6.5in |
