The S3114 servo is a micro servo for small electronic powered models. Pay special attention to the following points:
- Do not use with gas powered engine models or other models that require high torque.
- Using supply voltage higher than 6.0V or applying high loads to the servo will shorten the life.
- Always use the servo horn specifically designed for this micro servo. Do not use conventional servo horns.
- Excessive force or shock to the servo horn may damage the ultra mini precision gears inside the servo.

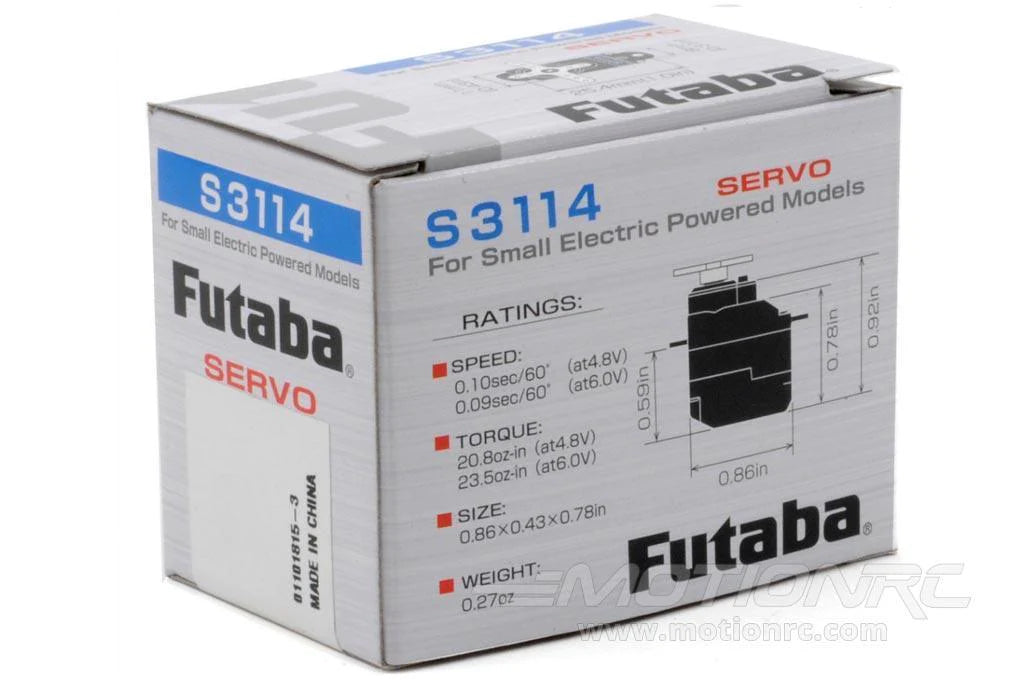

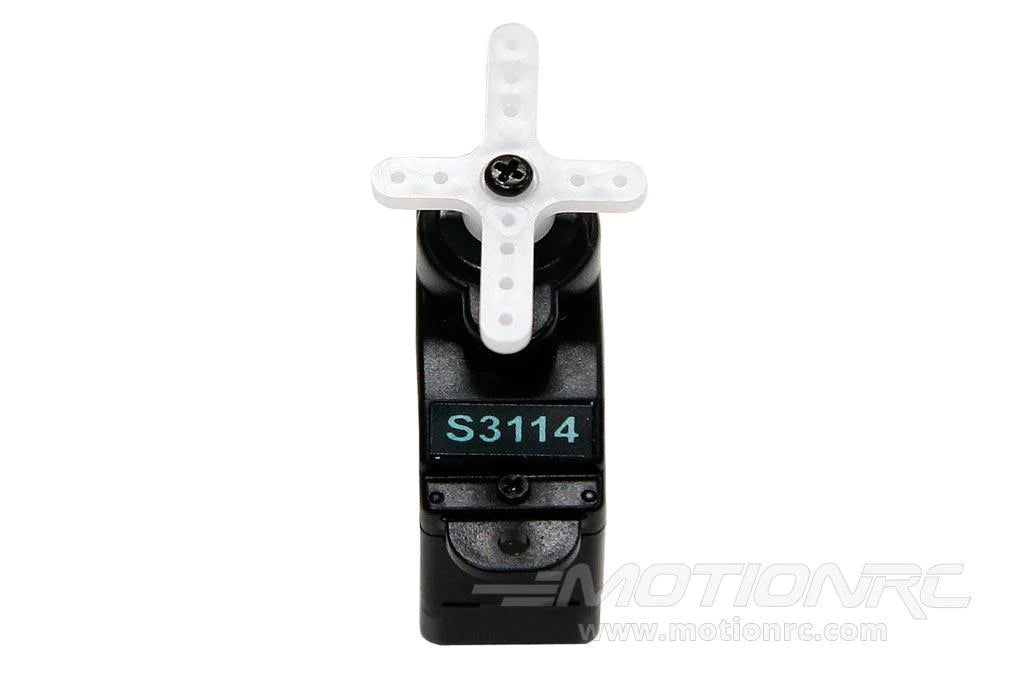

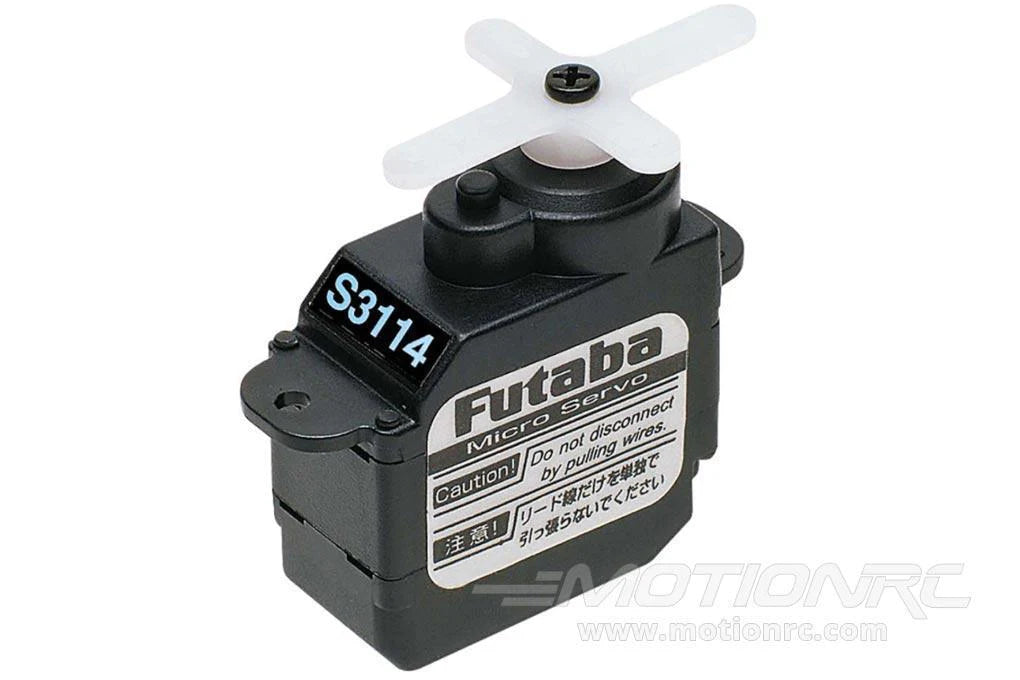

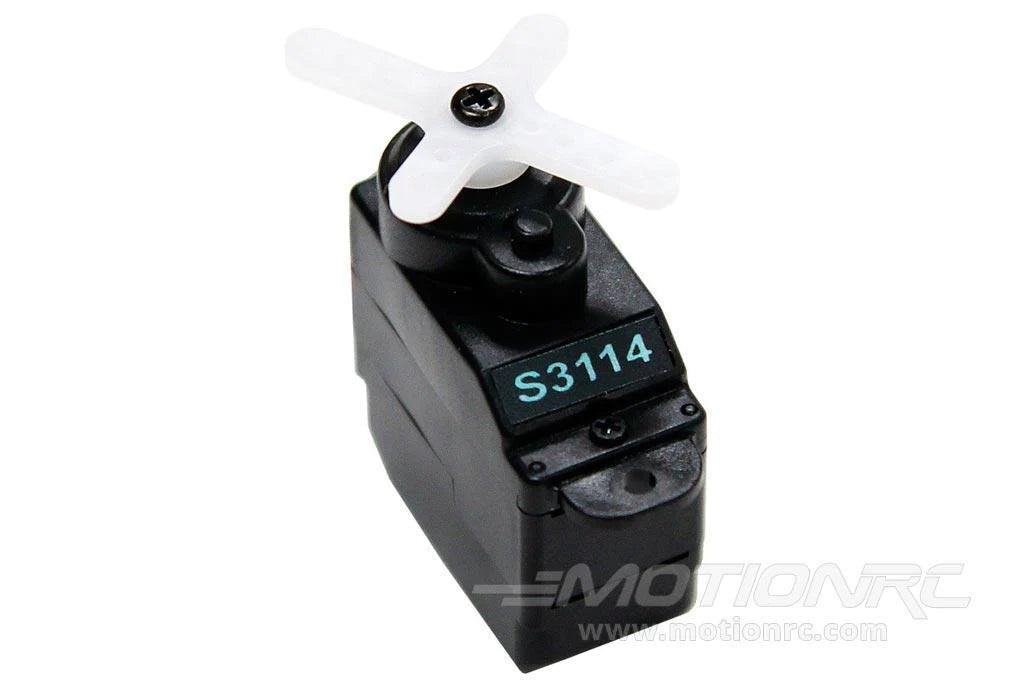

S3114 High Torque Nylon Gear Sub-Micro Servo from Futaba – FUTM0414
The S3114 high torque sub-micro is a basic servo that works well for 1400mm wingspan and smaller airplanes, small EDF jets, and 200 to 450 size helicopters.
Features:
- Quality basic servo perfect for 1400mm and smaller airplanes and small EDF jets
- High torque
- Ideal for electric planes and small electric helis
- Nylon gears
- One year warranty
Includes:
- 1x S3114 high torque sub-micro servo
- 1x .91″ x .64″ (23mmx16mm) 4 arm servo horn (comes pre-installed)
- 1x 1.33″ x 1.33″ (34mmx34mm) 4 arm servo horn
![Servo Measurement Key](https://rcdrone.top/cdn/shop/files/servo2a_961da3ad-3529-4f11-83ee-39073f5977b9.png?v=1714927573)
Product Specifications:
Servo Class | Sub-Micro |
Servo Type | Analog |
Gear Material | Nylon |
Direction | Standard / Normal |
Operating Voltage Range | 4.8V to 6V |
Speed (4.8V) | 0.10 sec @ 60 deg |
Speed (6V) | 0.09 sec @ 60 deg |
Torque (4.8V) | 1.5 kg/cm (21 oz/in) |
Torque (6V) | 1.7 kg/cm (24 oz/in) |
Current Draw at Idle | 8 mA |
Current Draw Operating (No Load) | N/A |
Dimensions (L x W x H) | 22 x 11 x 20mm |
Weight | 7.8g (0.28oz) |
Lead Length | 304.8mm / 12in |
