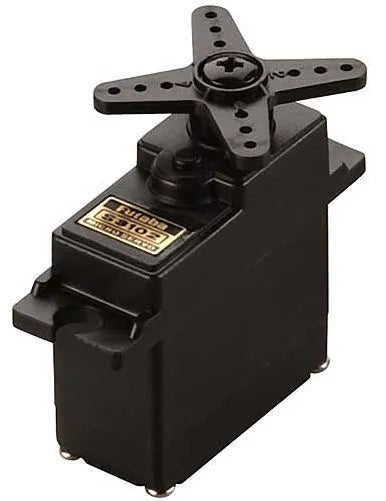

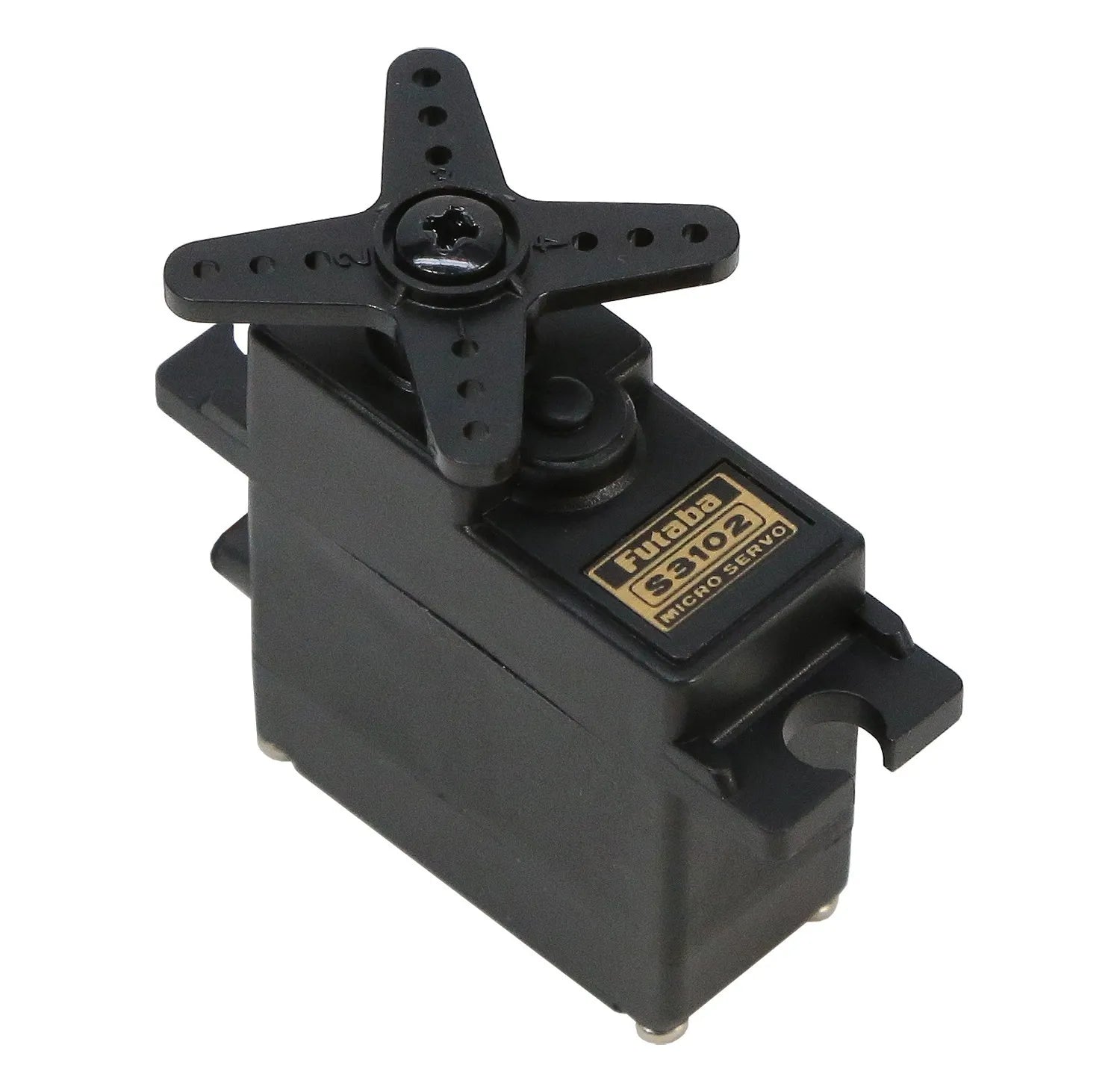

This is the S3102 Micro Precision Servo. Designed and Manufactured for use with Futaba Radios.

Features:

• High Precision
• Small Compact Design
• 3-pole motor
• Metal and Nylon Gears and One Oilite Bushing

Includes:

• One S3102 Servo
• One Servo Accessory Pack (horns, grommets, screws, bushings)
• NOTE: for additional servo horns use FUTM1985

Specifications:

• Speed: .25 sec/60 @ 4.8V  .20 sec/60 @ 6V
• Torque: 51 oz-in (3.7 kg-cm) @ 4.8V  64 oz-in (4.6 kg-cm) @ 6V

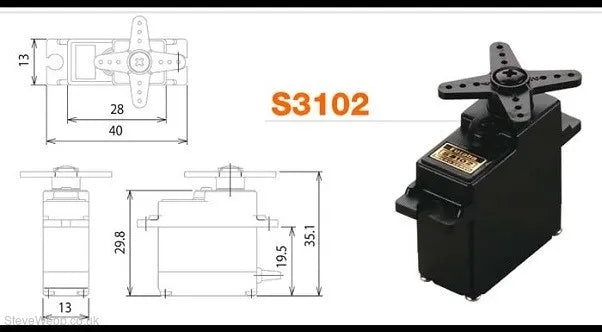

• Dimensions: 1.1 x 0.5 x 1.2″ (1-1/8 x 1/2 x 1-3/16″) (28 x 13 x 30mm)
• Weight: .74oz (3/4oz) (21g)

Description

S3102– Micro Analog Air Servo

Metal Gear Micro Servo (01102264-3)

SPEED:
0.25 sec/60°at 4.8V

TORQUE:
3.7 kgf/cm at 4.8V
51.4 ozf/in at 4.8V

SIZE:
28 mm x 13 mm x 29.7 mm
1.10 in x 0.51 in x 1.17 in

WEIGHT:
21 g
0.74 oz

RATED VOLTAGE:
DC 4.8v
