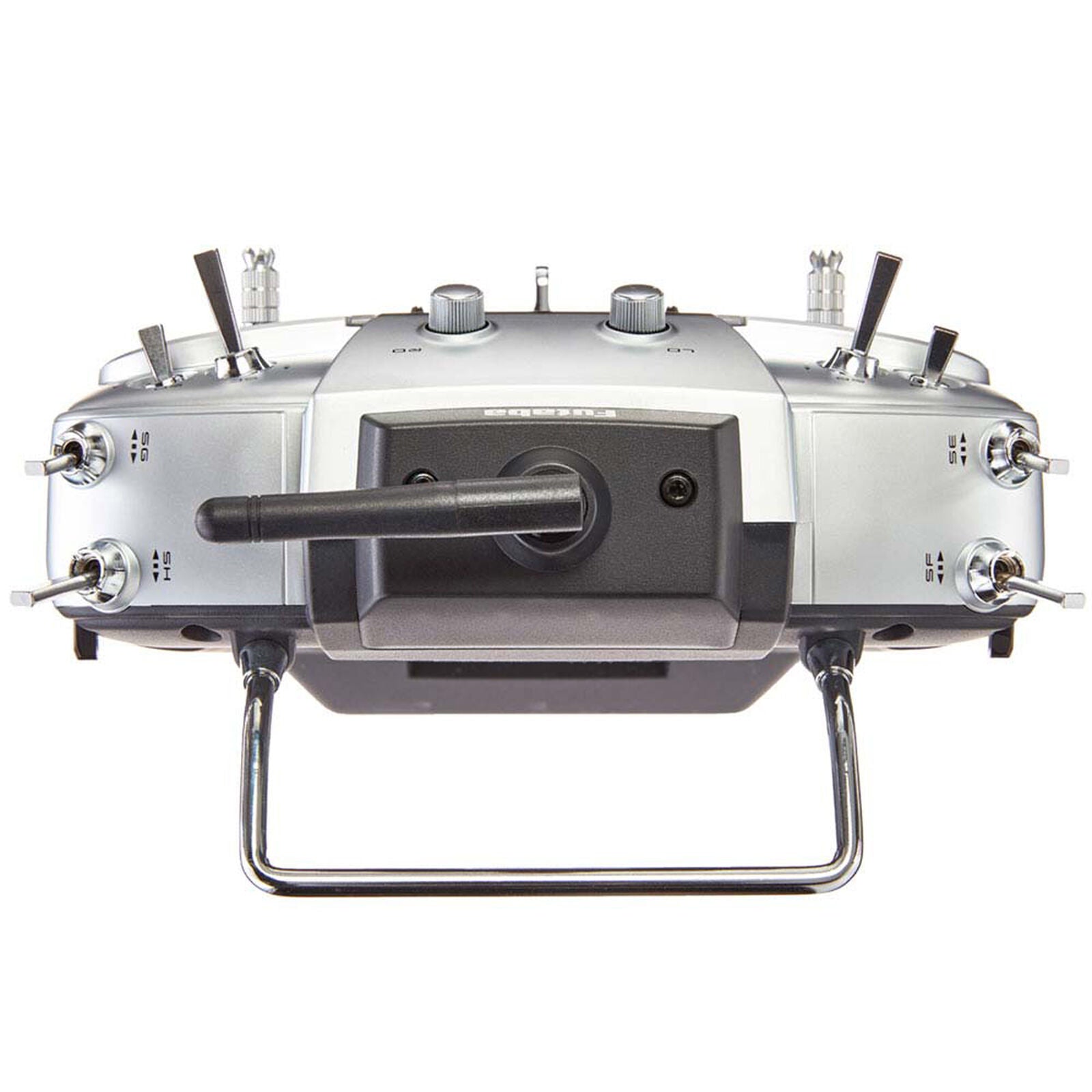

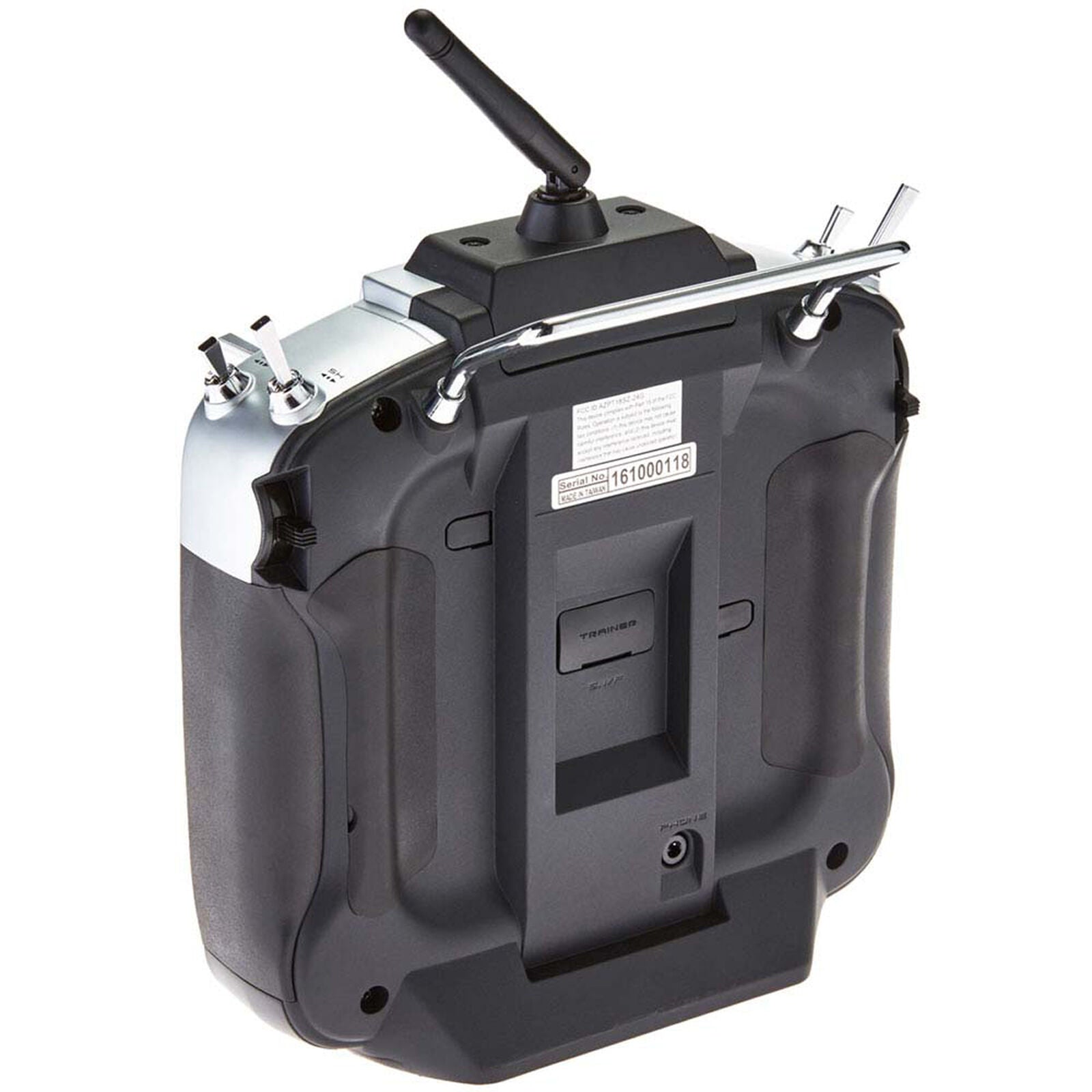

Futaba 18SZ 2.4GHZ 18CH Transmitter – HVGA 4.3 inch Full Color LCD Touch Screen Air Telemetry Radio System

$1,299.00$1,439.00

SKU: N/A Category:

Description

An incredibly sophisticated 18-channel marvel, the 18SZ is perfect for pro pilots and weekend wingers alike. It offers all the functions, features, and flight conditions of top-of-the-line systems at roughly a third of the price of the 18MZ.

Leading off its list of features is full telemetry function. The 18SZ is set up to receive temperature, RPM, altitude, GPS, voltage, current, and data logging telemetry information, keeping you more tightly riveted to your aircraft than ever before. And, its intuitive full touchscreen display and extensive flight times make it the radio every serious pilot needs at the field.
Features:
  • 4.3 inch full-color fast-processing touch LCD screen for quick, clear data viewing and menu surfing
  • 8 full conditions to customize every flight to your flying situation
  • Telemetry temperature, RPM, altitude, GPS, voltage, current, and data logging to keep you more connected to your model than ever before
  • Expandable, 30-model internal memory to save your settings for all your aircraft
  • 6.6V 2100mAh LiFe battery for 7 to 8 hours of flight time
  • Telemetry voice messages keep you up to date on your plane’s vital statistics
  • User-updateable software lets you keep your radio cutting edge
  • 2 side levers, 6 digital trims, 8 toggle switches to accommodate every function you can dream up
  • Quad bearing stick assemblies
  • Speaker and earphone jack for easily audible telemetry announcements
  • Trainer and S.Bus ports
  • Data editor S.Bus programming
  • 15 character user naming and model naming
  • Sub trims
  • Servo reversing
  • End point adjustment
  • Data resets
  • Battery fail safe
  • Servo speed adjustment
  • AFR D/R
  • AFR curve mode (3)
  • AFR curve point (17 points)
  • Programmable mixing (10 circuits per condition)
  • FASSTest, FASST, T-FHSS, S-FHSS
  • Throttle cut
  • Idle down
  • Logic switch
  • User menu
  • Servo monitor
  • Up/down timer (2)
  • System timer
  • Model timer
  • Throttle stick alarm
  • Rubber hand grips
  • Backlight adjustment
  • Calibration
  • Alarm voltage
  • Alarm vibrator
  • Auto power off
  • Range check
  • Dual receiver set up
Airplane features:
  • 13 wing types
  • 3 tail types
  • 2 rudder types
  • Flap setting
  • Aileron differential
  • Aileron to camber flap mix
  • Aileron to brake flap mix
  • Aileron to rudder mix
  • Airbrake to elevator mix
  • Rudder to aileron mix
  • Rudder to elevator mix
  • Camber mix
  • Elevator to camber mix
  • Camber flap to elevator mix
  • Snap roll
  • Airbrake mix
  • V tail
  • Ailevator
  • Winglet
  • Motor mix
  • Multi-engine
Glider features:
  • 13 wing types
  • 3 tail types
  • 2 rudder types
  • Flap setting
  • Aileron differential
  • Aileron to camber flap mix
  • Aileron to brake flap mix
  • Aileron to rudder mix
  • Rudder to aileron mix
  • Airbrake to elevator mix
  • Camber mix
  • Elevator to camber mix
  • Camber flap to elevator mix
  • Butterfly mixing
  • Butterfly to elevator
  • Trim mix 1
  • Trim mix 2
  • V-tail
  • Ailevator
  • Winglet
  • Motor mix

Description

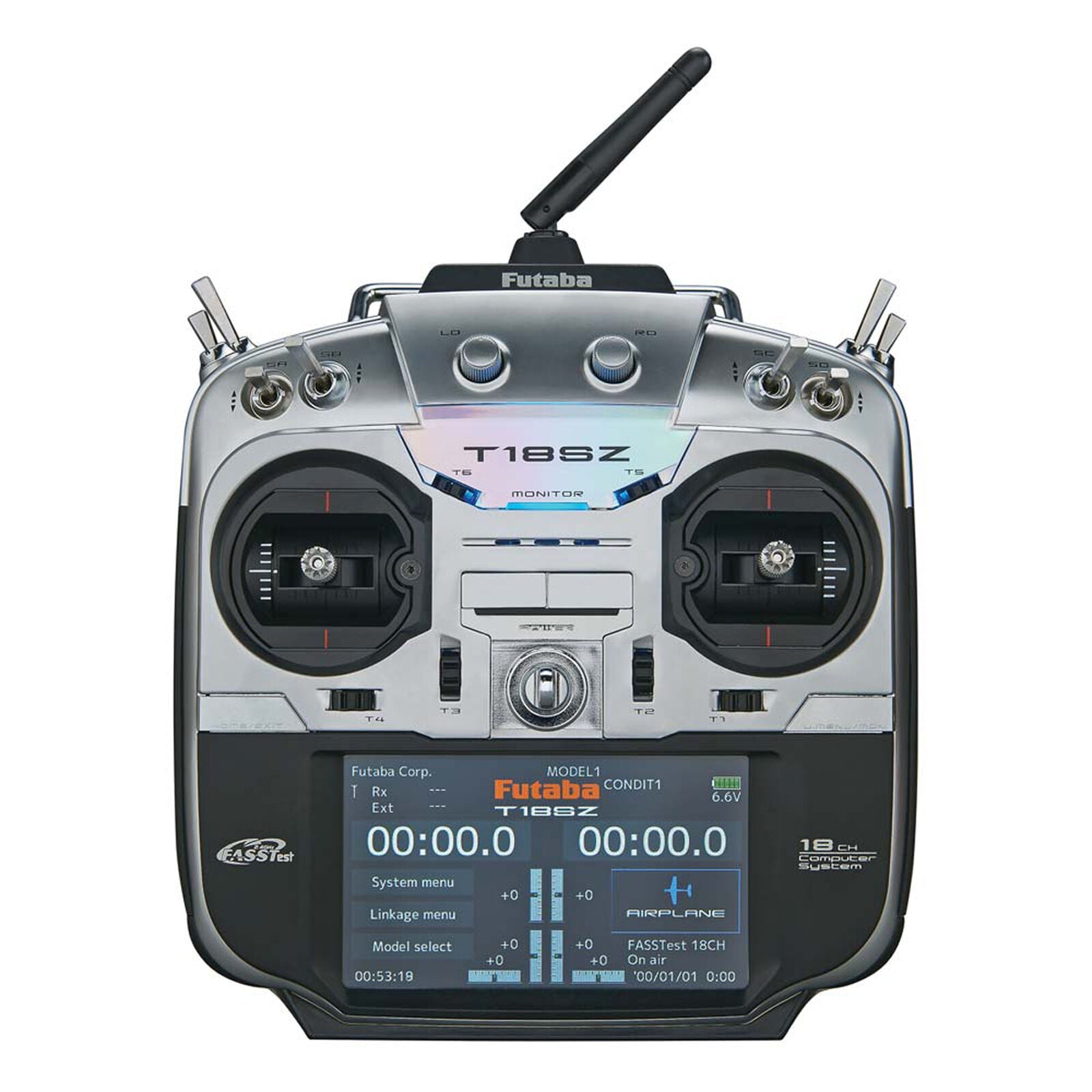

18SZ Transmitter – 18-Channel Digital Proportional RC System


2-Stick, 18-Channel, FASSTest 2.4 GHz System
(01004341-1) (01004341-3) (01004342-1) (01004342-3) (01004315-1) (01004367-3) (01004346-3) (01004424-3) (01004425-3)


FEATURES

FASSTEST SYSTEM:
The 18SZ transmitter has adopted the bidirectional communication system “FASSTest”. Data from the receiver can be checked in your transmitter. FASSTest is a maximum 18 channels 2.4 GHz dedicated system.

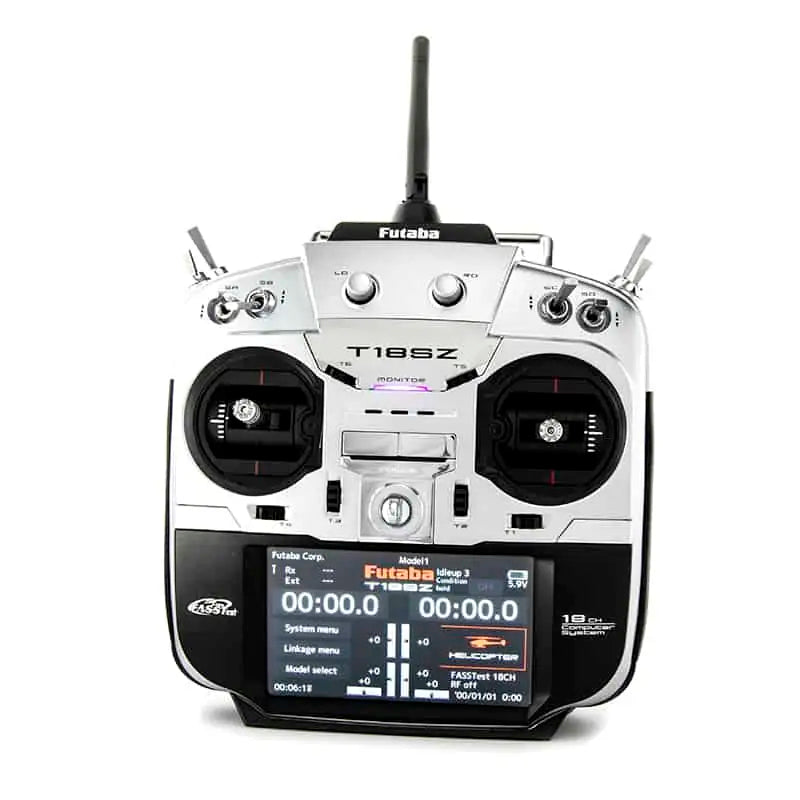

COLOR TOUCH SCREEN LCD:
T18SZ has an HVGA 4.3 inch, full-color backlit LCD touch screen. The screen is transflective which enables both indoor and outdoor visibility.

S.BUS2 SYSTEM:
By using the S.Bus2 system multiple servos, gyros and telemetry sensors are easily installed with a minimum amount of cables.

MODEL TYPES:
Multicopter. 8 swash types are available for helicopters. 7 types of main wings and 3 types of tail wings are available for airplanes and gliders. Functions and mixing functions necessary for each model type are set in advance at the factory.

LIFE BATTERY:

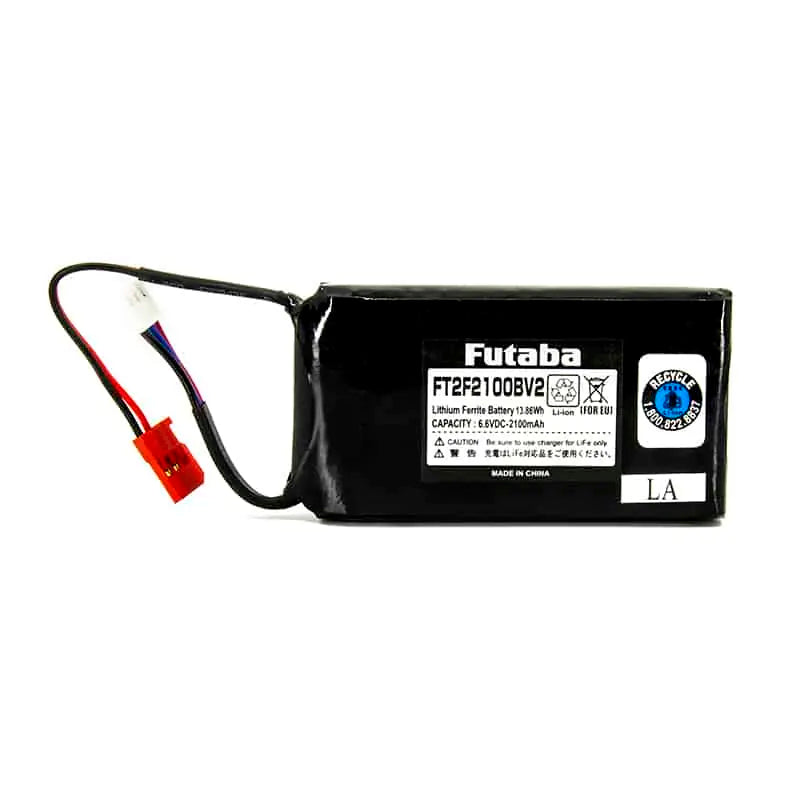

The 18SZ is operated by a 6.6 V/2,100 mAh Lithium Ferrite battery.

SD CARD (SECURE DIGITAL MEMORY CARD) *NOT INCLUDED:
Model data can be saved to an SD card (SD: 32MB – 2GB, SDHC: 4GB-32GB). When T18SZ transmitter software files are released, the software can be updated by using an SD card update.

EDIT BUTTON:
Two edit buttons are provided, and the operating screen can be immediately “Returned” to the HOME screen during operation. Setting operation can be performed easily by combining this button with a touch sensor.

VIBRATION FUNCTION:
Selects a function that alerts the operator to various alarms by vibrating the transmitter in addition to sounding a buzzer.

SPEECH FUNCTION:
A function is equipped which allows the system to provide telemetry data audibly. This function can also be utilized with commercially available earphones.

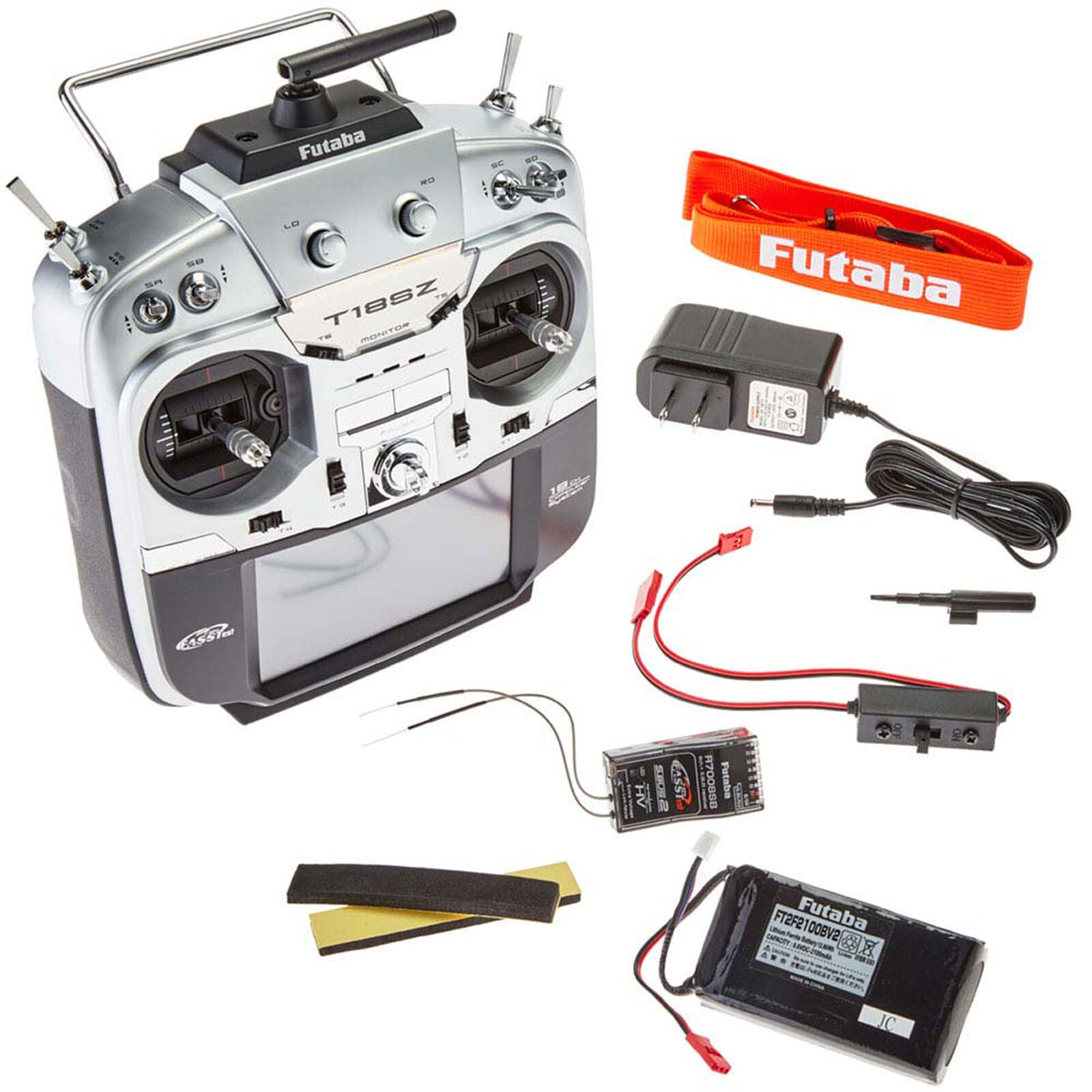

CONTENTS

YOUR T18SZ INCLUDES THE FOLLOWING COMPONENTS:

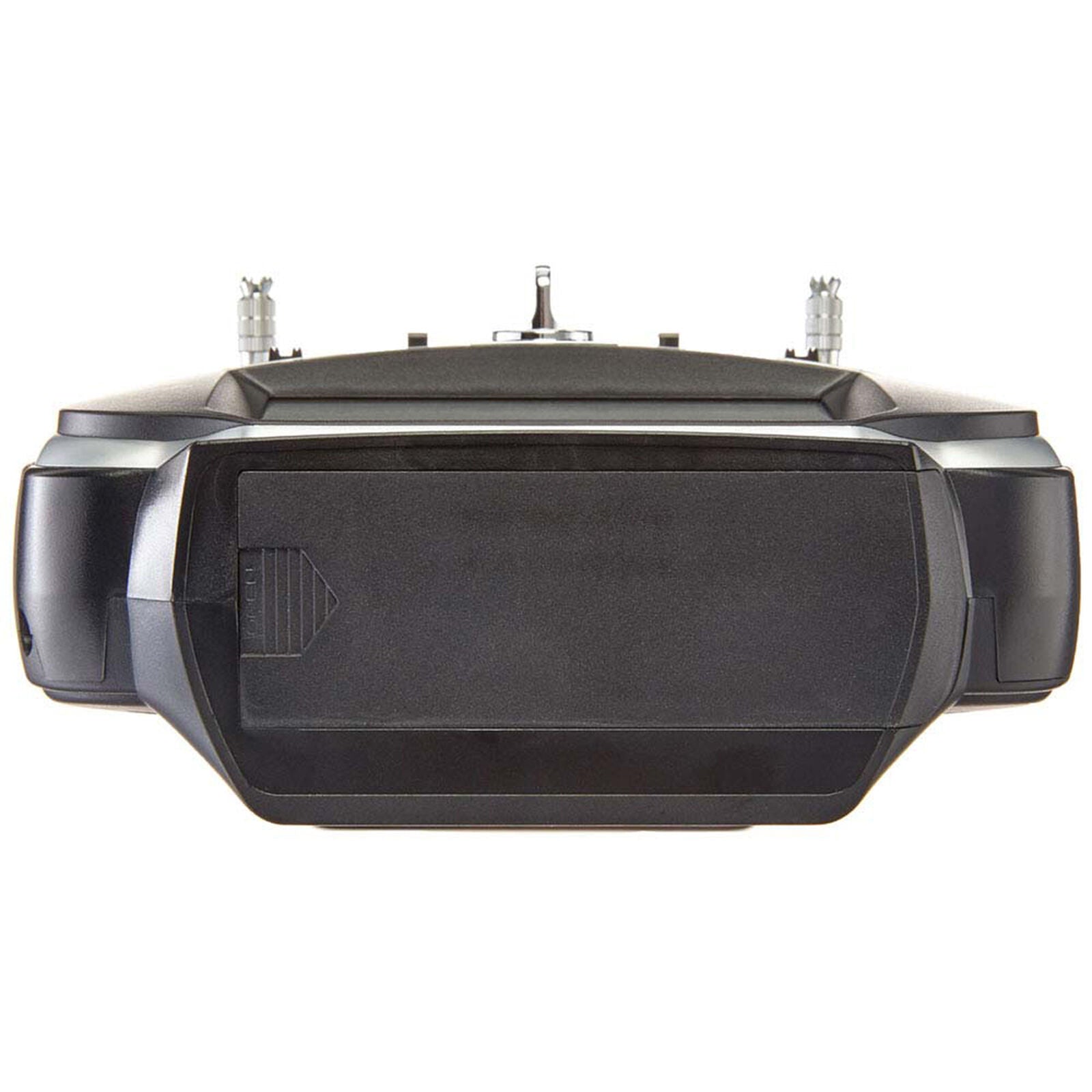

  • T18SZ Transmitter
     Air Version includes ratcheting throttle
     Helicopter Version includes smooth throttle
  • R7008SB OR R7014SB Receiver
  • FT2F2100BV2 LiFe Battery* and Charger
  • Switch Harness
  • Mini Driver

*NOTE: The battery in the T18SZ transmitter does not arrive already attached to the battery connector. Please connect the battery connector before use.


TRANSMITTER SPECS

TRANSMITTER FREQUENCY:
2.4 GHz band

SYSTEM:
FASSTest18CH, FASSTest12CH, FASST MULT, FASST 7CH, T-FHSS, S-FHSS, switchable

POWER SUPPLY:
6.6 V FT2F2100BV2 LiFe battery

FREQUENCY BAND:
2.4 GHz

RF POWER OUTPUT:
100mW EIRP


RECEIVER SPECS

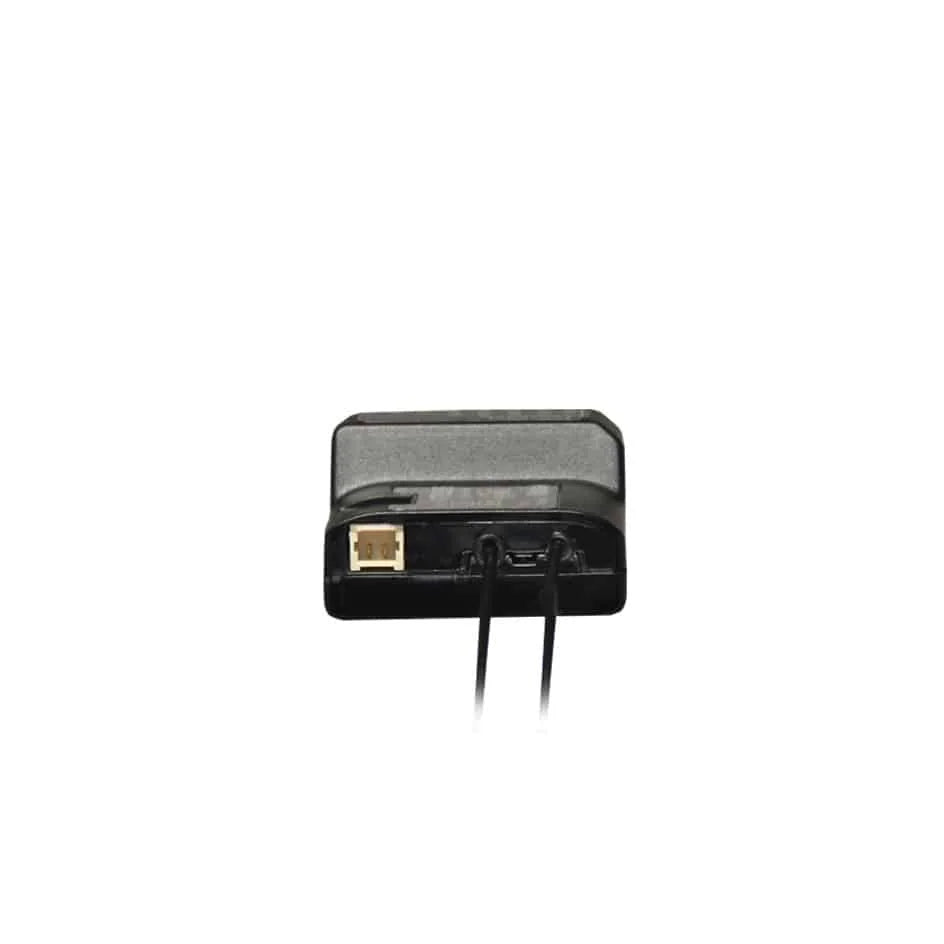

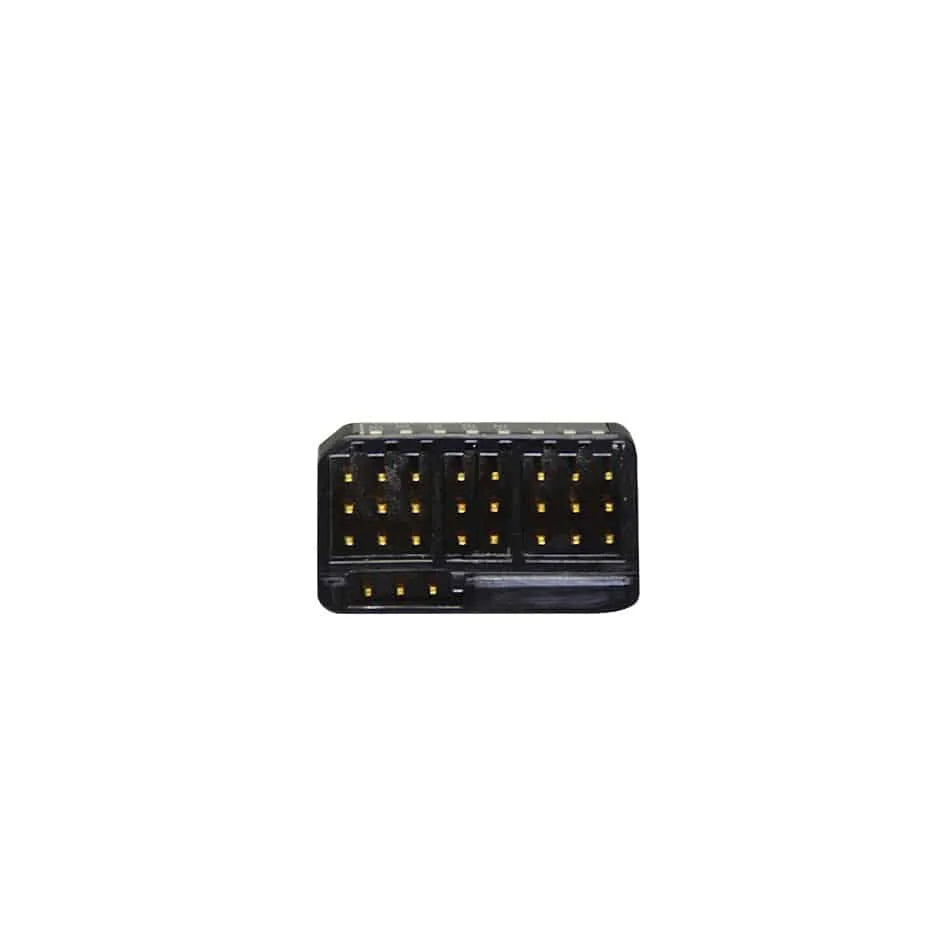

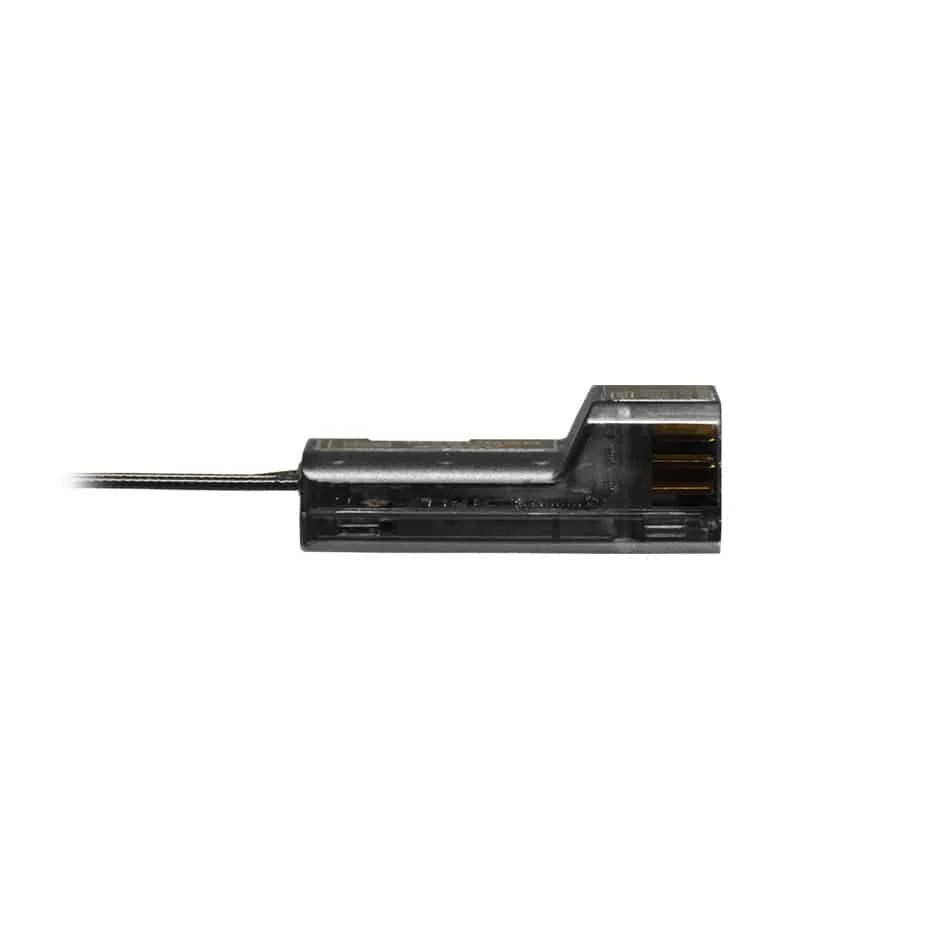

R7208SB

SIZE:
24.9 x 47.3 x 14.3 mm
0.98 x 1.86 x 0.56 in

WEIGHT:
12.0 g
0.42 oz

POWER REQUIREMENTS:
6.6 V LiFe Battery

CURRENT DRAIN:
75 mA

RF POWER OUTPUT:
25 mW EIRP

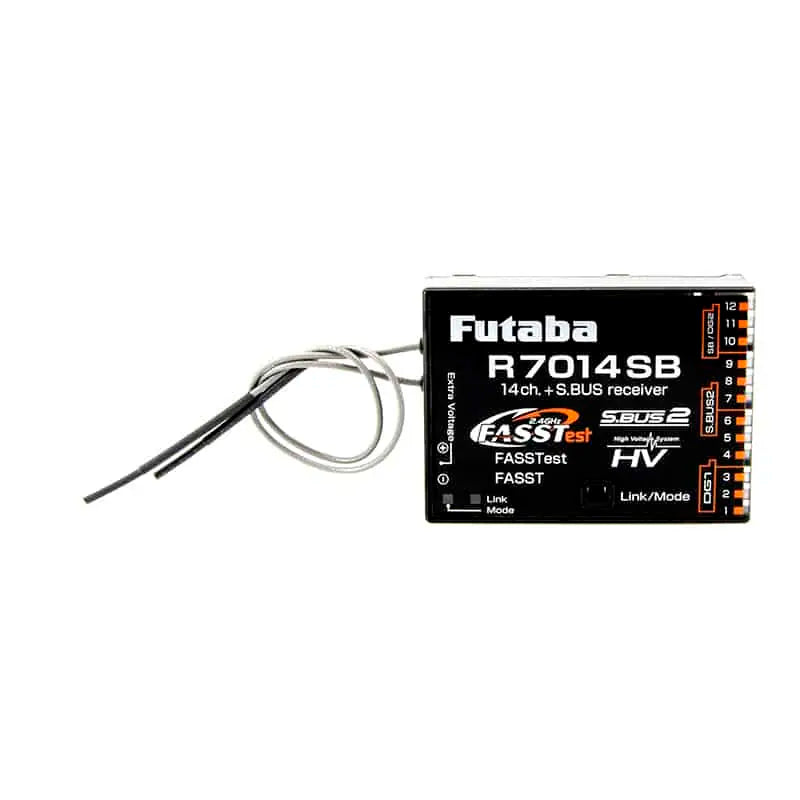

R7014SB

SIZE:
50.2 x 37.0 x 15.9 mm
1.98 x 1.45 x 0.63 in

WEIGHT:
20.8 g
0.73 oz

POWER REQUIREMENTS:
DC 3.7~7.4V

VOLTAGE RANGE:
DC 3.5~8.4V

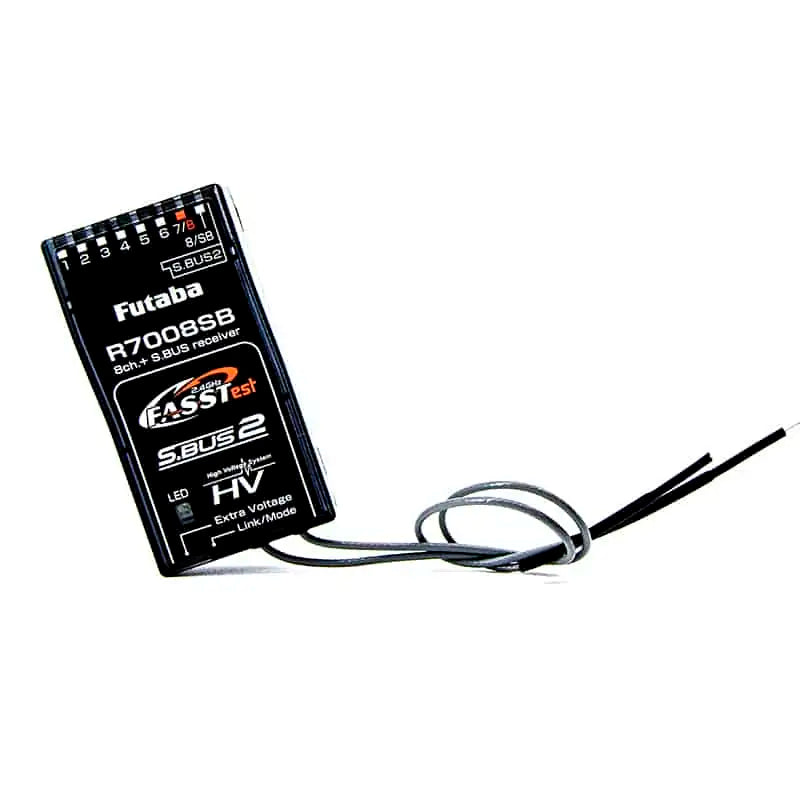

R7008SB

SIZE:
24.9 x 47.3 x 14.3 mm
0.98 x 1.86 x 0.56 in

WEIGHT:
10.9 g
0.38 oz

POWER REQUIREMENTS:
DC 3.7~7.4V

VOLTAGE RANGE:
DC 3.5~8.4V



Compatible receivers as of 29 June2022.

S-FHSS PROTOCOL

  • R2008GS
  • R2008SB
  • R2106SB
  • R2001SB
  • R2000SBM

T-FHSS TELEMETRY PROTOCOL

  • R3001SB
  • R3004SB
  • R3006SB
  • R3008SB

T-FHSS MONO (NON-TELEMETRY)

  • R3206SBM
  • R3106GF

FASST7 AND FASST MULTI

  • R6004FF
  • R6008HS
  • R6014HS
  • R6016HF
  • R616FFM
  • R617FS
  • R6202SBW
  • R6203SB
  • R6208SB
  • R6303SB
  • R6303SBE

FASSTest12 and FASSTest18

  • R7003SB
  • R7006SB
  • R7008SB
  • R7108SB
  • R7014SB







Additional information

Hobby Version

Heli, Air

Receiver

R7008SB, R7014SB, R7208SB
