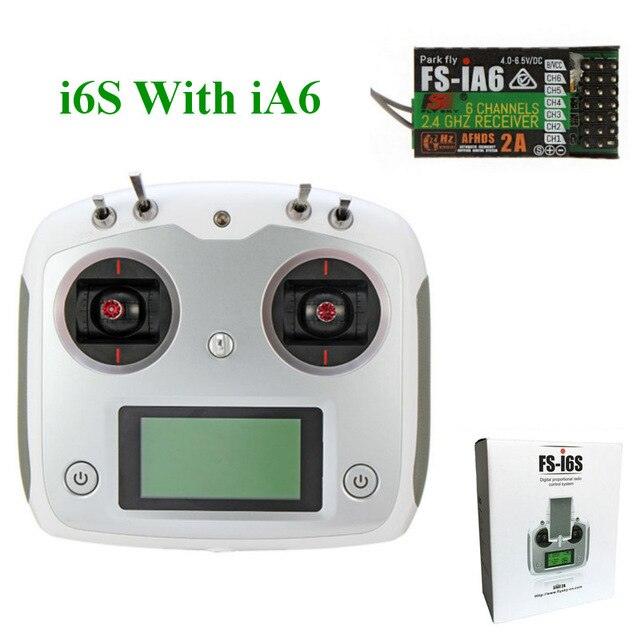

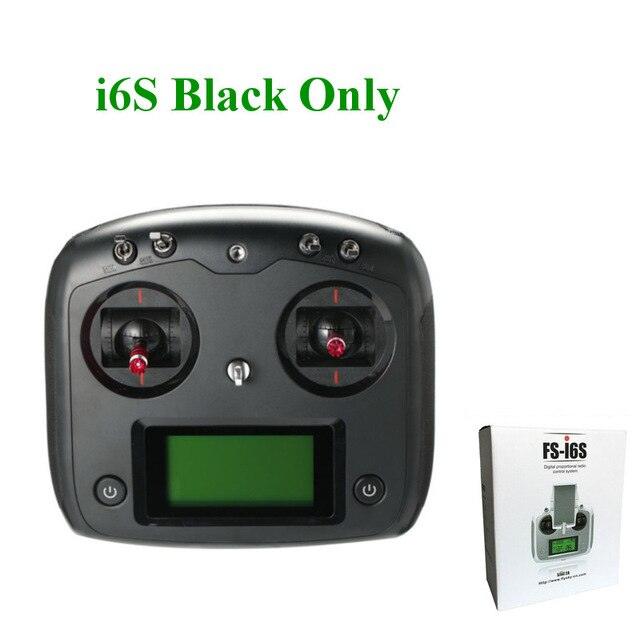

FS-I6S FS I6S Flysky 10CH 2.4G RC Quadcopter Transmitter Controller with Receiver FS-iA6B or FS-IA10B for RC Airplane FPV Racing

$87.28$107.60

Description

SPECIFICATIONS

Wheelbase: Bottom Plate

Use: Vehicles & Remote Control Toys

Upgrade Parts/Accessories: Lithium Battery

Tool Supplies: Assembled class

Technical parameters: Value 7

Remote Control Peripherals/Devices: Remote Controller

Recommend Age: 12+y

RC Parts & Accs: Radio Systems

Quantity: 1 pcs

Origin: Mainland China

Model Number: i6S

Material: Composite Material

Four-wheel Drive Attributes: Assemblage

For Vehicle Type: Airplanes

Brand Name: abay

Brand Name: NoEnName_Null

it uses the AFHDS 2A(Automatic Frequency Hopping Digital System

Overview:

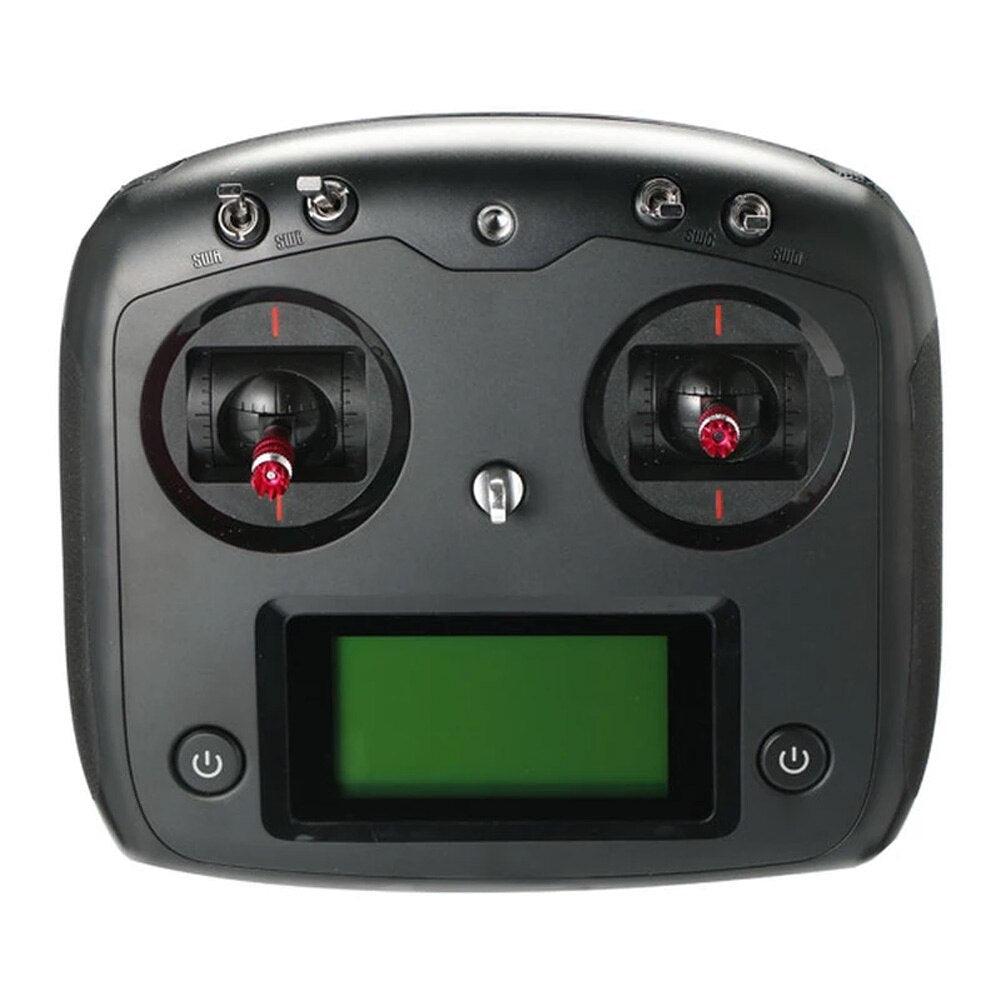

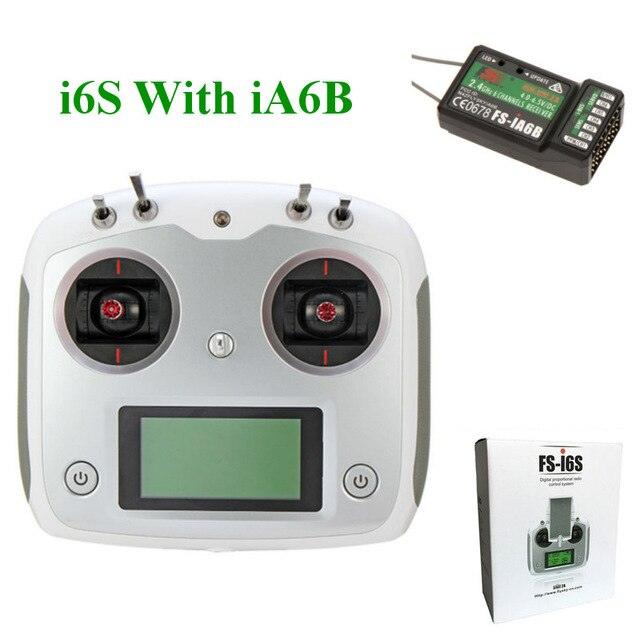

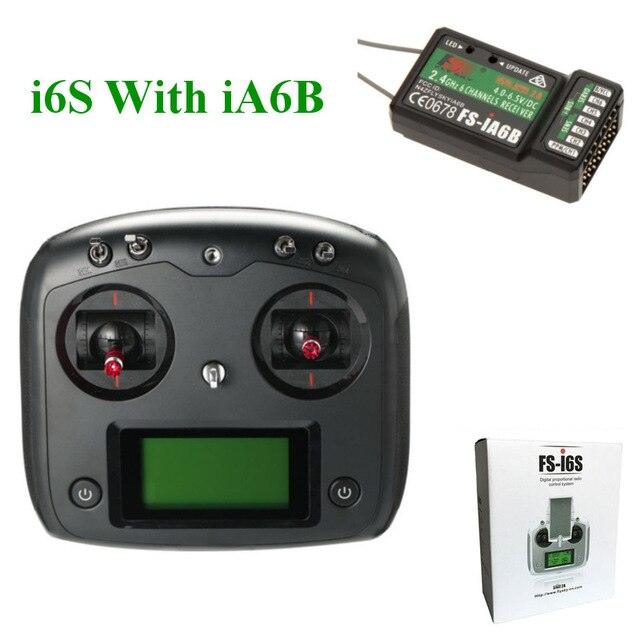

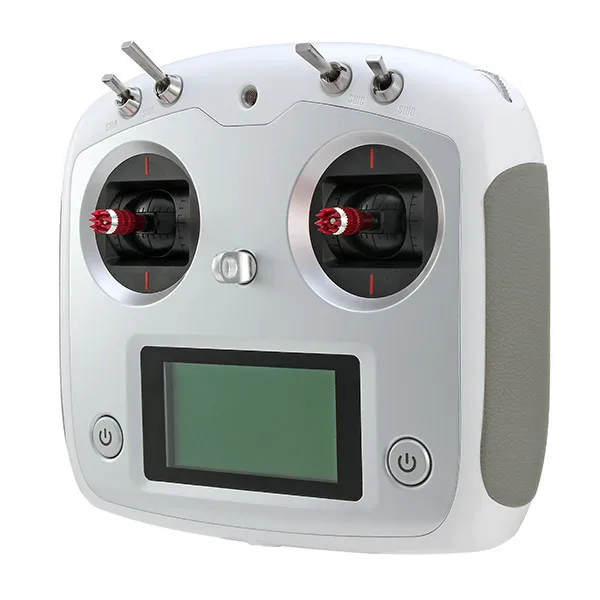

The FS-i6S transmitter and FS-iA6B receiver constitute a 10 channel
2.4GHz AFHDS 2A digital proportional computerized RC System. This system
supports quadcopters.

The AFHDS 2A (Automatic Frequency Hopping Digital System Second
Generation) developed and patented by Flysky is specially developed for
all radio control models.Offering superior protection against
interference while maintaining lower power consumption and high reliable
receiver sensitivity,Flysky’s AFHDS technology is considered to be one
of the leaders in the RC market today.

Description:
Brand Name: Flysky
Note: If this transmitter bind with the FS-iA10B receiver,it can extend to 10 channel.
(This transmitter is only compatible with Flysky 2A system receiver)

Note:
this is self-centering version, we give a free throttle modification
parts as gift, if you need to modify the throttle, you can do it by

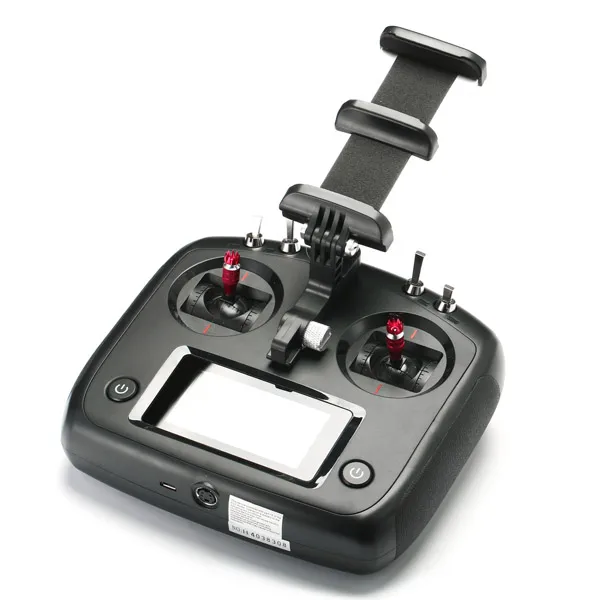

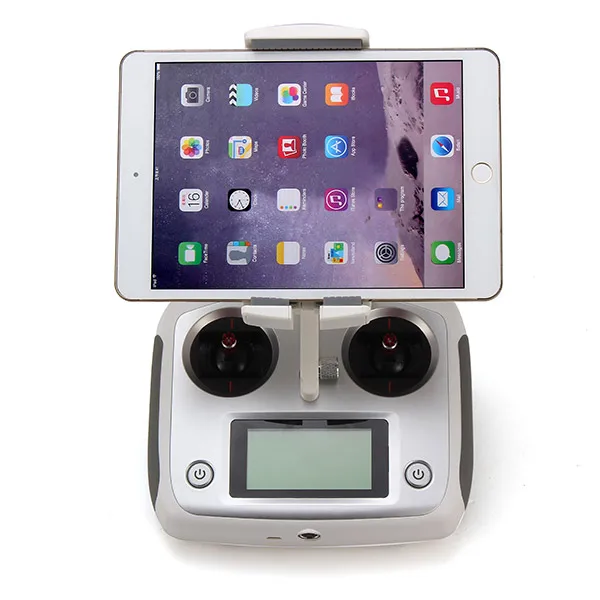

yourself. And the this version comes without monitor holder, if you need
it, please order from this page.

This transmitter comes wtih 6 channels, it need to modify by yourself if you wanna it be 10 channel.

Specifications:

FS-i6S Transmitter FS-iA6B Receiver
Channel 10 6
Frequency 2.4055 – 2.475GHz 2.4055 – 2.475GHz
Band Width 500KHz —–
Band Number 140 140
Transmitting Power <20dbm —–
Receiver¬†Sensitivity —– -105dbm
2.4G Mode AFHDS 2A AFHDS 2A
Modulation System GFSK GFSK
Joystick Resolution 4096 class —–
Low-Voltage Alarm <4.2V —–
Charging Port Yes (USB) —–
Input Voltage 4.2V-6.0V 4.0V-6.5V DC
Antenna Length 26mm (dual antenna) 26mm (dual antenna)
Weight 410g 14.9g
Dimension 179*81*161mm 47*26.2*15mm
Color(optional) Black,white Black
Mode(optional) Self Centering Throttle
Mode 2 (left throttle hand)
—–
Output Format Compatible S.BUS —–
Certification CE0678,FCC CE0678,FCC

Features:
Full touchscreen interface,more convenient to control

Bidirectional Communication
Capable of sending and receiving data,each transmitter is capable of
receiving data from temperature,altitude and many other types of
sensors,servo calibration and i-BUS Support.

Multi-channel Hopping Frequency
This systems bandwidth ranges from 2.4055GHz to 2.475GHz. This band is
divided in 140 channels. Each transmitter hops between 16 channels (32
for Japanese and Korean versions) in order to reduce interference from
other transmitters.

Omni-directional Gain Antenna
The high efficiency Omni-directional high gain antenna cuts down on
interference,while using less power and maintaining a strong reliable
connection.

Unique ID Recognition System
Each transmitter and receiver has its own unique ID. Once the
transmitter and receiver have been paired,they will only communicate
with each other,preventing other systems accidentally connecting to or
interfering with the system’s operation.

Low Power Consumption
The system is built using highly sensitive low power consumption
components,maintaining high receiver sensitivity,while consuming as
little as one tenth the power of a standard FM system,dramatically
extending battery life.

New Firmware Features:
New (Trims) function
New (Rate/Exp.) function
New(Throttle curve) function
NEW(Throttle mode) function
New(models) function, supports 5 modes groups
New Context aware reset function
New low signal alarm function

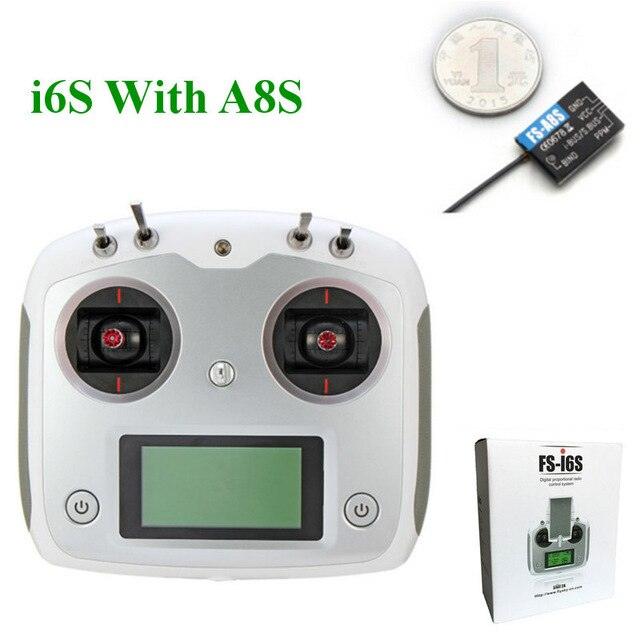

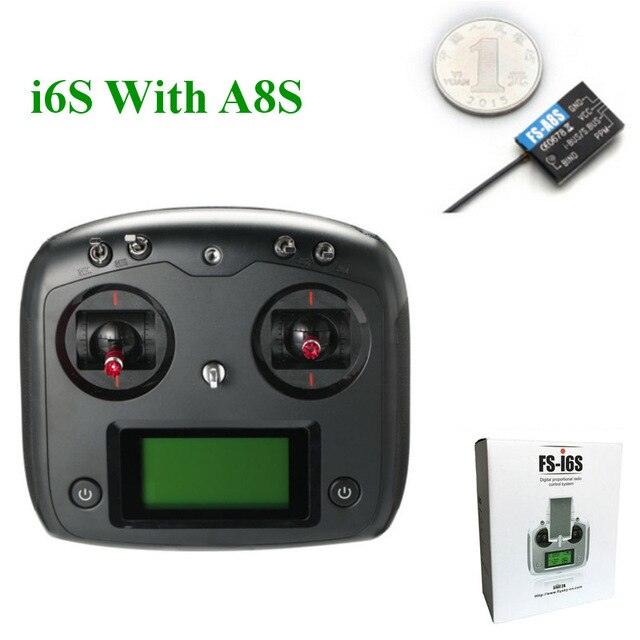

A8S:
The FS-A8S is a compact 1-way receiver designed for multi-rotor
aircraft. It uses the AFHDS 2A(Automatic Frequency Hopping Digital
System) protocol, supports standard PPM output and has i-BUS support for
up to 18 channels.

Description:
Brand Name:Flysky
Item Name:FS-A8S Receiver
Channels: PPM 8CH, i-BUS 18CH
Model type: Multi-rotor
Frequency range: 2.408-2.475GHz
Band width: 500KHz
Band number: 135
RX Sensitivity: -92 dBm
2.4GHz system: AFHDS 2A
Modulation type: GFSK
DSC port: PPM/i-BUS/S.BUS
Transfer method: FHSS
Data output: 1.5mm*3 Pin  PPM/i-BUS/S.BUS
Antenna length: 26mm (Not including brass contacts)
Input power supply: 4.0-8.4V
Display method: LED
No ground interference ( Transmitting and receiving 1 m from the ground): >300m
Working current: 40mA
Each channel data: depend on the transmitter
Channel delay: <15mS
Size: 20*14*5.3mm
Weight: 1.2g
Certificate: CE0678, FCCID: N45ZA8S00
Compatible Transmitter: Compatible with FS-i4, FS-i6, FS-i6S, FS-i6X, FS-i10, FS-GT2E, FS-GT2G, FS-GT2F

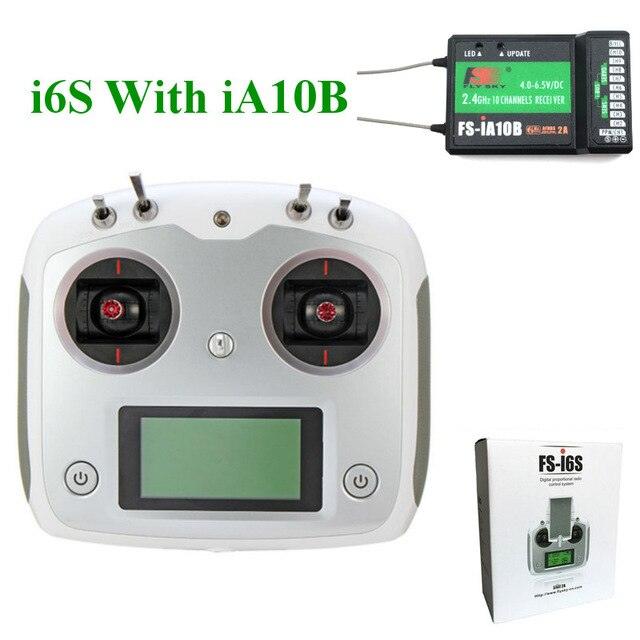

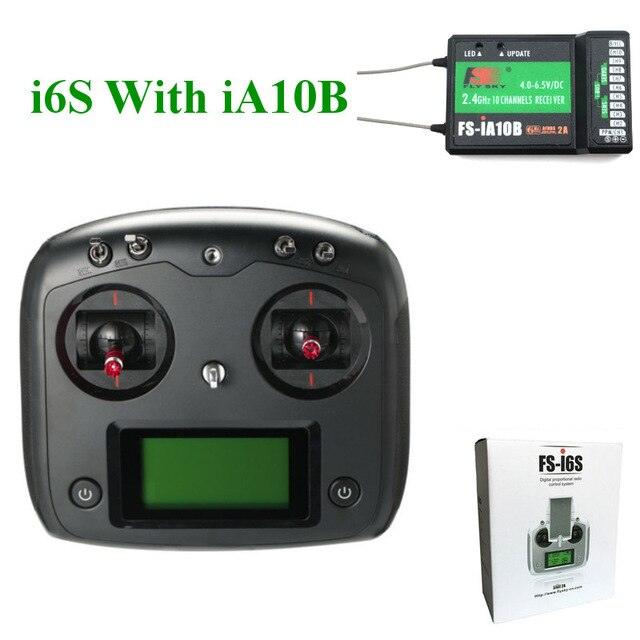

IA10B:
Description:
Brand Name: Flysky
Item Name: FS-iA10B
Channel: 10
2.4G Mode: The second generation of an enhanced version of the automatic FM digital system
Antenna Length: 26mm * 2 (dual antenna)
Input Power: 4.0-6.5V DC
Weight: 19.3g
Size: 51mm*34mm*15mm
Color: Black
i-Bus Interface: Yes
Data Acquisition Interface: Yes
Model Type: Airplane / Glider / Helicopter
Compatible Transmitter: Compatible with FS-i4, FS-i6,FS-i6S, FS-i10,FS-iT4S

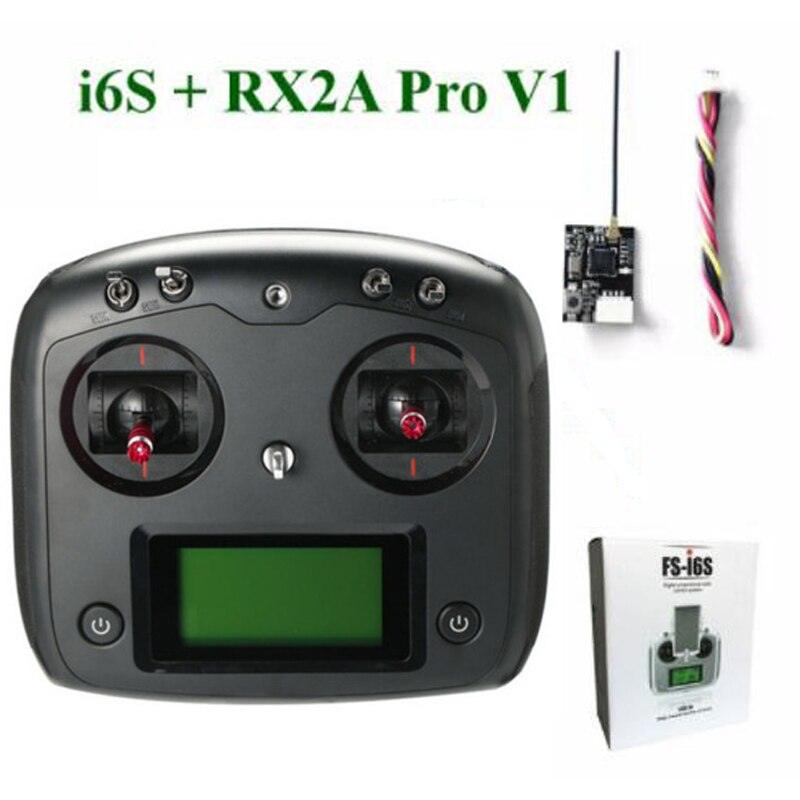

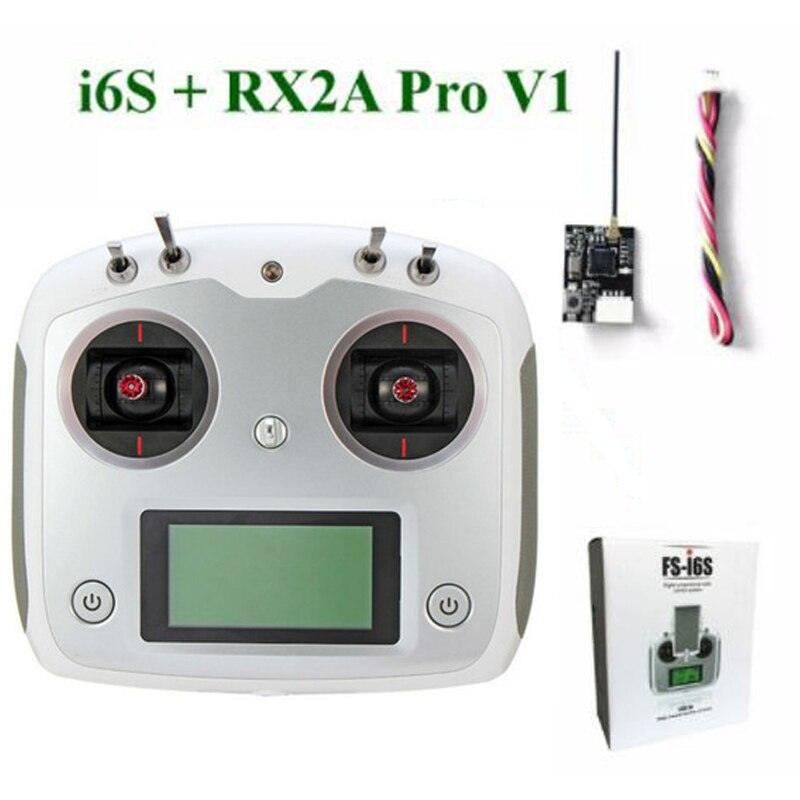

Item name: FS-RX2A Pro V1 receiver
Channel: 10(IBUS), 8(PPM)
RF Range: 2.408-2.475GHZ
Number of bands: 135
RX Sensitivity: -92dBm
2.4GHz protocol: AFHDS 2A
Signal output: IBUS, PPM
Antenne length: 33mm
Power input: 5.0-20V
Control distance: 500m+
Current: 30MA
Size: 12*15mm
Weight: 0.9g

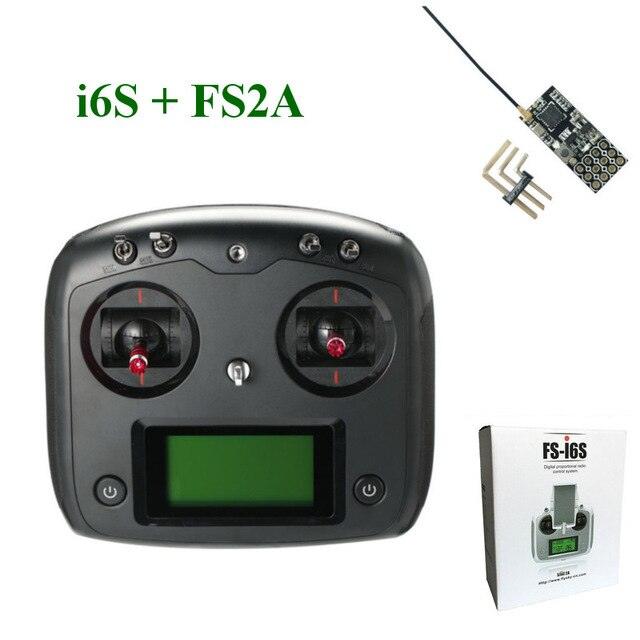

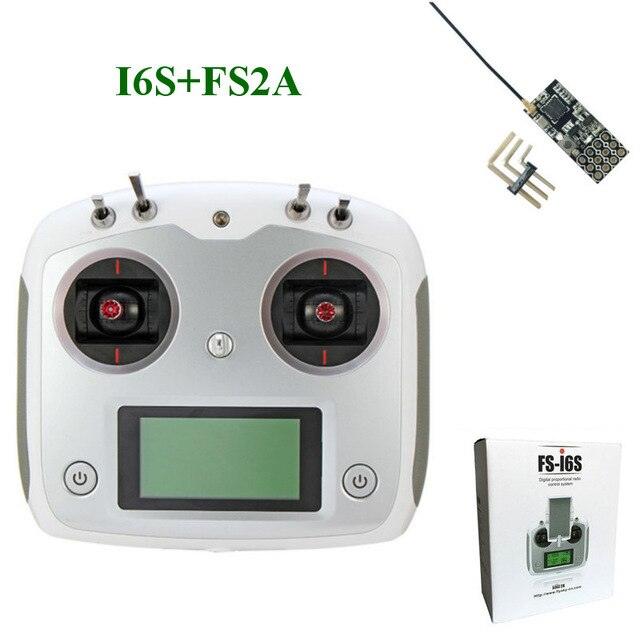

Item name: Flysky FS2A 4CH Receiver
Channels: 4CH
Output signal: PWM
Frequency range: 2.408-2.475GHZ
Band width: 135
Receiver sensitivity: -92DBM
2.4G mode: AFHDS 2A
Failfe: Yes
Supply voltage: 3.3-10V
Distance: 400+ meters
Working current: 20MA
Dimensions: 11 * 25MM
Weight: 0.9 grams

Item Name: Flit10 RX
Channel: 10
2.4G Mode: The second generation of an enhanced version of the automatic FM digital system
Antenna Length: 10mm * 2
(dual antenna)
Input Power: 4.0-6.5V DC
Weight: 3.1g
Size: 25mm*15.5mm*5.5mm
Color: Black

Signal Output: IBUS
Telemetry: Yes
Remote Distance: 500m
Support Betaflight / INAV IBUS Telemetry

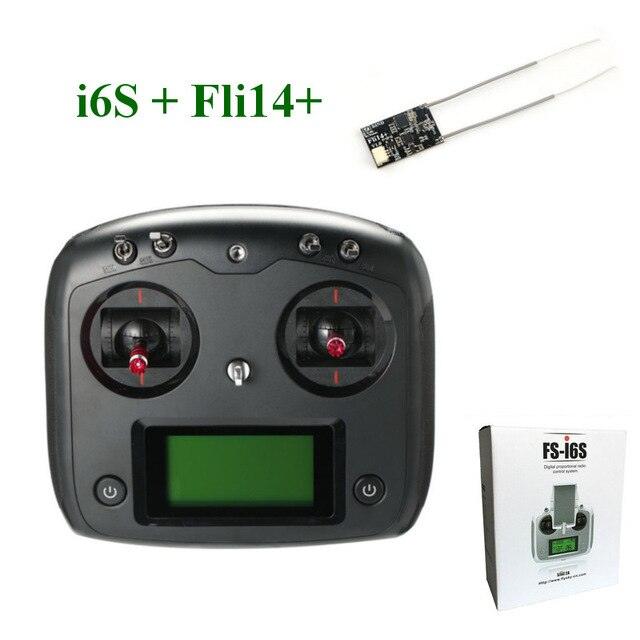

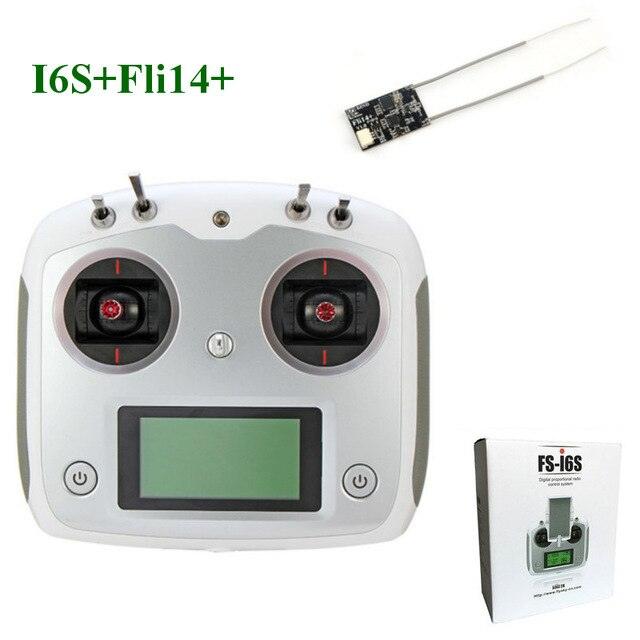

Model: Fli14+
Item Name: 2.4G 14CH Compatible Flysky AFHDS-2A Receiver

Channel: 14CH
Protocol: AFHDS-2A
2.4G Mode: The second generation of an enhanced version of the automatic FM digital system
Antenna Length: 70mm (Dual Antennas)
Input Voltage: 4-6.5V DC
Weight: Only 1.7g
Size: 25x15x5mm
Color: Black
Signal Outpu: IBUS
RSSI Output: Channel14
No ground interference ( Transmitting and receiving 1 m from the ground): more than 500m

Note: the transmitter comes without the holder

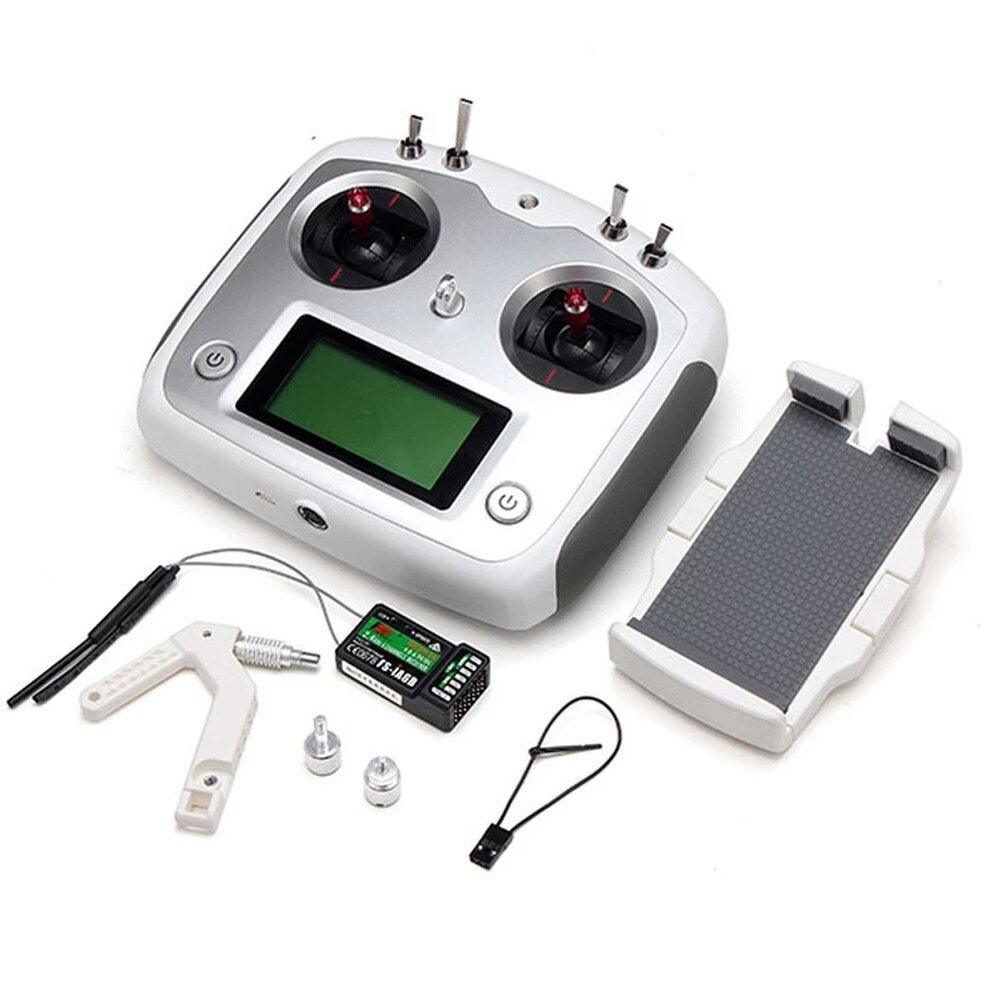

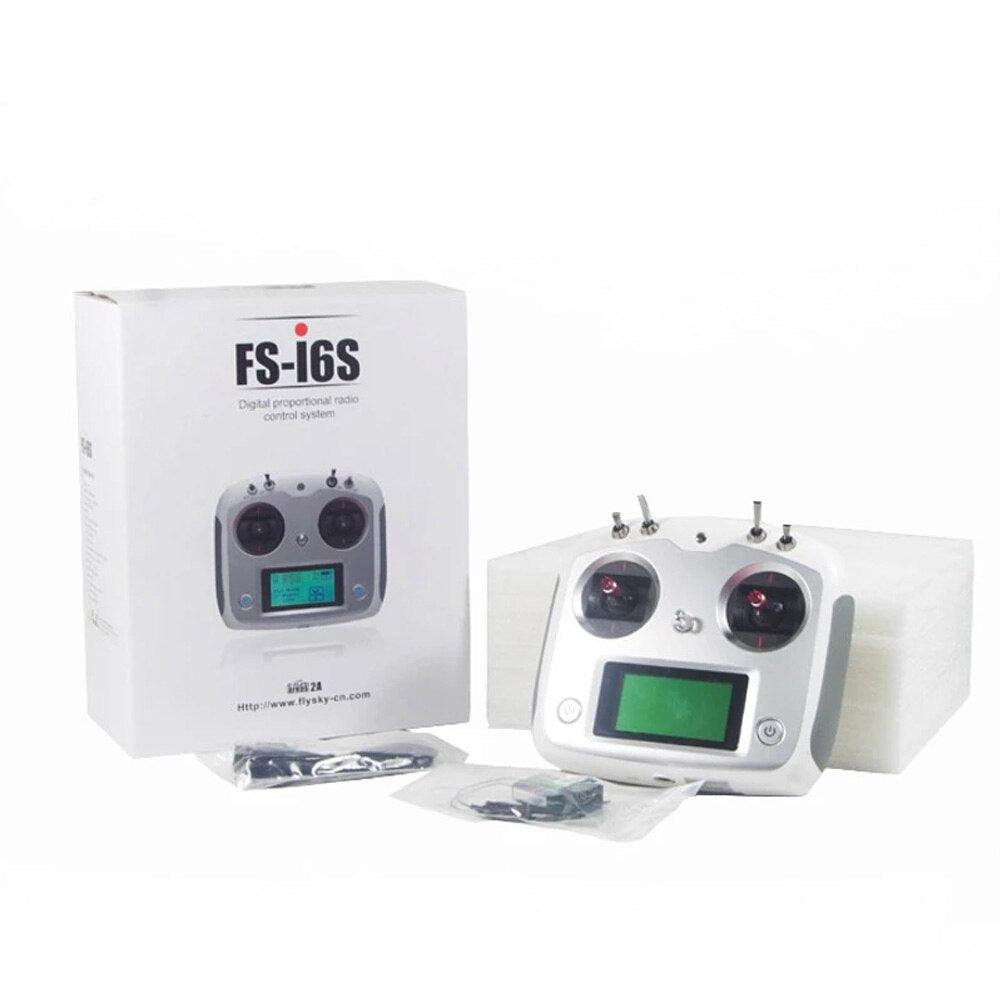

Package Included:
1x Flysky FS-i6S Transmitter
1x Flysky Receiver
1x User Manual

1x Transmitter strap
1xThrottle modify set
1xUpdate cable

this transmitter is only compatible with Flysky 2A system receiver . if you need to,FS-I6S FS I6S Flysky 10CH 2.4G ,the FS-i6S transmitter and receiver constitute a 10 channel 2.4GHz ,FS-I6S FS I6S Flysky 10CH 2.4G ,this transmitter is only compatible with Flysky 2A system receiver . if you need to,2.4G mode is the second generation of an enhanced version of the automatic FM digital system ,Firmware Features: New (Trims) function New (Rate/Exp.),high efficiency Omni-directional high gain antenna cuts down on interference . using less power and maintaining,the AFHDS 2A (Automatic Frequency Hopping Digital System Second Generation,the FS-A8S is a compact 1-way receiver designed for multi-rot,multi-channel Hopping Frequency This systems bandwidth ranges from 2.4055GHz to,FS-I6S FS I

once the transmitter and receiver have been paired,they will only communicate with each other .eaxie Jivdon GlLoyiut VI-89I

Firmware Features: New (Trims) function New (Rate/Exp.)

FS-I6S FS I6S Flysky 10CH 2.4G Park fly 4.0-6.SV/DC @NCA FS-IA6 CH

this transmitter is only compatible with Flysky 2A system receiver . if you need to
it uses the AFHDS 2A(Automatic Frequency Hopping Digital System
multi-channel Hopping Frequency This systems bandwidth ranges from 2.4055GHz toeach transmitter hops between 16 channels (32 for Japanese and Korean versions) in order to reduce

low power consumption system consumes as little as one tenth the power of a standardFS i6s Ggux erepotonMeda Genlm

Additional information

Color

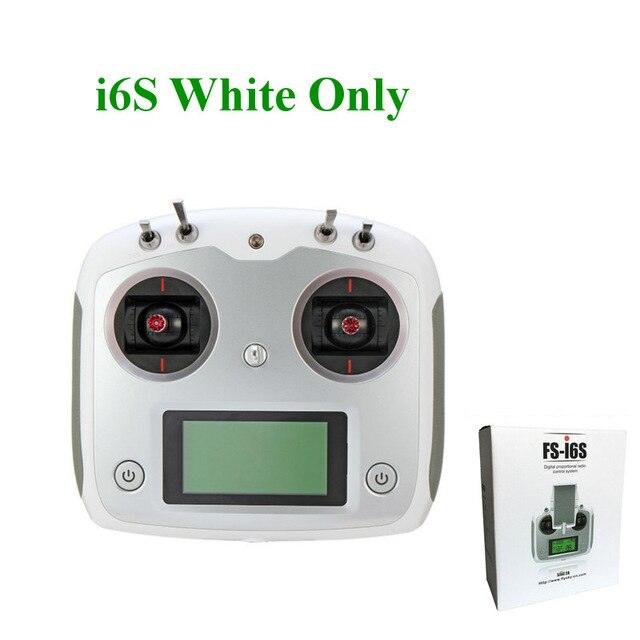

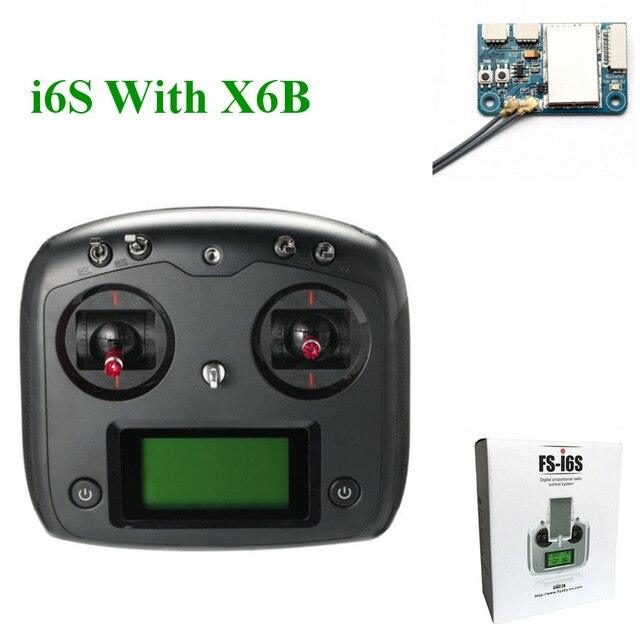

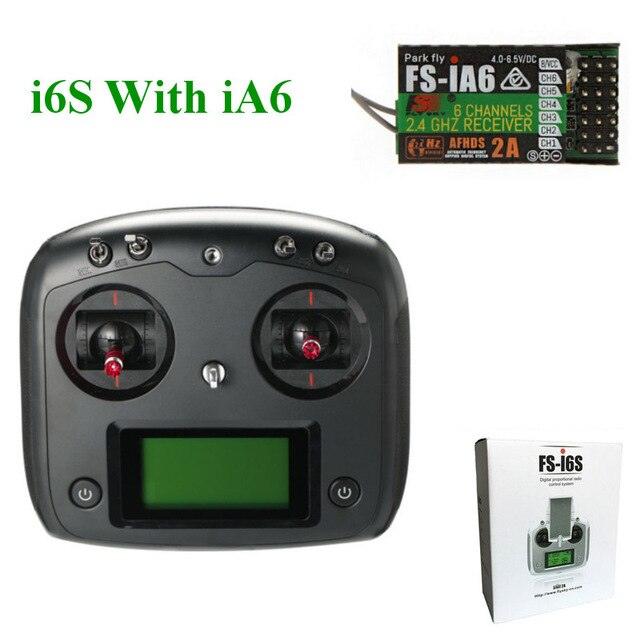

White with X6B, White with IA6B, W with IA10B, White with iA6, White with FS2A, W with Fli14plus, White with A8SV2, Only I6S White, Only I6S Black, Black with X6B, Black with IA10B, Black with IA6B, Black with iA6, Black with FS2A, B with Fli14plus, Black with A8SV2, Black RX2A Pro V1, White RX2A Pro V1
