Ultra Mini Only 1.6g!!!

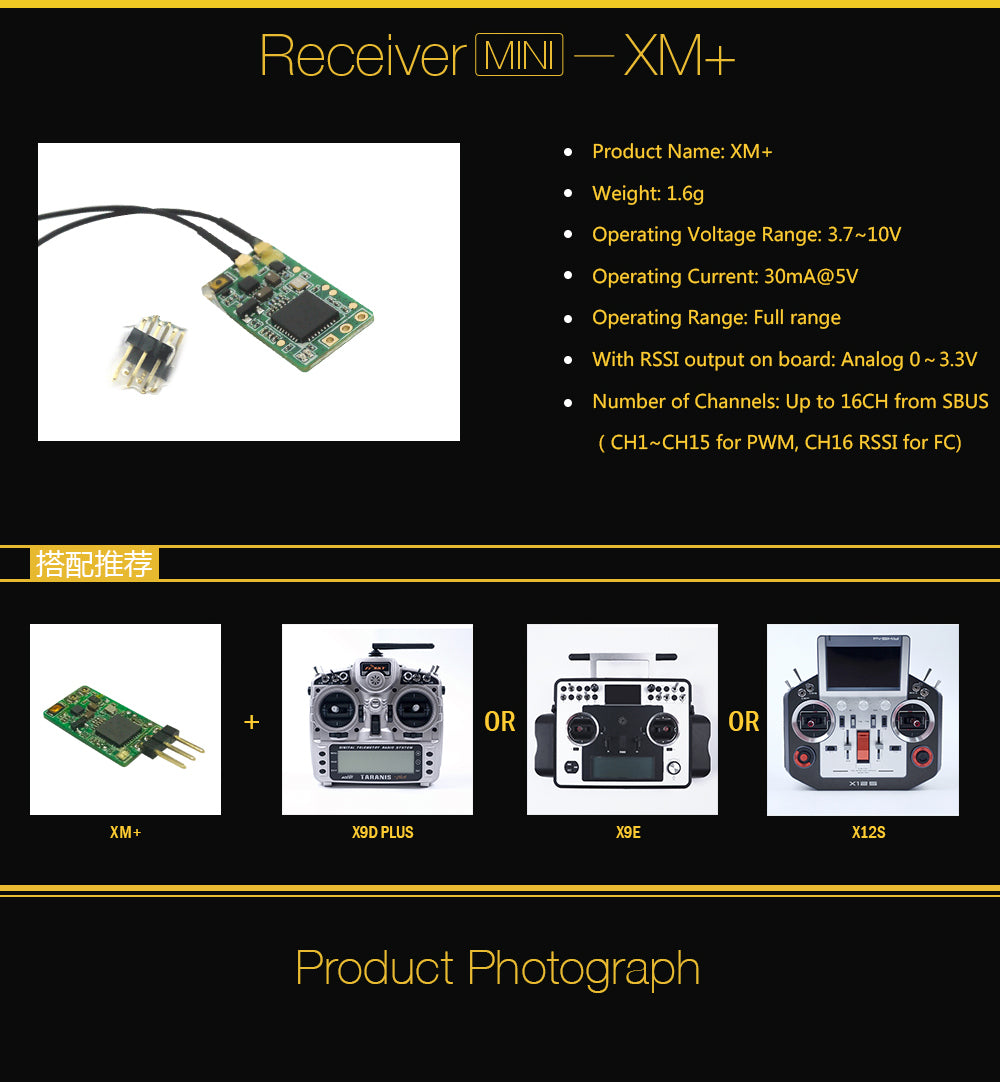

Specification:
- Dimension:21.5x12x3.5mm(LxWxH)
- Weight: 1.6g
- Number of Channels:Up to 16CH from SBUS(CH1~CH15 for PWM, CH16 RSSI for FC)
- Operating Voltage Range:3.7~10V
- Operating Current:30mA@5V
- Operating Range:FULL range
- With RSSI output on board:Analog 0~3.3V
- Firmware Upgradeable
- Compatibility:FrSky D16 mode
XM+ supports failsafe function for all channels: 1.6 weight 860 06 62 16 XR32l6i 009 I Up to 16CH from SBUS CHI-CH1S tor PWM, CH16 RSSI for FC 1.6g 21.5*12*3.
FrSky XM+ Receiver Specifications: Weight: 1.6g; Operating Voltage Range: 3.7V to 4V; Operating Current: 30mA at 3.7V; Number of Channels: Up to 16 channels, including SBUS (channels 1-15 for PWM and channel 16 for RSSI feedback and flight control information).
