FPV 5.8Ghz 11dBi High-gain Panel Antenna SPECIFICATIONS
Use: Vehicles & Remote Control Toys
Remote Control Peripherals/Devices: ESC
Recommend Age: 18+,12+y
RC Parts & Accs: Radio Systems
Origin: Mainland China
Model Number: 5.8Ghz 11dBi High-gain Panel Antenna
Material: Plastic
For Vehicle Type: Airplanes
Brand Name: uuustore

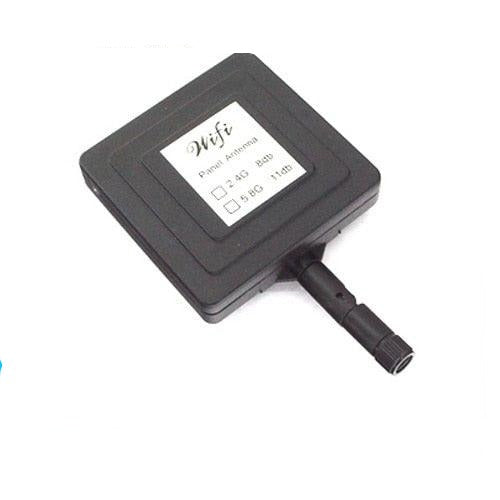

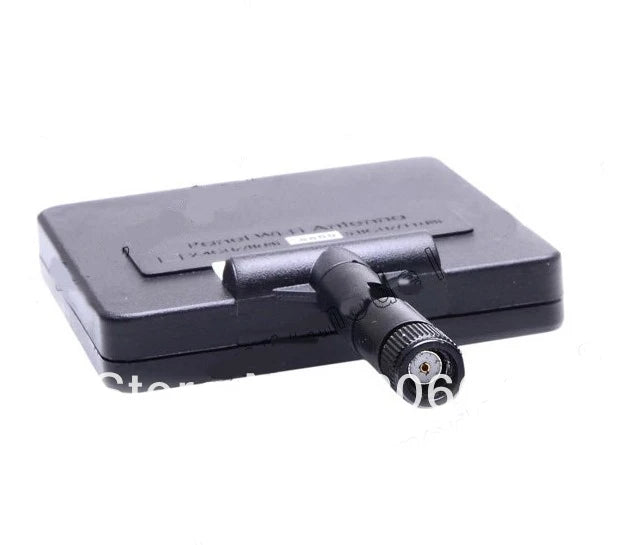

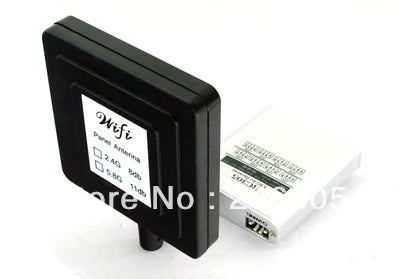

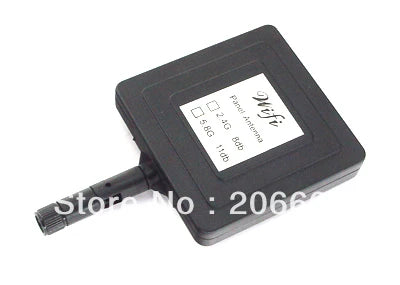

FPV 5.8Ghz 11dBi High-gain Panel Antenna used on 200mW TX reach 5KM RP-SMA, plug
Description:
It is a brand New Booster Wireless Antenna.It has a good gain Wlan(11db) and Easy to install
Antenna and the system we sold is a perfect combination.It is a good price and High Quality
Antenna . We stronly recommed it to you. According to factory report: If this antenna works with
FPV 5.8G 200MW transmitter, the effective range up to 3KM
Specification:
1.Frequency:5600-5900MHZ
2.Gain: 11dbi
3.Horizontal radiationlobe:45
4.Vertical radiationlone:30
5.Standing wave ratio:less than 2.0
6.Input impedance: 50ohm
7.Polarize way:Vertical
8.Max.Power:50W

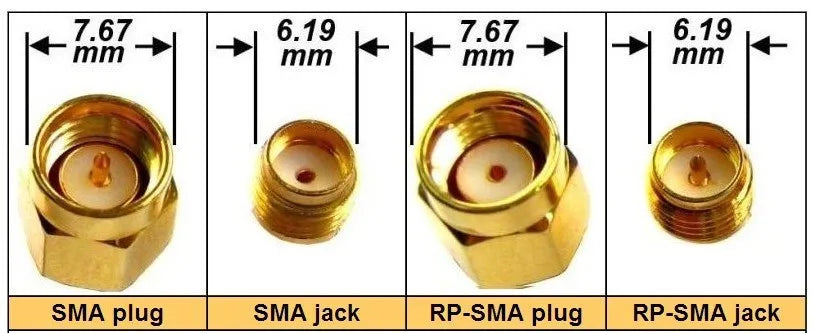

9.Connector:RP-SMA
10. Size: 88x70x12mm
11.Weight:50G
Includes:
1 x antenna
