FlySky FTr10 2.4G 10CH Two-Way Dual Antenna PPM/IBUS AFHDS3 Mini Receiver for Fly-Sky PL18 FPV Racing Drone RC Part

$51.95

SKU: N/A Category:

Description

FlySky FTr10  SPECIFICATIONS

Use: Vehicles & Remote Control Toys

Remote Control Peripherals/Devices: Receivers

Recommend Age: 12+y,14+y

RC Parts & Accs: Receivers

Quantity: 1 pcs

Origin: Mainland China

Model Number: FTr10

Material: Composite Material

For Vehicle Type: Cars

FlySky FTr10 2.4G 10CH Two-Way Dual Antenna PPM/IBUS PL18 AFHDS3 Mini Receiver

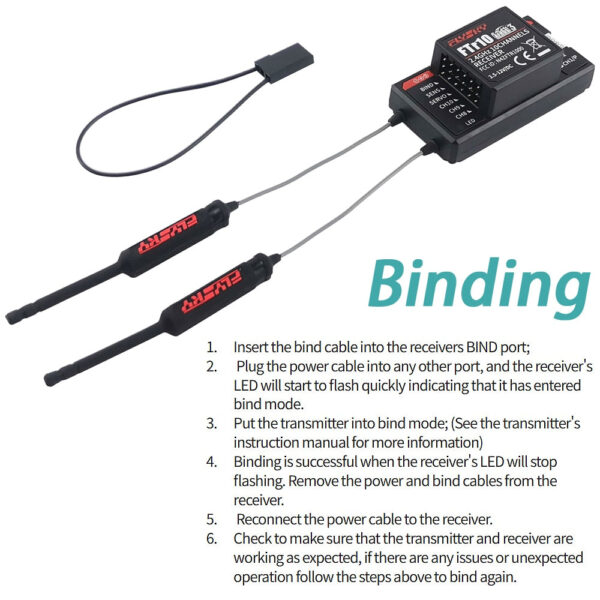

ESRY FN1o (3lk reseivenckoanFlySky FTr10 2.4if the transmitter and receiver are workingas expected, follow the steps above to bindFTRIO Hudred per cent FTrlO adopts AFHDS

The receiver with 10 channel, 2.4G wireless frequency, adopt AFHDS 3 (third-generation automatic frequency hopping digital system), dual-antenna bidirectional transmission, its unique design can save installation space, and can output standard PPM signals and i-BUS signals. Suitable for model: Airplane, glider, helicopter, multi-axis aircraft, suitable for Flysky PL18 transmitter, easy install, and use.
【Receiver】 Flysky FTr10 2.4G 10CH receiver, adopt AFHDS 3 (third-generation automatic frequency hopping digital system), dual-antenna bidirectional transmission, its unique design can save installation space, and can output standard PPM signals and i-BUS signals.
【Specifications】Antenna type: double copper tube antenna (103mm * 2); Power: 3.5-12V; RSSI: Supported; Data interface: PWM / PPM / i.bus / s.bus / UART; Online Update: Support.
【2.4G mode】 Automatic frequency second-generation digital system.
【Suitable Transmitter and Models】Suitable for model: Airplane, glider, helicopter, multi-axis aircraft, suitable for: Flysky PL18 transmitter, easy install and use.

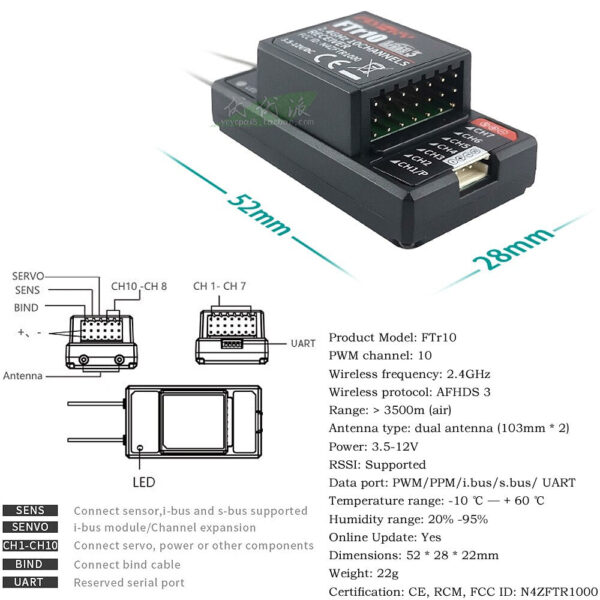

Specifications:
Item: Receiver
Product model: FTr10
Main color: Black
Wireless frequency: 2.4G
PWM channel: 10
Wireless protocol: AFHDS 3
Remote control distance: 10KM (open and no interference limit distance)
Antenna type: double copper tube antenna (103mm * 2)
Power: 3.5-12V
RSSI: Supported
Data interface: PWM / PPM / i.bus / s.bus / UART
Temperature range: -10 ℃ — + 60 ℃
Humidity range: 20% -95%
Online Update: Support
Transmission power: <20dBm(EU)
Dispaly: LED indicator
Size: 5*2.8*2cm
Suitable for model: Airplane, glider, helicopter, multi-axis aircraft
Suitable for: Flysky PL18 transmitter
