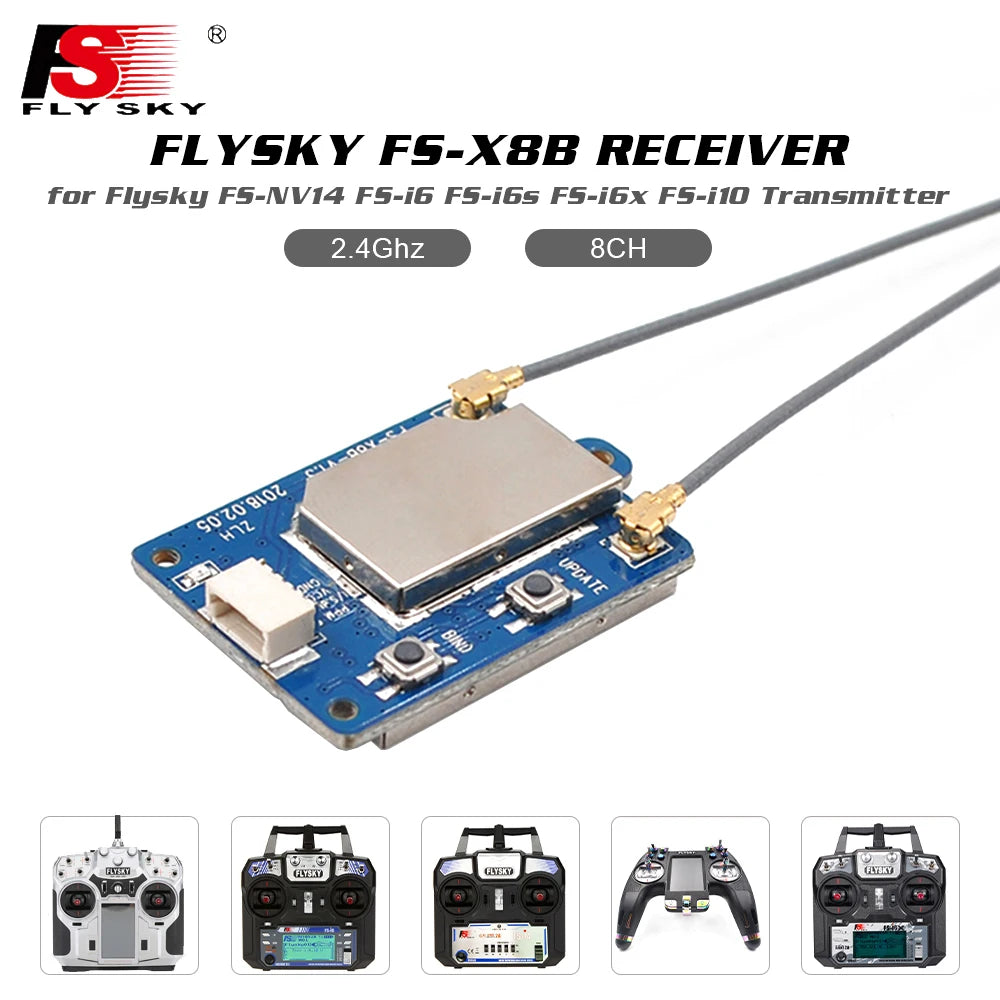

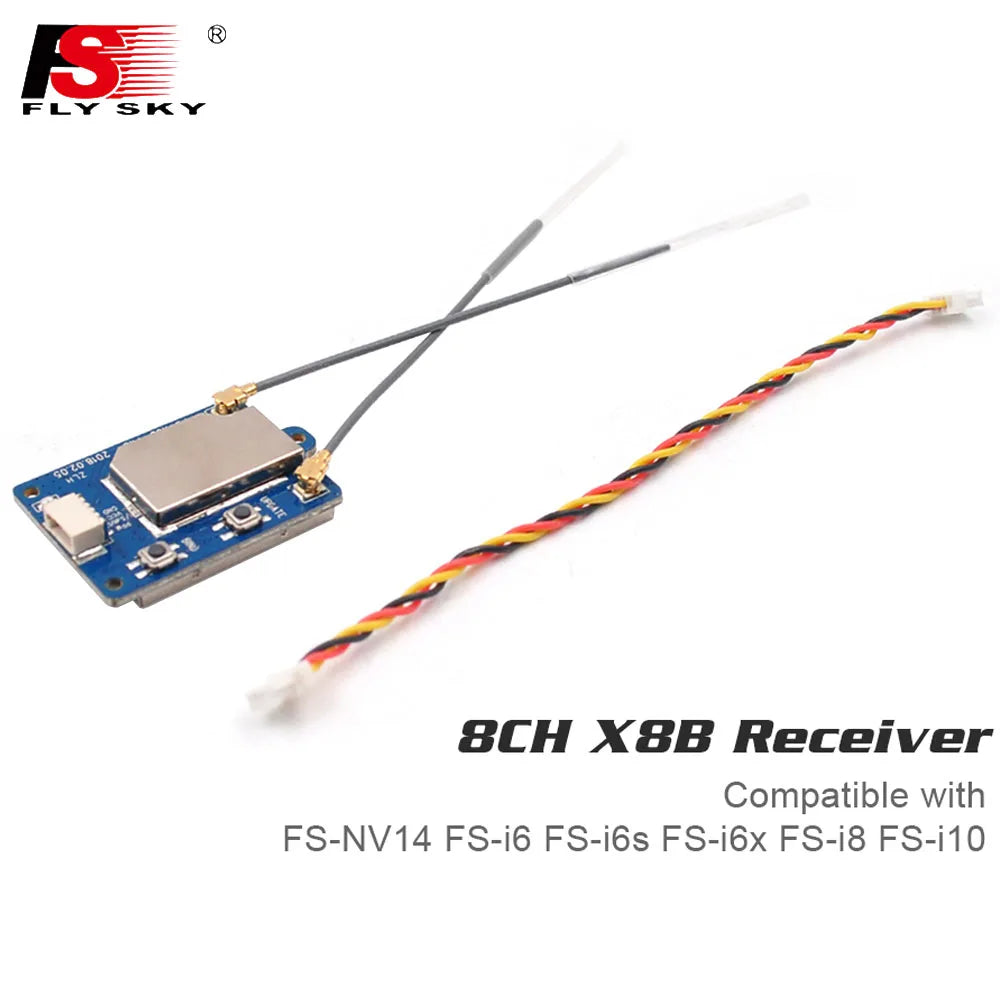

Flysky FS-X8B 2.4G PPM i-BUS 8CH Receiver Compatible With FS-NV14 FS-i6 FS-i6s FS-i6x FS-i8 FS-i10 Transmitter

Features:
The FS-X8B is a single antenna bidirectional receiver using the AFHDS 2A (Second Generation Automatic Frequency Hopping Digital System) protocol.
It’s compact, easy to install and can output using a standard PPM ori-BUS signal.
Compatible transmitter: FS-Nirvana, FS-i6, FS-i6s, FS-i6x, FS-i8, FS-i10 Transmitter.
Function: Bi-Directional Transmission Support PPM/i-Bus, the i-Bus signal port, up to 8 channels support.
Range without ground interference (Transmitting and receiving 1m from the ground): >300m.

Specifications:
Product Model: FS-X8B
Product Name: Receiver
Channels: 8
PPM/i-BUS
Frequency Range: 2.408-2.475GHz
Bandwidth: 500KHz
Number of Bands: 135
Transmission Power: <20dBm(EU)
Receiver Sensitivity: – 92dBm
2.4GHz Protocol: AFHDS 2A
Modulation: GFSK
Transmission Method: FHSS
Channel Latency: <15ms
Antenna lenghth: 93mm (Double Antenna)
Input Power: 4.0-8.4V
Display: LED Indicator
Online Update: None
Range without interference 1m from the ground:more than 300m
Channel Data: 1500us
Range: 1000 ~ 2000us

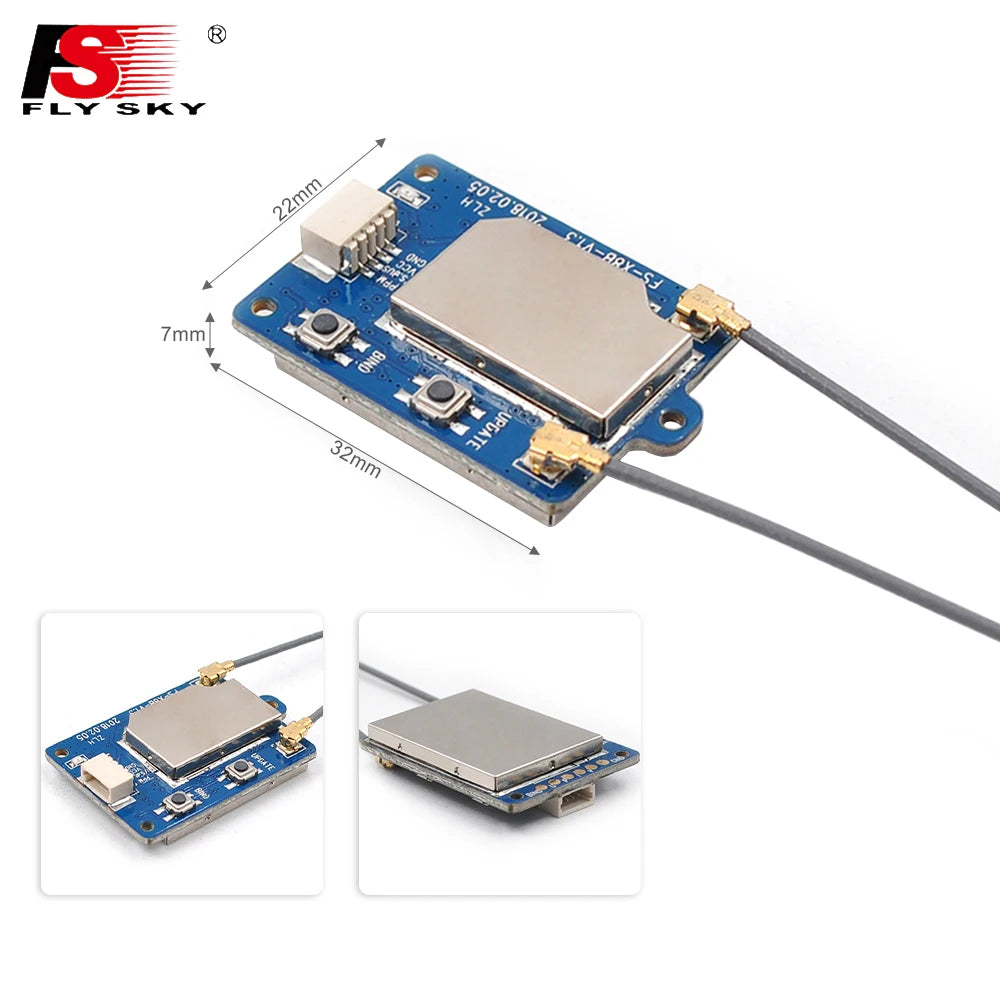

Size: 32 * 22 * 7mm
Weight: 3.7g
Certificate: CE, FCC
