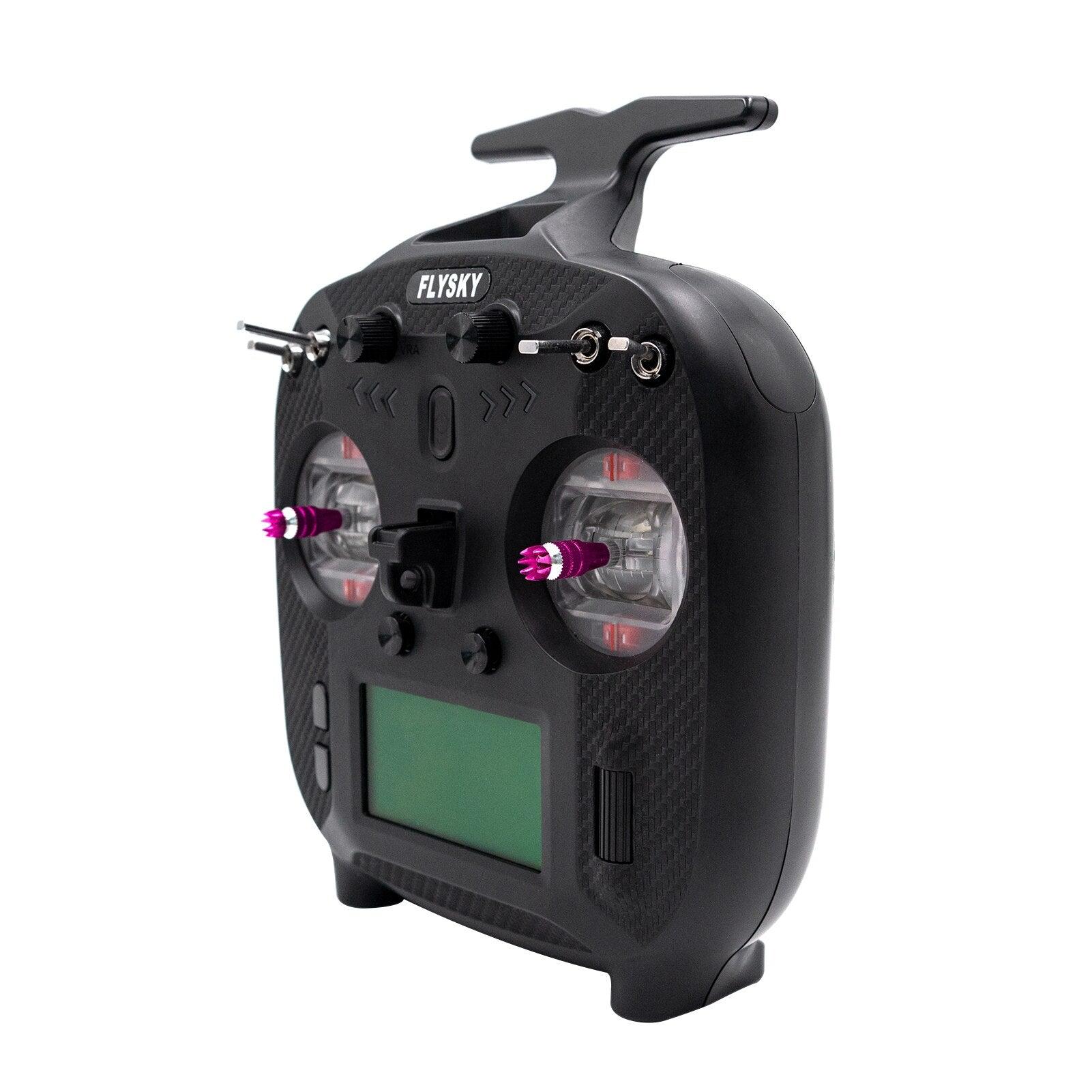

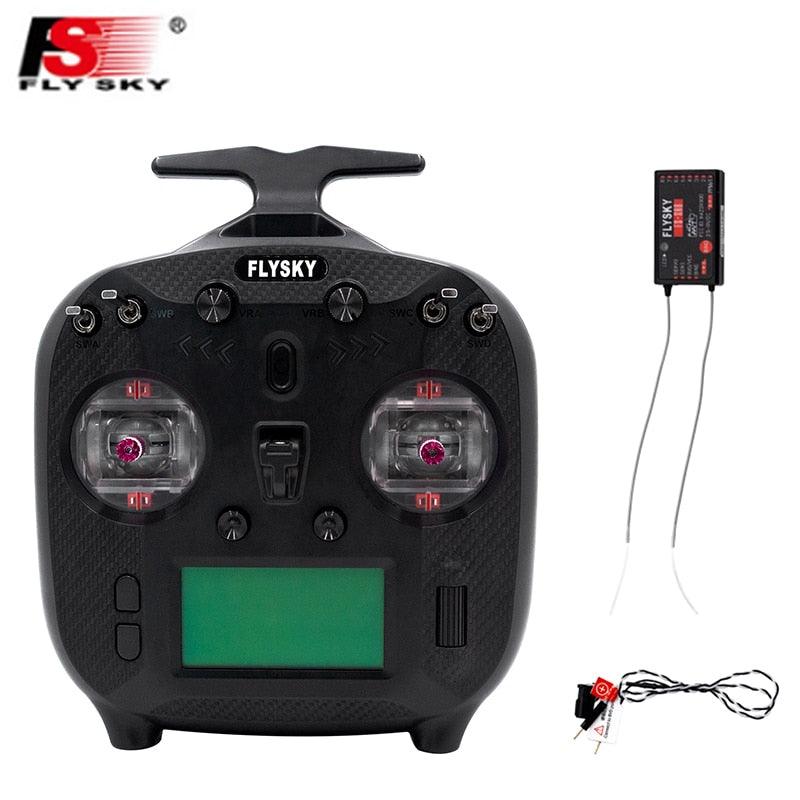

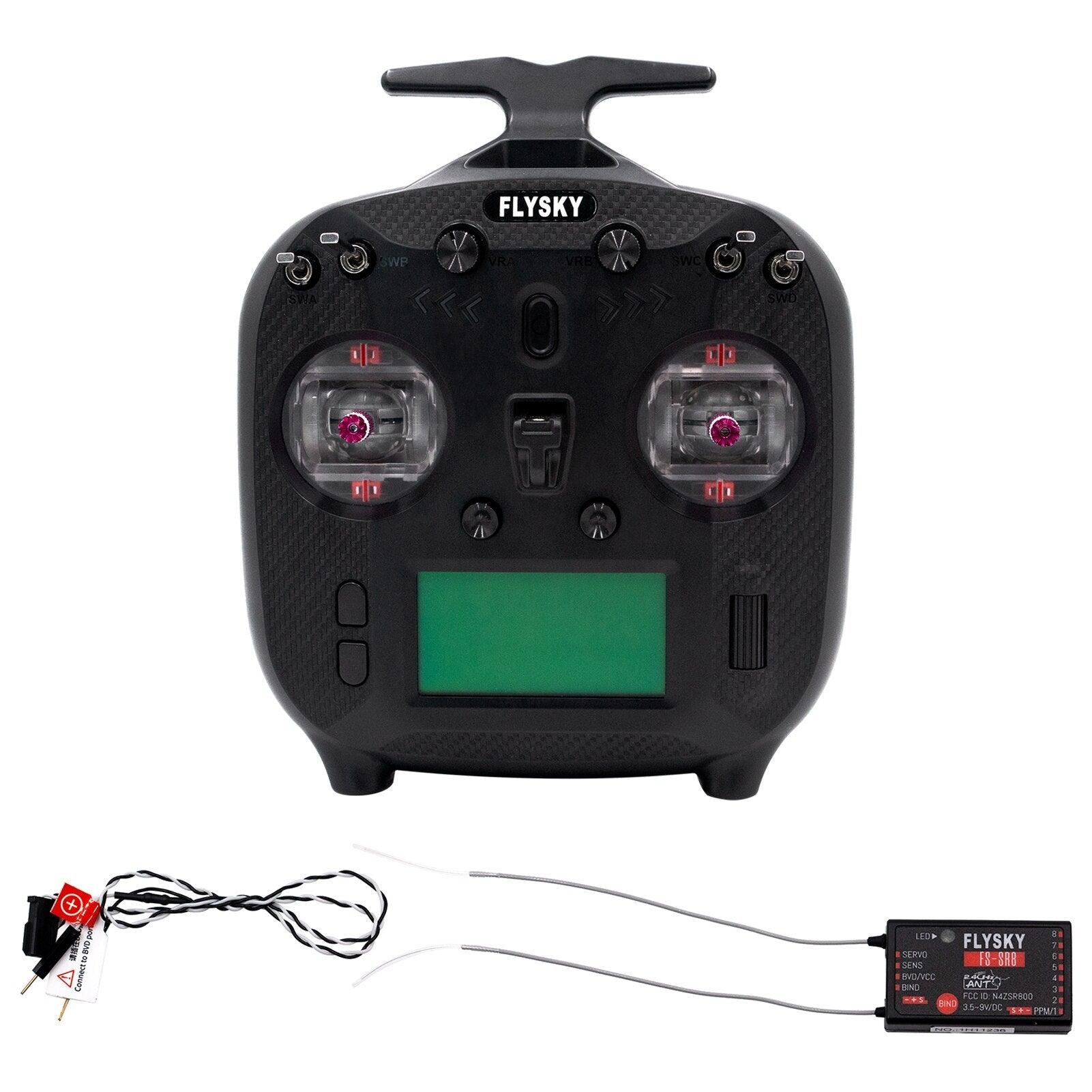

Flysky FS-ST8 Transmitter SPECIFICATIONS
Use: Vehicles & Remote Control Toys
Upgrade Parts/Accessories: Other
Tool Supplies: Assembly Category
Size: 176*210.9*82.5mm
Remote Control Peripherals/Devices: Remote Controller
Recommend Age: 12+y
RC Parts & Accs: Other
Origin: Mainland China
Model Number: FS-ST8
Material: Plastic
Four-wheel Drive Attributes: Assemblage
Features:
Digital proportional radio control system.
The RX SET(receiver setting) menu provides a number of function setting menus to allow you to set up the receiver system in all aspects.
User-friendly design for each operation and handling.
With lightweight and portable size, it is easy and convenient to carry and use.
Ergonomics, comfortable hand feel, not easy to sweat.

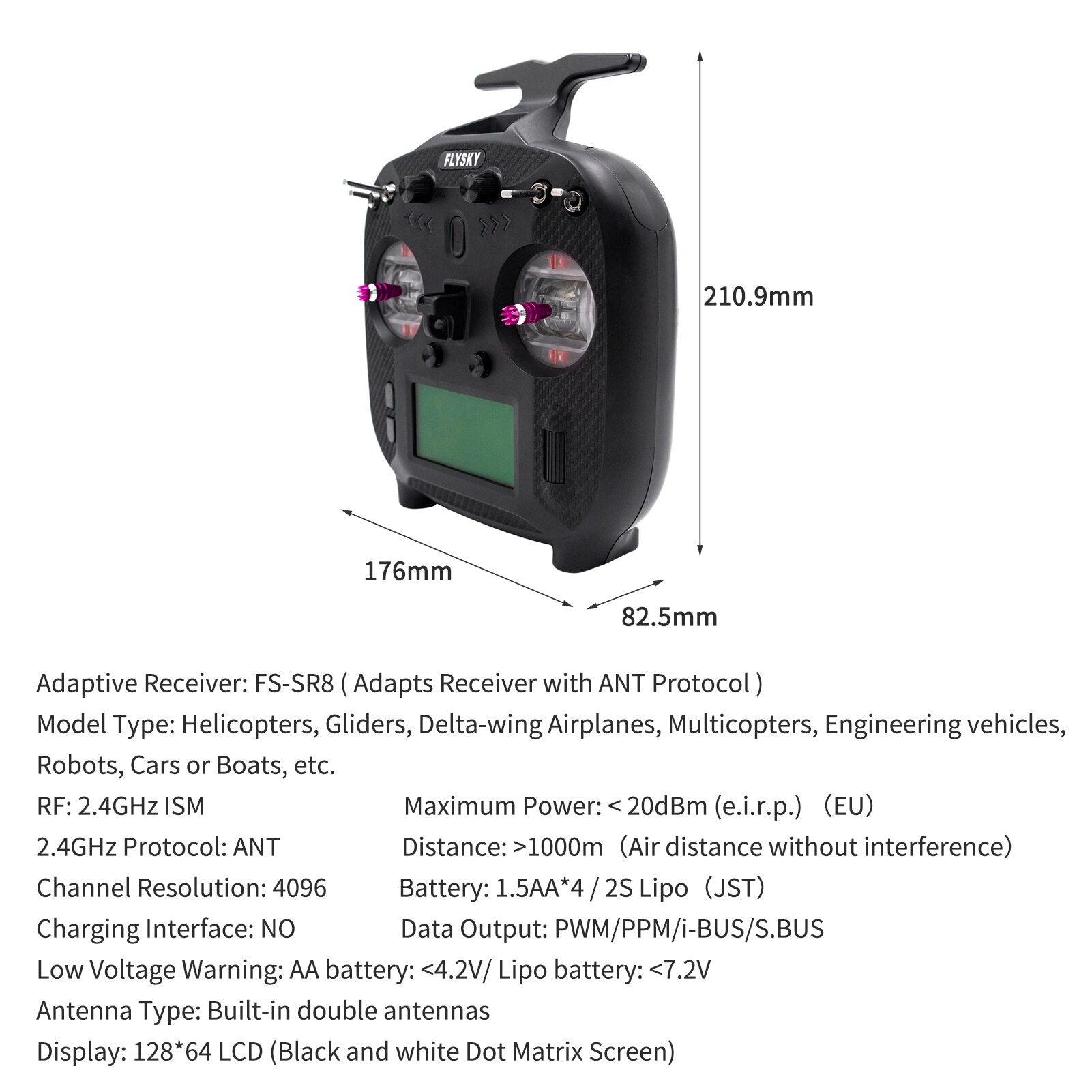

Specifications:
Brand: FLYSKY
Product Model: FS-ST8
Channels: 8-10
Adaptive Receiver: FS-SR8 ( Adapts Receiver with ANT Protocol )
Model Type: Helicopters, Gliders, Delta-wing Airplanes, Multicopters, Engineering vehicles, Robots, Cars or Boats, etc.
RF: 2.4GHz ISM
Maximum Power: < 20dBm (e.i.r.p.) (EU)
2.4GHz Protocol: ANT
Distance: >1000m(Air distance without interference)
Channel Resolution: 4096
Battery: 1.5AA*4 / 2S Lipo(JST)
Charging Interface: NO
Data Output: PWM/PPM/i-BUS/S.BUS
Low Voltage Warning: AA battery: <4.2V/ Lipo battery: <7.2V
Antenna Type: Built-in double antennas
Display: 128*64 LCD (Black and white Dot Matrix Screen)
Temperature Range: -10℃ ~ +60℃
Humidity Range: 20% ~ 95%
Languages: Chinese, English
Online Update: Yes
Color: Black
Size: 176*210.9*82.5mm
Weight: 420g

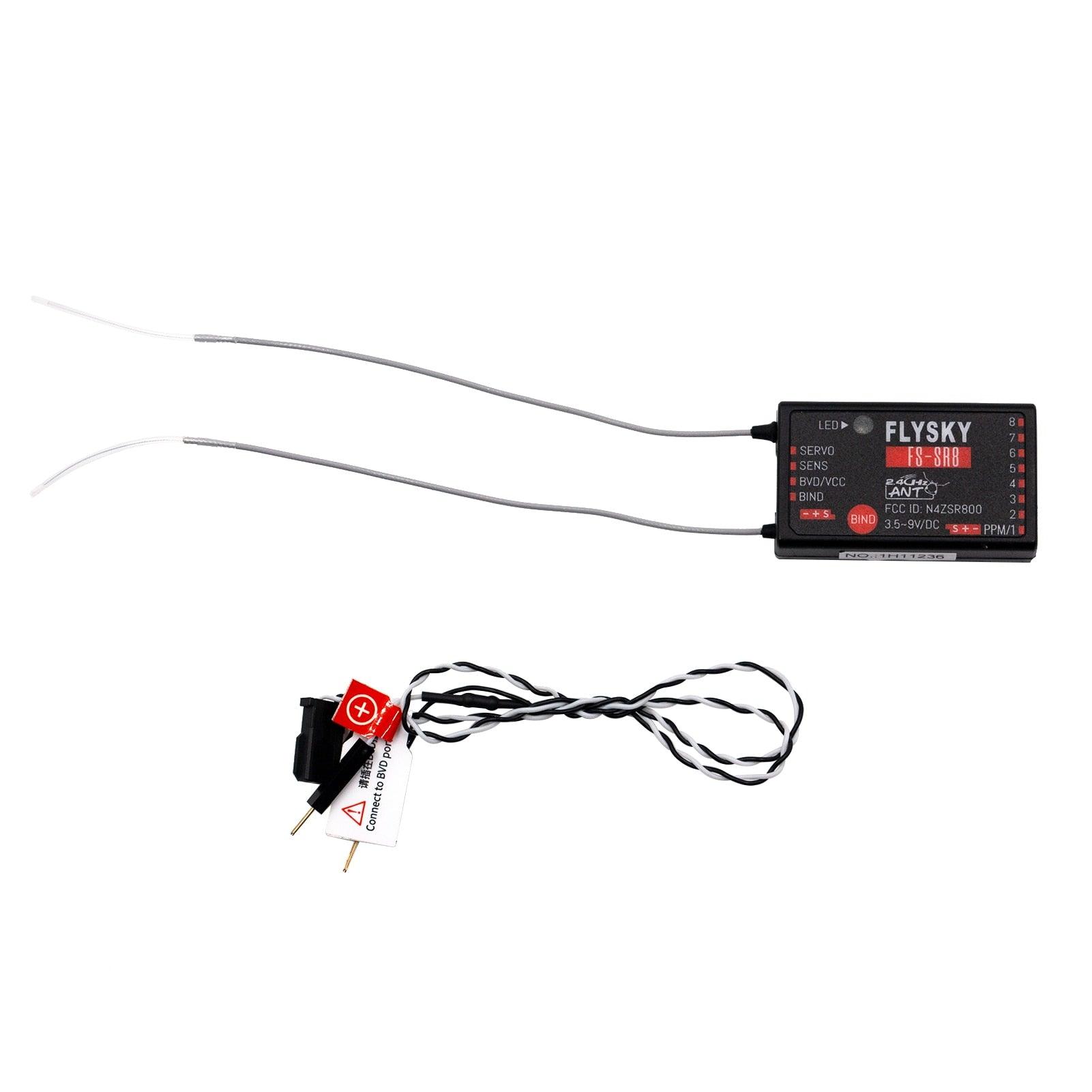

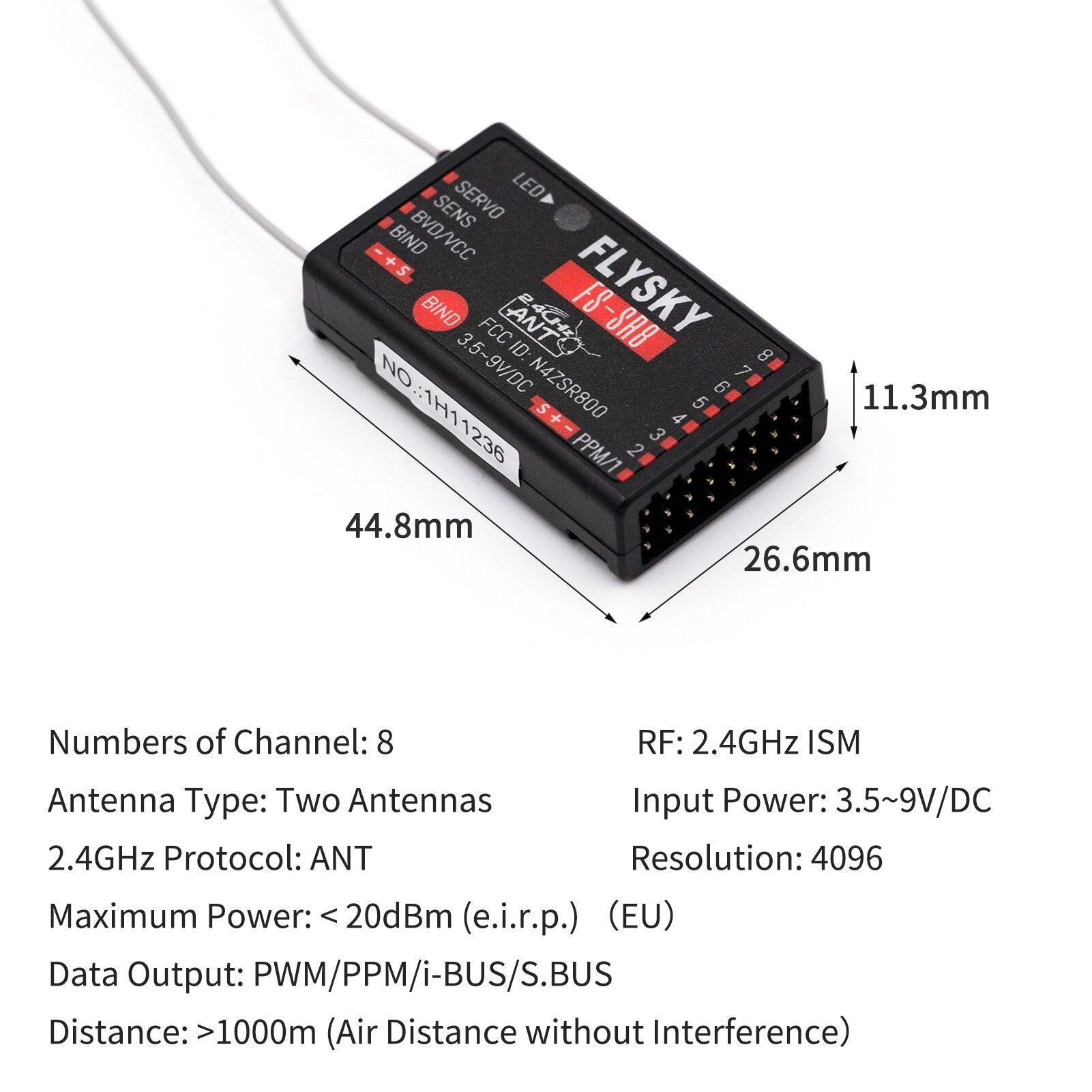

Product Model: FS-SR8
Adaptive Transmitter: FS-ST8 (Adapts Transmitter with ANT Protocol )
Adaptive Models: Helicopters, Gliders, Delta-wing airplanes, Multicopters, Engineering Vehicles, Robots, Cars or Boats, etc.
Numbers of Channel: 8
Maximum Power: < 20dBm (e.i.r.p.) (EU)
RF: 2.4GHz ISM
2.4GHz Protocol: ANT
Distance: >1000m (Air Distance without Interference)
Antenna Type: Two Antennas
Input Power: 3.5~9V/DC
Data Output: PWM/PPM/i-BUS/S.BUS
Online Update: Yes
Temperature Range: -10℃ ~ +60℃
Humidity Range: 20% ~ 95%
Size: 44.8*26.6*11.3mm
Package Information:
Package Size: 23.5*25.5*9.5cm
Package Weight: 661g
Gift Box Packaging

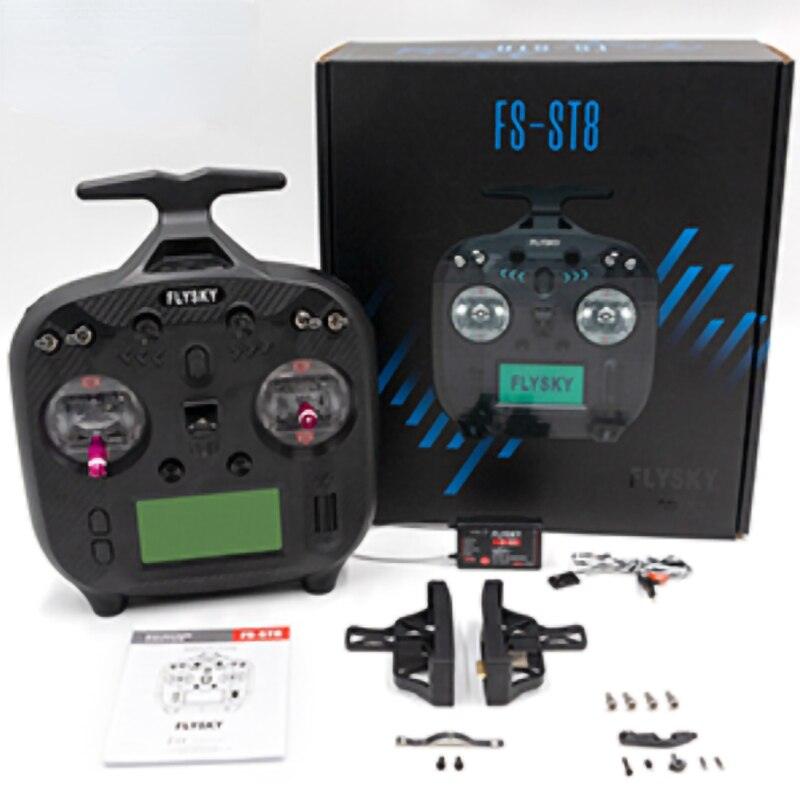

Package List:
1* Transmitter
1* Receiver
2* User Manual
Flysky FS-ST8 Transmitter Description
(10] [12] (9] 013] (20] [21 (2 [8] [14] [] [15] [6) (16] [19] EX [1] Display [9] SWB position Switch [17] 13/14 Trim Button [2] ExIT Button[10] VRA Knob (18) VRB Knob (20) Trainer Jack [5] Neck Strap Hook [13] SWXC Three-position Switch [2IJ A Preserved Hole for Antenna [
the menu shows the signal strength and TX voltage of the receiver is 6V . the icons shown here indicate that the function is enabled, Lock icon, Flight mode icon, Throttle hold 55F M and GPS icon .
RF: 2.4GHz ISM Antenna Type: Two Antennes Protocol: ANT Resolution: 4096 Maximum Power: 2OdBm (e.i.r:p)
LED FLYSKY 7 SERVO 6 SENS FS-SRB 5 BVD/VCC (AtS 3 BIND S FCC ID: N4ZSR8OO 2 BIND 3.5gV/OC S + PPM/I (121[1S] (IC] (451[441(43) (12 8 1 IzI M7 [18]
FLYSKY Vibration function 20 sets of model data USB simulator Support firmware Bilingual in English and Chinese Stick mode replacement 4096 resolution Support FlySky Assistant 3.0 Function customization of Free ‘settings ofadjustable switches, knobs, and keys: ratio, throttle curve; and so on No; Support for settings of the receiver Back transmission of RSSI, output signals such as PPM, PWM, BVD voltage; other telemetry Iqg ibus, and sbus: information .
FFG-BTR dIY allows VserS to customize freely Reserved external antenna hole; Users can 3 upgrade external antenna independently .
standard version users can purchase accessories to upgrade the VRC, VRD shoulder return-to-center wheel, and keyl and key2 on the back . The XT30 interface hole is reserved on the battery cover; JST battery interface, with supporting 2S lithium battery .
the CEVO4 can implement functions for wheel, keys on the a mobile phone holder; such as power supply and back and track model: to easily get phone’ 5 firmware update: camera or pictures: The external antenna Provide setback throttle The assembly base throttle The 3-segment audio modification component pressure plate that can return accessory allows coach interface and the allows you to upgrade the connect each other; your transmitter;
RC Flysky Paladin EV High Channel Receiver Seti PL18 Official Video: Break from the past: NEW RC flysky ‘paladin’ EV Radio System .
4 x 1300mAh AA NiMH batteries can last more than 10 hours . Type C can also be used for the power supply for the transmitter .
[FD-DTT L Design ingenuity The whale tail antenna handleishighly recognizable FLYSKY The model well matches the transmitter: TherGB brilliant ambientlighton the transparent assembly base makesit colorful The typecinterfacehasthefive-way simple trim featuringease ofuse: K(( ((SVSTEM SETT GRADE ITING> BATTERY – 213 #OFF LED[ ‘TYPE ) COLOR BLUB BRIGHTNESS 3507, keys;’ 1
Standard Edition F8-ST8 Hyskt FLYSKY FlySKY Upgraded Edition F 8-STb Flysky ” 63 FLyakT Tlsky FLySKY ELYakT
FS-ST8 transmitter version differences comparison table Standard Edition Upgraded Edition TX amount I 1 Assembly base Standard assembly base Bearing assembly base Shoulder return-to-center wheel (Install)
