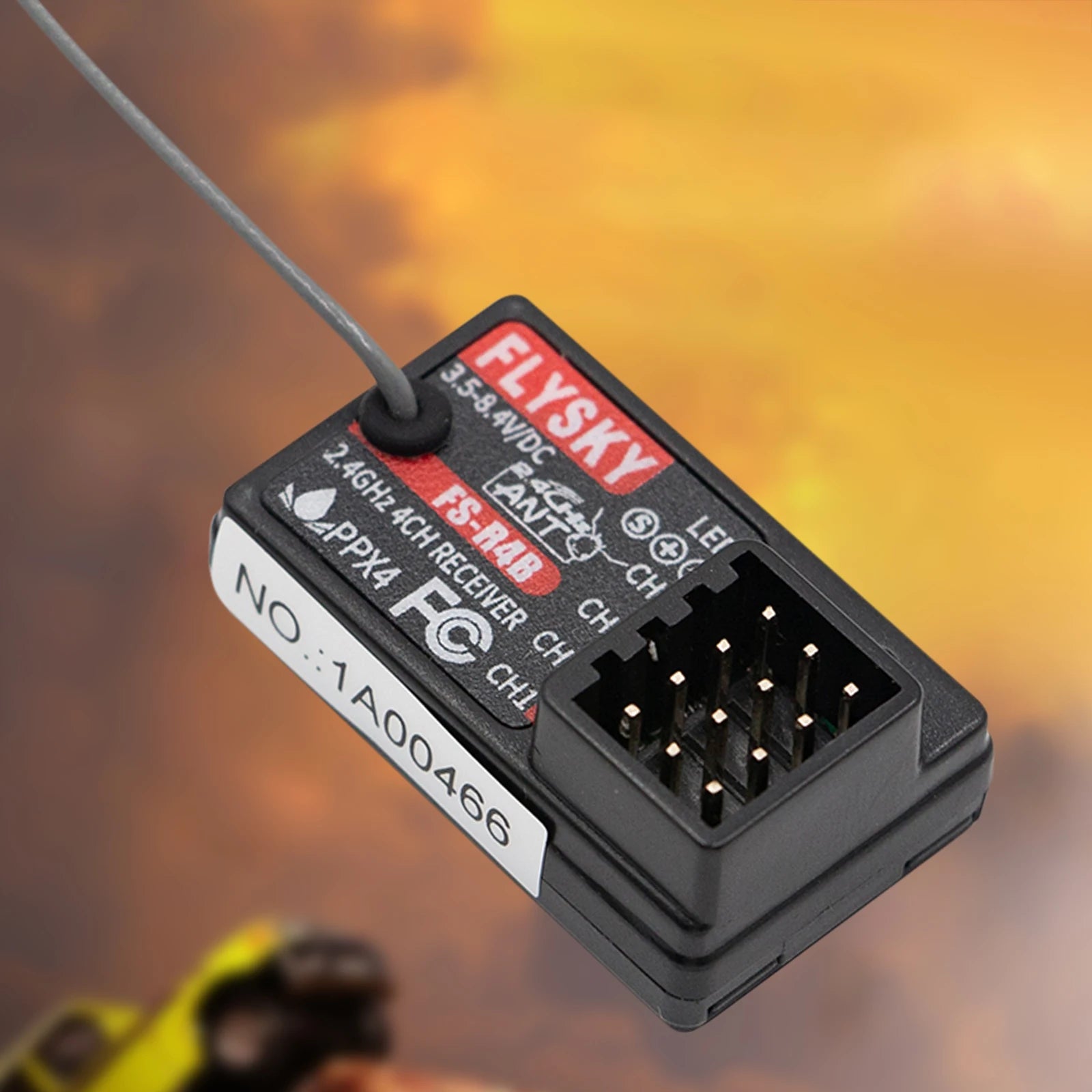

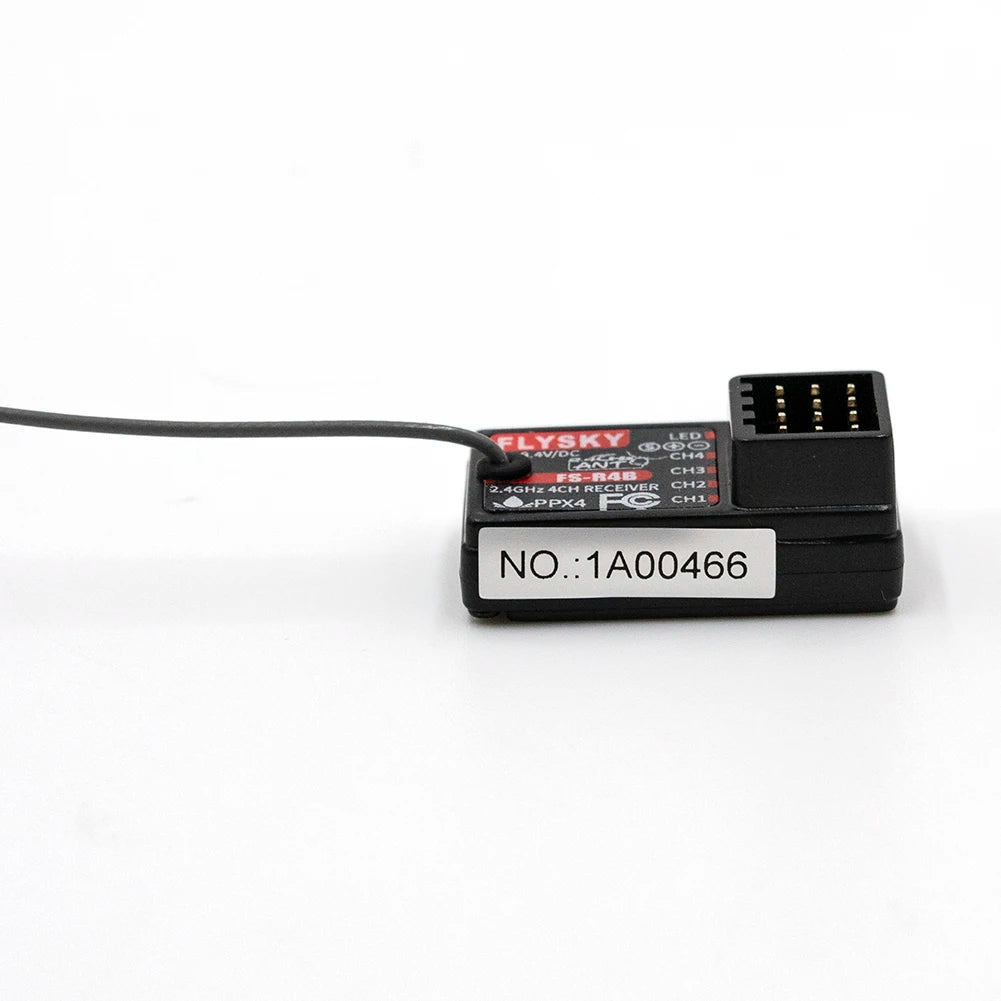

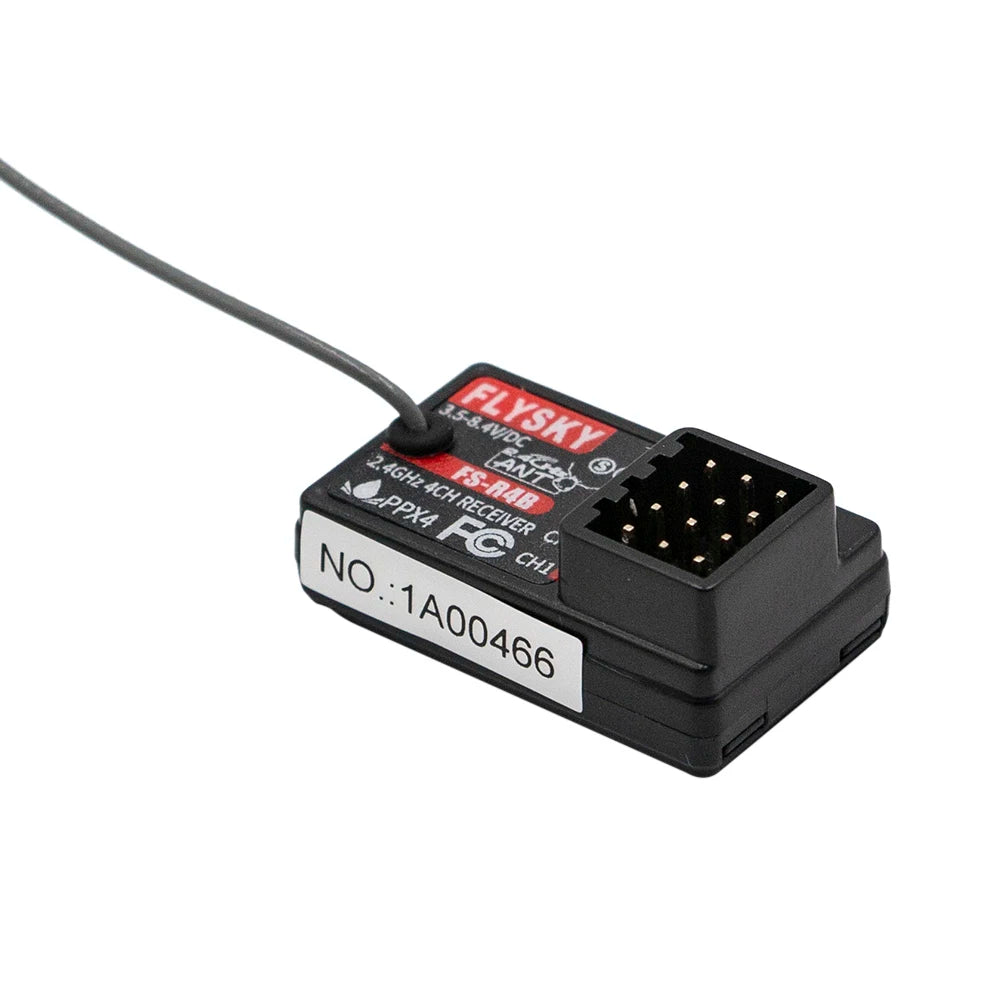

Flysky FS-R4B Digital Receiver Multifunctional Panadapter SDR Receiver PWM Interface Portable Radio Receiver for FS-G7P FS-ST8 FS-MG41 FS-MG4
Feature:
1. Small and Lightweight: Mini Receivers is ultra-small, ultra-light and effective in saving space and reducing the load of goods.
2. Stable Performance: Audio Adapter is easy to bind and link very fast, and its performance is fast and extremely stable.
3. Characteristic Advantages of ANT Protocol: SDR Receiver adopts ANT protocol, which is compatible with one-way and two-way real-time data transmission, intelligent RF configuration, multi-frequency hopping operation, independent identification system, high reliability system design, and low power consumption.
4. Compatible Model: Radio Receiver is compatible with FS-G7P FS-ST8 FS-MG41 FS-MG4 transmitter.
5. Warm Tips: Panadapter SDR Receiver If you encounter a problem that cannot be linked for the first time, please choose to re-link. (Step: Insert the attached code line into the BIND interface of the receiver, turn on the receiver, at this time, the receiver indicator light flashes quickly, then press the BIND button of the transmitter, and turn on the power of the transmitter at the same time, the receiver indicator light is always on, and the frequency matching is successful.)

Specification:
Material: Metal
Remote Control Peripherals/Devices: Receivers
Model Number: R4B
Origin: Mainland China
Recommend Age: 14+y
RC Parts & Accs: Receivers
For Vehicle Type: Cars
Quantity: 1 pcs
Product model: FS-R4B
PWM channel: 4
Wireless frequency: 2.4G
Wireless protocol: ANT
Remote control distance: 100~300m (ground)
Antenna type: external single antenna
Power supply: 3.5-8.4V
RSSI: support
Data interface: PWM
Temperature range: – 10 ℃ -+60 ℃
Humidity range: 20% – 95%
Online update: support

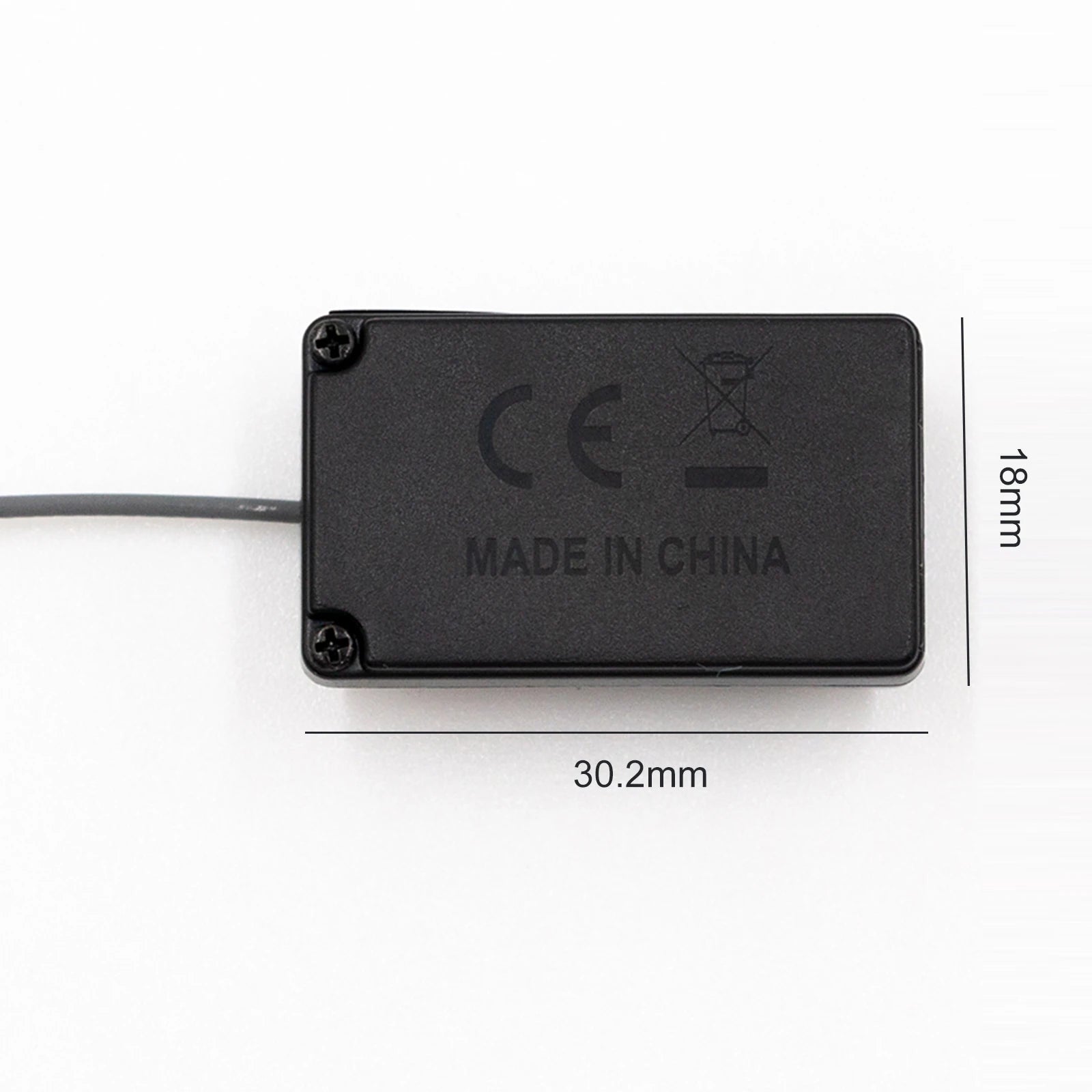

Overall dimension: 30.2*18.0*13.0mm/11.8*7.0*5.1in
Body weight: 5g
Certification: CE, FCC

Note:
Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you!
Please allow 1-2cm measuring deviation due to manual measurement.

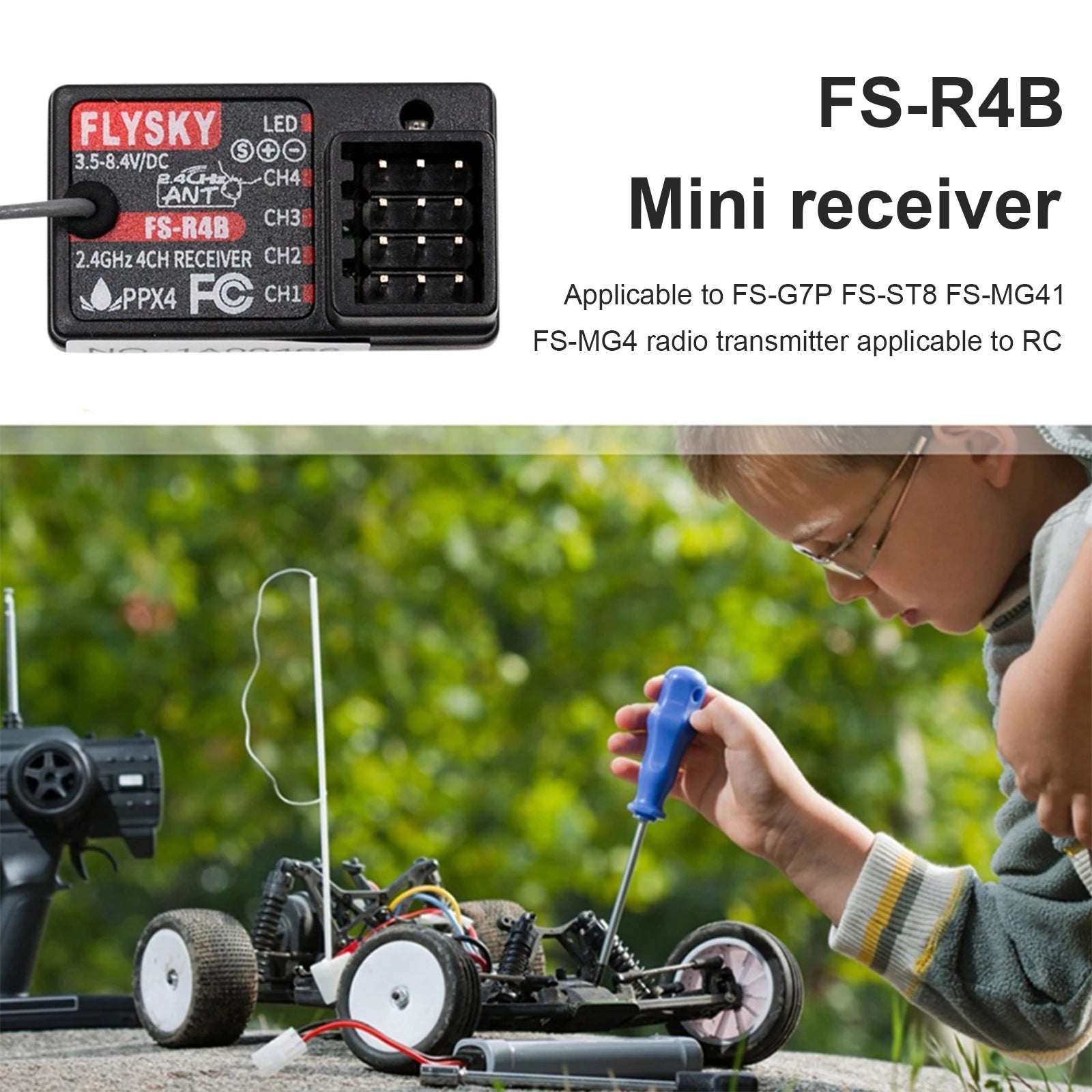

Eantt CH4 FS-RAB CH3 Mini receiver 2.4GHz 4CH RECEIVER CH2 SPPX4 FC CHl Applicable to RC radio transmitters .

FS-R4B Mini Receiver, Compatible with Flysky Transmitters, 2.4GHz Frequency, 4-Channel Receiver with Single Antenna.

Compatible with Flysky Transmitters, Model: FS-R4B, 2.4GHz Frequency, 4-Channel Receiver with Single Antenna, No Channel 1.

Flysky Receiver, Frequency Range: 3.5-8.4VDC, 2.4GHz, Compatible with FS-RQB, 4-Channel Receiver, No Channel 1, AA004.

Flysky LED Receiver, Frequency Range: 3.5-8.4V/DC, Compatible with FS-RAB, Channel 3, 2.4GHz, 4-Channel Receiver, Channel 2, EPPX4 Functionality.
