FLYSKY FS-i6x 2.4G 6CH AFHDS 2A Radio Transmitter IA6B X6B A8S R6B Fli14+ Receiver for RC Airplane Helicopter FPV Racing Drone

$24.24$79.44

SKU: N/A Category:

Description

SPECIFICATIONS

Use: Vehicles & Remote Control Toys

Tool Supplies: Battery

Technical parameters: Value 2

Remote Control Peripherals/Devices: Remote Controller

Recommend Age: 12+y

RC Parts & Accs: Transmitters

Plastic Type: ABS

Origin: Mainland China

Material: Plastic

Four-wheel Drive Attributes: Assemblage

For Vehicle Type: Helicopters

Brand Name: abay

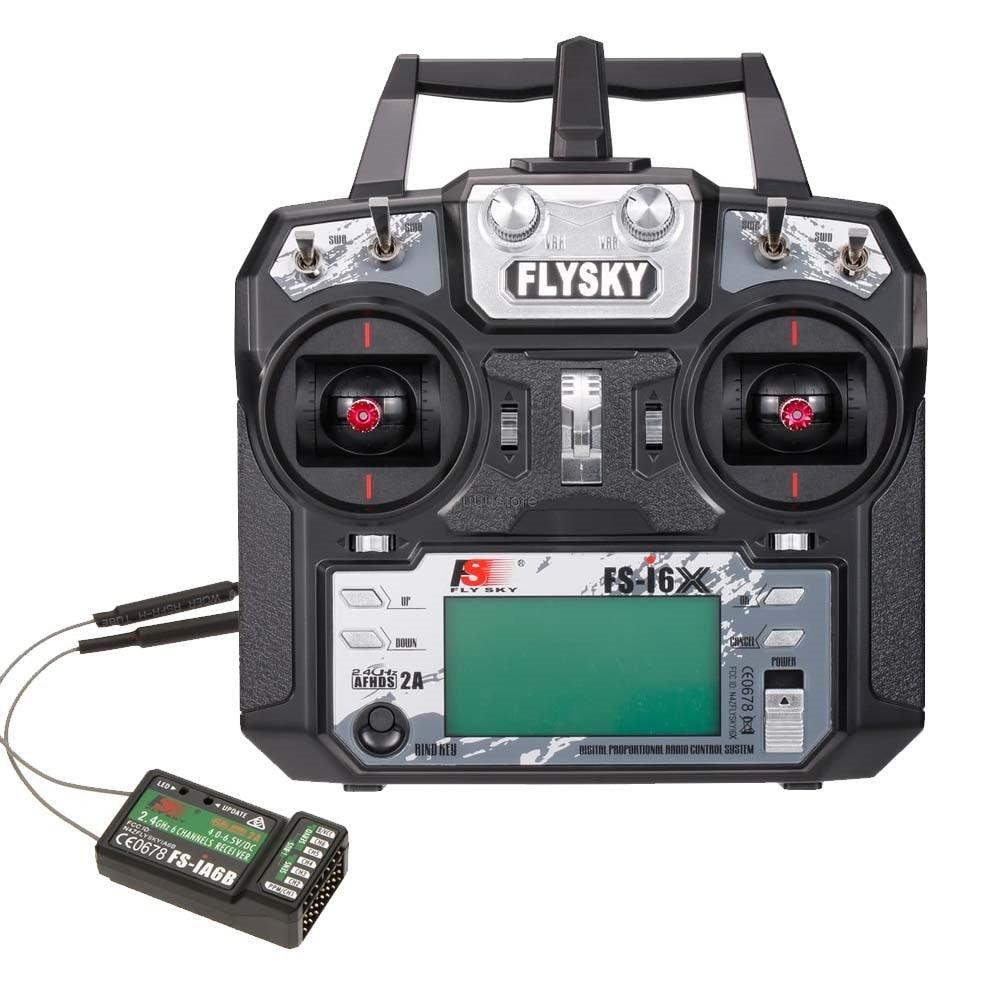

The FS-i6X transmitter and FS-iA6B receiver constitute a 6 channel 2.4GHz AFHDS 2A digital proportional computerized RC system. This system offers superior protection against interference while maintaining lower power consumption and high reliable receiver sensitivity. It is specially developed for all radio control models.

Mode¬†1–¬†Throttle¬†stick¬†on¬†right¬†
Mode¬†2–¬†Throttle¬†stick¬†on¬†left

Package list:
1 * FS-i6X Remote Controller(If you choose Fs-I6X with receiver,it will have receiver)
1 * Bind Plug
1 * Manual



Features:

Adopt AFHDS 2A (Automatic Frequency Hopping Digital System Second Generation) technology. Offering superior protection against interference while maintaining lower power consumption and high reliable receiver sensitivity.
Receiving data from temperature, altitude and many other types of sensors, servo calibration and i-BUS support.
Multi-channel hopping frequency, hop between 16 channels (32 for Japanese and Korean version) to reduce interference from other transmitters.
Unique ID recognition system, each transmitter and receiver has its own unique ID to prevent interference.
Low power consumption, consuming as little as one tenth the power of a standard FM system, dramatically extending battery life.
FS-iA6B receiver compatible with FS-i6X, FS-i4, FS-i6, FS-i10, FS-GT2E, FS-GT2G transmitter.

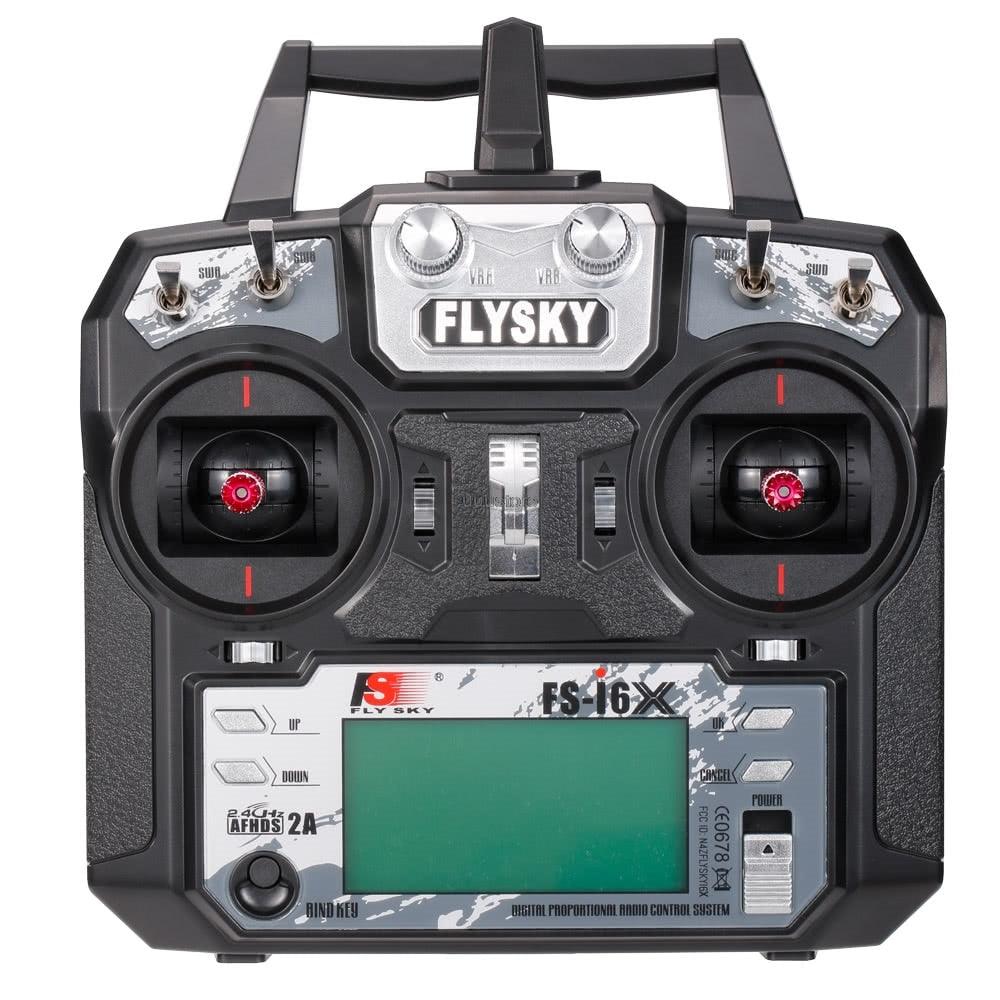

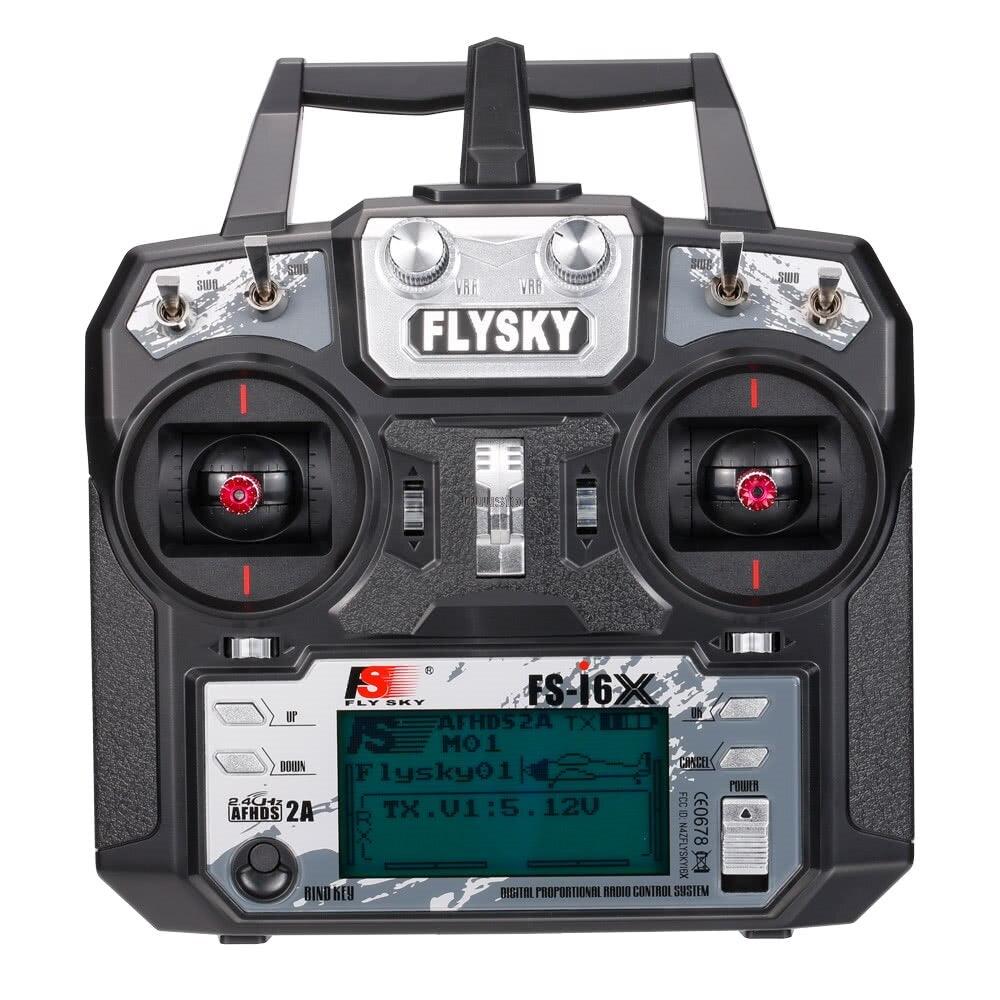

FS-i6X Transmitter Specifications:
Channels: 6-10 (default 6)
Model type: Fixed-Wing/Glider/Helicopter
RF Range: 2.408-2.475GHz
RF power: <20dBm
RF Channel: 135
Bandwidth: 500KHz
2.4GHz system: AFHDS 2A / AFHDS
Modulation type: GFSK
Stick resolution: 4096
Low voltage warning: <4.2V
DSC Port: PS/2 Port
Chargeable: No
Antenna Length: 26mm (Dual Antenna)
Weight: About 400g

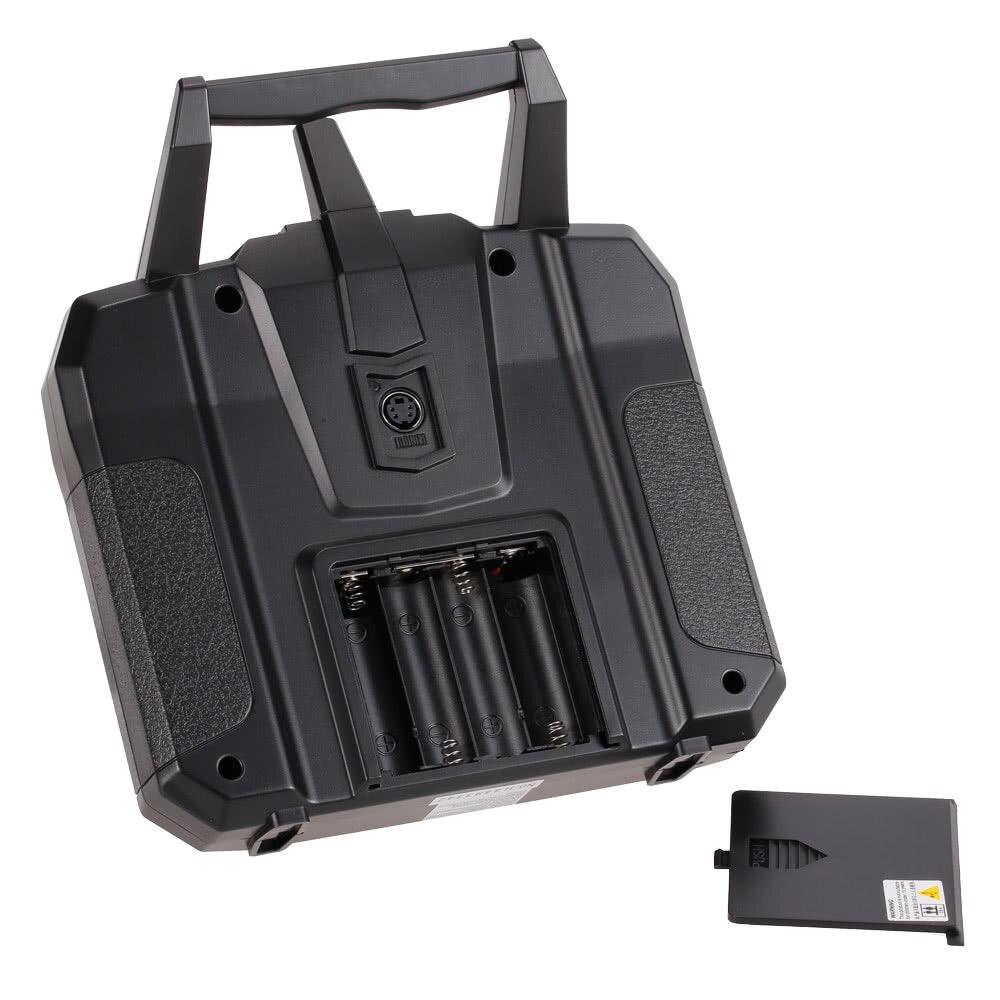

Power: 4 * AA battery (not included)

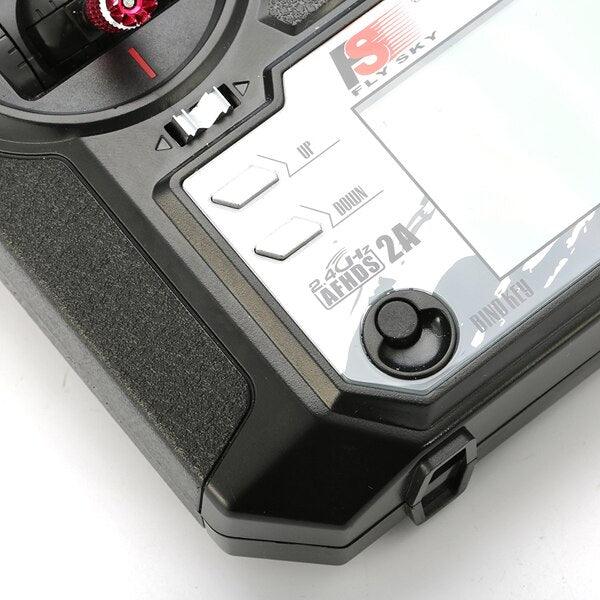

Display: STN transflective display, LCD 128*64 lattice, VA 73*39mm, LCD with white backlight
Size: 190 * 174 * 89mm
On-Line Update: Yes
Color: Black
Certificate: CE0678, FCC ID: N4ZFLYSKYI6X

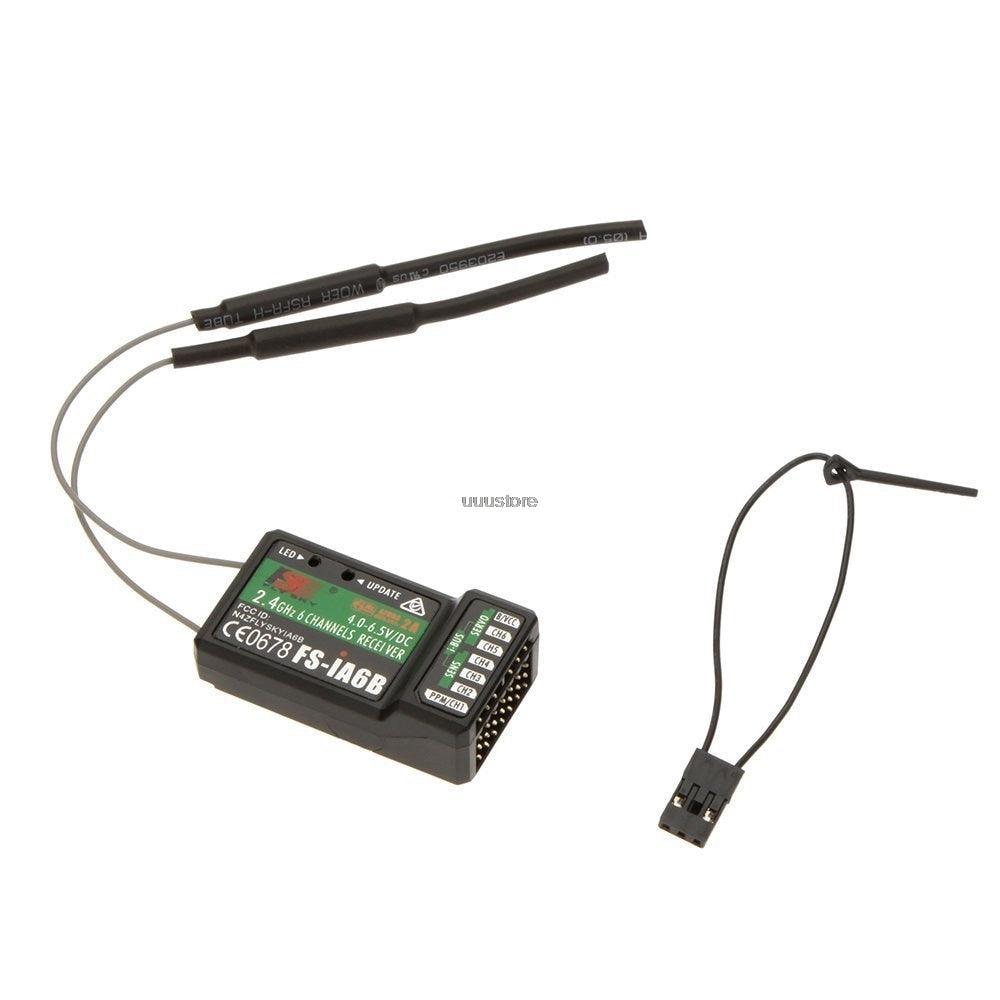

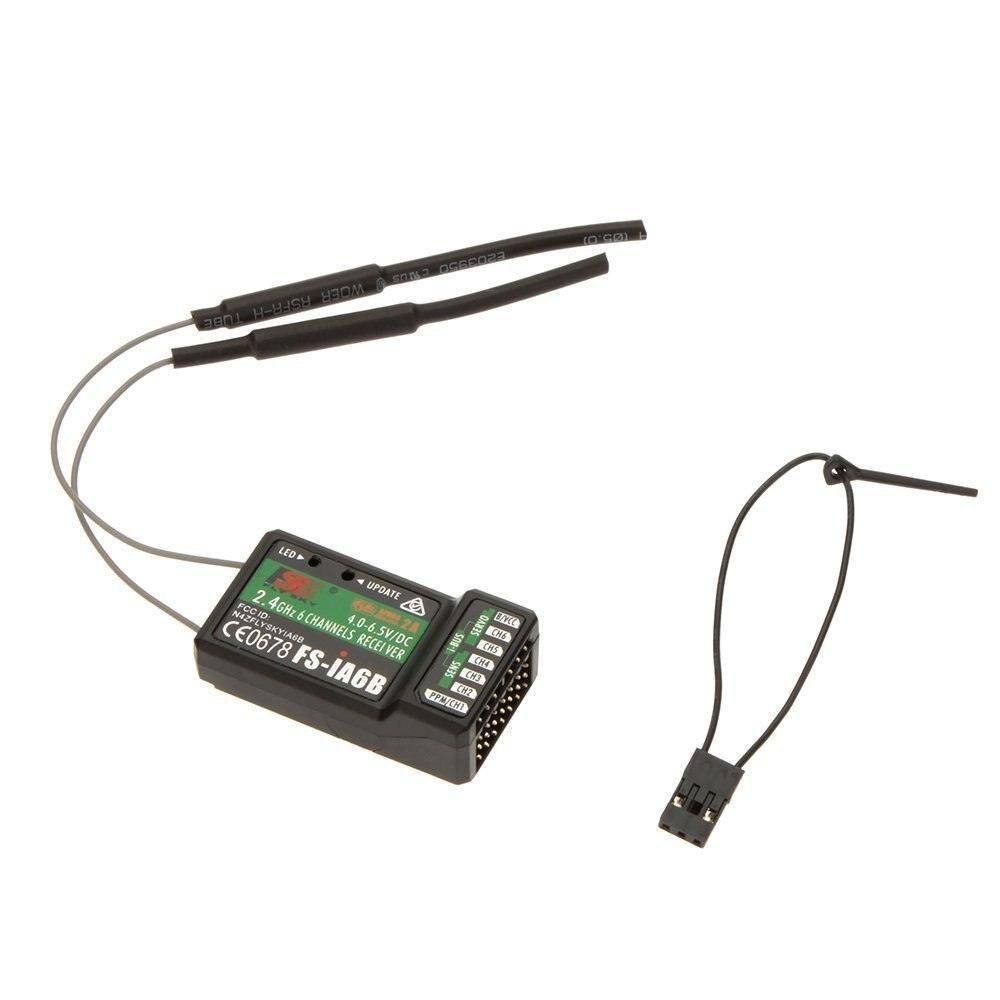

FS-iA6B Receiver Specifications:
Channels: 6
Model type: Airplane/Glider/Helicopter
RF range: 2.4055-2.475GHz
RF channel: 140
RF receiver sensitivity: -105dBm
Bandwidth: 500KHz
2.4GHz system: AFHDS 2A
Modulation type: GFSK
Power: 4.0-6.5V DC
Compatible transmitter: FS-i6X, FS-i4, FS-i6, FS-i10, FS-GT2E, FS-GT2G
Antenna length: 26mm (Dual Antenna)
Weight: 16.3g
Size: 47 * 26.2 * 15mm
i-BUS port: Yes
Data acquisition port: Yes

Package information:
Package size: 23.2 * 20.8 * 10.5cm / 9.13 * 8.18 * 4.13in
Package weight: 666g / 1.47lb
Gift box package

HYKY Ho1 Fluskeoik IX.01:5 J 8

Stylish, ultra- low-power Firmware upgrades are available to expand the channel External sensor module can transmit information HYKY Ho1 Fluskeoik IX.01:5 J 8 -thin, .

FS-16 Fath0sza tX M01 I Iyskyo1

FS-16 Fath0sza tX M01 I Iyskyo1ki 645924 TX.V1:5.07u 1 2 3 HIND Rey gIlal fillFoeTLQ al BedL_ COYddL SuS16M Gorrection AFHDS 2A hopping digital system F16 T7 get Ain6*2a R’o UT6 8.



the Whole Point Gain Antenna Dual-gain antenna, make signal transmission more stable

the Whole Point Gain Antenna Dual-gain antenna, make signal transmission more stable, strongly, enhanced directional stabilityl Double-entry Transfer System To better grasp the current state of the model work .

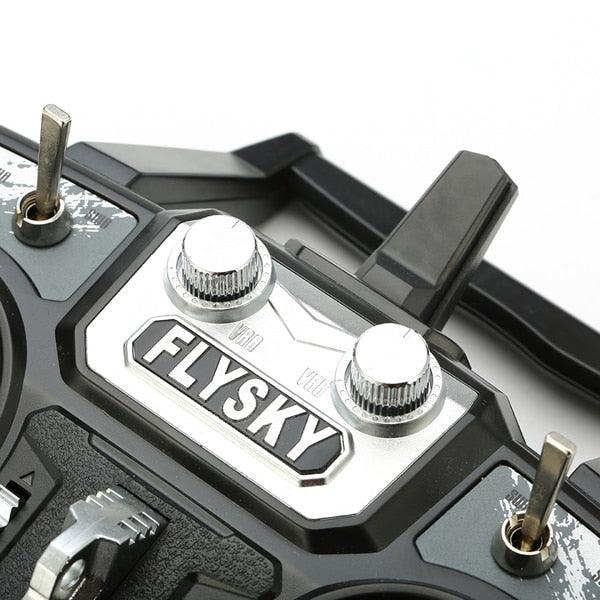

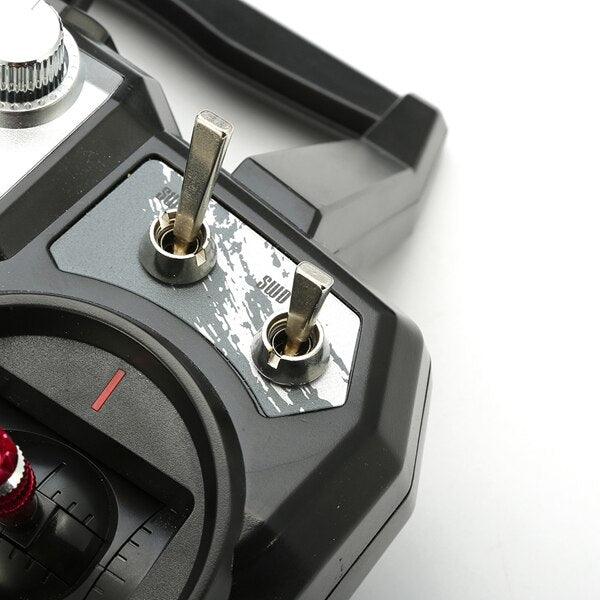

Antenna Handle VRA VRB Switch A Switch C Switch B Switch FLY

Antenna Handle VRA VRB Switch A Switch C Switch B Switch FLYSKY Hook Left joystick Right joystick Fine-tuning fine-tuneing rod rod rod 3 Fine – tuning fine tuned rod rod 2 rod 4 UP ESI6X OK ArHpszn Down 6 HO1 Cancel IF Iyskyolkt 1in2a ExHisseg Bind



Wbf VAA FLYSKY FS-I6 74th0520this system offers superior protection against interference while maintaining lower power consumption and high reliable receiver sensitivity

It is specially developed for all radio control models
