Flysky FS-i6X 10CH Radio Transmitter + Flysky ia10B Receiver 2.4GHz, AFHDS 2A for FPV Racing RC Drone Quadcopter

$88.10

Description

Flysky FS-i6X 10CH Radio Transmitter SPECIFICATIONS

name: hanma

Use: Vehicles & Remote Control Toys

Recommend Age: 12+y

Origin: Mainland China

Material: Plastic



FS-i6X Specifications:
Item: FS-i6X RC Transmitter
Channel: 6-10 (Default 6)
Model Type: Fixed-Wing/Glider/Helicopter
RF Range: 2.408-2.475GHz
RF Power: andlt; 20dBm
RF Channel: 135
Bandwidth: 500KHz
2.4GHz System: AFHDS 2A / AFDHS
Modulation Type: GFSK
Stick Resolution 4096
Low Voltage Warning: andlt; 4.2V
DSC port: PS/2 Port PPM
Chargeable: No
Antenna Length: 26mm (Dual Antenna)
Weight: 392g
Power: 6V DC 1.5AA*4
Display: STNTransflective Display, LCD 128×64 Lattice, VA 73x39mm, LCD with white backlight
Size: 174x89x190mm
On-line Update: Yes
Color: Black
Certificate: CE0678, FCC ID: N4ZFLYSKYI6X

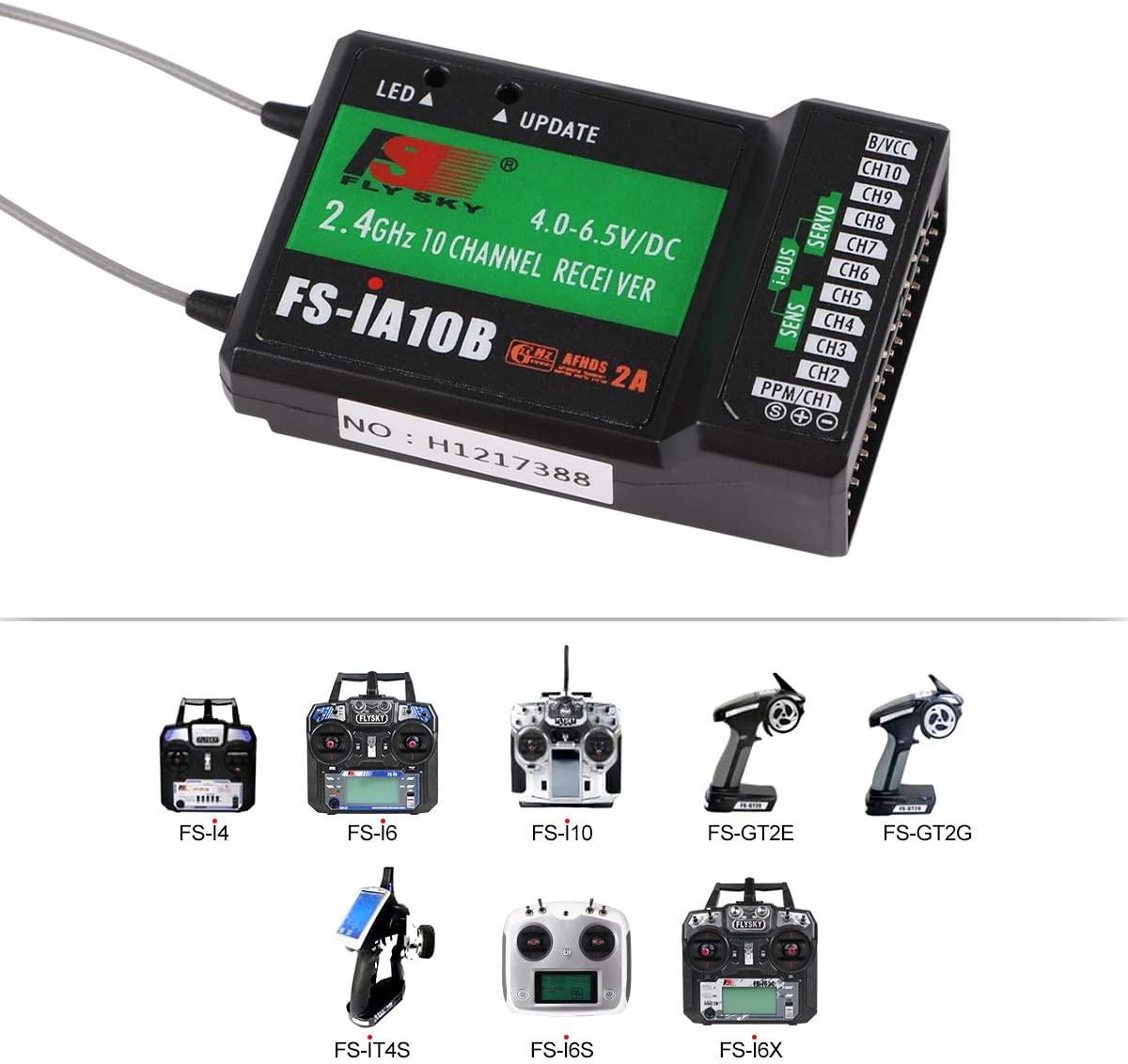

FS-iA10B Receiver Description:
Item Name: FS-iA10B
Channel: 10
Frequency Range: 2.4055–2.475GHZ
Band Width Number: 140
Transmitting Power: le; 20dBm
RF Receiver Sensitivity: -105dbm
2.4G Mode: The second generation of an enhanced version of the automatic FM digital system
Encoding: GFSK
Antenna Length: 26mm * 2 (dual antenna)
Input Power: 4.0-6.5V DC
Dimension: 47 x 26.2 x 15mm
Weight: 19.3g
Color: Black
i-Bus Interface: Yes
Data Acquisition Interface: Yes
Model Type: Airplane / Glider / Helicopter
Compatible Transmitter: Compatible with FS-i4,FS-i6,FS-i10,FS-GT2E,FS-GT2G

Package Including
1 * Flysky i6X transmitter
1 * Flysky iA10B receiver

Flysky FS-i6X 10CH Radio Transmitter Details
Flysky FS-i6X 10

Mode-2 (With iA6B) VGA Hp Flyskyo1 ‘ (7is24 TX U1:5.010 1 8 DgItIL FOFOnILQNAL FnuIU [FONIAOL USIEN 3 [beubop]

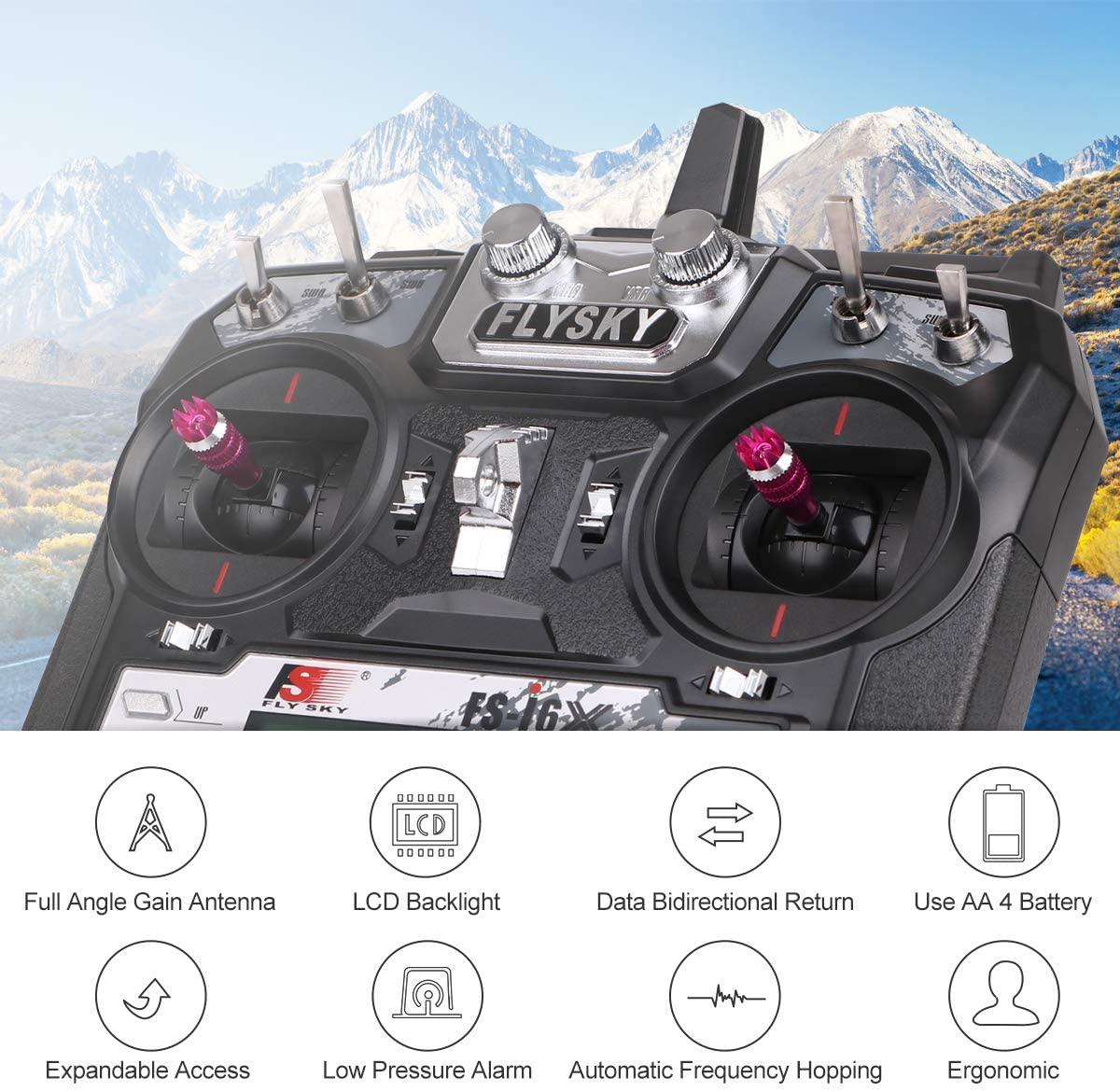

AA 4 Battery Expandable Access Low Pressure Alarm Automatic Frequency Hopping Ergono

GLYSKY @@@Q @ Full Angle Gain Antenna LCD Backlight Data Bidirectional Return Use AA 4 Battery Expandable Access Low Pressure Alarm Automatic Frequency Hopping Ergonomic .

Flysky FS-i6X 10

Flysky FS-i6X 10

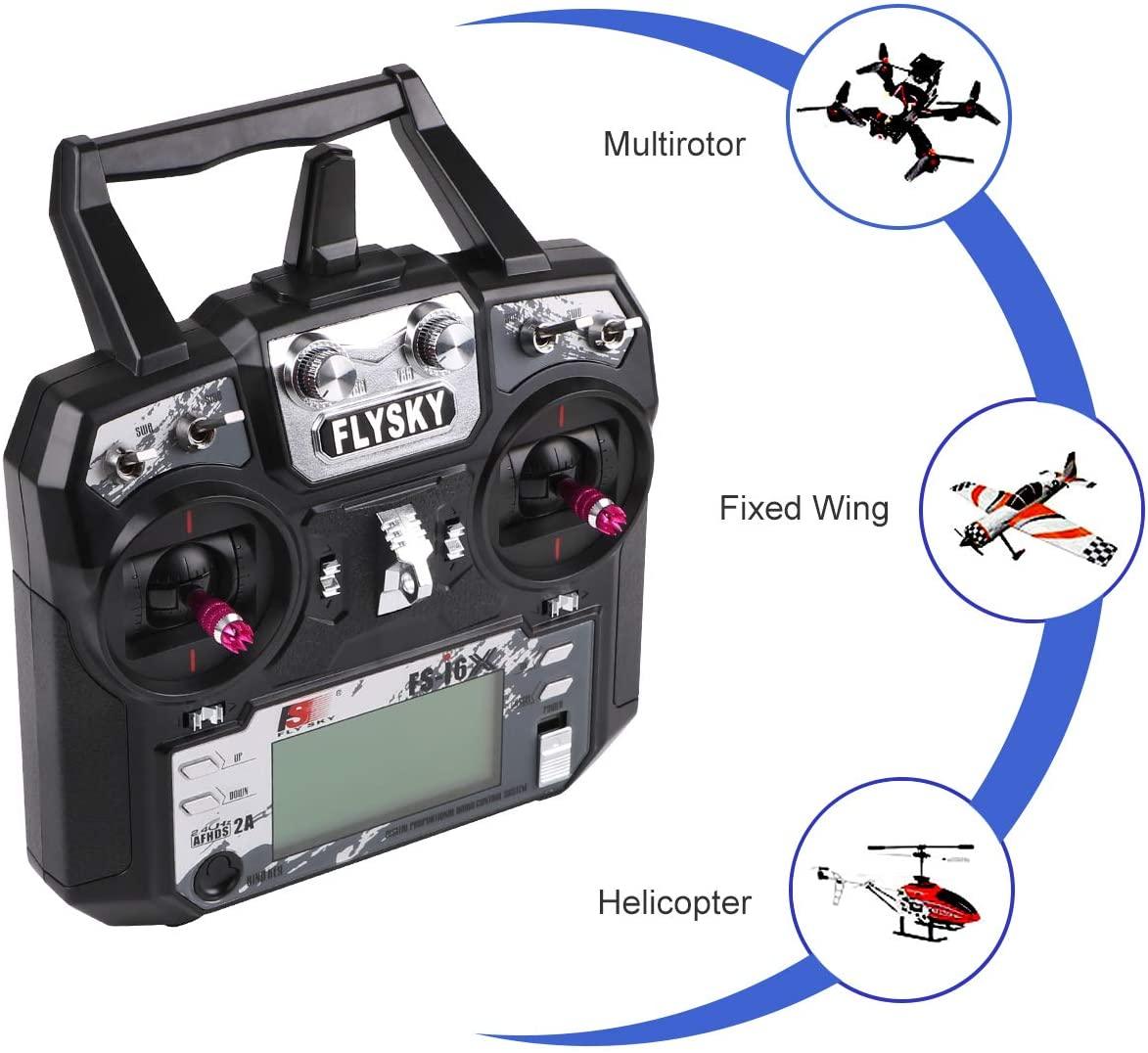

Multirotor swA Fixed Wing 124 Helicopter FLYSKY

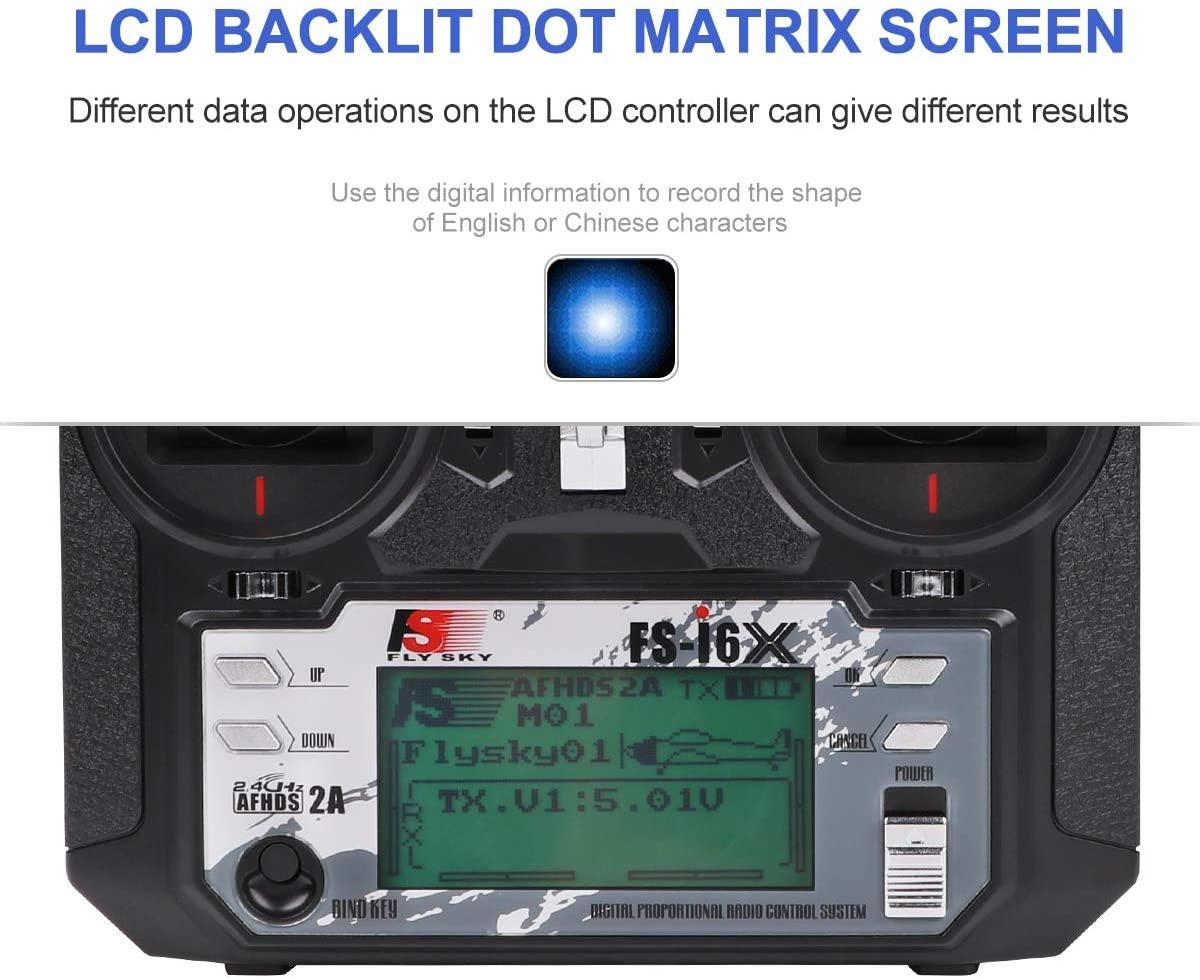

LCD BACKLIT DOT MATRIX SCREEN Different data operations on the LCD

LCD BACKLIT DOT MATRIX SCREEN Different data operations on the LCD controller can give different results .

Flysky FS-i6X 10

Flysky FS-i6X 10

CHANNEL AV/dC CH5 RECEIVER ! VER L

CHB (GLYEKD) FS-j4 FS i6

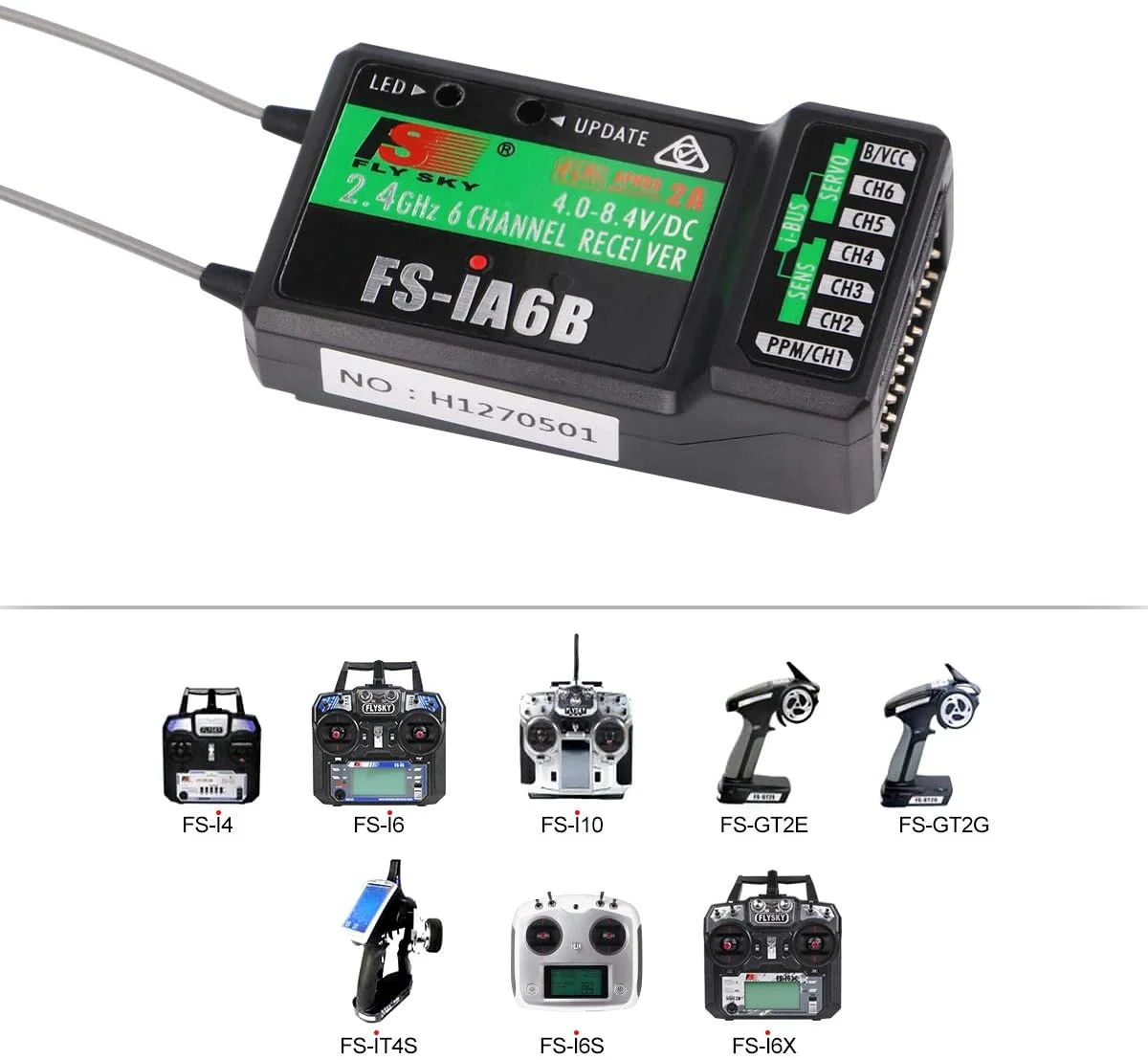

CHB (GLYEKD) FS-j4 FS i6 FS-10 fs-i10 f-iT4S FS-6s FS6x LED UPDATE BNG LcH6 AGHz_ 4.0-8. 2 ChANNEL AV/dc lcH5 RECEIVER ChA FSIA6B 9 CH2 PPWCH No H1270501
