Flysky 2.4G 18CH PL18EV Transmitter SPECIFICATIONS
is_customized: Yes
Wheelbase: Screws
Use: Vehicles & Remote Control Toys
Upgrade Parts/Accessories: Transmitter
Tool Supplies: Transmitter
Technical parameters: Value 2
Size: 214*120*196mm
Remote Control Peripherals/Devices: Transmitter
Recommend Age: 12+y
RC Parts & Accs: Radio Systems
Quantity: 1 pcs
Origin: Mainland China
Model Number: Flysky FS-PL18EV
Material: Metal
Four-wheel Drive Attributes: Transmitter
For Vehicle Type: Airplanes
Brand Name: U-Angel-1988
FLYSKY PL18EV Paladin 2.4G 18CH 5D Hall Sensor Gimbals AFHDS3 Radio Transmitter 3.5Inch TFT Touch Screen Model2 for RC Model Car
Specification:
Brand:FlySky
Product Model:PL18EV
Product Name:Paladin EV
Channels:18
Adaptable receivers:all AFHDS 3 receivers
Model Type:engineering vehicles, simulation ship etc.
RF:2.4GHz
RF Power:< 20 dBm
2.4GHz Protocol:AFHDS 3
Distance:>300m (open without interference ground)
Channel Resolution:4096
Battery:1S (3.7V) * 4300mAh (built-in)
Charging Interface:Micro USB/wireless charging
Charging Time:4h@5V*2A/7h@5V*2A (wireless charging)
Life time:>5.5h (standard accessories)
Low Voltage Warning:< 3.65V
Antenna Type:Dual antenna
Display:HVGA 3.5 TFT,320*480
Language:Chinese and English
Simulator:USB Simulator
Data Interface:USB、Non-standard interface(USART)、PHJACK(PPM)
Temperature Range:-10℃—+60℃
Humidity Range:20%-95%
Online Update:Yes
Color:black
Size:120mm*195mm*213 mm
Weight:1012g
Certification:CE,FCC ID:N4ZFT1800
Model Type:FGr12B
PWM Channels:12
RF:2.4GHz ISM
2.4GHz Protocol:AFHDS 3
Distance:>500m(open without interference ground)
Antenna Type:Single antenna
Power:3.5v-9V
RSSI:Yes
Data Interface:i-BUS/S.BUS/PPM/PWM
Temperature Range:-10℃—+60℃
Humidity Range:20%-95%
Online Update:Yes
Size:37mm*25mm*17.5mm
Weight:11.2g
Certification:CE,FCC ID:N4ZFGR12B
Features:
PL18EV is an 18-channel transmitter dedicated to engineering vehicles, equipped with 2.4GHz AFHDS 3 (third-generation automatic frequency hopping digital system). The standard configuration is an FGr12B receiver!
AFHDS3 (third-generation automatic frequency hopping digital system) is a newly developed digital wireless system. It is compatible with single antenna bidirectional real-time data packet transmission and data stream transmission. With the advantages that come with the WS2A wireless system and the new 2.4GHz chip, the system can dynamically set: number of channels, channel resolution, range, anti-interference requirements and latency to meet the needs of different users.
Hardware highlights:
Rocker type: 5D Hall waterproof rocker + 2 levers
The third rocker: one on the left and one longitudinal centering lever
Other controls: 6 gear switches (the length of the gear is not the same as the reset, accessories can be modified) + 3 knob keys + 2 self-locking buttons + 8 fine-tuning buttons (two-way buttons)
Display screen: 3.5-inch TFT color screen, 320*480 dot matrix, LCD white backlight, capacitive touch screen
Vibration/sound alarm: adjustable vibration intensity + different alarm sounds and real voice ic alarm and prompt sound
Other accessories: The flagship version comes standard with a bracket with hand rest + shoulder strap
Charging: Support Mirco USB and QI wireless charging
Battery: Built-in 4300mAh high-capacity lithium battery
Software highlights:
Number of channels: 18 ratio channels
Dual model control: support
Data backup and setting sharing and storage capacity: Fusi remote control butler realizes model data backup and sharing. The remote control can store 20 sets of models
Upgrade: USB connected to the computer through the Fusi remote control butler, software network upgrade
Additional functions: timer, logic switch, simulator
Custom function + control All channels can be customized function + custom allocation control and fine-tuning
Unique model function: double ratio curve + delay function + 20 groups of customizable mixing control + track mixing control function
Note:
1. Please understand the product might have some colour difference due to different monitors and scenes.
2. Please allow slight deviation for the measurement data.
Package Included:

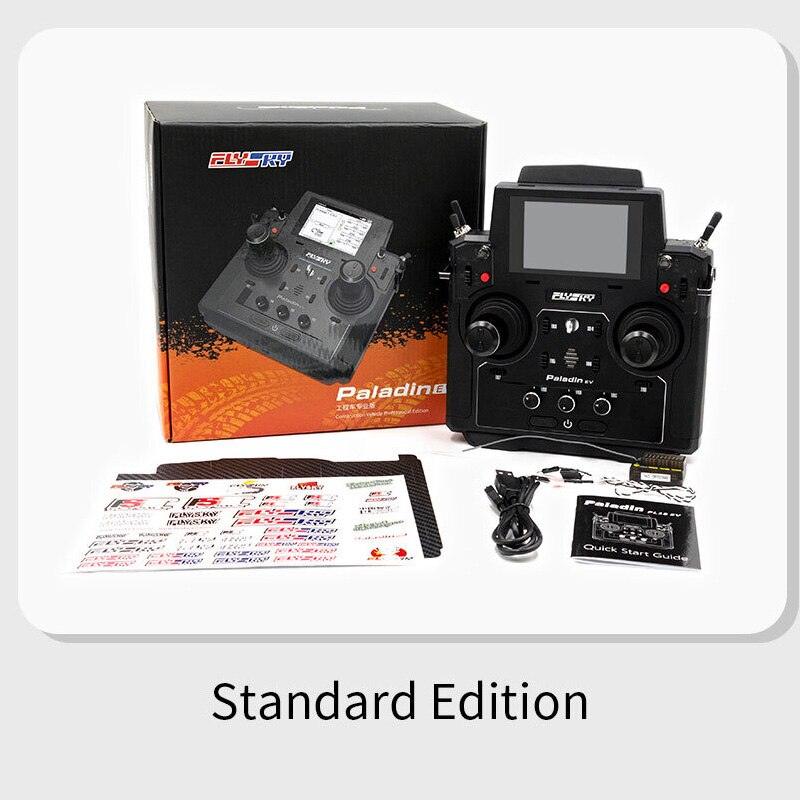

Standard Version:
1x PL18EV transmitter with 301 high frequency + high frequency fixing plate + thin hand glue

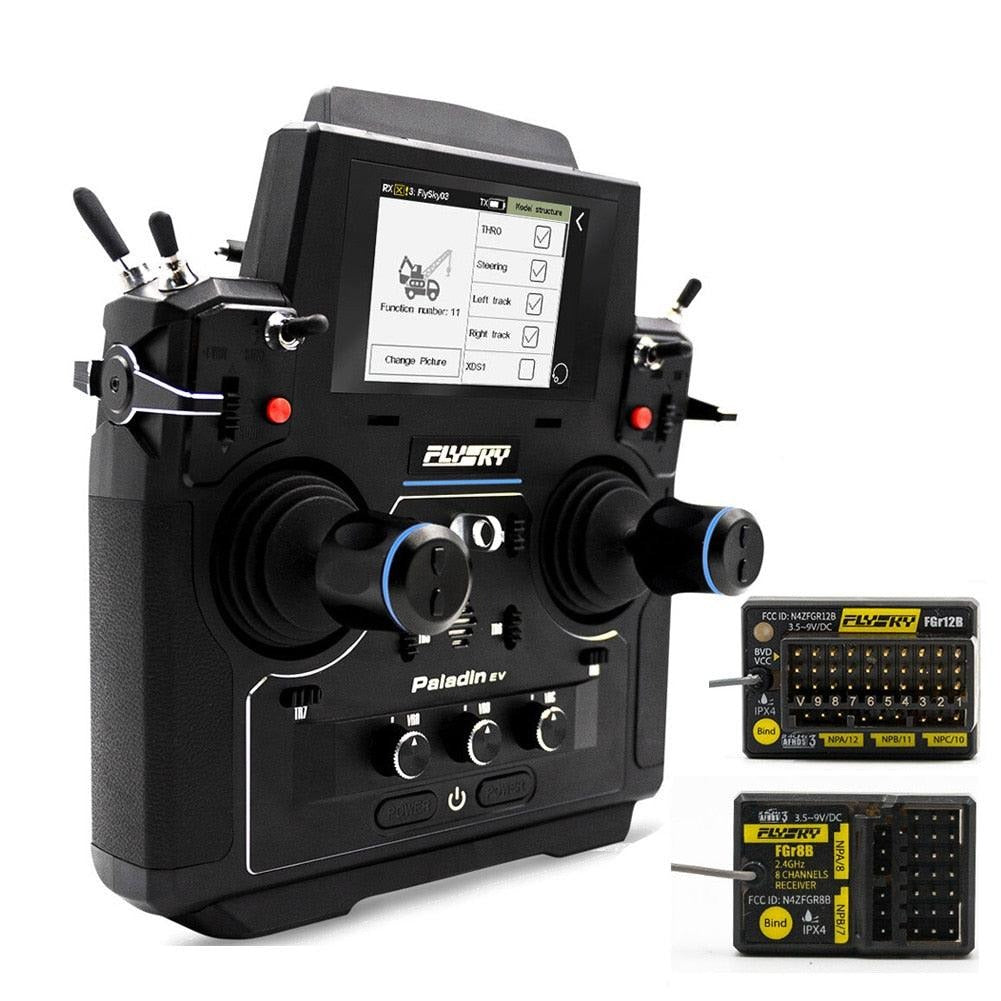

1x FGR12B receiver
1x Quick Operation Guide
1x Micro USB cable
1x LOGO sticker 1 (pure logo)
1x LOGO sticker 2 (with other designs)
1x PL18 body sticker

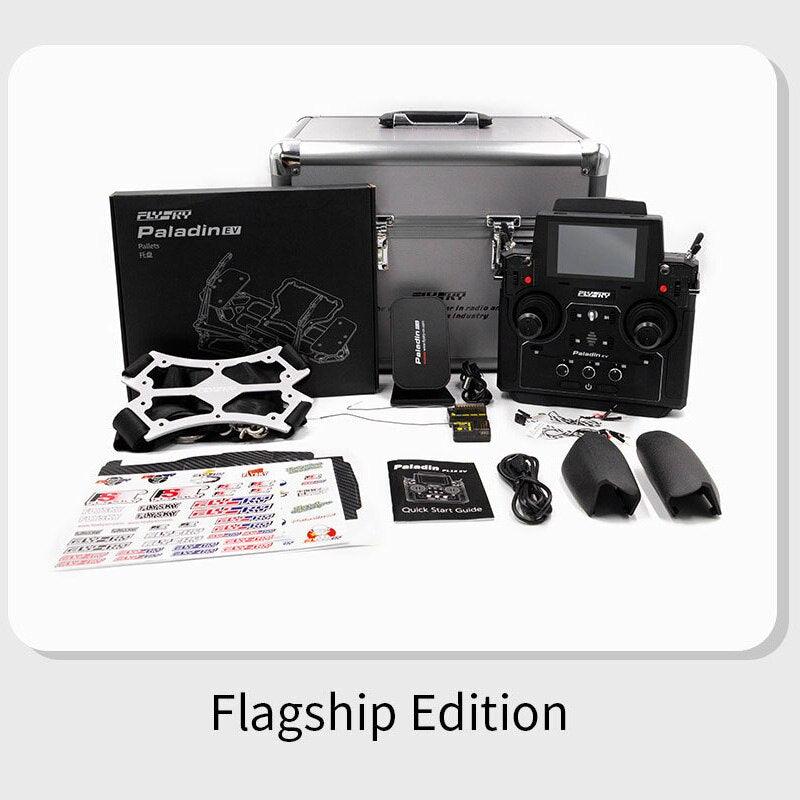

Ultimate Edition:
1x PL18EV transmitter with 301 high frequency + high frequency fixing plate + thin hand glue + large hand glue
2x FGR12B+FGr8B receiver + cable
1x wireless charging dock
1x Quick Operation Guide
1x Micro USB cable
3x Toggle switch rubber cover
1x tray (with hand rest)
1x Tray strap
1x LOGO sticker 1 (pure logo)
1x LOGO sticker 2 (with other designs)
1x PL18 body sticker


877 Break From The Past ZlyEkY 7c Engineering model truck model military vehicle / special vehicle and ship model / robot model professional grade transmitter_ Tan TR5 I2 Paladin New Arrival VRB VG 187 Ev.

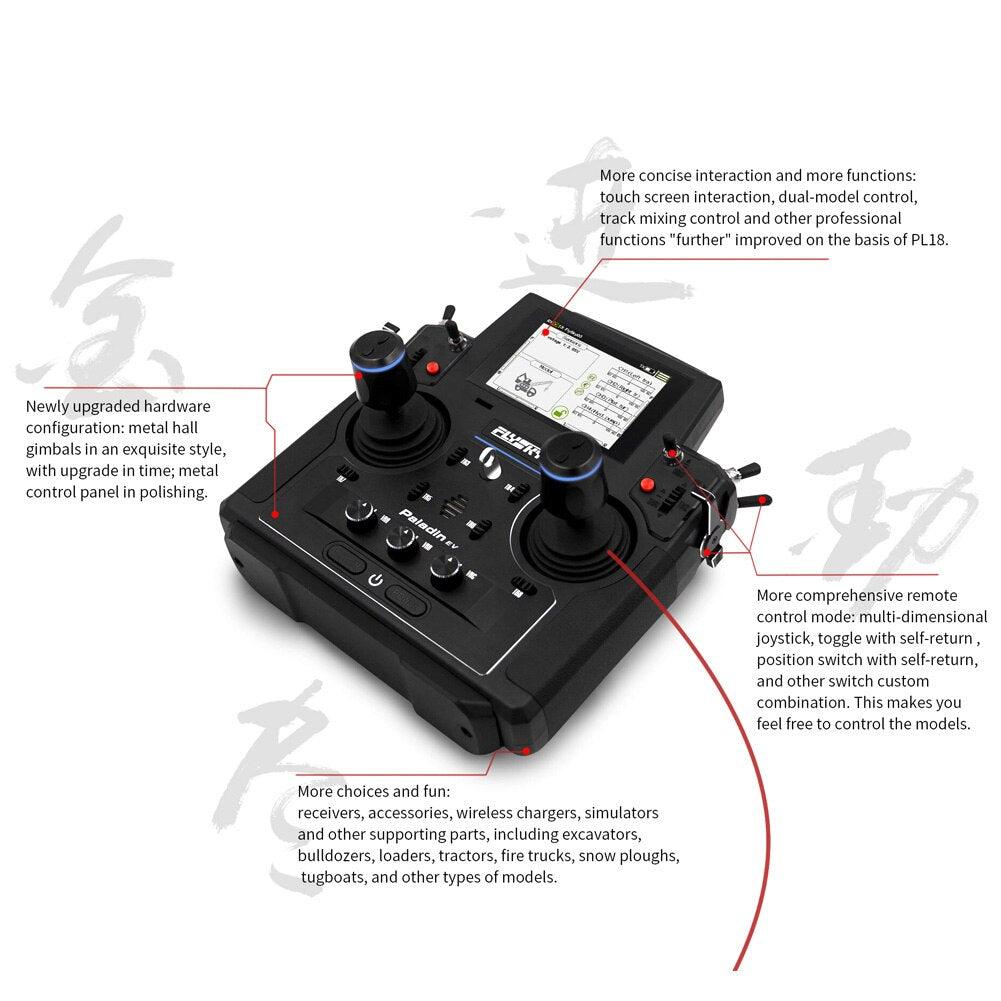

the metal Hall multi-dimensionaljoystick provides you with more dimensions of power control . We provide all-around models such as engineering vehicle models .
18CH 18CH Metal Hall Double metal Dual 18CH Mechanical Track mixed Full-color touch multi-dimensional toggles with dual-models remote model exclusive control function screen in English joystick self-return control mode structure and
ffLe JE QADLE @HukLLUpL 67 ZLYERS a Paladin Ev . m 5 More comprehensive remote control mode: multi-dimensional joystick, toggle with self-return position switch .
the internal bearings and stick are made of CNC metal, with anodic oxidation process for the surface coating . the rotation angle accuracy is as high as 0.07 degrees, 0 with a dazzling color change of the light Players can enjoy the delicate control .
two models tractor + excavator) can be configured with up to 18ch 3.5-inch full-color touch screen in Chinese and English . FlySky OS Flysh mJ 2 #ork 03 E1c with complete functions and control in one hand .
built-in dual antenna: No need to adjust the antenna angle or worry about antenna damage . Built-in 4300mAh large-capacity battery with a battery life of up to 5.5 hours .
2.4GHz RF module FRM3O2 realizes the ultra-long-range mechanical remote control function . support a variety of extended functions in series: temperature sensor/ Paladin Ev Uc voltage detection module/speed sensor, etc.
ZLy Bv OESRY Paladinm Pt nlat 24lo Hna nan Palading iucteo Titie Eod Uiel Flagship Edition Standard Edition E
