CUAV V5+ Carrier Board Autopilot Pixhawk Flight Controller SPECIFICATIONS
Wheelbase: Bottom Plate
Use: Vehicles & Remote Control Toys
Upgrade Parts/Accessories: Flight controller
Tool Supplies: Assembly Category
Technical parameters: KV1100
Size: 89*42.5*33mm
Remote Control Peripherals/Devices: Remote Controller
Recommend Age: 14+y
RC Parts & Accs: Speed Controllers
Quantity: 1 pcs
Origin: Mainland China
Model Number: V5+
Material: Metal
Four-wheel Drive Attributes: Shell/Chassis/Wing/Head
For Vehicle Type: Helicopters
Certification: CE,FCC
Brand Name: CUAV
CUAV V5+ Carrier Board Autopilot Pixhawk Flight Controller for FPV RC Drone Quadcopter Helicopter Flight Simulator VTOL
V5 + AutoPilot
The V5+ AutoPilot is an advanced autopilot for academic and commercial integrators. Designed by CUAV in collaboration with the PX4 team. Based on the Pixhawk FMUv5 open hardware design, a highly modular board using Pixhawk standard pinouts for its external interface, allowing for carrier board integration. Out of the box pre-installed with PX4 Open Source Autopilot, and fully supported by ArduPilot.
Quick Summary
Main FMU Processor: STM32F765
32 Bit Arm® Cortex®-M7, 216MHz, 2MB memory, 512KB RAM
IO Processor: STM32F100
32 Bit Arm® Cortex®-M3, 24MHz, 8KB SRAM
On-board sensors:
Accelerometer/Gyroscope: ICM-20689
Accelerometer/Gyroscope: BMI055
Magnetometer: IST8310
Barometer: MS5611
Interfaces:
8-14 PWM outputs (6 from IO, 8 from FMU)
3 dedicated PWM/Capture inputs on FMU
Dedicated R/C input for CPPM
Dedicated R/C input for PPM and S.Bus
analog / PWM RSSI input
S.Bus servo output
5 general purpose serial ports
4 I2C ports
4 SPI buses
2 CANBuses with serial ESC
Analog inputs for voltage / current of 2 batteries
Power System:
Power: 4.3~5.4V
USB Input: 4.75~5.25V
Servo Rail Input: 0~36V
Weight and Dimensions:
The CUAV V5+ Carrier Board Autopilot Pixhawk Flight Controller is a high-performance flight controller based on the Pixhawk FMUv5 VS+, featuring an advanced processor, increased FLASH and RAM capacity, and more reliable sensors. This autopilot is designed for commercial systems integration and academic research applications.

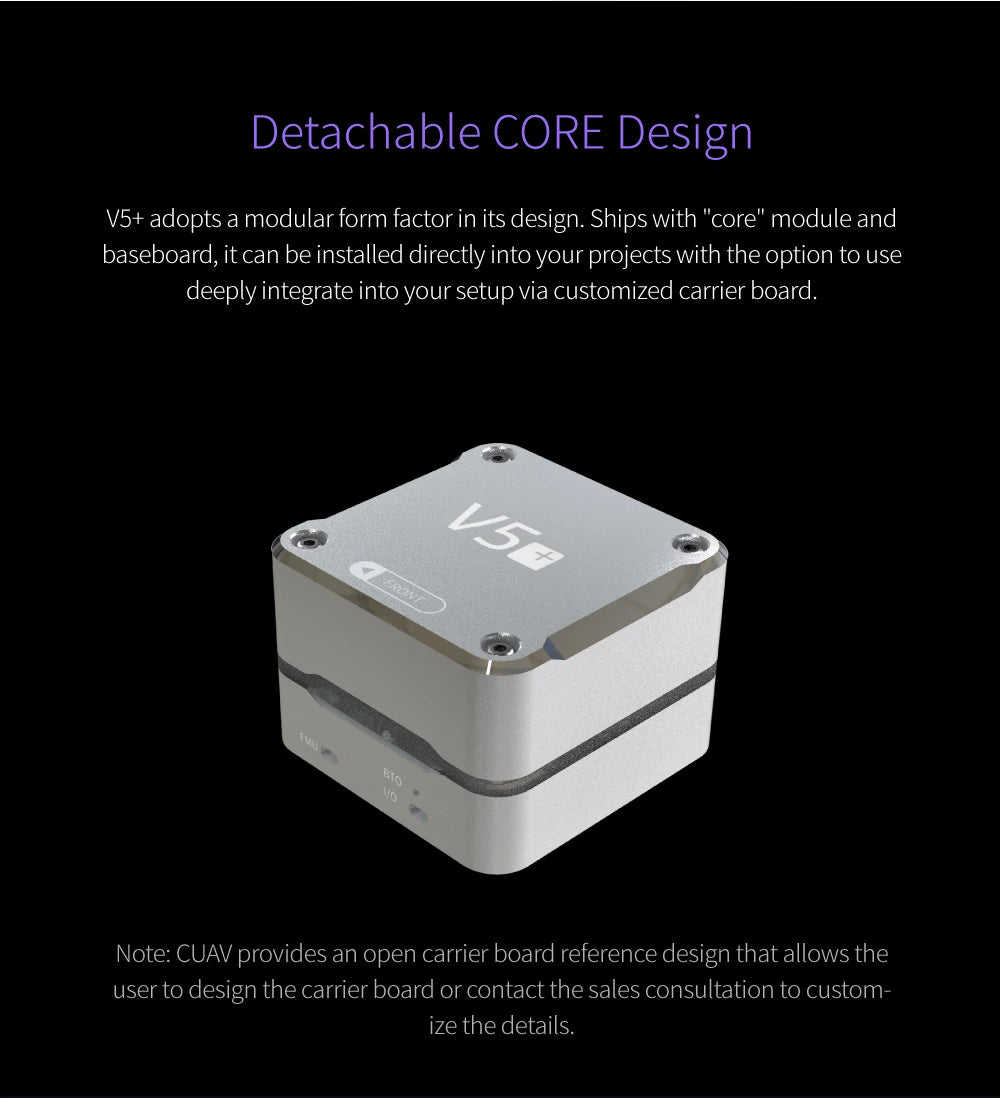

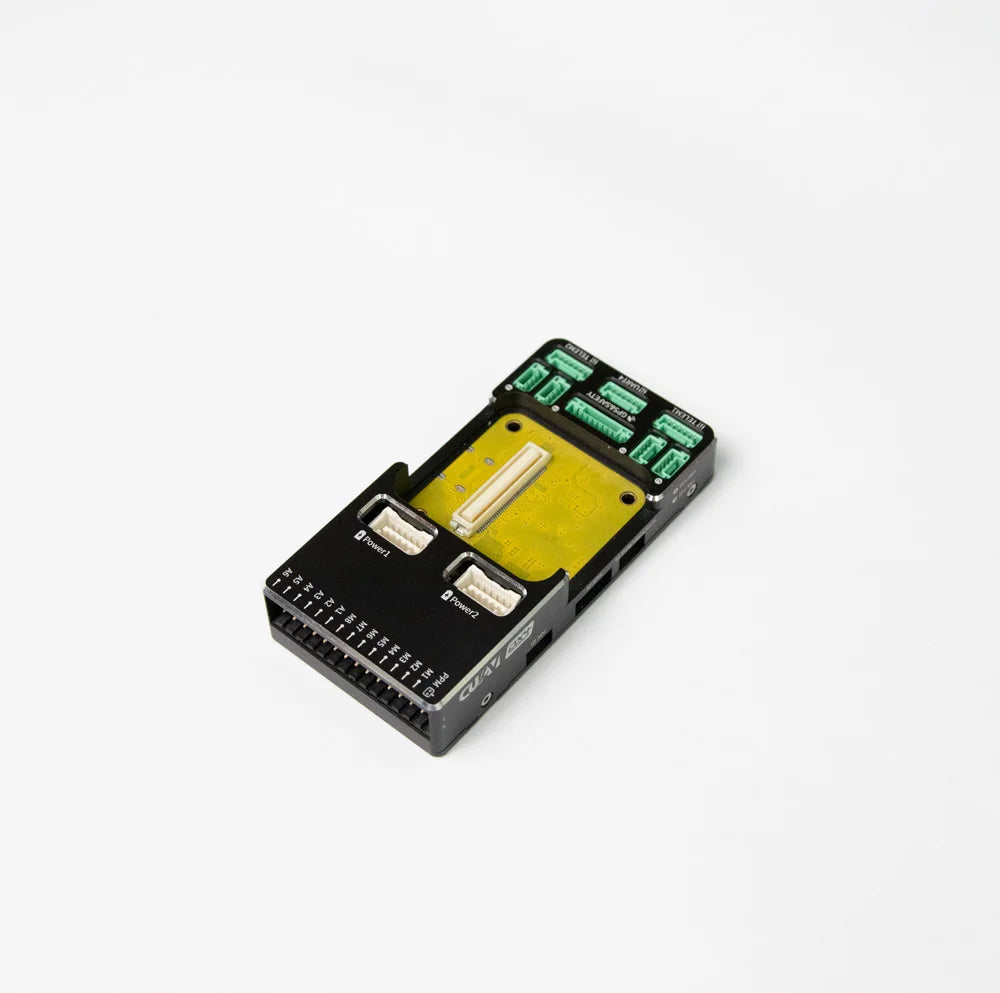

The detachable CUAV V5+ Core Design features a modular form factor, allowing for easy integration into various projects. The kit includes both the ‘core’ module and baseboard, which can be installed directly into your desired application.

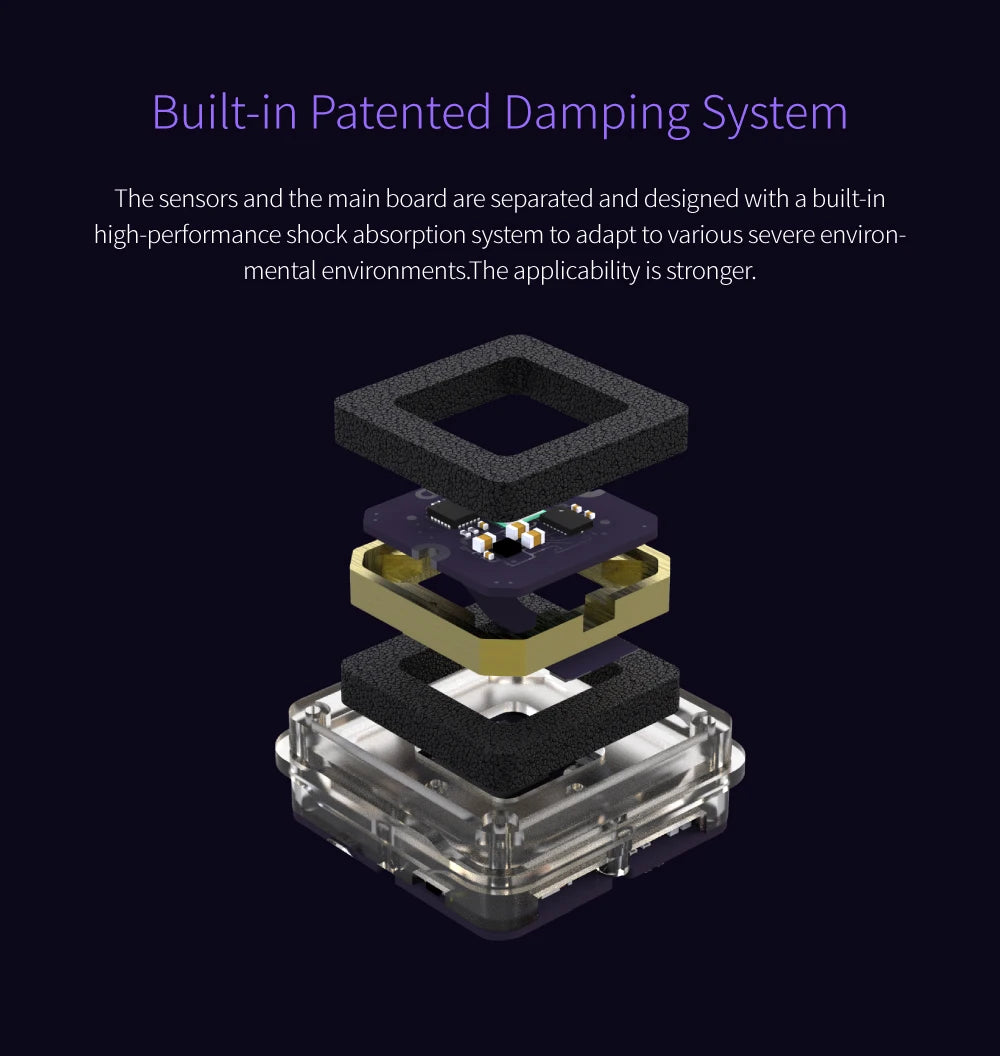

The CUAV V5+ features a built-in shock absorption system designed to withstand various extreme environmental conditions, providing enhanced robustness and reliability.
CUAV is a silver member of Dronecode; and committed to promote the PX4 open source project . iX4 OUtOPiLOt interfaces are designed according to official standards to ensure compatibility and interoperability .

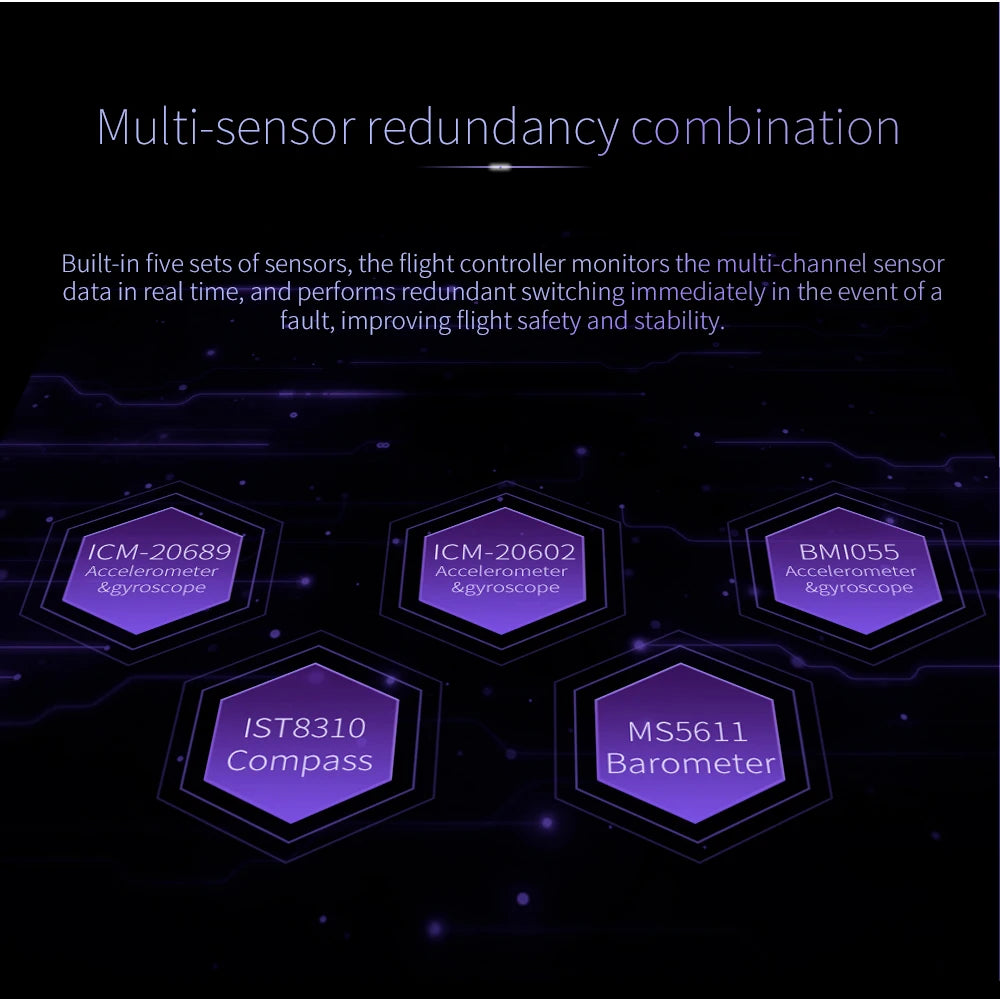

the flight controller monitors the multi-channel sensor data in real time . it performs redundant switching immediately in the event of a fault . improving flight safety and stability .

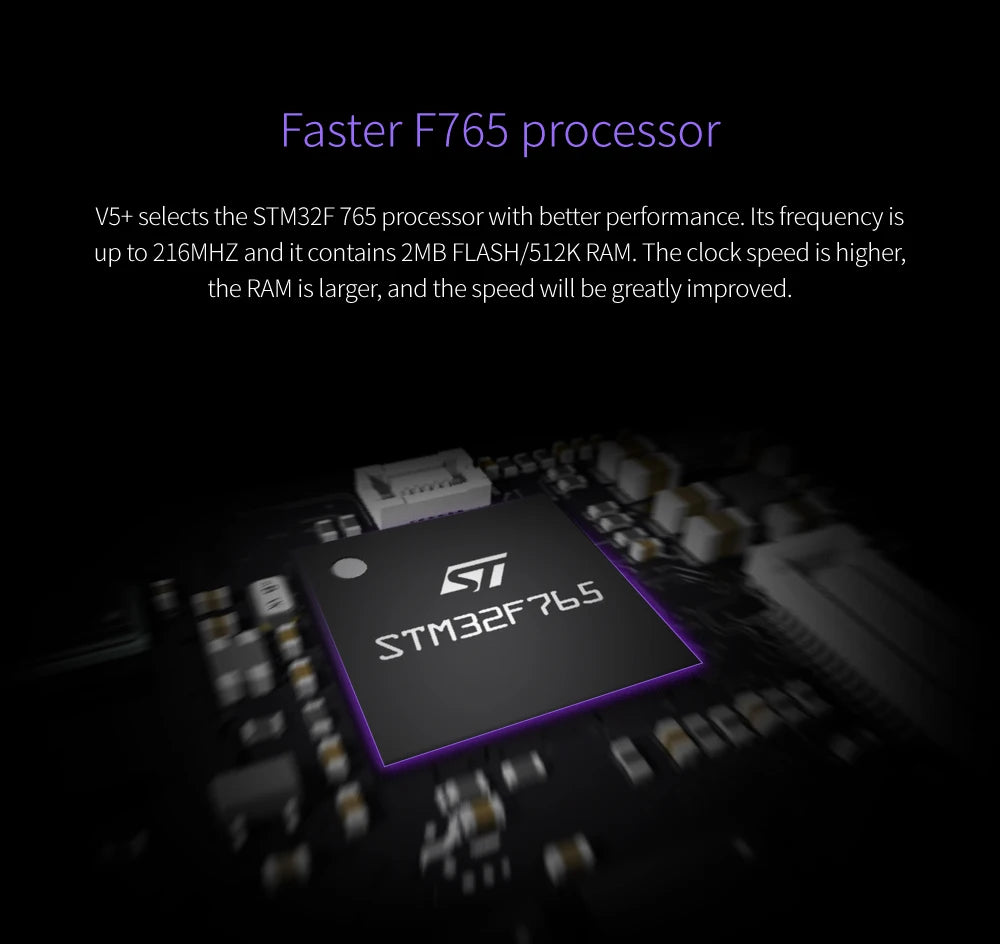

VS+ selects the faster STM3ZF 765 processor with better performance . the clock speed is higher; the RAM is larger; and the speed will be greatly improved .
The CUAV V5+ flight controller supports Real-Time Kinematic (RTK) positioning, enabling accurate centimeter-level navigation and precision control when paired with an RTK module (sold separately).
I’m very pleased with the usual high quality I’ve come to expect from this reliable store! The 29th of June, 2021 at 5:19 AM was my order date, and on the 1st of July, 2021 at 4:17 AM, it arrived via AliExpress Standard Shipping. Thanks again for the VSPlus Carrier Board, which is solidly built and looks great in its BLACK color.
