CUAV U-blox ANN-MS Single Frequency C-RTK Lengthened Extension Antenna RC Multi-axis Drone Flight Control Combo

$43.15

Description

SPECIFICATIONS

Wheelbase: Bottom Plate

Use: Vehicles & Remote Control Toys

Upgrade Parts/Accessories: Car Shell Column

Tool Supplies: Cutting

Technical parameters: Value 2

Size: 48x40x13mm

Remote Control Peripherals/Devices: Receivers

Recommend Age: 14+y

RC Parts & Accs: Antennas

Quantity: 1 pcs

Plastic Type: PC

Origin: CH(Origin)

Model Number: U-blox ANN-MS

Material: Plastic

Four-wheel Drive Attributes: Assemblage

For Vehicle Type: Helicopters

Brand Name: CUAV

Parts/Accessories : Car Shell Column Tool Supplies : Cutting Technical parameters Parts/Accessories : Car Shell Column Tool Supplies : Cutting Technical parameters Cable Bottom Housing SMA Plug Connector Housing Material: PC Unit: mm Figure 1:

The antenna’s housing material is polycarbonate (PC), with dimensions given in millimeters. Refer to Figure 1 for the mechanical outline.

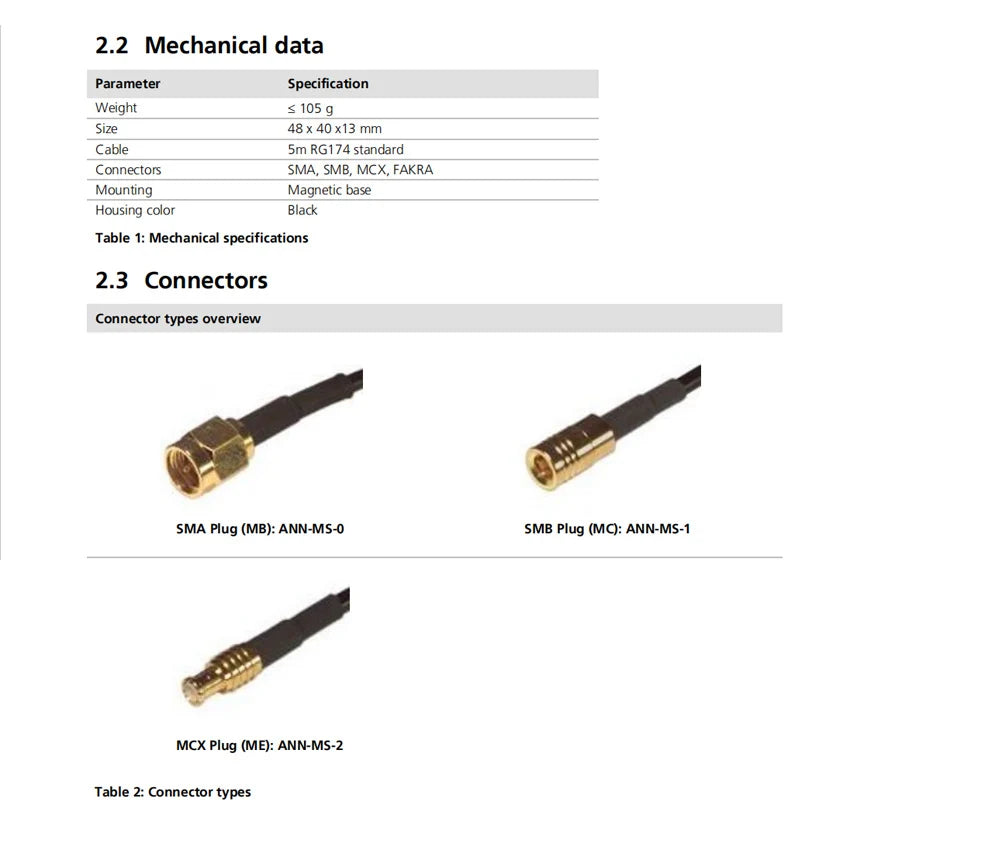

2.2 Mechanical data Parameter Specification Weight 105 Size 48 x 40x13

Mechanical Data:
• Weight: 105g
• Dimensions: 48mm x 40mm x 13mm (L x W x H)
• Cable Type: RG174 Standard
• Connectors:
+ SMA (Main Connector): ANN-MS-0
+ SMB (Secondary Connector): MC
+ Mounting: Magnetic Base
• Housing Color: Black

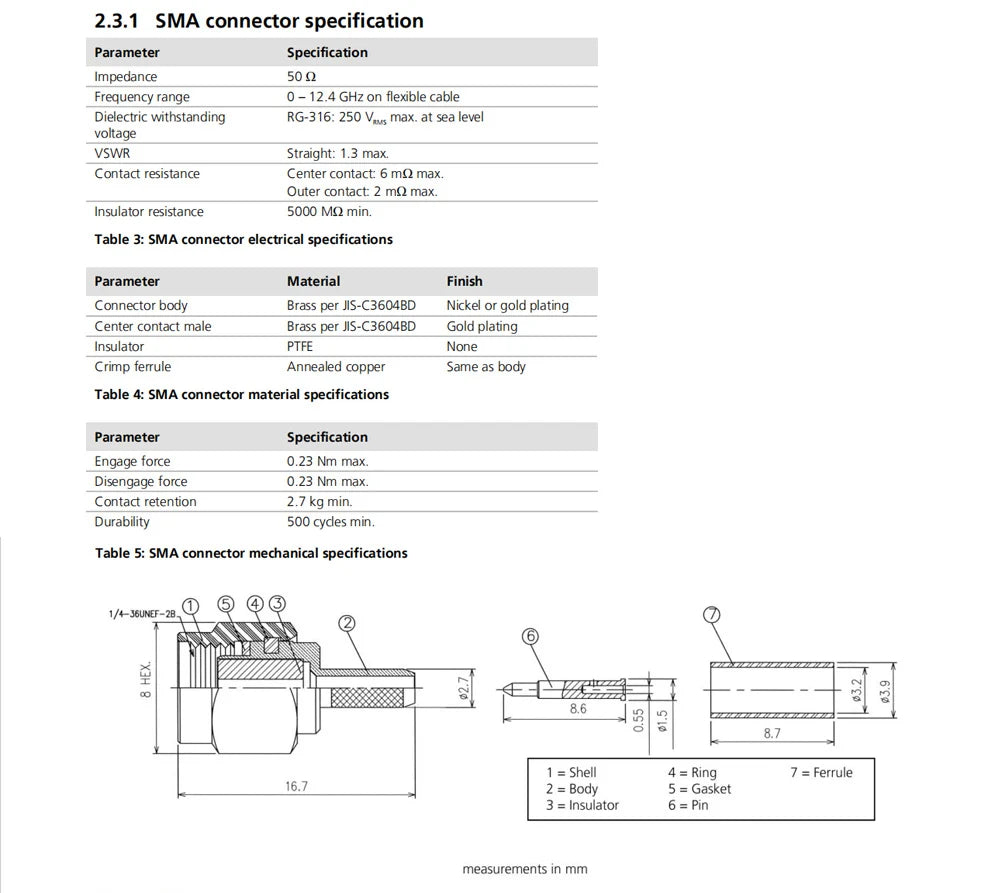

RG-316: 250 Vaus max at sea level voltage VSWR Straight: 3

SMA Connector Specifications:
• Impedance: 50 Ohms
• Frequency Range: 0 – 12.4 GHz (on flexible cable)
• Dielectric Strength: Up to 250V AC at sea level, withstanding RG-316 standards
• VSWR: Straight: ≤3 max, Contact Resistance:
+ Center Contact: ≤6 mΩ max
+ Outer Contact: ≤100 mm² max
• Insulator Resistance: ≥5000 MΩ min

Note: The Table 5 information appears to be a separate section with mechanical specifications for the SMA connector. If you’d like me to rewrite that as well, please let me know!

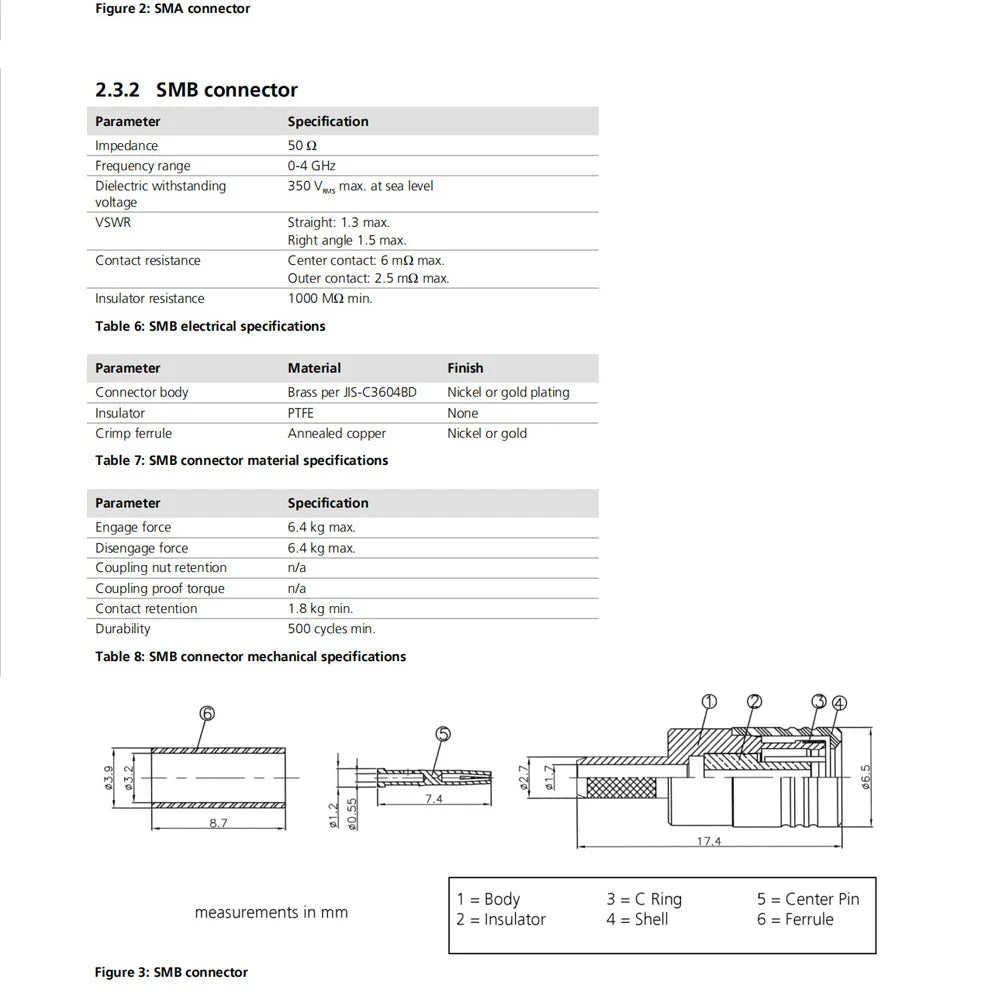

SMB connector Parameter Specification Impedance 50 Q Frequency range 0-4

SMB Connector Specifications:
• Impedance: 50 Ohms
• Frequency Range: 0-4 GHz
• Dielectric Strength: Withstands up to 350V AC at sea level, voltage
• VSWR:
+ Straight: ≤3 max
+ Right Angle: ≤5 max
• Contact Resistance:
+ Center Contact: ≤6 mΩ max
+ Outer Contact: ≤2.5 mΩ max
• Insulator Resistance: ≥1000 MΩ min

Note:

* The connector body is made of Brass per JIS-C3604BD and can have a Nickel or Gold plating.
* The insulator material is PTFE (Polytetrafluoroethylene).
* The crimp ferrule is made of Annealed Copper with Nickel or Gold plating.

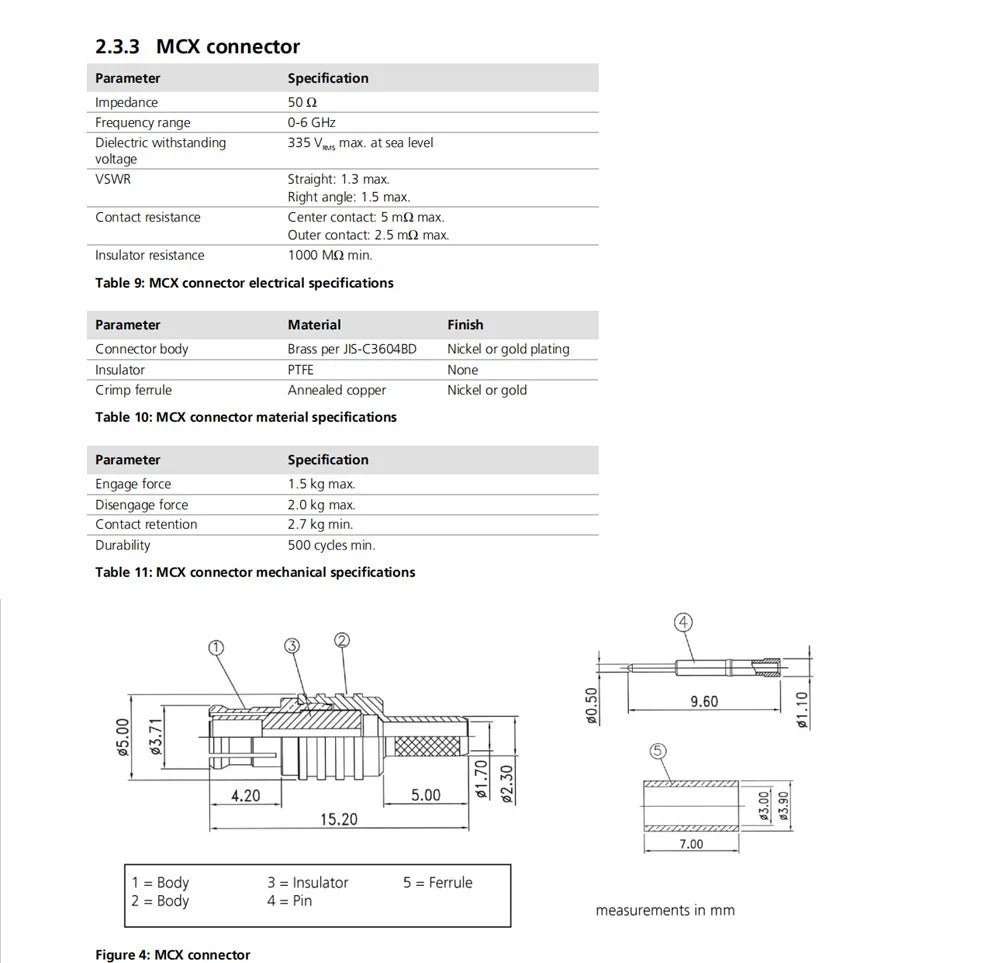

MCX connector impecance 50 (2 Frequency range 0-6 GHz

MCX Connector Specifications:
• Impedance: 50 Ohms
• Frequency Range: 0-6 GHz
• Dielectric Strength: Withstands up to 335V AC at sea level, voltage
• VSWR:
+ Straight: ≤1.3 max
+ Right Angle: ≤1.3 max
• Contact Resistance:
+ Center Contact: ≤5 mΩ max
+ Outer Contact: ≤2.5 mΩ max
• Insulator Resistance: ≥1000 MΩ min

Note:

* The connector body is made of Brass per JIS- C3604BD and has Nickel or Gold plating.
* The insulator material is PTFE (Polytetrafluoroethylene).
* The crimp ferrule is not specified.

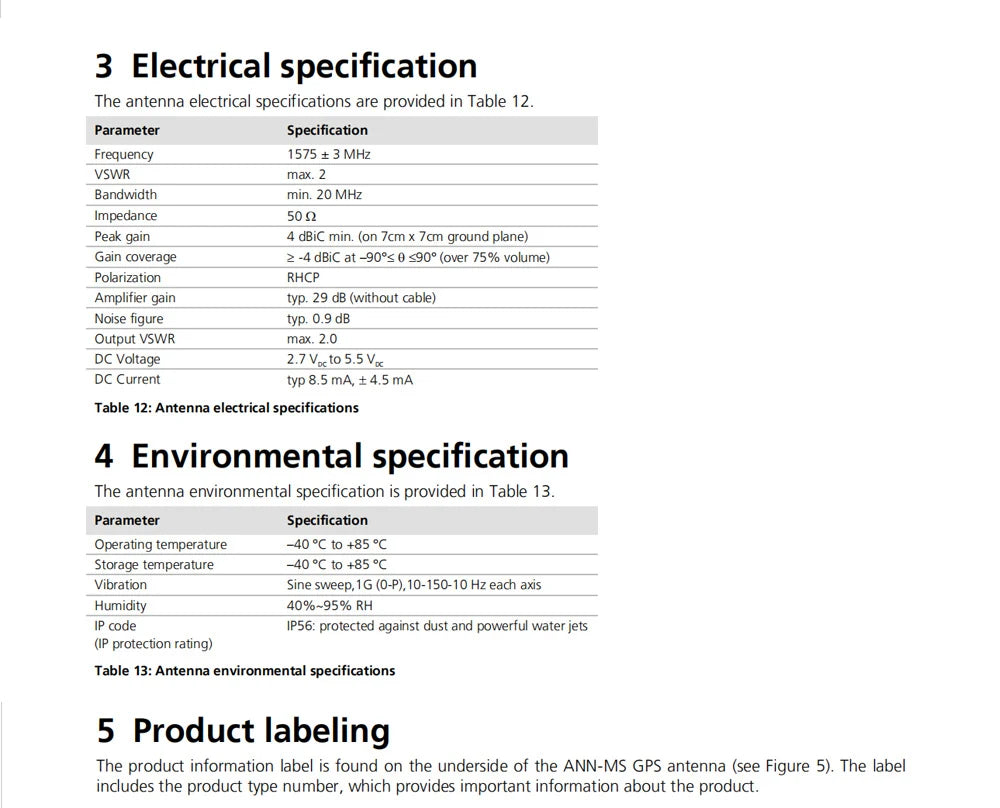

antenna electrical specifications are provided in Table 12 . Frequency 1575 3 MHz

The antenna’s electrical specifications are provided in Table 12. Key characteristics include:
• Frequency: 1575 MHz – 3 MHz
• VSWR (Voltage Standing Wave Ratio): ≤2 max
• Bandwidth: ≥20 MHz min
• Impedance: 50 Ohms
• Peak Gain (dBiC): ≥8.08 dBiC at -90° ± 0.7° (over 75% volume)

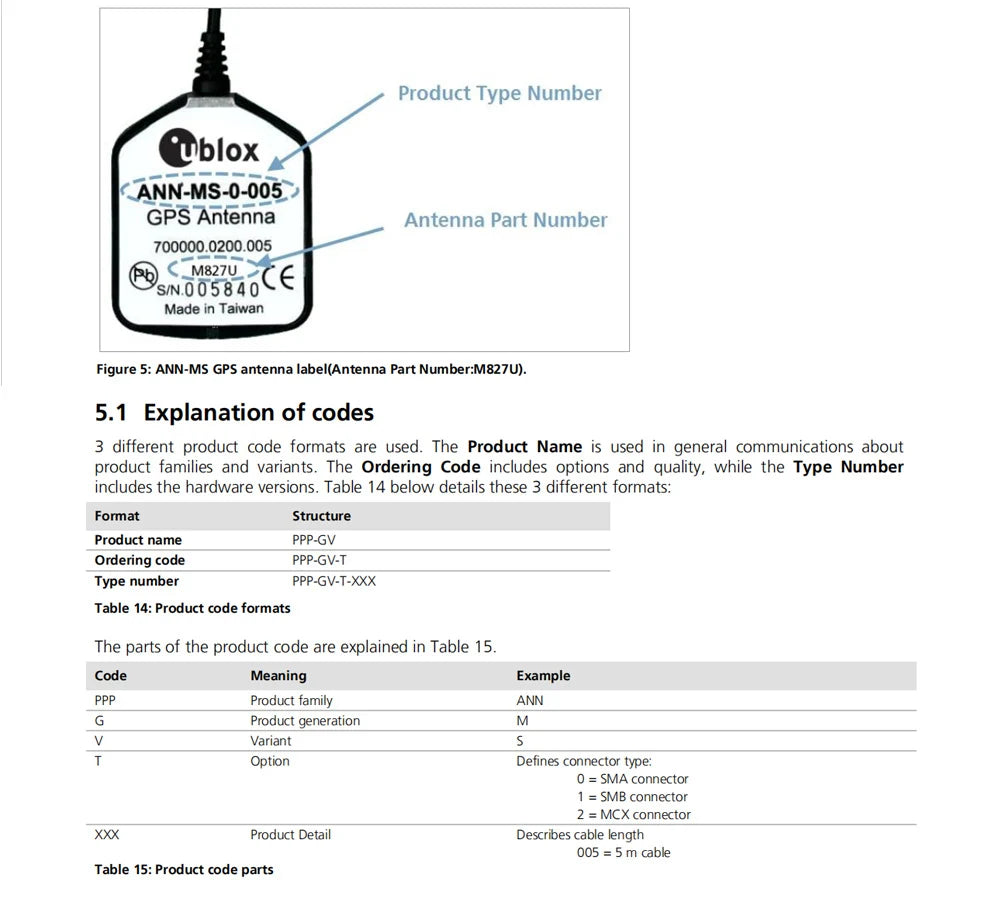

ANN-MS-0-005 GPS antenna part number 700000.0200.005 M8

Part Number: ANN-MS-0-005
• GPS Antenna Part Number: 700000.0200.005 M827U (Made in Taiwan)
• Explanation:
+ The part number includes options and quality.
+ The Type Number corresponds to different hardware versions.

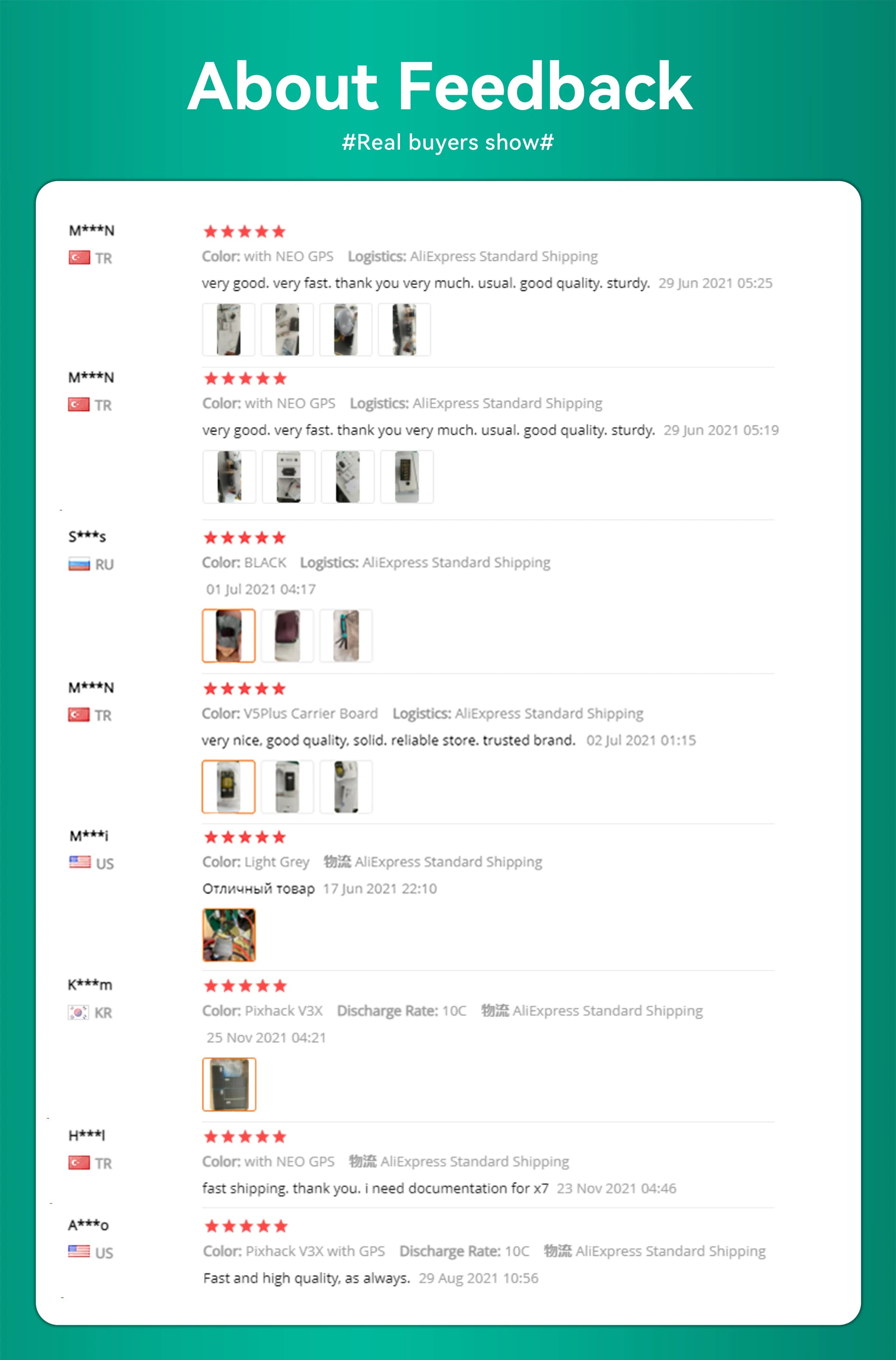

thanks very much usual good quality sturdy: 29 Jun 2021 05.19 Ses #

Order Update:
• Date: June 29, 2021 05:19
• Shipment Information:
+ Shipping Method: AliExpress Standard Shipping
+ Estimated Delivery Date: July 1, 2021 04:17 AM
• Product Description: Solid. Reliable Store.
• Color: BLACK (VSPlus Carrier Board)
• Quality Comment: Sturdy and of good quality

Additional information

Color

ANN MS SMA Plug 1M, ANN MS 5M antenna
