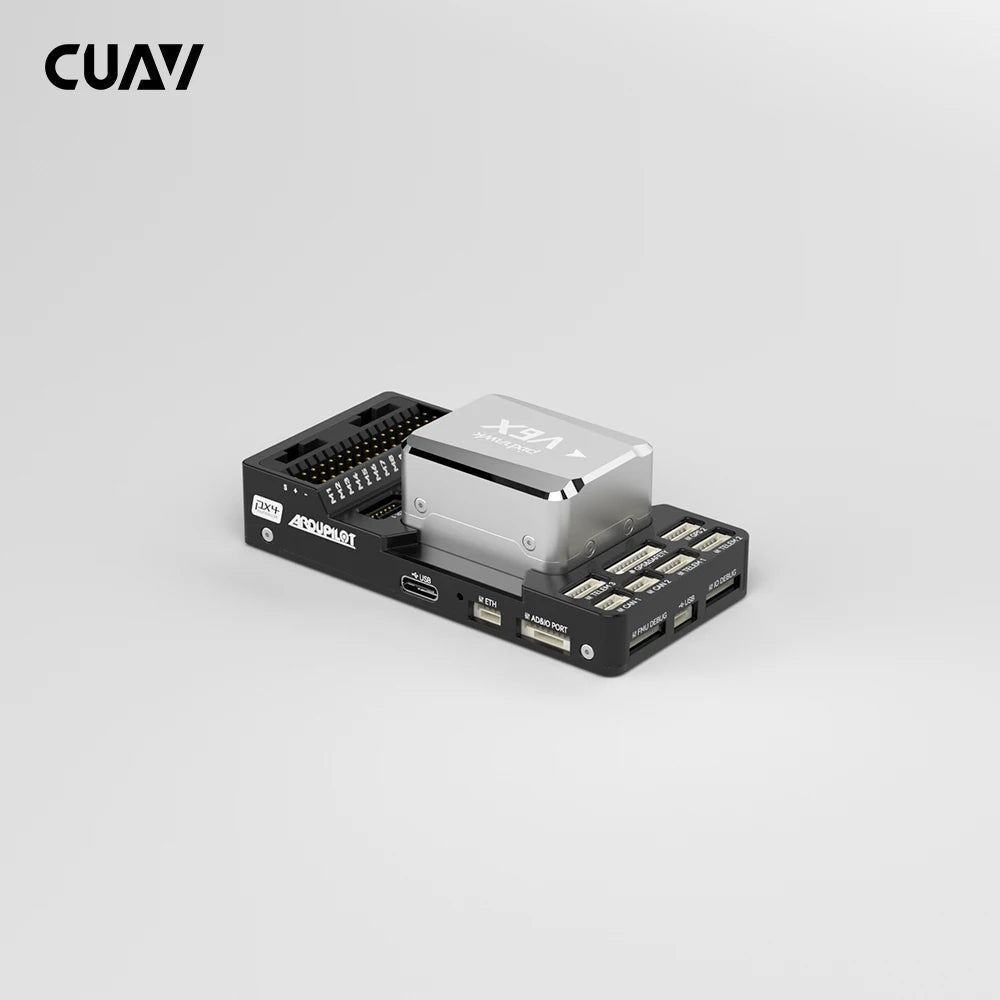

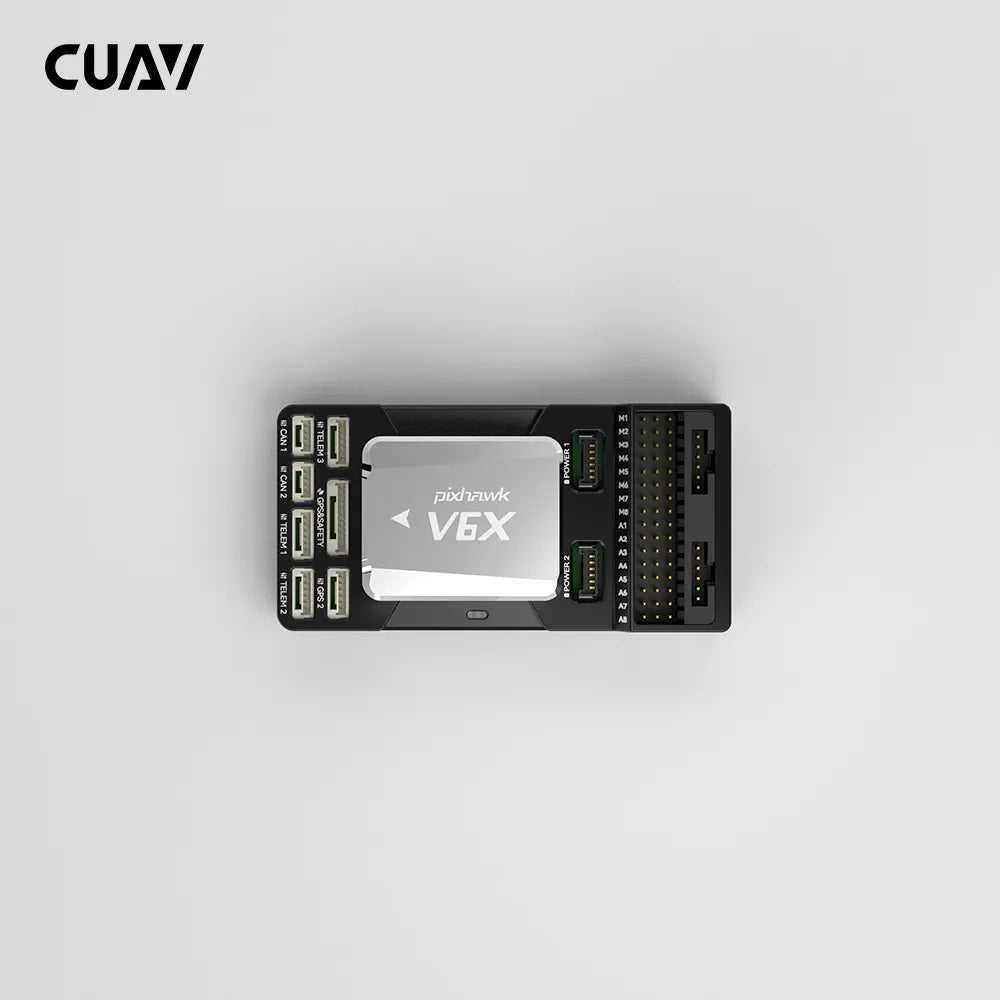

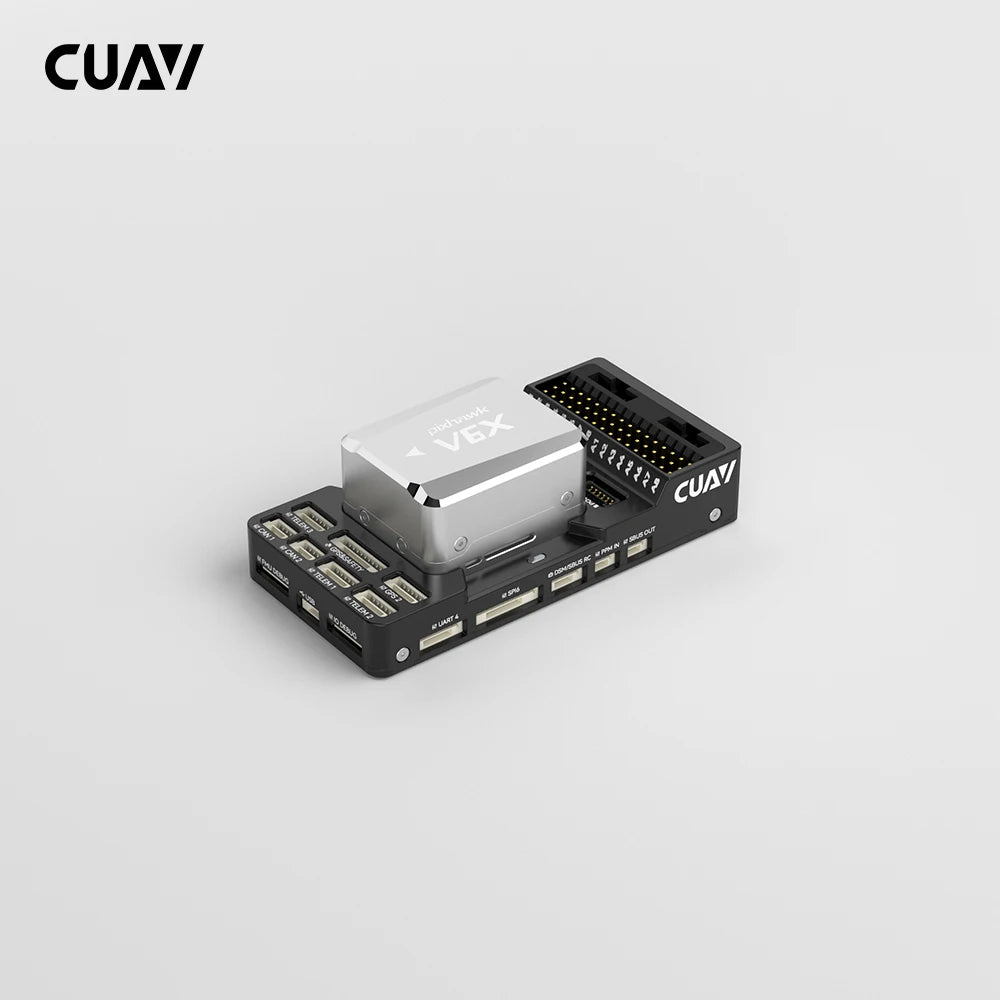

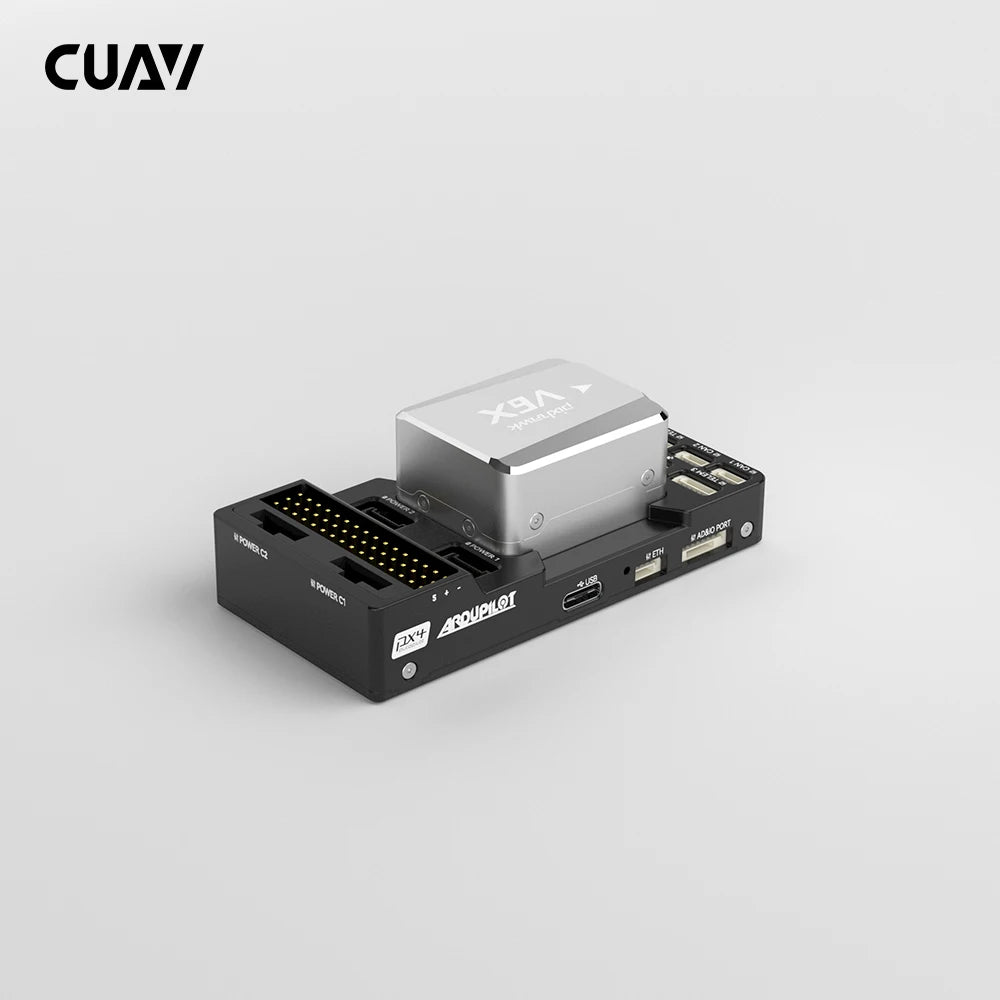

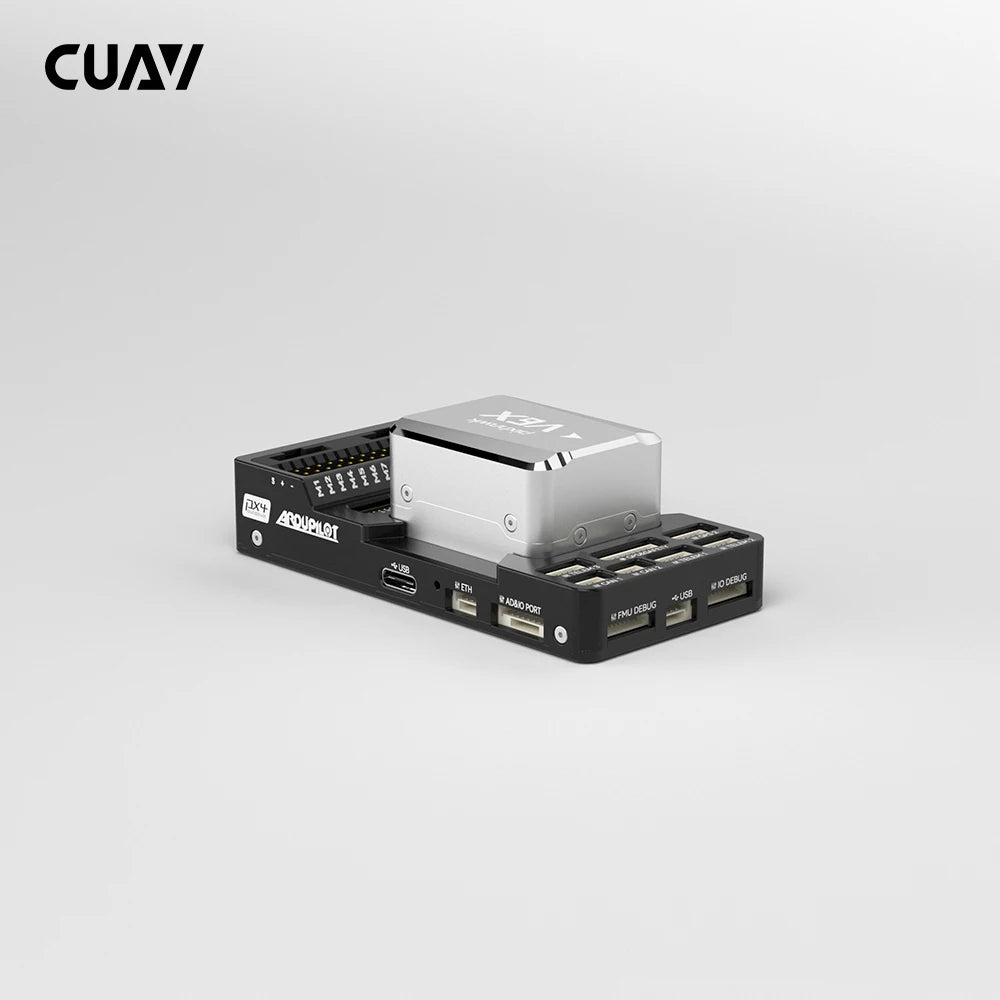

Pixhawk V6X Flight Controller

CUAV NEW Pixhawk FMU V6X Customize Carrier Board and Core VT240 pro VTOL flight controller

V6X Introduction ：

Pixhawk V6X is a new generation of Pixhawk built by CUAV&PX4, based on the modular design of Pixhawk FMU V6X standard, the pursuit of the ultimate safety and stability, users can also customize the carrier board according to their needs.Using H7 double-precision floating-point arithmetic unit and Cortex-M3 coprocessor, three redundant IMUs with independent bus and power supply, IMU temperature factory pre-calibration technology, double redundant barometer design, and new generation of patented shock absorption design to ensure the flight safety and rich expansion capabilities of the UAV in an all-round way; The integrated 100M Ethernet interface can communicate with industrial UAV mounting
equipment such as task computers, optical fiber inertial navigation, and mapping cameras, which meets the needs of highend UAVs

V6X Features:

1 –H7 Double-precision floating-point processor
2 –High-performance ARM M3 coprocessor
3 –Low noise Car-grade IMUs.
4 –Triple redundant IMUs and dual redundant
barometer designs.
5 –Car-grade RM3100 magnetic compass
6 –New built-in shock absorption design

V6X install in CUAV VT240 pro VTOL:
