CUAV P9 SPECIFICATIONS

Wheelbase: Screws

Upgrade Parts/Accessories: Adapter

Tool Supplies: Cutting

Technical parameters: Value 2

Size: AS DESCRIPTION

Remote Control Peripherals/Devices: Remote Controller

Recommend Age: 12+y

Recommend Age: 14+y

RC Parts & Accs: Connectors/Wiring

Quantity: 1 pcs

Origin: Mainland China

Model Number: CUAV P9

Material: Composite Material

Four-wheel Drive Attributes: Assemblage

For Vehicle Type: Airplanes

CUAV P9 900MHZ Radio Telemetry Wireless Transmission Module pix for  FPV digital transmission station pixhack long distance

CUAV P9 Radio
________________________________________
Summarize
P9 Radio is CUAV ultra-vision UAV data link communication module, which has high power, high speed in frequency hopping and high reception sensitivity. ThisP9 datalink is compatible with both pixhawk and pixhack flight control.CUAV P9 Radio has a super long range, max distance is up to 60km. P9 Radio is ideal for applications in UAV communication system.
Characteristic:

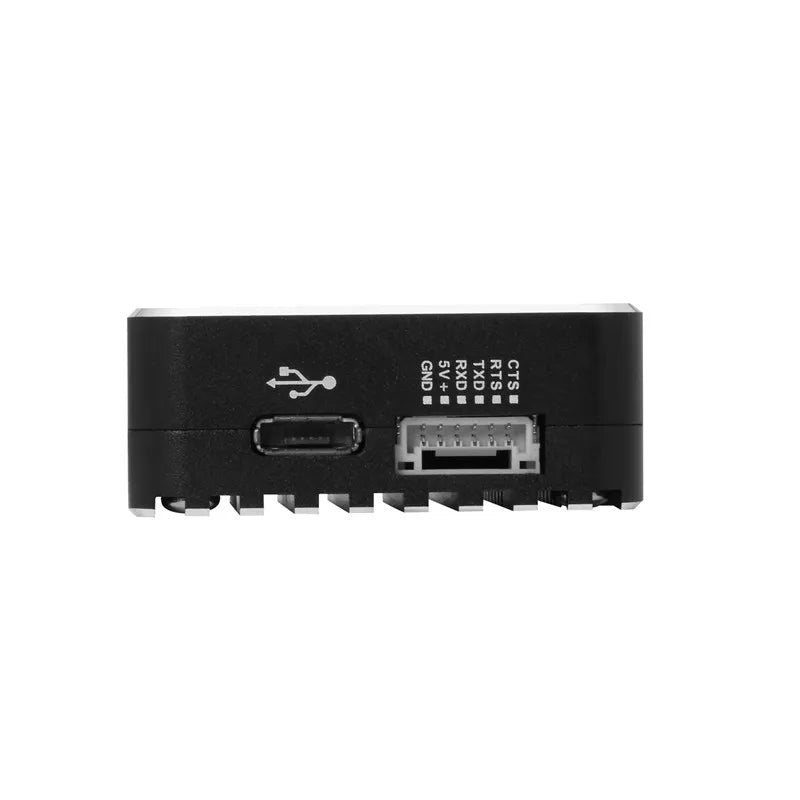

CUAV P9, Aviation CNC aluminum TTL data + USB dual interface Built-in P9OO wireless board Over

CUAV P9 Wireless Transmission Module: This product features a high-frequency wireless transmission system with a range of over 40 miles (64km) at low speeds, utilizing a CNC aluminum-built-in TTL data + USB dual interface. The P9 module supports over-the-horizon communication, offering a frequency hopping feature that enables high-speed transmission up to 30dbm and 1W power. Additionally, it features mesh protocol routing and forwarding capabilities for industrial applications.

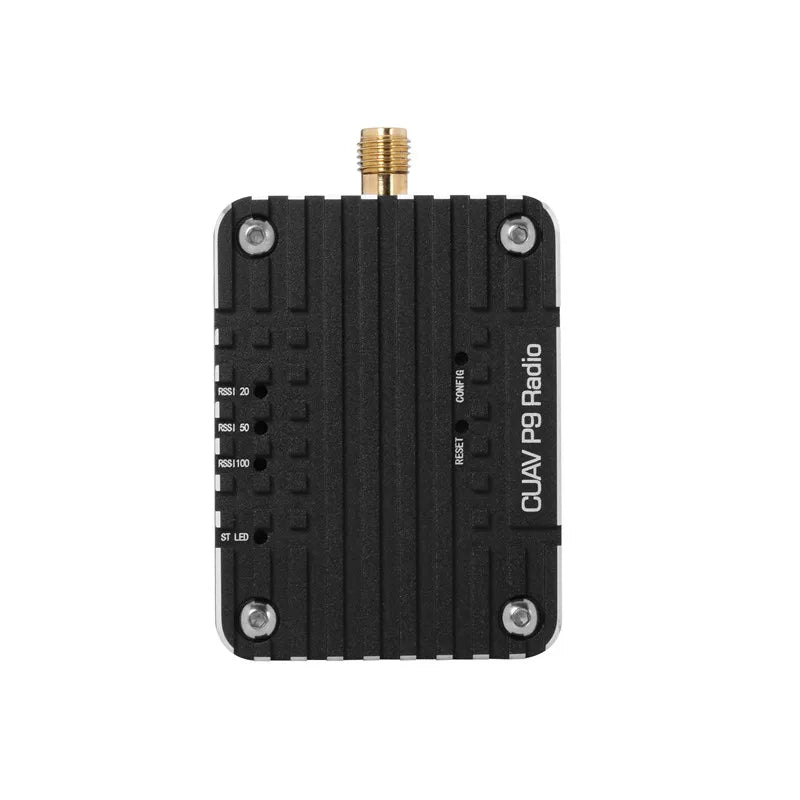

CUAV P9, Interface definition SMA Antenna interface Status Indicator CONFIG RSSI 100

This module features an SMA antenna interface, a status indicator, and configuration options. The interface includes reset and data transmission capabilities, as well as RSSI (received signal strength indication) levels: 100%, 50%, and 20%. A Status LED is also included, with a model number of 9383*.

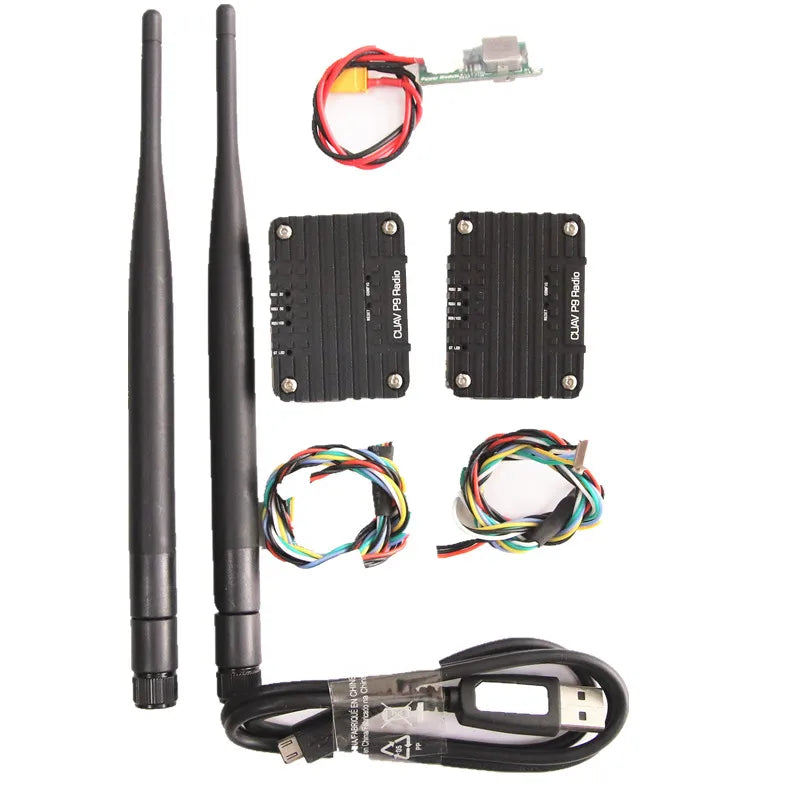

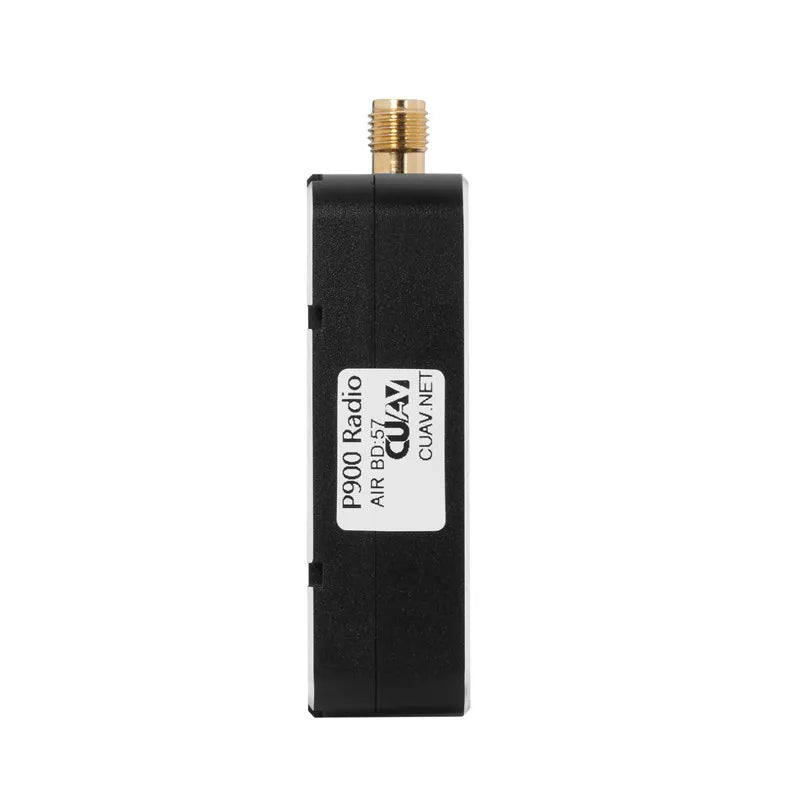

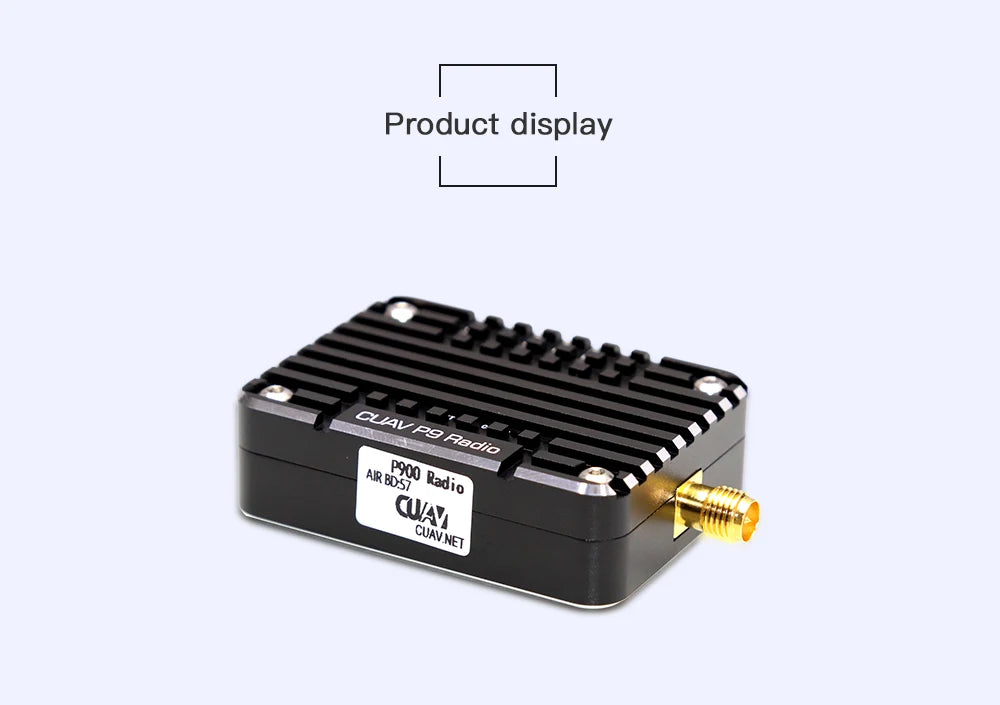

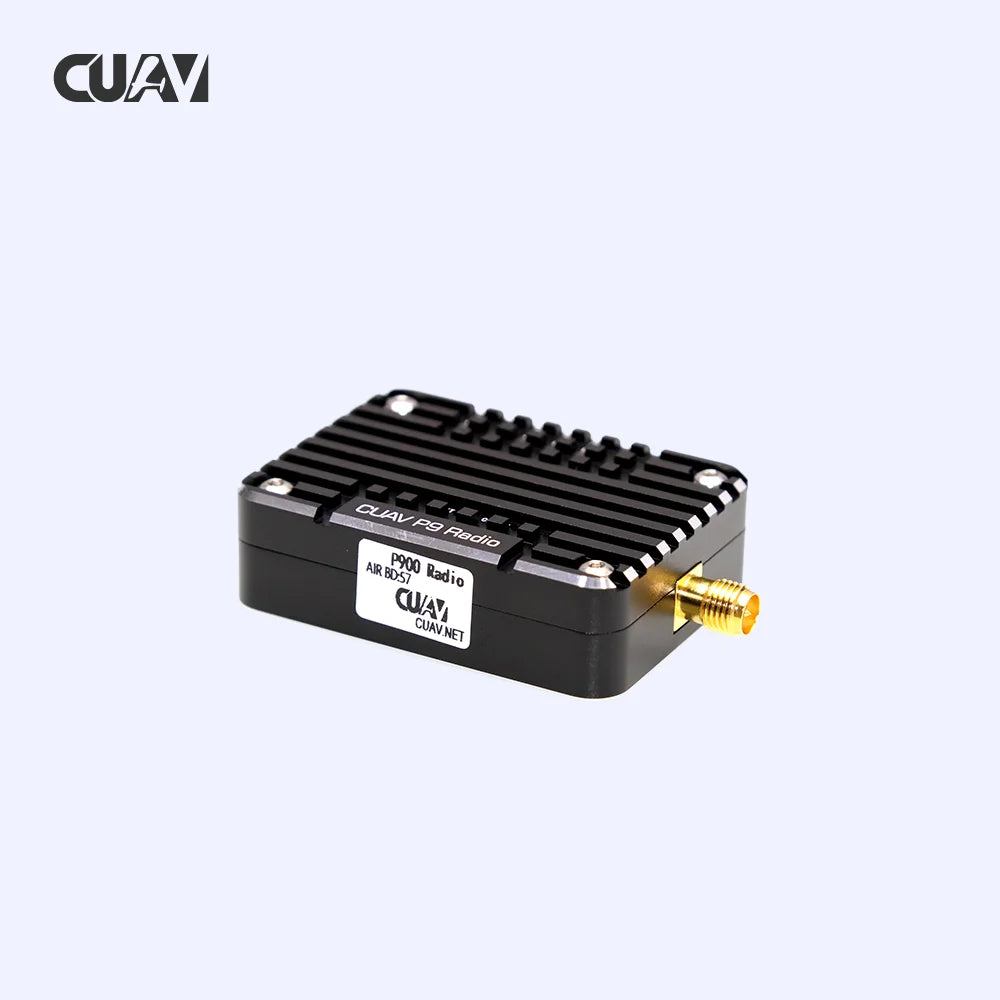

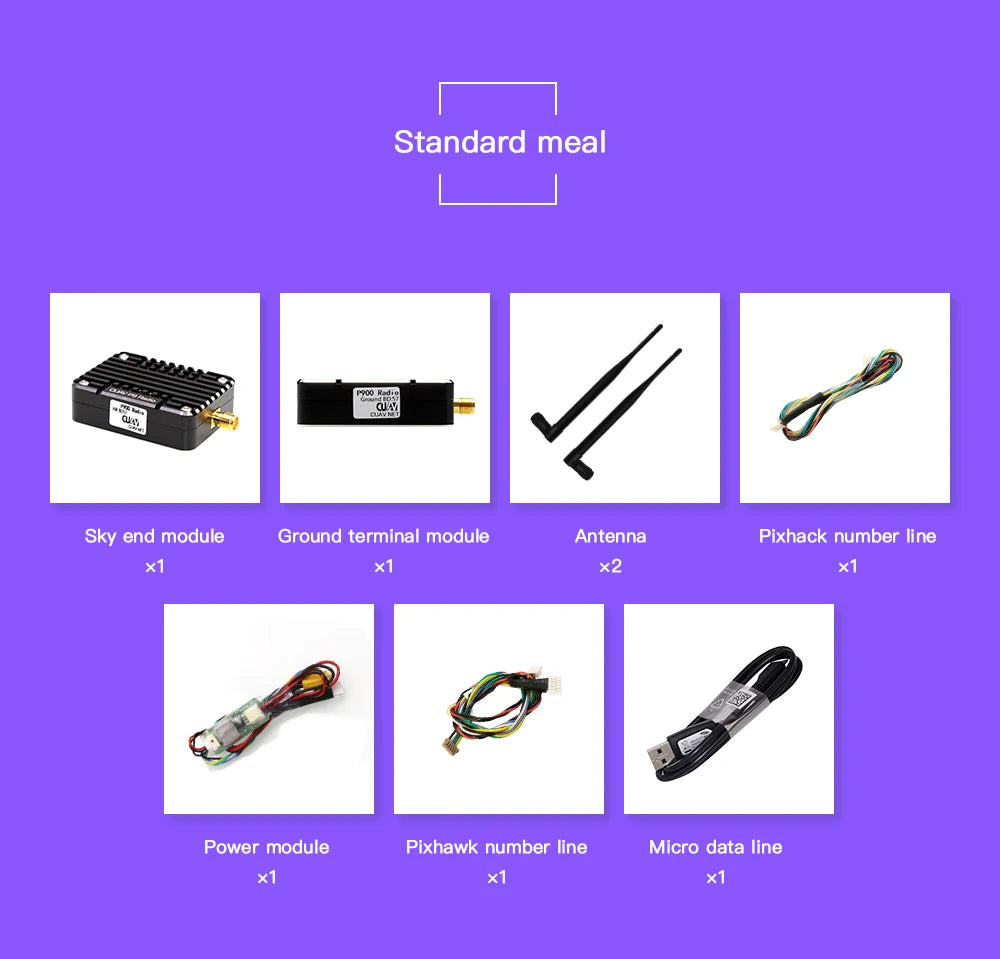

CUAV P9, Product display AIR 8057 CUAVFs Radio PAc Redio CNCUAV P9, Standard meal QU Sky end module Ground terminal module Antenna Pixhack number line

This module features standard connectors including a Quisky (Sky) end module, ground terminal module, and antenna interface. The Pixhack numbering system is used to identify specific lines, including x1, X1, x2, power module, Pixhawk numbering system, micro data line, XL, and Xl.

Technical specifications:
Frequency902-928 MHz
Spreading MethodFrequency Hopping
Forward Error DetectionHamming /BCH/Golay/Reed-Solomon
Error DetectionError Detection 32 bits of CRC, ARQ
EncryptionOptional (see –AES option)
Range40 miles (60 km)
Sensitivity-110 dBm @ 115.2 kbps
-108 dBm @ 172.8 kbps
-107 dBm @ 230.4 kbps
Output Power100mW – 1W (20-30dBm)
Serial Interface3.3V CMOS TTL
Serial Baud RateUp to 230.4 kbps asynchronous
Link Rate115 – 276 kbps
Operating ModesMesh, Auto Routing, Store and Forward,Self Healing, Packet Routing Modes
Blocking+/- 1 MHz > 55 dBc
+/- 2.5 MHz > 60 dBc
+/- 5 MHz > 65 dBc
> 930 MHz > 70 dBc
< 890 MHz > 70 dBc
Remote DiagnosticsBattery Voltage, Temperature, RSSI,Packet Statistics
Core Voltage5.0V + -0.25V
Power ConsumptionSleep < 1mA
Idle 3.5mA
Rx: 35mA to 80mA
Tx : 800mA to 1200mA
Connectors:
AnternnaSMA
DATAGH1.25-6P&USB
Environmental-55o C – +85o C
Size51.2MM*38.2MM*15.5MM
Order Option s
-AES128-bit AES Encryption (requires permit for export outside of Canada and USA.)
-ENCEnclosed Model

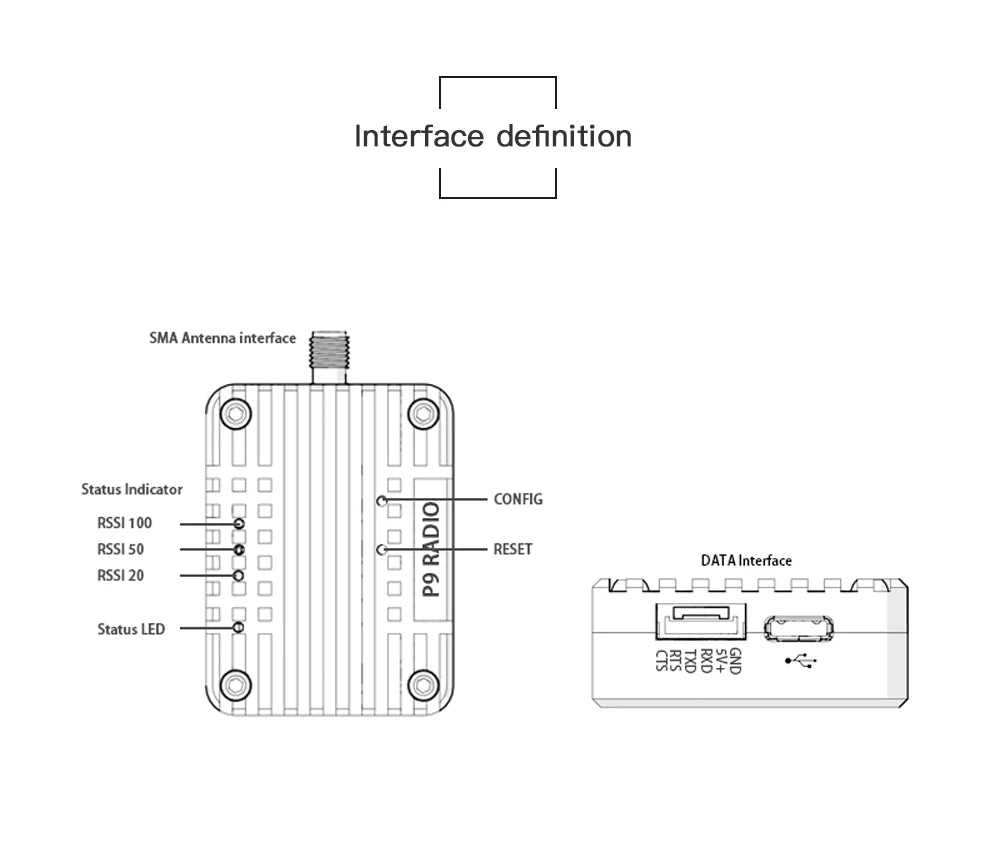

Interface definition:
CUAV P9 - 900

This P9OO Radio module features a functional definition, SMA antenna interface, and status indicator. The configuration options include RSSI (received signal strength indication) levels: 100%, 50%, and 20%. Additionally, there are reset and data transmission interfaces. A status LED with the model number ‘3333+’ is also included.

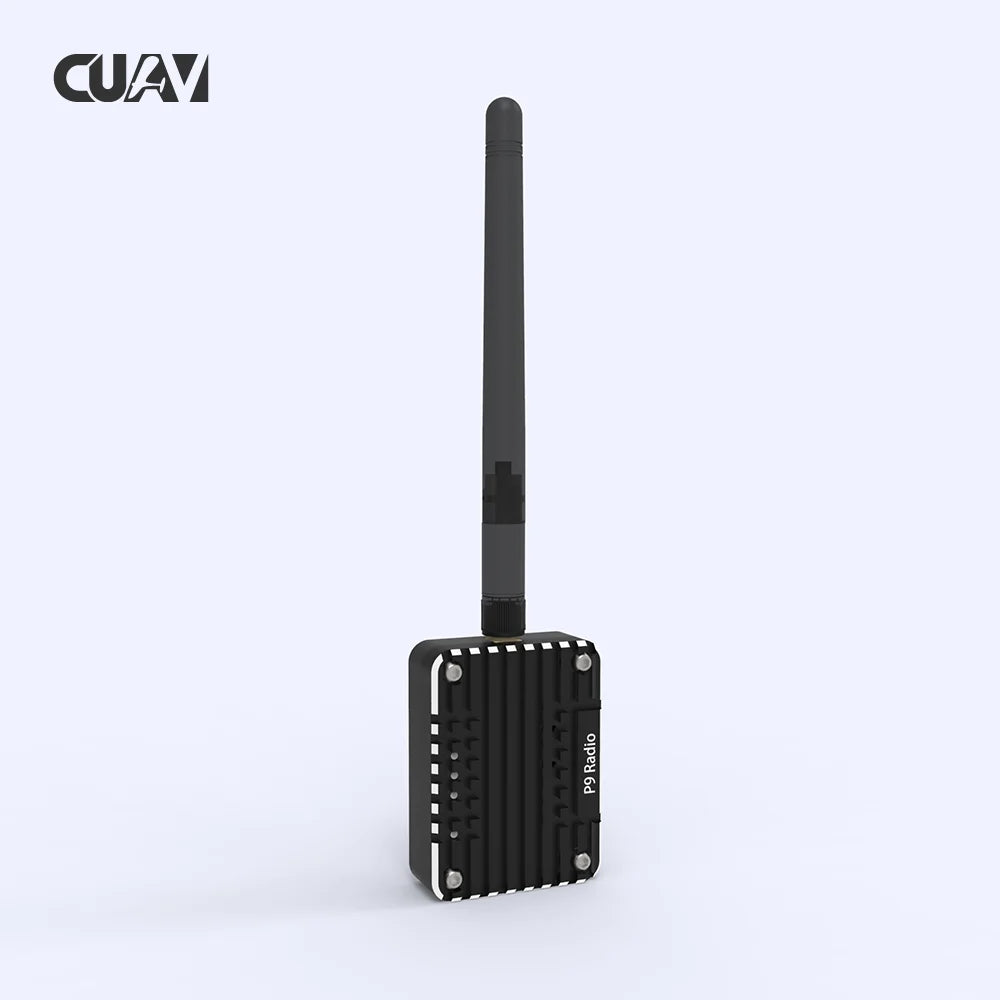

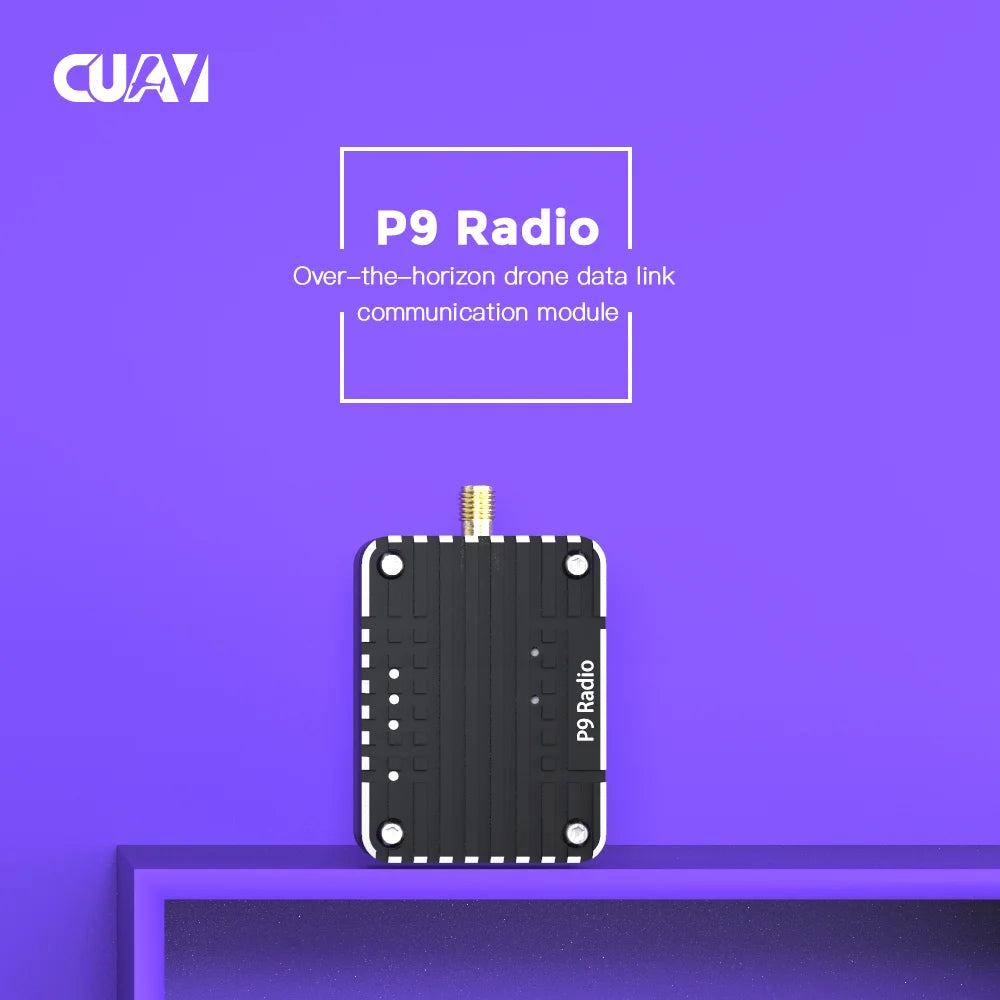

CUAV P9 Radio Over-the-horizon drone data link communication moduleCUAV P9, P9 Radio is ideal for applications in UAV communication systemCUAV P9, this datalink is compatible with both pixhawk and pixhack flight control .

CUAV P9, -ENCEnclosed Model Interface definition

CUAV P9, -ENCEnclosed Model Interface definitionCUAV P9 Radio has a super long range, max distance is 60km CUAV P9, -AES128-bit AES Encryption (requiresCUAV P9, P9 Radio is ideal for applications in UAV communication systemCUAV P9, this datalink is compatible with both pixhawk and pixhack flight control .CUAV P9, -ENCEnclosed Model Interface definition
