CUAV NEW X7+ Flight Controller NEO 3 Pro GPS Pixhawk SPECIFICATIONS
Wheelbase: Bottom Plate
Use: Vehicles & Remote Control Toys
Upgrade Parts/Accessories: Flight controller
Tool Supplies: Assembly Category
Technical parameters: KV1100
Size: 77*45.5*39mm
Remote Control Peripherals/Devices: Remote Controller
Recommend Age: 14+y
RC Parts & Accs: Speed Controllers
Quantity: 1 pcs
Origin: Mainland China
Model Number: X7+ with GPS combo
Material: Metal
Four-wheel Drive Attributes: Shell/Chassis/Wing/Head
For Vehicle Type: Helicopters
Certification: CE,FCC
Brand Name: CUAV
X7+ Autopilot and GPS

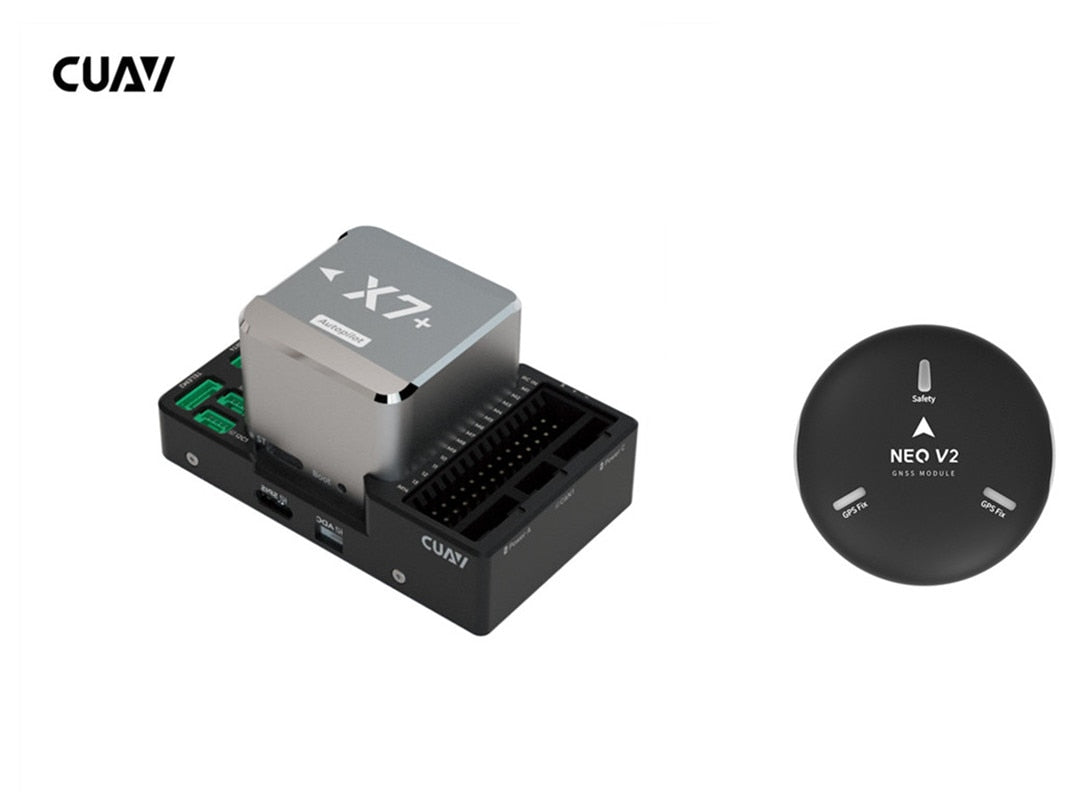

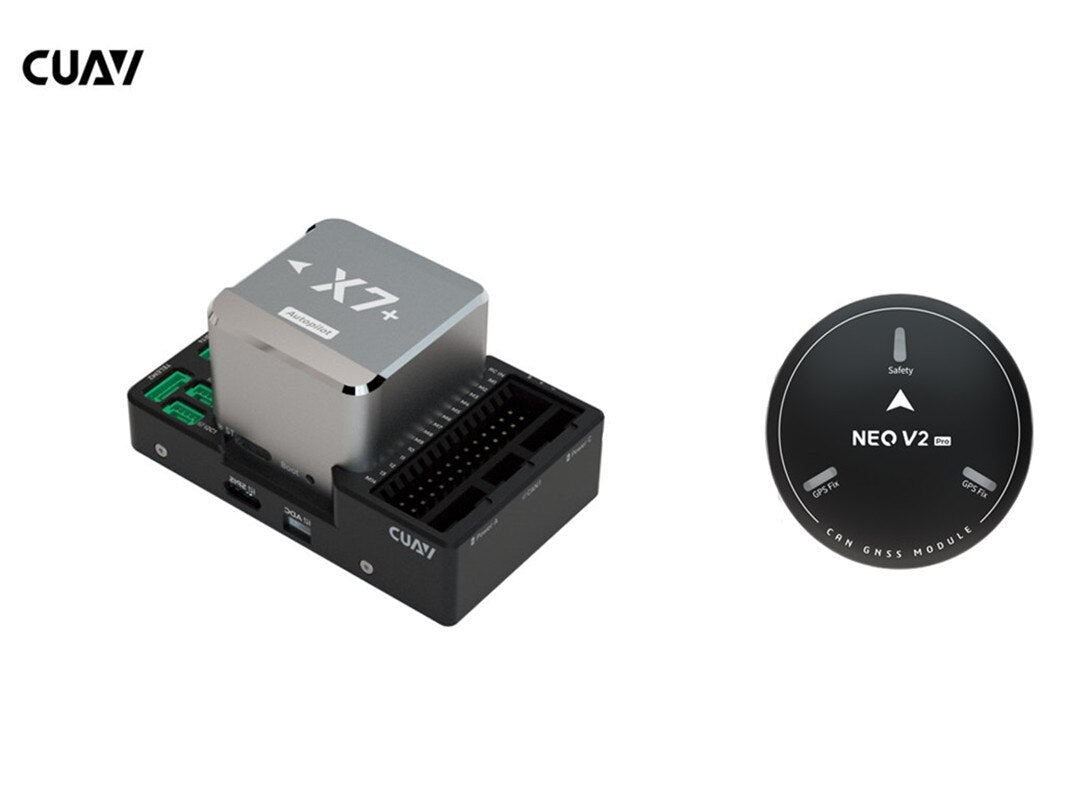

CUAV NEW X7+ Flight Controller NEO V2 3 Pro GPS Pixhawk Open Source PX4 ArduPilot FPV RC Drone Quadcopter Accessories Combo

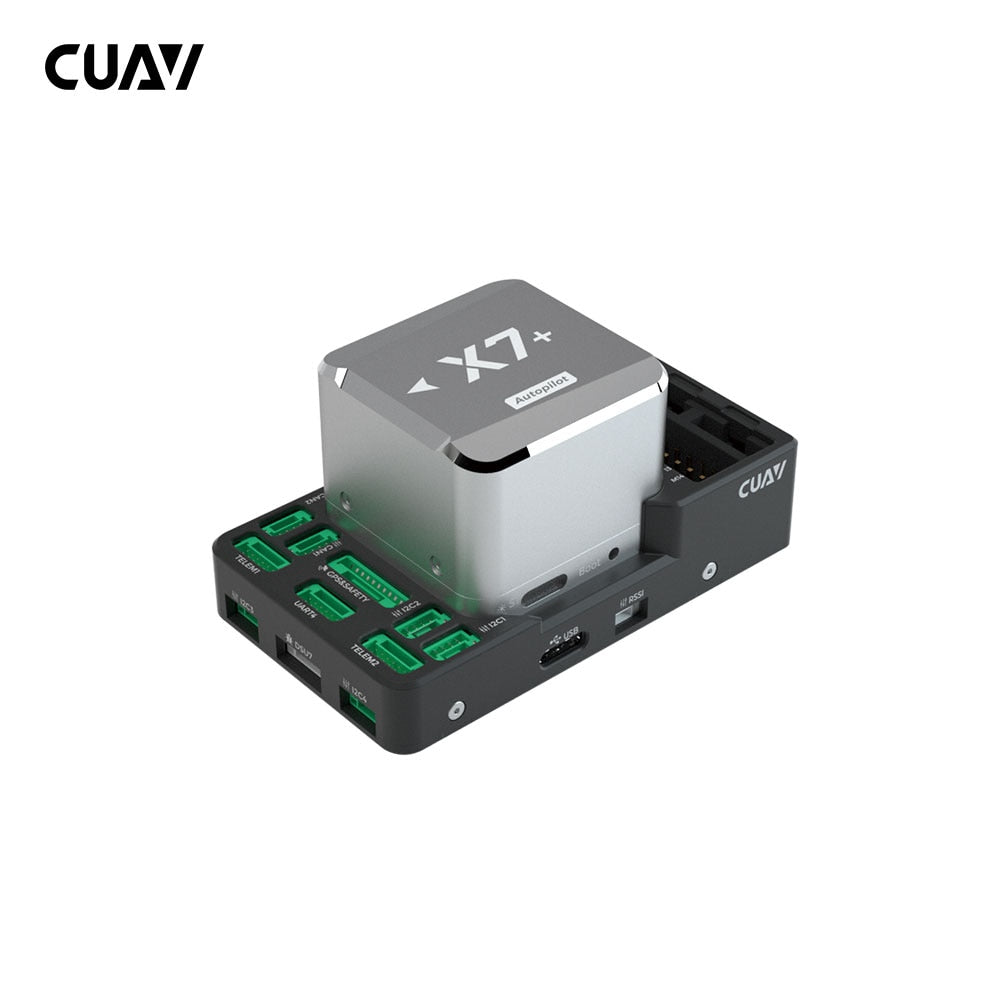

X7+ Introduction :
The X7+ flight controllers are for professional-grade users. The X7+ series features high-end processors,sensors, and industrial-grade compasses, built-in CAV’s patented shock absorption design and temperature compensation system, with processing speeds up to 480MHz, 1M memory, and 2M flash memory. The X7+ series has better stability and immunity to interference.
X7+ Autopilot Features:
1 –Built-in shock absorption
2 –3 sets of Imus support intelligent failover
3 –Support temperature compensation
4 –Support CAN ammeter
5 –Modular design, support custom baseboard

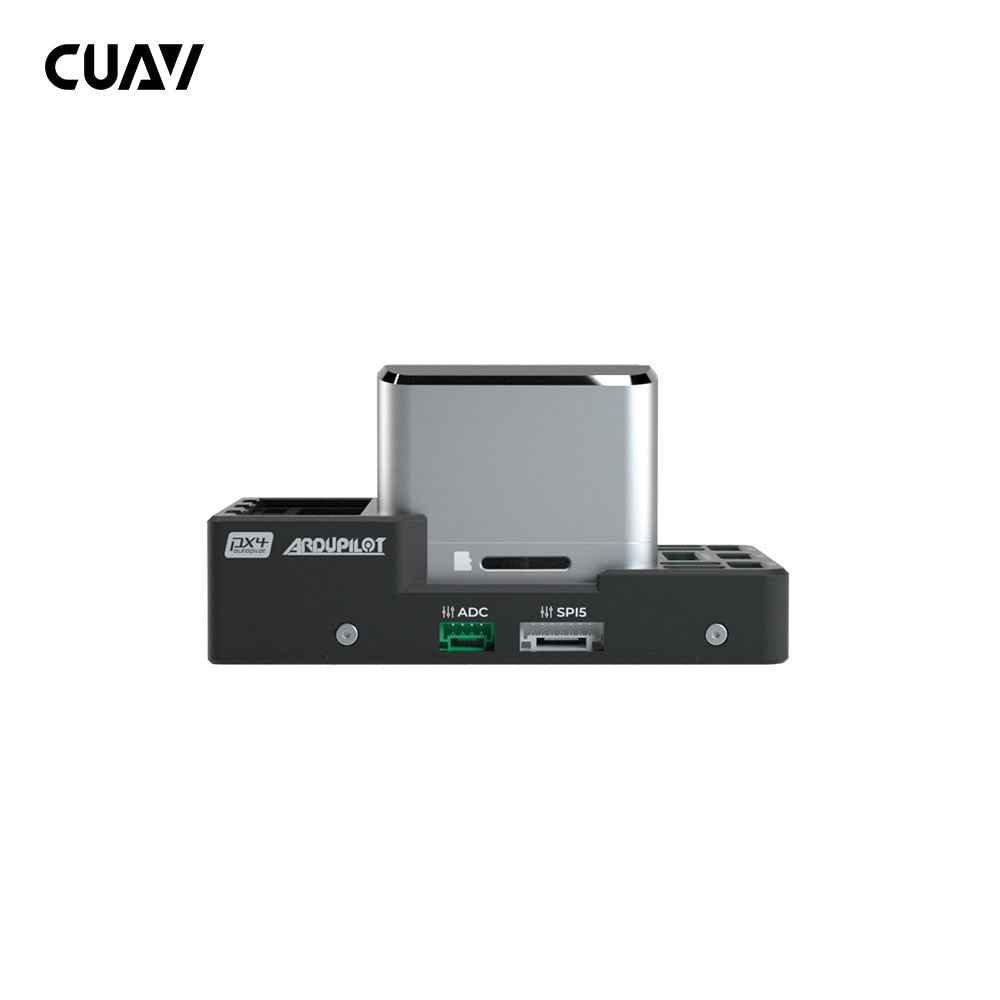

Specifications: Processor – STM32H743/753, Frequency – 480MHz, Flash Memory – 2MB, RAM – 1MB; Sensor suite includes: ICM-42688-P accelerometer and gyroscope, RM31OO compass, MS5611 barometer; Communication interfaces include: 2 UARTs, 6 I2C channels (with 2 dedicated for GPS/Safety/UART4), CAN bus 2, ADC input (supports 6.6V/3.3V), and SPI/PWM output 14 (including MIM12 support for DSHOT).
The X7+ autopilot utilizes an STM32H743 series processor with a Cortex-M7 core, which allows for an increased operating frequency of up to 48MHz and provides 2MB of flash memory and 1MB of RAM, thereby meeting the higher computing demands required by flight controllers.
The ICM-42688-P sensor boasts a significant reduction in noise figure, with a 40% decrease. Additionally, its temperature stability has been improved by a factor of two.
The CUAV X7+ Flight Controller continuously monitors data from multiple sensors in real-time, and upon detection of a failure, it instantly performs redundant switching to ensure improved flight safety.
The CUAV X7+ Flight Controller features a built-in high-precision sensor temperature compensation system, ensuring that the sensors operate at a consistent temperature. This allows the sensors to function with exceptional stability, precision, and sensitivity across a wide range of temperatures, from high to low.
The CUAV X7+ Flight Controller features an integrated CORE module that combines the main Microcontroller Unit (MCU) and Inertial Measurement Unit (IMU), allowing for standalone usage. Additionally, this architecture enables users to design custom baseboards tailored to their specific needs and requirements.
CUAV has patented its advanced shock absorption system, which has undergone extensive testing and verification through the evaluation of hundreds of materials. This rigorous process involved numerous iterations, including computer modeling analysis and thousands of flight tests to ensure optimal performance and reliability.
Firmware and model support includes i+ DUTOPiOT ARDUINO1 PX4 ArduPilot, with compatibility extending to all copter, plane, helicopter, VTOL unmanned vehicle, and rover models.

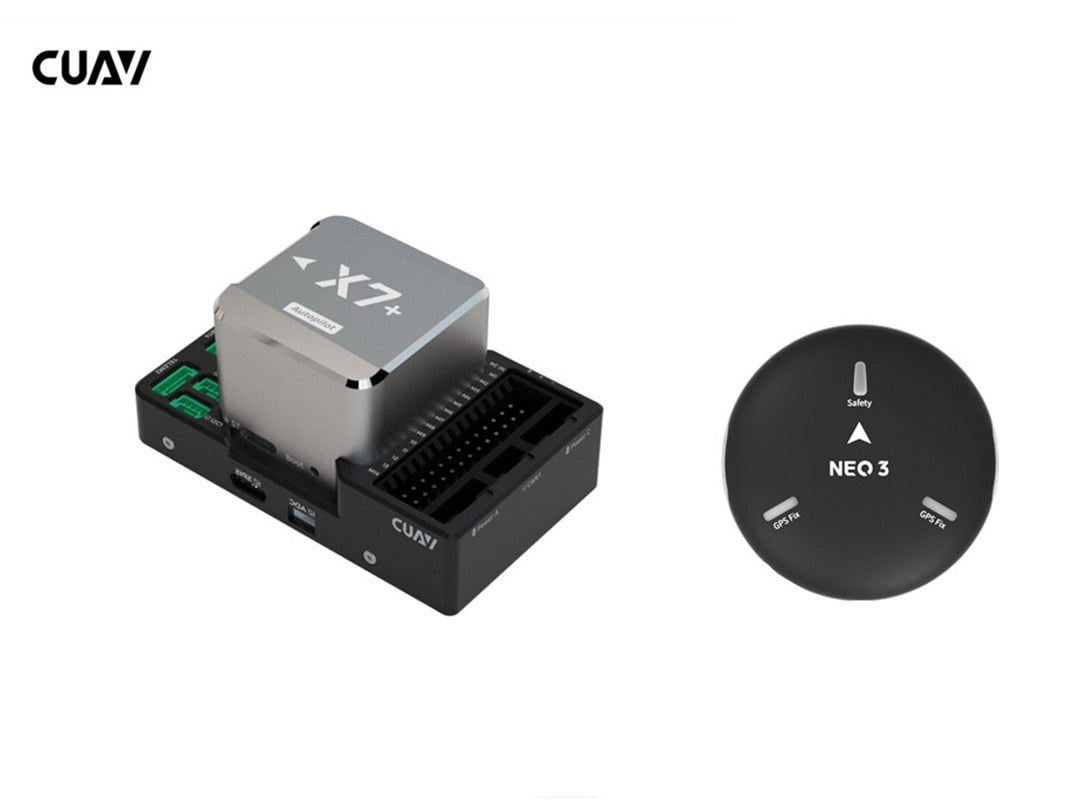

X7+ with NEO 3 GPS

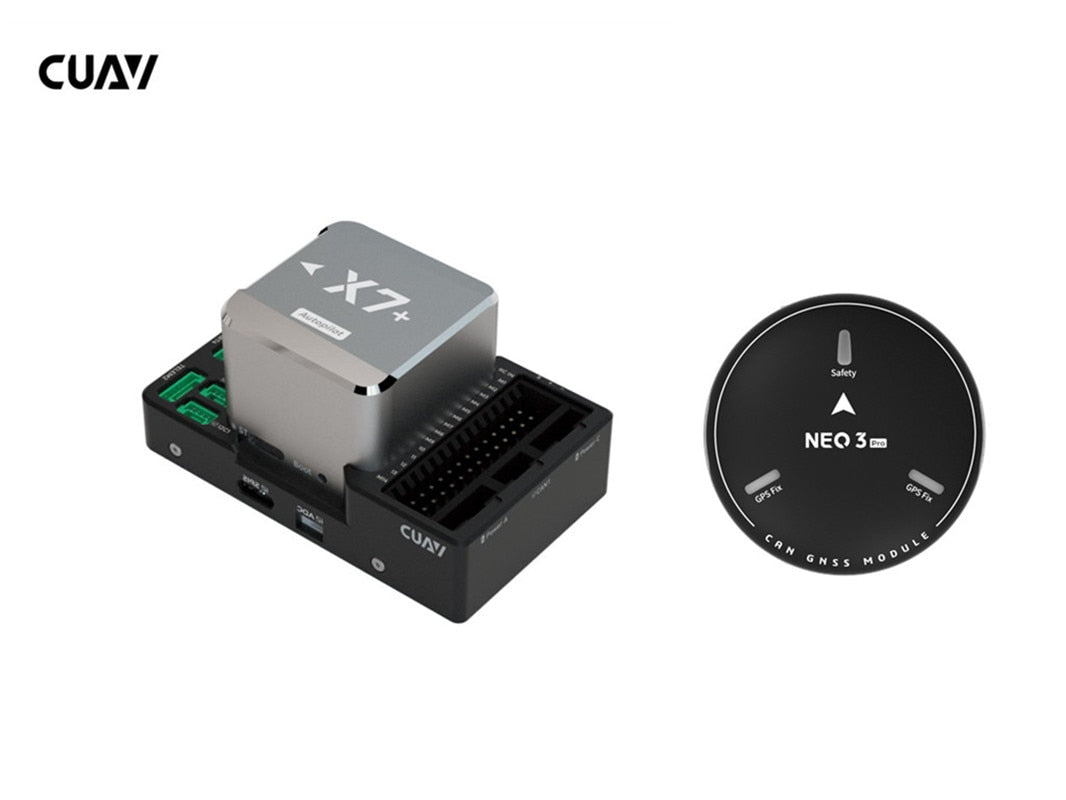

X7+ with NEO 3 pro GPS
