CUAV H16 MIPI Camera SPECIFICATIONS
Wheelbase: Bottom Plate
Use: Vehicles & Remote Control Toys
Upgrade Parts/Accessories: Hydraulic Transmission Box
Tool Supplies: Assembly Category
Technical parameters: KV1100
Size: 272*183*94mm
Remote Control Peripherals/Devices: Remote Controller
Recommend Age: 12+y
RC Parts & Accs: Radio Systems
Quantity: 1 pcs
Origin: Mainland China
Model Number: H16 camera
Material: Metal
Four-wheel Drive Attributes: Shell/Chassis/Wing/Head
For Vehicle Type: Airplanes
Certification: CE,FCC
Brand Name: CUAV

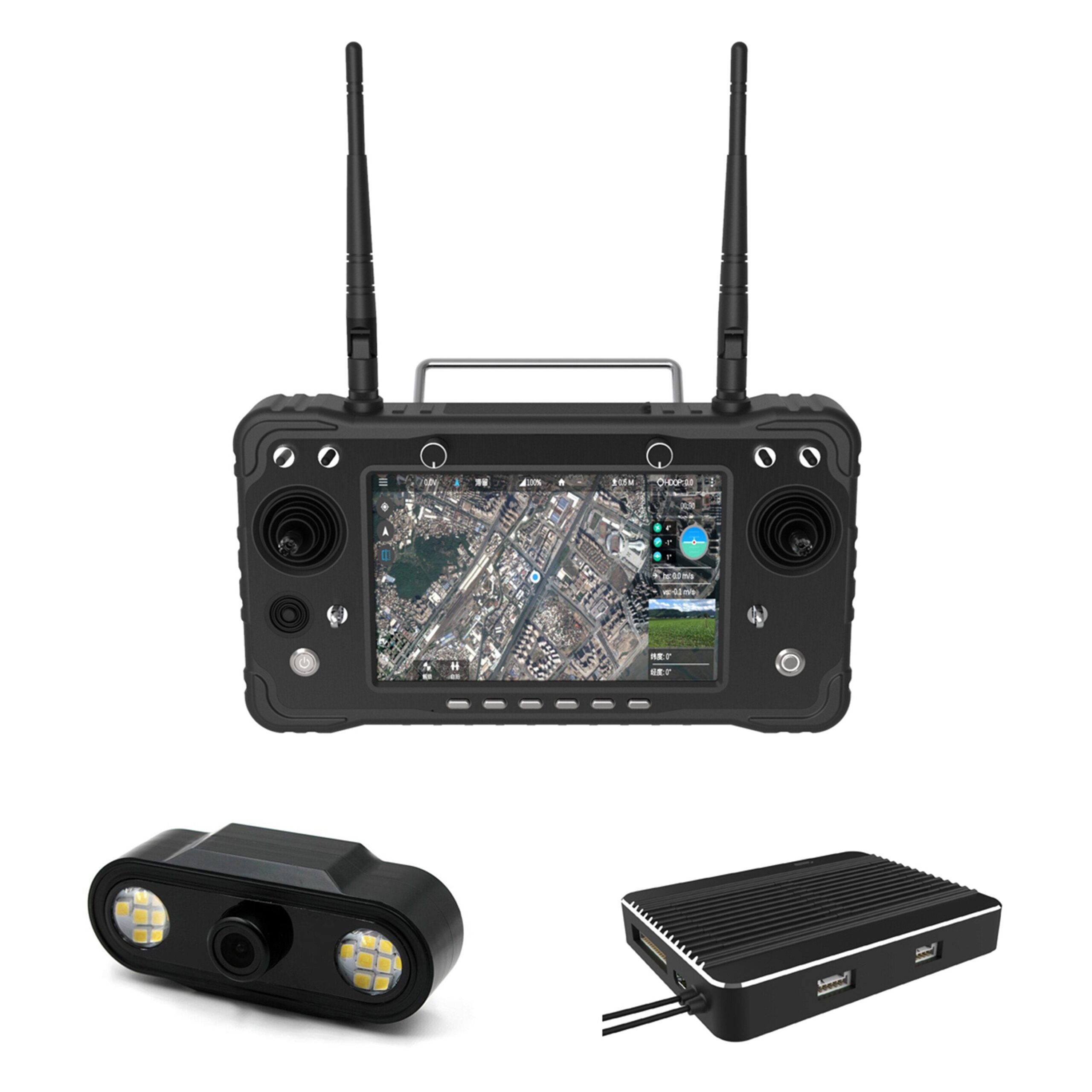

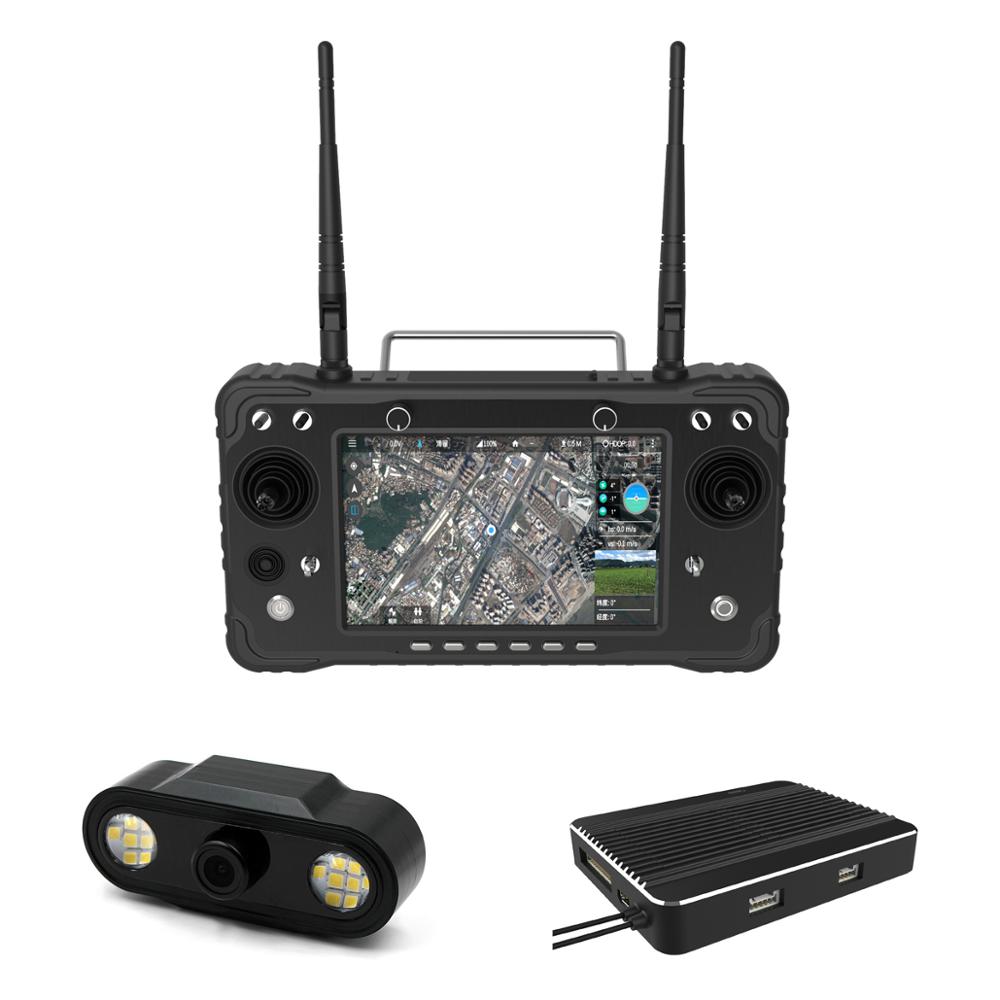

CUAV H16 MIPI Camera 2.4GHz 1080P Digital Video Data Transmission Telemetry Transmitter w/ R16 Receiver
![CUAV H16 MIPI Camera 2.4GHz 1080P Digital Video Data Transmission Tele](https://rcdrone.top/cdn/shop/files/H1c41d0ca4419437487e4b7650d473cc90.webp?v=1714982023)
![CUAV H16 MIPI Camera 2.4GHz 1080P Digital Video Data Transmission Tele](https://rcdrone.top/cdn/shop/files/Hb3db6cc6d70847a8b270a09c4699bfa1R.webp?v=1714982035)
![CUAV H16 MIPI Camera, H16/H16 Pro 108OP uses an Android embedded system and advanced SDR technology](https://rcdrone.top/cdn/shop/files/H6ba9d43fb89949a9813186be16f51505g.webp?v=1714982053)

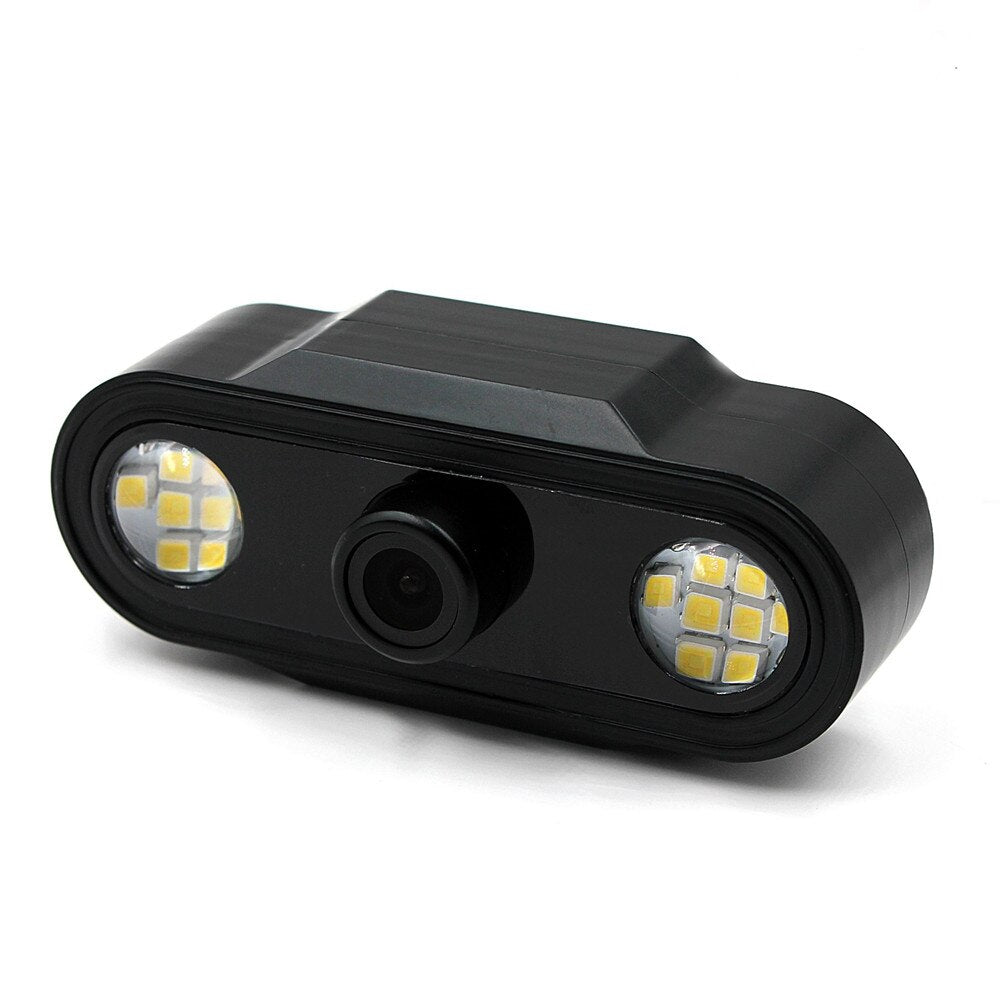

The CUAV H16 MIPI camera features a high-performance processor and an Android-based embedded system, along with advanced software-defined radio (SDR) technology. Its IP67 design ensures excellent performance in harsh environments, featuring waterproof, dust-resistant, and drop-resistant materials and construction to provide a great user experience and exceptional durability.
The CUAV H16 MIP camera features 1080P FHD digital video transmission, offering high brightness, longer endurance, and an open SDK protocol for unmanned industry applications. It supports special Android system transmission and has super range, expansibility, and stability.
The gimbal joystick provides a convenient, two-dimensional control interface that allows for effortless and intuitive flight operation, much like second nature.
The CUAV H16 MIP camera features a 7-inch IPS high-brightness display with a clear and high-resolution screen that provides optimal visibility even in direct sunlight.
The CUAV H16 MIP camera features an exterior construction that combines weather-resistant silica gel, frosted rubber, stainless steel, and aviation aluminum, providing an extreme operating experience. The fuselage is designed with dust-free and waterproof components, including control switches and various peripheral interfaces.
The product features a rich ground-end interface with coach PPM input/output capabilities, an RJ45 network interface for long-distance connection to internal networks, as well as a high-speed USB interface compatible with Android devices. The OTG MHL interface enables connections to U-disks and network cards, among other devices. Additionally, the product includes an expanded TF card slot capable of handling 9V/3A PPM output.
Equipped with dual antennas, this system boasts super-strong signals and an ultra-long transmission distance, enabling reliable communication even in weak signal environments.
The H16 module features a rugged design that is both dust-free and waterproof, allowing it to operate reliably in harsh environments. Its robust construction ensures stable and smooth performance even when exposed to splashes or other forms of liquid ingress.
The CUAV H16 MIP camera supports high-definition digital video transmission with multiple interfaces, including HDMI, RJ45, sensor interface, and dual serial pass-through transmission. Additionally, it offers SBUS support for connecting multiple cameras, gimbals, air pods, and other video equipment. This device also enables seamless integration with prevailing flight controllers’ ground stations, as well as compatibility with QGC software and wireless RTSP video streaming for easy sharing.
The ground station app has undergone significant optimization based on QGC, offering an improved interactive interface for CUAV H16 MIPI Camera users. The aircraft features intelligent waypoint planning with automated execution and follow-up capabilities.
The CUAV H16 MIP camera supports transmission distances up to 20-30 kilometers, with features including one MIPI interface, three HDMI outputs, a Type-C TF card slot, eight SET buttons, internet connectivity, and BAT+SBUS functionality.
2ODB@CE/Z3DB@FCC Bandwidth 2OM Endurance 6-20h Frequency hopping FHSS Upgrade Online upgrade Install app support QGC version Official Universal Edition Material plastic Screen size 7inch Screen type LCD Resolution 1920*1200 Brightness 2ooOnit Rc size 272*183*94mm Battery .
CUAV H16 Sky End Module Weight: 90g, Length: 79mm; Height: unknown. CUAV H16 Remote Controller Weight: 1034g, Length: 183mm, Height: 272mm.

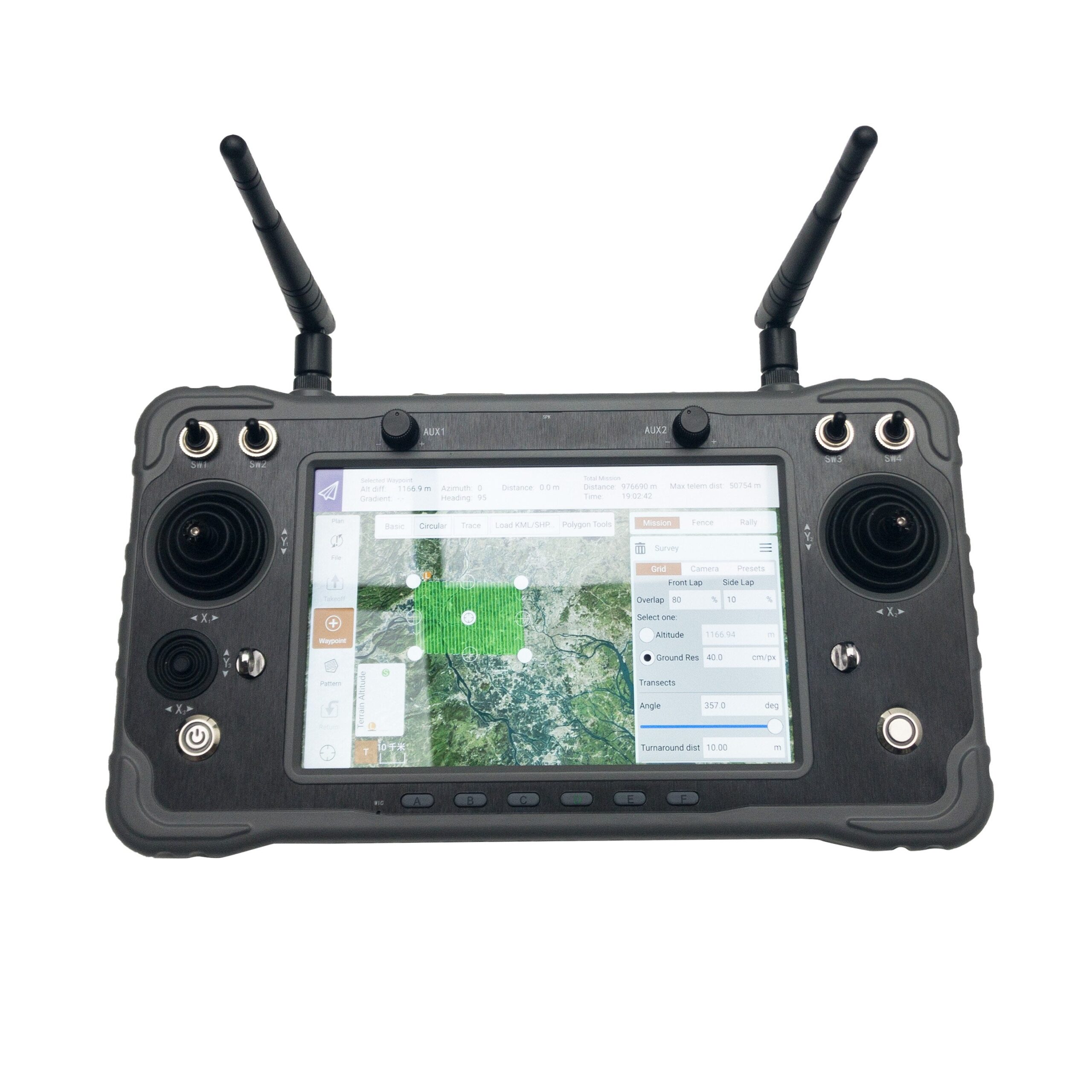

Select one: Altitude 1,166 meters (94 waypoints) from ground level, with a distance of 40 cm above the terrain. The angle is 357 degrees, with a turnaround point at approximately 104.7 degrees, having a difference of 10 km in distance.
The package includes: CUAV H16 Mipi Camera, Remote Controller (for Pixhack/V5), HL6 Pro X1, Sky End X1, Charger X1, MIPI Camera Suitcase X2, Network Cable, and Type-C Cable X1.
This package includes: H16 Remote Controller (compatible with Pixhawk), H16 Pro X1, H16 Sky Endxl Charger X1, MIPI Camera X1, Suitcase X1, Power Bus Cable X1, Language Yard X1, Antenna Holder X2, and Network Cable X1.
The H16-X7 N5 series autopilot system includes cables such as XL power bus, V5 series X1 Langyard, antenna holder (x2), network cable, and Type-C cable for VS+/VS Nano.
H16 Remote Controller, designed for use with X7 Pro or Nora systems, includes a H16 Sky End XL charger, MIPI camera, suitcase, and various cables such as an autopilot cable (N5 series), power/sbus cables, langyard antenna holder, and Type-C cable.
