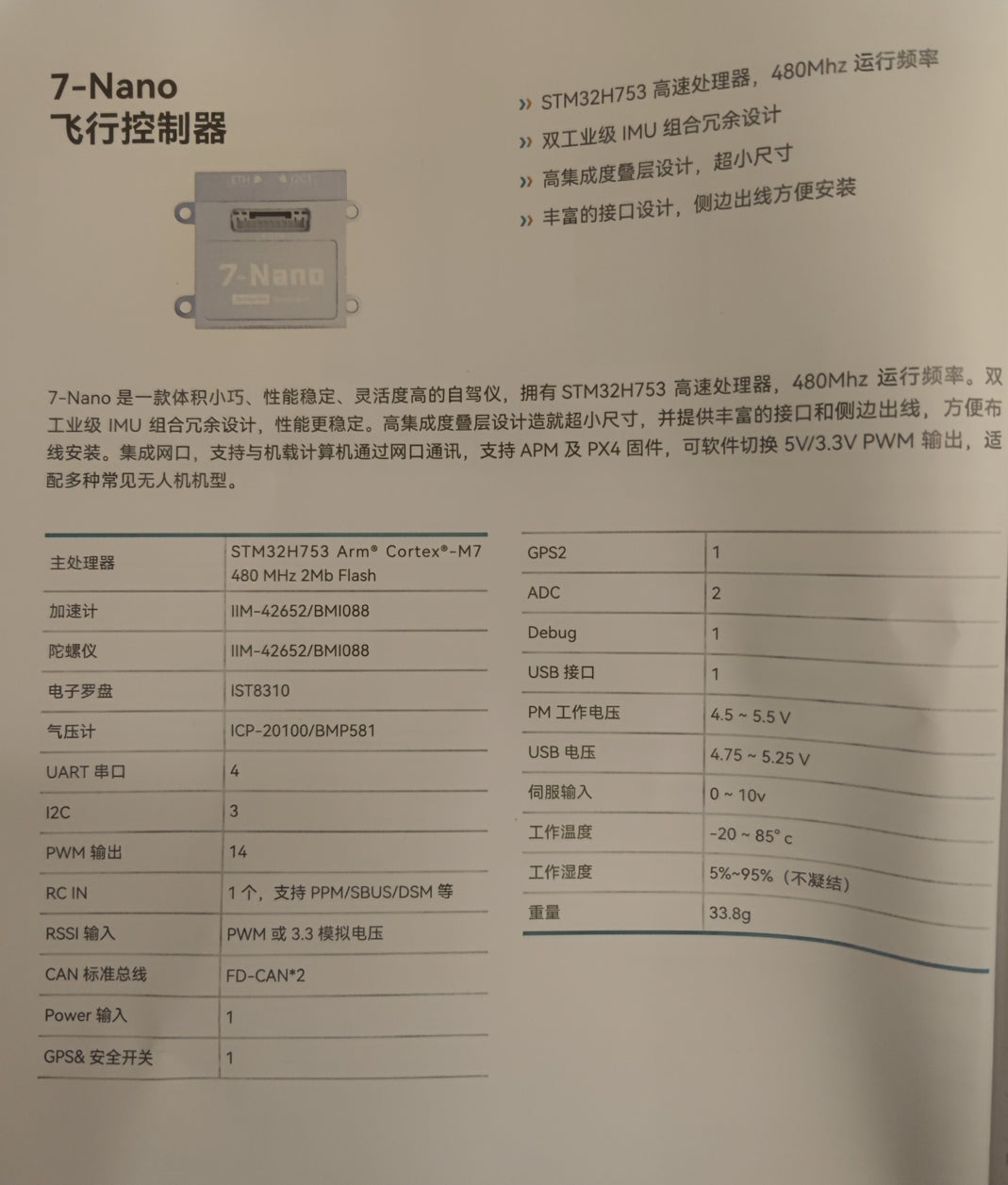

CUAV 7-Nano Autopilot Specifications
| Component | Details |
|---|---|
| Processor | STM32H753 Arm® Cortex®-M7 |
| Flash Memory | 480 MHz, 2MB Flash |
| Accelerometer | IIM-42652/BMI088 |
| Gyroscope | IIM-42652/BMI088 |
| Magnetometer | IST8310 |
| Barometer | ICP-20100/BMP581 |
| UART Ports | 4 |
| I2C Ports | 3 |
| PWM Outputs | 11 (supports PPM/SBUS/DSM etc.) |
| RC Input | 1 |
| RSSI Input | PWM 3.3V analog voltage |
| CAN Ports | FD-CAN*2 |
| Power Input | PM interface, 4.5 – 5.5V |
| USB Interface | 1 (PM USB voltage: 4.75 – 5.25V) |
| Analog Inputs | 1 (0 – 10V) |
| GPS & Safety Switch | 1 |
| GPS2 | 1 |
| ADC Ports | 2 |
| Debug Interface | 1 |
| Operating Temperature | -20 to 85°C |
| Operating Humidity | 5% – 95% (non-condensing) |
| Weight | 33.8g |
Â
Note: The price is not the real price. If you want to buy, please send us a message/email.
CUAV 7-Nano Autopilot Features
- High-Speed Processor: Equipped with STM32H753 high-speed processor, operating at 480MHz.
- Dual Industrial-Grade IMU: Integrates dual industrial-grade IMU for enhanced redundancy.
- Compact Design: High integration density in a compact and ultra-small size.

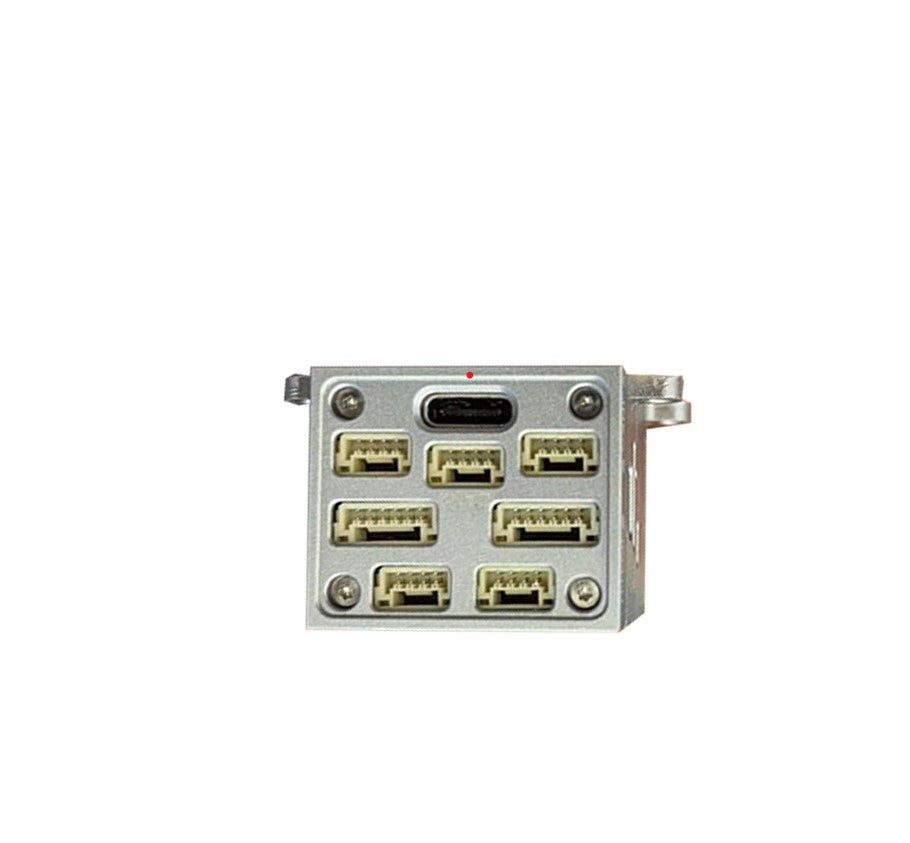

- Rich Interface Design: Abundant interfaces for easy side installation.
Â

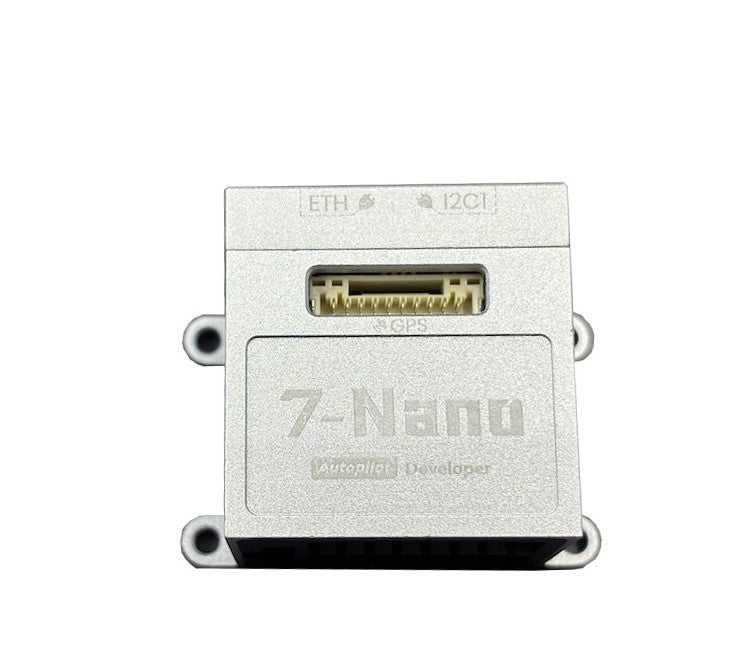

The CUAV 7-Nano is a compact, high-performance autopilot, featuring the STM32H753 high-speed processor with a 480MHz operating frequency. It integrates dual industrial-grade IMUs for redundancy and high integration density in a compact and ultra-small size. The autopilot boasts abundant interface options for convenient side installation, making it suitable for various applications, including APM and PX4 flight controllers. It supports a wide range of input and output options, ensuring flexibility and reliability in diverse environments.
