features：
| ●Day and night | ●Blacklight |
| ●1500TVL | ●Super WDR |
| ●4.5V-27V | ●FOV125° |
Bullet Points:
Featuring a blacklight technology, Ratel Pro displays real color images during the day and displays to black-and-white visuals at night, ensuring optimal visual performance in diverse lighting conditions.
Ratel Pro delivers excellent daytime clarity, setting new standards in visual excellence within the analog camera domain.
Using BSI 1/1.8INCH large sensor and enhanced algorithm, the illumination is doubled compared to ordinary night vision cameras. Even in low-light conditions, Ratel Pro achieves outstanding night vision, providing clear and reliable imagery for uncompromised visibility.
Supports WDR, bounteously satisfying the pursuit of detailed shooting whether in bright or dark environments.
Designed with 125° FOV, Ratel Pro offers pilots a natural visual experience during flight, restoring the authenticity of the scenes.
Featuring a metal case, the lightweight design improves durability and heat dissipation.
| Model | Ratel PRO |
| Image Sensor | 1/1.8″ Inch sensor |
| Horizontal Resolution | 1500TVL |
| TV System | NTSC & PAL (changeable) |
| IMAGE | 16:9 & 4:3 (changeable) |
| WDR | Super WDR （HDR) |
| Min. Illumination | 0.00001 lux |
| Lens |
5Mega |
| Color | Black |
| Synchronization | Internal |
| Electronic Shutter | PAL: 1/50~100,000; NTSC: 1/60~100,000 |
| S/N Ratio | >60dB (AGC OFF) |
| Video Output | CVBS |
| OSD manual | Support |
| DNR | 3-DNR |
| FOV | 125° |
| Language | （ENGLISH/中文/繁中文/Русский/ESPANOL/ITALIANO/ FRANCAIS/POLSKIM/ PORTUGUES/日本语） |
| Day/Night | Auto/Color/B&W/EXT |
| Dimensions | 19mm*19mm |
| Wide Power Input | DC 4.5-27V |
| Work Temperature | -20℃~+60℃ |
| Work Humidity | 20%~80% |
| Weight | 9.5g |

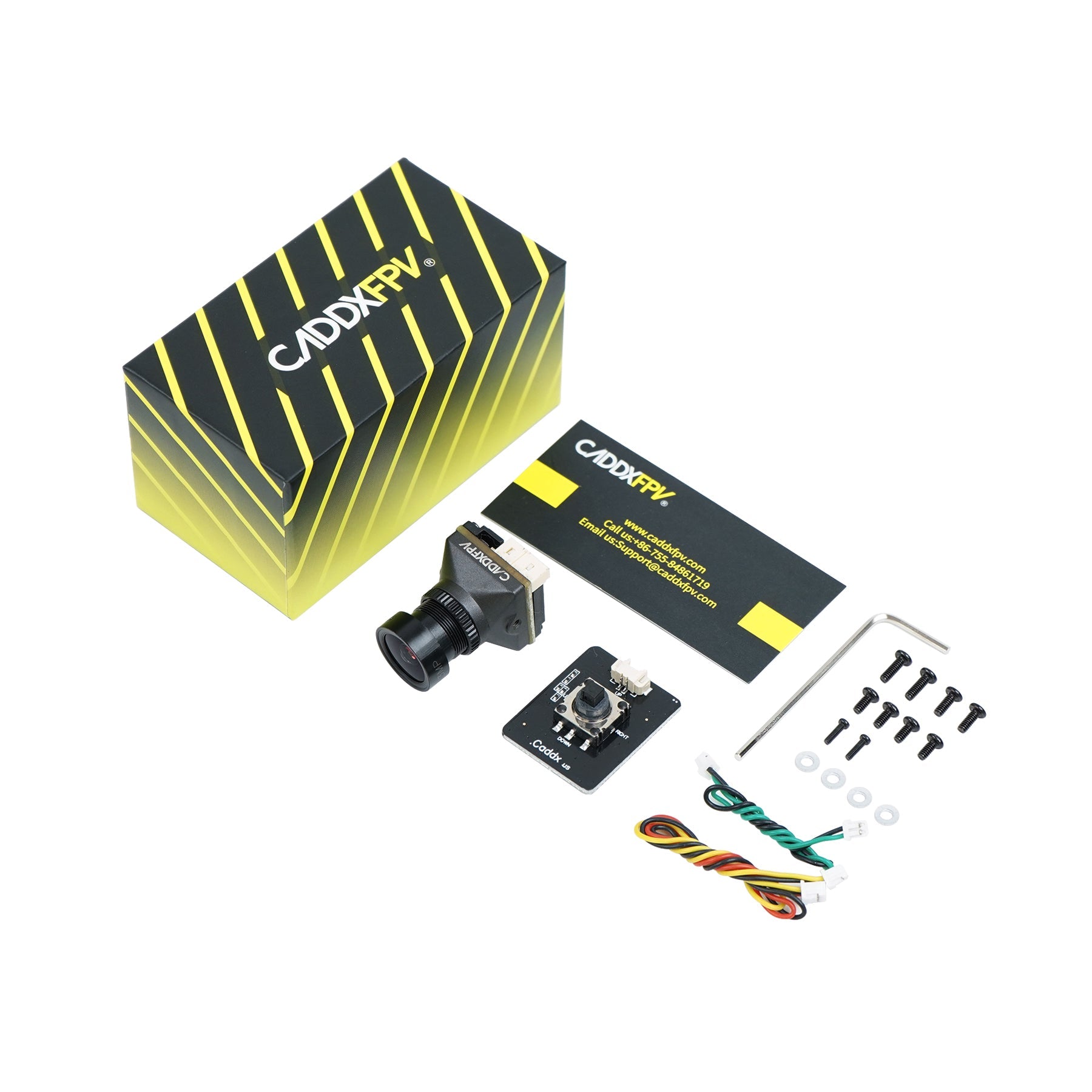

Packing List：
